Curved Glass

USD1077594No. D 1,077,594designGranted 6/3/2025

Patent USD1077594 — Curved glass — Figure 1 — Fig. 1 · Curved Glass

Claims (1)

Claim 1 (Independent)

The ornamental design for a curved glass, as shown and described.

Full Description

Show full text →

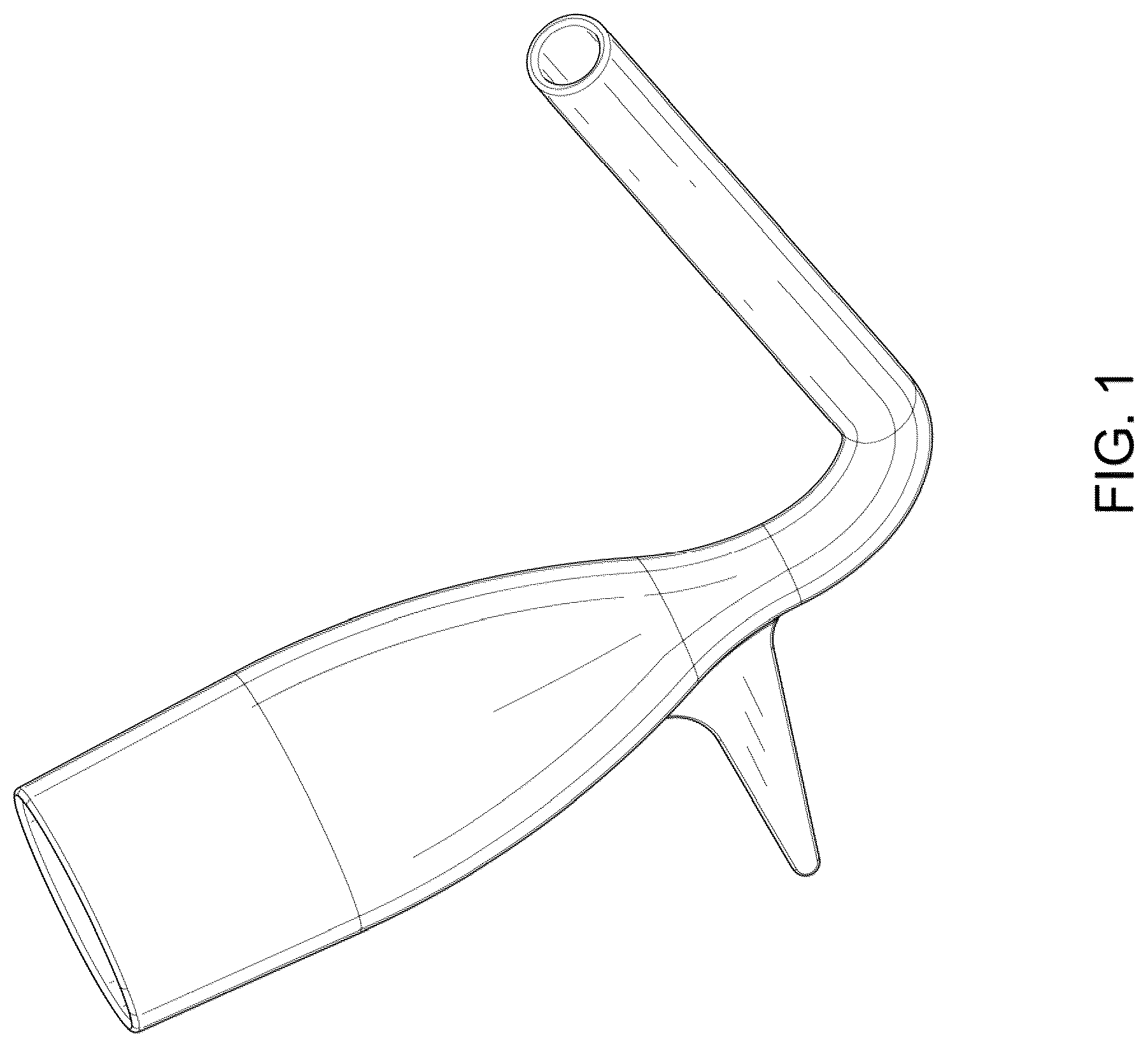

is a top perspective view of a curved glass, showing my new design;

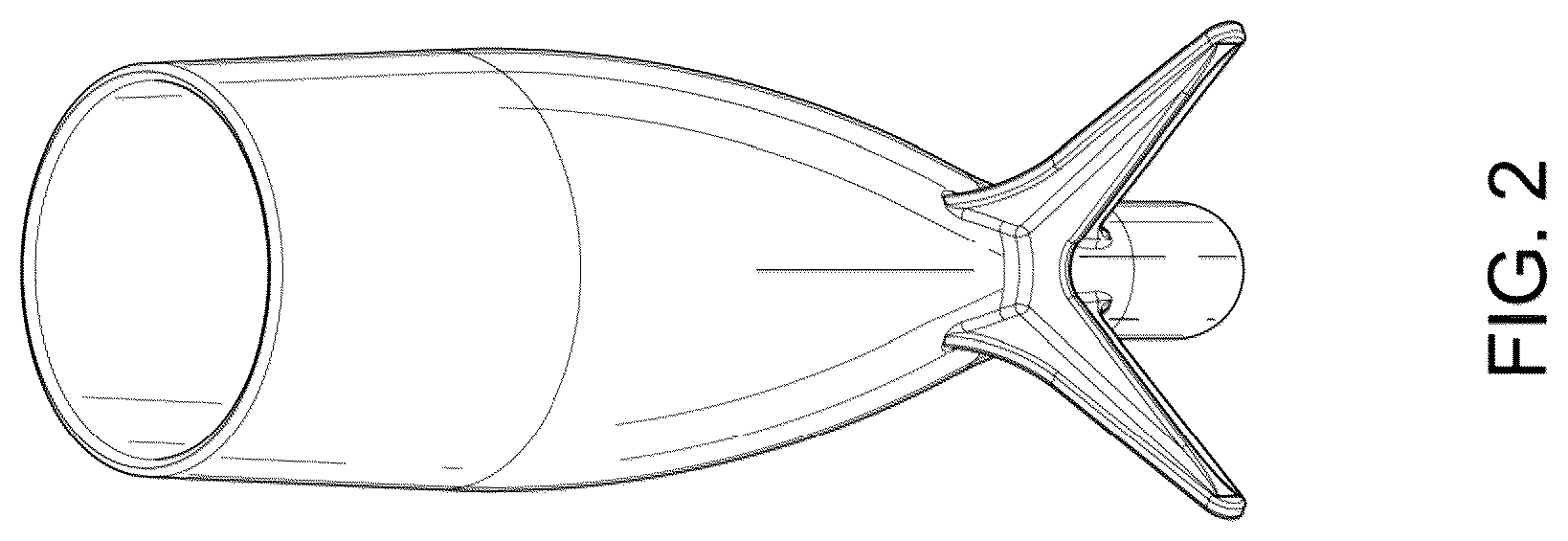

is a front elevational view thereof;

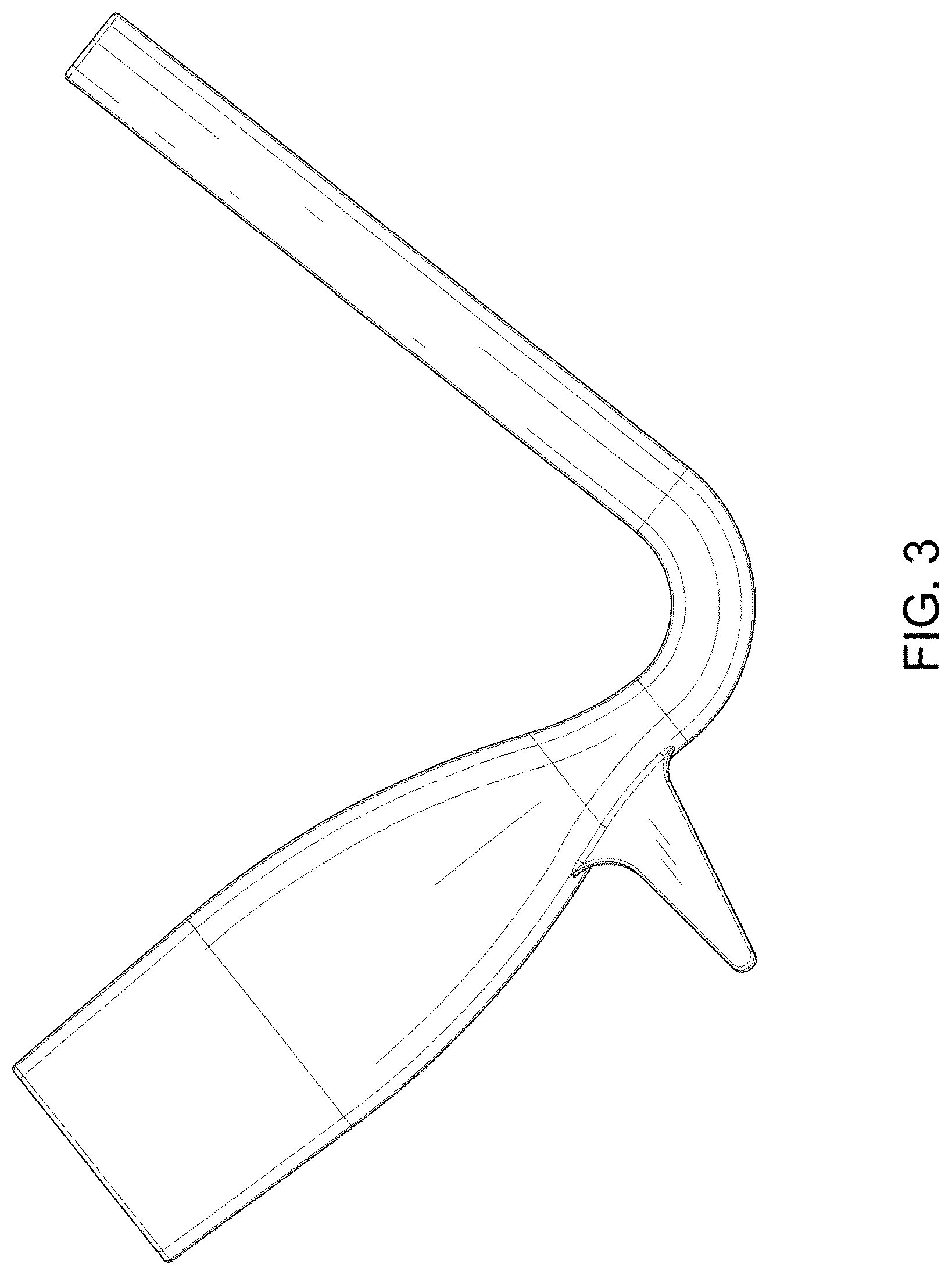

is a side elevational view thereof;

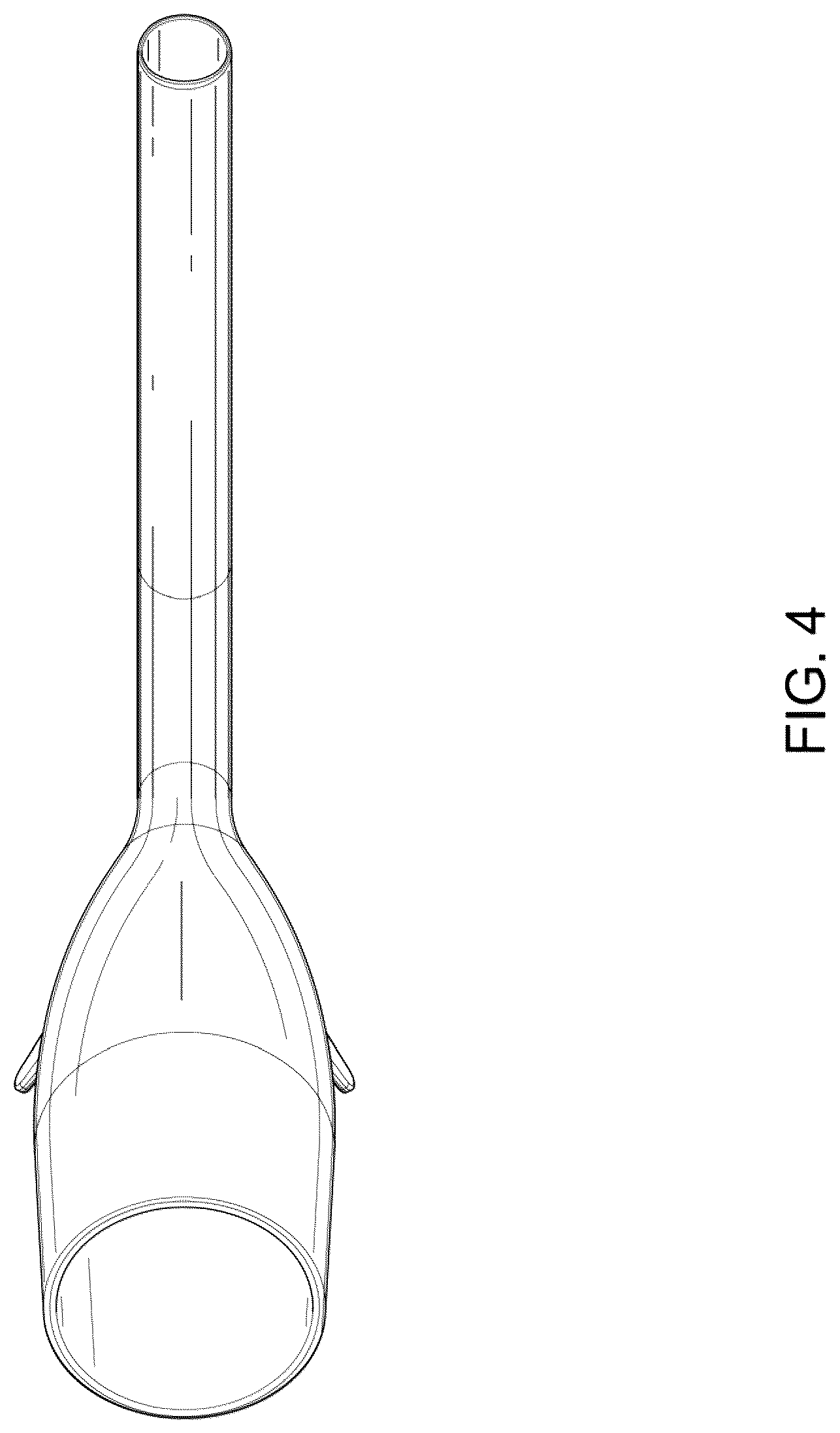

is a top plan view thereof; and,

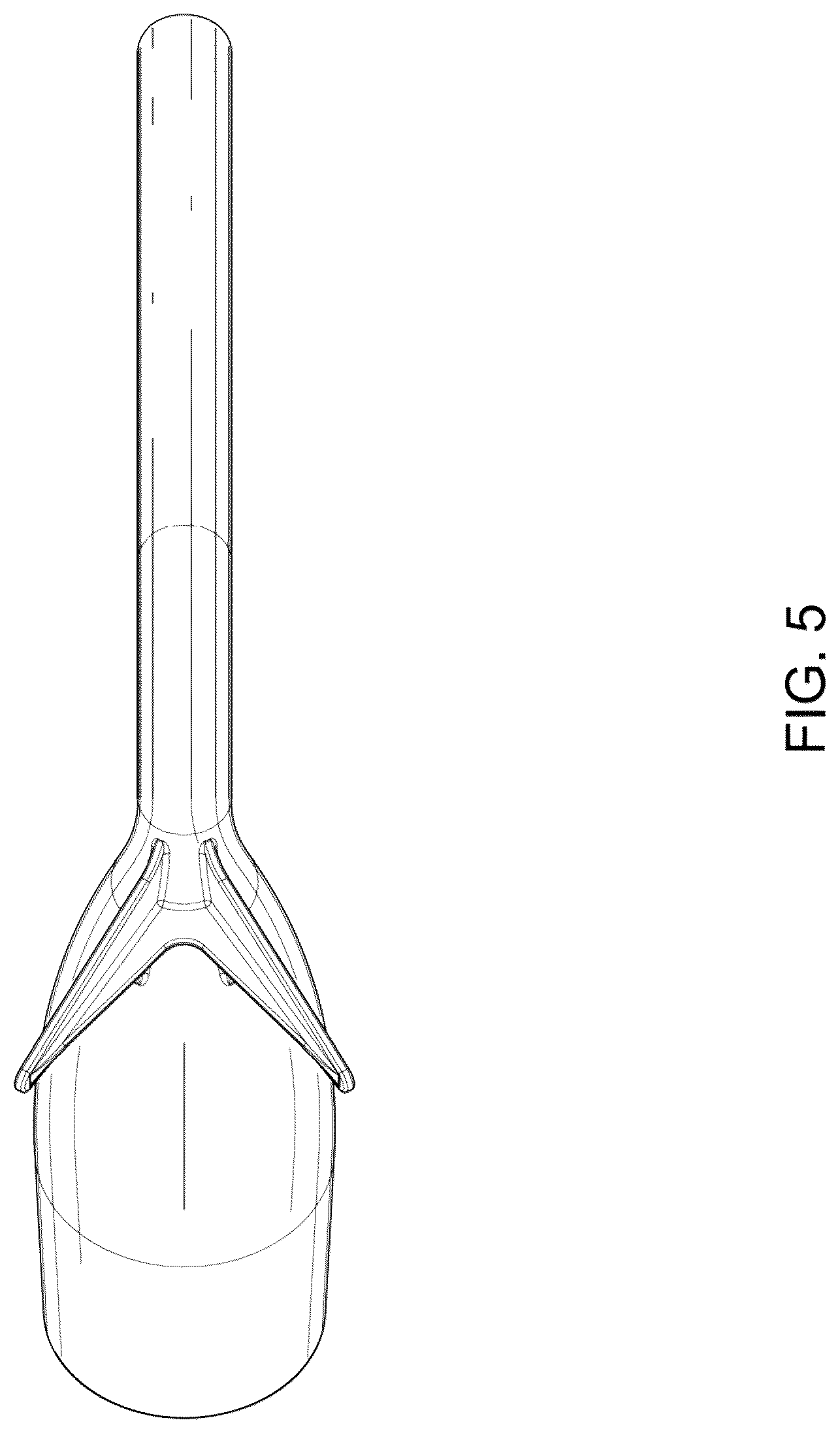

is a bottom plan view thereof.

Figures (5)

Patent USD1077594 Figure 1 – Curved glass — Fig. 1

Patent USD1077594 Figure 2 – Curved glass — Fig. 2

Patent USD1077594 Figure 3 – Curved glass — Fig. 3

Patent USD1077594 Figure 4 – Curved glass — Fig. 4

Patent USD1077594 Figure 5 – Curved glass — Fig. 5
