Meat Fork

USD1077593No. D 1,077,593designGranted 6/3/2025
Patent USD1077593 — Meat fork — Figure 1
Fig. 1 · Meat Fork

Claims (1)

Claim 1 (Independent)

The ornamental design for a meat fork, as shown and described.

Full Description

Show full text →

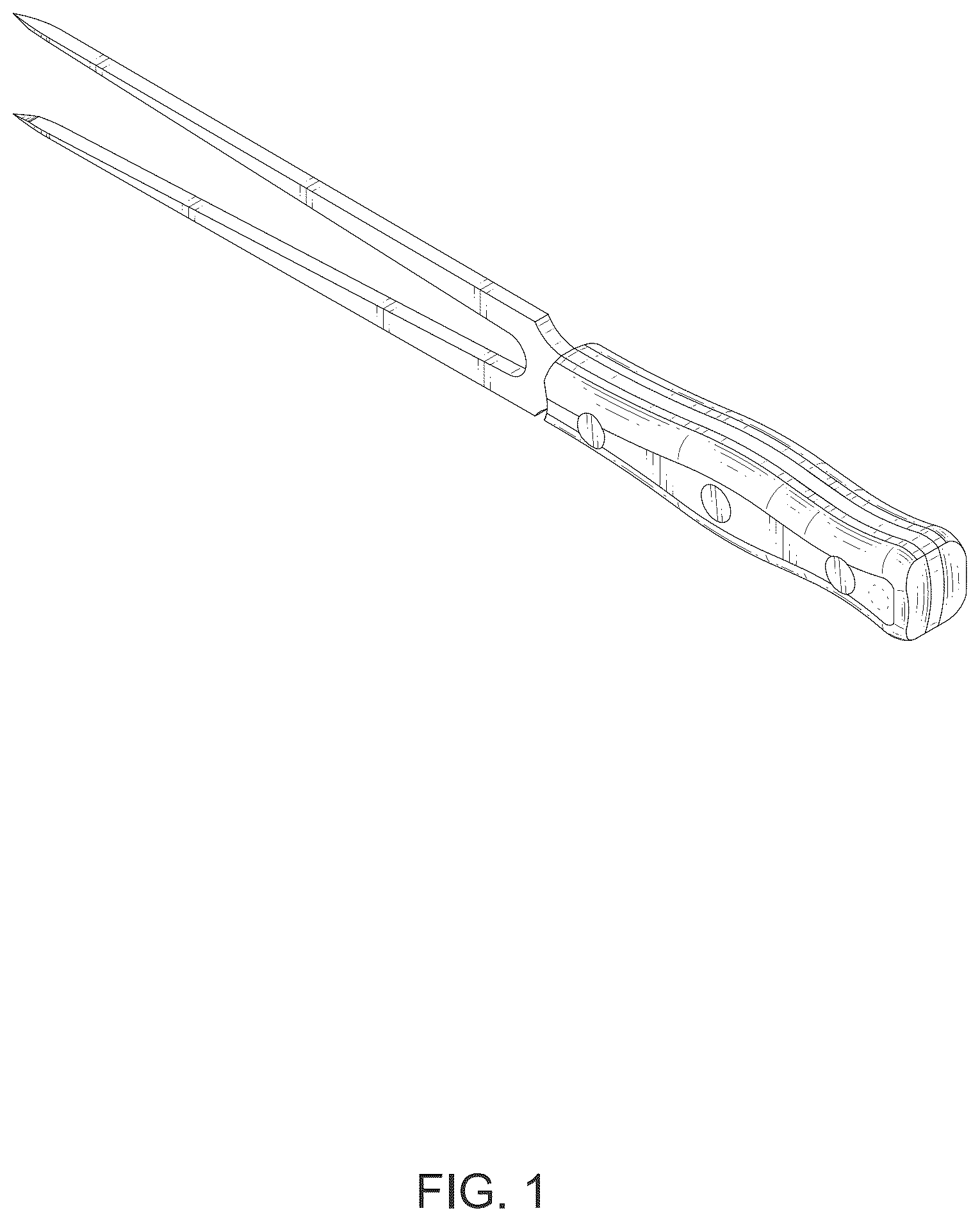

is a top perspective view of a meat fork, showing my new design;

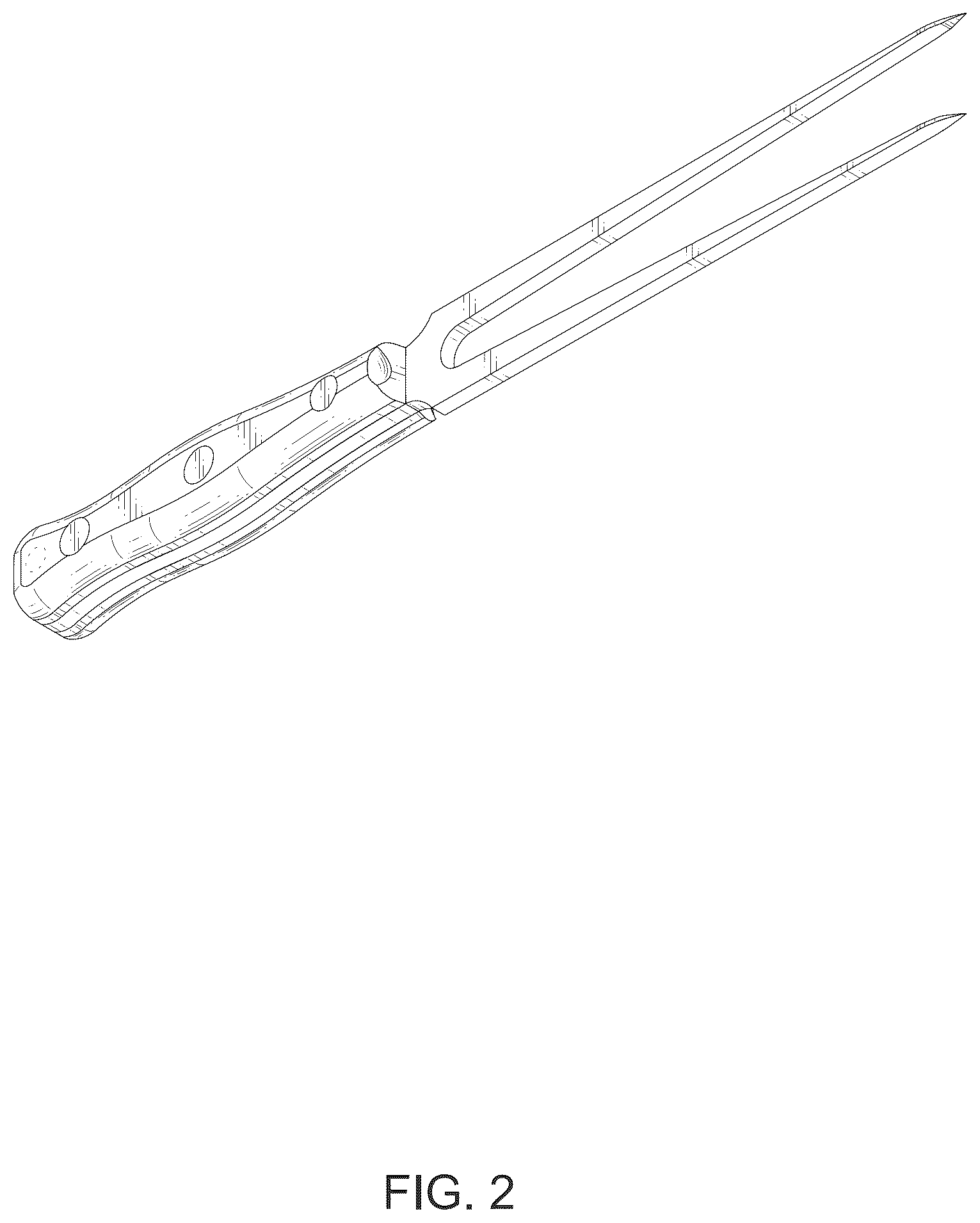

is a bottom perspective view thereof;

is a front view thereof;

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

is a top view thereof; and,

is a bottom view.

The broken lines in the drawings illustrate the portions of the meat fork, which form no part of the claimed design.
