Mobile Phone Case

USD1075734No. D 1,075,734designGranted 5/20/2025

Patent USD1075734 — Mobile phone case — Figure 1 — Fig. 1 · Mobile Phone Case

Claims (1)

Claim 1 (Independent)

The ornamental design for a mobile phone case, as shown and described.

Full Description

Show full text →

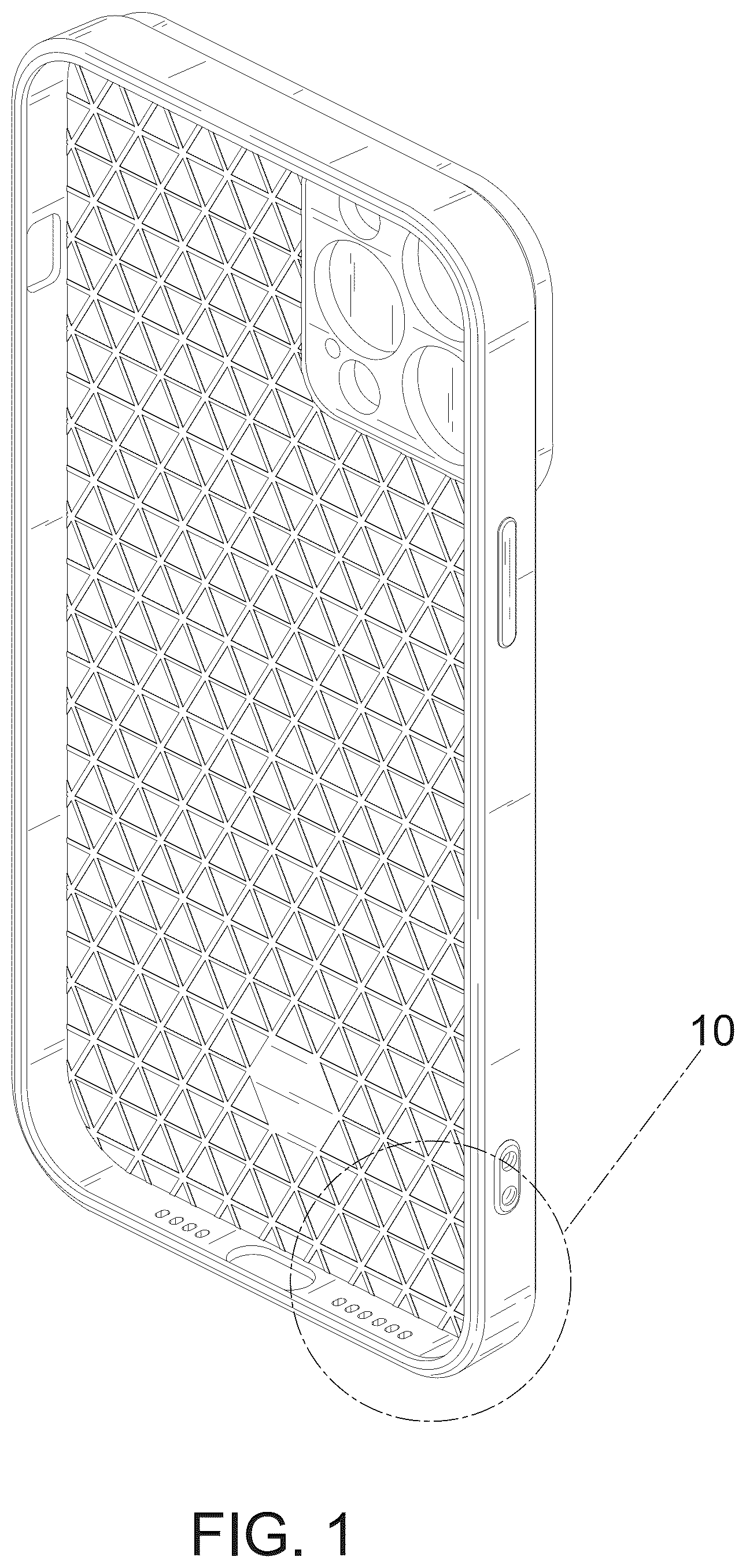

is a front, right and top perspective view of a mobile phone case, showing my new design;

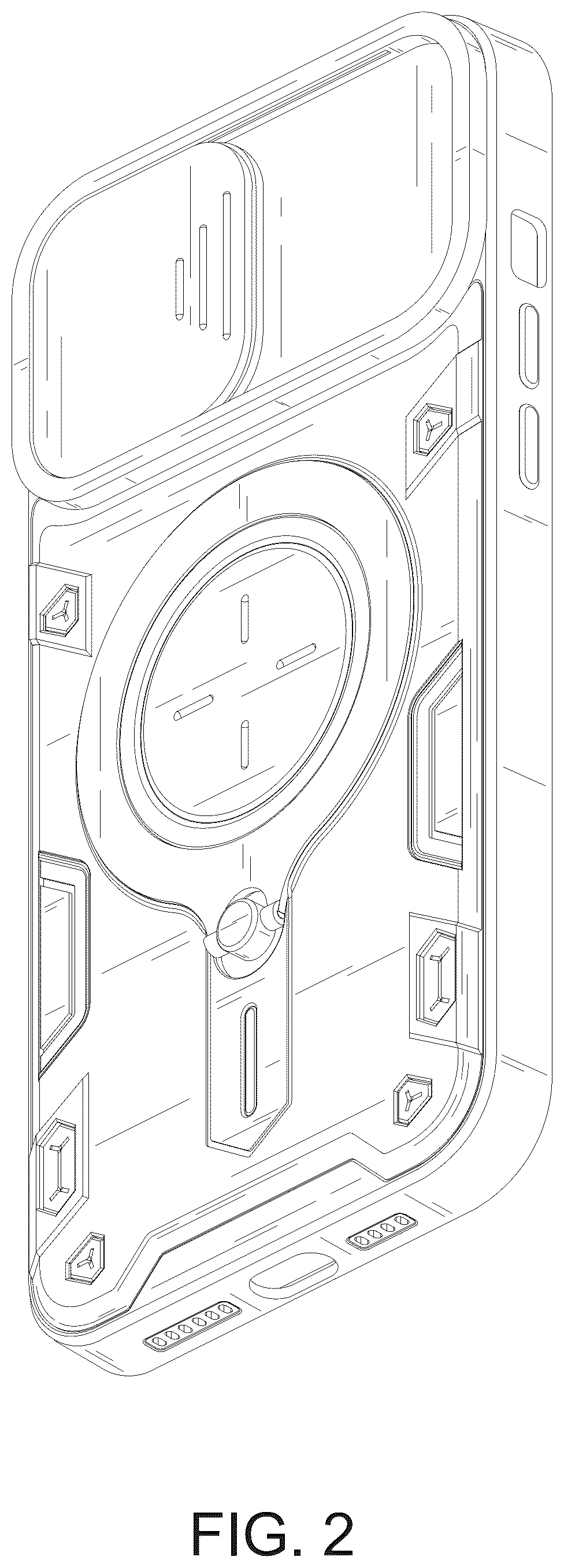

is a rear, left and bottom perspective view thereof;

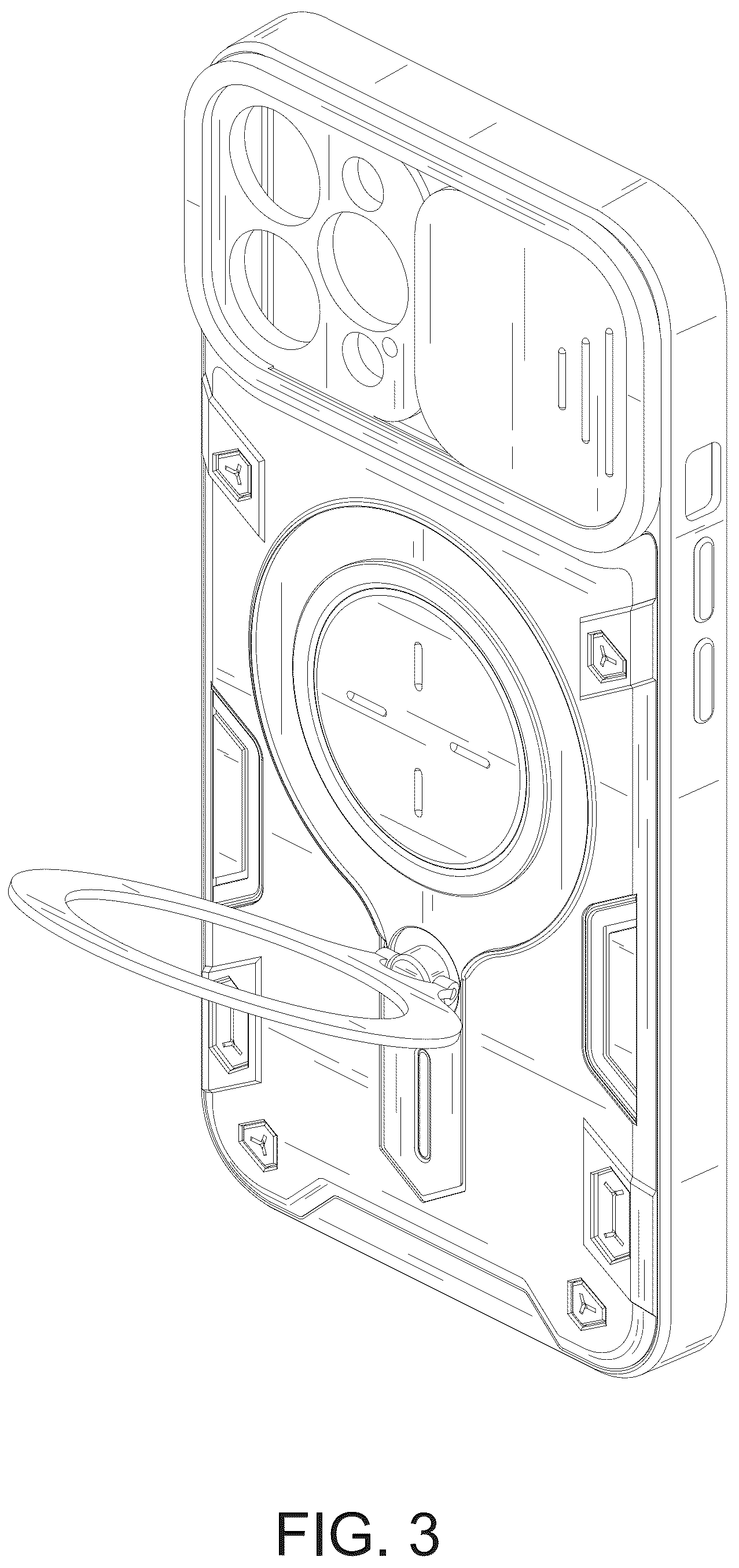

is a rear, left and bottom perspective view thereof, shown in an open configuration;

is a front view thereof;

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

is a top plan view thereof;

is a bottom plan view thereof; and,

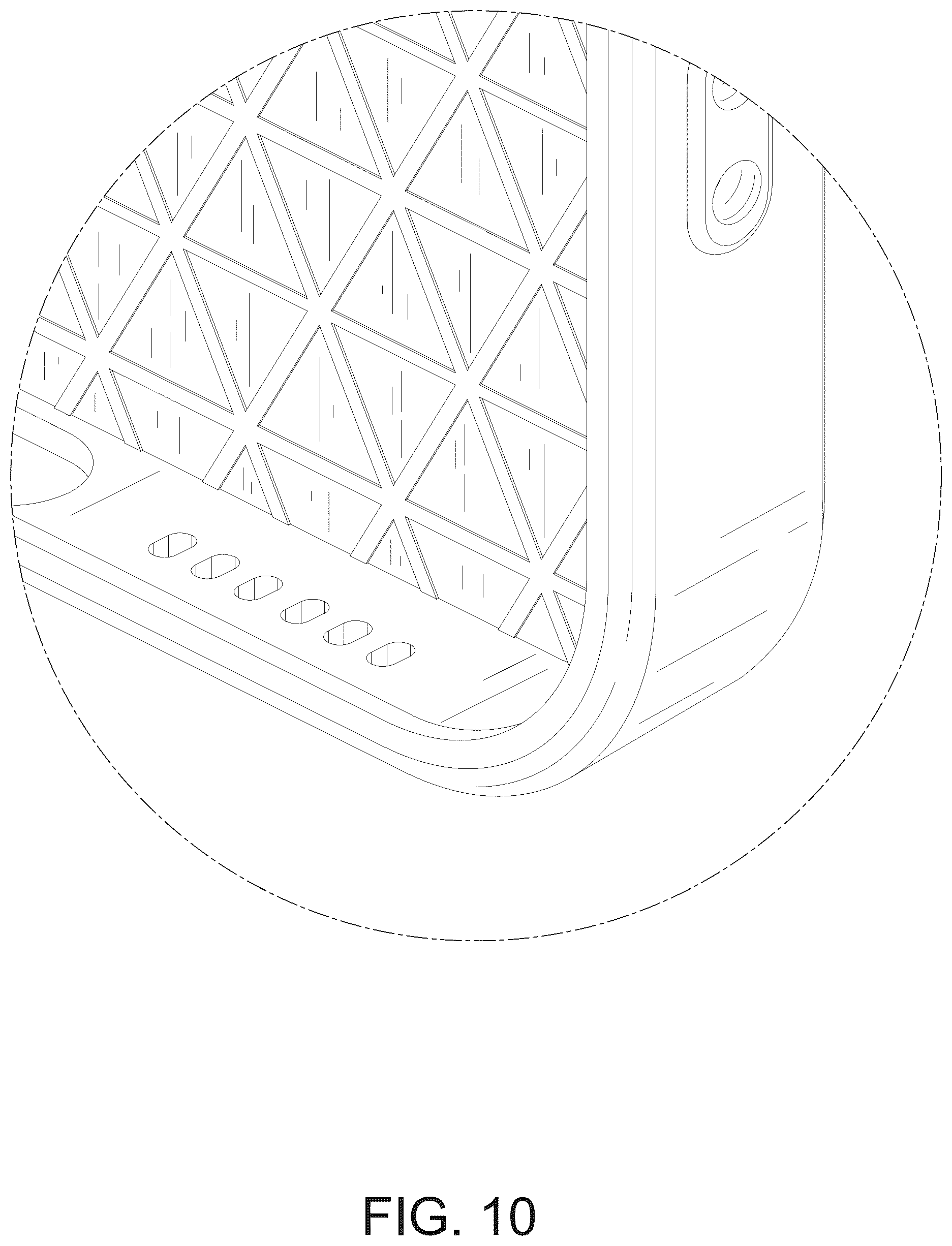

is a partial enlarged view of portion “ 10 ” of thereof.

The dot-dash broken lines depict the boundaries of the enlargements that form no part of the claimed design.
