Phone Case for Diving

USD1125135No. D 1,125,135designGranted 5/5/2026
Patent USD1125135 — Phone case for diving — Figure 1
Fig. 1 · Phone Case for Diving

Claims (1)

Claim 1 (Independent)

The ornamental design for a phone case for diving as shown and described.

Full Description

Show full text →

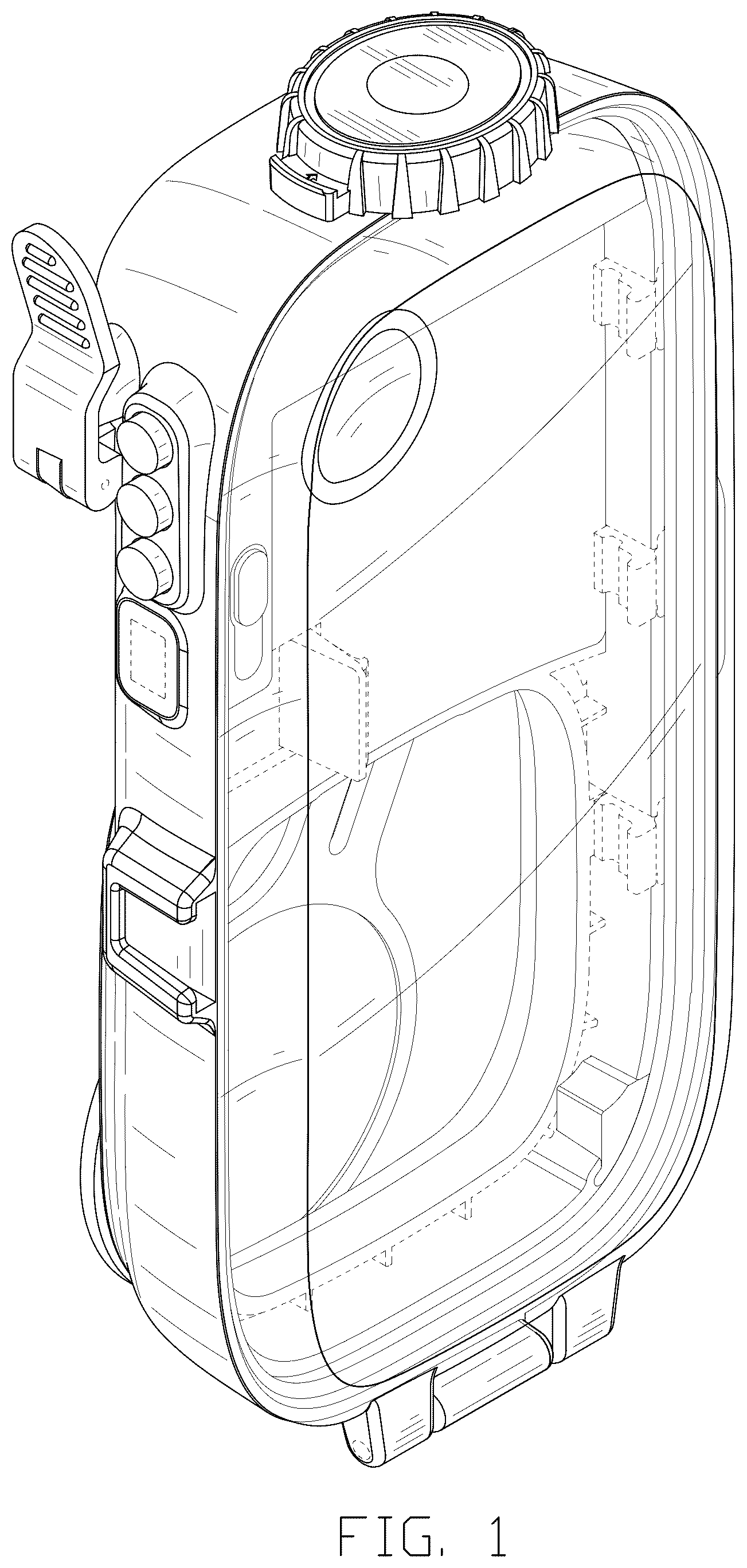

is a perspective view of a phone case for diving showing my new design;

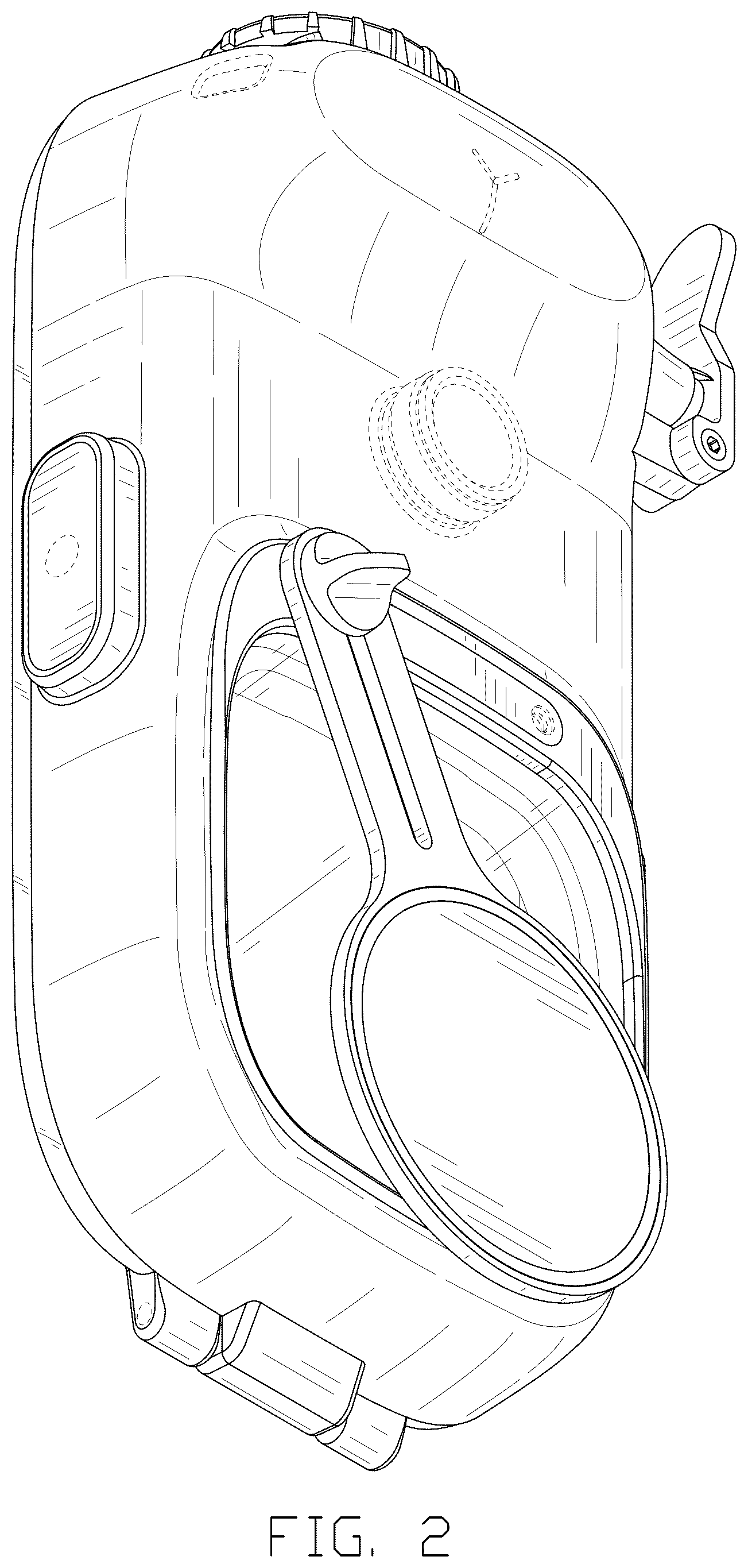

is another perspective view thereof;

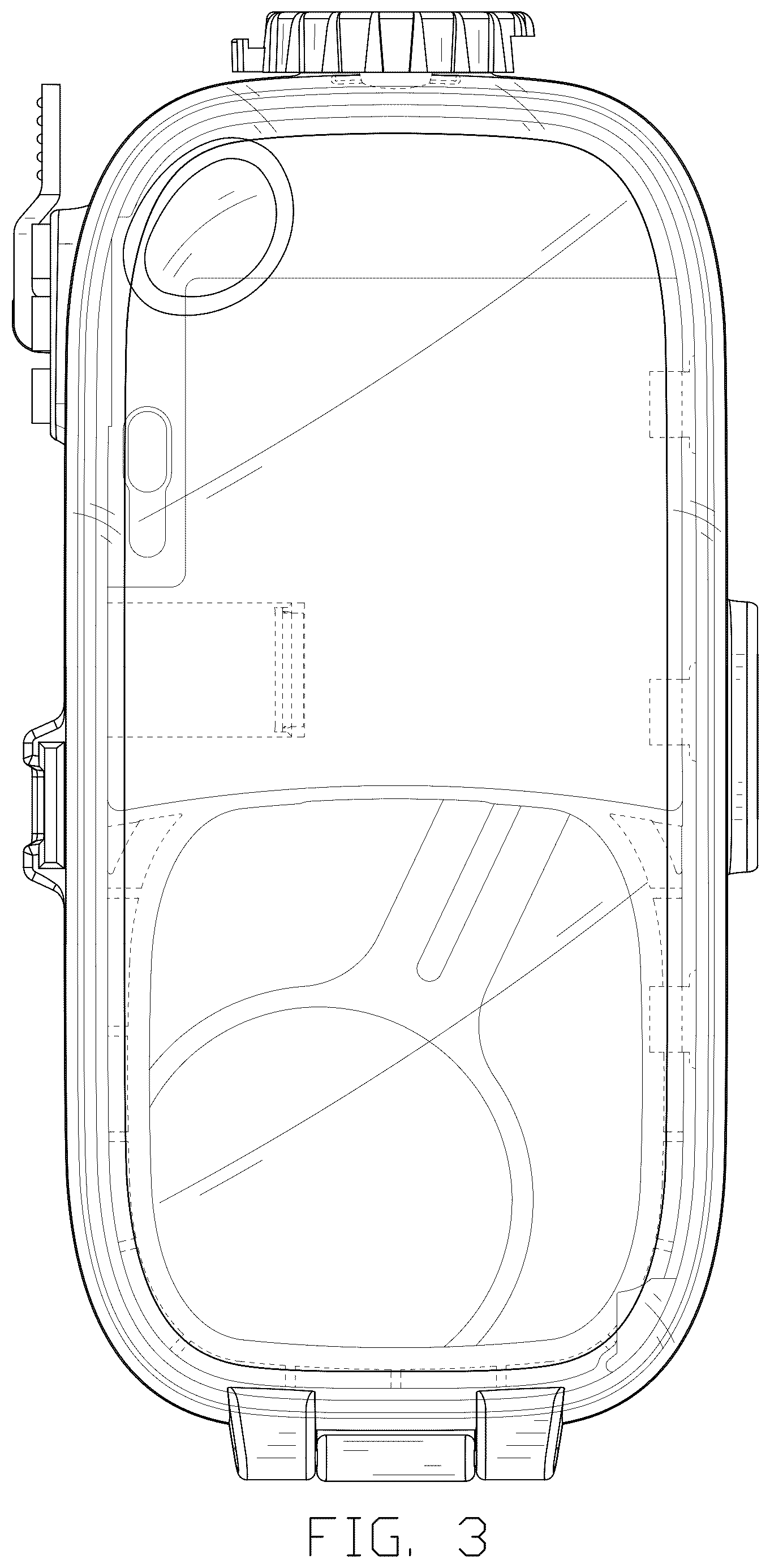

is a front elevational view thereof;

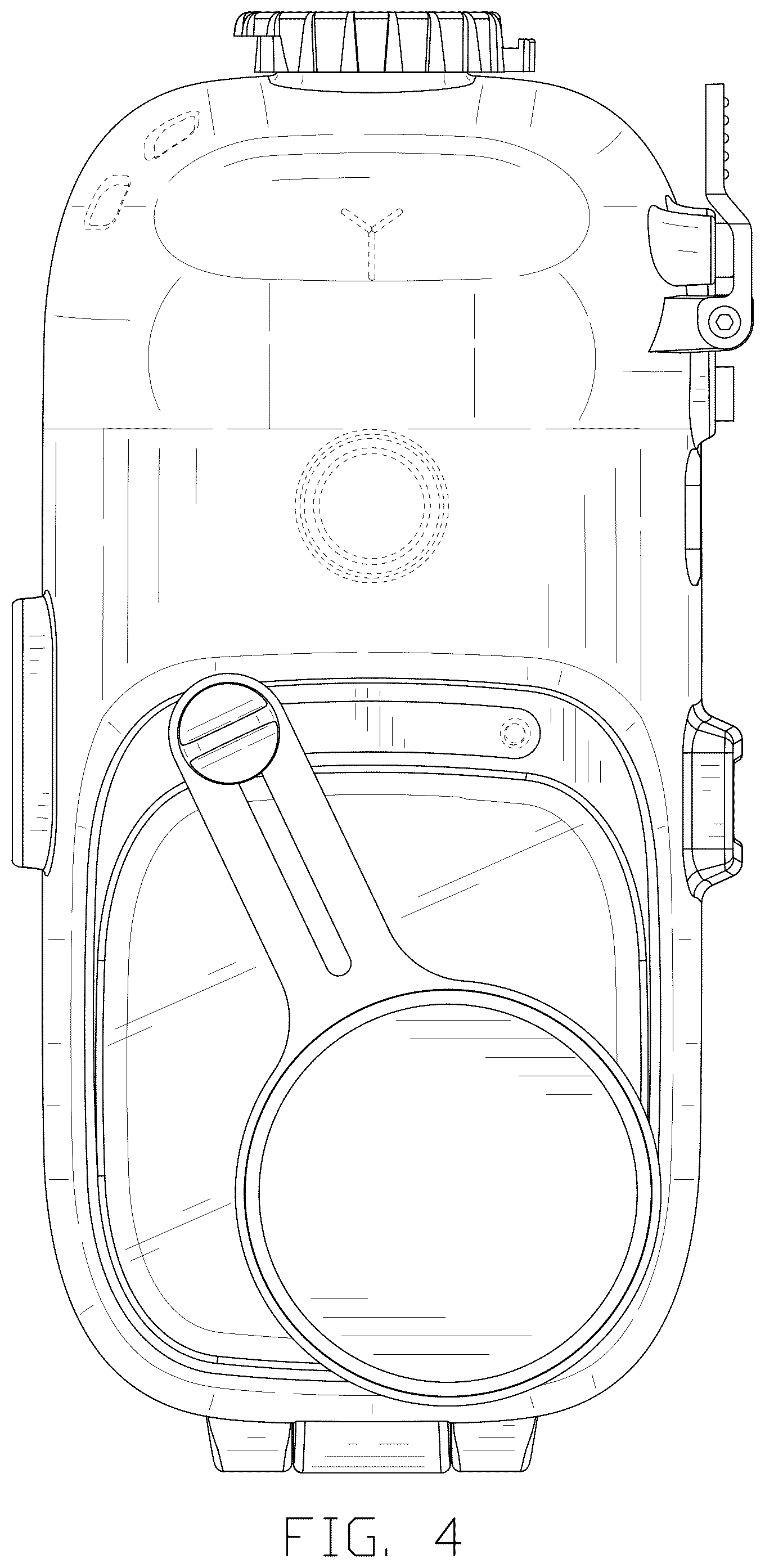

is a rear elevational view thereof;

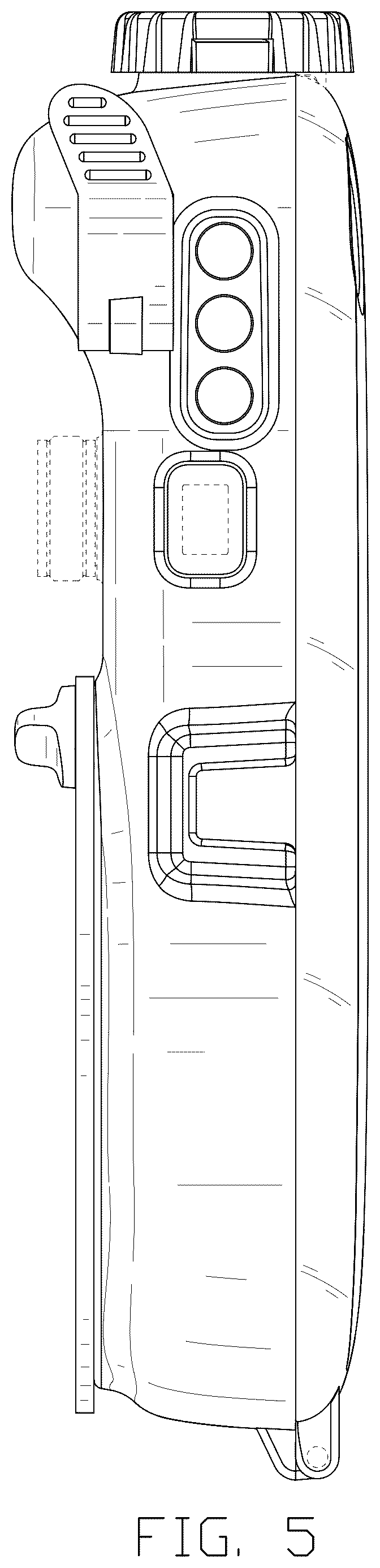

is a left side elevational view thereof;

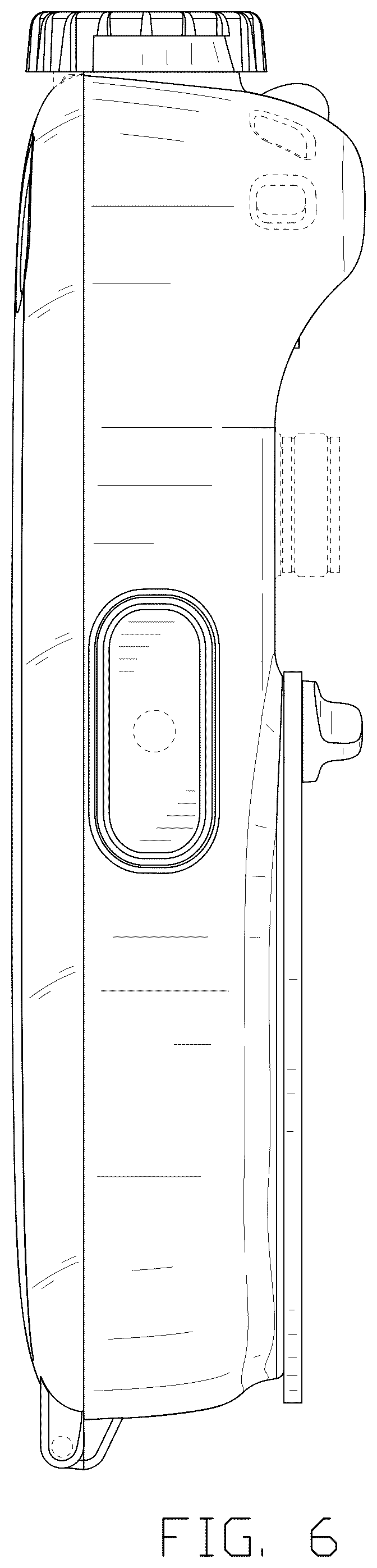

is a right side elevational view thereof;

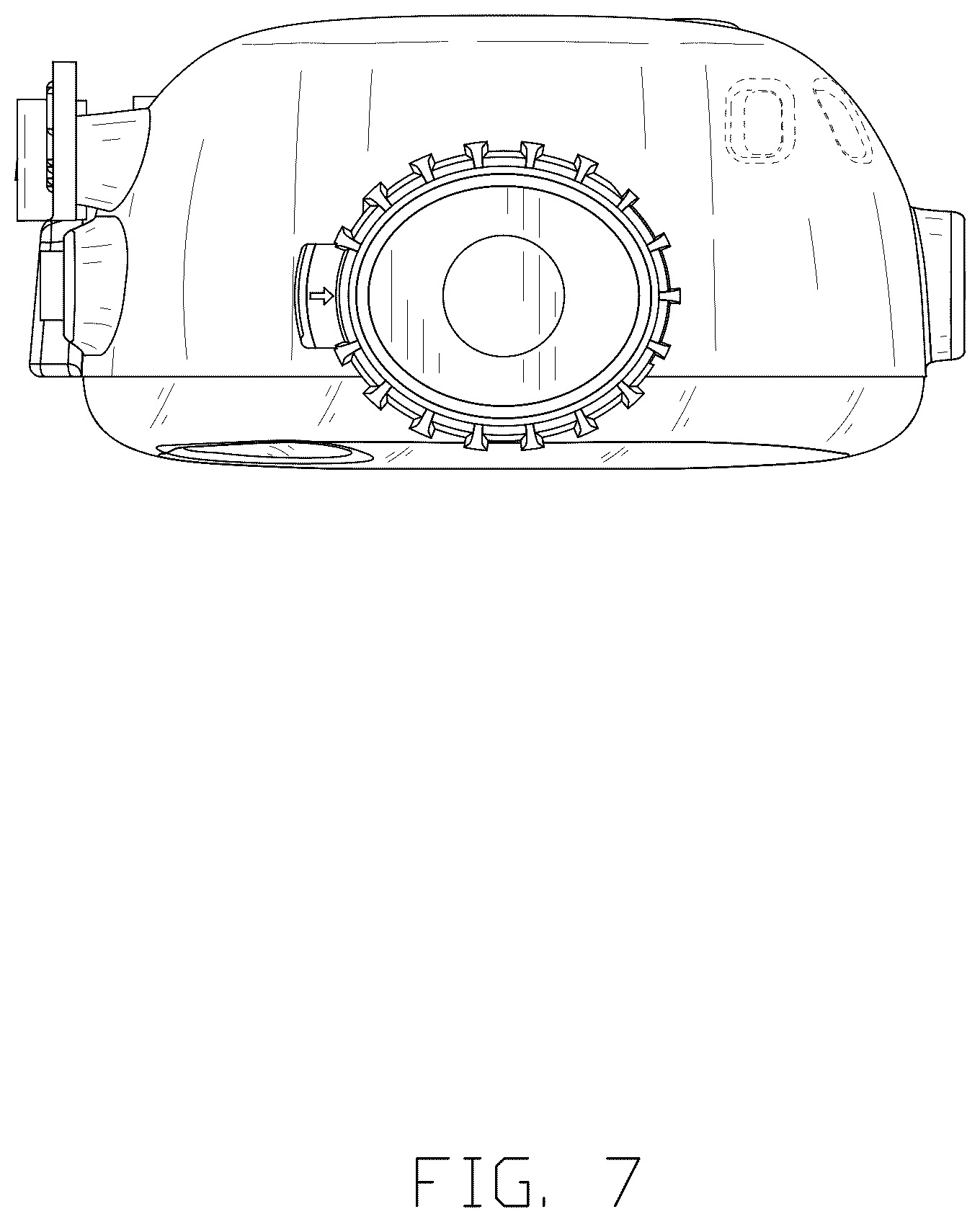

is a top plan view thereof; and,

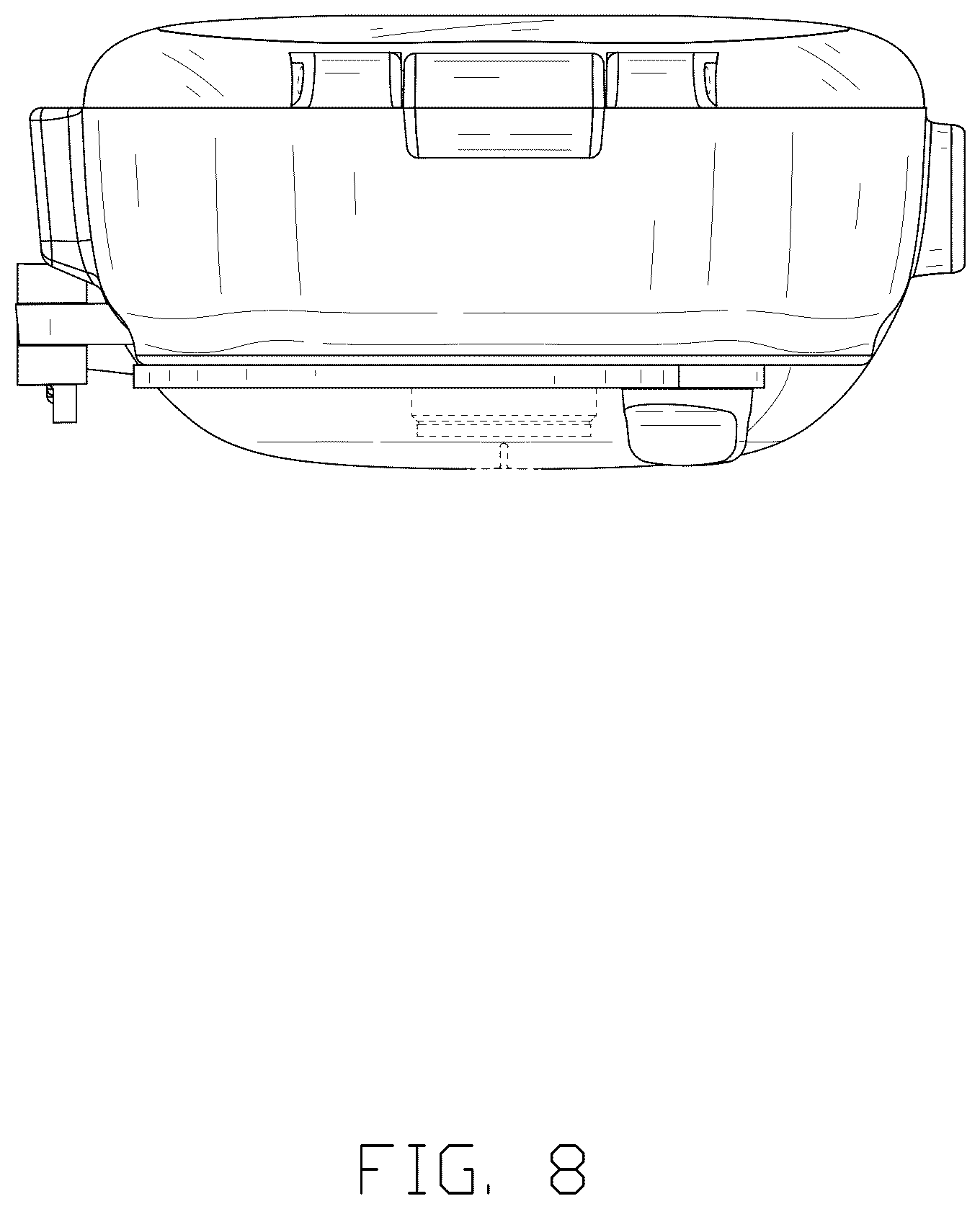

is a bottom plan view thereof.

The broken lines in the drawings depict portions of the phone case for diving that form no part of the claimed design.
