Foldable Firearm

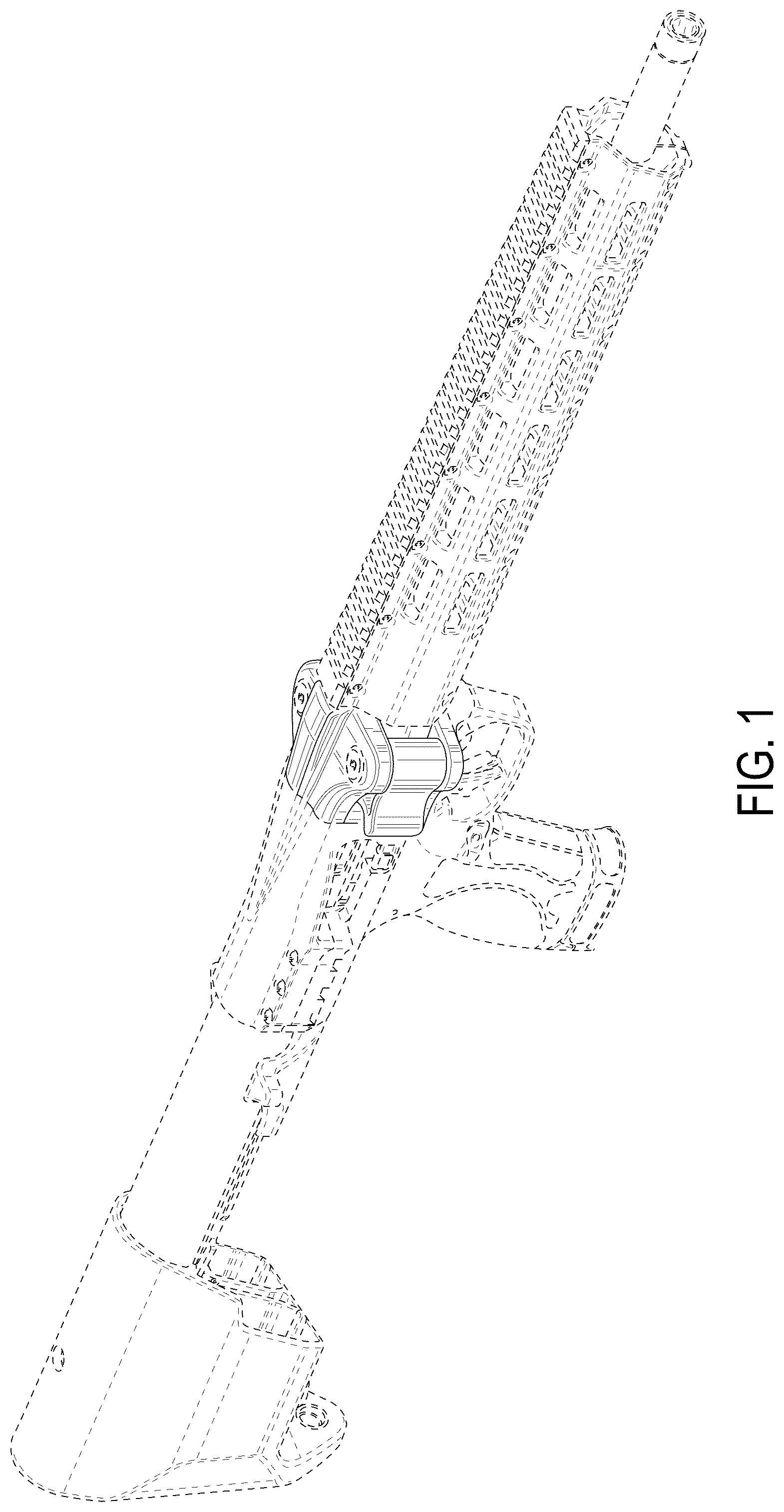

FIG. 1 is a left side perspective view of a foldable firearm in accordance with my design, with the foldable firearm shown in a use position;

FIG. 2 is a front elevational view of the foldable firearm of FIG. 1 ;

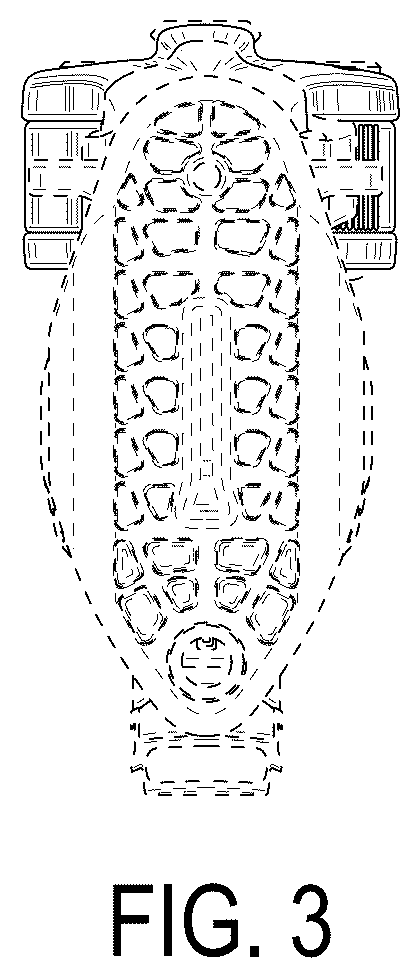

FIG. 3 is a rear elevational view of the foldable firearm of FIG. 1 ;

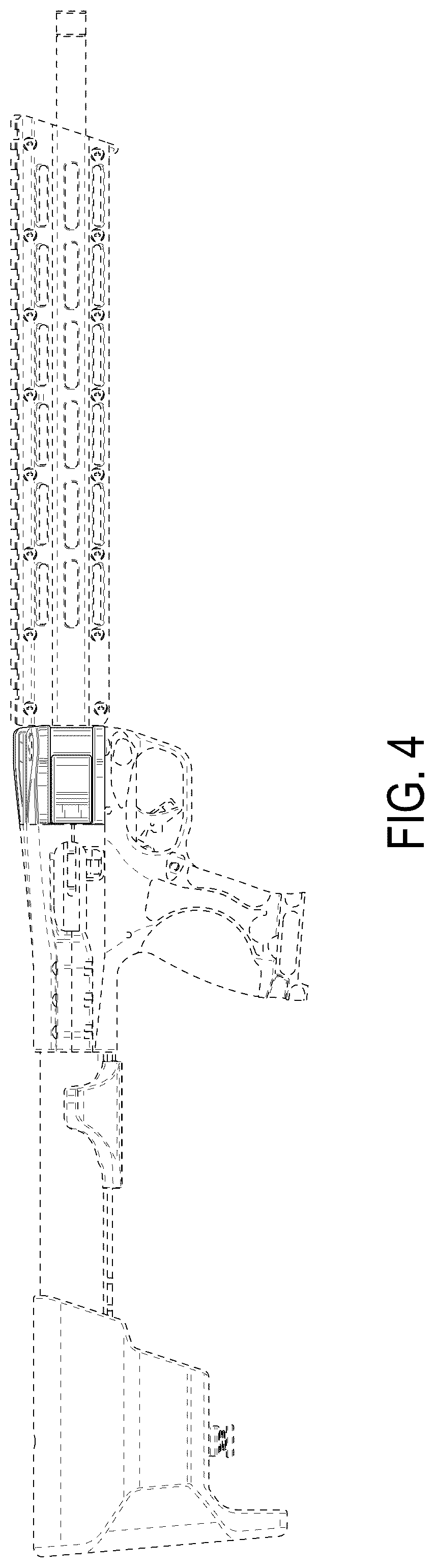

FIG. 4 is a left side elevational view of the foldable firearm of FIG. 1 ;

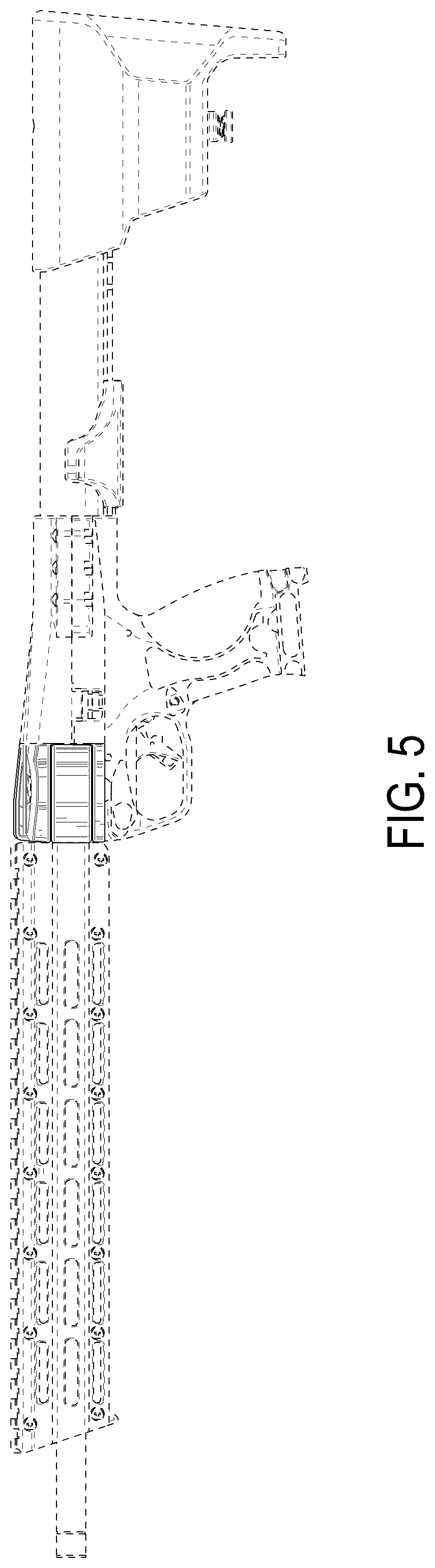

FIG. 5 is a right side elevational view of the foldable firearm of FIG. 1 ;

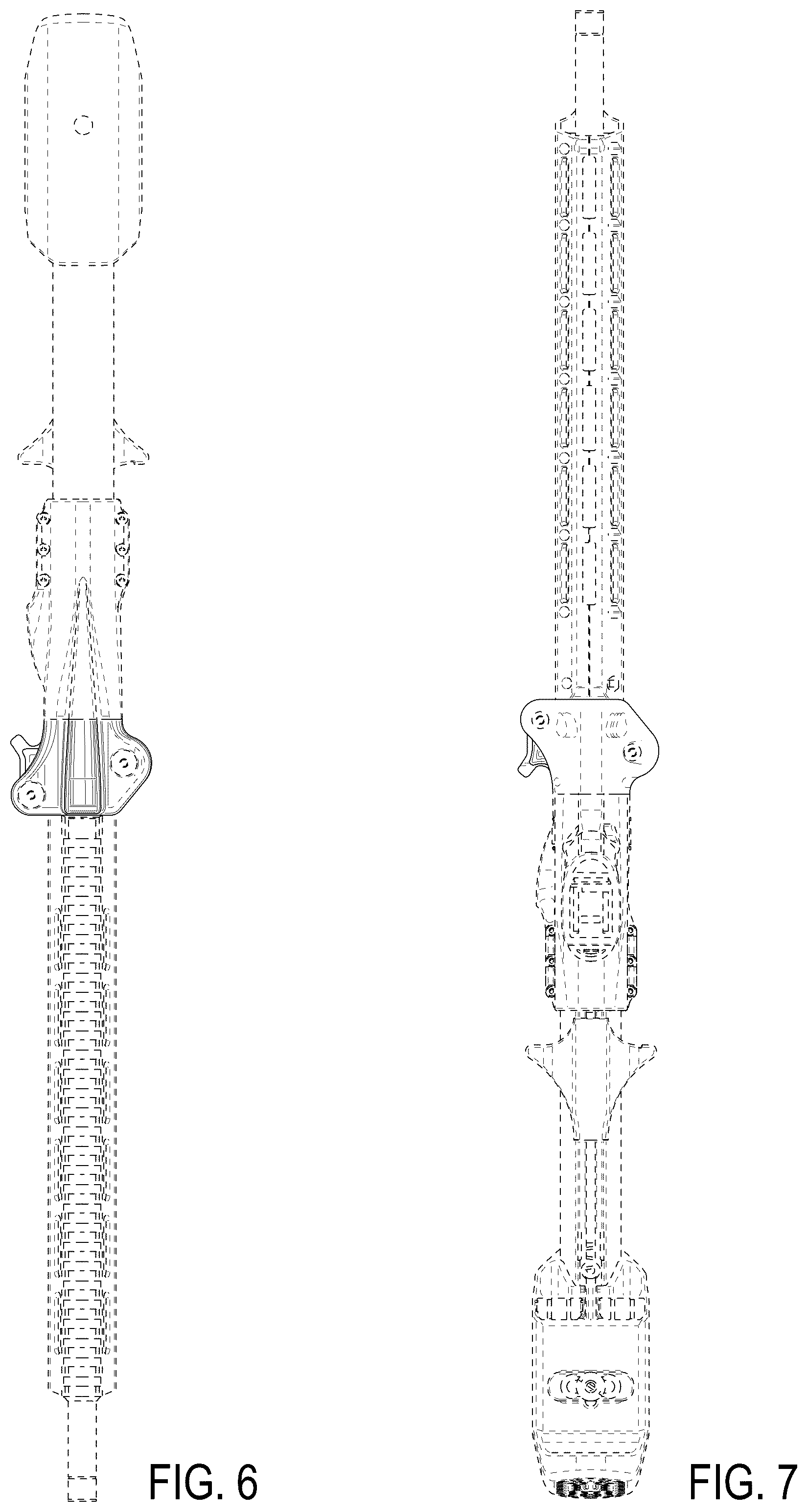

FIG. 6 is a top plan view of the foldable firearm of FIG. 1 ;

FIG. 7 is a bottom plan view of the foldable firearm of FIG. 1 ;

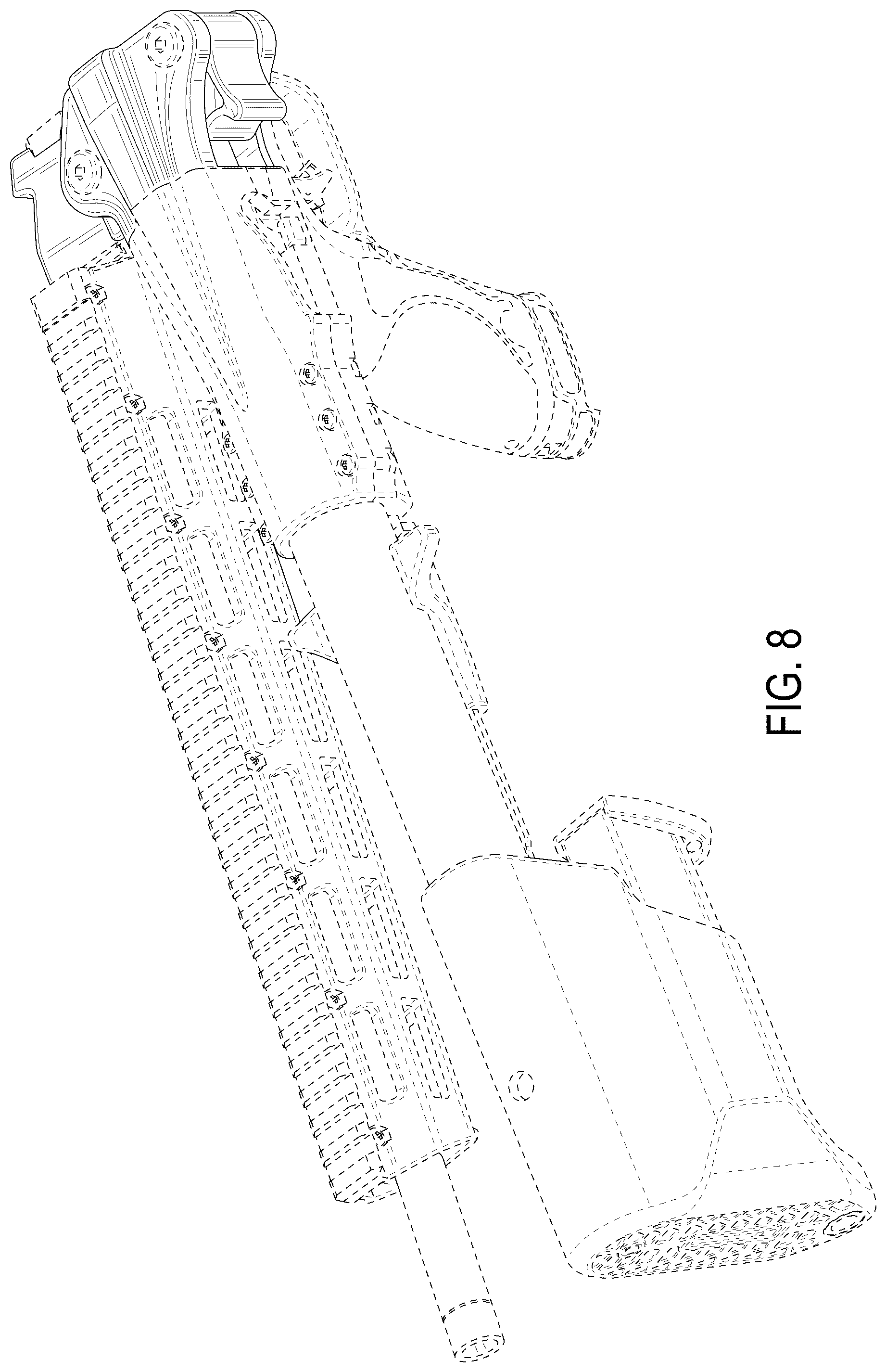

FIG. 8 is a rear perspective view of the foldable firearm of FIG. 1 , with the foldable firearm shown in a partially folded position;

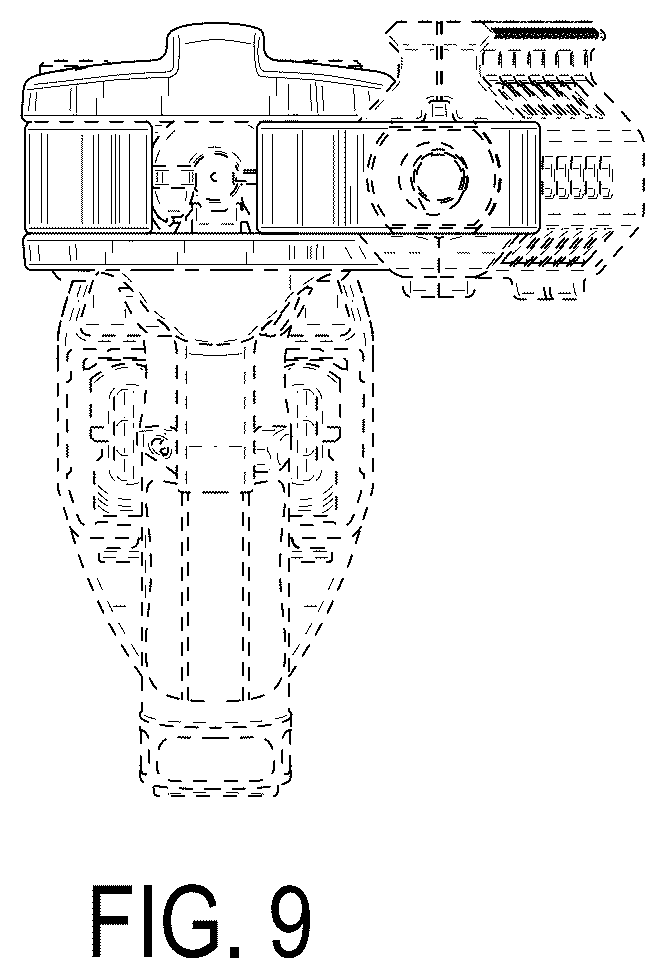

FIG. 9 is a front elevational view of the foldable firearm of FIG. 8 ;

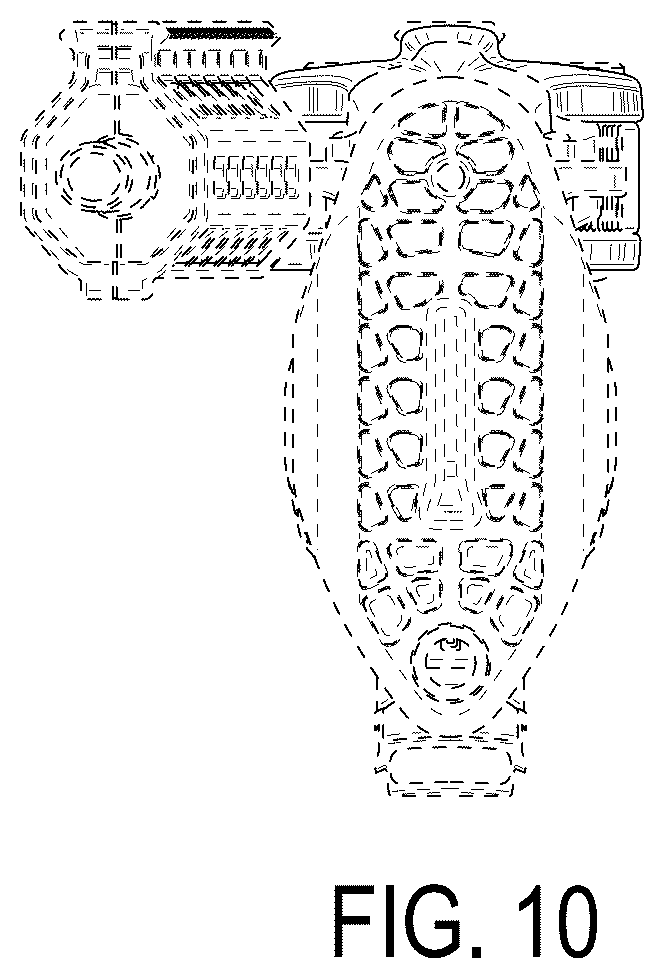

FIG. 10 is a rear elevational view of the foldable firearm of FIG. 8 ;

FIG. 11 is a left side elevational view of the foldable firearm of FIG. 8 ;

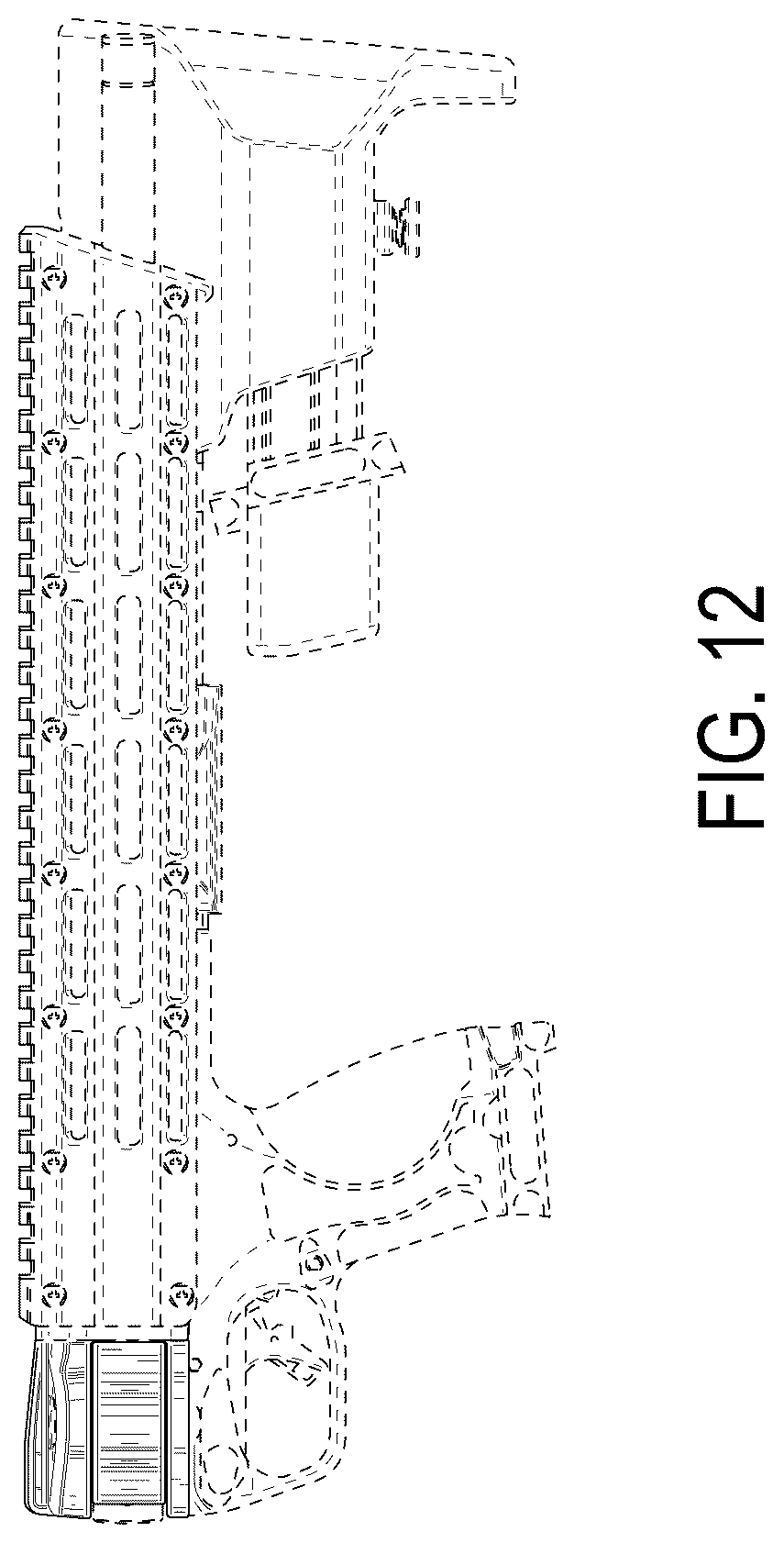

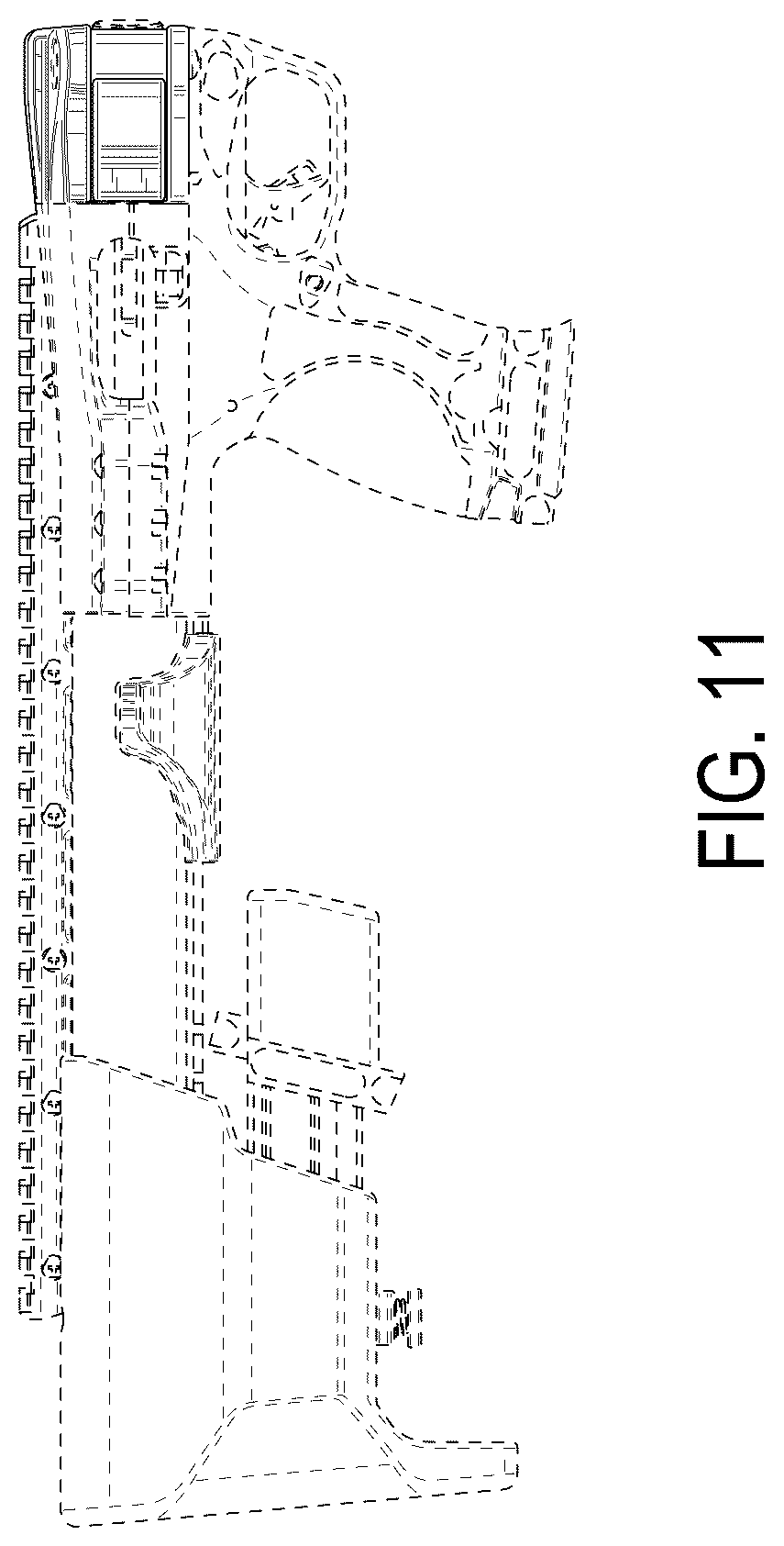

FIG. 12 is a right side elevational view of the foldable firearm of FIG. 8 ;

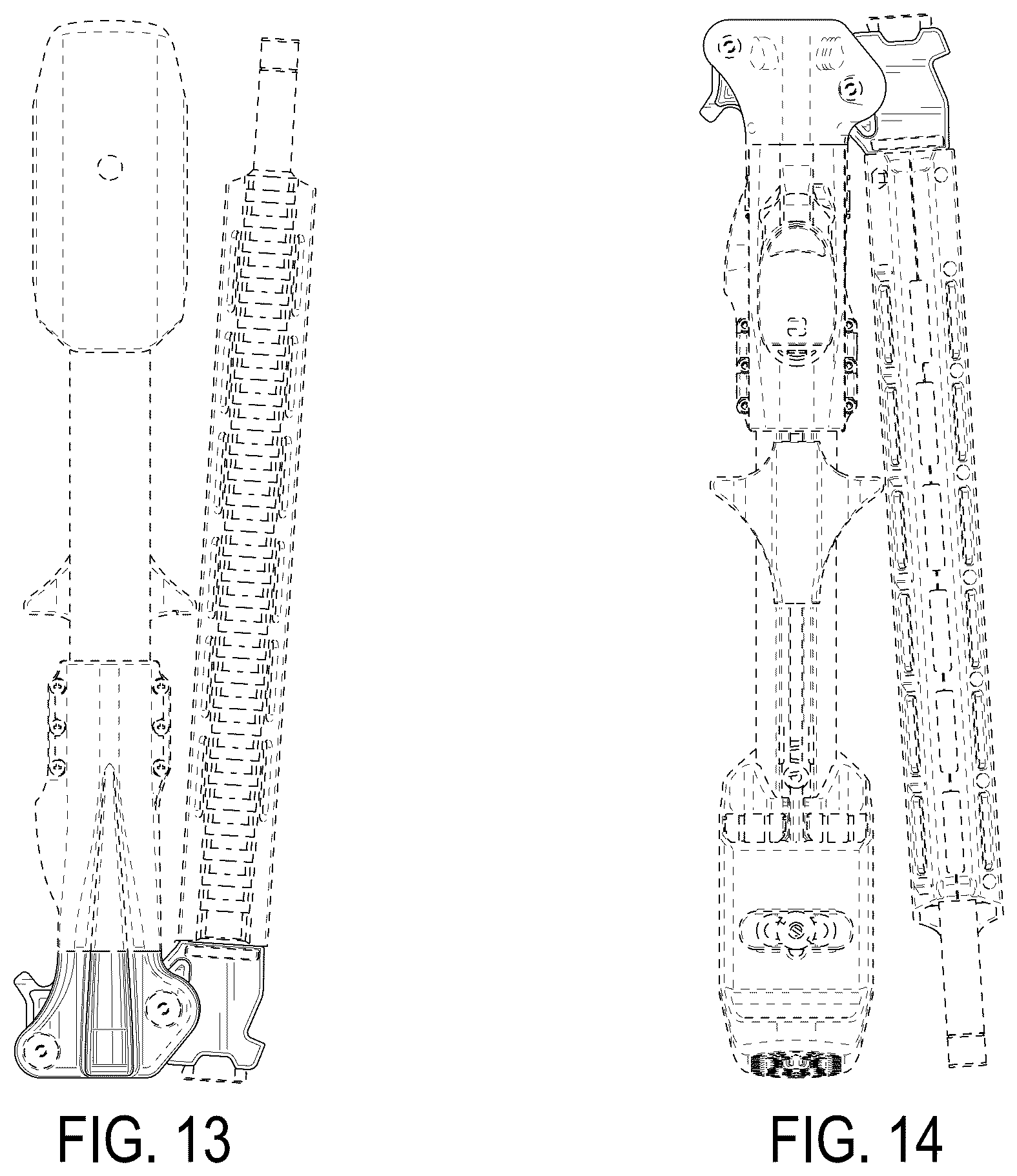

FIG. 13 is a top plan view of the foldable firearm of FIG. 8 ;

FIG. 14 is a bottom plan view of the foldable firearm of FIG. 8 ;

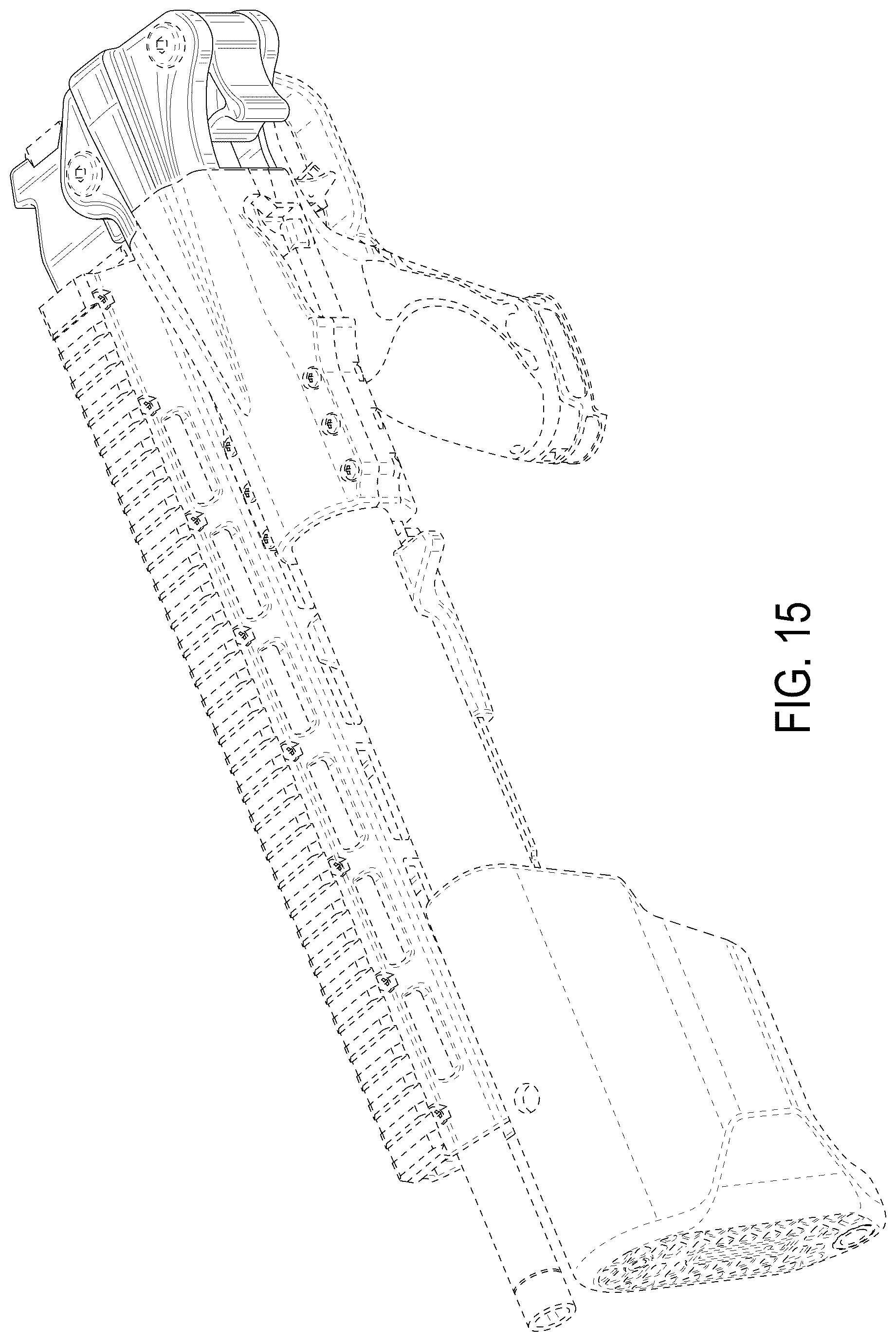

FIG. 15 is a rear perspective view of the foldable firearm of FIG. 1 , with the foldable firearm shown in a fully folded position;

FIG. 16 is a front elevational view of the foldable firearm of FIG. 15 ;

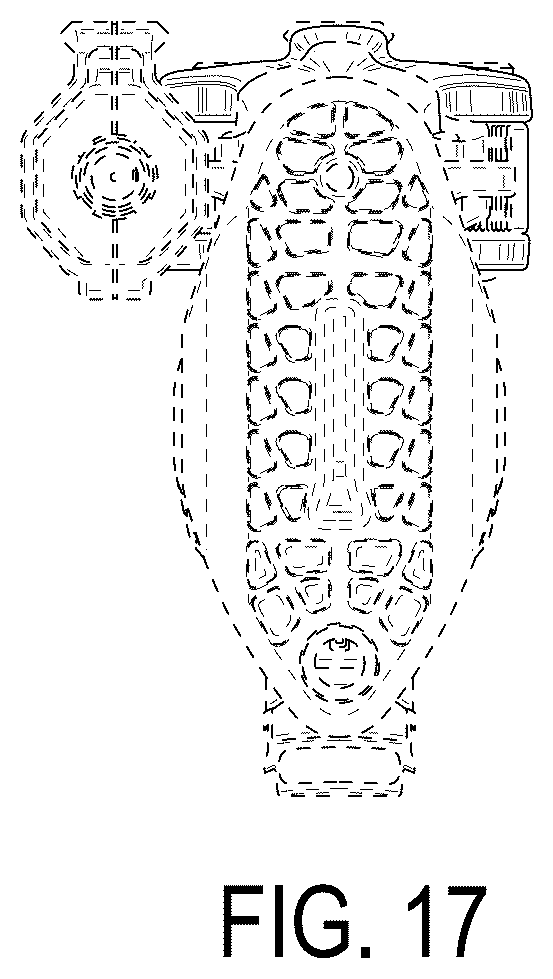

FIG. 17 is a rear elevational view of the foldable firearm of FIG. 15 ;

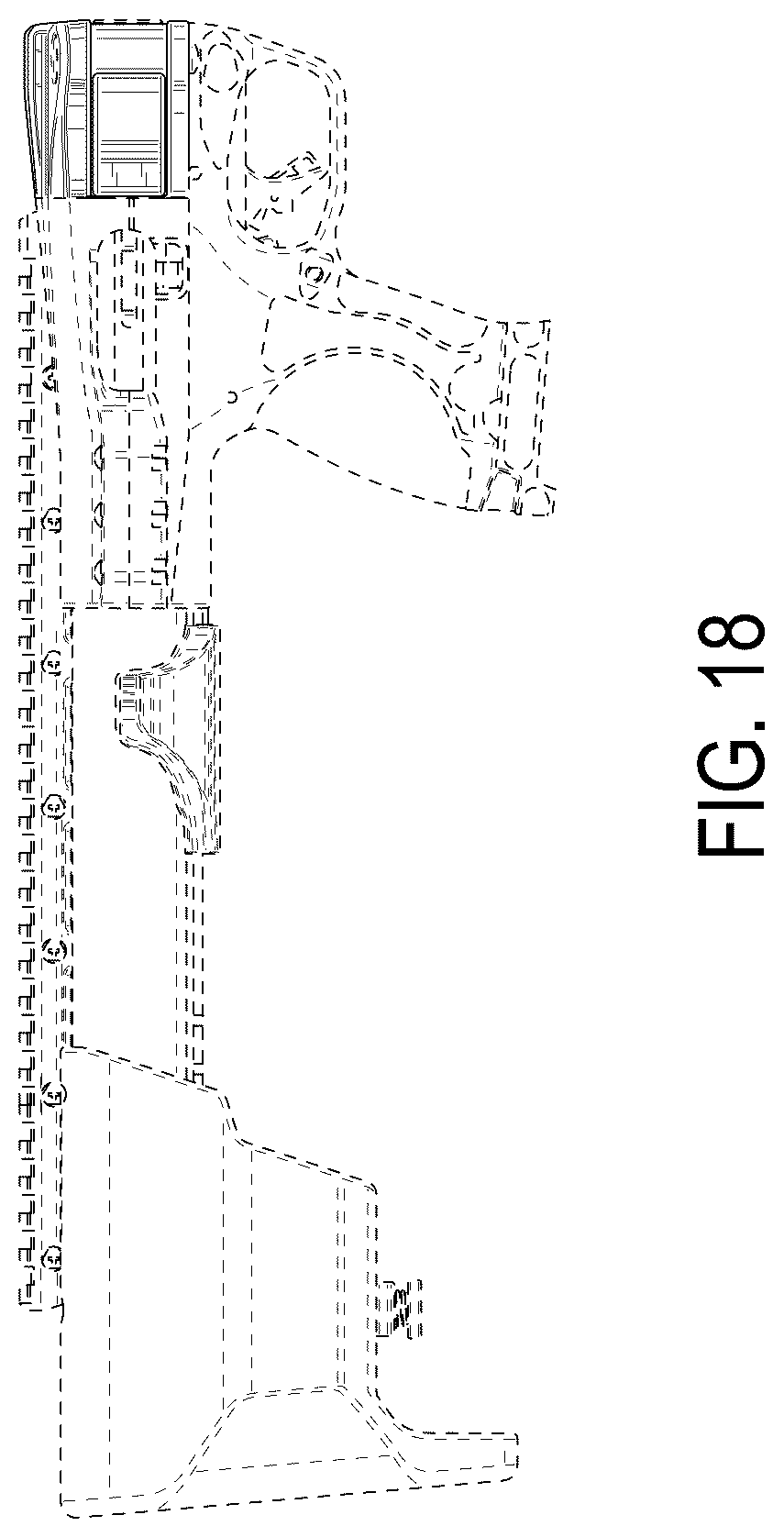

FIG. 18 is a left side elevational view of the foldable firearm of FIG. 15 ;

FIG. 19 is a right side elevational view of the foldable firearm of FIG. 15 ;

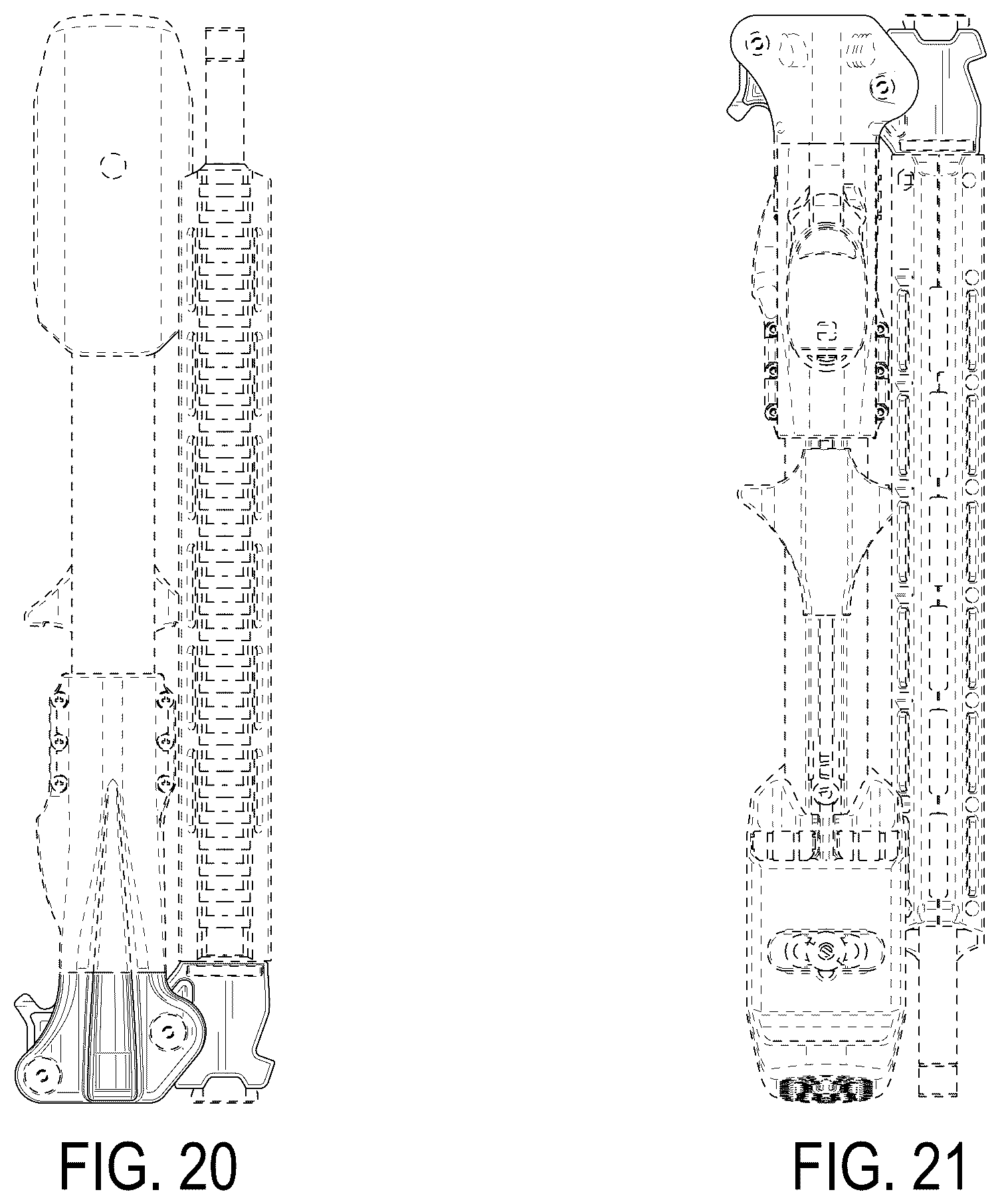

FIG. 20 is a top plan view of the foldable firearm of FIG. 15 ; and,

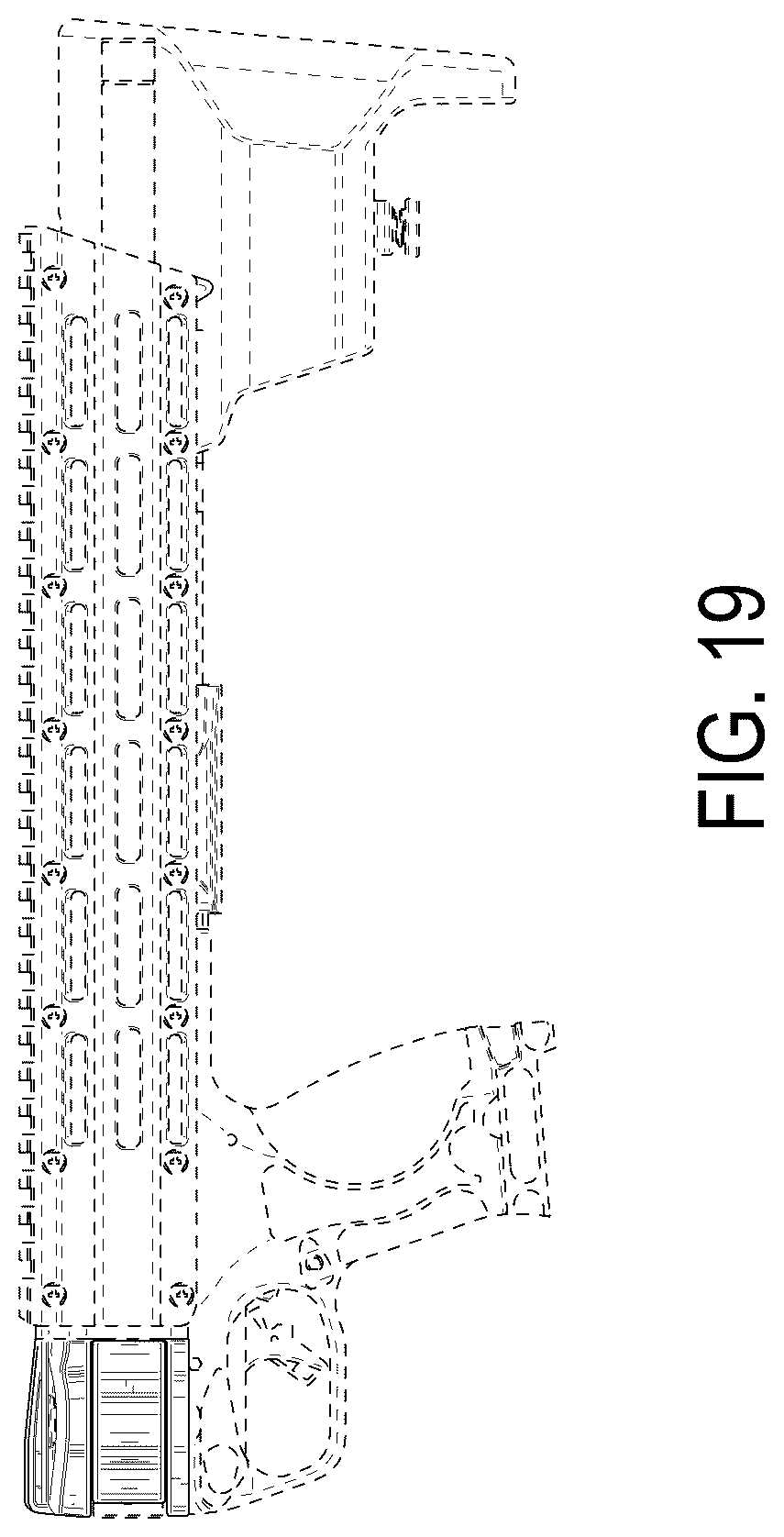

FIG. 21 is a bottom plan view of the foldable firearm of FIG. 15 .

The broken lines having consistent dash lengths (dash-dash-dash) represent portions of the foldable firearm that form no part of the claimed design.

The broken lines having inconsistent dash lengths (long dash-short dash-long dash) represent boundaries of the claimed design.
