Container for Storing and Dispensing Ammunition

USD1044997No. D 1,044,997designGranted 10/1/2024
Patent USD1044997 — Container for storing and dispensing ammunition — Figure 1
Fig. 1 · Container for Storing and Dispensing Ammunition

Claims (1)

Claim 1 (Independent)

We claim the ornamental design for a container for storing and dispensing ammunition, substantially as shown and described.

Full Description

Show full text →

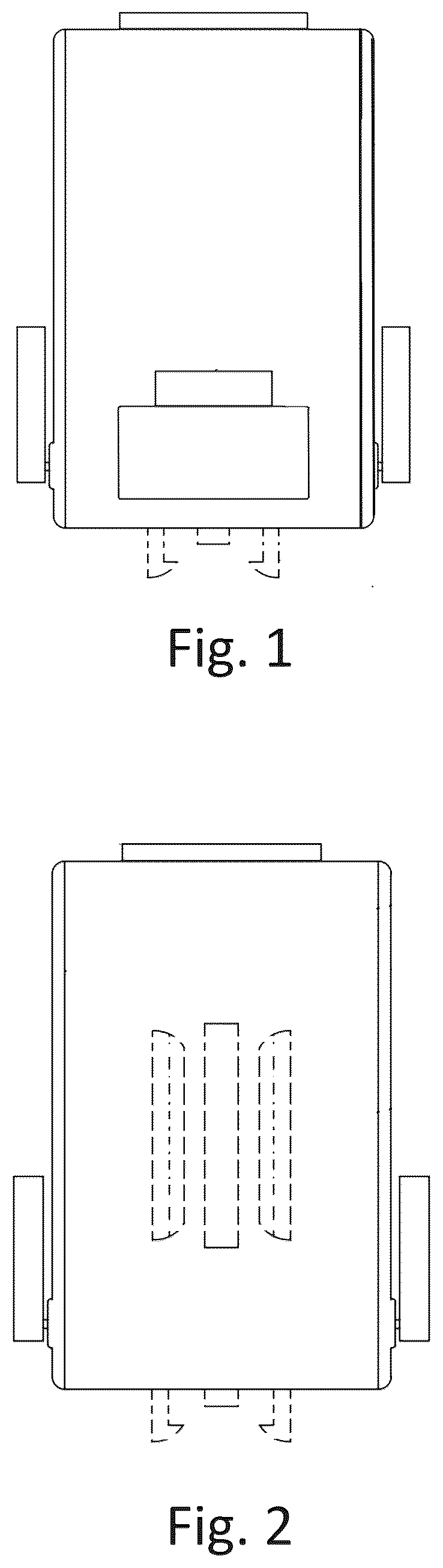

is a front view of a container.

is a rear view of the container.

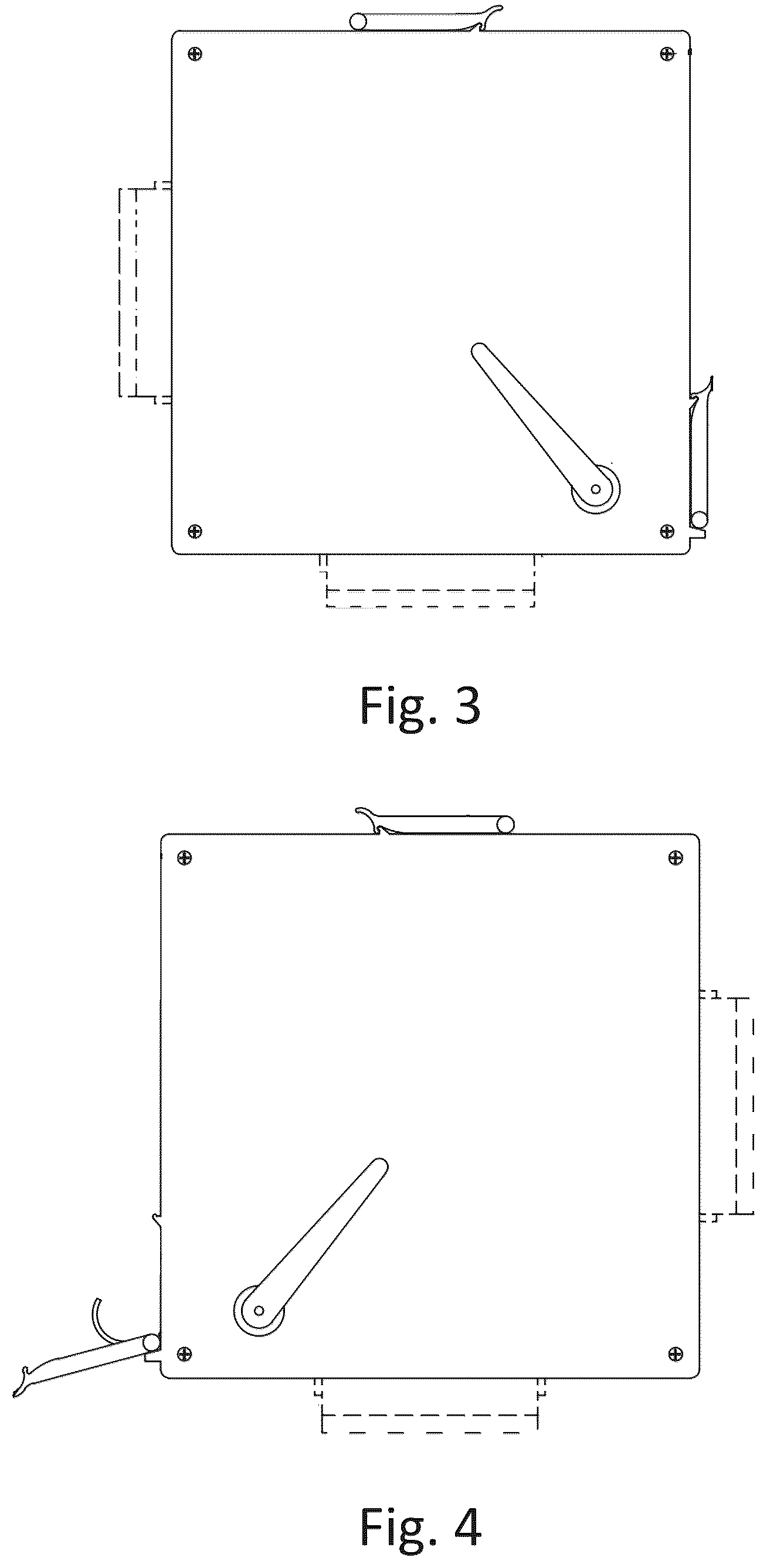

is a left view of the container.

is a right view of the container with an open door.

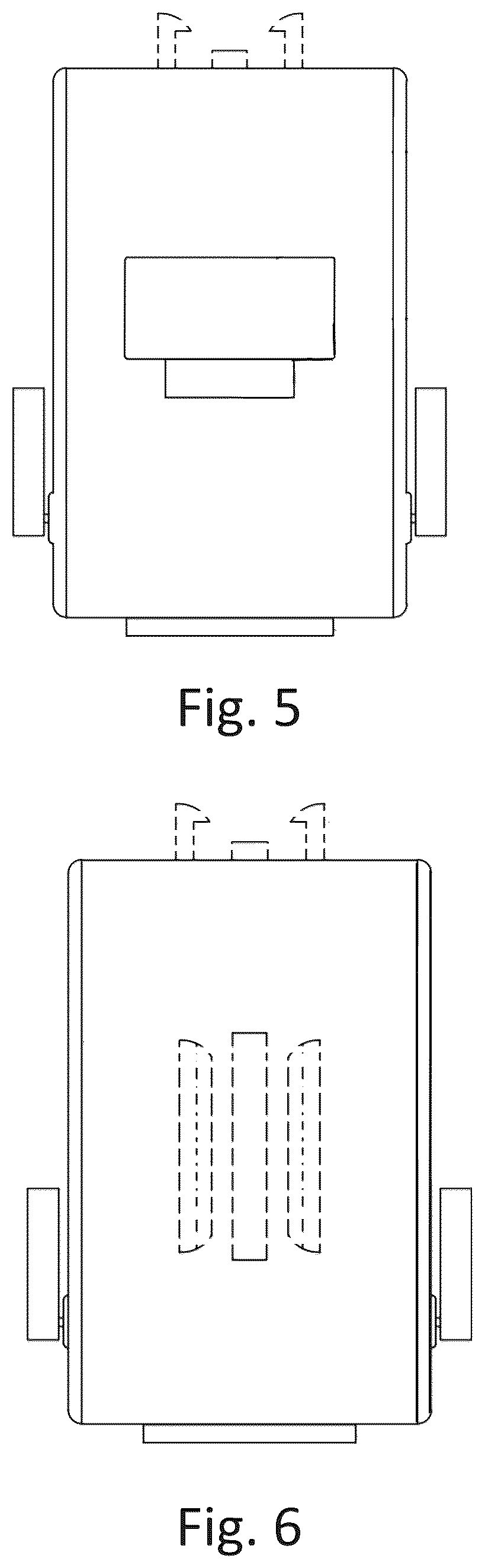

is a top view of the container; and,

is a bottom view of the container.

The features shown in broken lines in the various Figures are for illustrating environmental structure and form no part of the claimed design.

More generally, the invention pertains to an ornamental design for a container for storing and dispensing ammunition.
