Straw

USD1043218No. D 1,043,218designGranted 9/24/2024
Patent USD1043218 — Straw — Figure 1
Fig. 1 · Straw

Claims (1)

Claim 1 (Independent)

The ornamental design for a straw, as shown and described.

Full Description

Show full text →

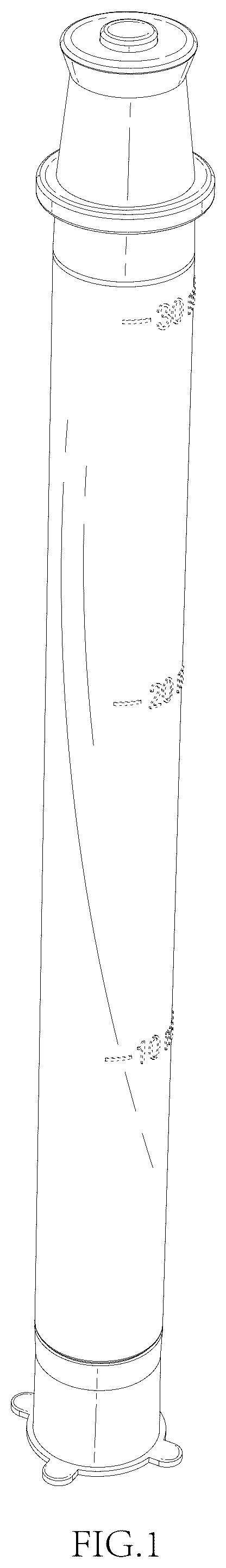

is a perspective view of a straw showing my new design.

is a front elevation view thereof;

is a rear elevation view thereof;

is a left side elevation view thereof;

is a right side elevation view thereof;

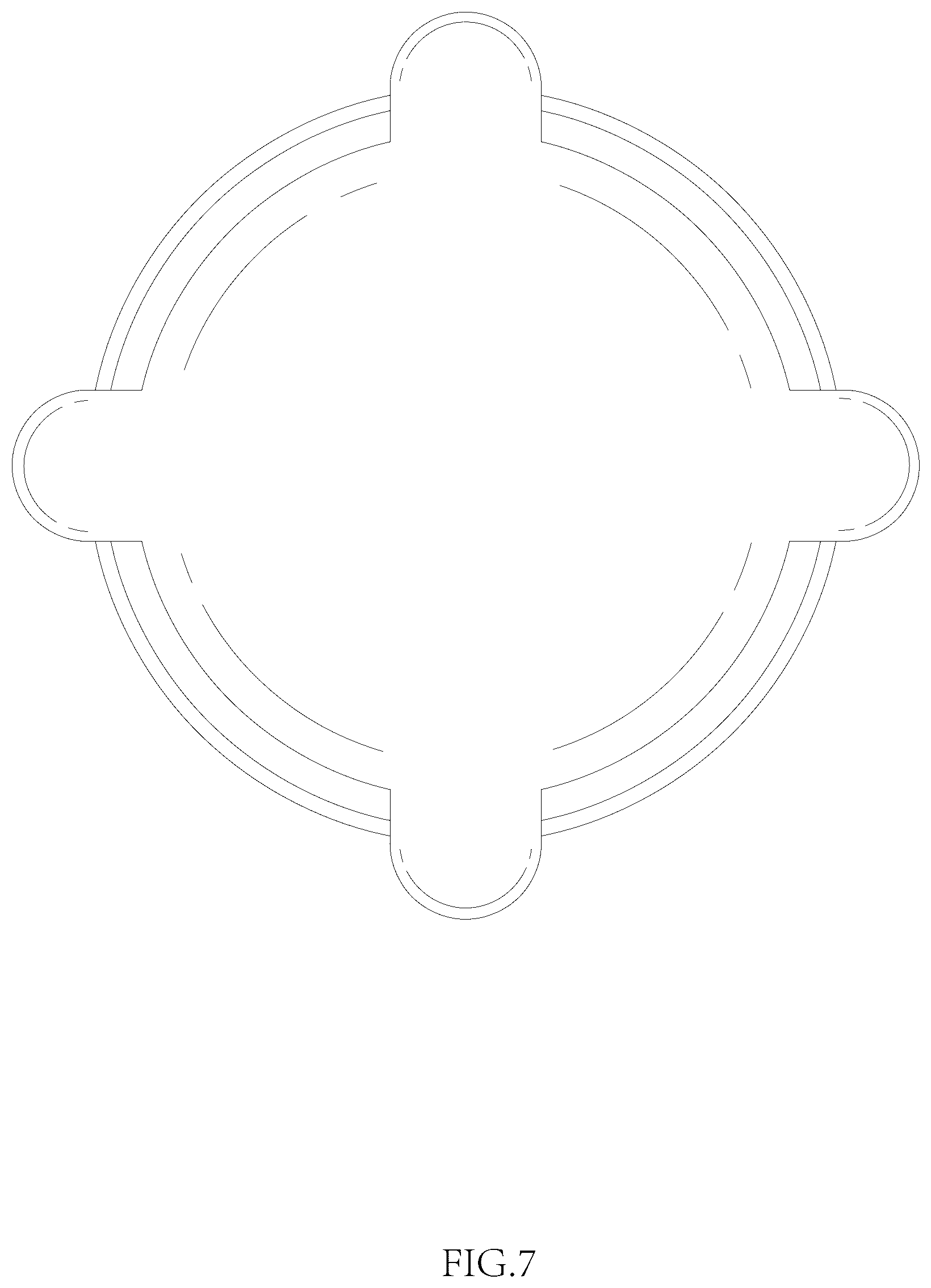

is an enlarged top plan view thereof;

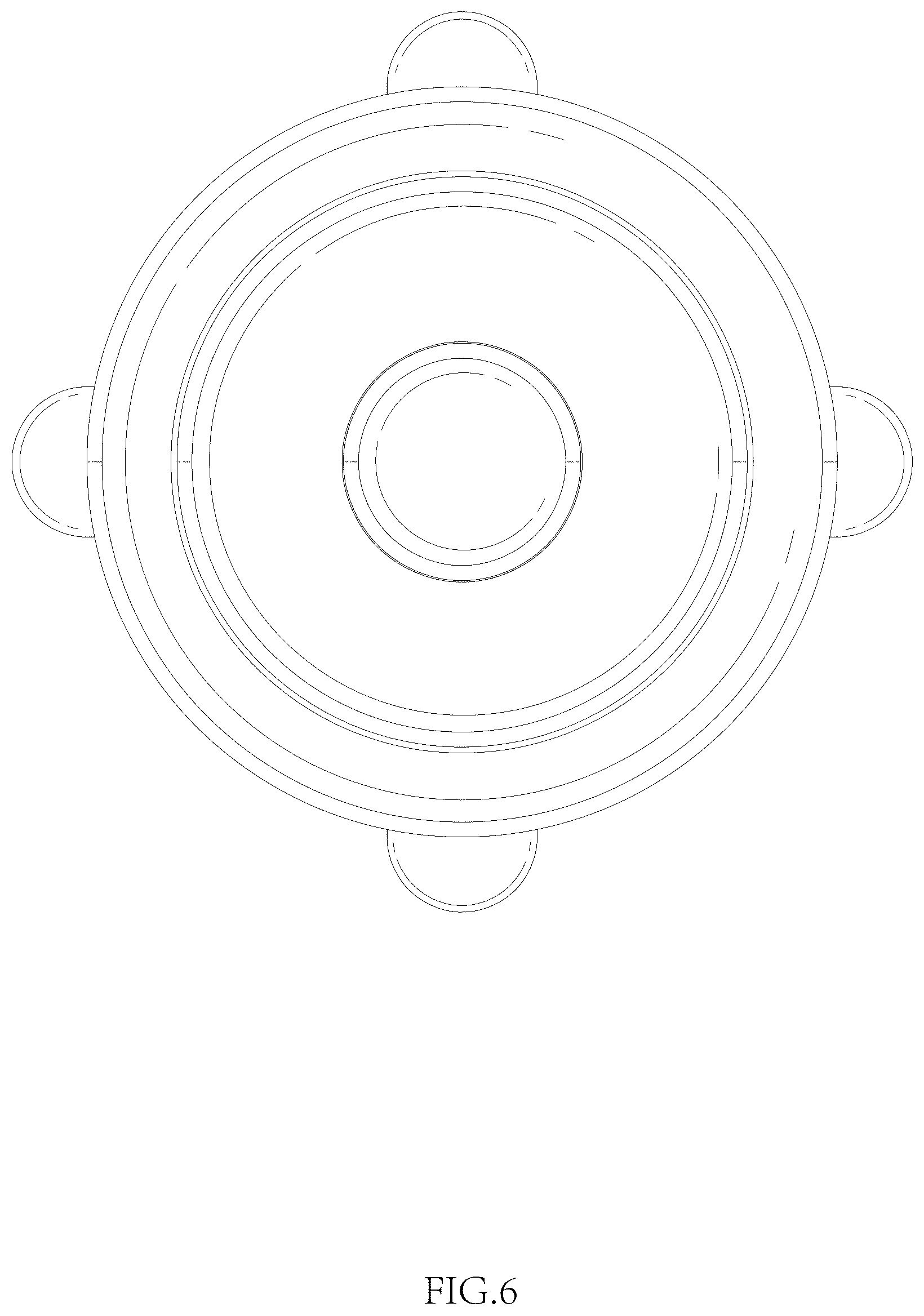

is an enlarged bottom plan view thereof; and,

is another perspective view thereof.

The broken lines throughout the drawing figures depict portions of the straw that form no part of the claimed design.
