Oil Dispenser Bottle

USD1043217No. D 1,043,217designGranted 9/24/2024
Patent USD1043217 — Oil dispenser bottle — Figure 1
Fig. 1 · Oil Dispenser Bottle

Claims (1)

Claim 1 (Independent)

The ornamental design for an oil dispenser bottle, as shown and described.

Full Description

Show full text →

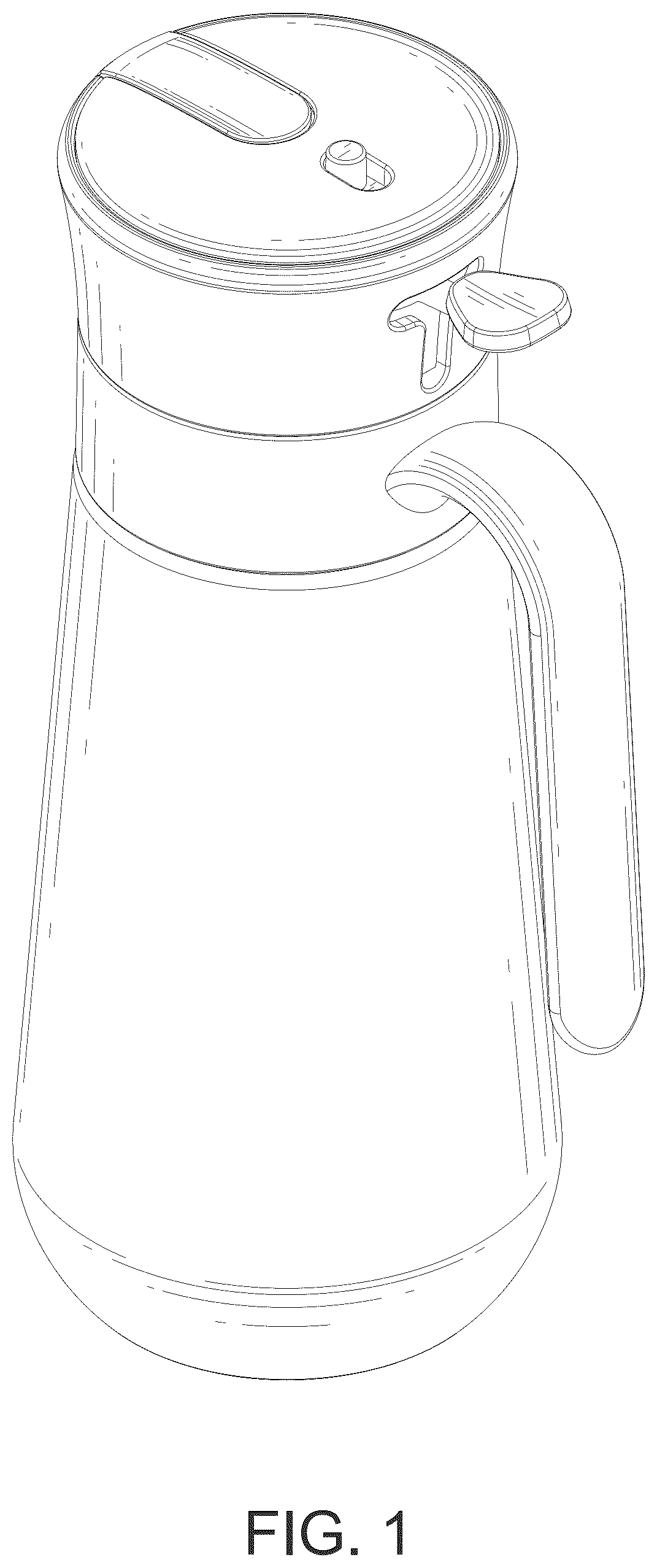

is a front perspective view of an oil dispenser bottle, showing my new design;

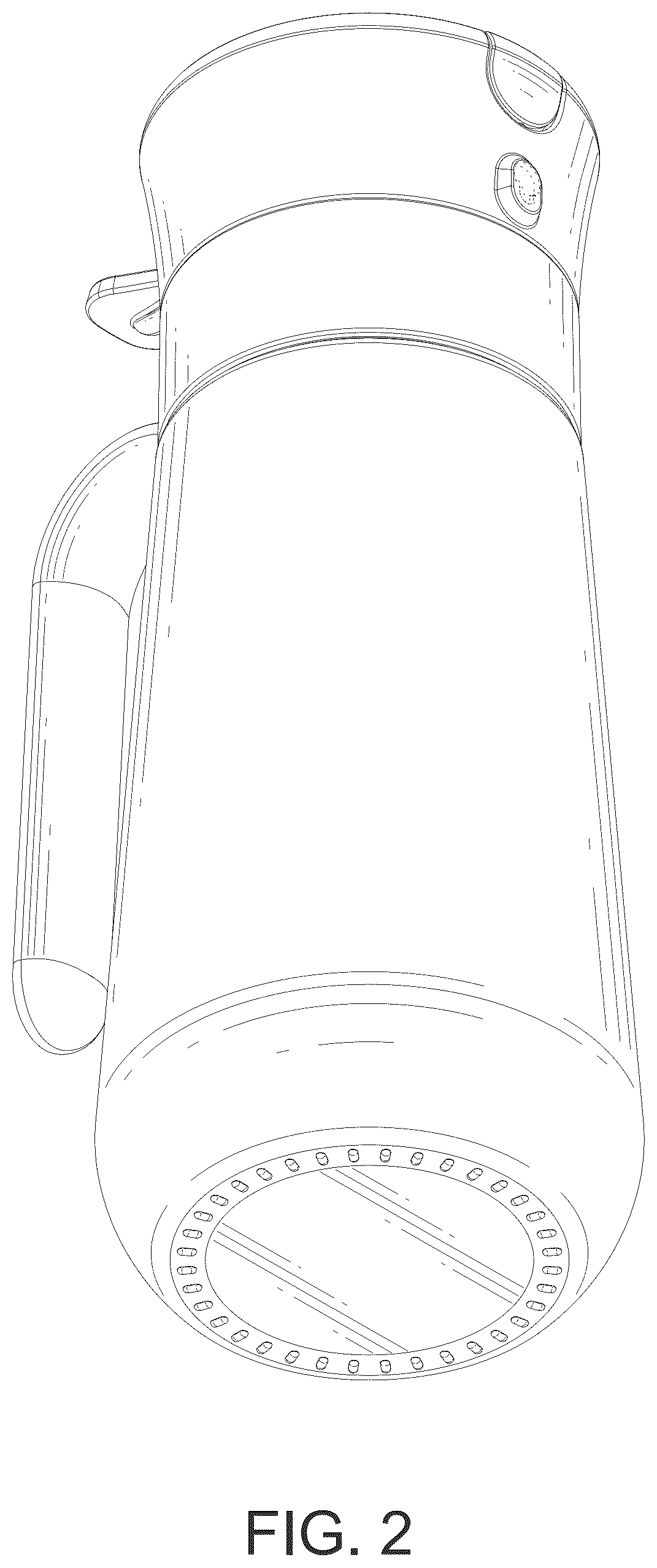

is a rear perspective view thereof;

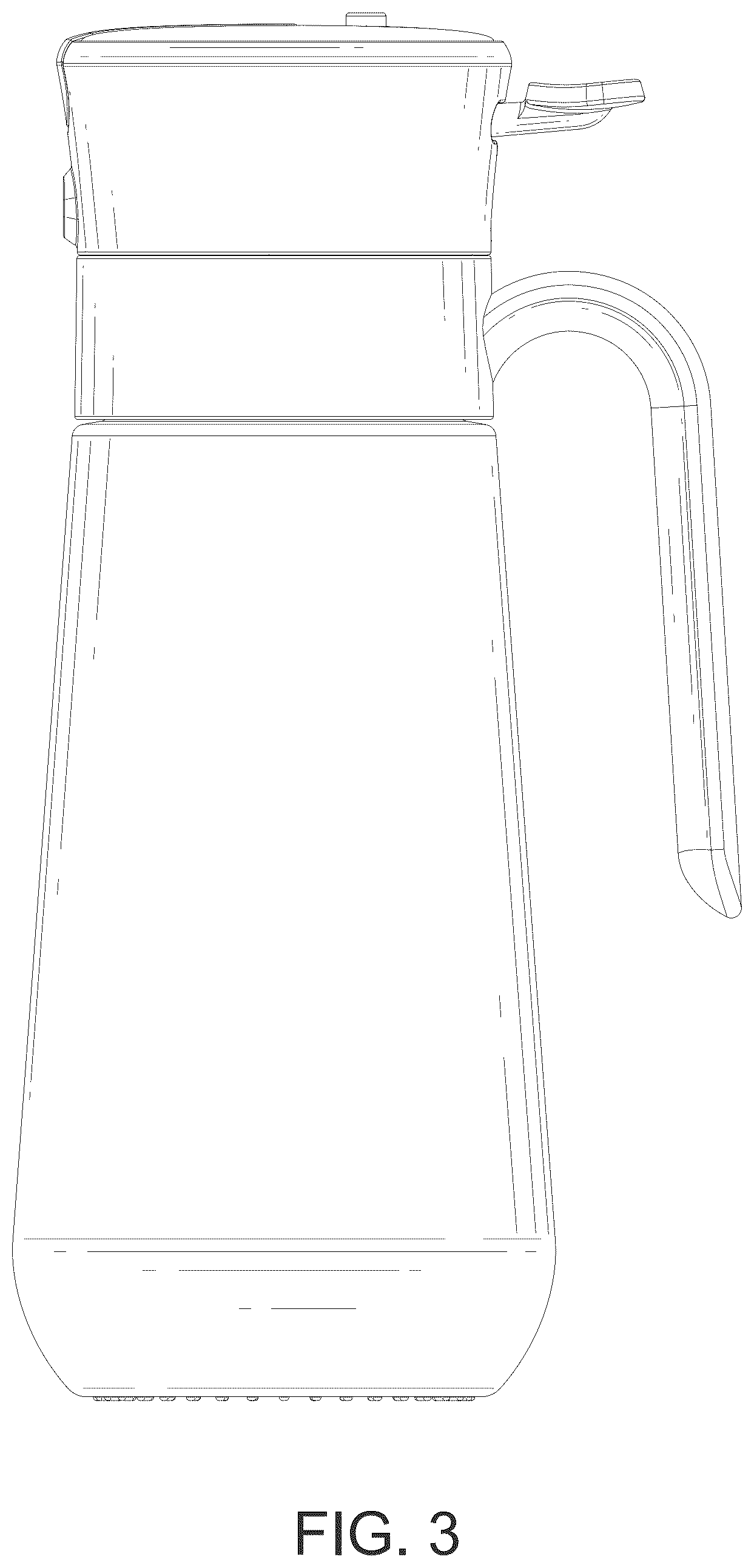

is a front view thereof;

is a rear view thereof;

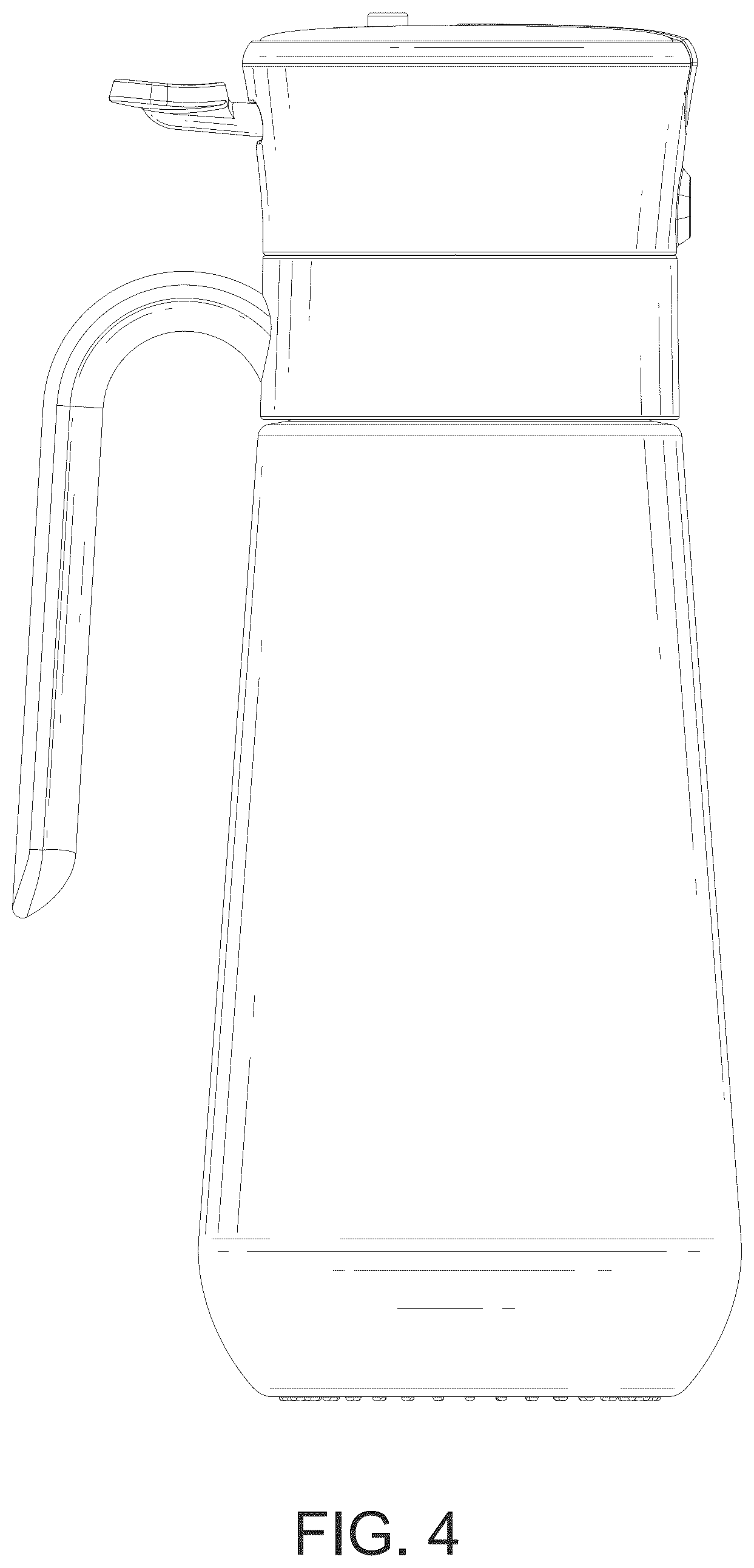

is a left side view thereof;

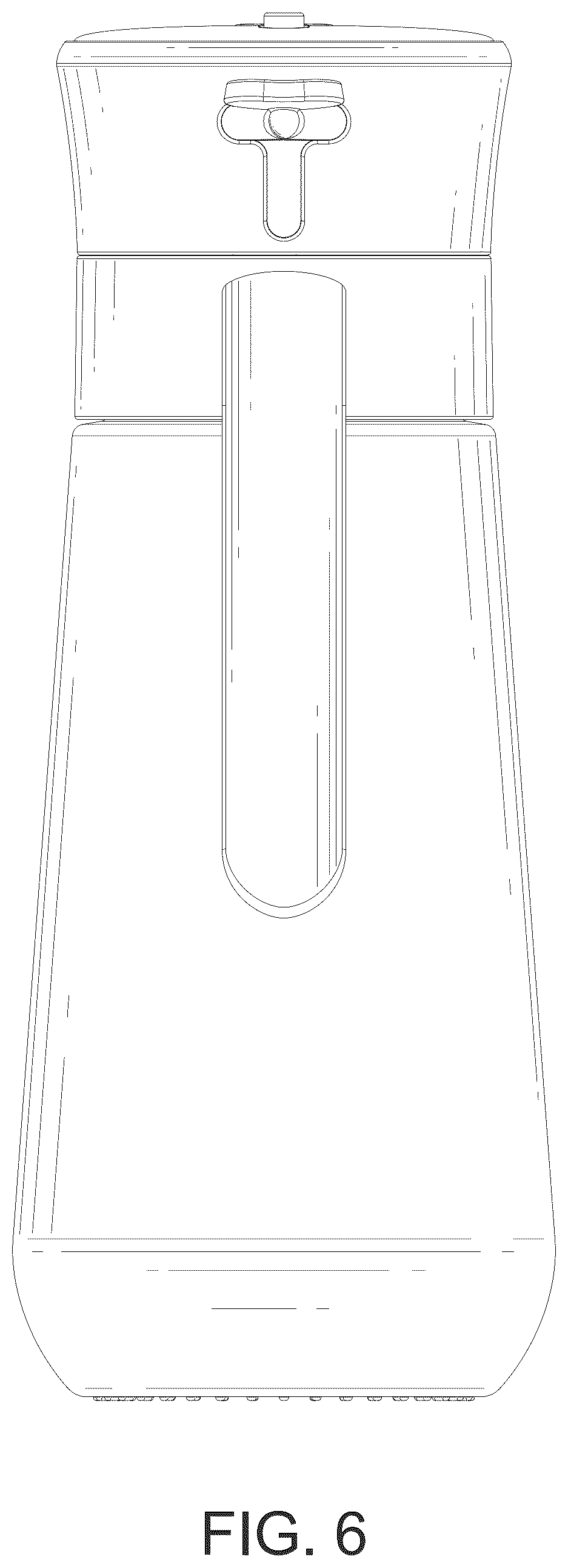

is a right side view thereof;

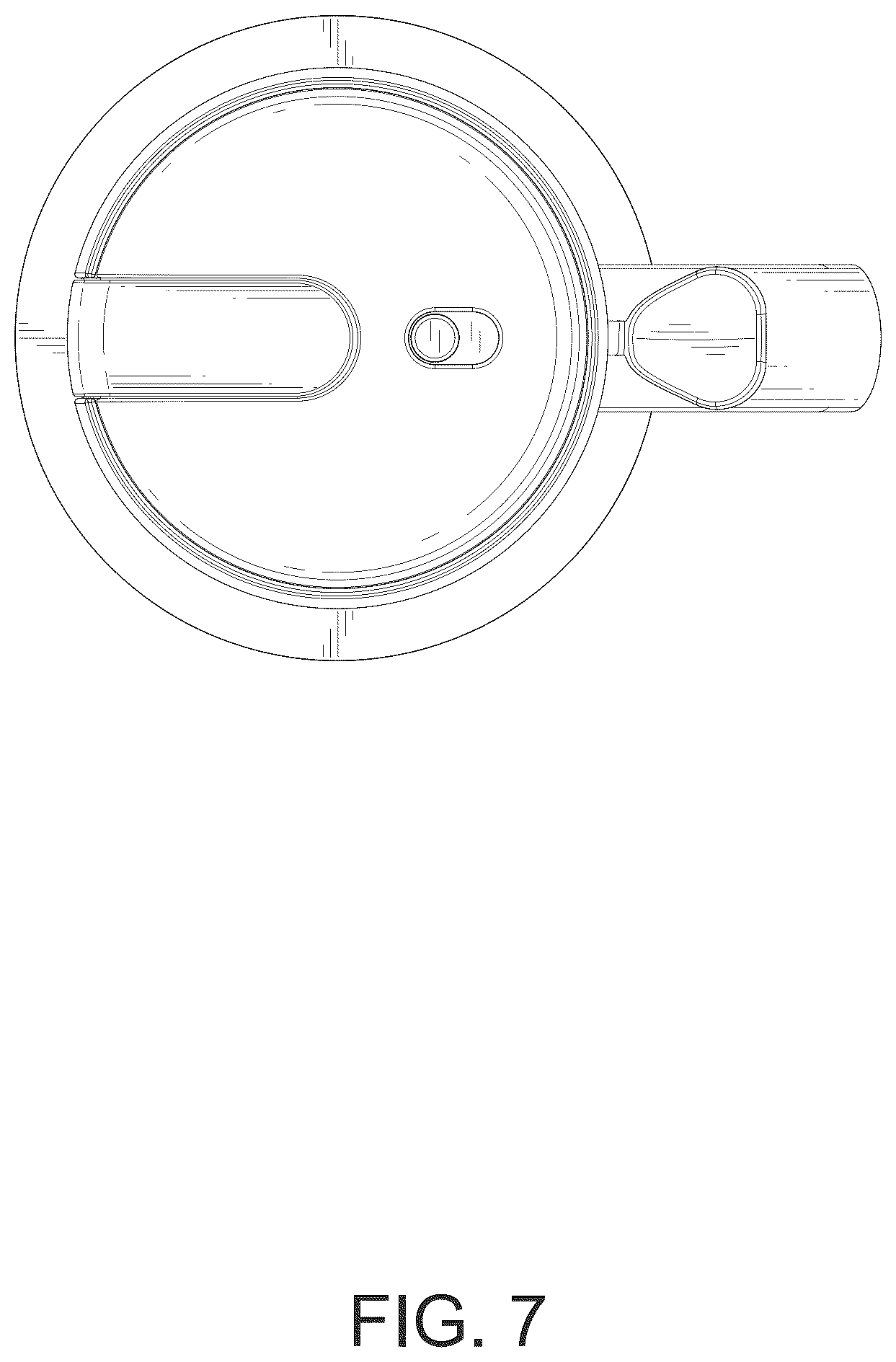

is a top view thereof; and,

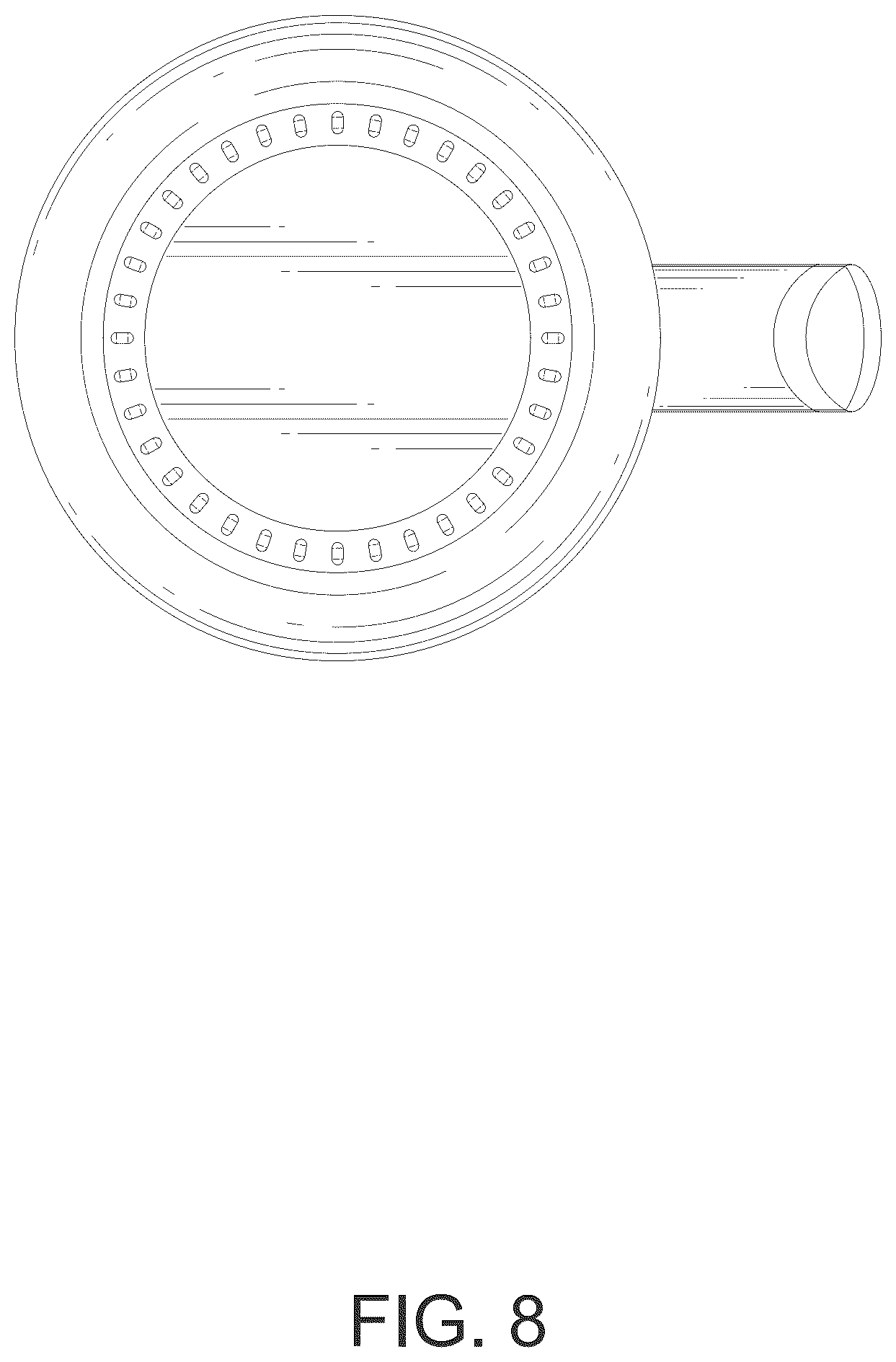

is a bottom view.

The broken lines in the drawings illustrate the portions of the oil dispenser bottle, which form no part of the claimed design.
