Tool Stool

USD1125781No. D 1,125,781designGranted 5/5/2026

Patent USD1125781 — Tool stool — Figure 1 — Fig. 1 · Tool Stool

Claims (1)

Claim 1 (Independent)

The ornamental design for a tool stool as shown and described.

Full Description

Show full text →

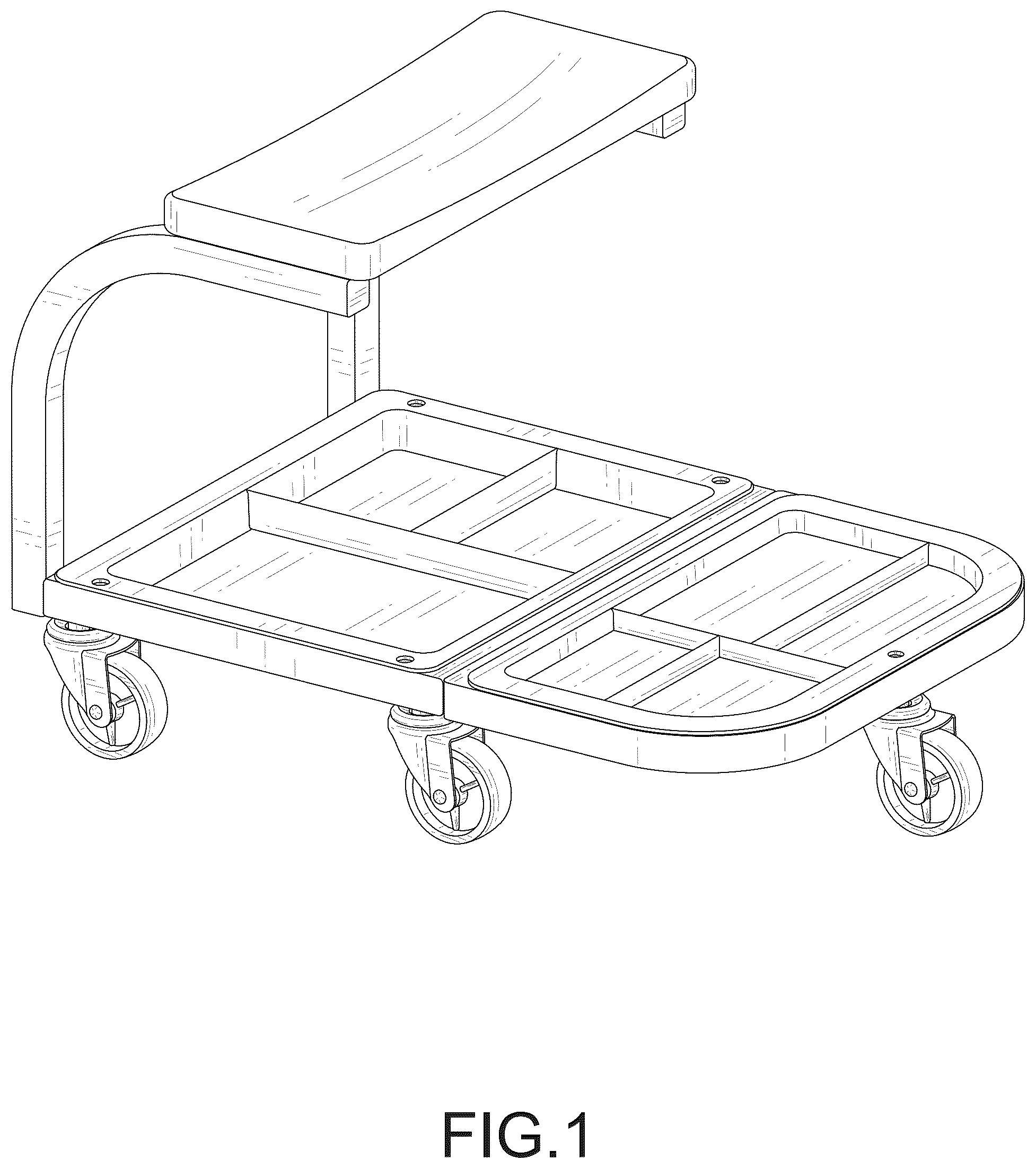

is a front, right perspective view of the tool stool;

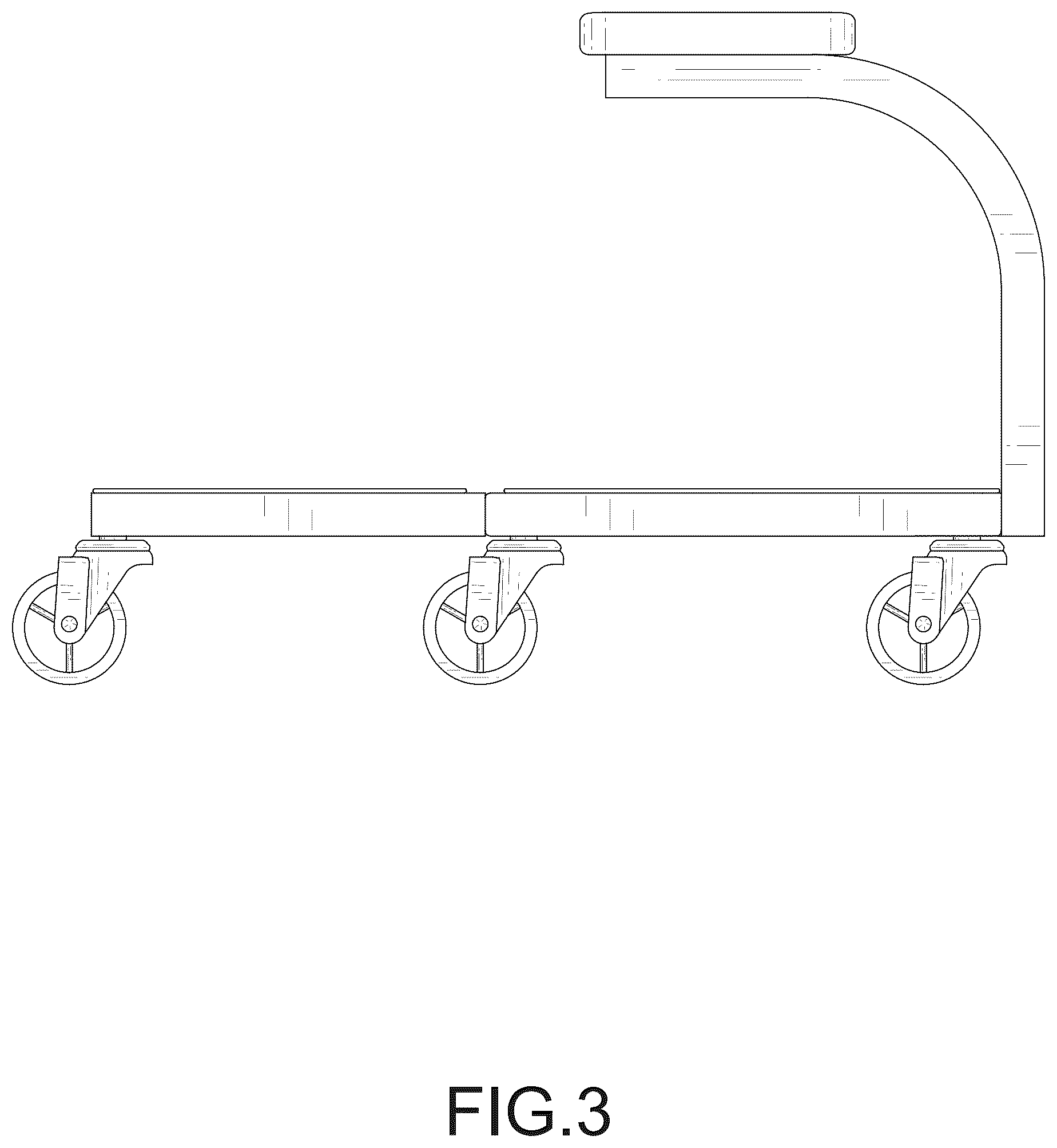

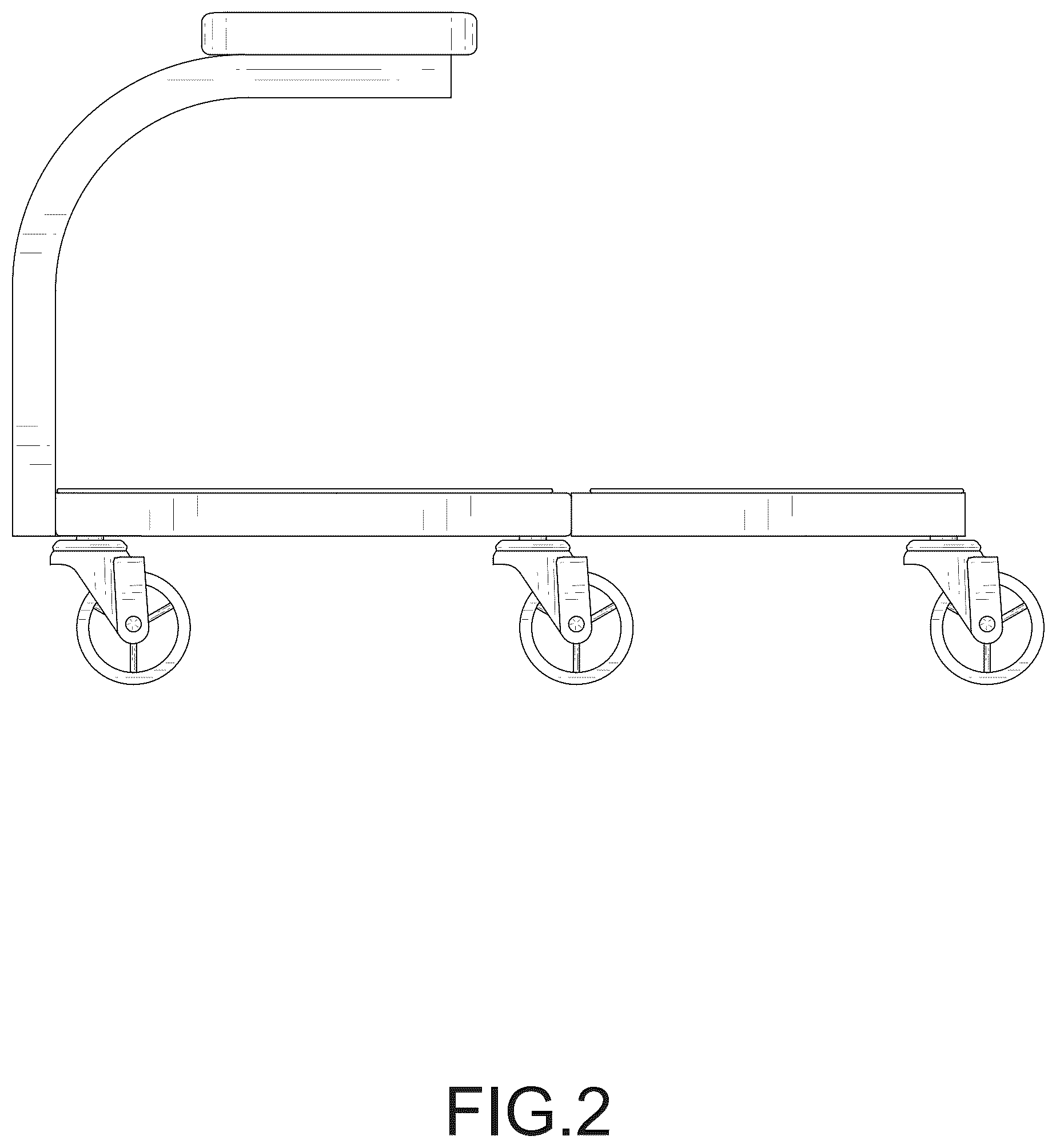

is a front view thereof;

is a rear view thereof;

is a left view thereof;

is a right view thereof;

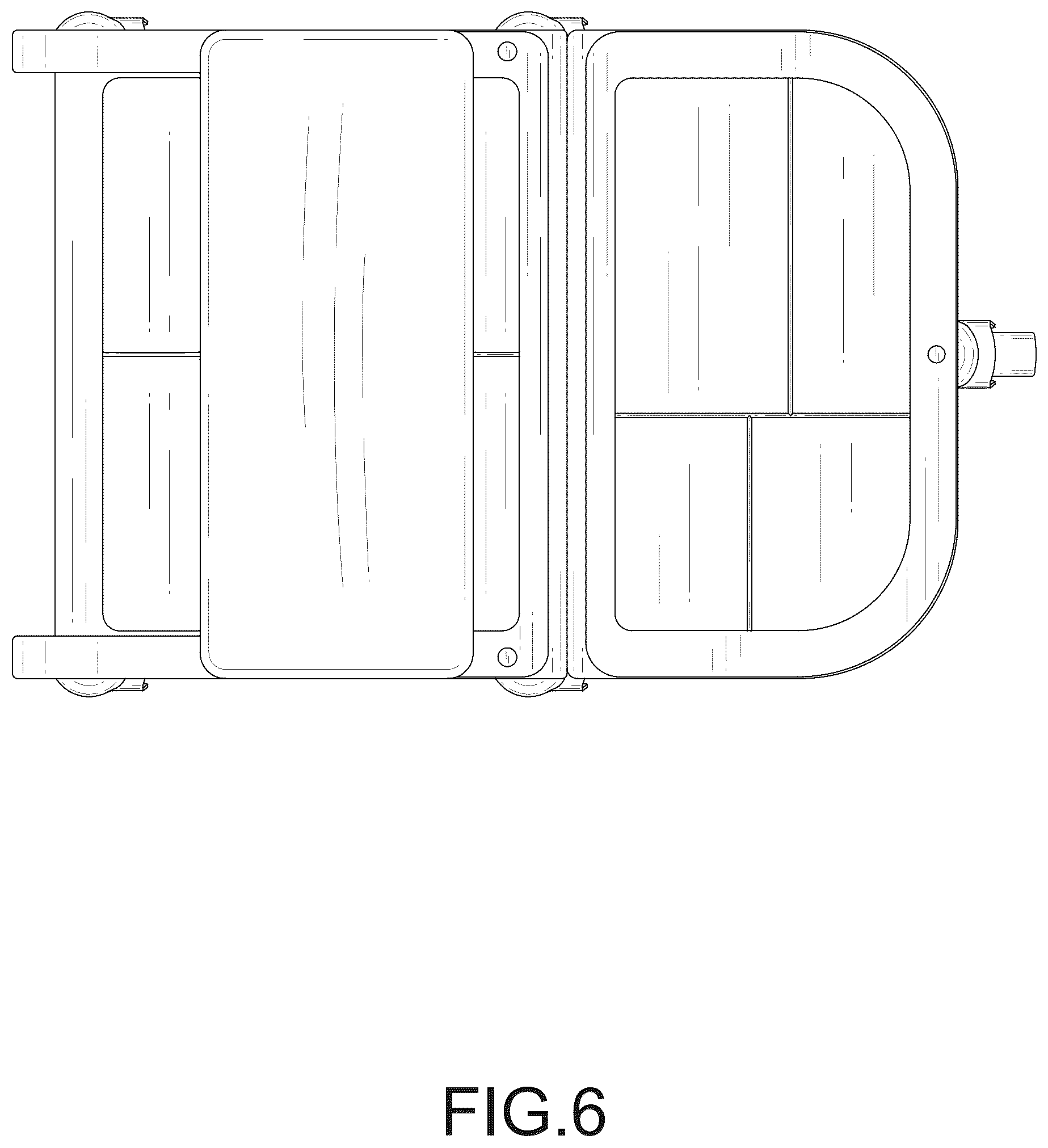

is a top view thereof;

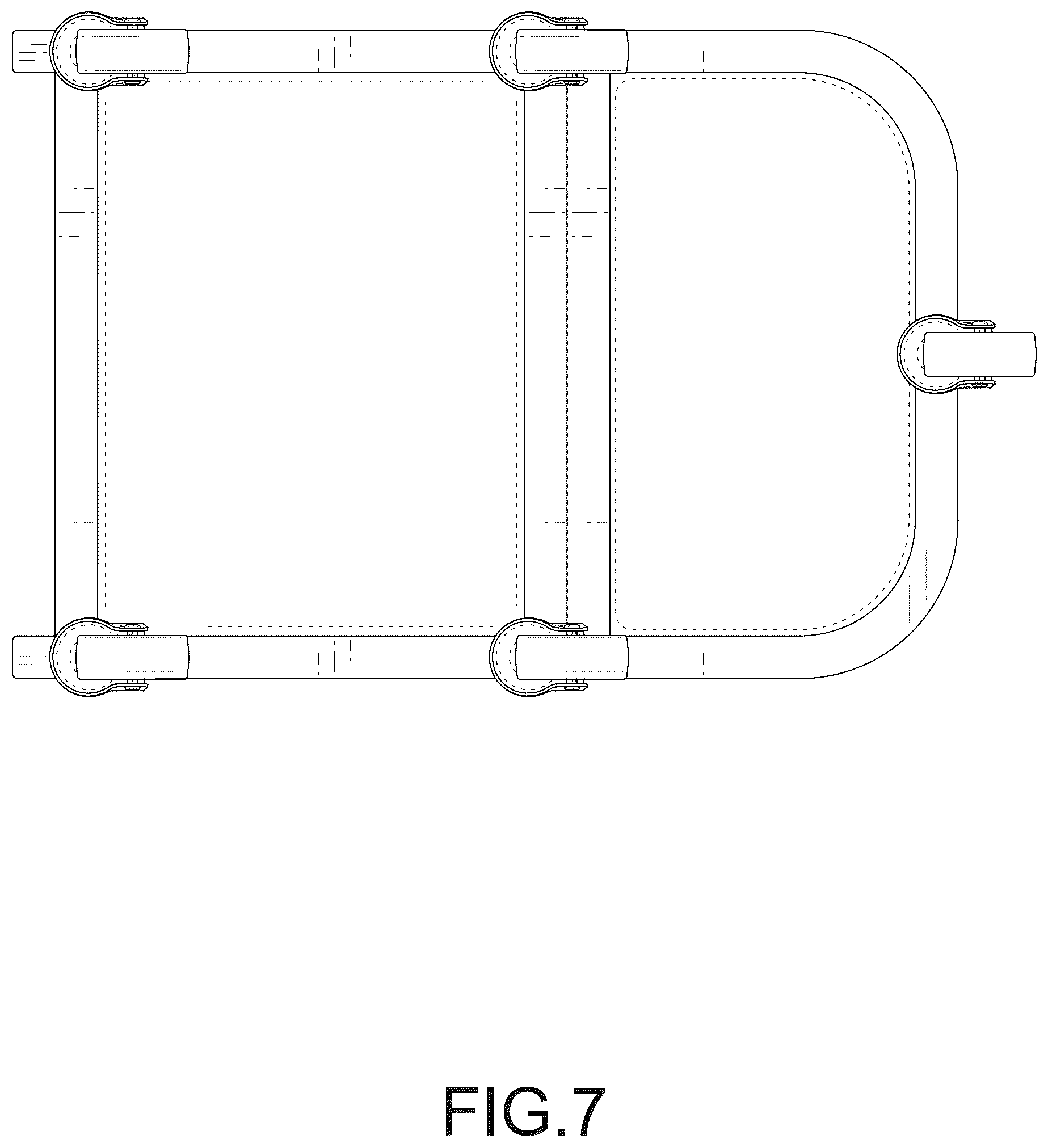

is a bottom view thereof;

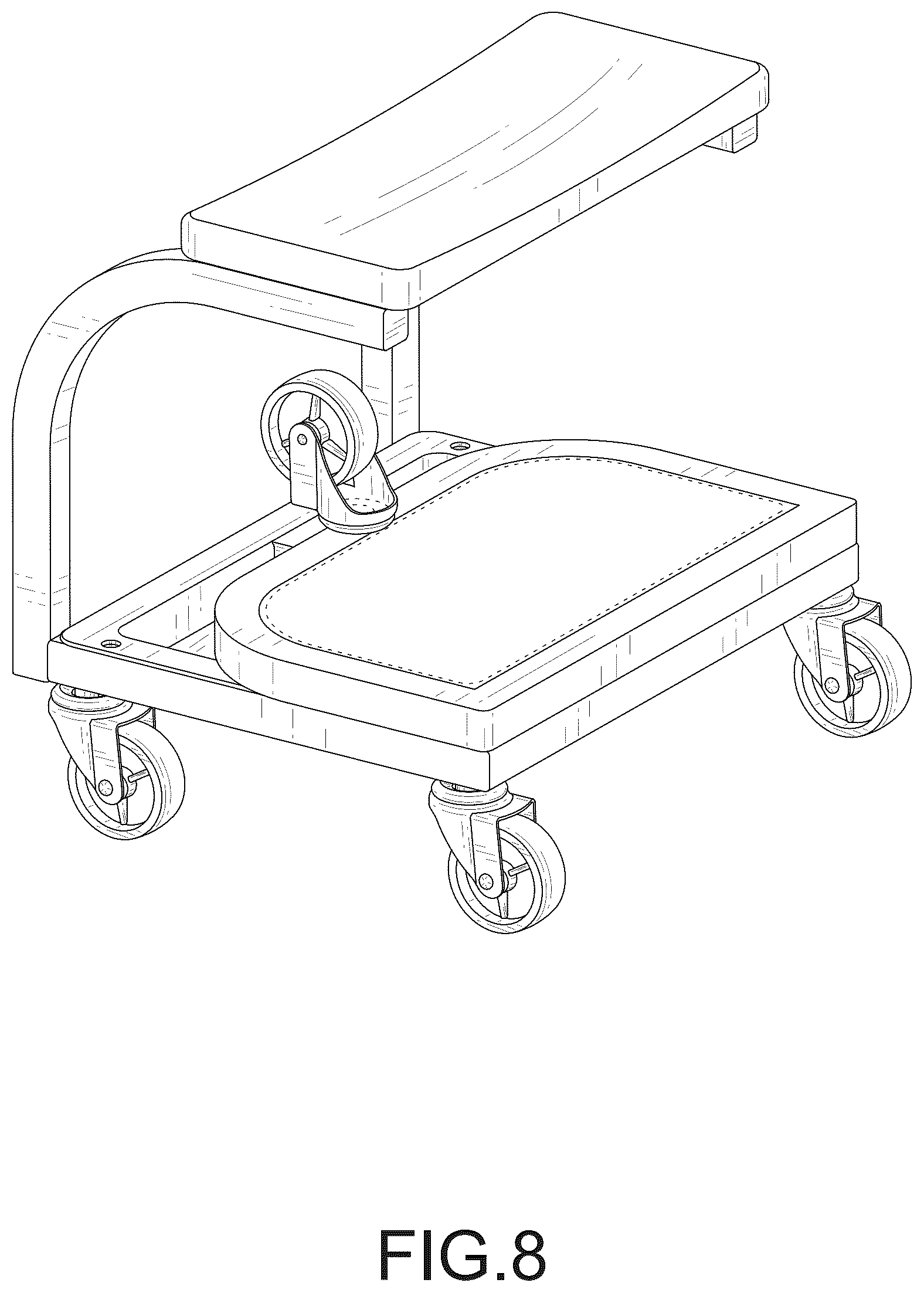

is a front, right perspective view of with a front section of the tool stool being folded;

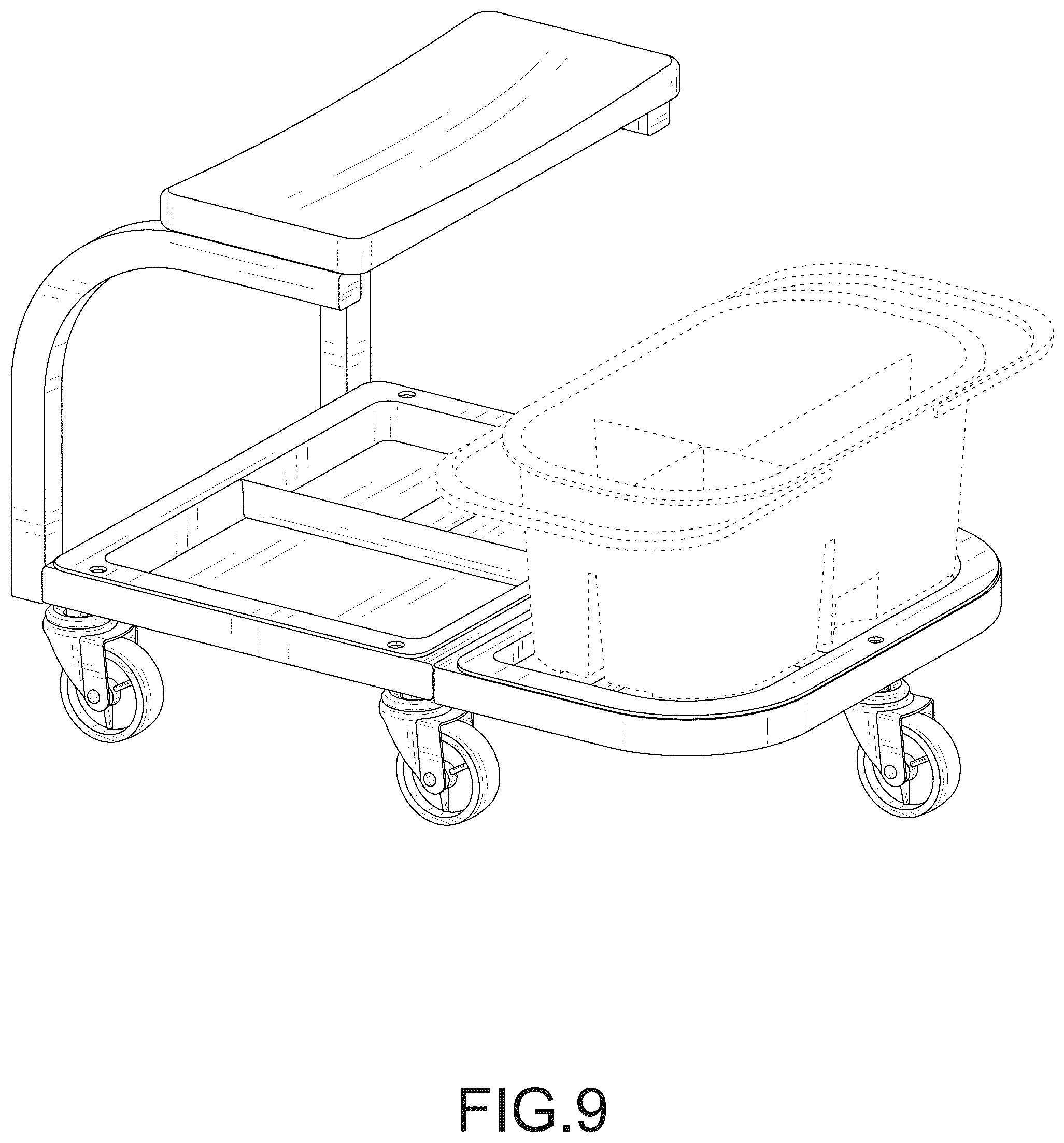

is a front, right perspective view of with a storage box resting on top of the front section of the tool stool; and,

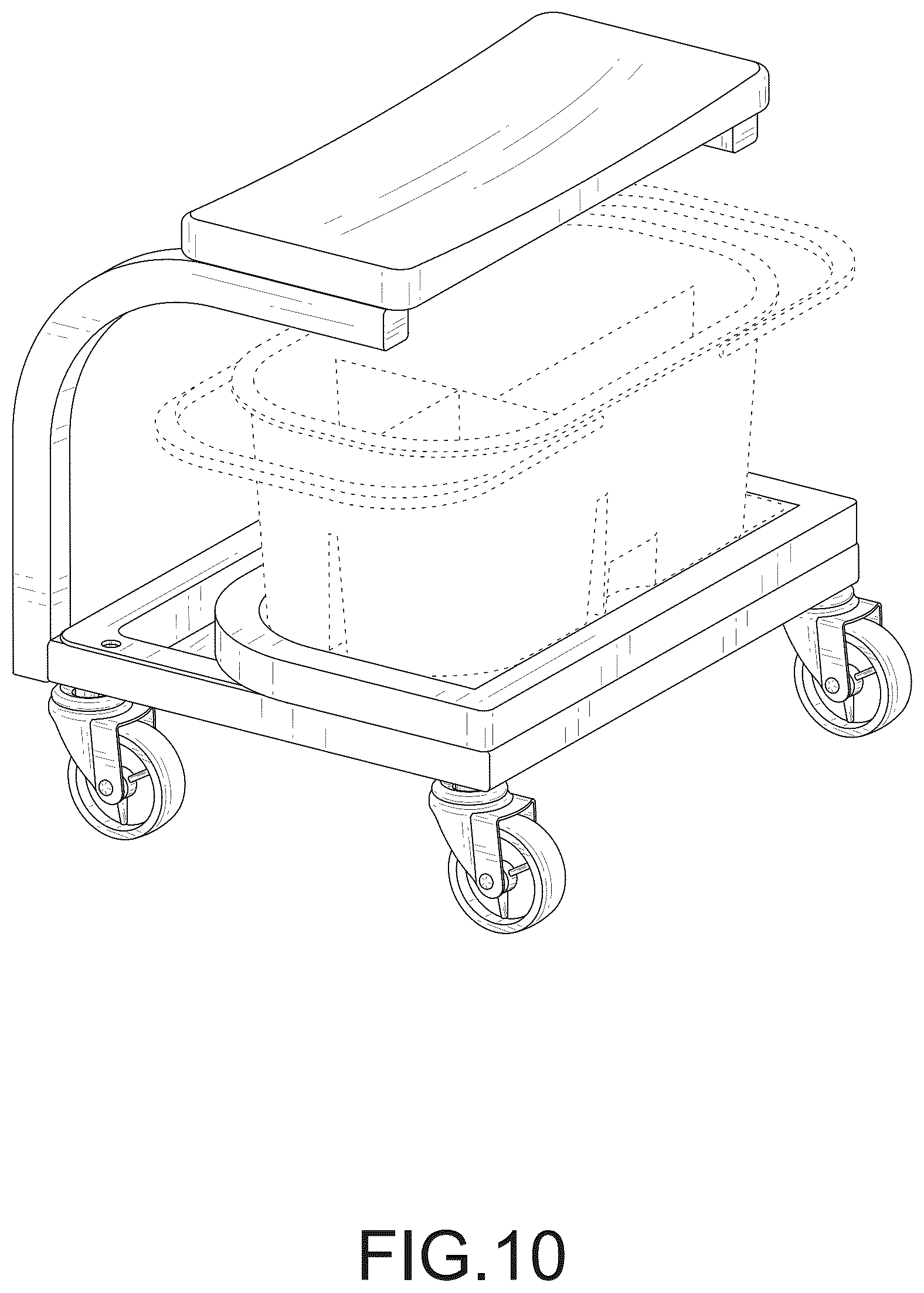

is a front, right perspective view of with the storage box resting on top of the front section of the tool stool being folded.

The broken lines shown in the drawings depict portions and environment of the tool stool that form no part of the claimed design.

Figures (10)

Patent USD1125781 Figure 1 – Tool stool — Fig. 1

Patent USD1125781 Figure 2 – Tool stool — Fig. 2

Patent USD1125781 Figure 3 – Tool stool — Fig. 3

Patent USD1125781 Figure 4 – Tool stool — Fig. 4

Patent USD1125781 Figure 5 – Tool stool — Fig. 5

Patent USD1125781 Figure 6 – Tool stool — Fig. 6

Patent USD1125781 Figure 7 – Tool stool — Fig. 7

Patent USD1125781 Figure 8 – Tool stool — Fig. 8

Patent USD1125781 Figure 9 – Tool stool — Fig. 9

Patent USD1125781 Figure 10 – Tool stool — Fig. 10
