USD1125599No. D 1,125,599designGranted 5/5/2026

Patent USD1125599 — Fence — Figure 1 — Fig. 1 · Fence

Claims (1)

Claim 1 (Independent)

The ornamental design for a fence, as shown and described.

Full Description

Show full text →

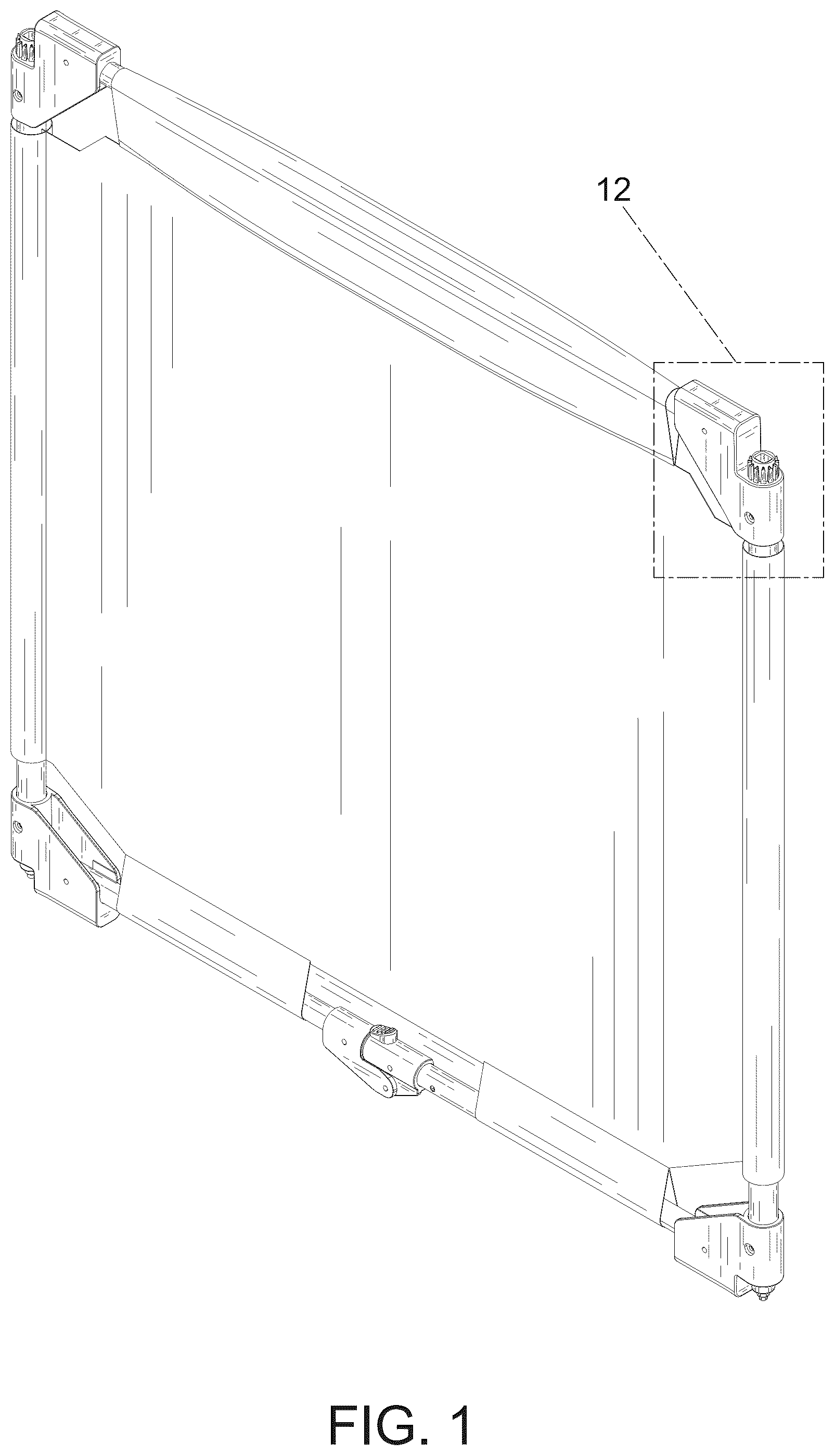

is a front, right and top perspective view of a fence, showing my new design;

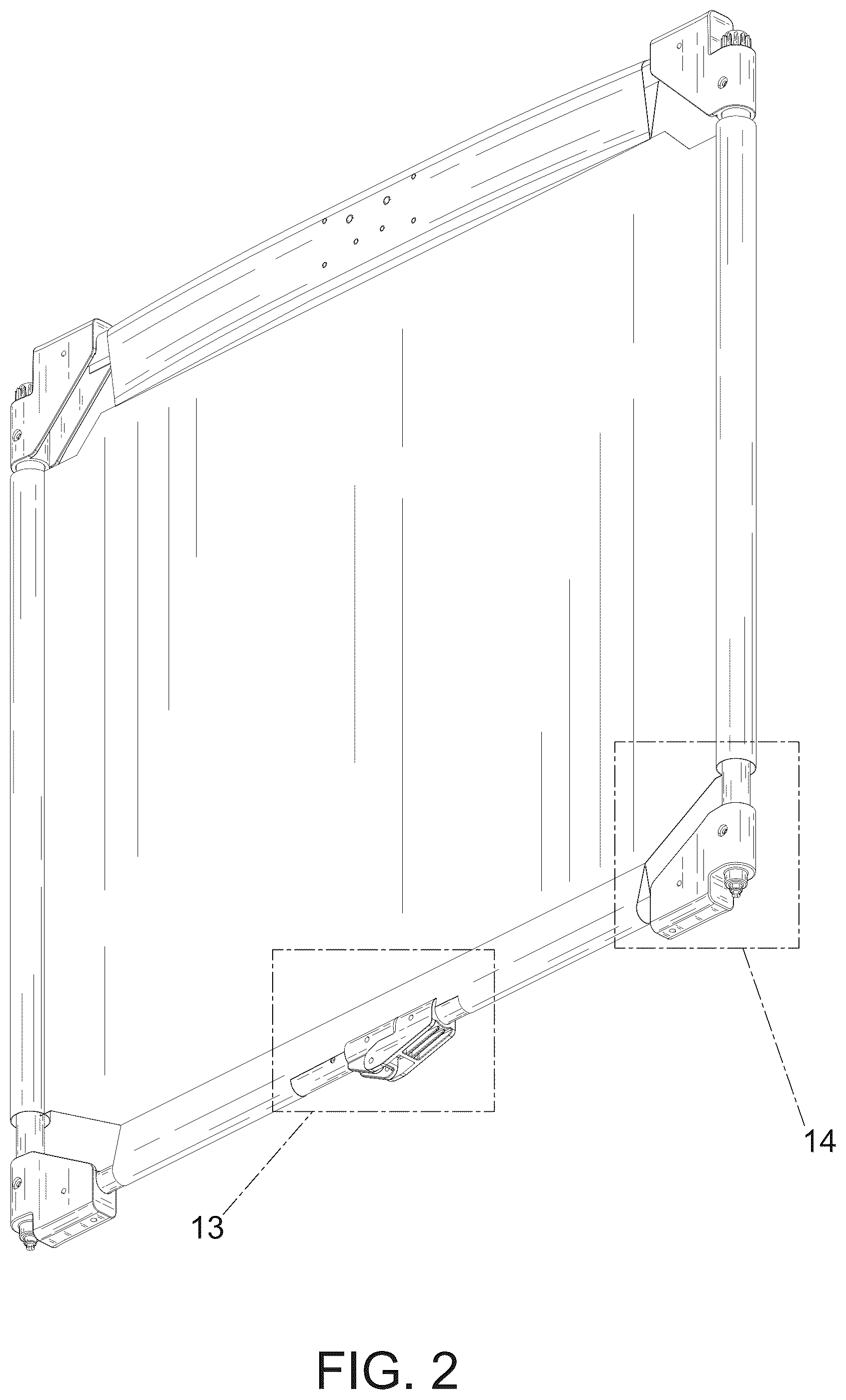

is a rear, left and bottom perspective view thereof;

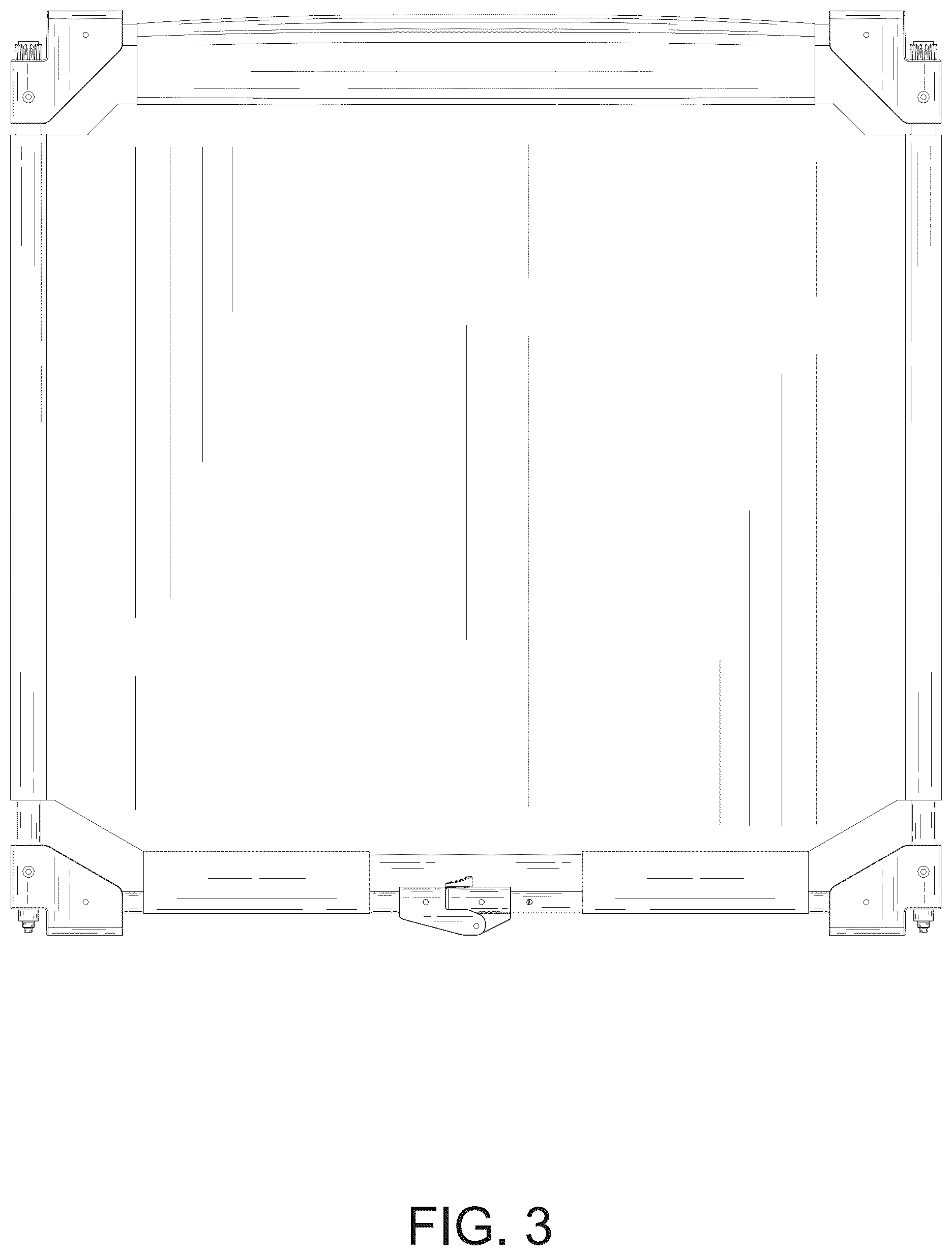

is a front view thereof;

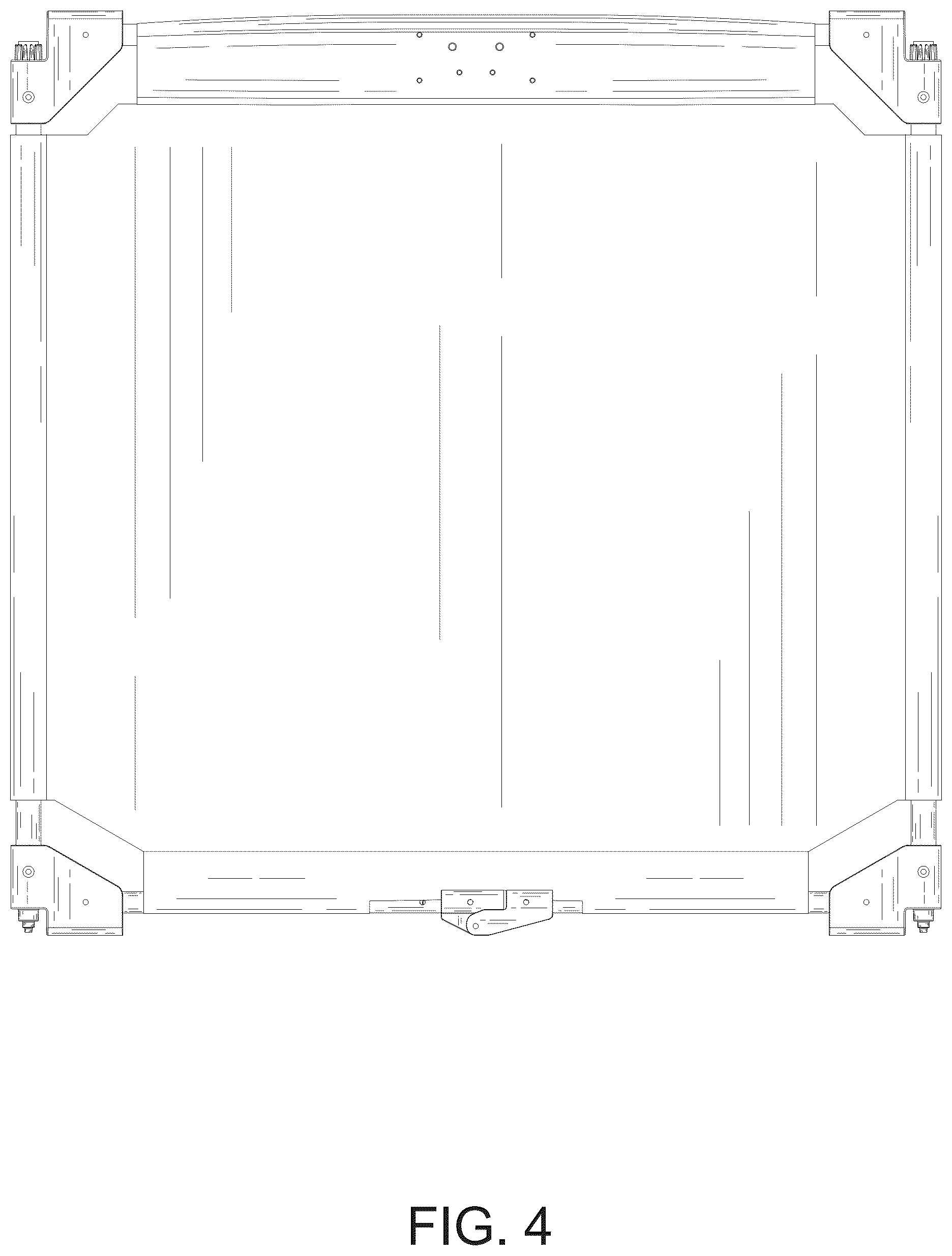

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

is a top plan view thereof;

is a bottom plan view thereof;

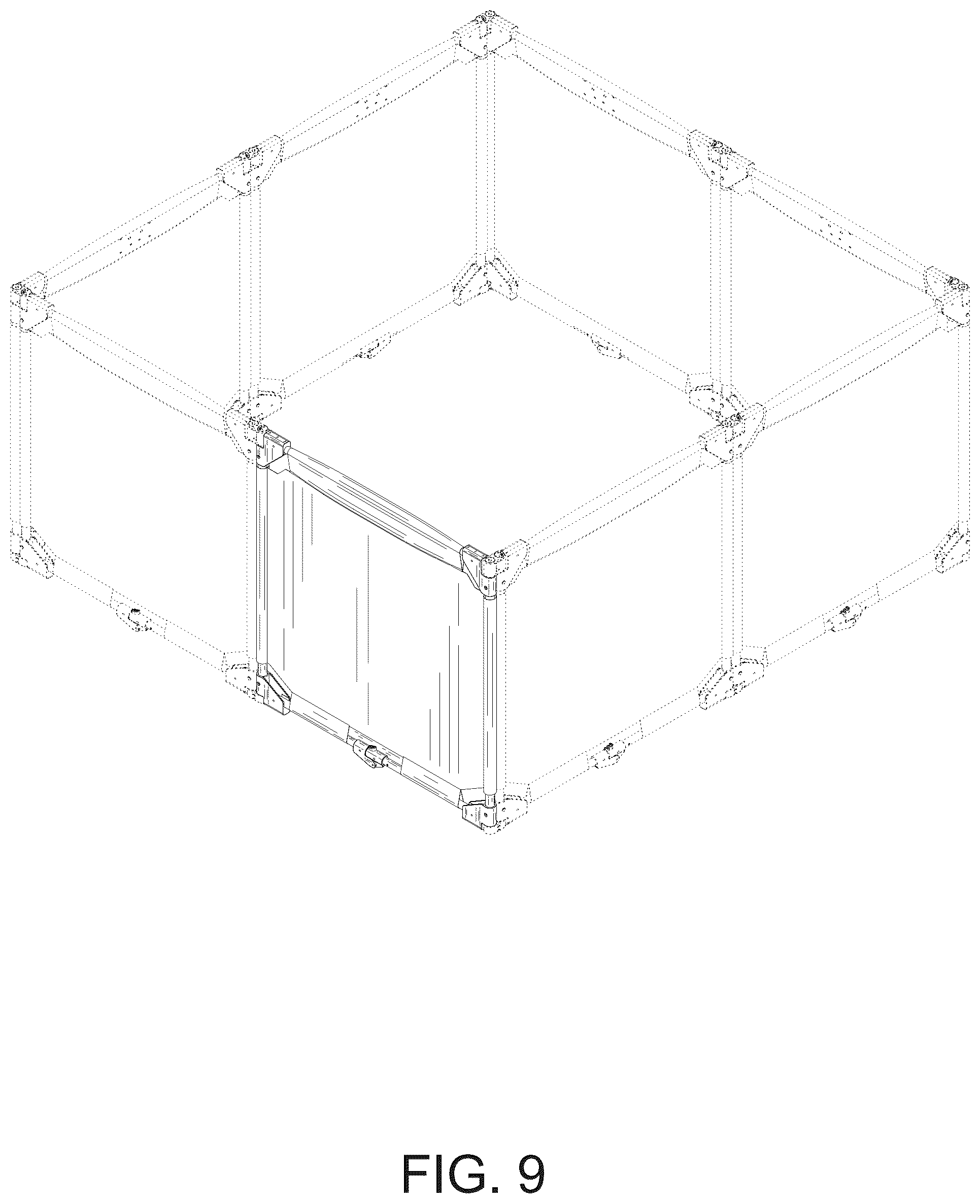

is a perspective view thereof, shown in a used condition;

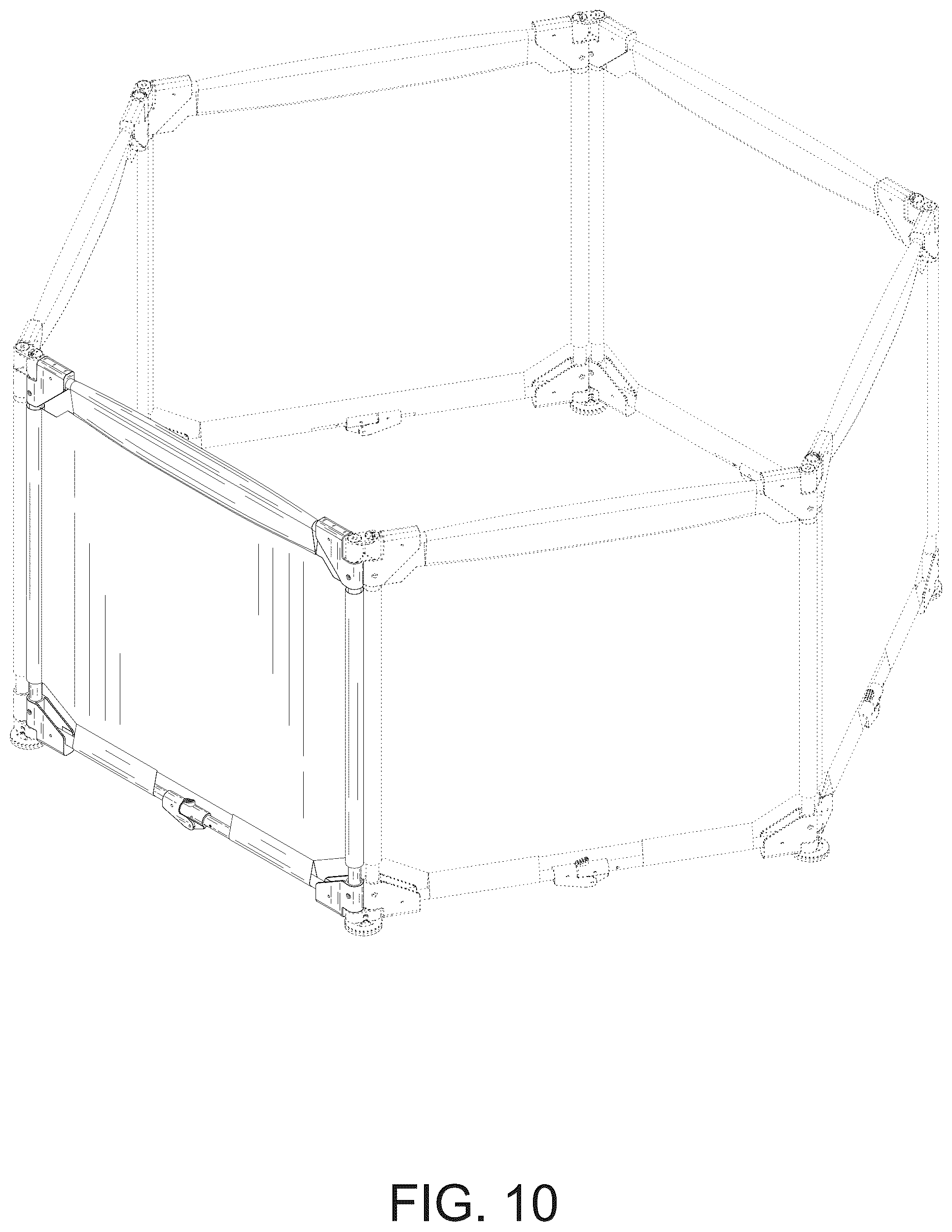

is a perspective view thereof, shown in another used condition;

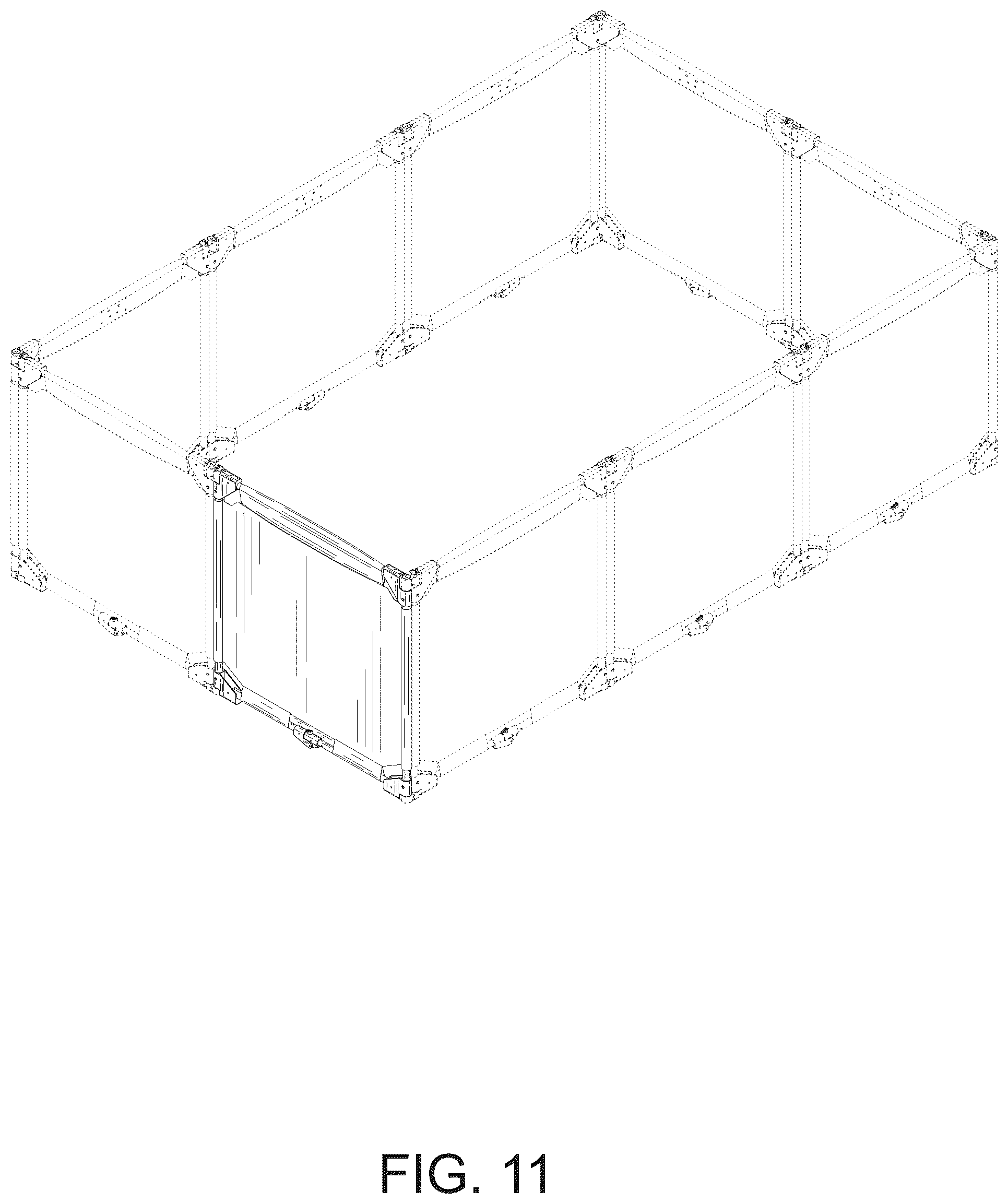

is a perspective view thereof, shown in another used condition;

is an enlarged view of portion of thereof;

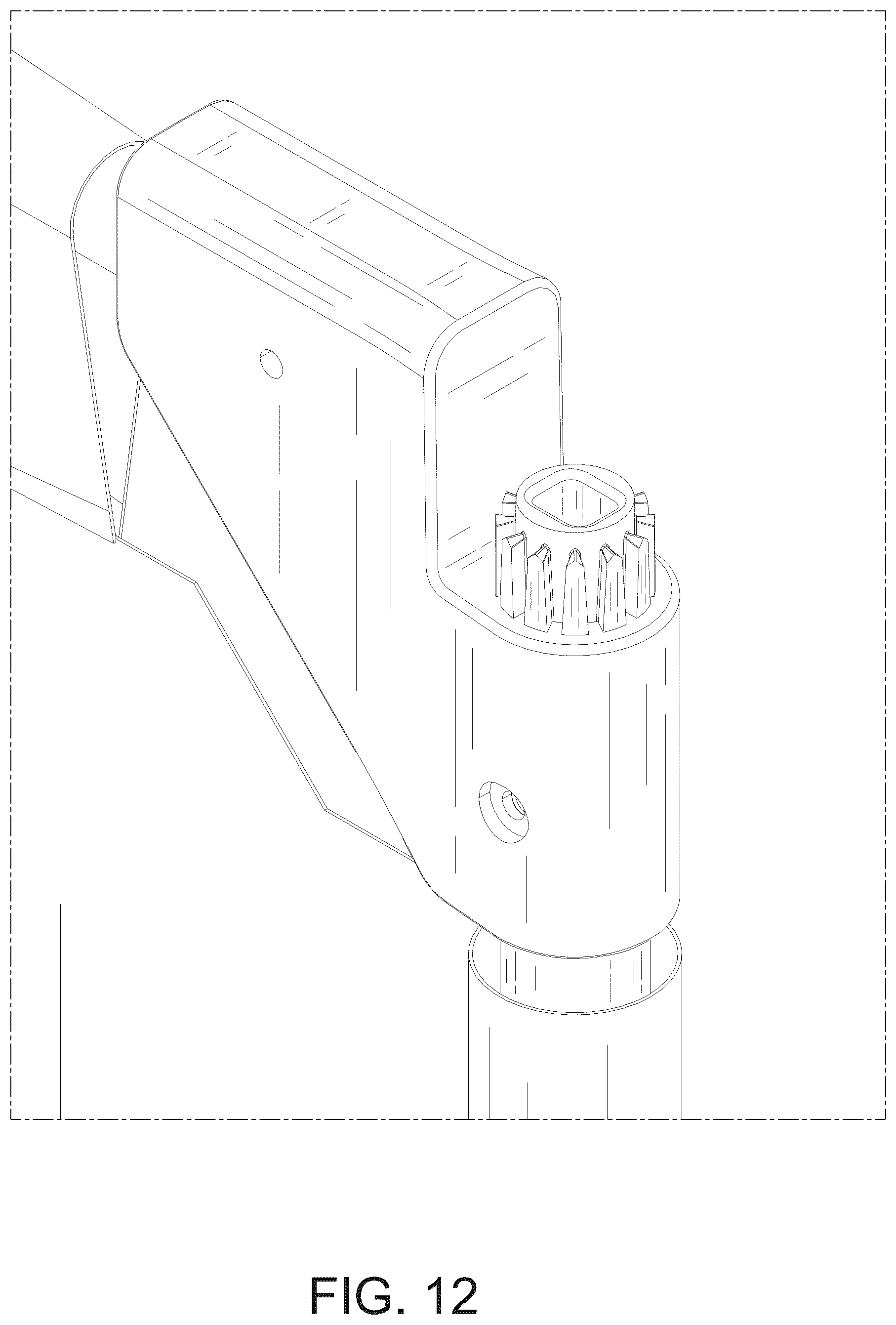

is an enlarged view of portion of thereof; and,

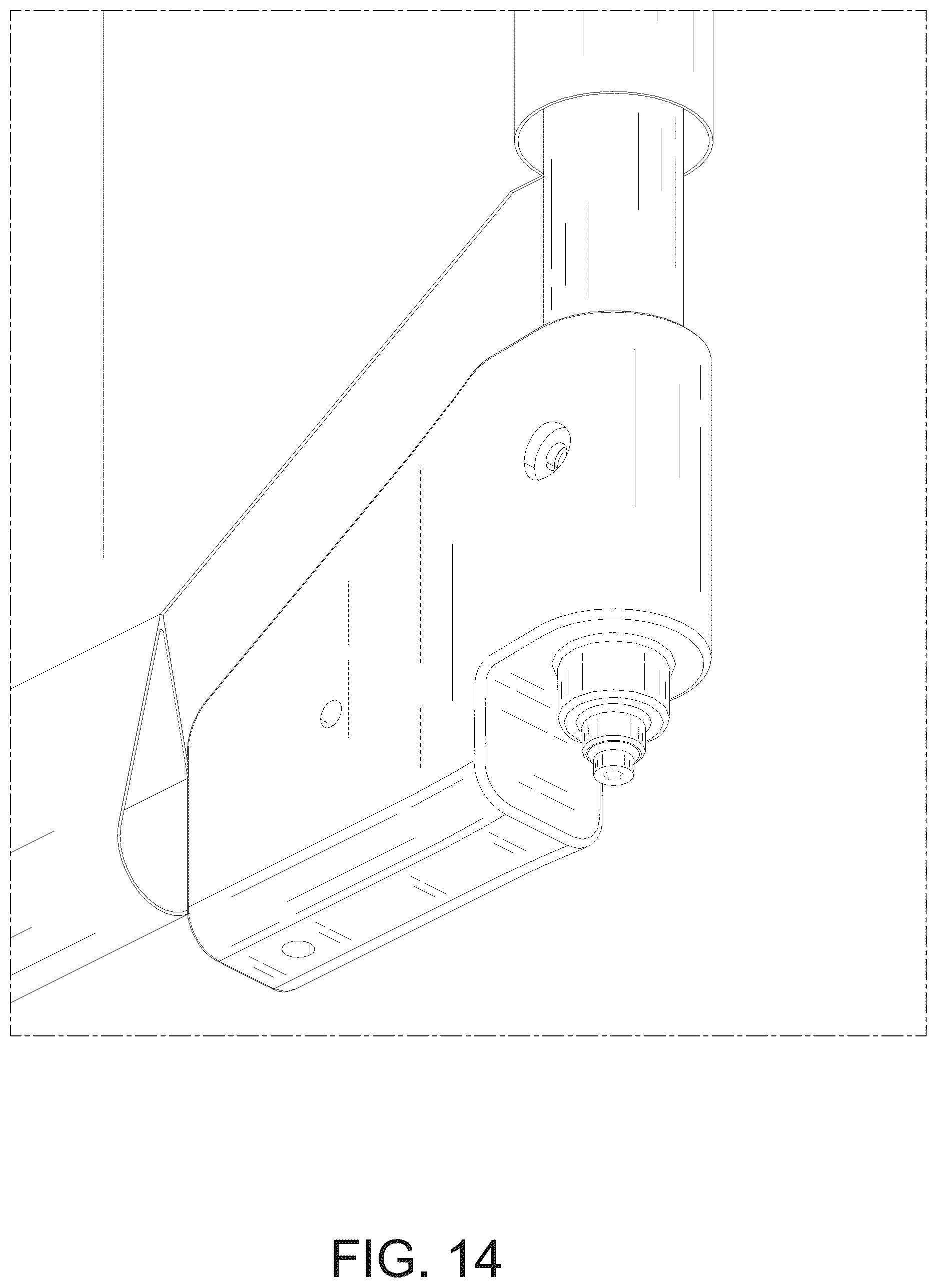

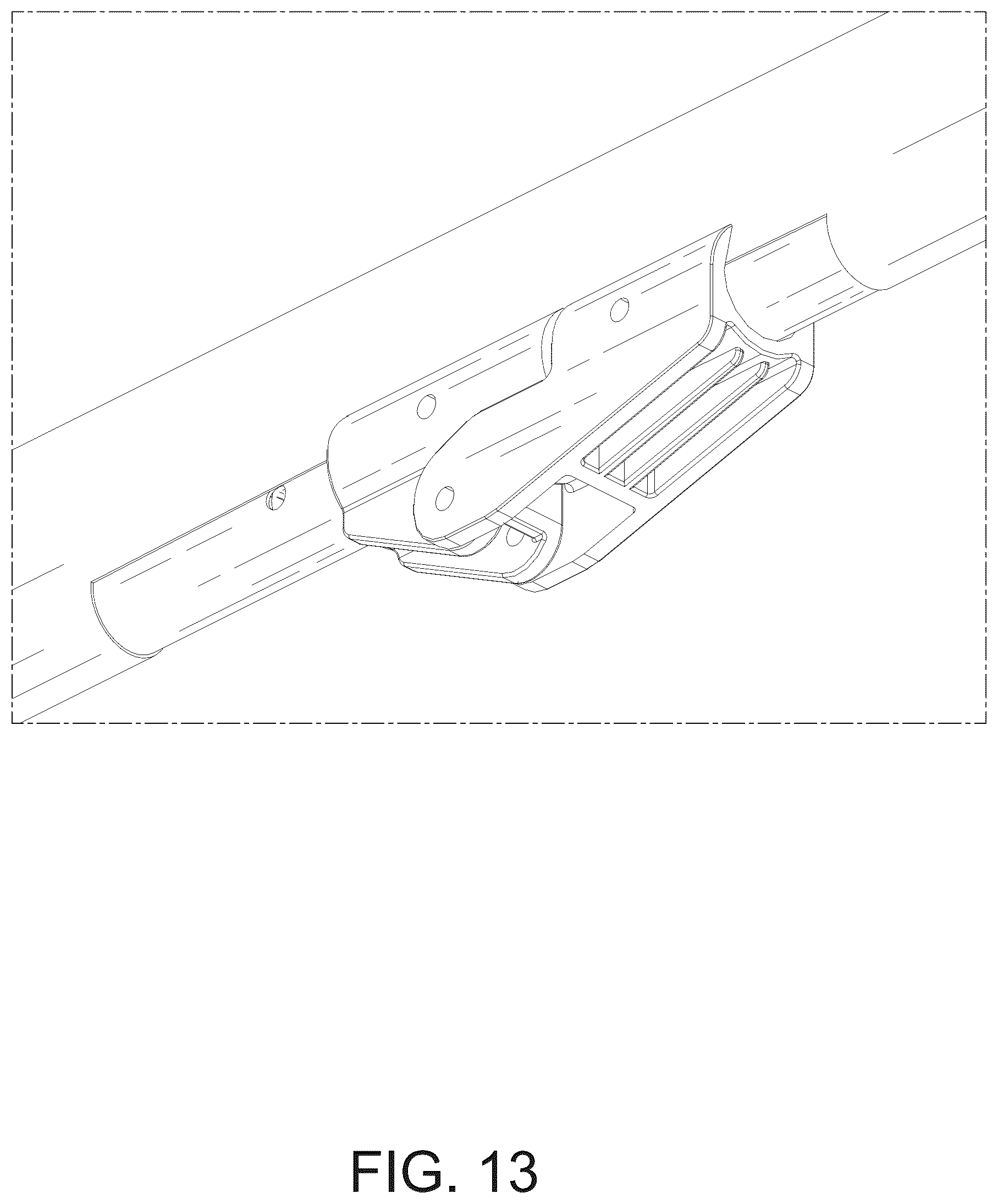

is an enlarged view of portion of thereof.

The dot-dash broken lines depict the boundaries of the enlargements that form no part of the claimed design.

The broken lines depict portions of the fence that form no part of the claimed design.
