Patents/USD1125563

Back Support

USD1125563No. D 1,125,563designGranted 5/5/2026
Patent USD1125563 — Back support — Figure 1
Fig. 1 · Back Support

Claims (1)

Claim 1 (Independent)

The ornamental design for a back support as shown and described.

Full Description

Show full text →

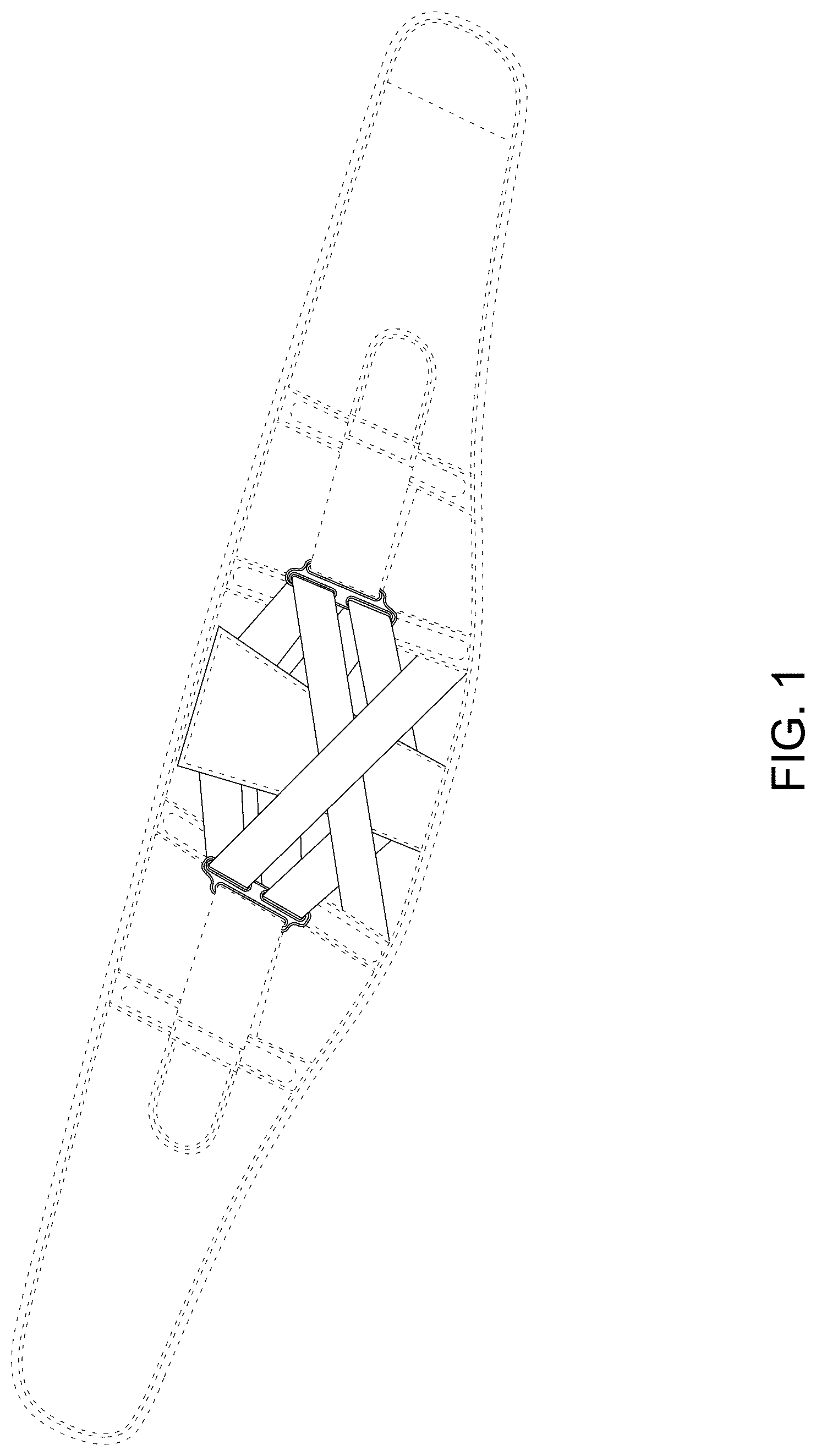

is a perspective view of a back support of the present invention showing my new design;

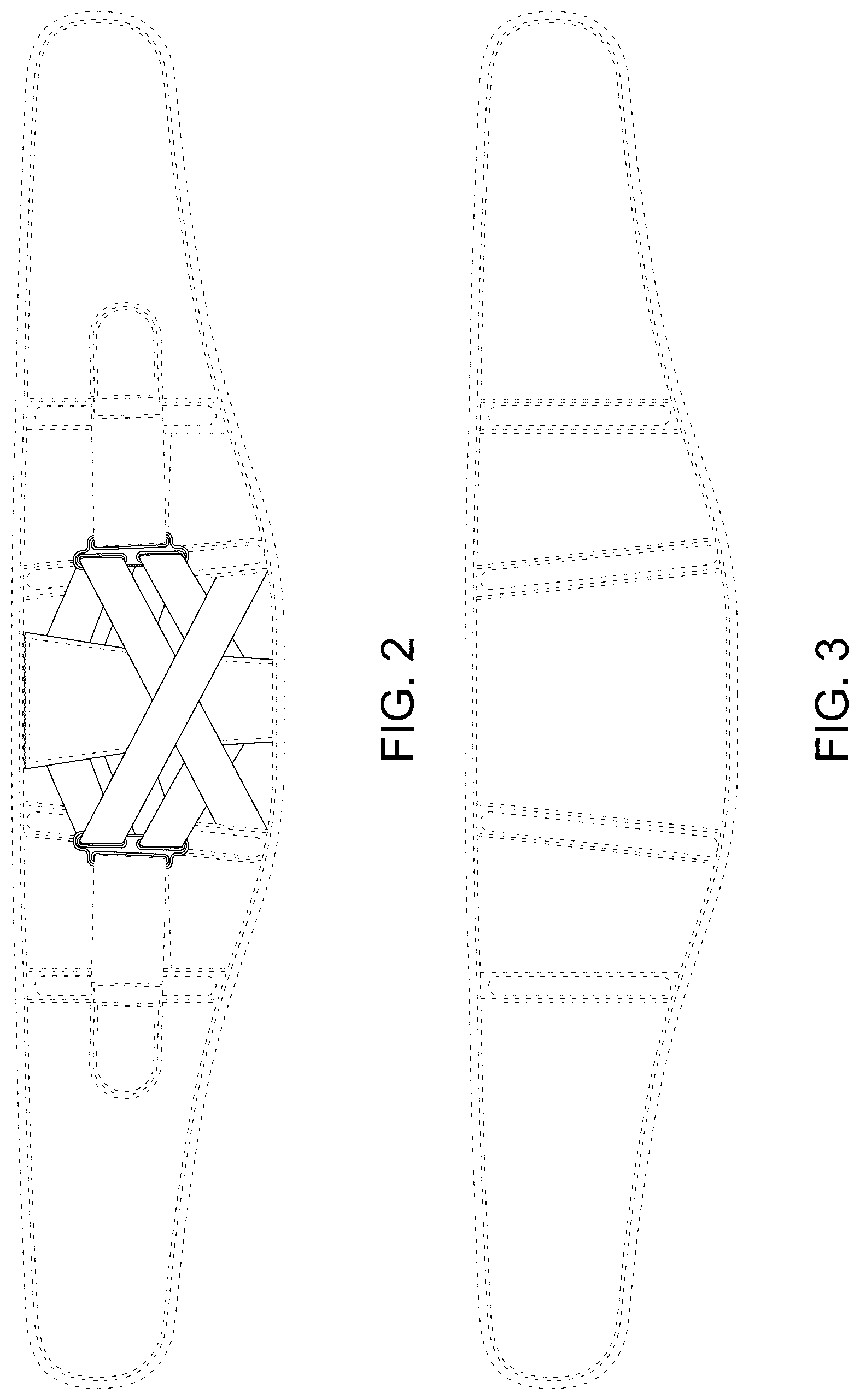

is a front view thereof;

is a rear view thereof;

is a top view thereof;

is a bottom view thereof;

is a side view thereof; and,

is another side view thereof.

The features shown in dashed broken lines in the figures do not constitute a part of the claimed design.
