Claims (1)

Claim 1 (Independent)

The ornamental design for a console, as shown and described.

Full Description

Show full text →

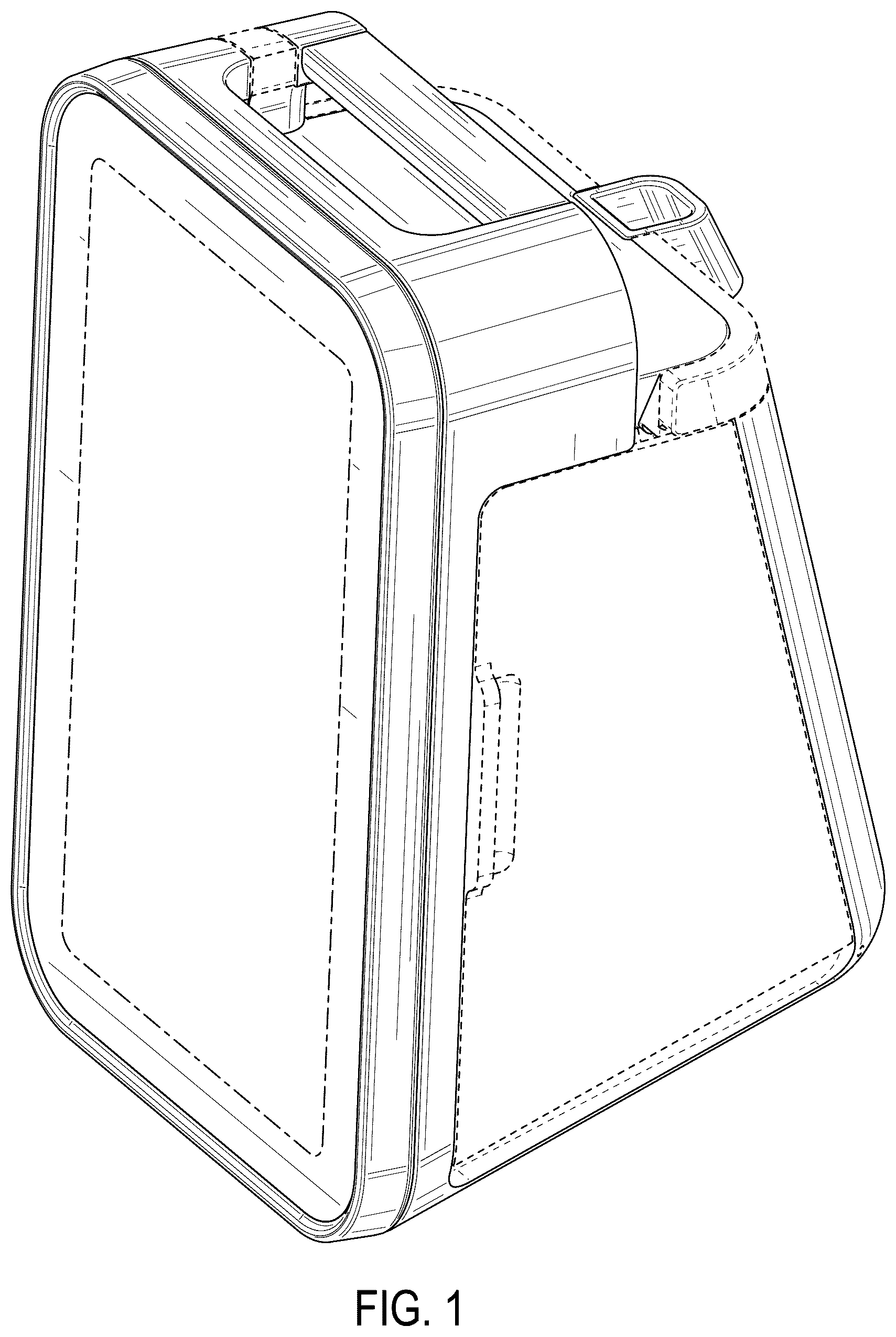

is a front, top, right side perspective view of a console according to our new design;

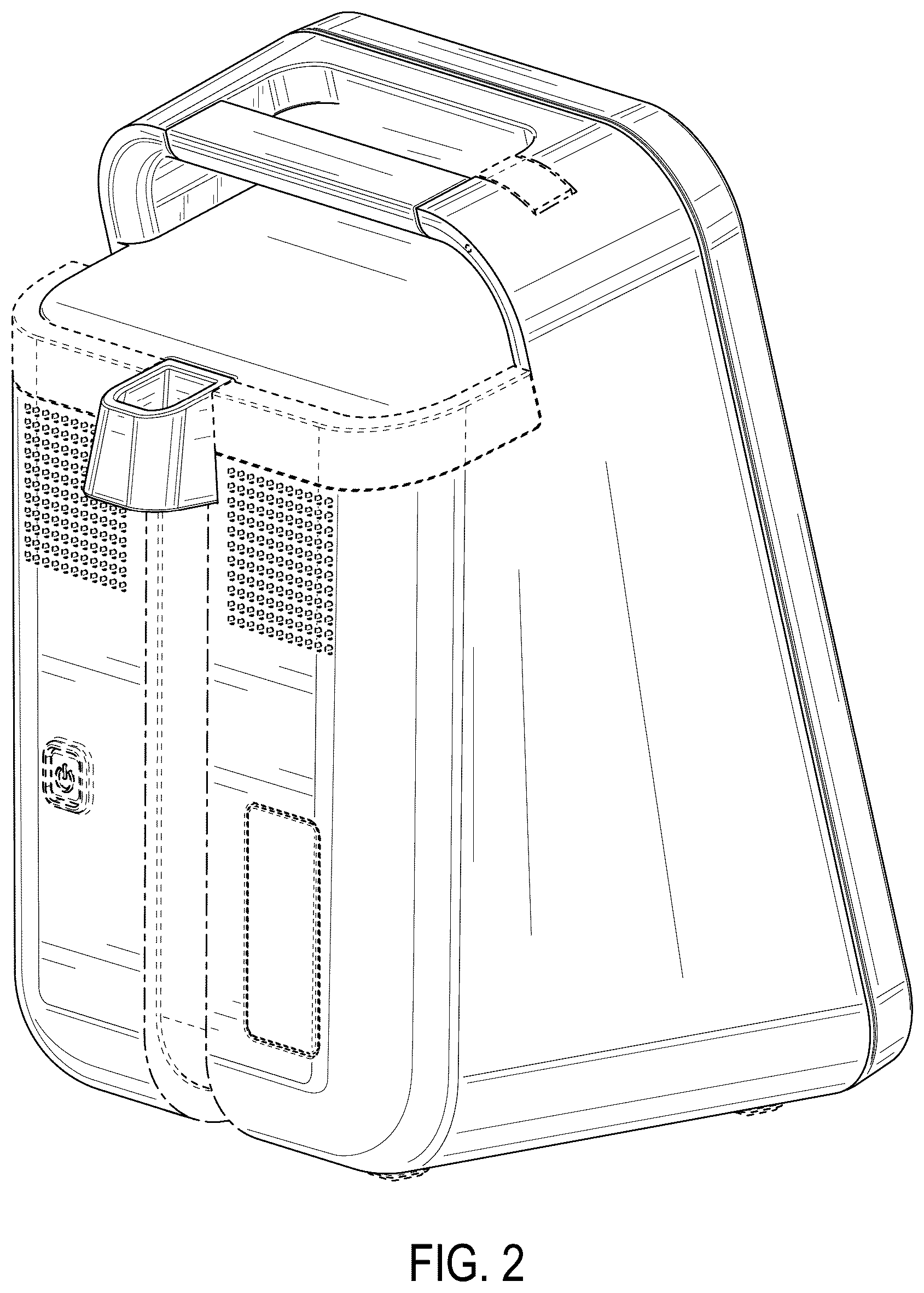

is a rear, top, left side perspective view thereof;

is front elevation view thereof;

is a rear elevation view thereof;

is a left side elevation view thereof;

is a right side elevation view thereof;

is top plan view thereof; and,

is a bottom plan view thereof.

The dot-dash broken lines represent boundaries of the claimed design and form no part of the claimed design. All other broken lines illustrate portions of the console that form no part of the claimed design.

Figures (8)

Patent USD1125559 Figure 1 – Console — Fig. 1

Patent USD1125559 Figure 2 – Console — Fig. 2

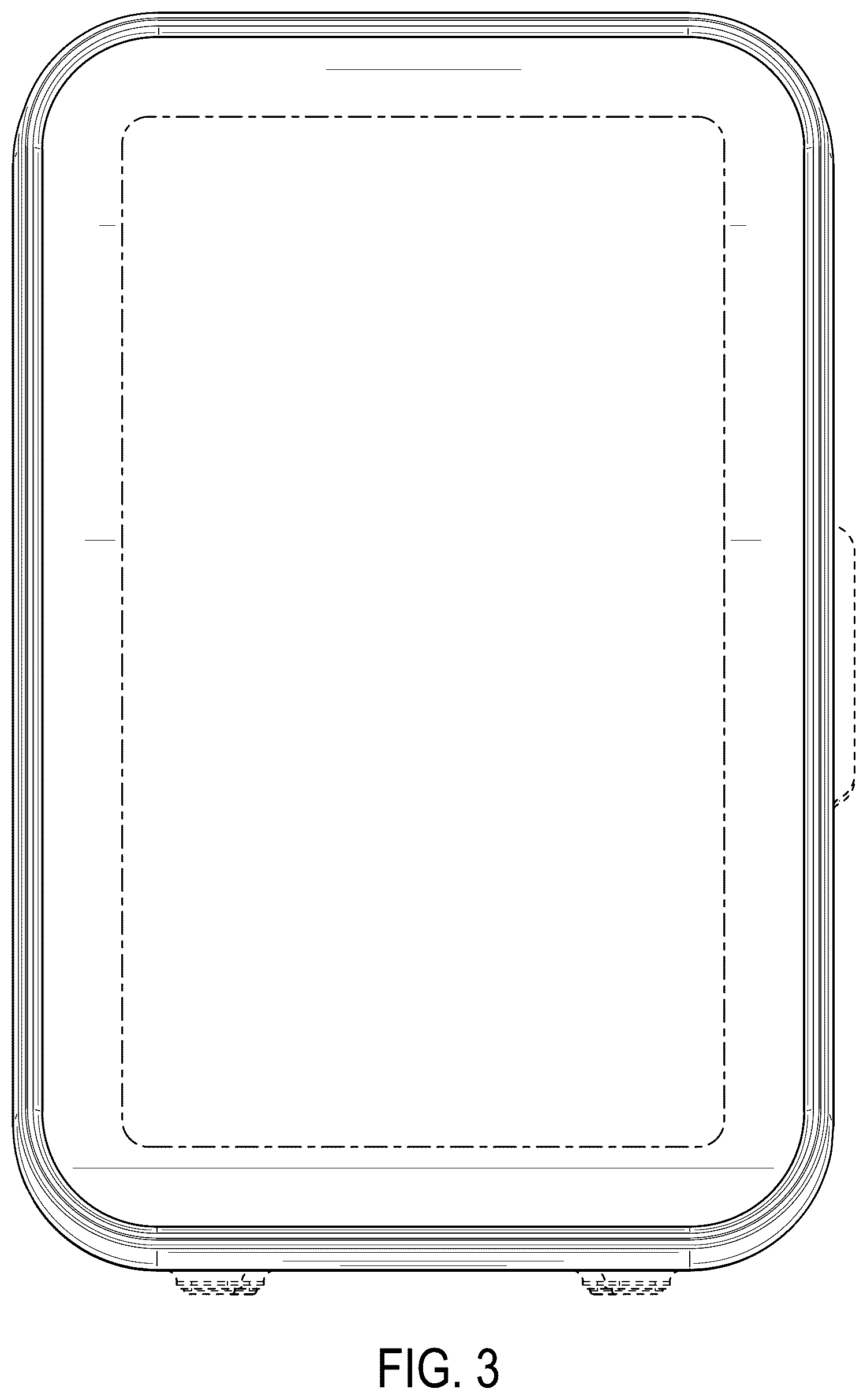

Patent USD1125559 Figure 3 – Console — Fig. 3

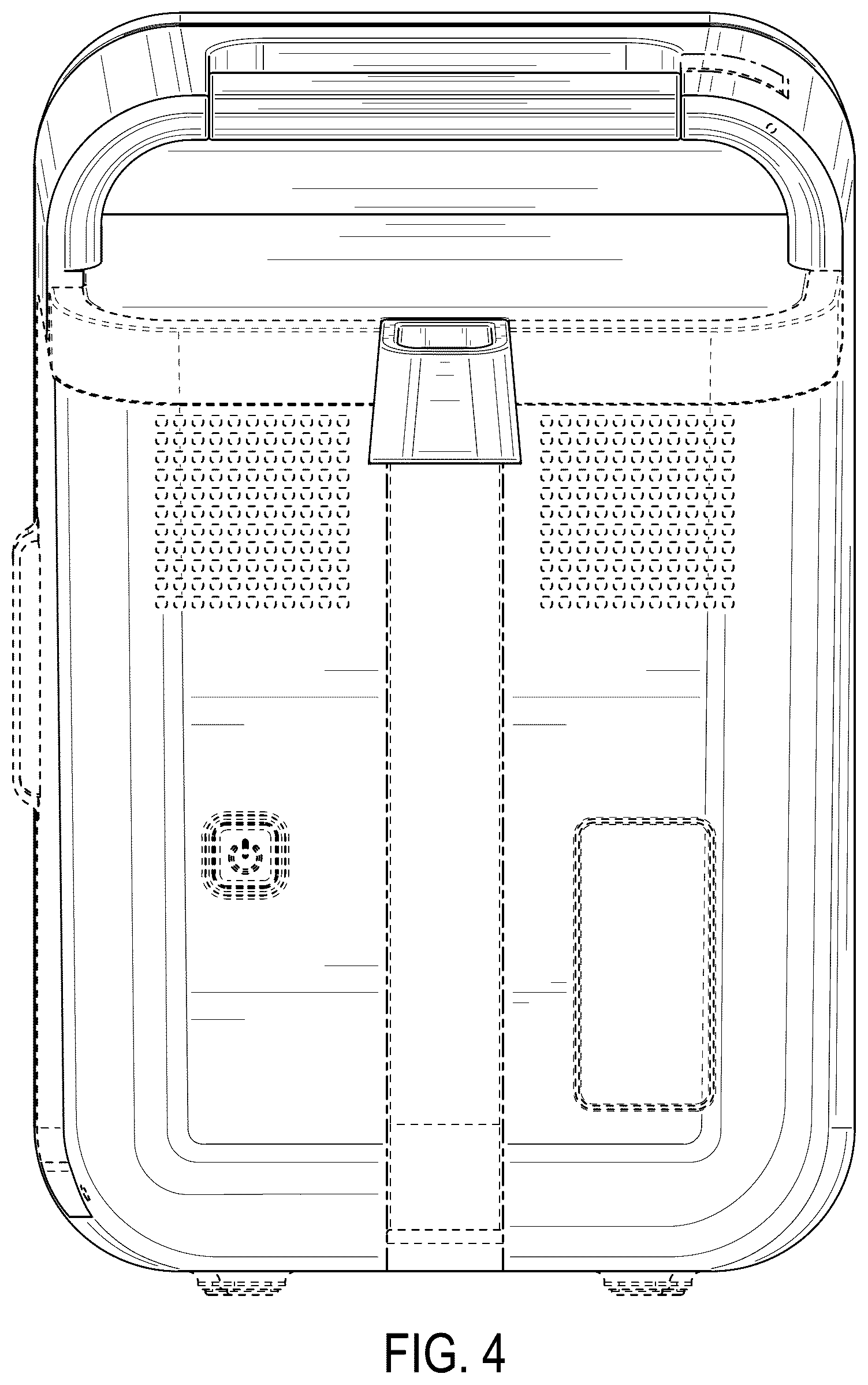

Patent USD1125559 Figure 4 – Console — Fig. 4

Patent USD1125559 Figure 5 – Console — Fig. 5

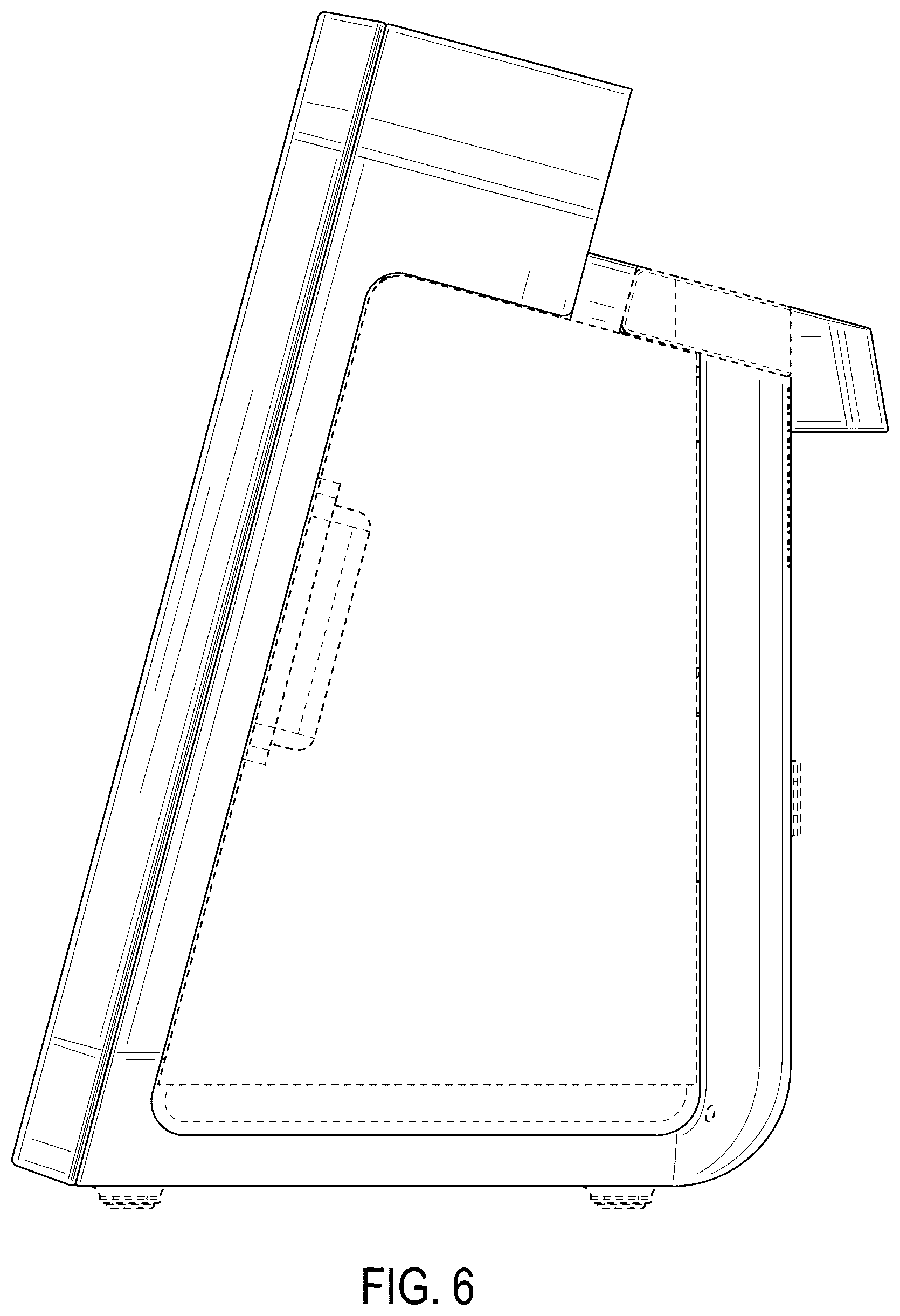

Patent USD1125559 Figure 6 – Console — Fig. 6

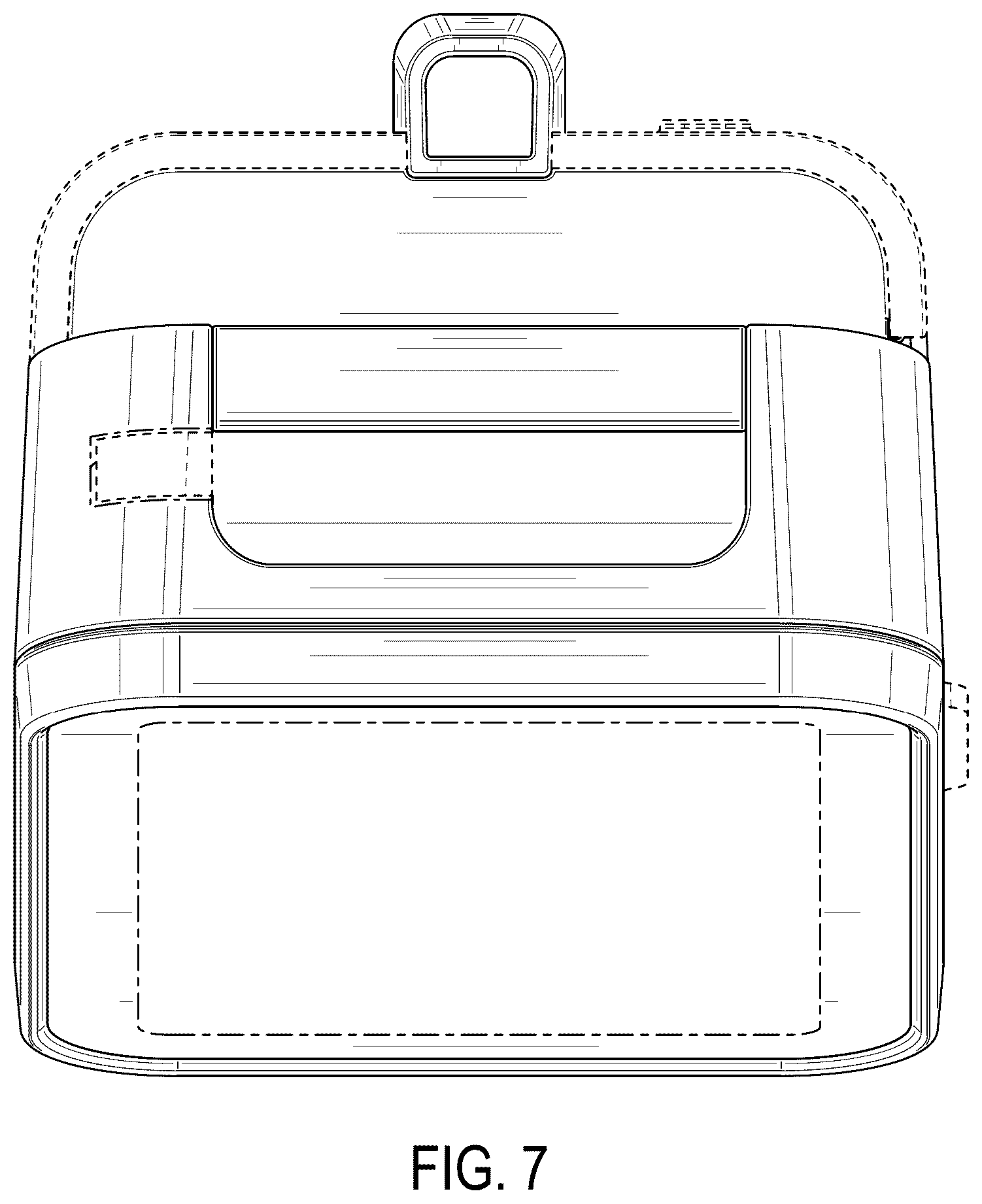

Patent USD1125559 Figure 7 – Console — Fig. 7

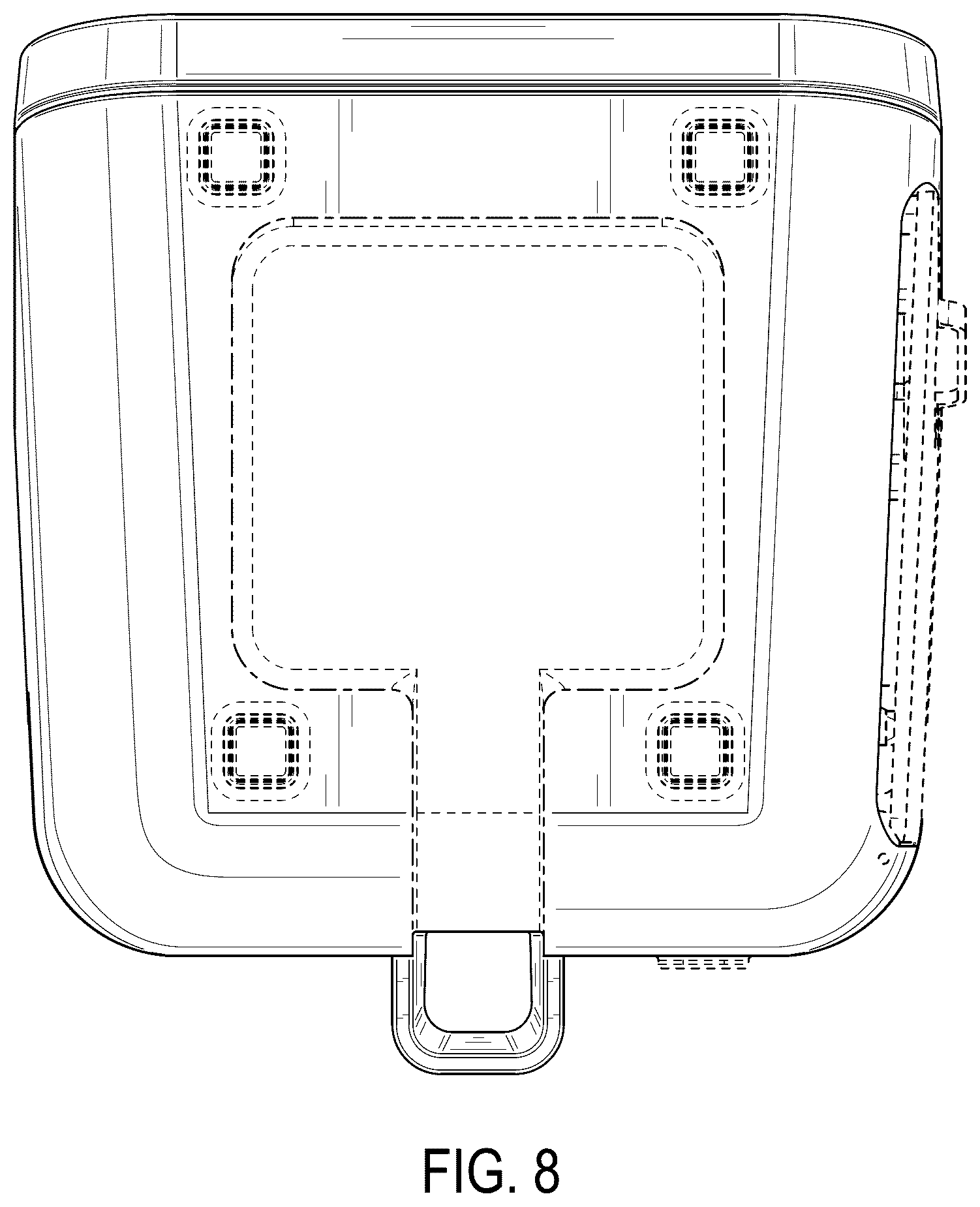

Patent USD1125559 Figure 8 – Console — Fig. 8
