Incontinence Pad with Patterned Surface

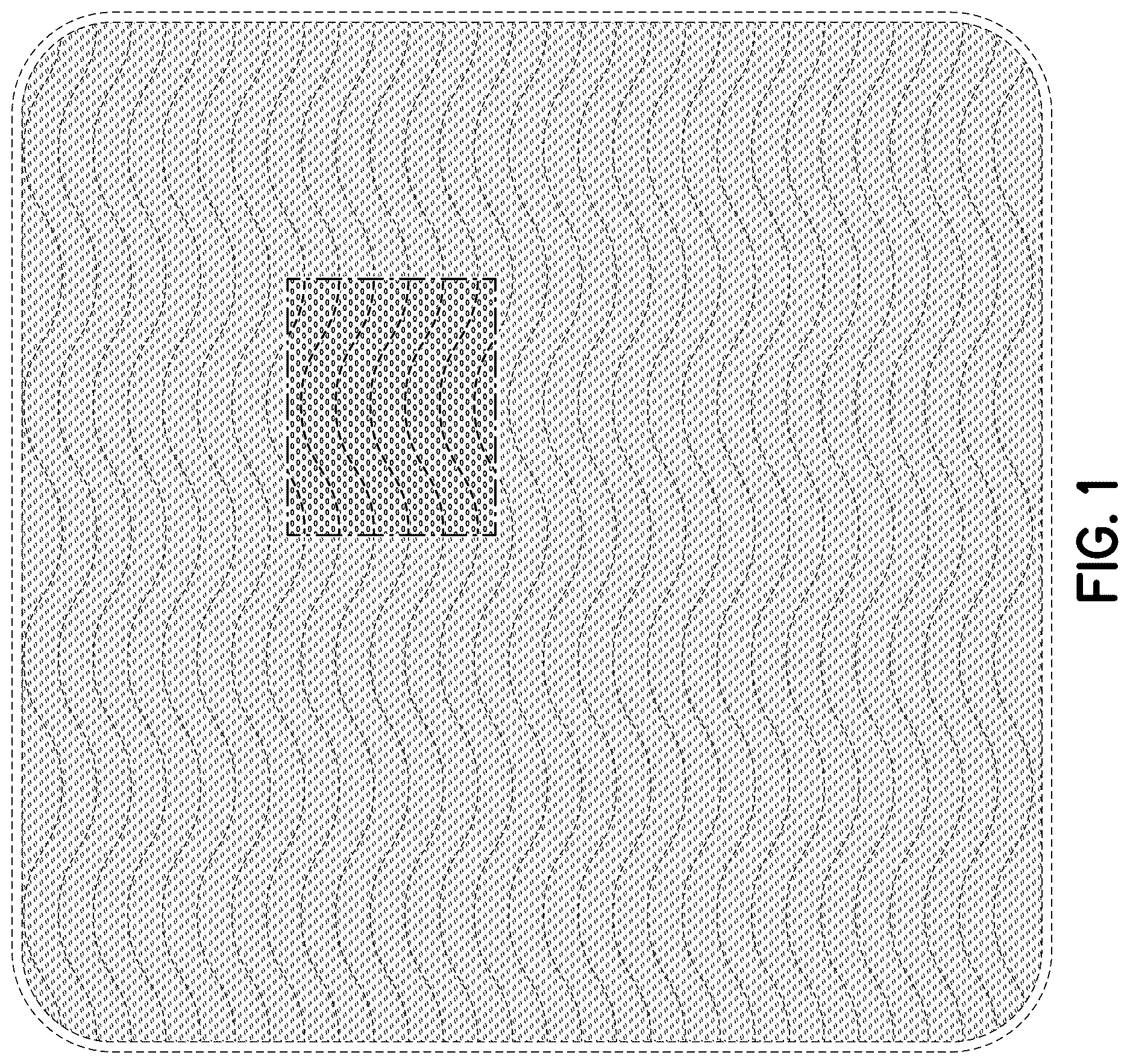

FIG. 1 is a top plan view of an incontinence pad with patterned surface showing our new design;

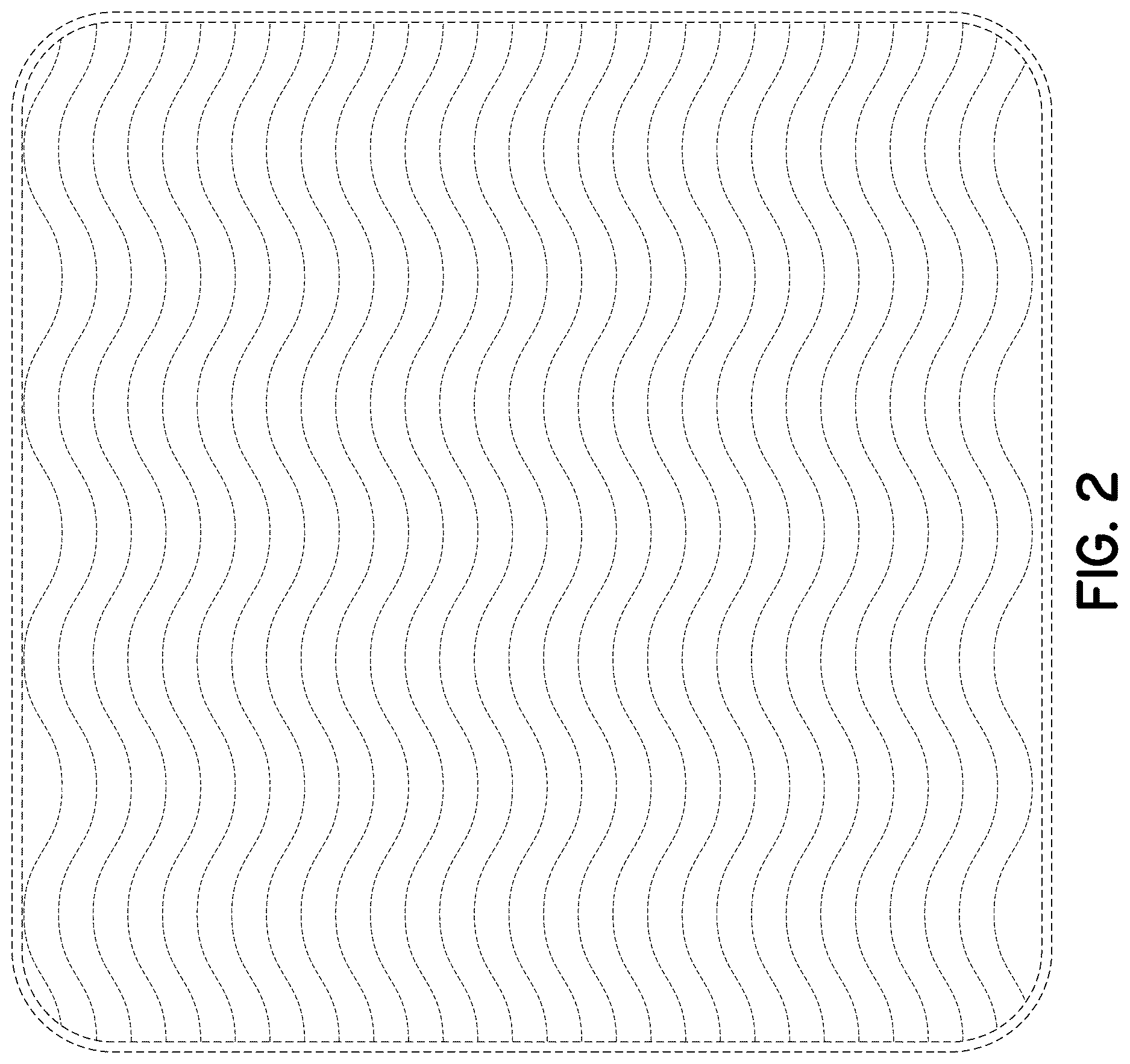

FIG. 2 is a bottom plan view thereof;

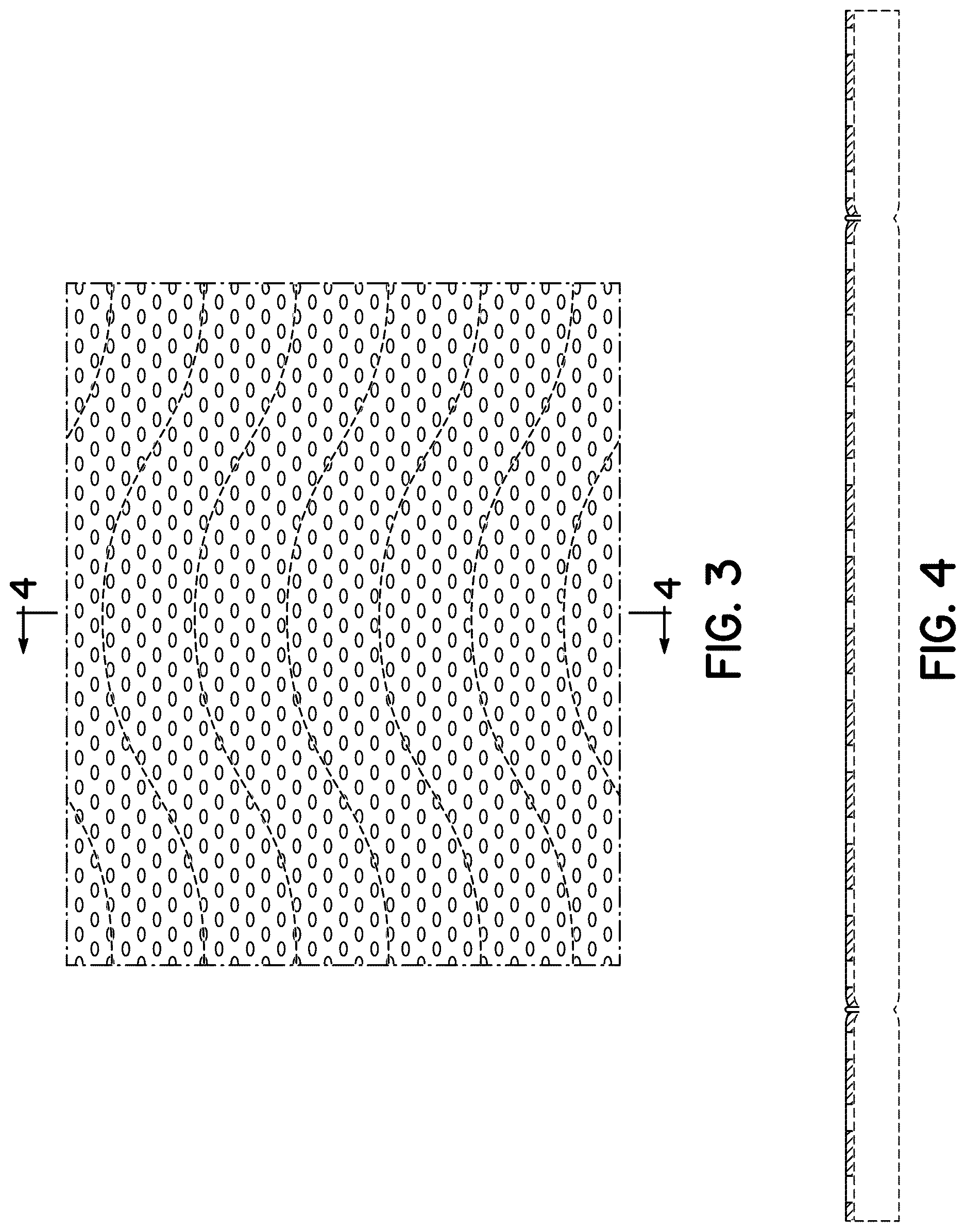

FIG. 3 is an enlarged view showing solely the claimed region from FIG. 1 ; and,

FIG. 4 is a cross-sectional view taken in the direction of line 4 - 4 in FIG. 3 .

The dash-dash broken lines depicting portions of the incontinence pad with patterned surface form no part of the claimed design. The dot-dash broken line rectangle immediately surrounding the shaded and solid line portions of the article represents a boundary between claimed and unclaimed subject matter and forms no part of the claimed design. The broken line stitching, where it appears within the dot-dash boundary, forms a part of the claimed design.
