USD1125507No. D 1,125,507designGranted 5/5/2026
Patent USD1125507 — Fan — Figure 1
Fig. 1 · Fan

Claims (1)

Claim 1 (Independent)

The ornamental design for a fan, as shown and described.

Full Description

Show full text →

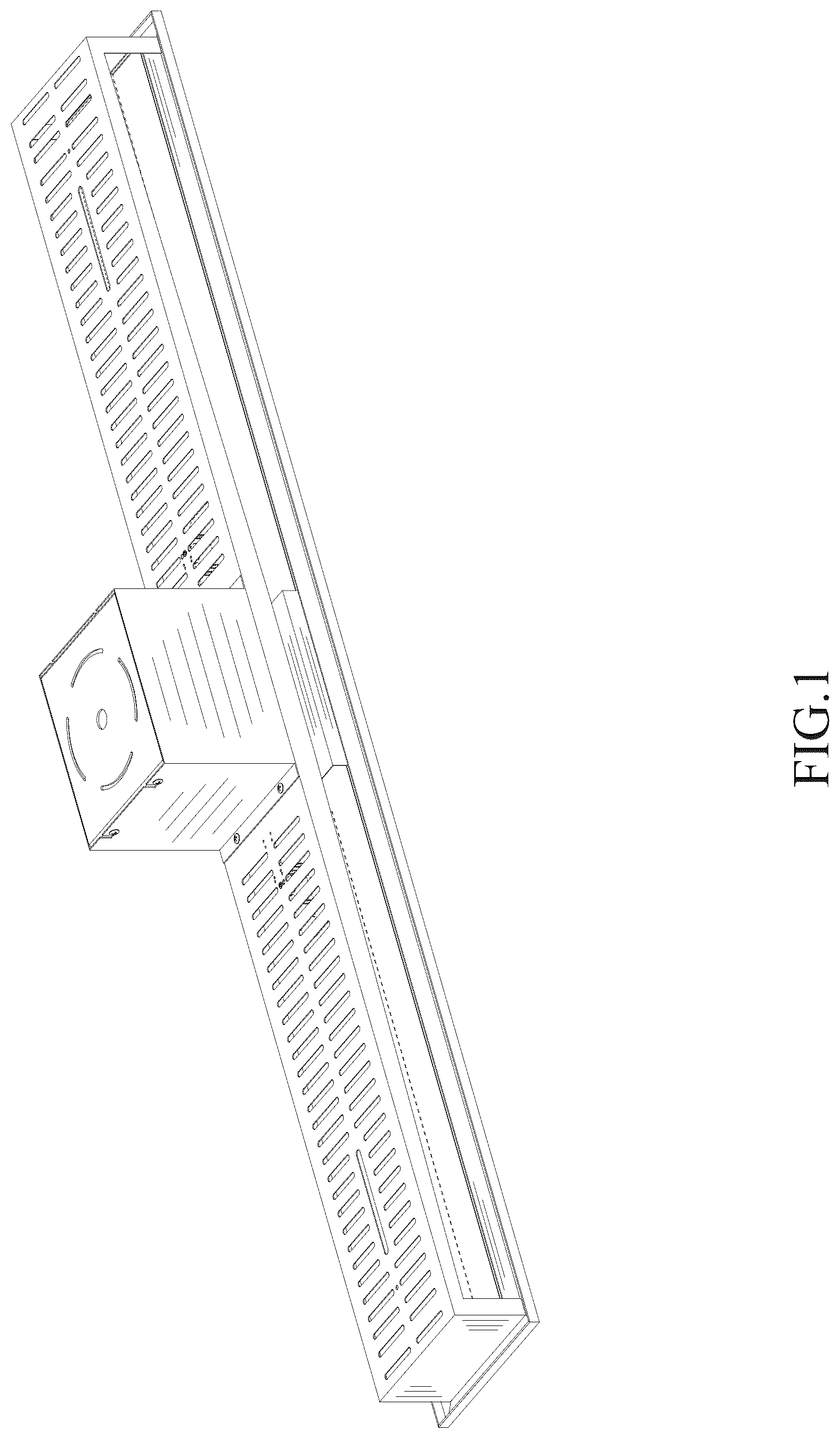

is a perspective view of a fan, showing my new design;

is a front view thereof;

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

is a top plan view thereof; and,

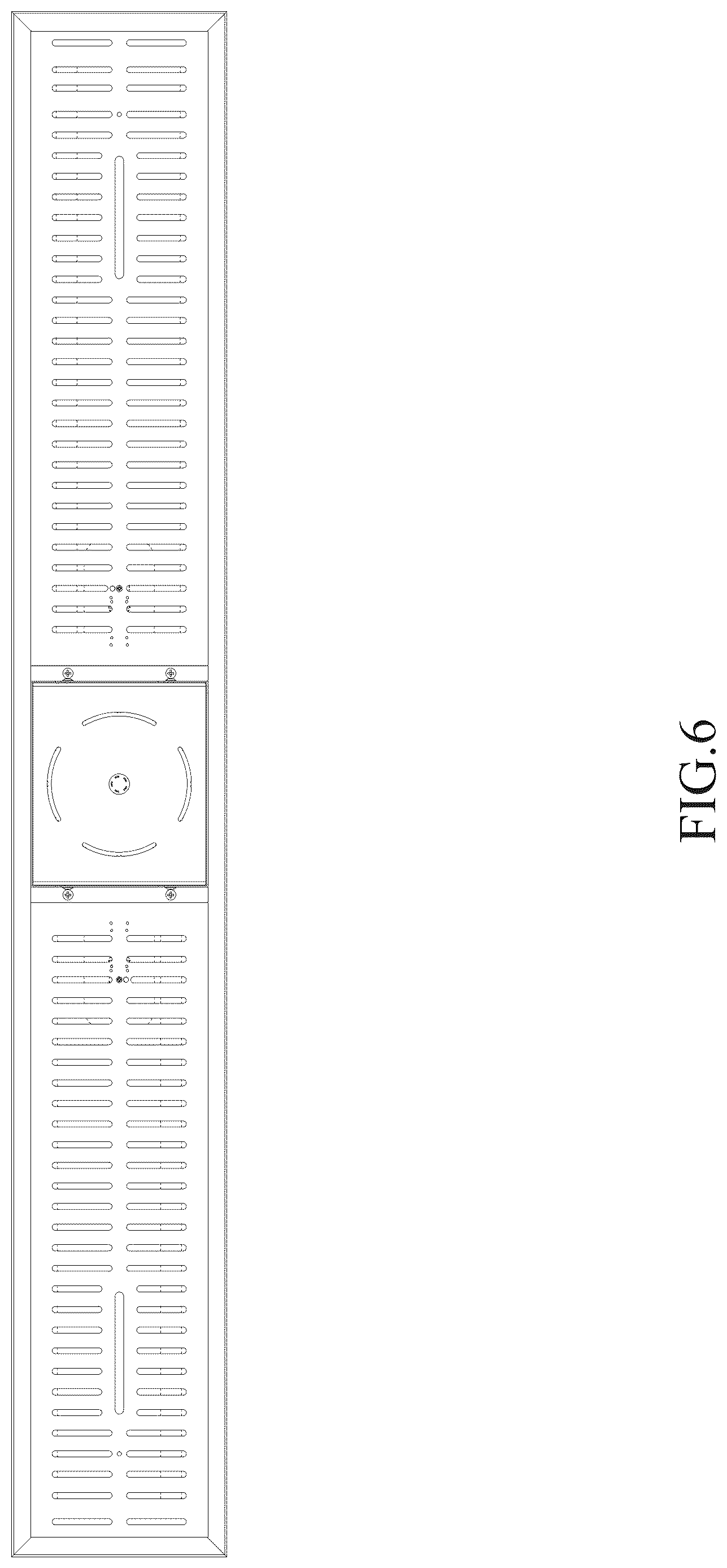

is a bottom plan view thereof.

The broken lines illustrate portions of the fan that form no part of the claimed design.
