Fishing Line Protector

USD1125447No. D 1,125,447designGranted 5/5/2026
Patent USD1125447 — Fishing line protector — Figure 1
Fig. 1 · Fishing Line Protector

Claims (1)

Claim 1 (Independent)

The ornamental design for a fishing line protector, as shown and described.

Full Description

Show full text →

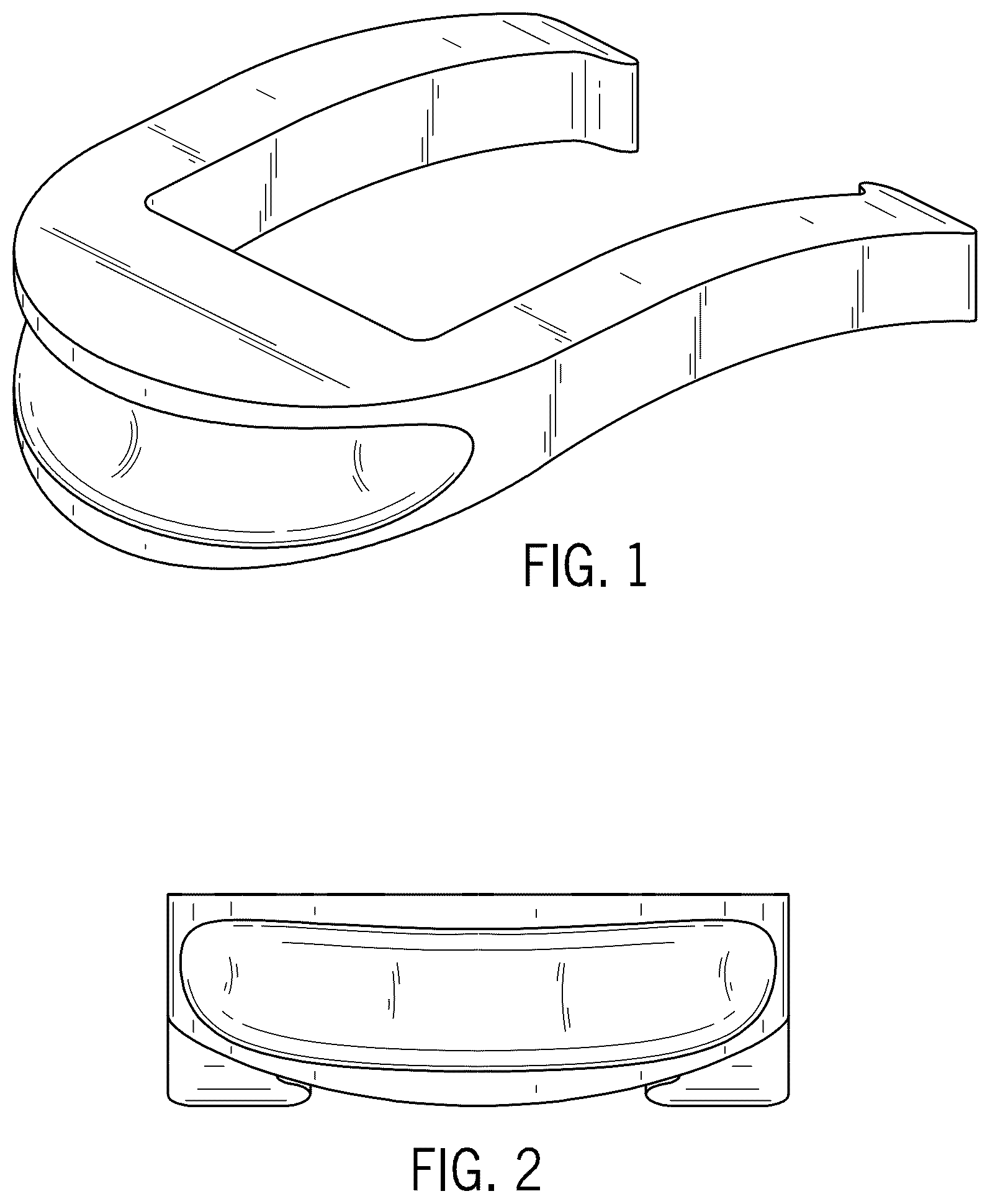

is a front perspective view of the fishing line protector;

is a front elevational view of the fishing line protector;

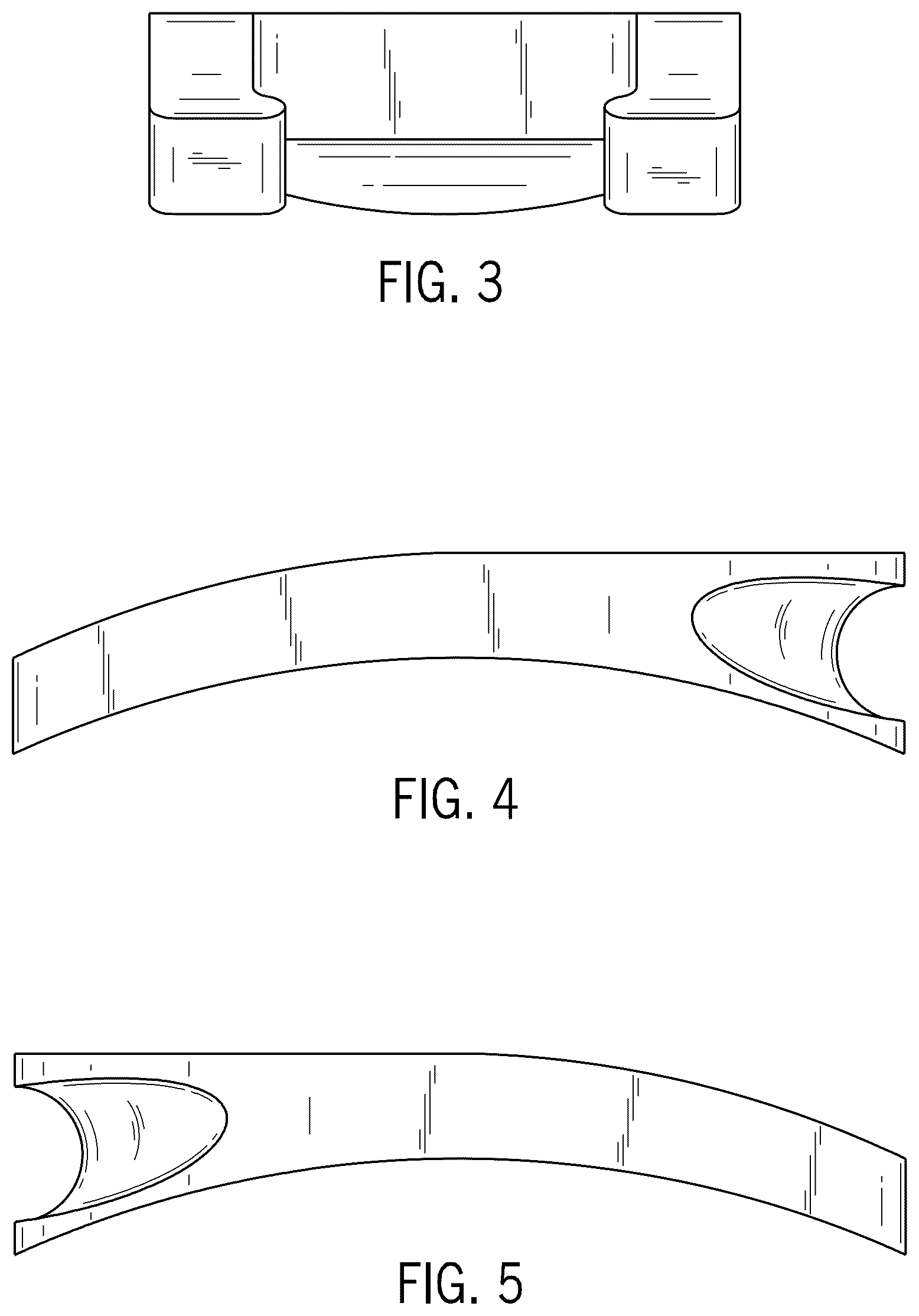

is a rear elevational view of the fishing line protector;

is a right side elevational view of the fishing line protector;

is a left side elevational view of the fishing line protector;

is a bottom elevational view of the fishing line protector; and,

is a top elevational view of the fishing line protector.

Figures (4)

Fig. 1
Fig. 2
Fig. 3
Fig. 4

Citations

This patent cites (7)

  • USD275338
  • USD377383
  • USD380372
  • USD403227
  • USD1055206
  • US2016/0270385
  • US2024/0251770
