Toy Bubble Gun

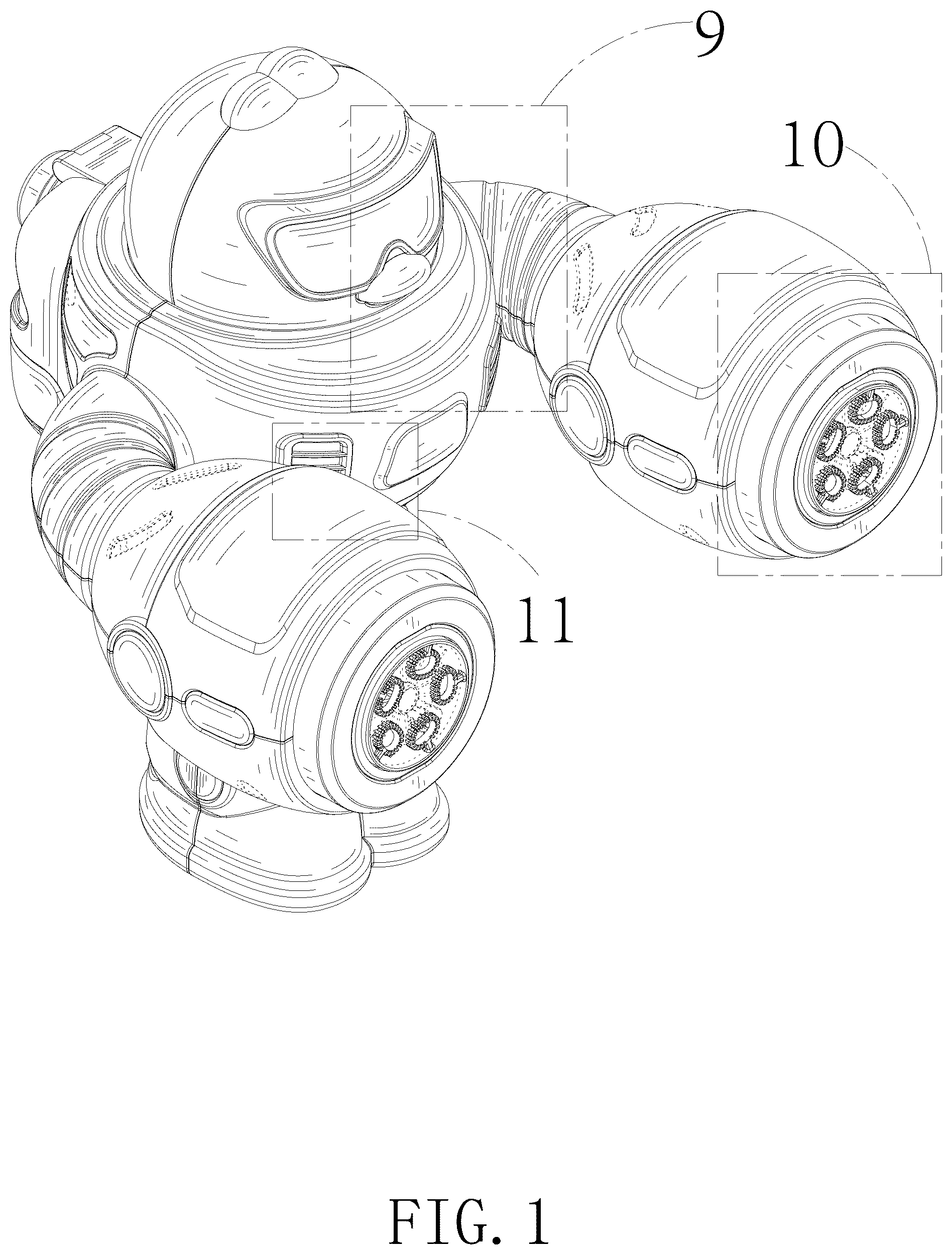

FIG. 1 is a top perspective view of a toy bubble gun, showing my new design;

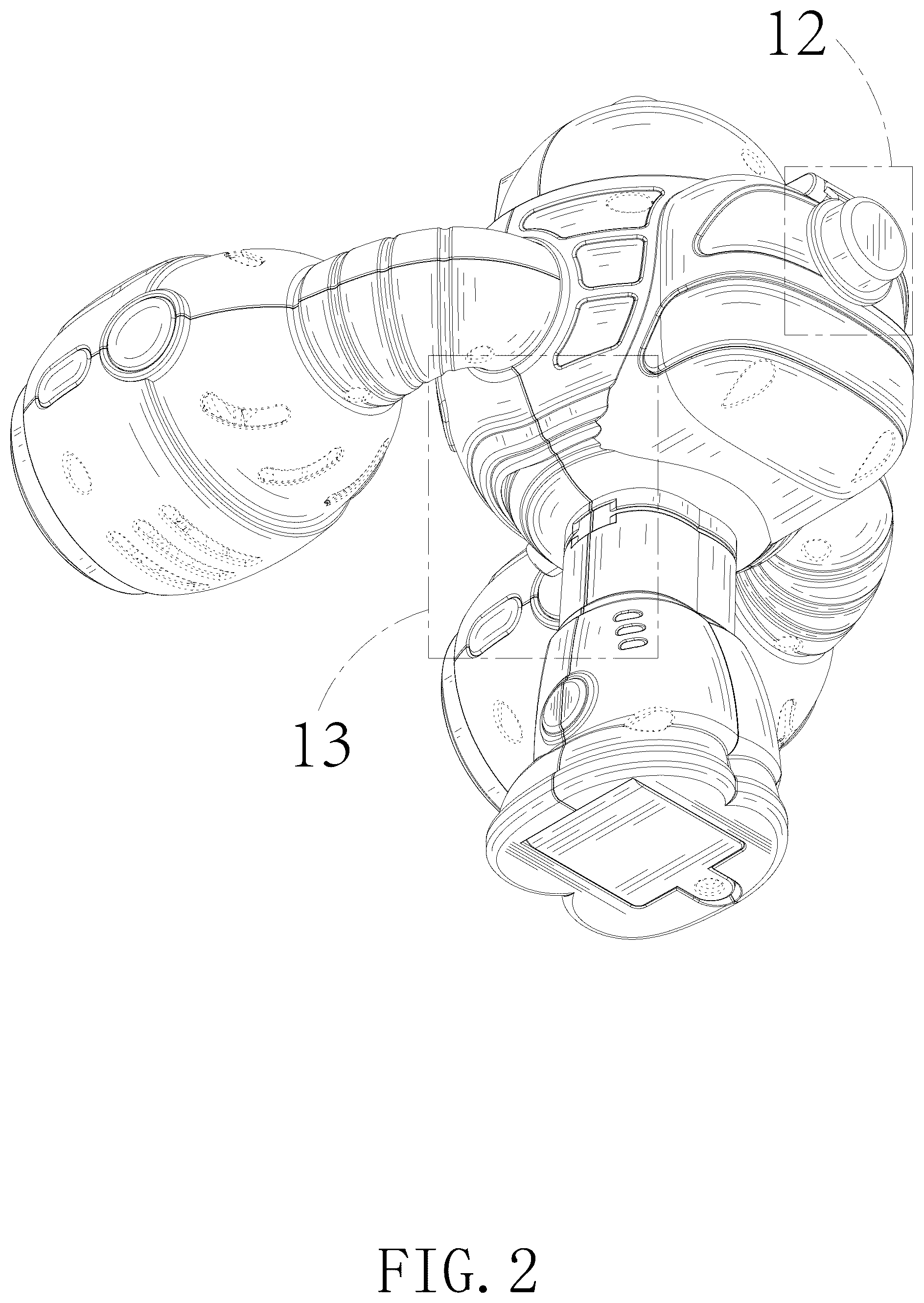

FIG. 2 is a bottom perspective view thereof;

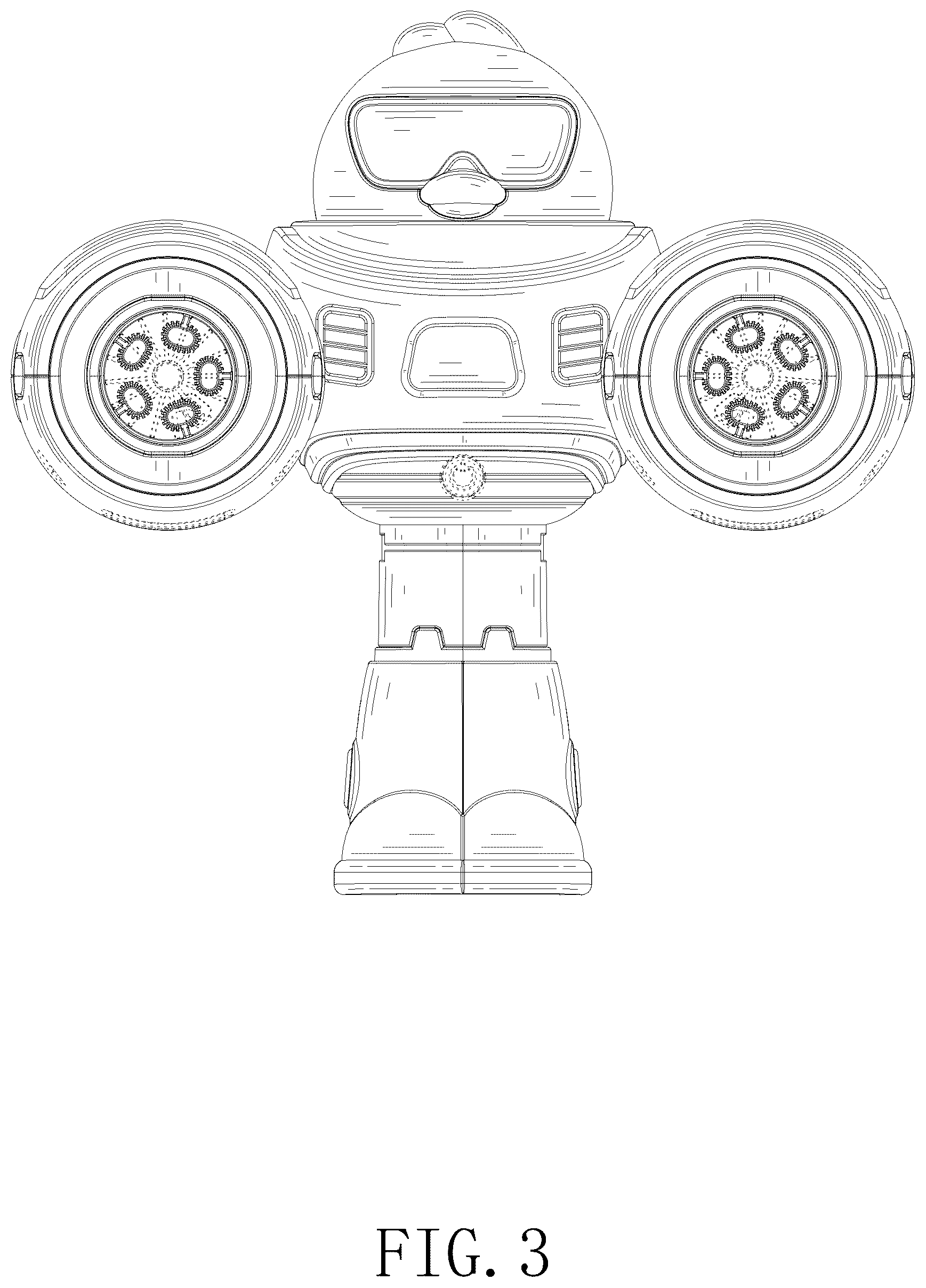

FIG. 3 is a front view thereof;

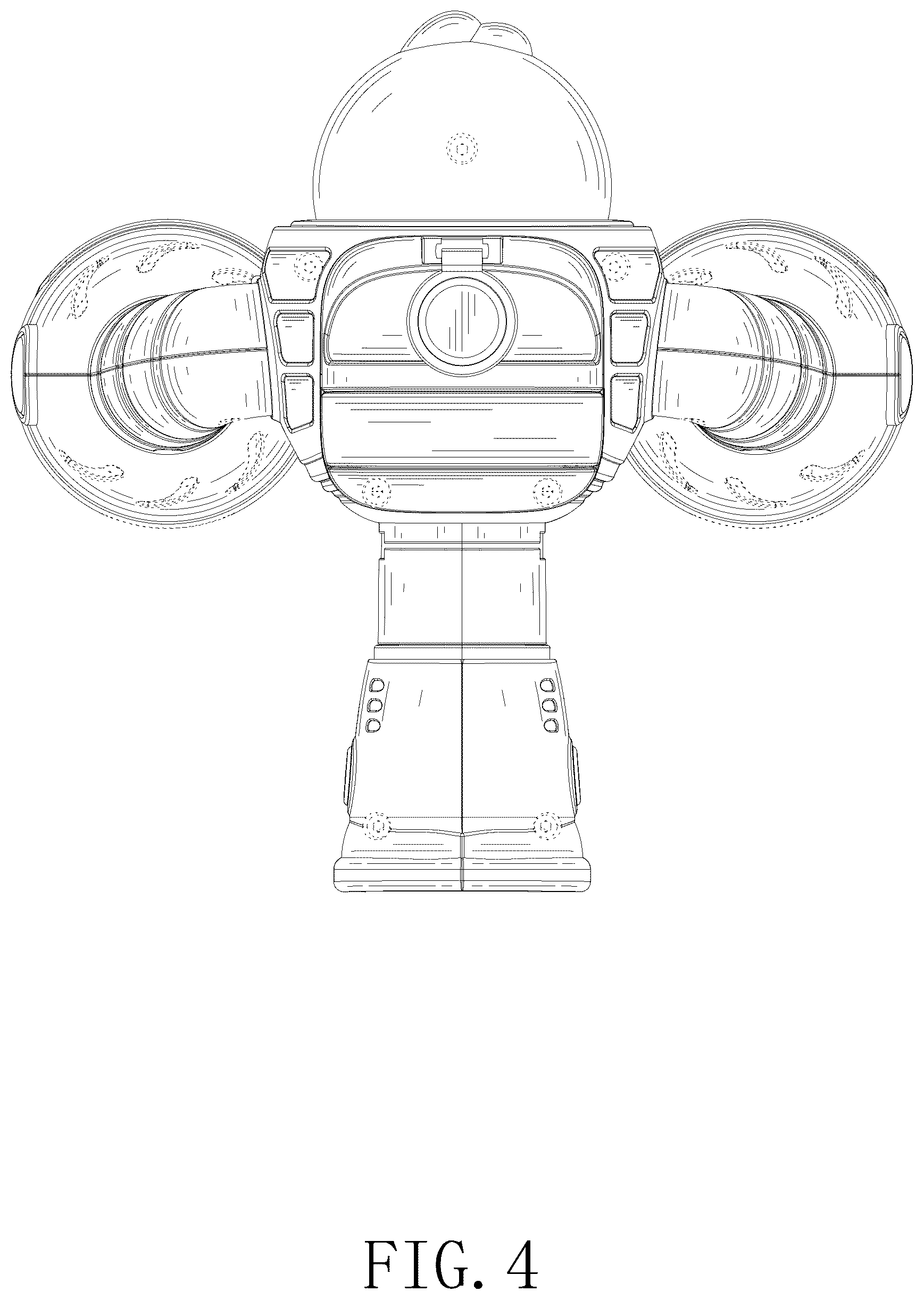

FIG. 4 is a rear view thereof;

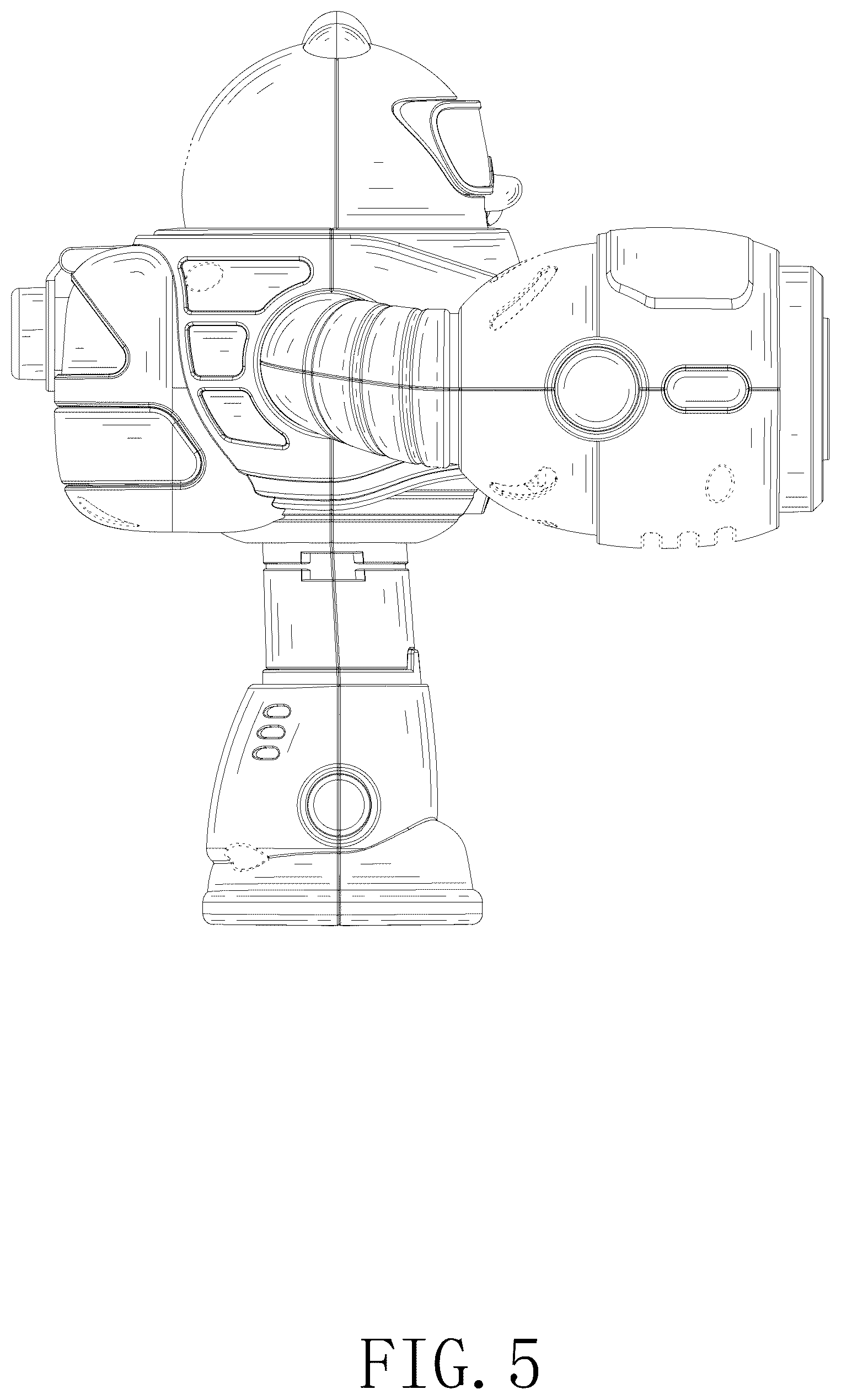

FIG. 5 is a left side view thereof;

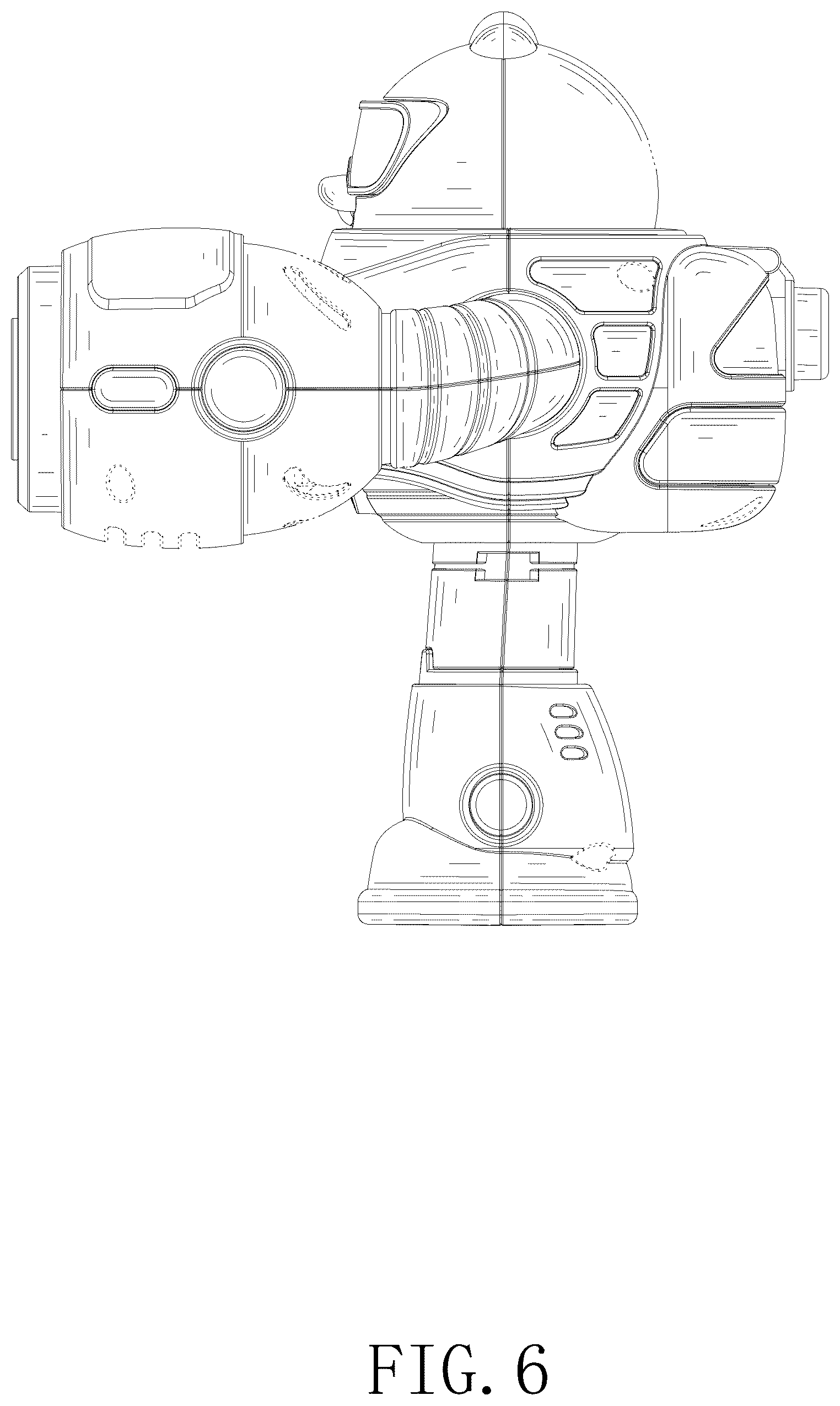

FIG. 6 is a right side view thereof;

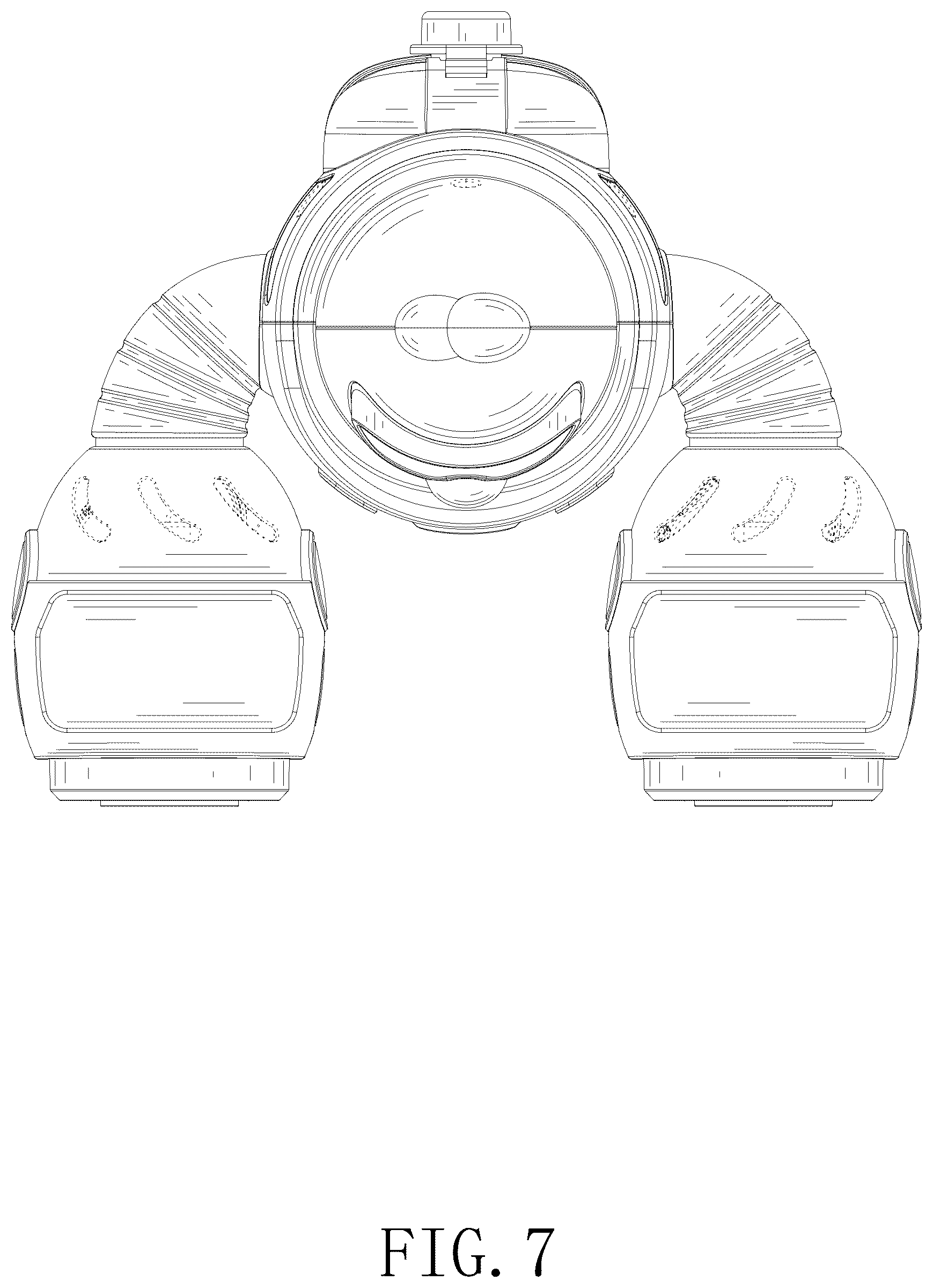

FIG. 7 is a top view thereof;

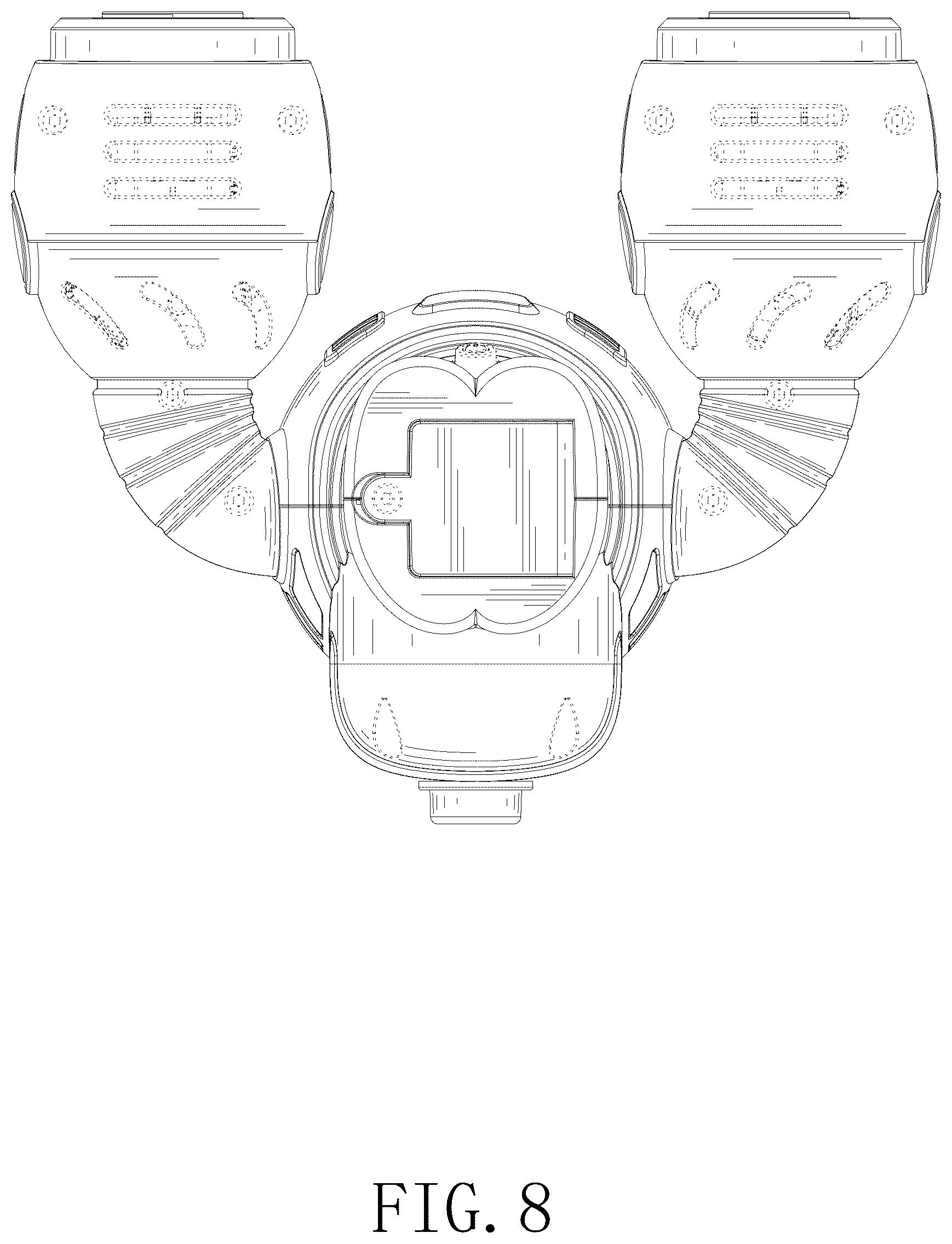

FIG. 8 is a bottom view thereof; and

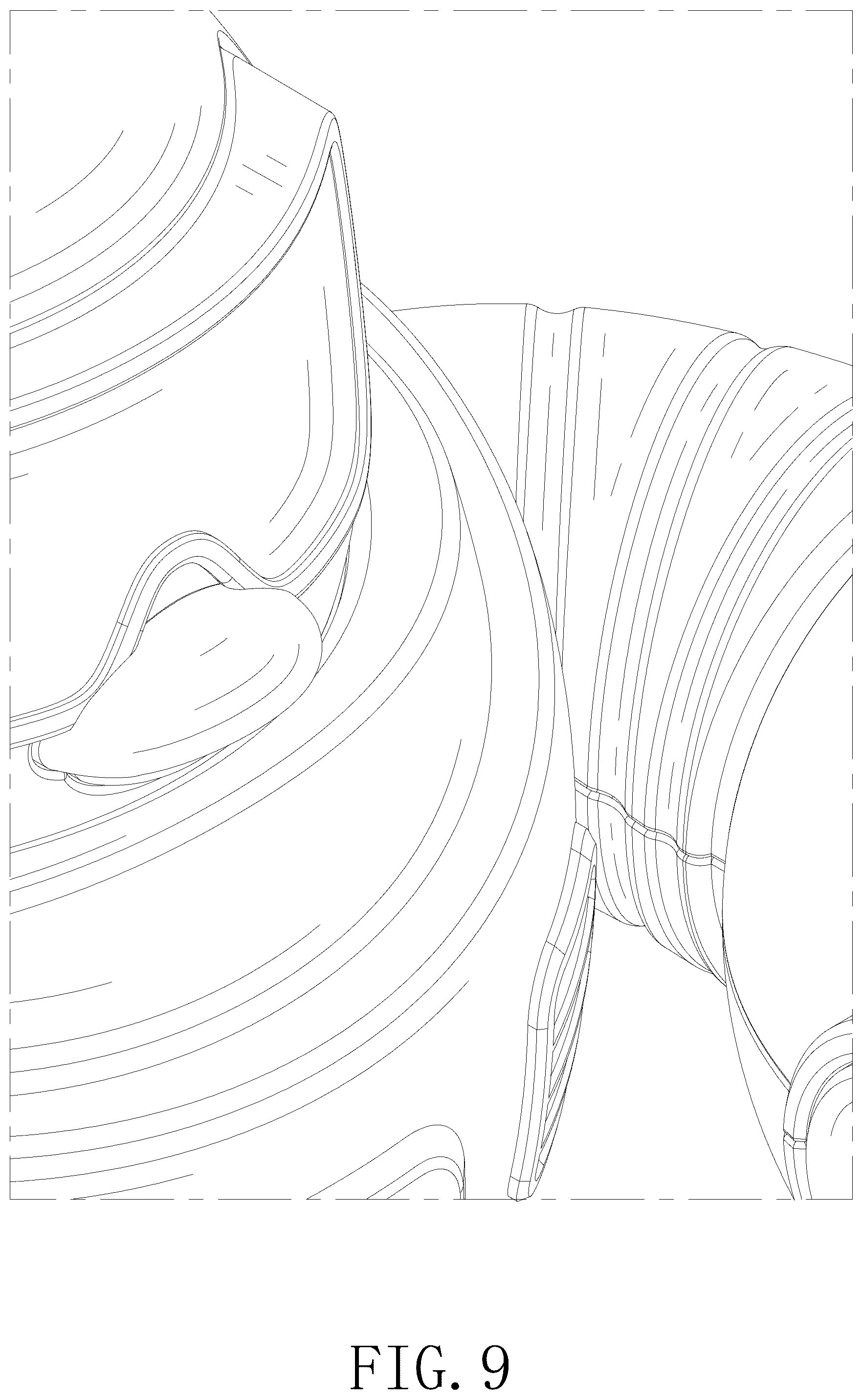

FIG. 9 is an enlarged detail view of area 9 in FIG. 1 ;

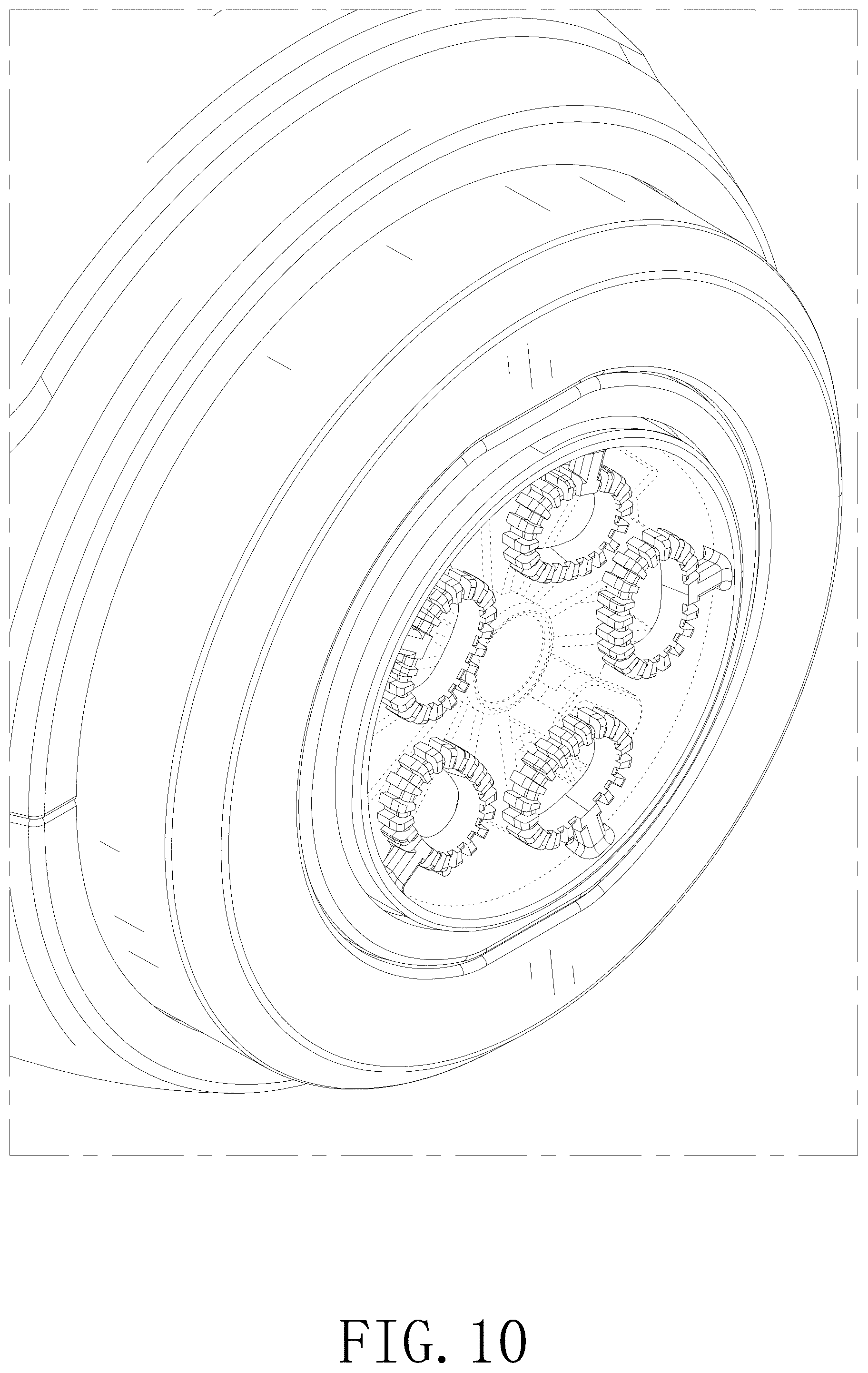

FIG. 10 is an enlarged detail view of area 10 in FIG. 1 ;

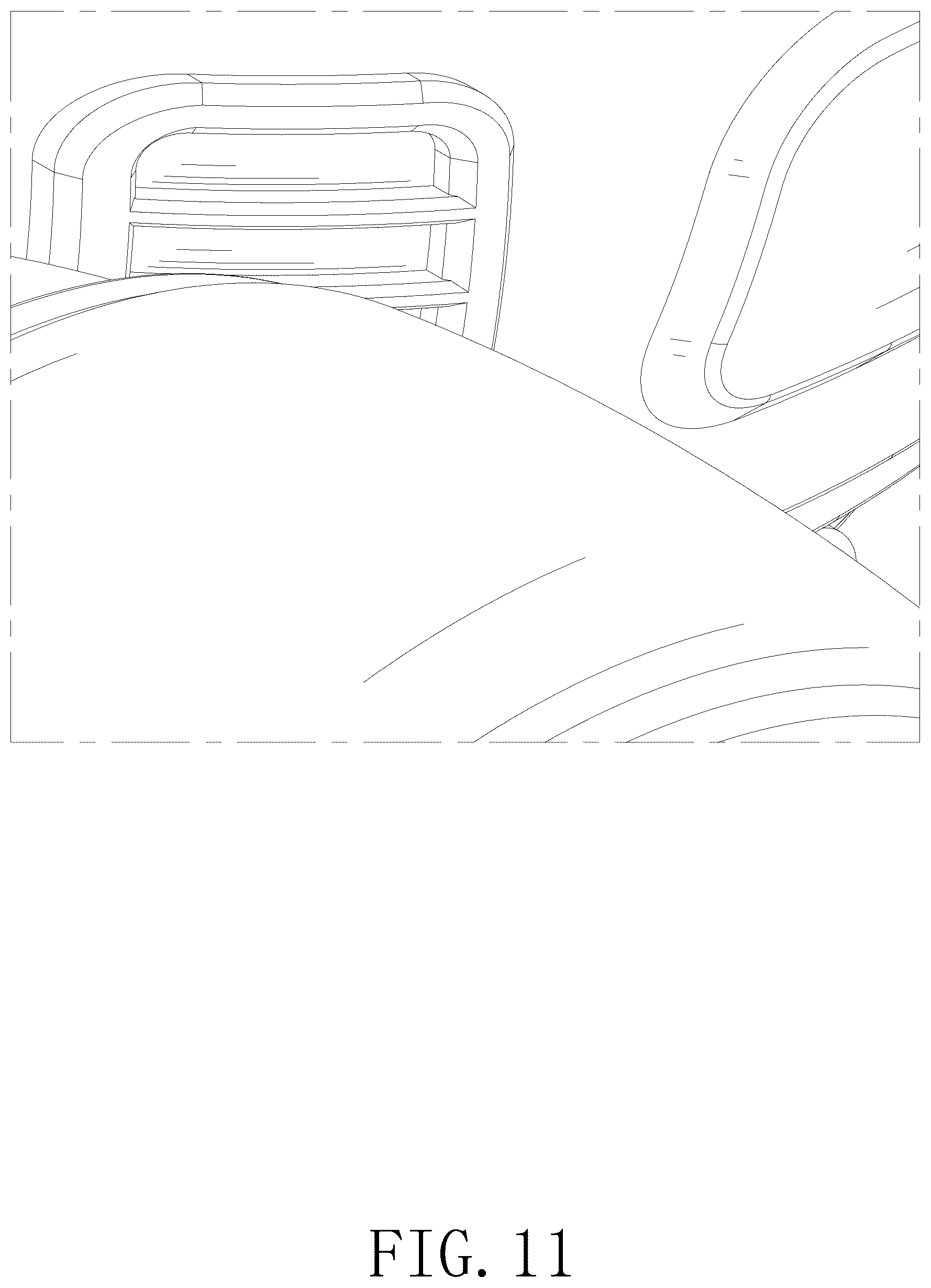

FIG. 11 is an enlarged detail view of area 11 in FIG. 1 ;

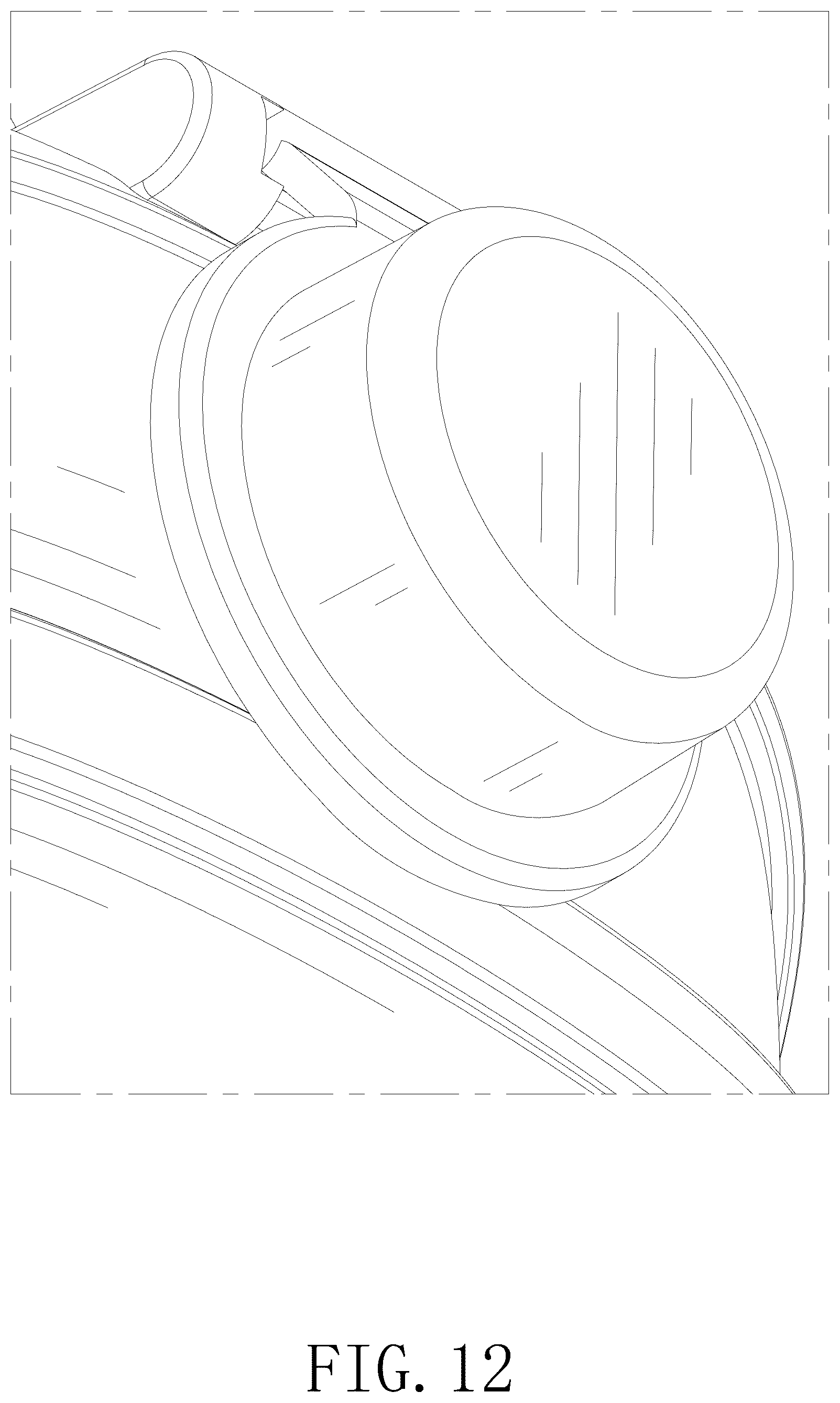

FIG. 12 is an enlarged detail view of area 12 in FIG. 2 ; and,

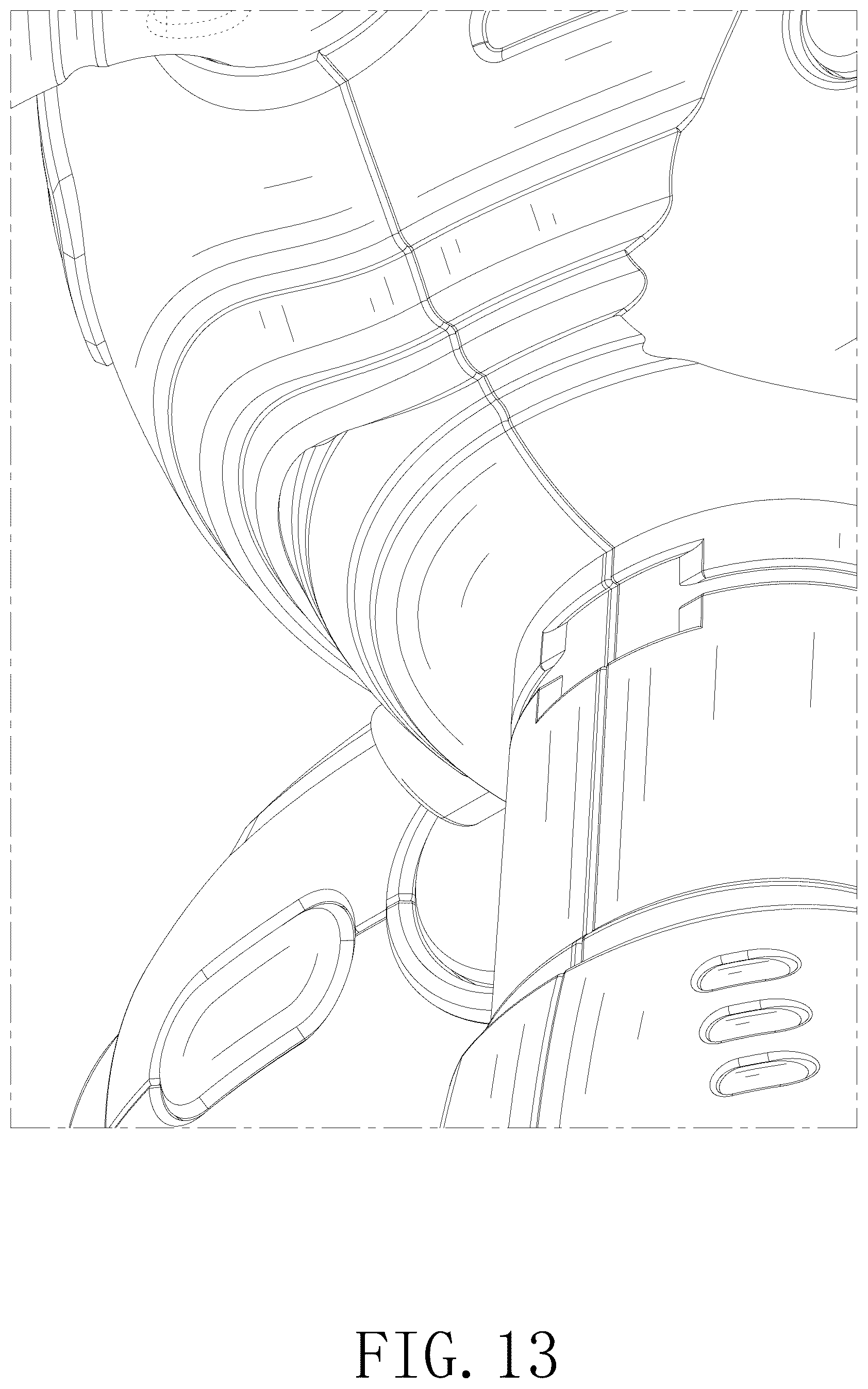

FIG. 13 is an enlarged detail view of area 13 in FIG. 2 .

The broken lines in the drawings illustrate the portions of the toy bubble gun, which form no part of the claimed design.

The dash-dot-dash broken lines encircling the enlarged views are for annotative purposes only and form no part of the claim thereof.
