Projector

USD1125333No. D 1,125,333designGranted 5/5/2026
Patent USD1125333 — Projector — Figure 1
Fig. 1 · Projector

Claims (1)

Claim 1 (Independent)

The ornamental design for a projector, as shown and described.

Full Description

Show full text →

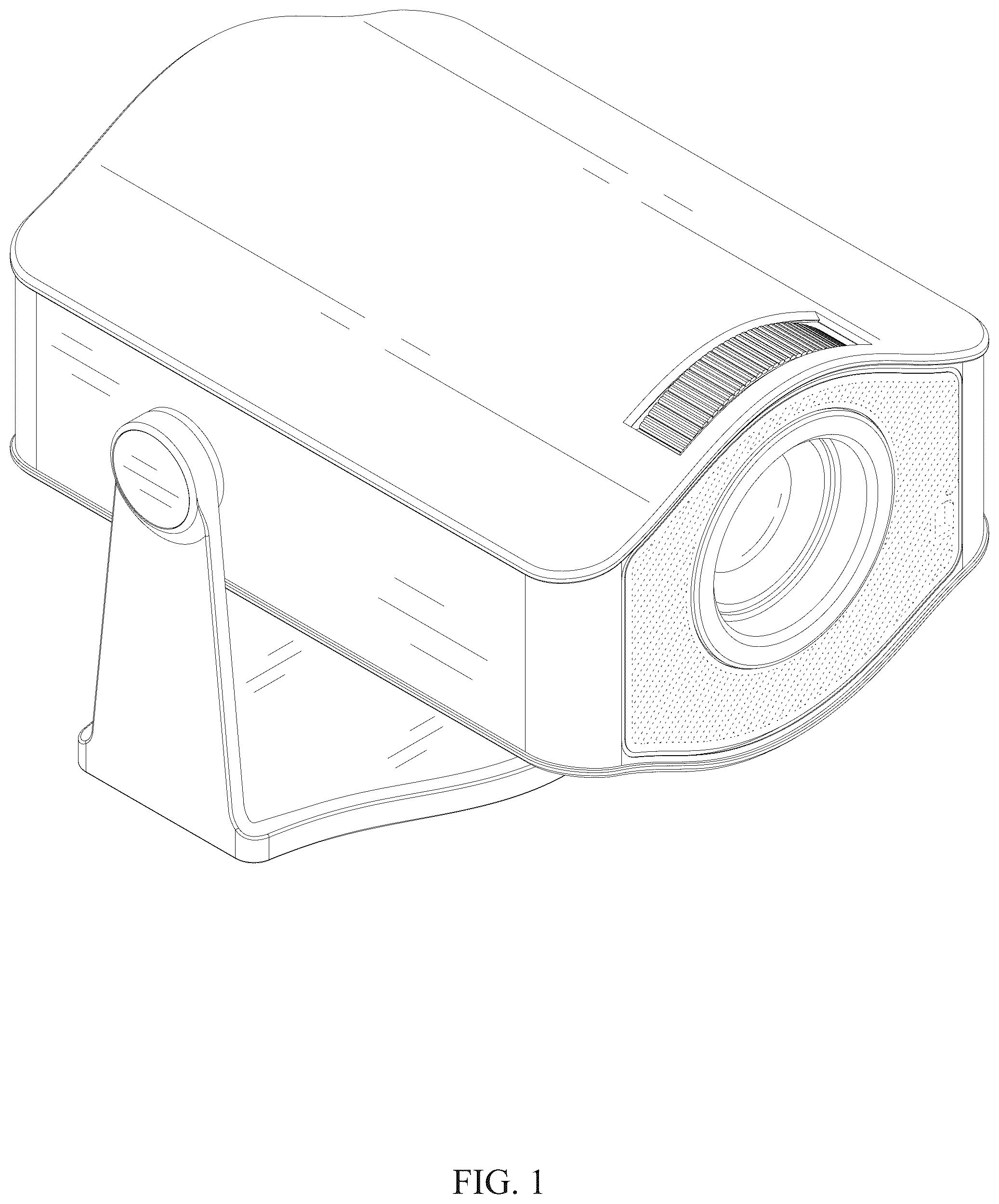

is a perspective view of a projector showing our new design;

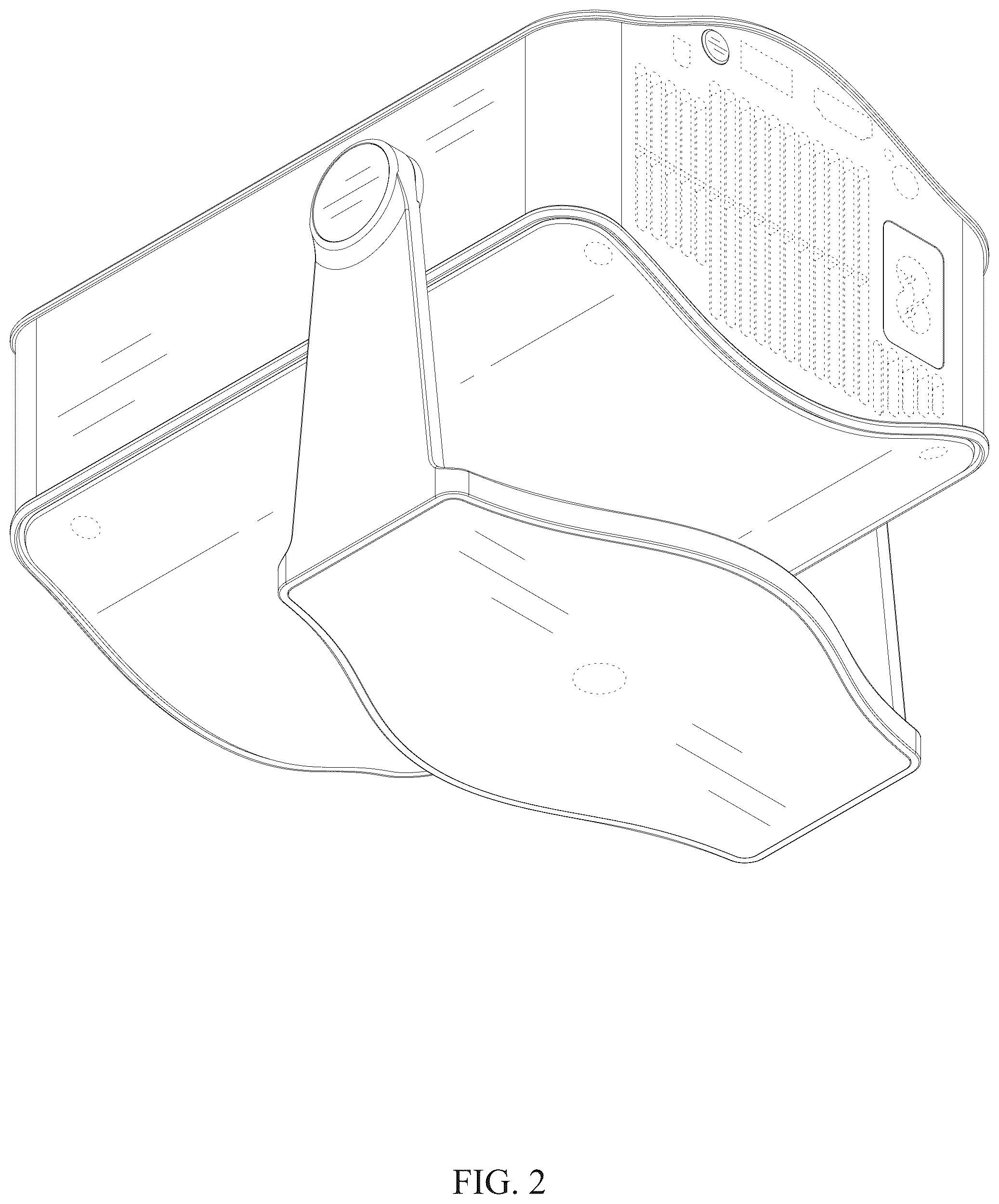

is another perspective view thereof;

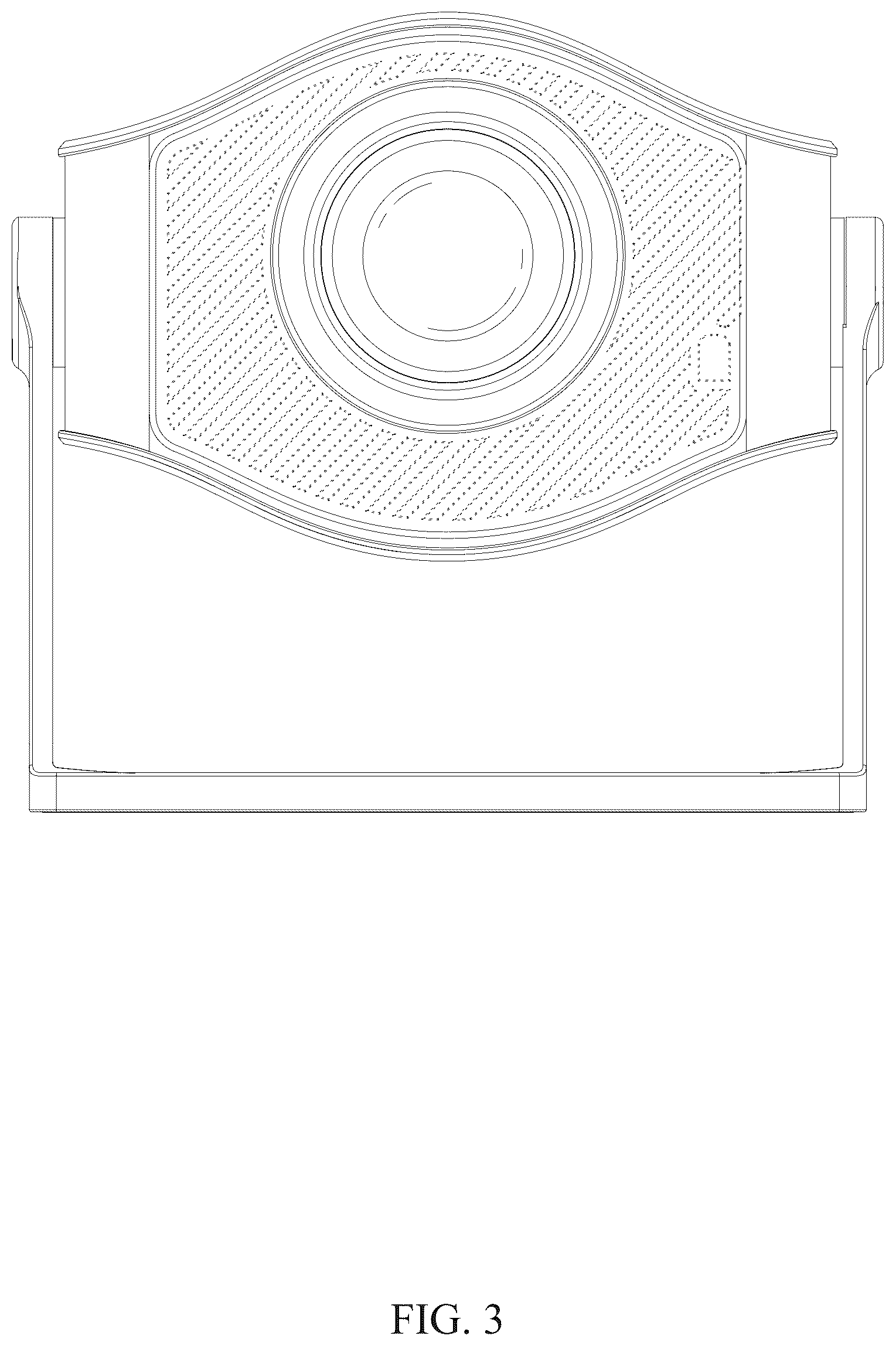

is a front elevation view thereof;

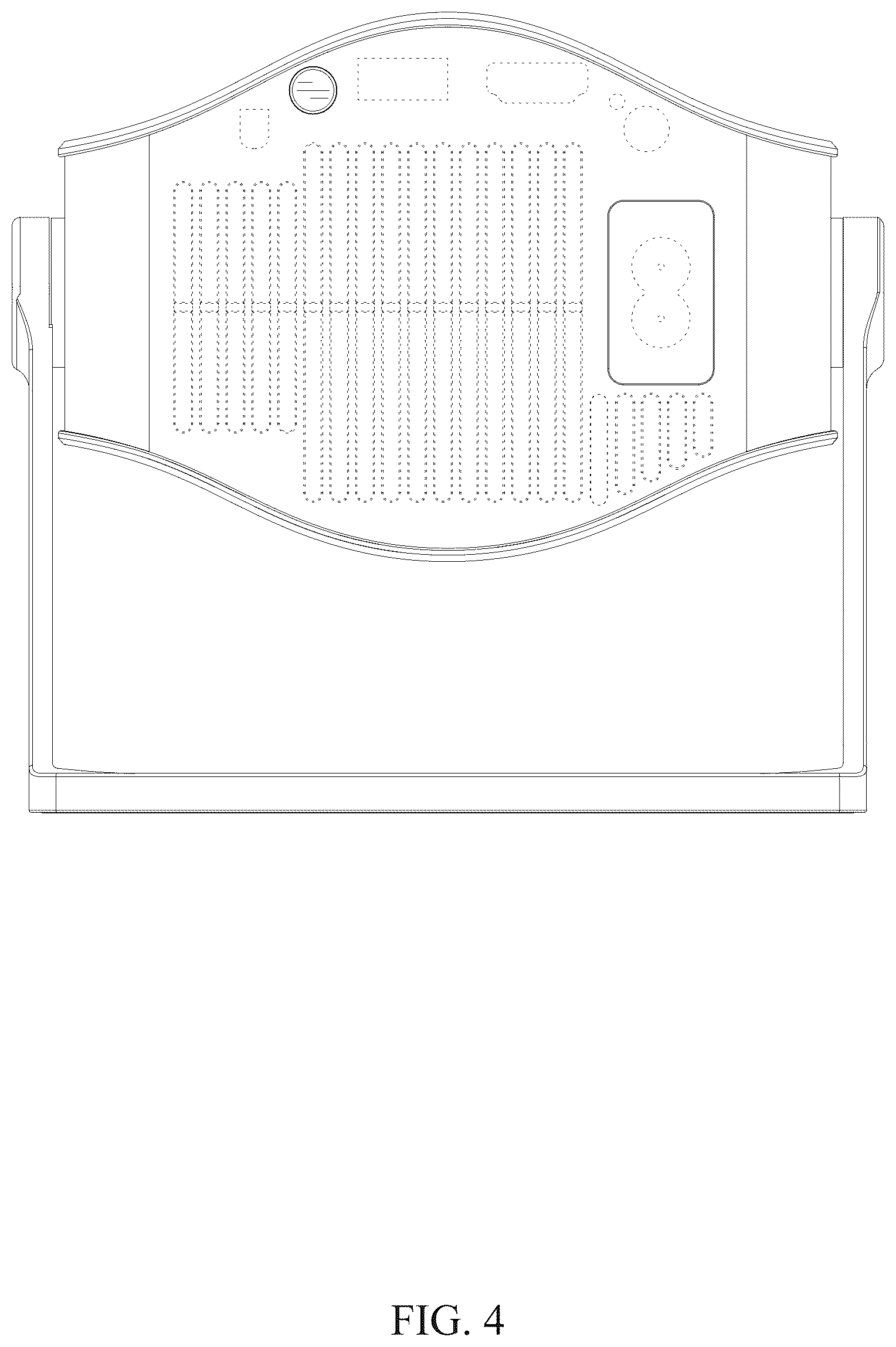

is a back elevation view thereof;

is a left side elevation view thereof;

is a right side elevation view thereof;

is a top plan view thereof; and,

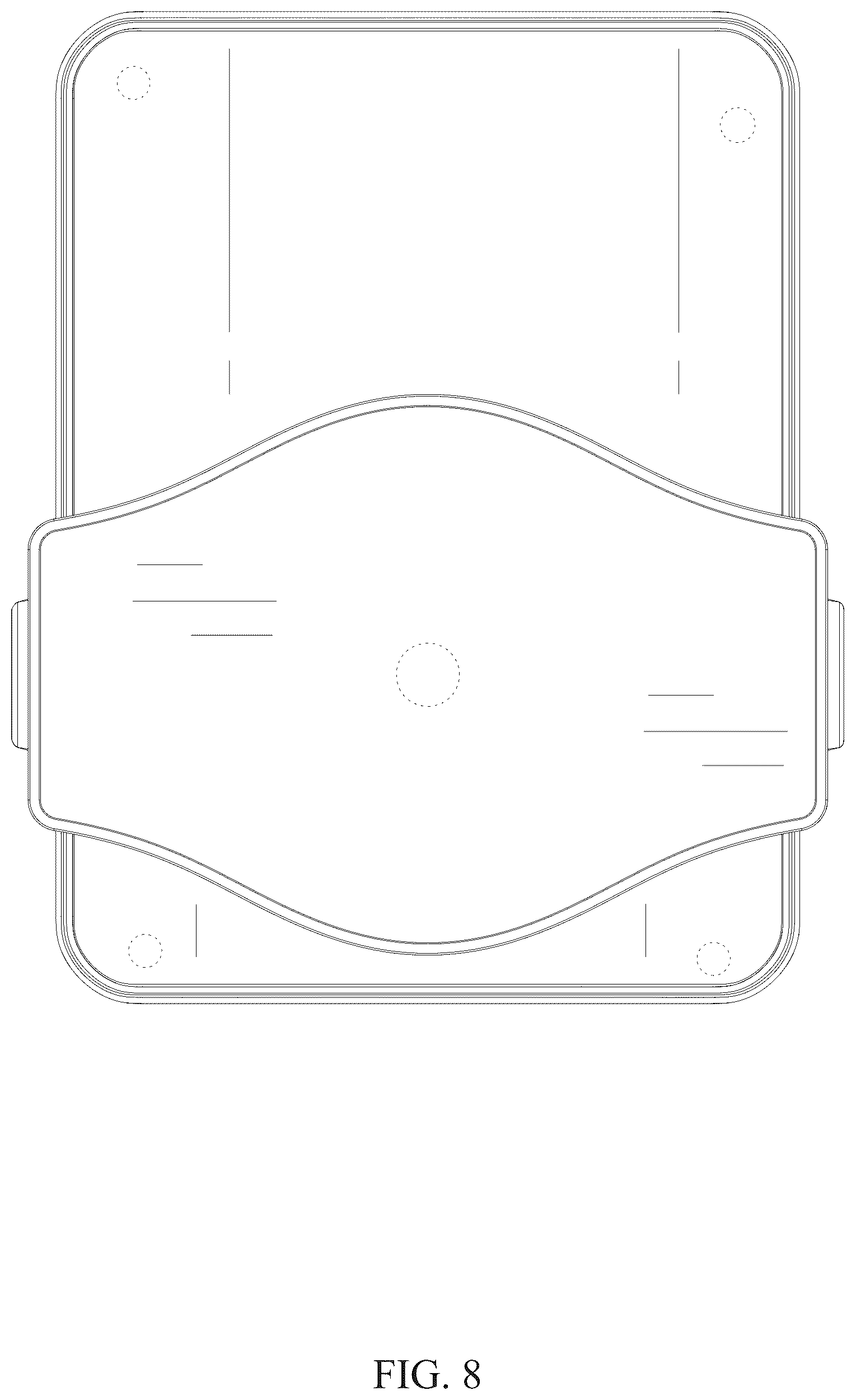

is a bottom plan view thereof.

The broken lines depict portions of the projector that form no part of the claimed design.

Figures (8)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
