Battery Pack

Cross reference is made to copending U.S. design patent application Ser. No. 29/963,376 entitled “Battery Pack” by Hasenmayer, Vincent, which was filed on even date herewith; and U.S. design patent application Ser. No. 29/963,377 entitled “Battery Pack” by Hasenmayer, Vincent, which was filed on even date herewith.

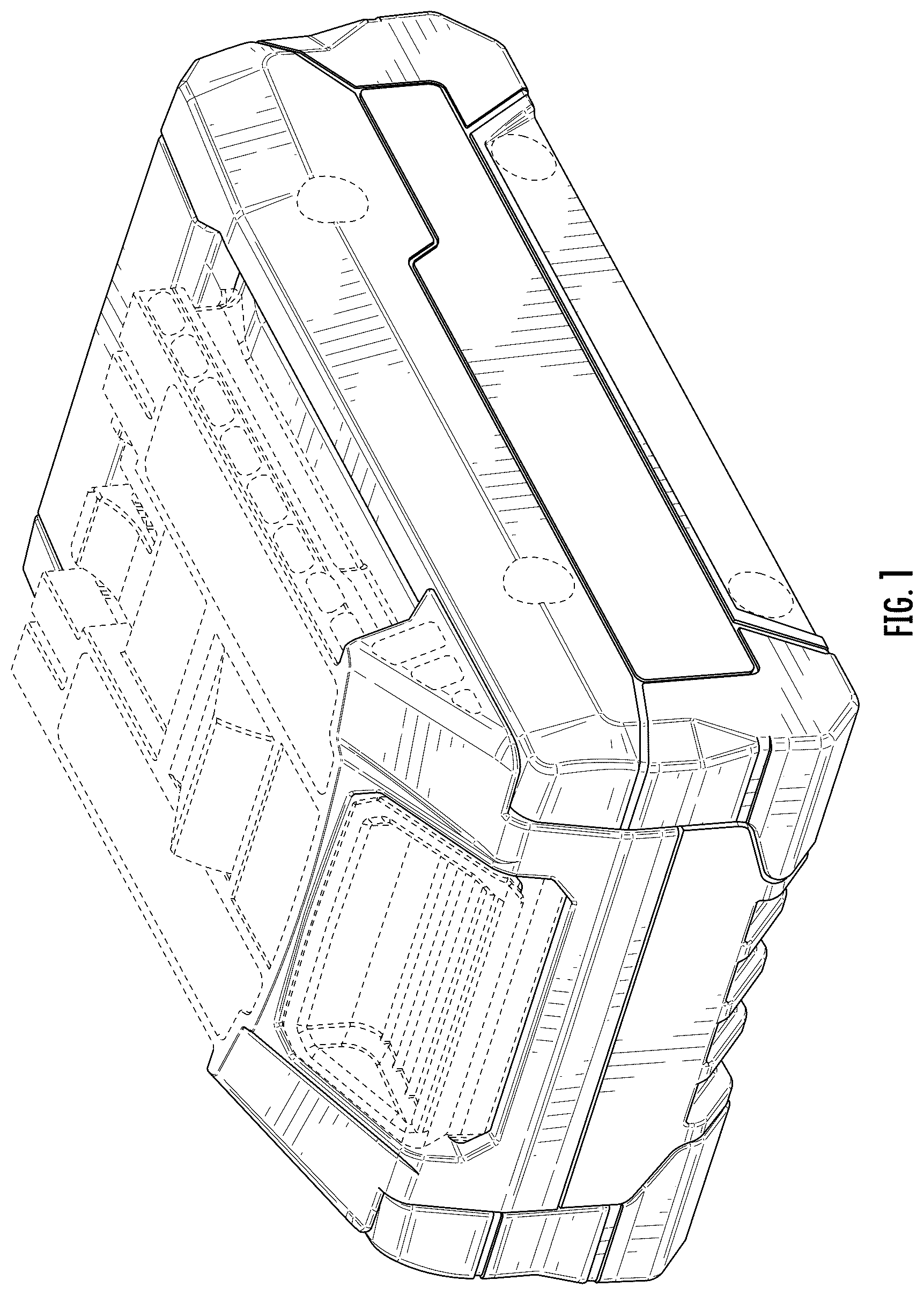

FIG. 1 is a perspective view of a battery pack showing my new design;

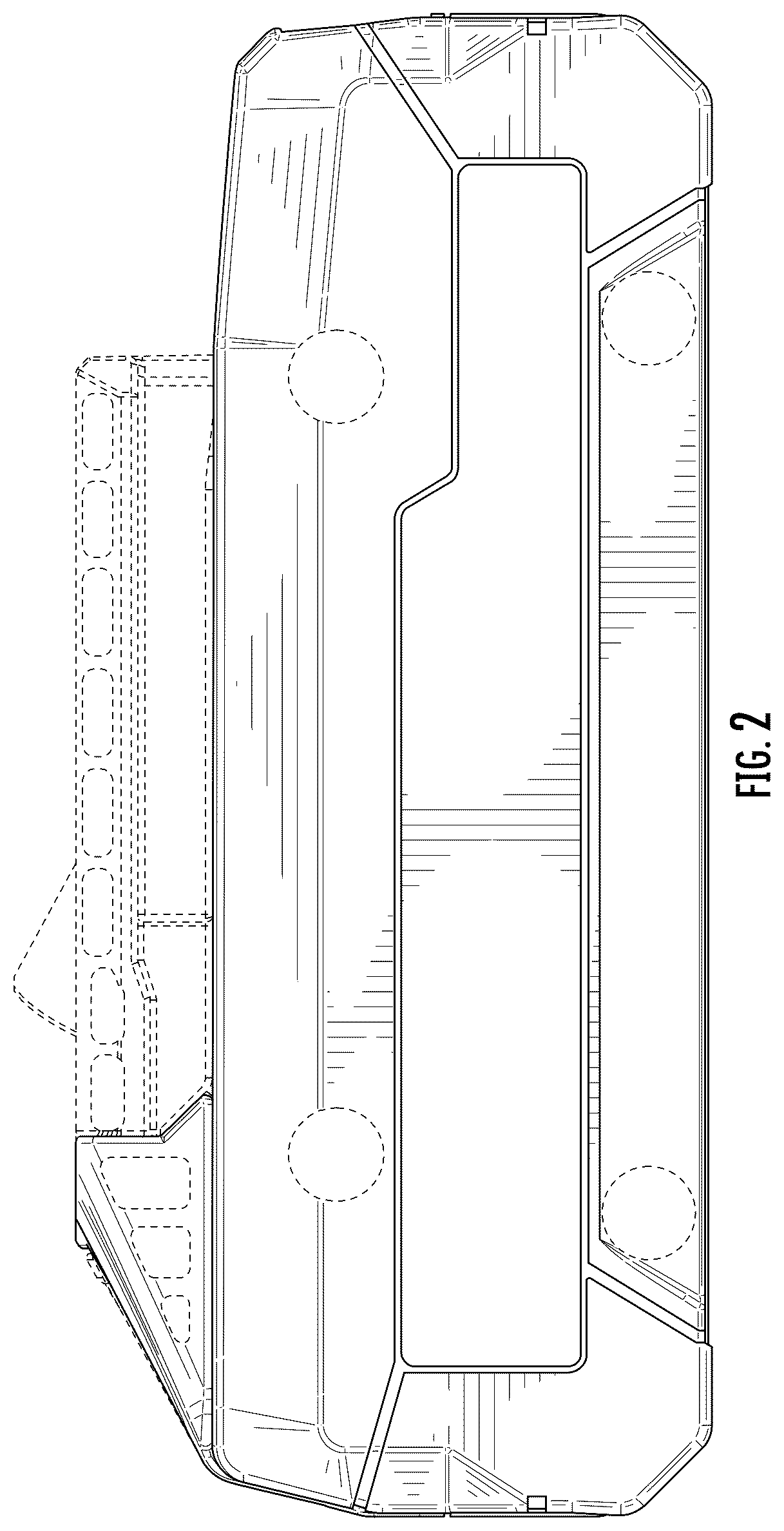

FIG. 2 is a left side elevational view of the battery pack of FIG. 1 ;

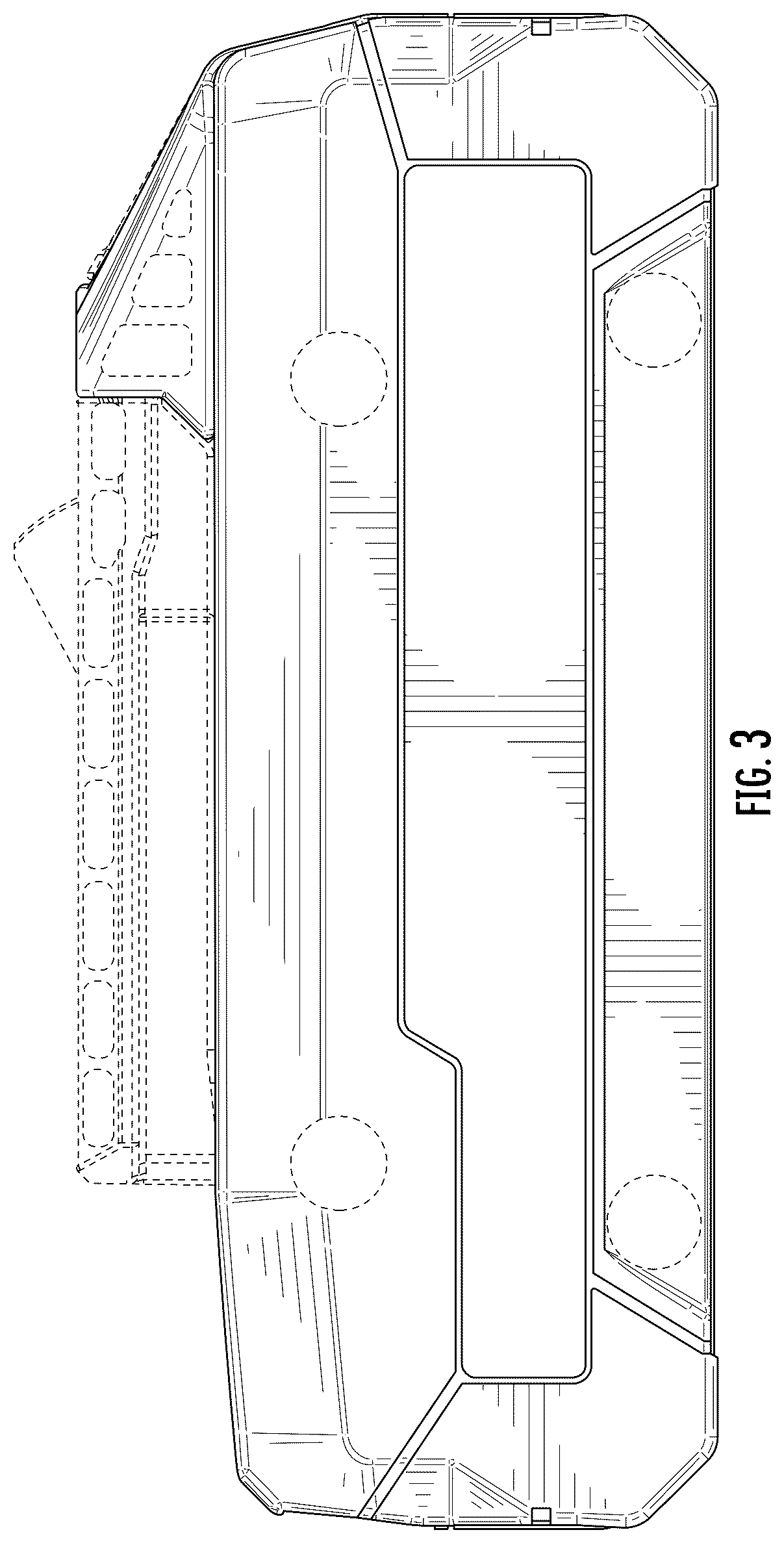

FIG. 3 is a right side elevational view of the battery pack of FIG. 1 ;

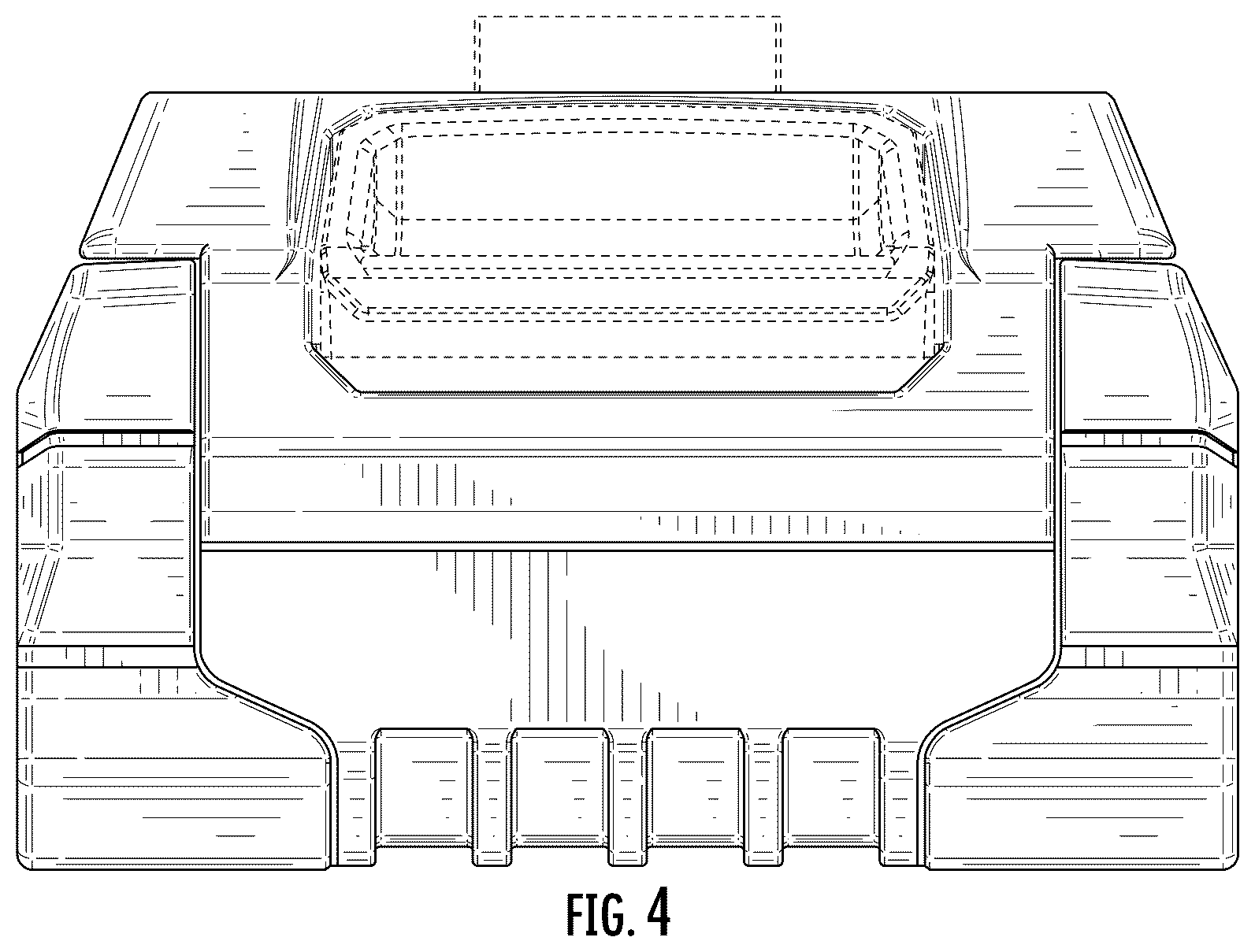

FIG. 4 is a front elevational view of the battery pack of FIG. 1 ;

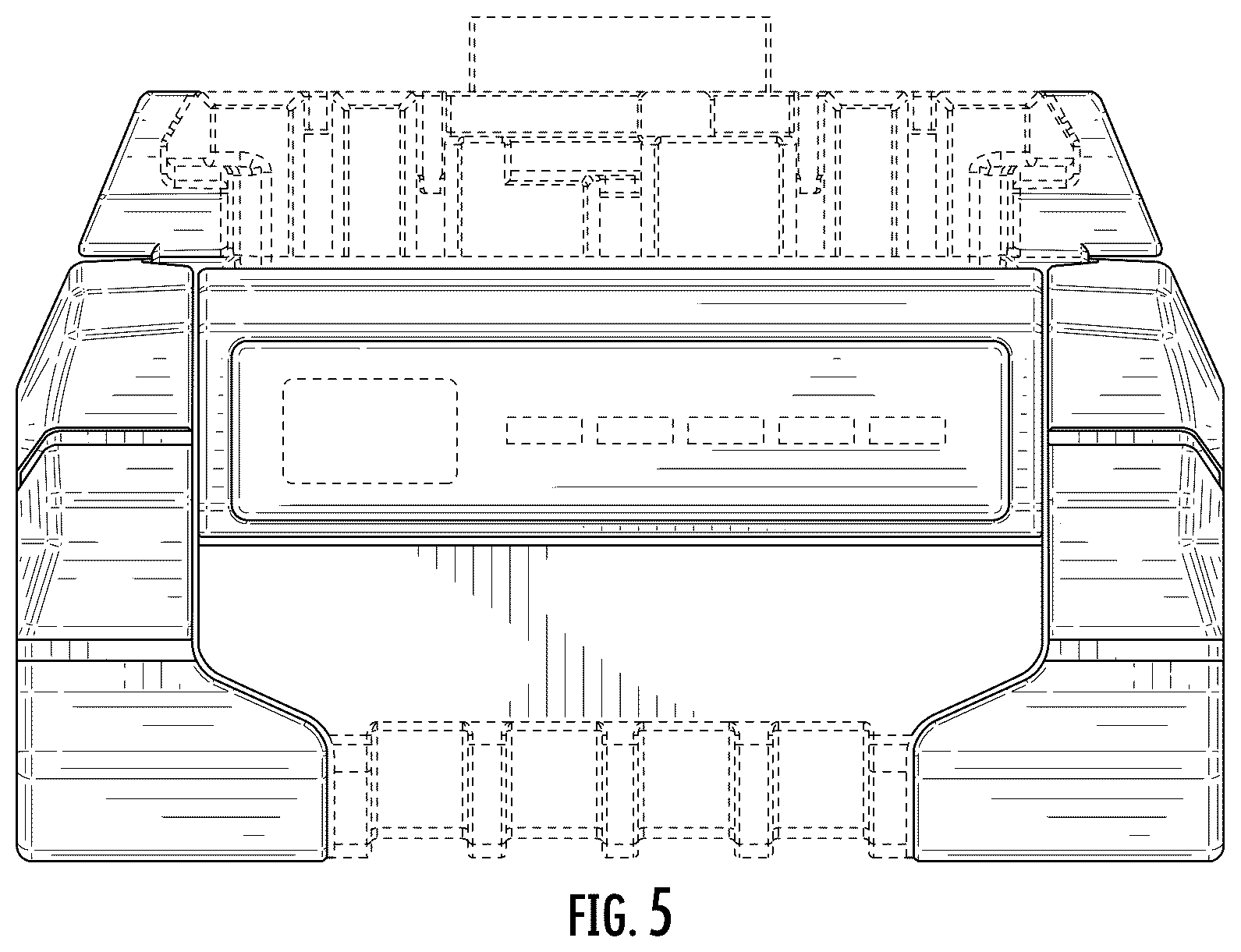

FIG. 5 is a rear elevational view of the battery pack of FIG. 1 ;

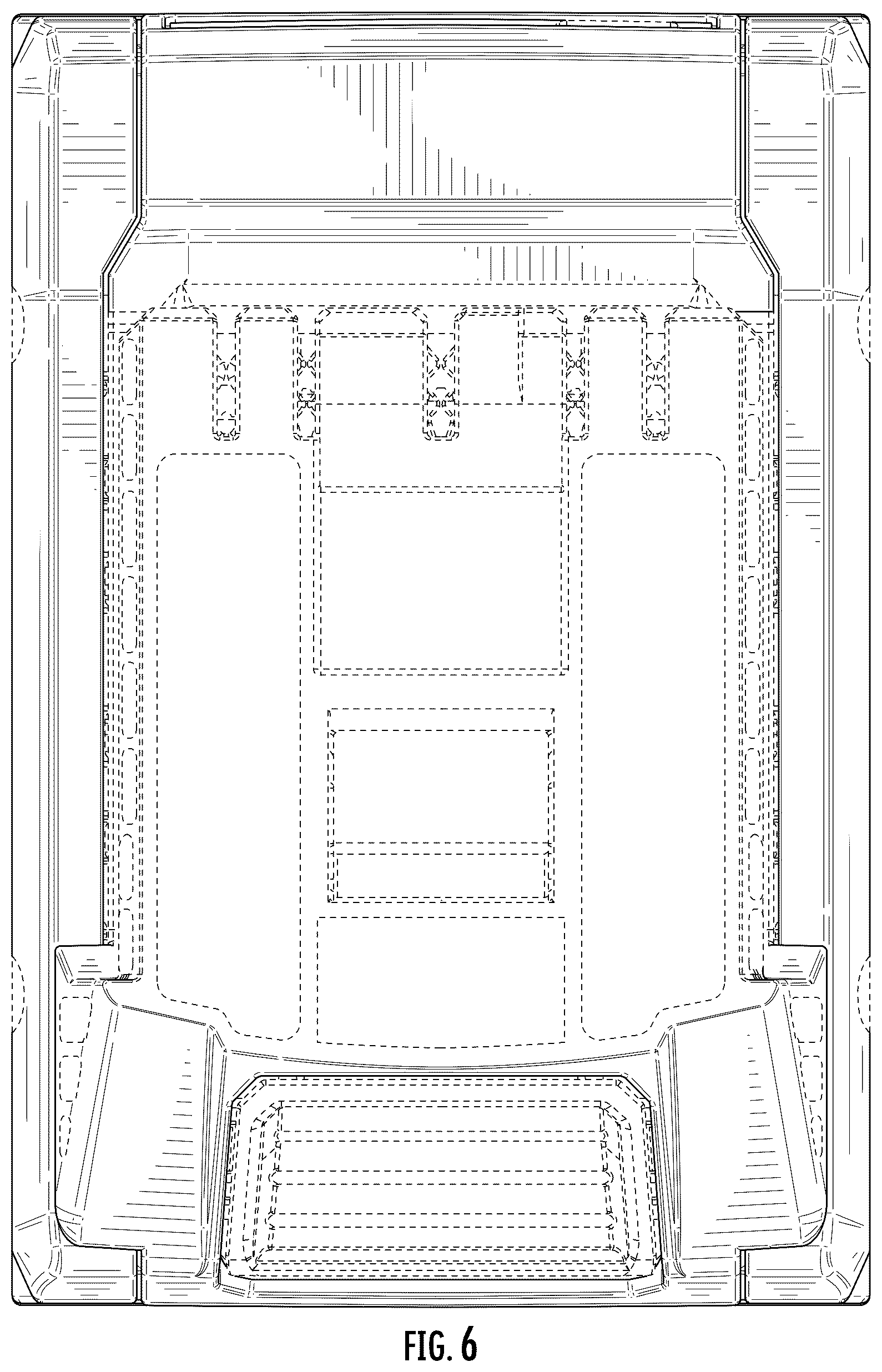

FIG. 6 is a top plan view of the battery pack of FIG. 1 ; and,

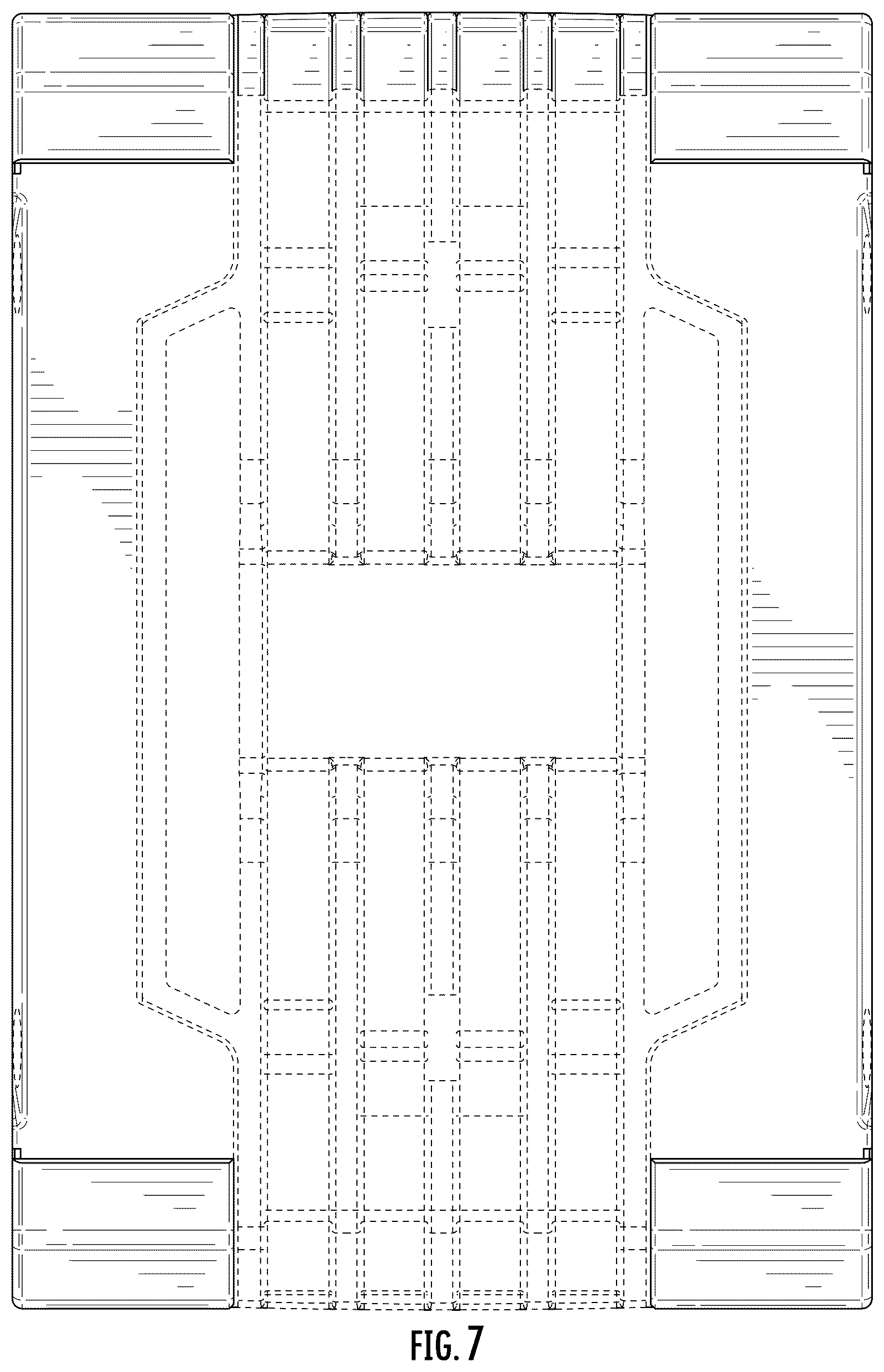

FIG. 7 is a bottom plan view of the battery pack of FIG. 1 .

The broken lines shown in the drawings illustrate portions of the battery pack that form no part of the claimed design.
