Claims (1)
Claim 1 (Independent)
The ornamental design for a bottle as shown and described.
Full Description
Show full text →

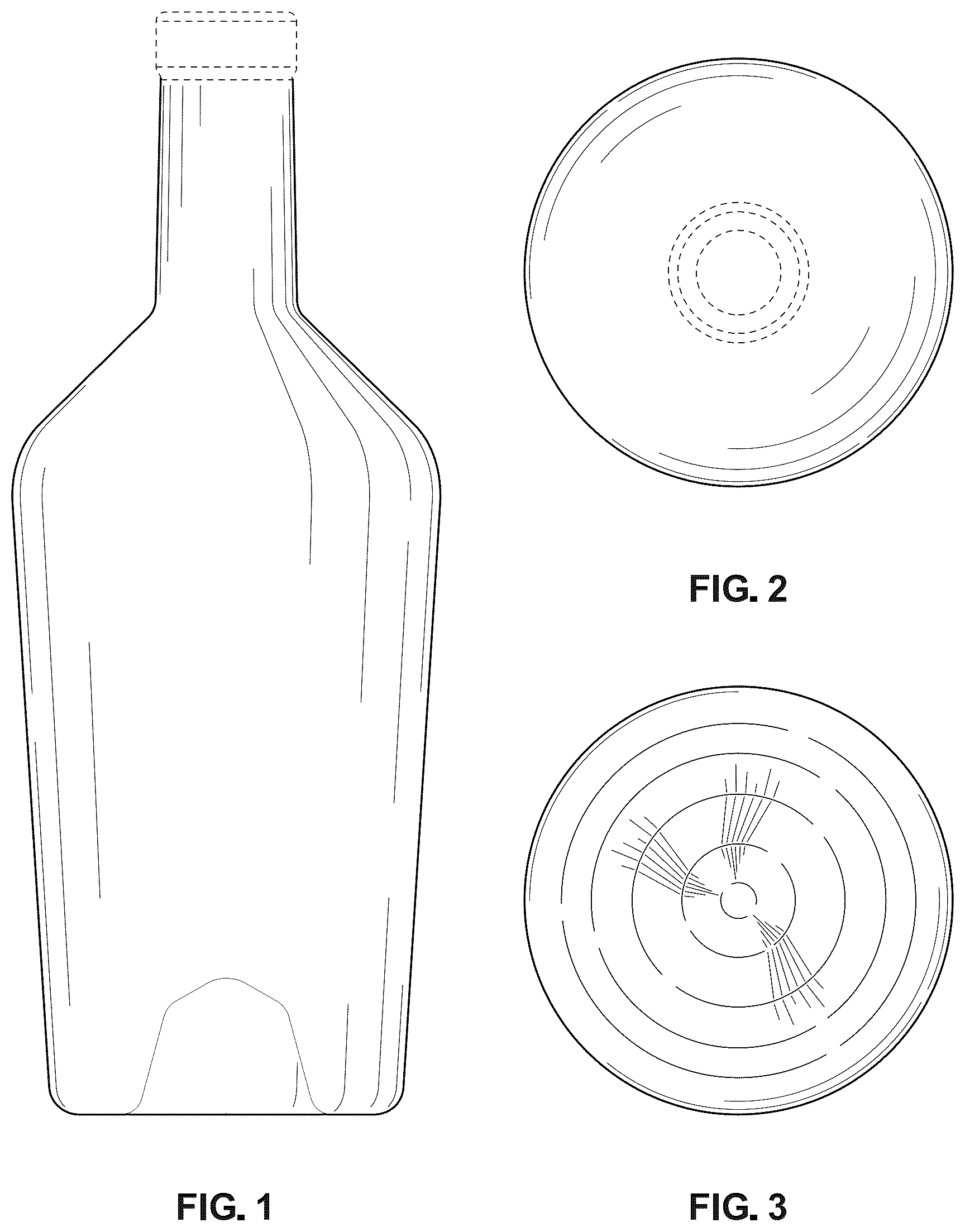

is a front view of a bottle showing my new design, the rear, left side and right side views being identical thereto;
is a top view thereof;
is a bottom view thereof; and,

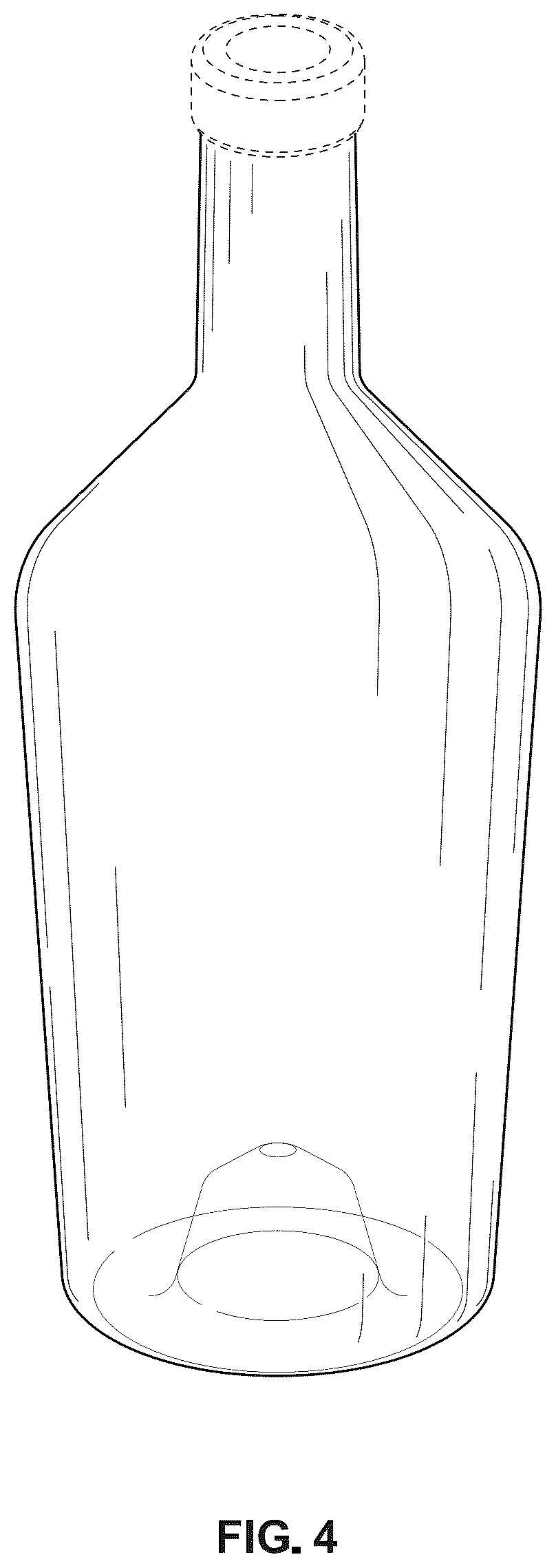

is a top perspective view thereof.
The broken lines showing the lip of the bottle forms no part of the claimed design.
