Screw

USD1124851No. D 1,124,851designGranted 5/5/2026
Patent USD1124851 — Screw — Figure 1
Fig. 1 · Screw

Claims (1)

Claim 1 (Independent)

The ornamental design for a screw, as shown and described.

Full Description

Show full text →

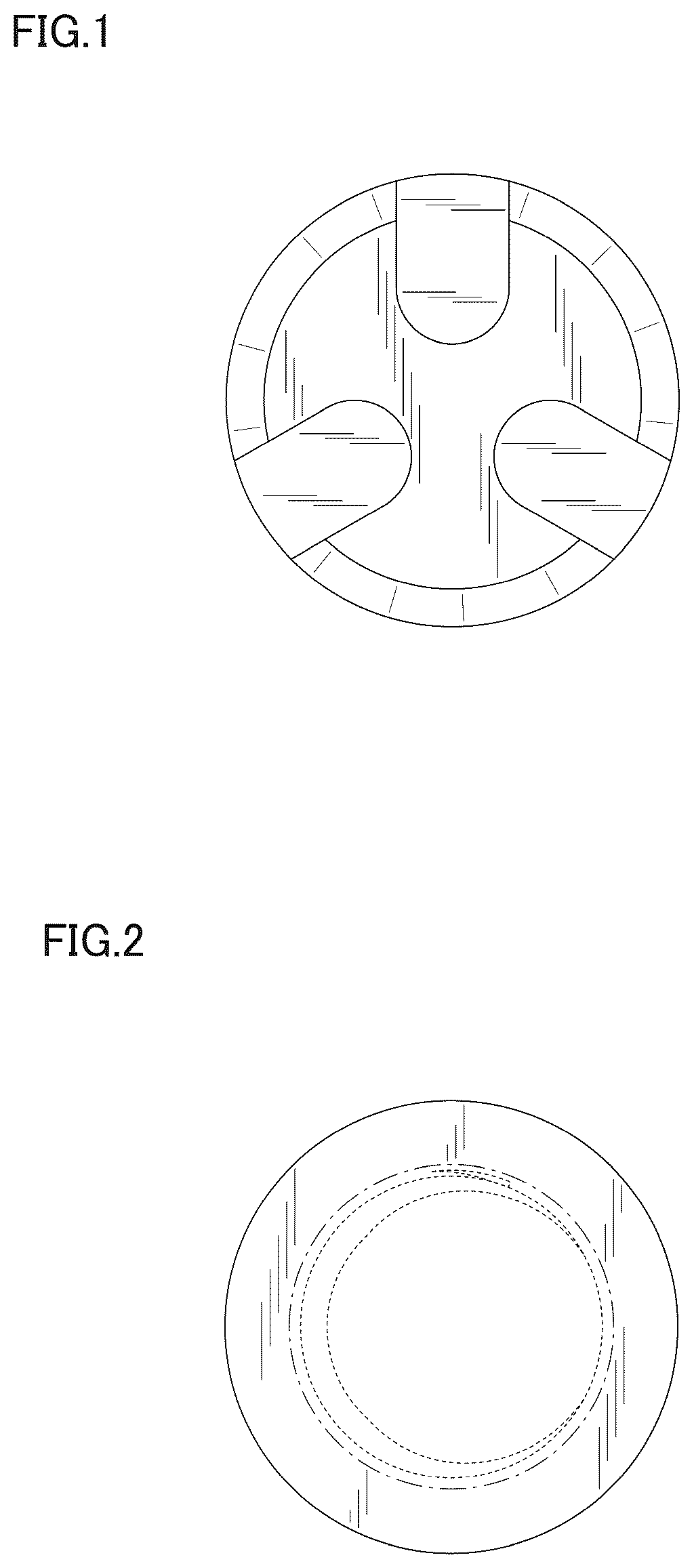

is a front view of a screw in accordance with my design;

is a rear view thereof;

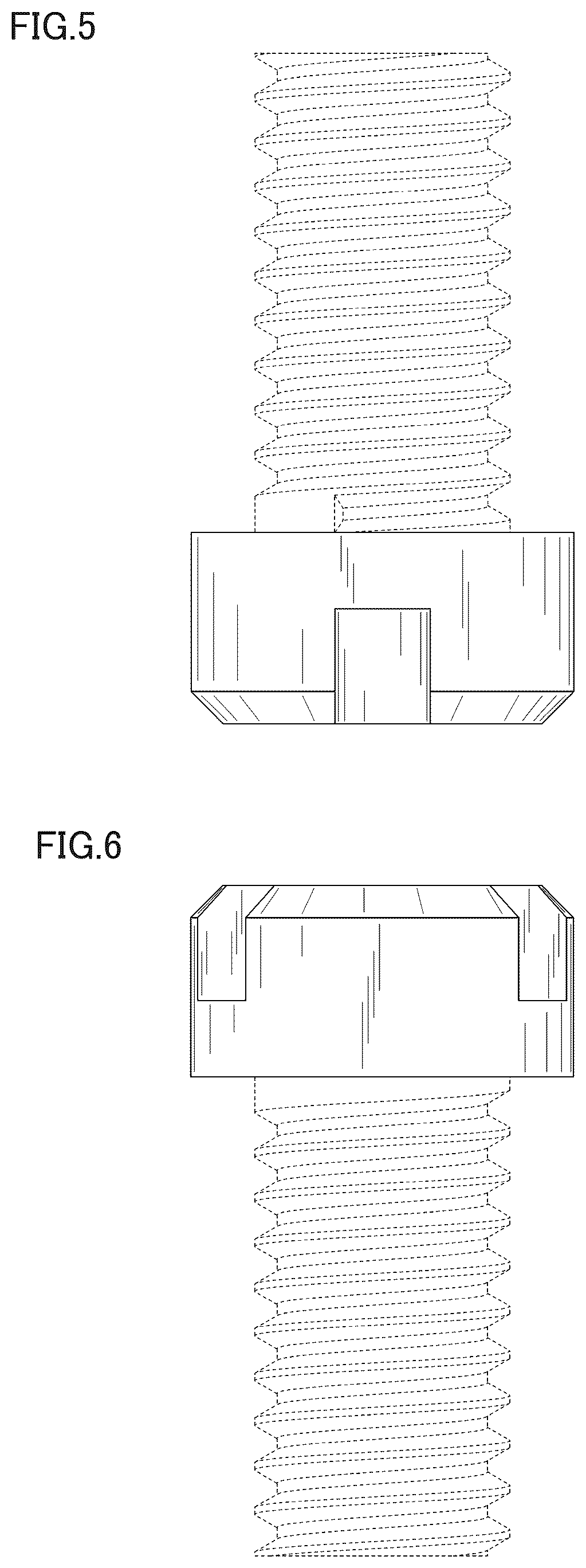

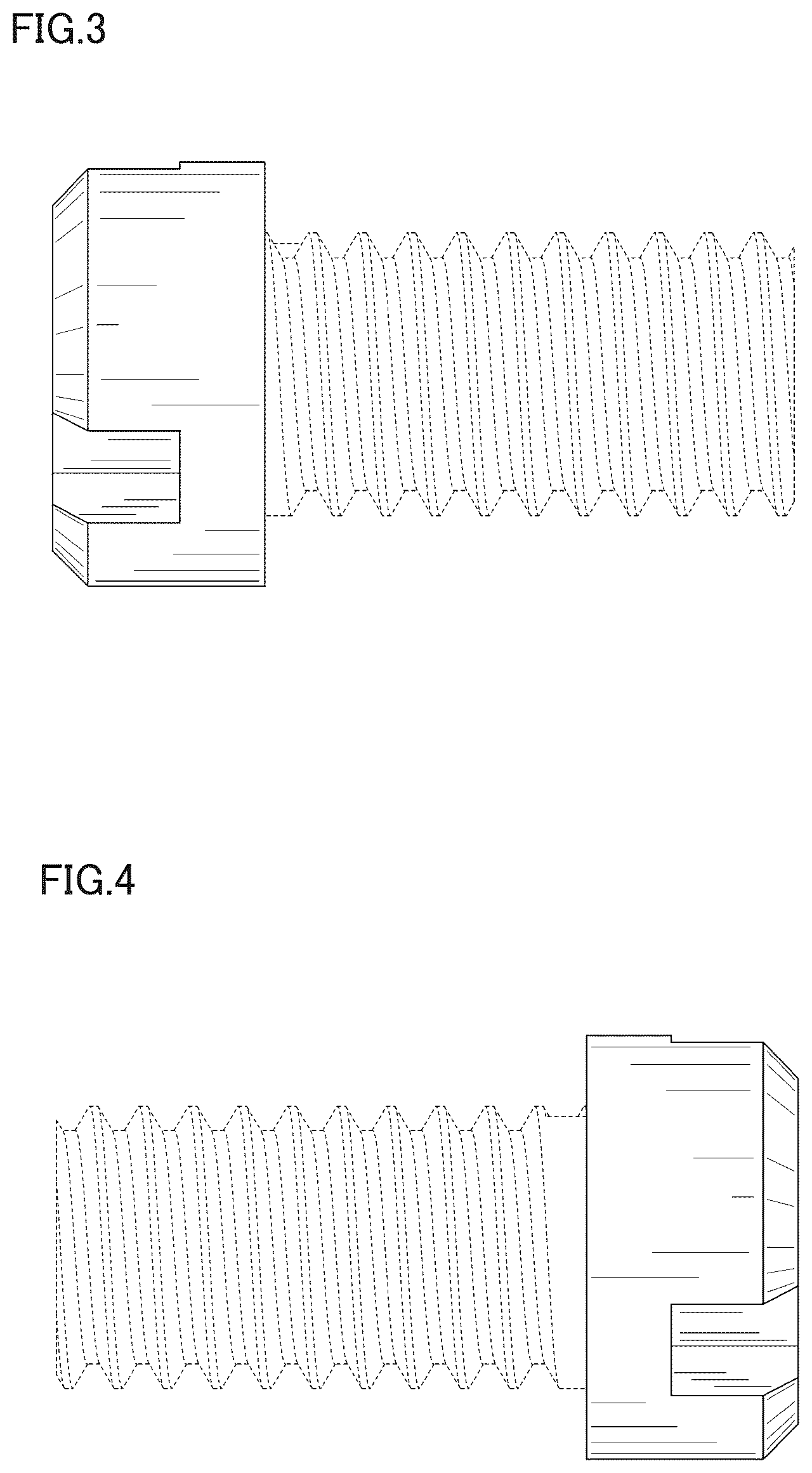

is a right side view thereof;

is a left side view thereof;

is a top view thereof;

is a bottom view thereof;

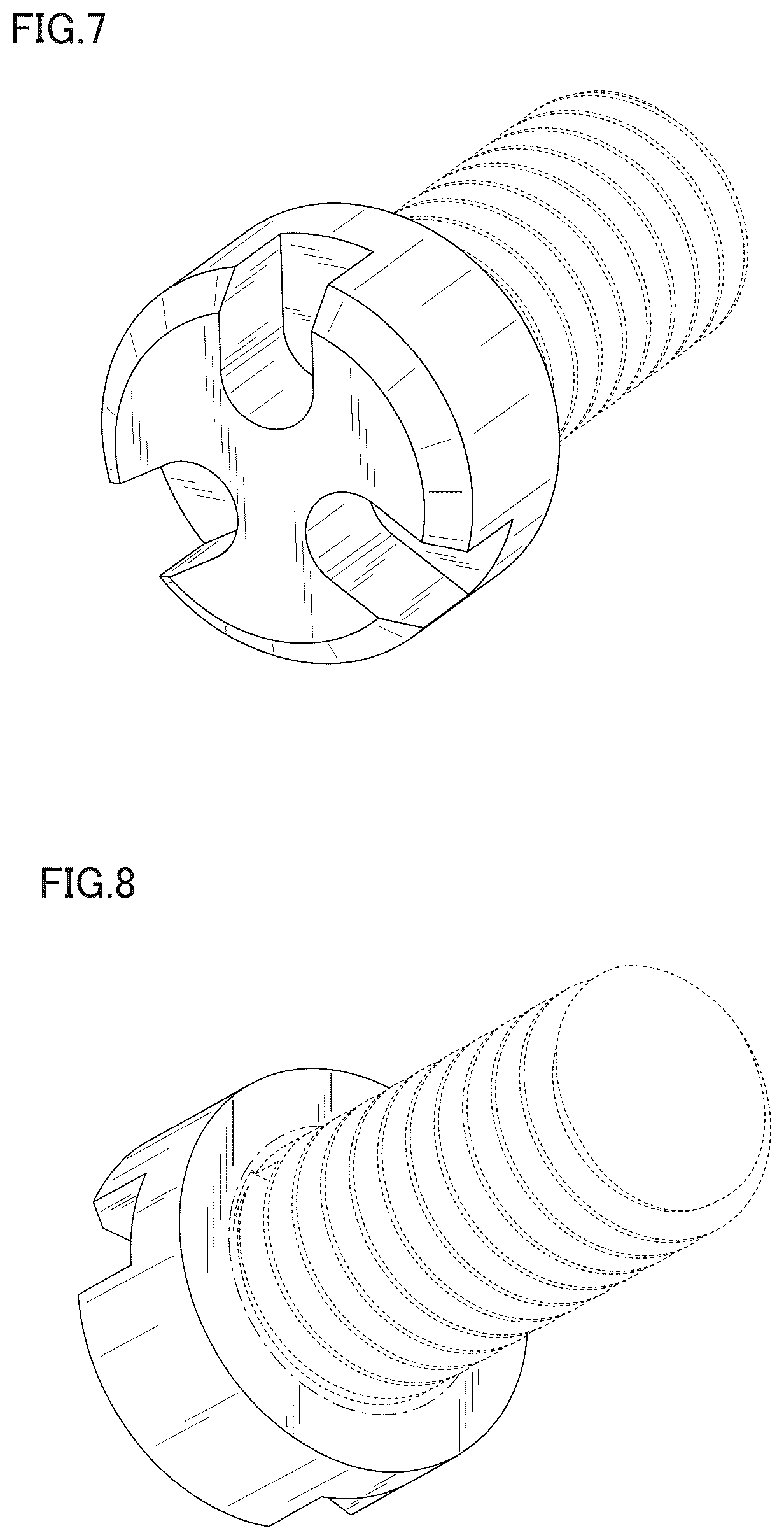

is a first perspective view thereof; and,

is a second perspective view thereof.

The broken lines seen in the drawings are for the purpose of showing environmental structure, and form no part of the claimed design. The dashed-dot-dashed lines indicate a boundary between the claimed portions and the unclaimed portions of the design.
