Hitch Shackle Lock

USD1124837No. D 1,124,837designGranted 5/5/2026

Patent USD1124837 — Hitch shackle lock — Figure 1 — Fig. 1 · Hitch Shackle Lock

Claims (1)

Claim 1 (Independent)

The ornamental design for a hitch shackle lock as shown and described.

Full Description

Show full text →

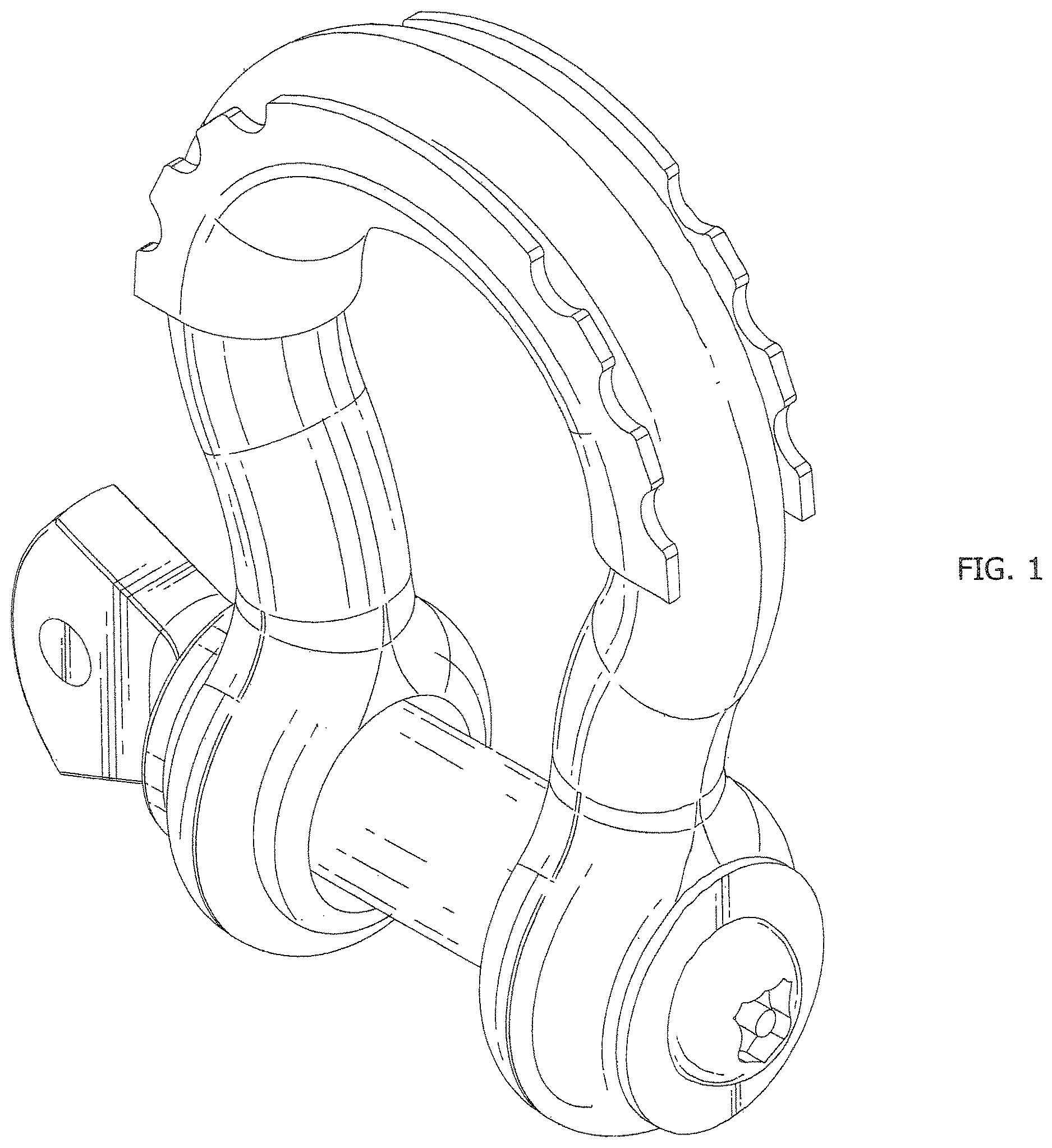

is a perspective view of the hitch shackle lock.

is an exploded view thereof.

is a front elevational view of the hitch shackle lock.

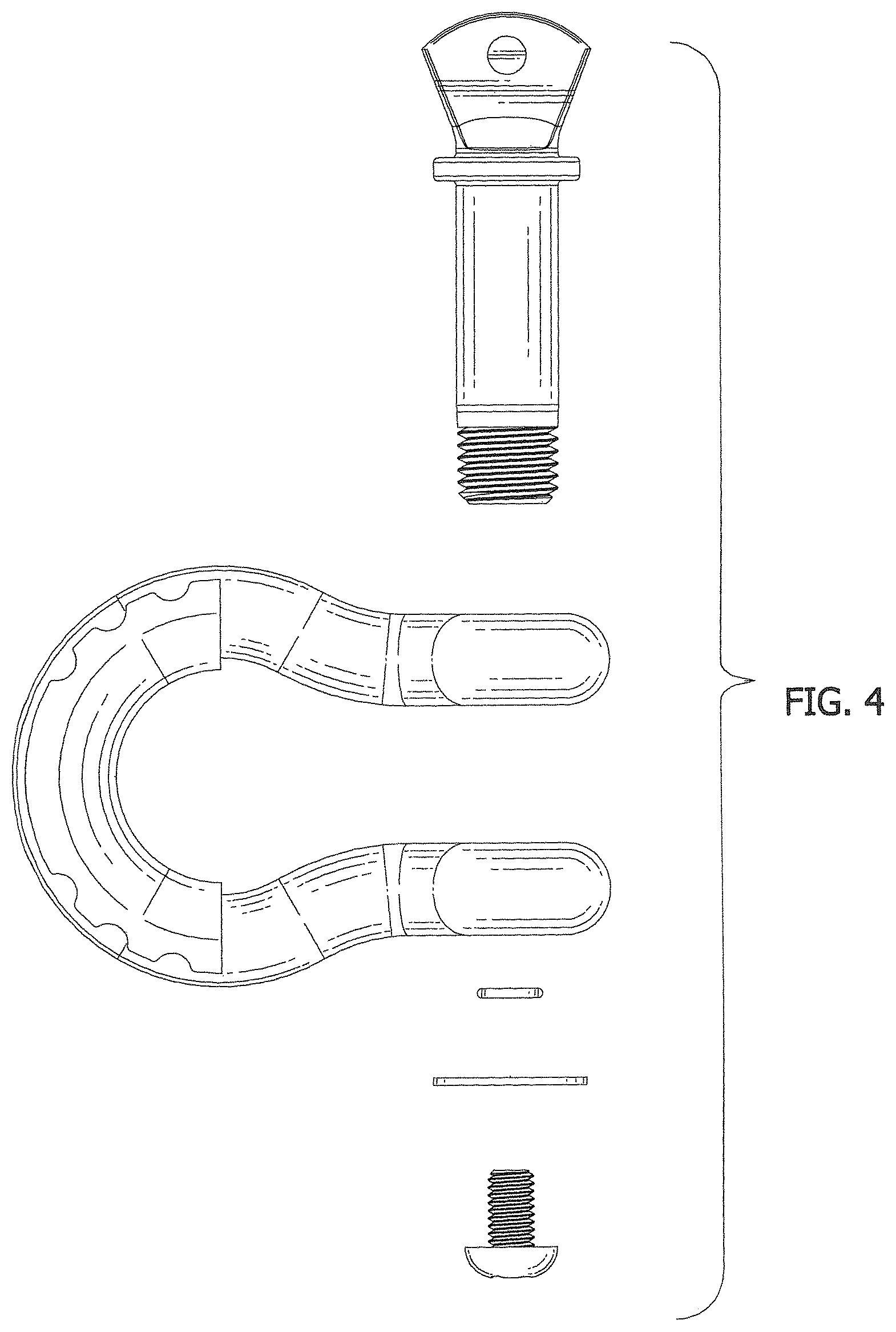

is an exploded view thereof.

is a rear elevational view of the hitch shackle lock.

is an exploded view thereof.

is a right side elevational view of the hitch shackle lock.

is a left side elevational view thereof.

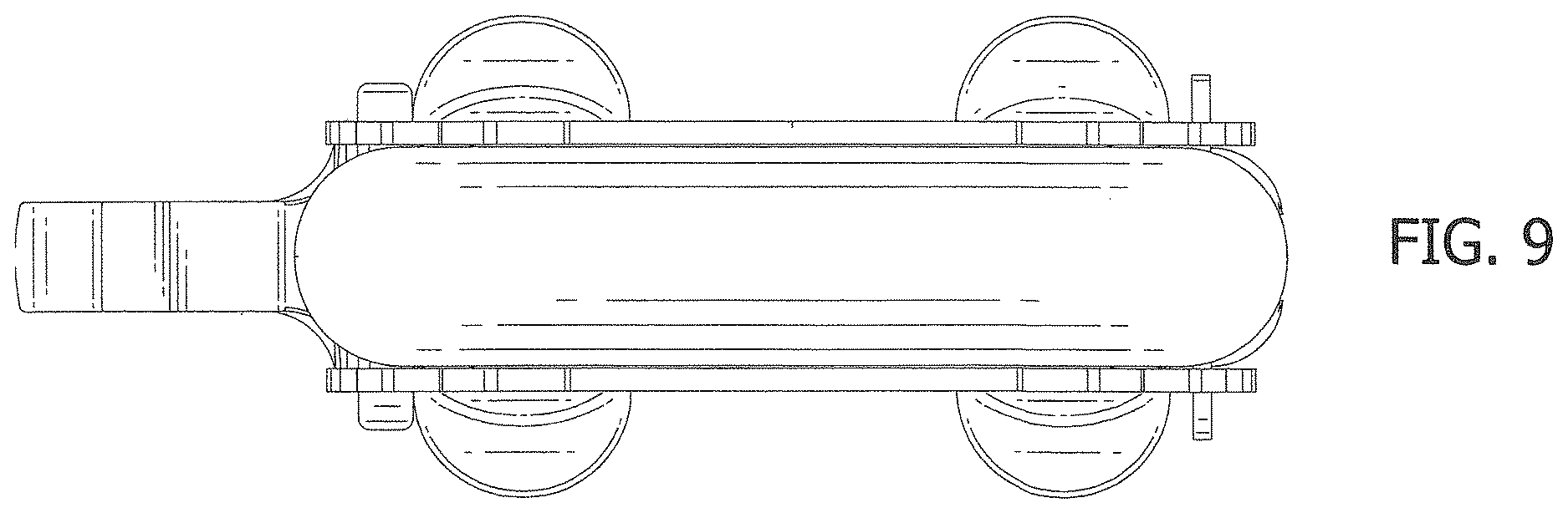

is a top plan view thereof.

is an exploded view thereof.

is a bottom plan view of the hitch shackle lock; and,

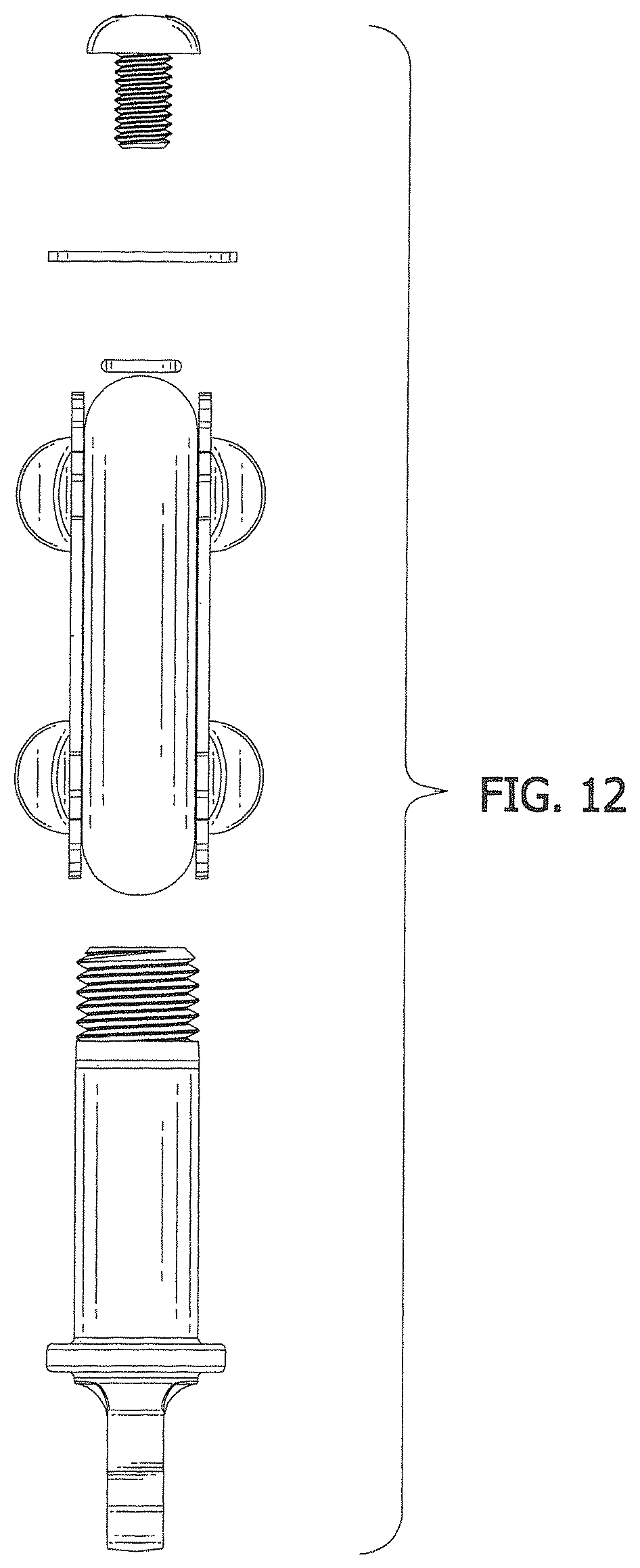

is an exploded view thereof.

Figures (12)

Patent USD1124837 Figure 1 – Hitch shackle lock — Fig. 1

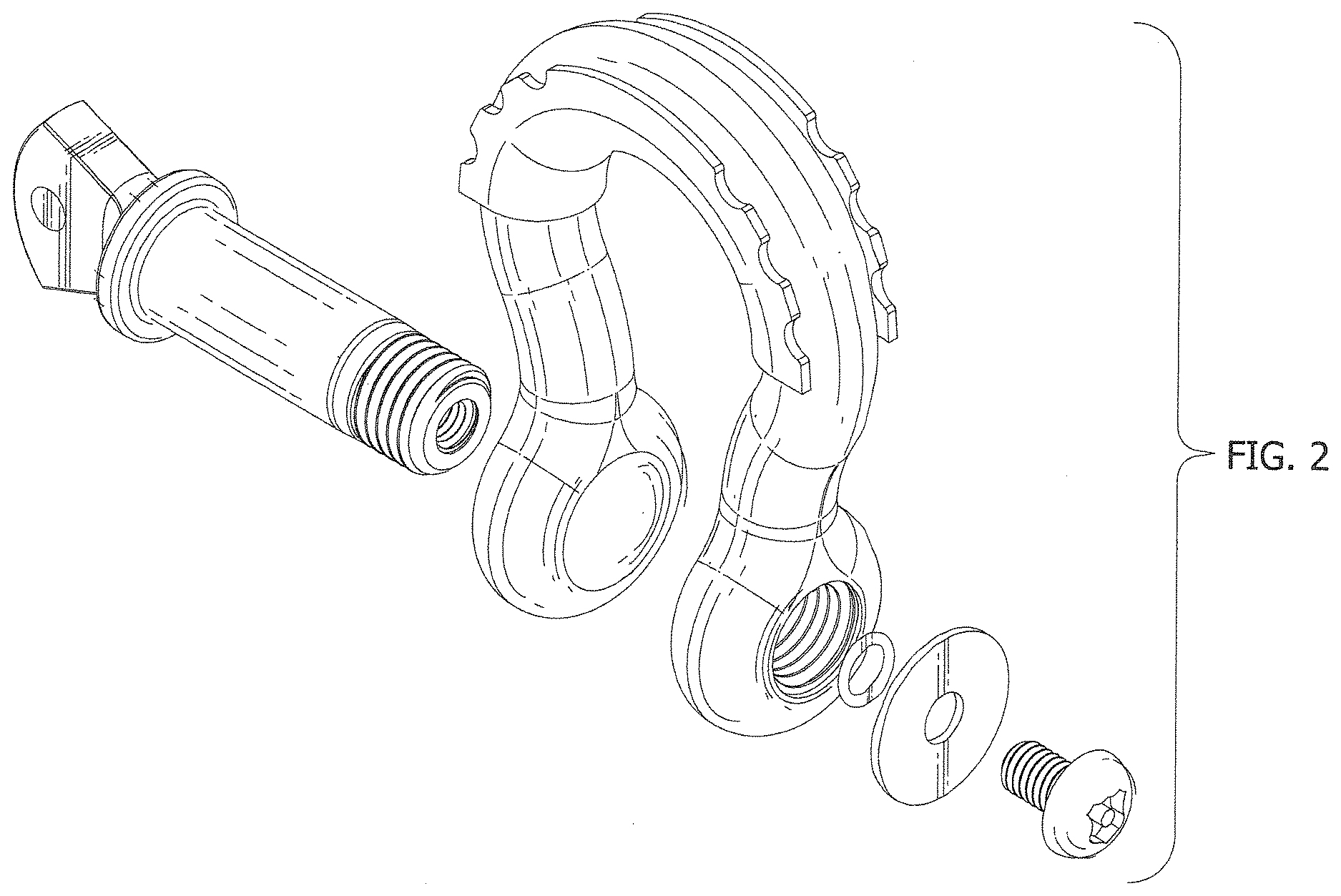

Patent USD1124837 Figure 2 – Hitch shackle lock — Fig. 2

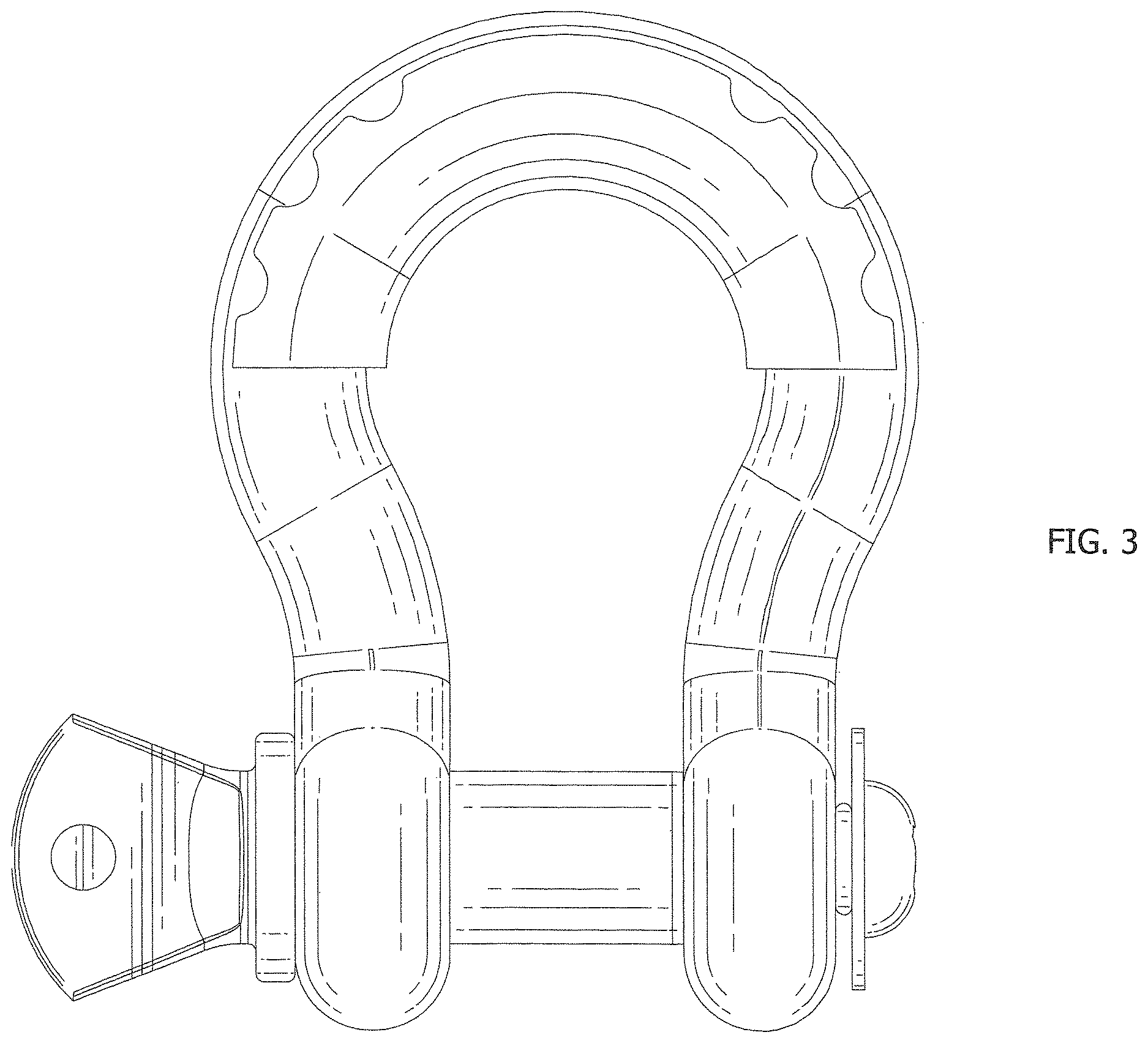

Patent USD1124837 Figure 3 – Hitch shackle lock — Fig. 3

Patent USD1124837 Figure 4 – Hitch shackle lock — Fig. 4

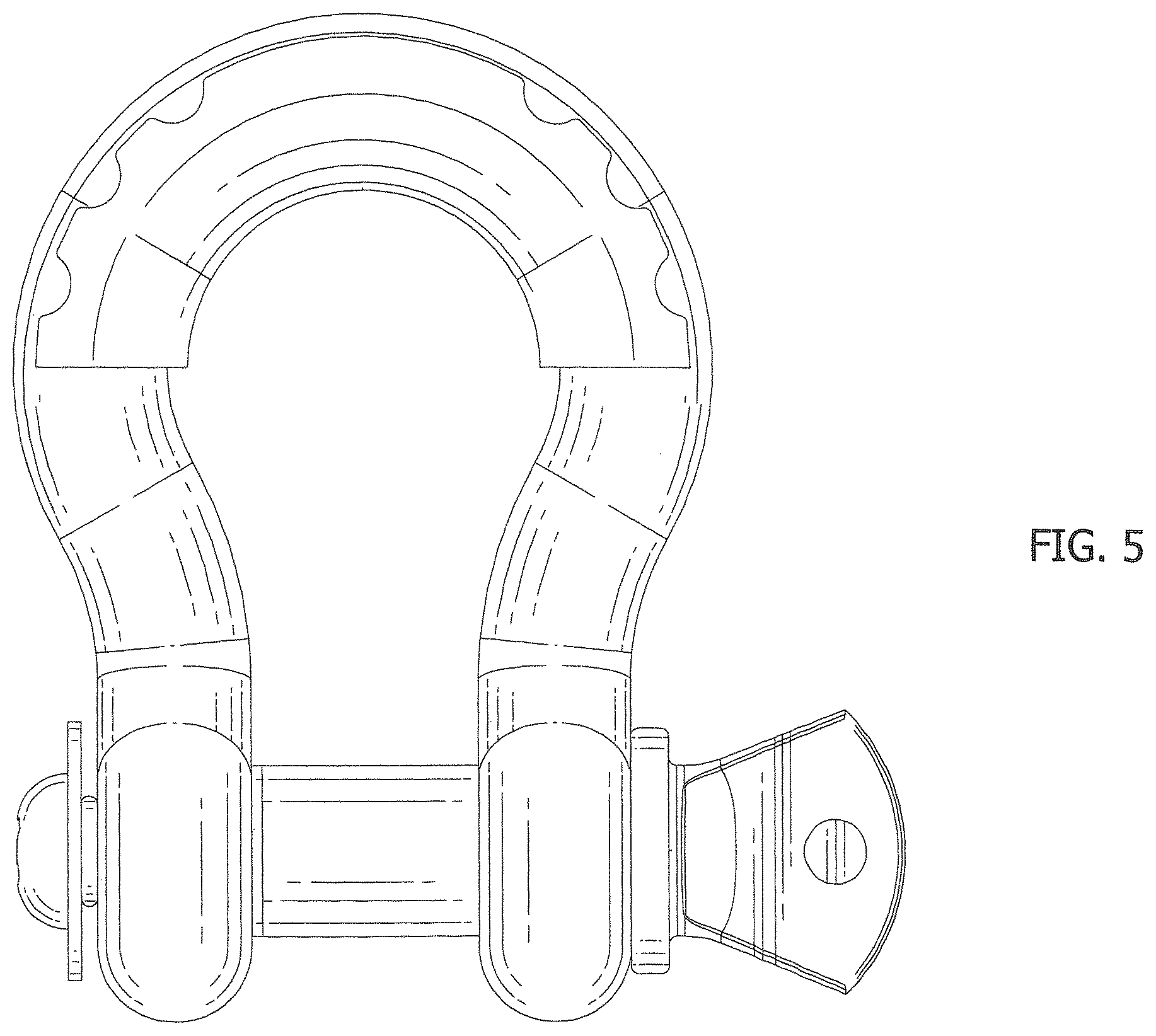

Patent USD1124837 Figure 5 – Hitch shackle lock — Fig. 5

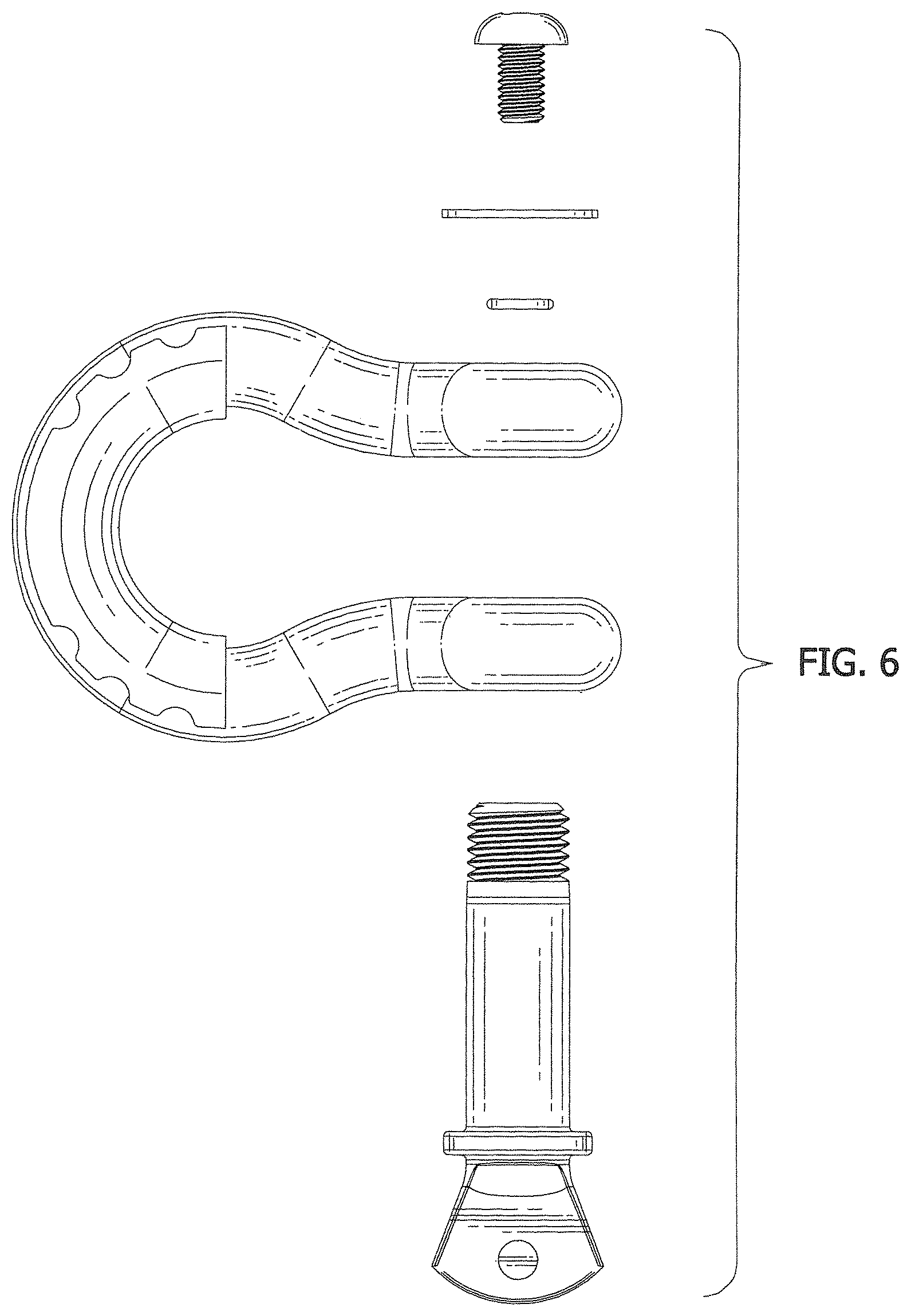

Patent USD1124837 Figure 6 – Hitch shackle lock — Fig. 6

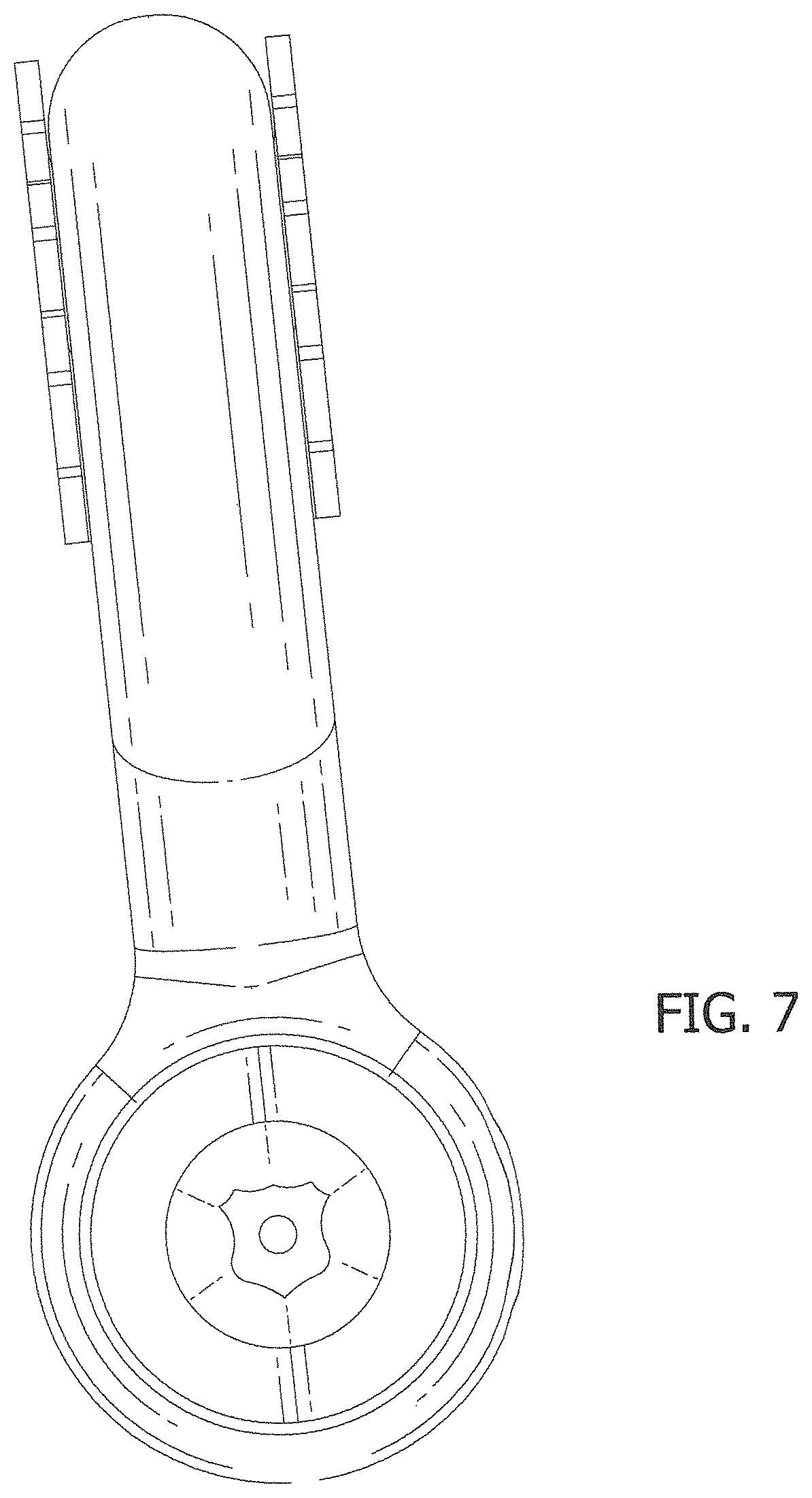

Patent USD1124837 Figure 7 – Hitch shackle lock — Fig. 7

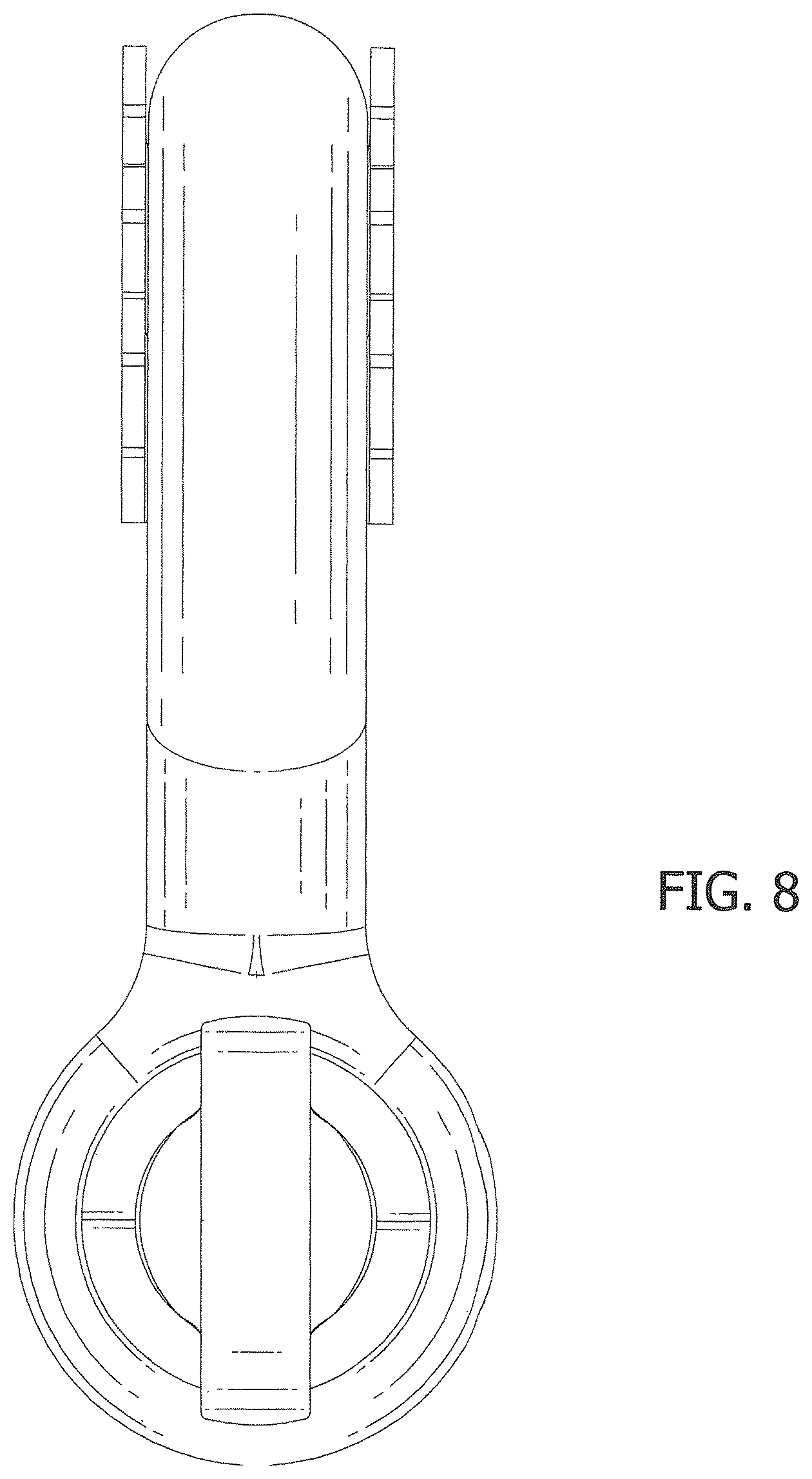

Patent USD1124837 Figure 8 – Hitch shackle lock — Fig. 8

Patent USD1124837 Figure 9 – Hitch shackle lock — Fig. 9

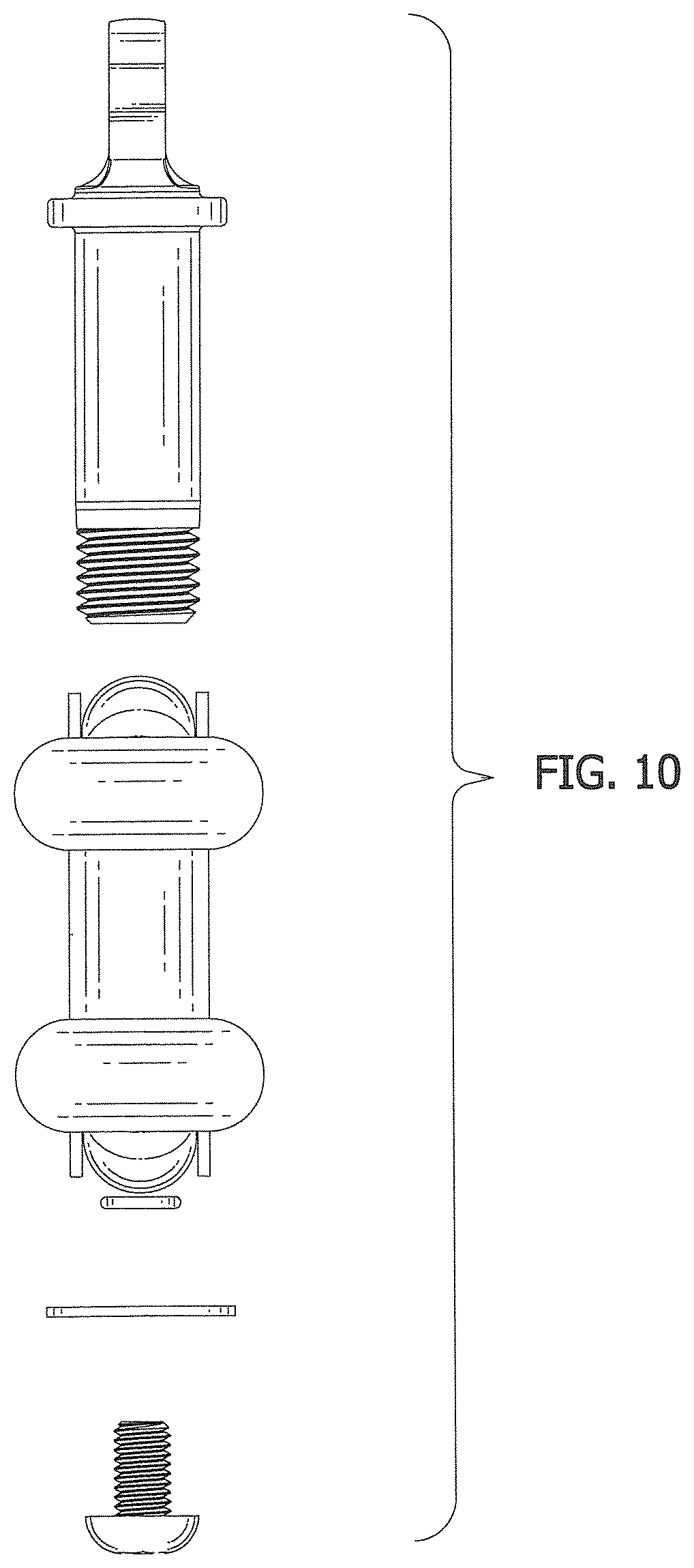

Patent USD1124837 Figure 10 – Hitch shackle lock — Fig. 10

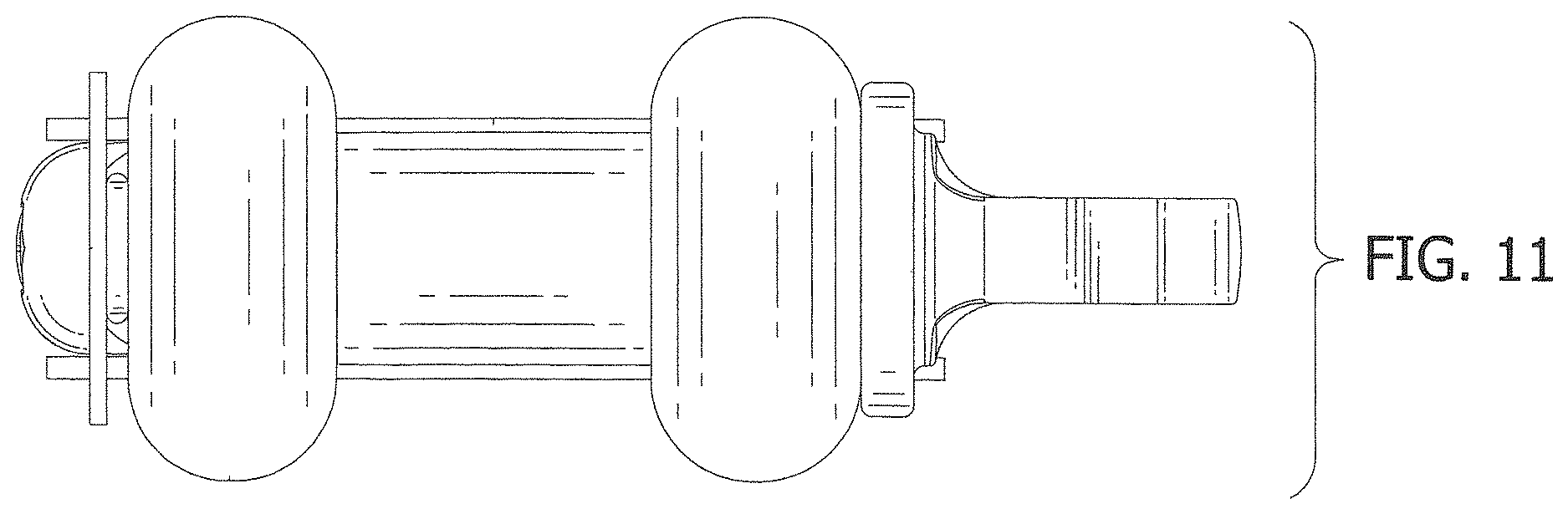

Patent USD1124837 Figure 11 – Hitch shackle lock — Fig. 11

Patent USD1124837 Figure 12 – Hitch shackle lock — Fig. 12
