Toothbrush Head

USD1124666No. D 1,124,666designGranted 5/5/2026

Patent USD1124666 — Toothbrush head — Figure 1 — Fig. 1 · Toothbrush Head

Claims (1)

Claim 1 (Independent)

The ornamental design for a toothbrush head as shown and described.

Full Description

Show full text →

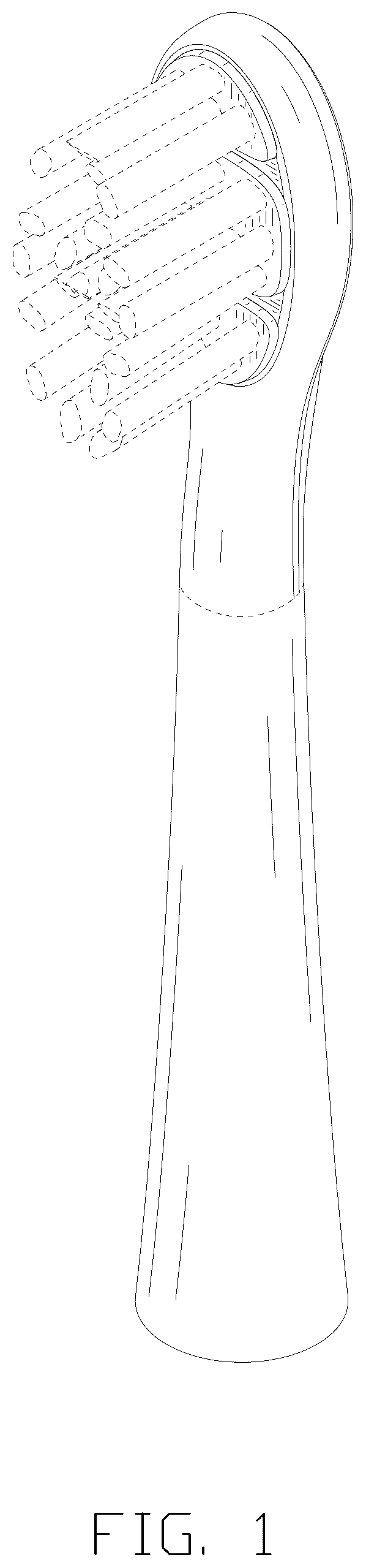

is a front, right and top perspective view of a first embodiment of the toothbrush head.

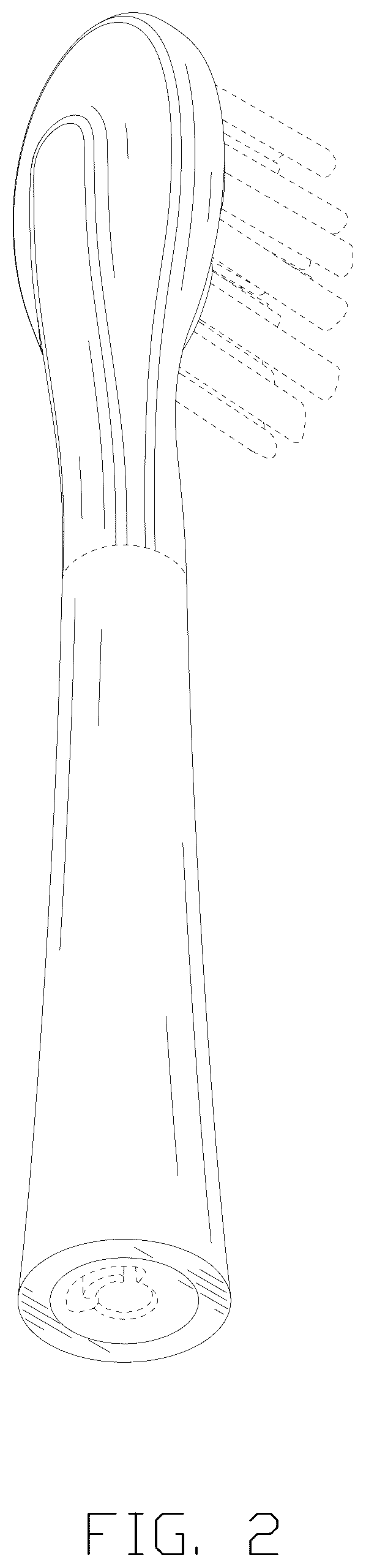

is a rear, left and bottom perspective view of the toothbrush head shown in .

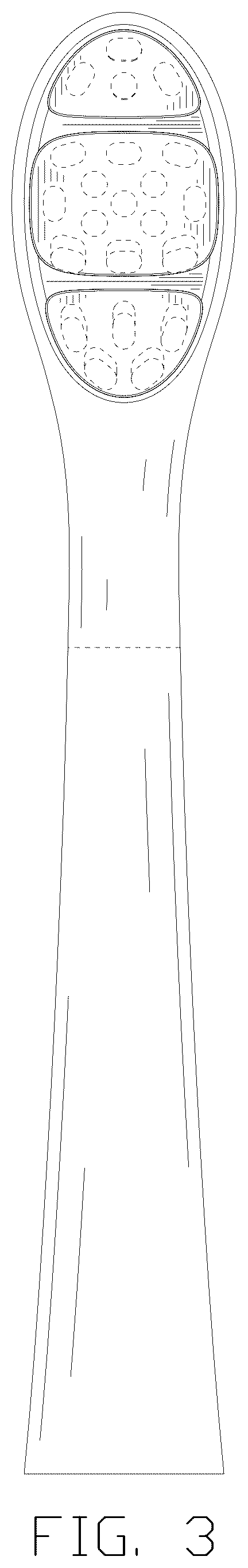

is a front elevation view of the toothbrush head shown in .

is a rear elevation view of the toothbrush head shown in .

is a left side elevation view of the toothbrush head shown in .

is a right side elevation view of the toothbrush head shown in .

is a top plan view of the toothbrush head shown in .

is a bottom plan view of the toothbrush head shown in .

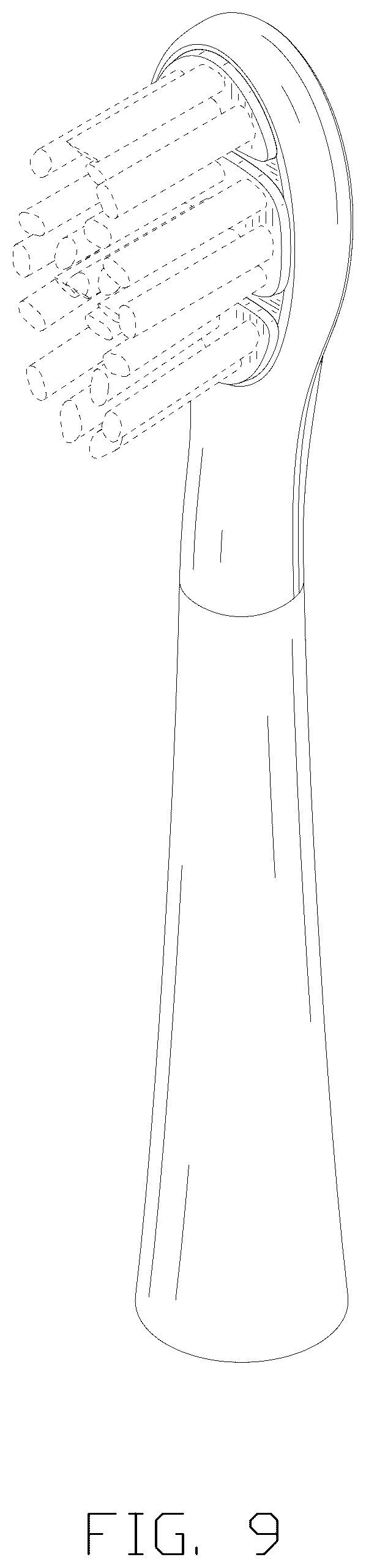

is a front, right and top perspective view of a second embodiment of the toothbrush head.

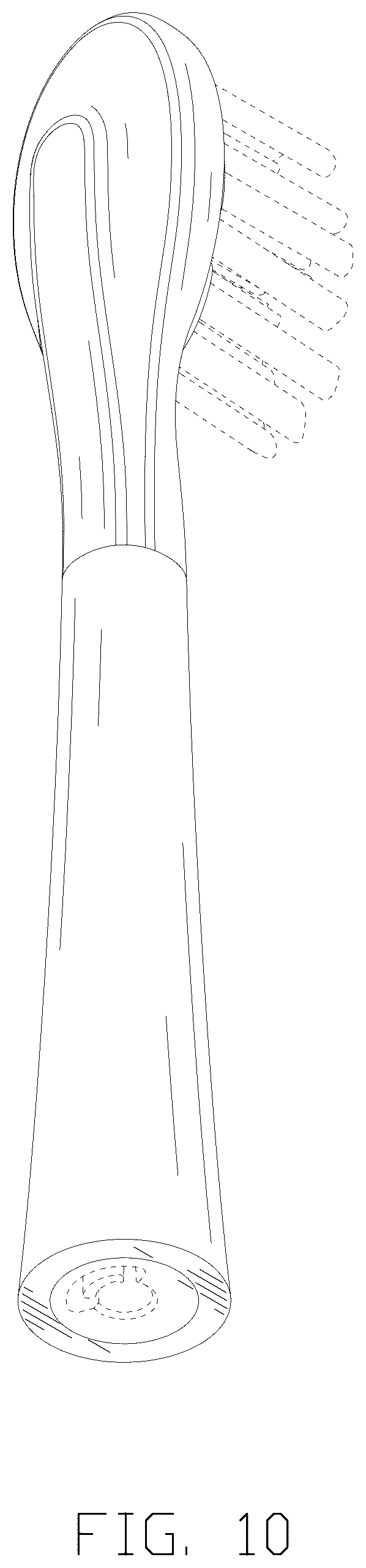

is a rear, left and bottom perspective view of the toothbrush head shown in .

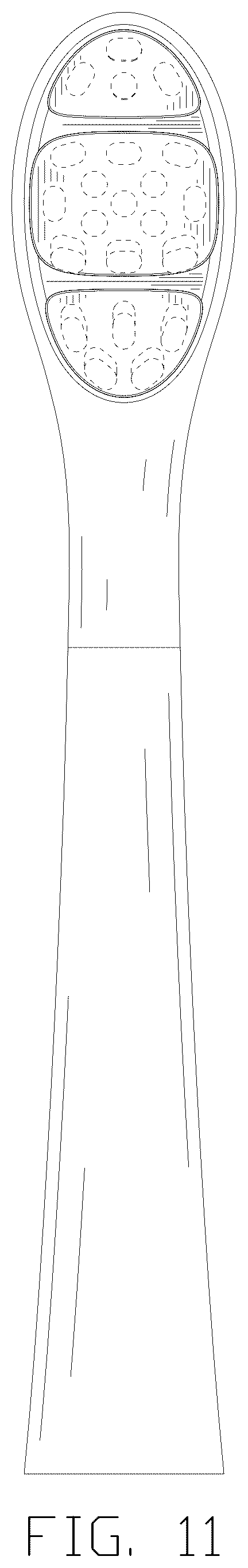

is a front elevation view of the toothbrush head shown in .

is a rear elevation view of the toothbrush head shown in .

is a left side elevation view of the toothbrush head shown in .

is a right side elevation view of the toothbrush head shown in .

is a top plan view of the toothbrush head shown in ; and,

is a bottom plan view of the toothbrush head shown in .

The dashed broken lines depict portions of the toothbrush head that form no part of the claimed design.
