Surface Cleaning Device

USD1124547No. D 1,124,547designGranted 4/28/2026

Claims (1)

Claim 1 (Independent)

The ornamental design for a surface cleaning device, as shown and described.

Full Description

Show full text →

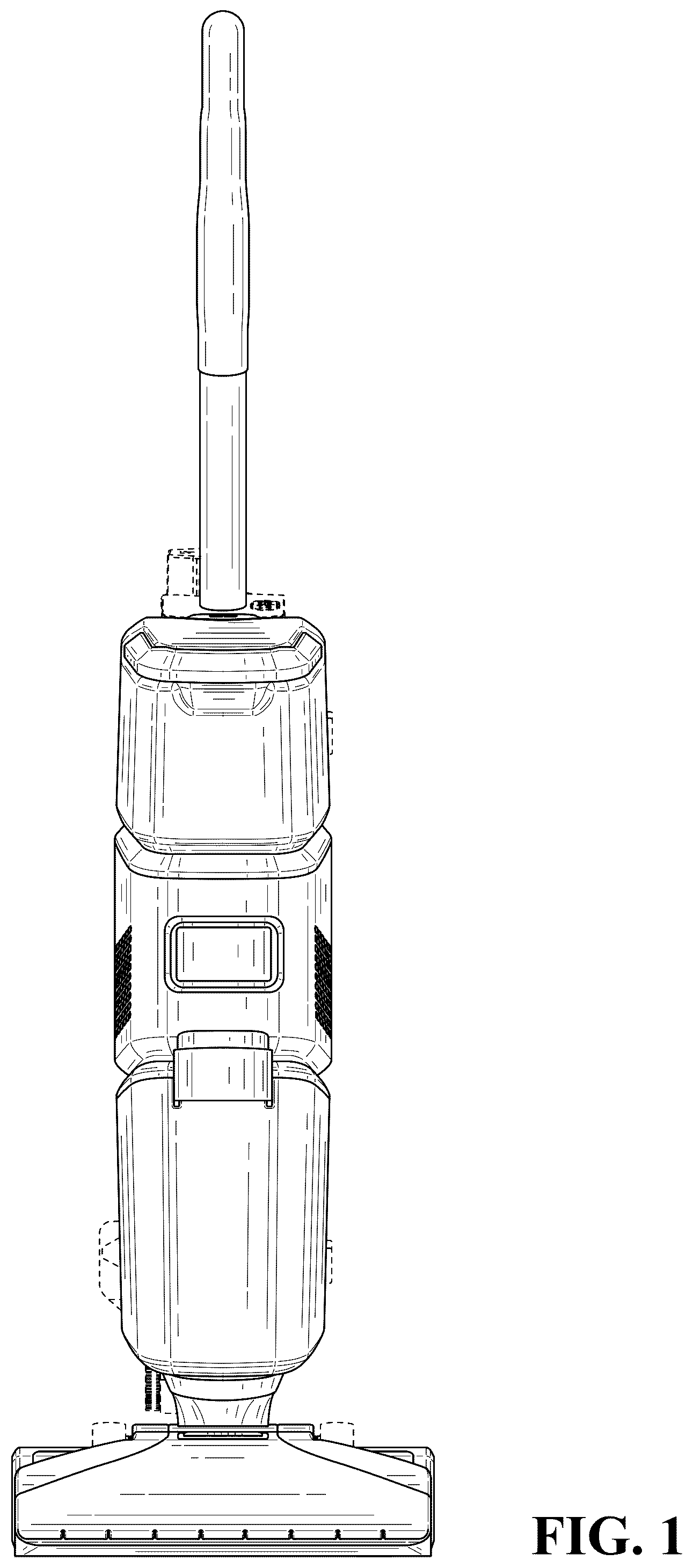

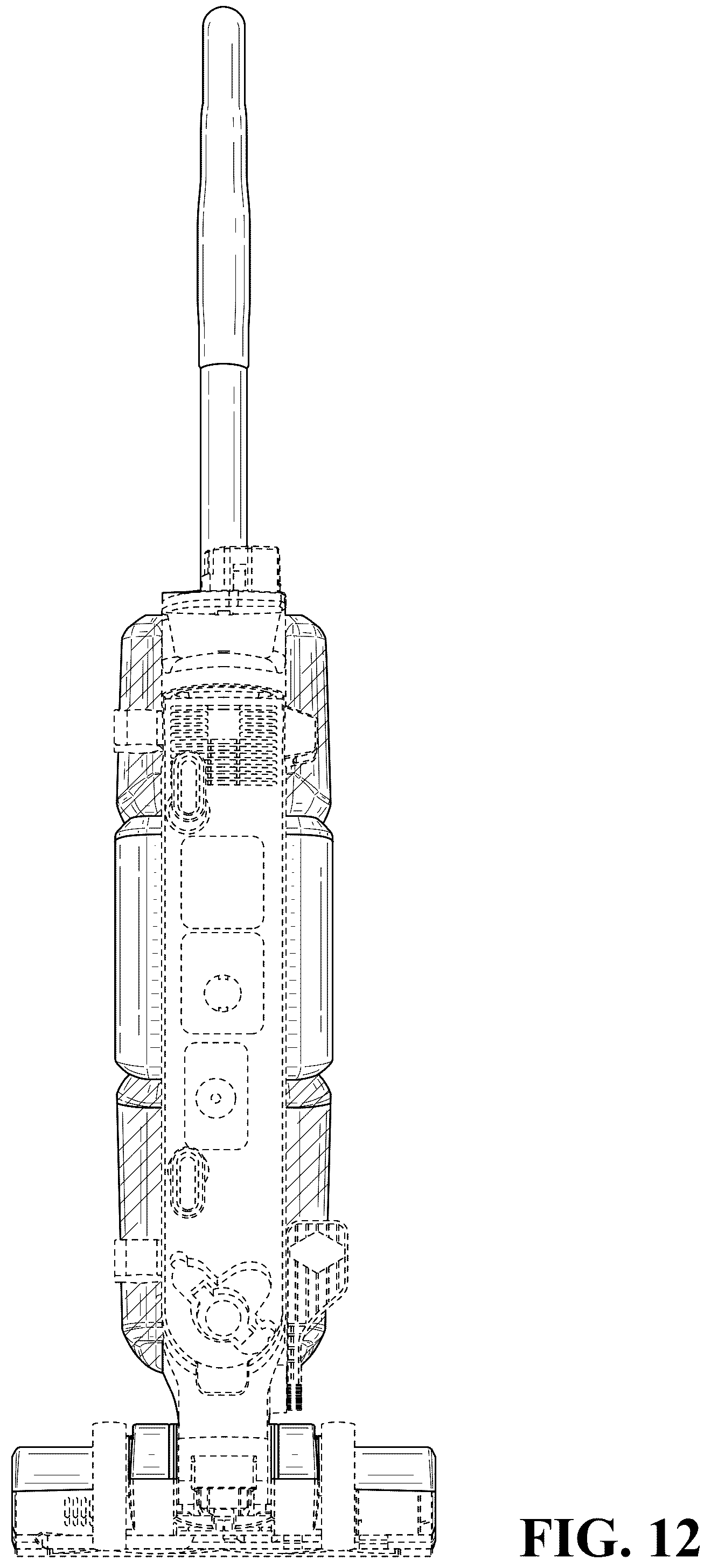

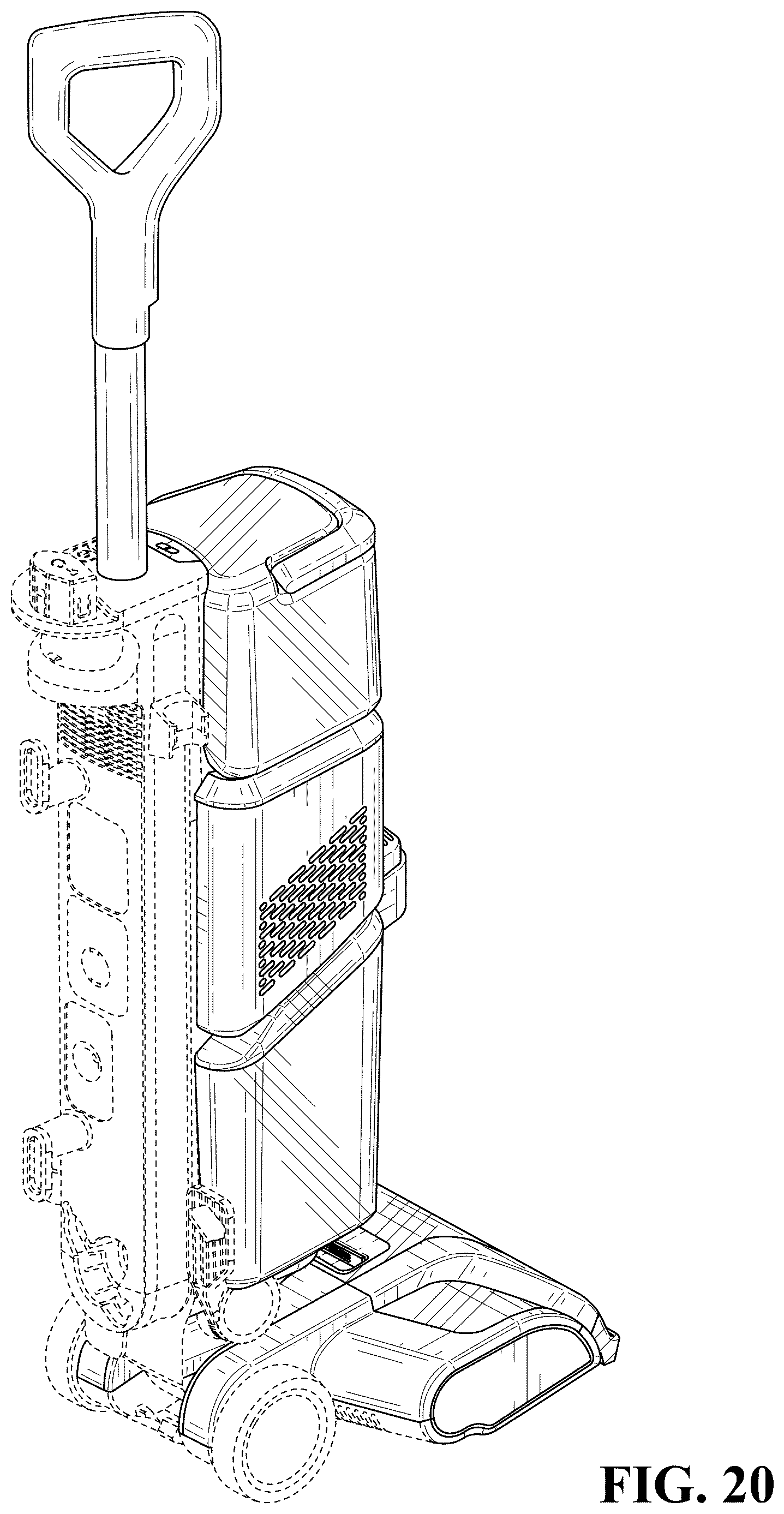

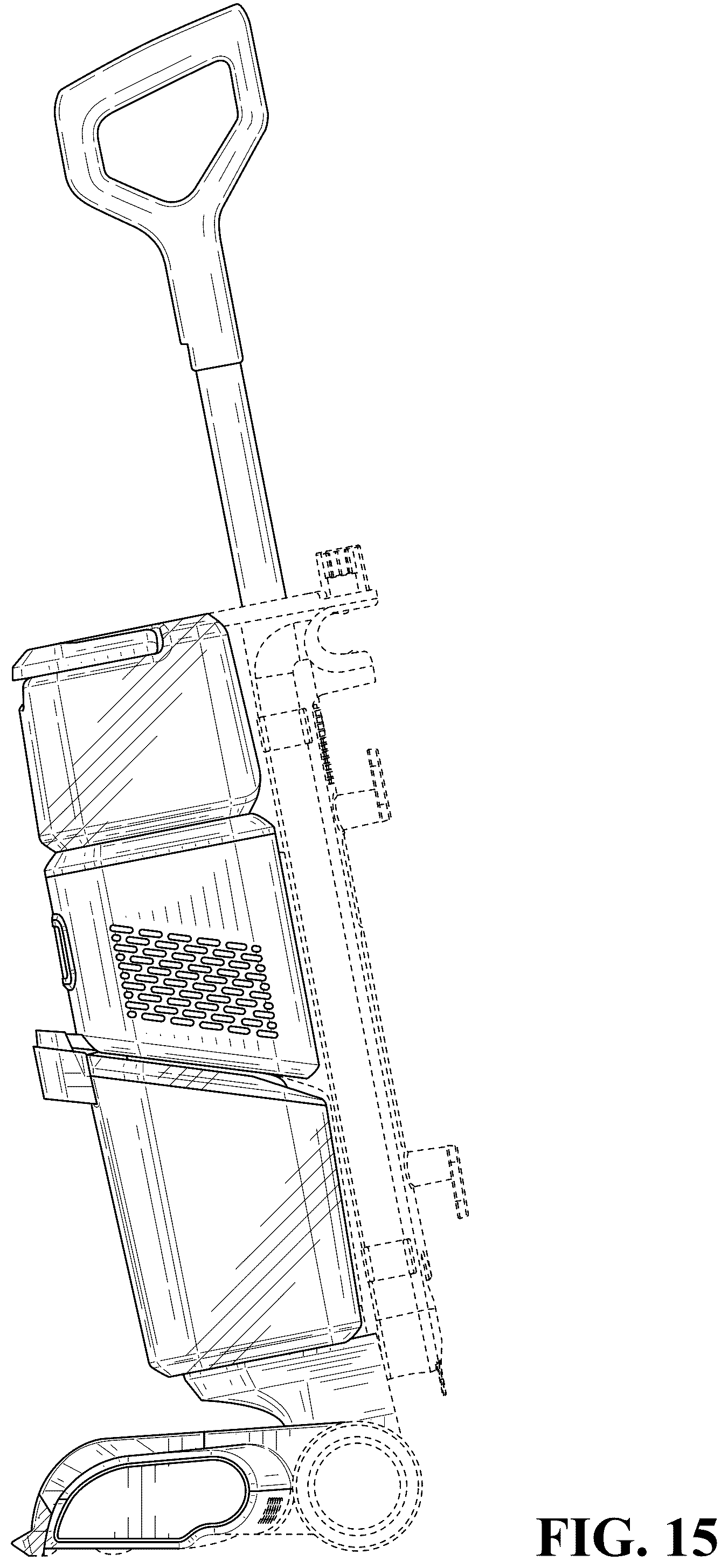

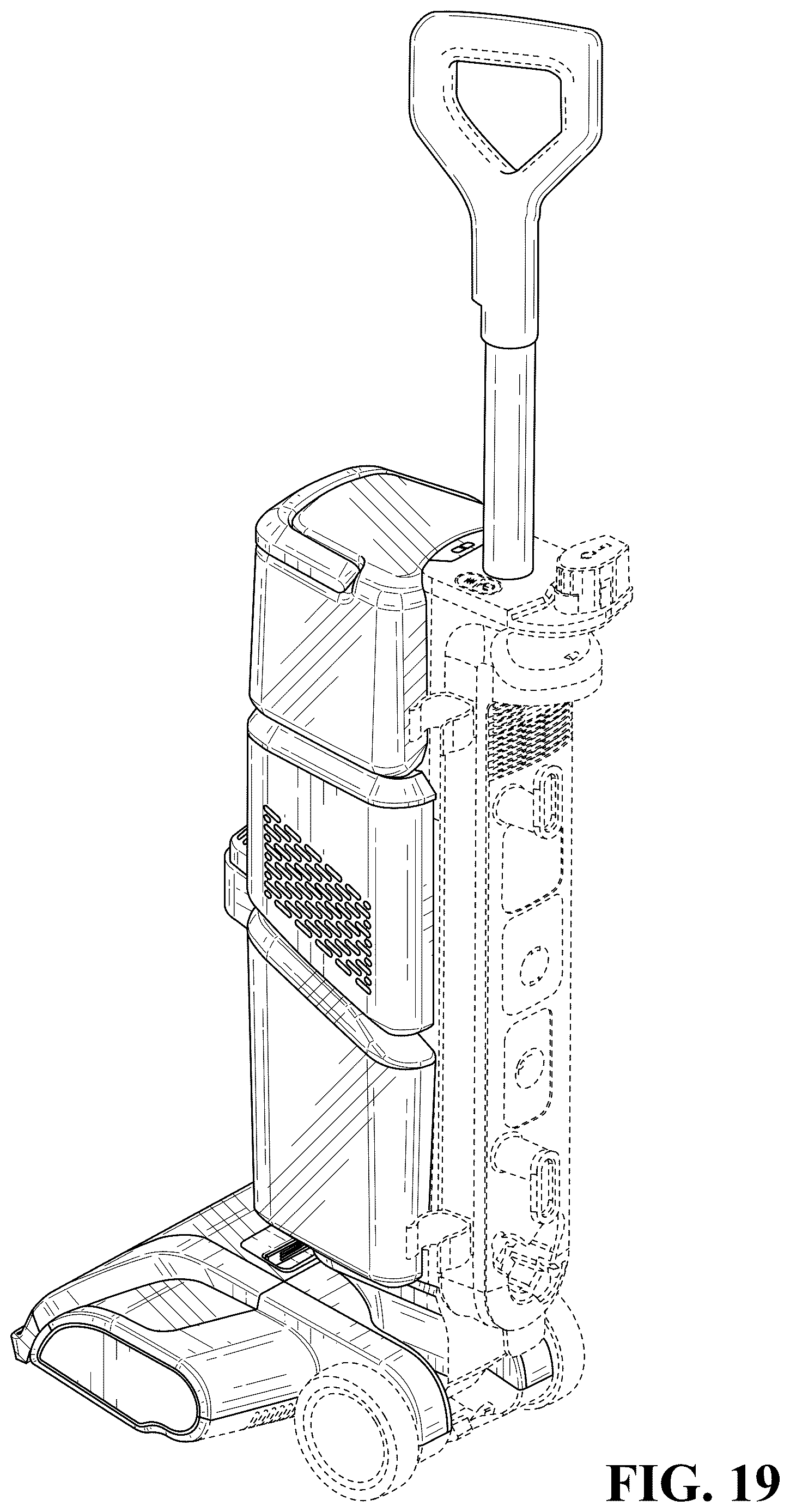

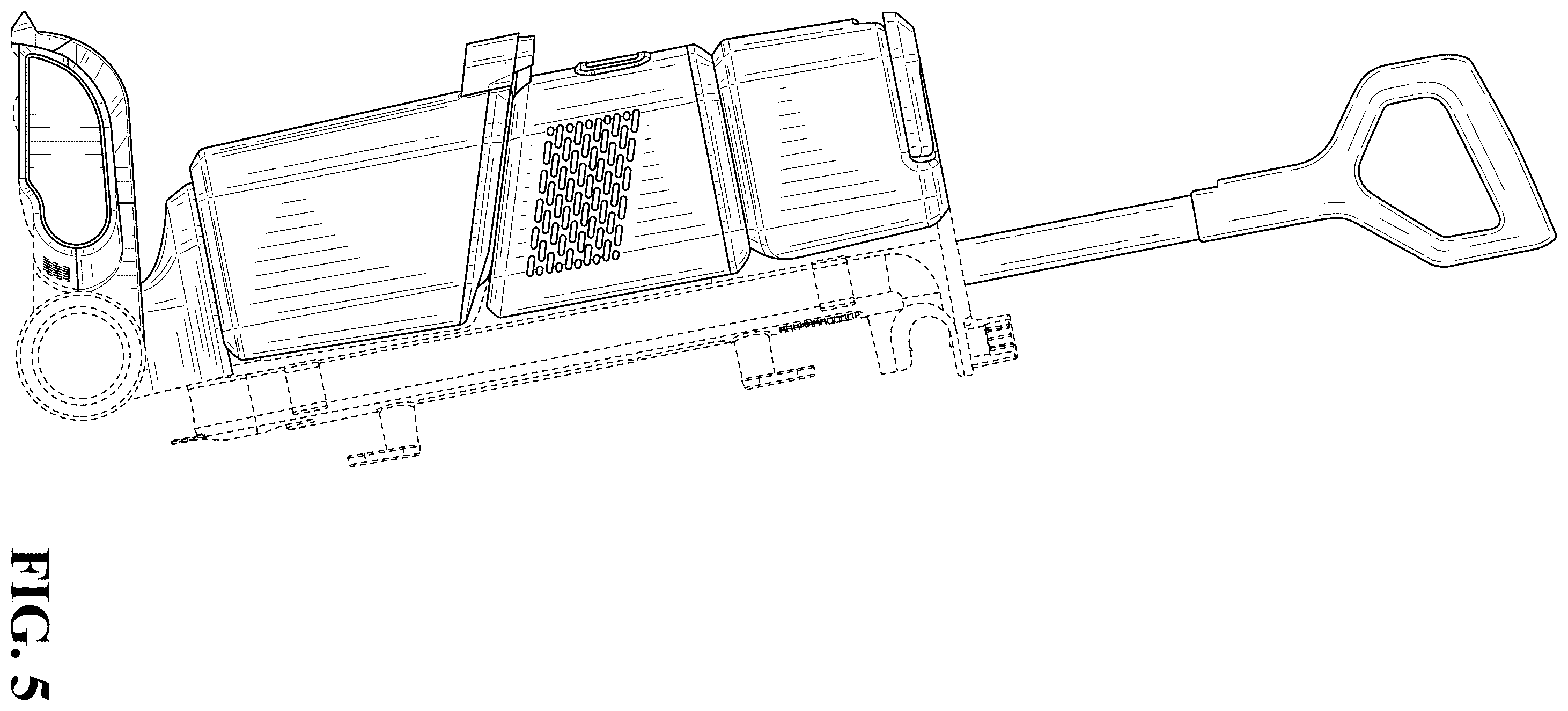

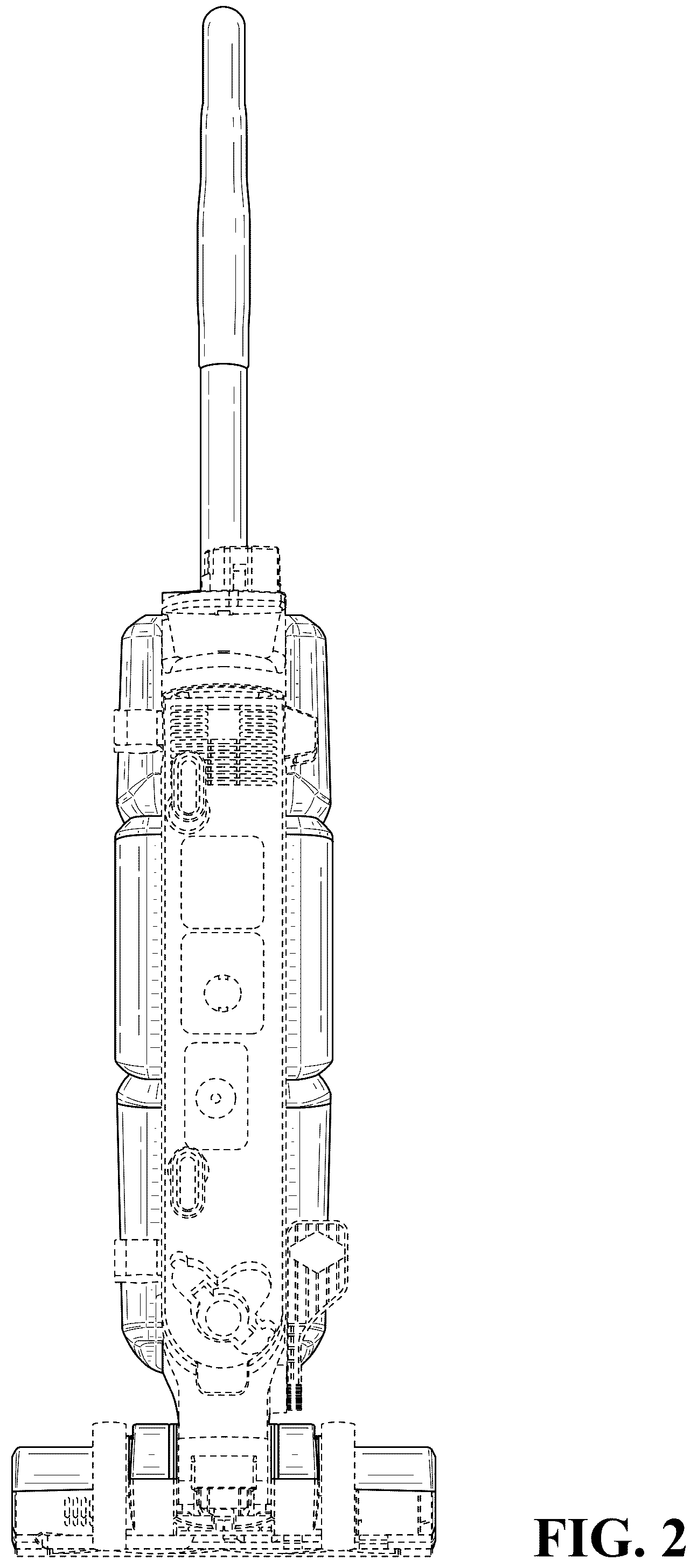

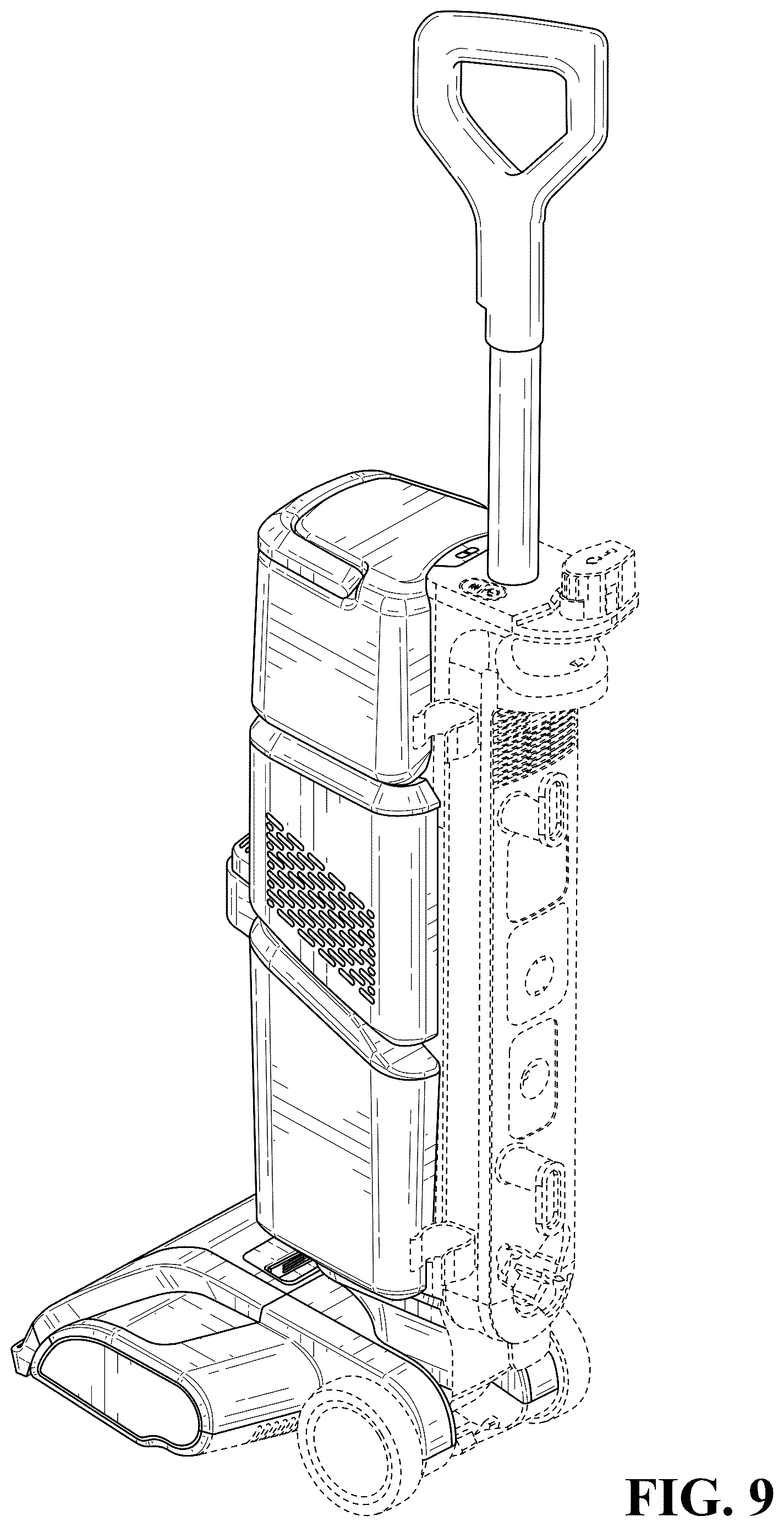

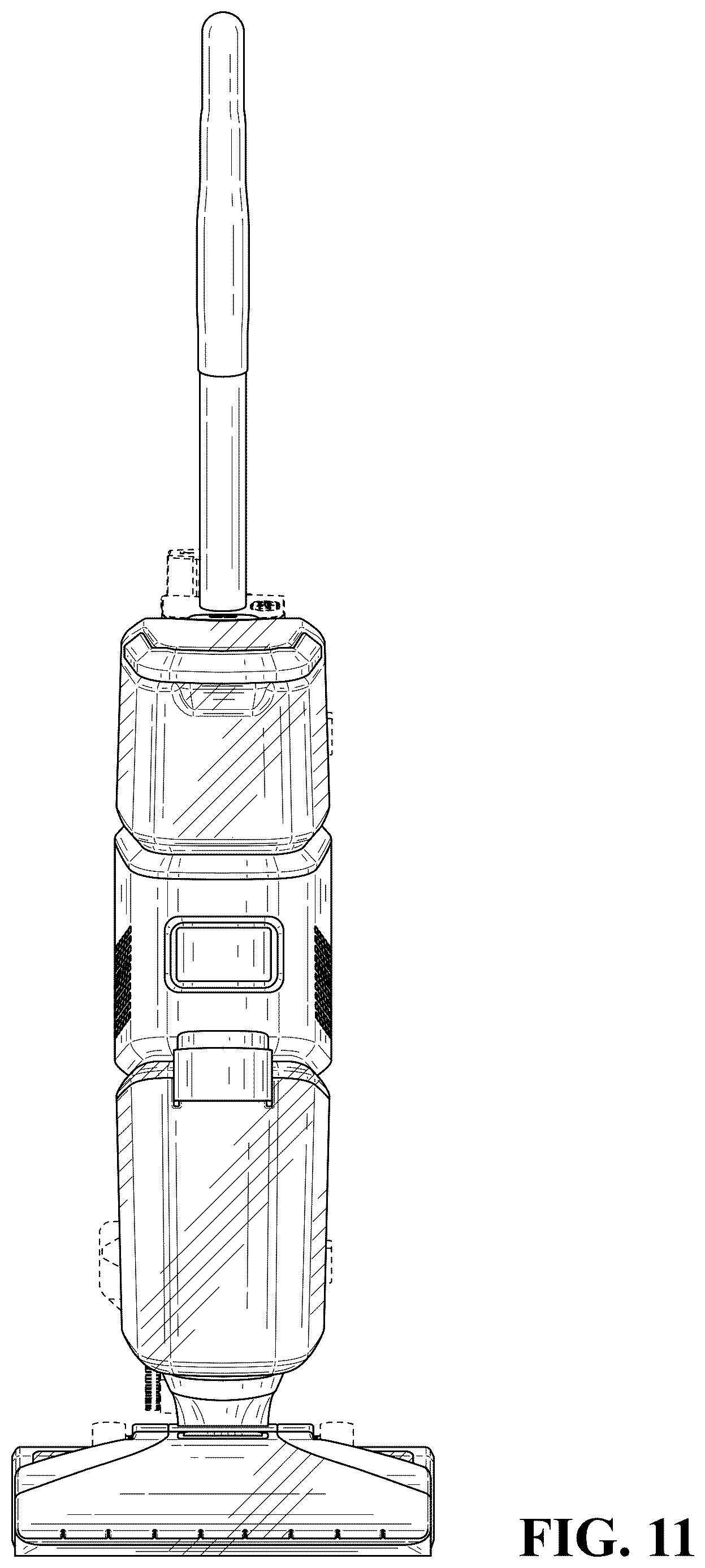

is a front view of a first embodiment of a surface cleaning device showing our new design;

is a rear view thereof;

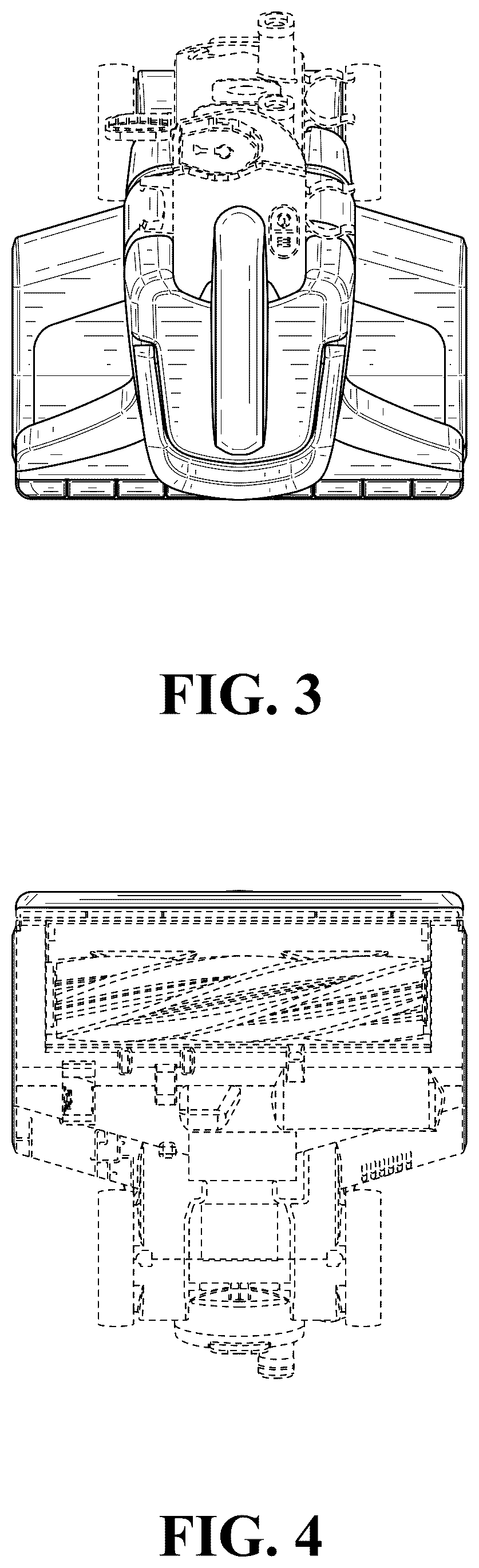

is a top view thereof;

is a bottom view thereof;

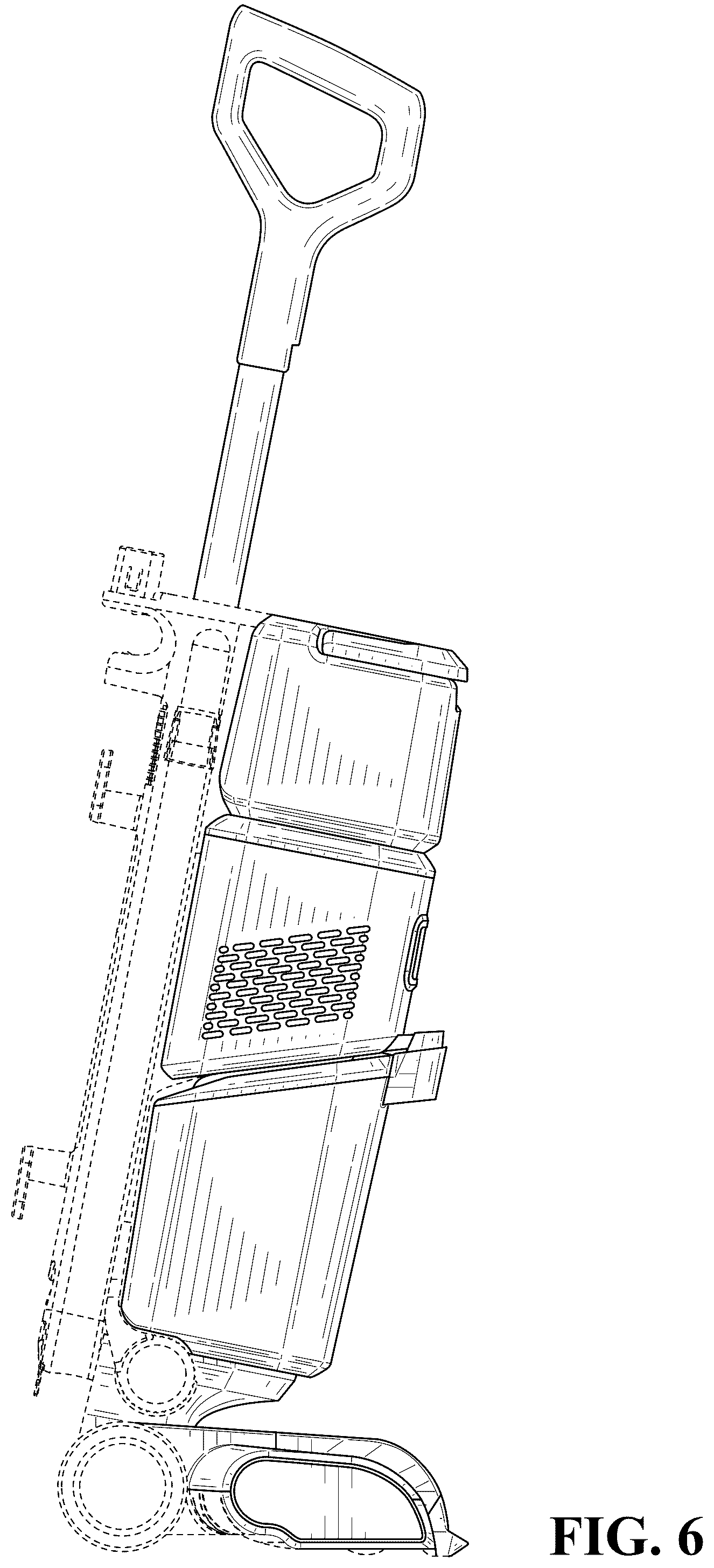

is a right side view thereof;

is a left side view thereof;

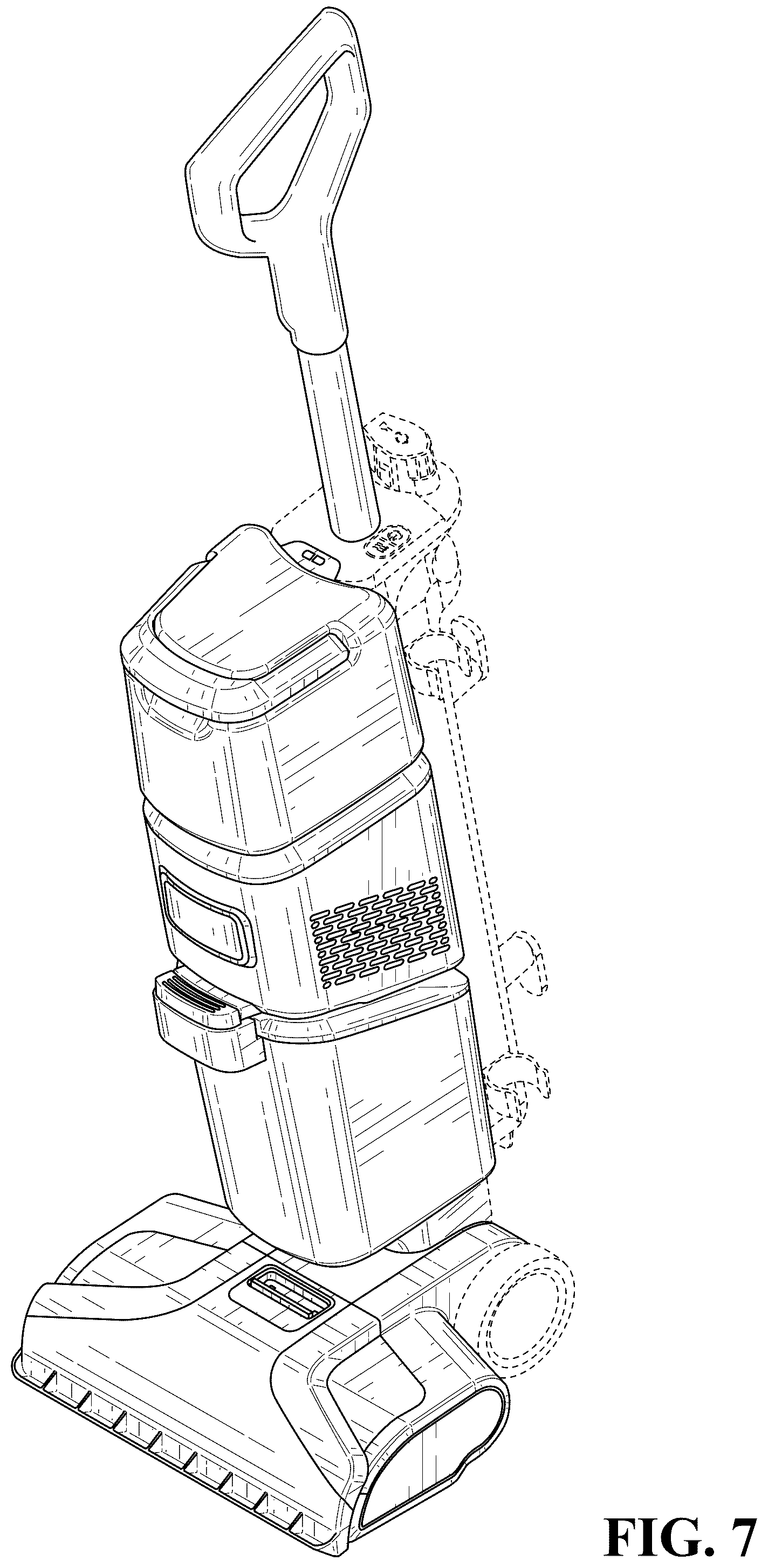

is a perspective front, top right view thereof;

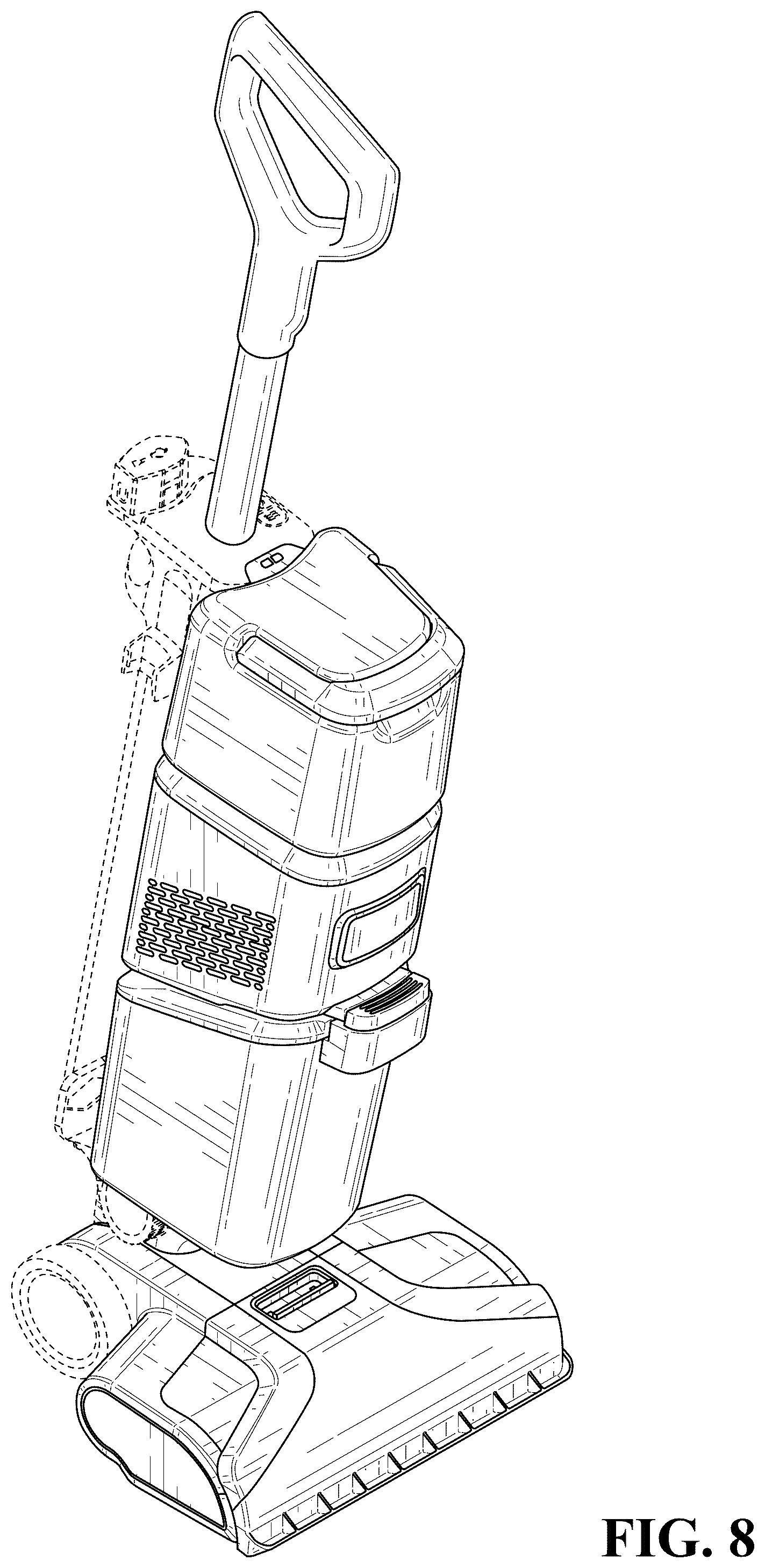

is a perspective front, top left view thereof;

is a perspective rear, top right view thereof; and

is a perspective rear, top left view thereof.

is a front view of a second embodiment of a surface cleaning device showing our claimed design;

is a rear view thereof;

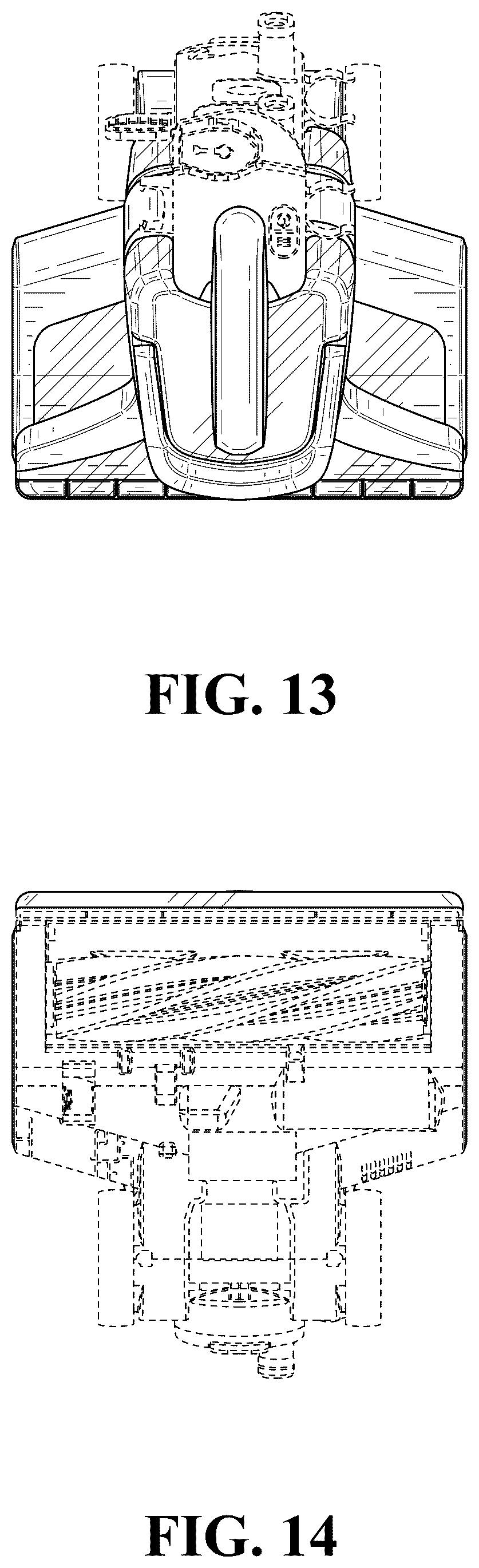

is a top view thereof;

is a bottom view thereof;

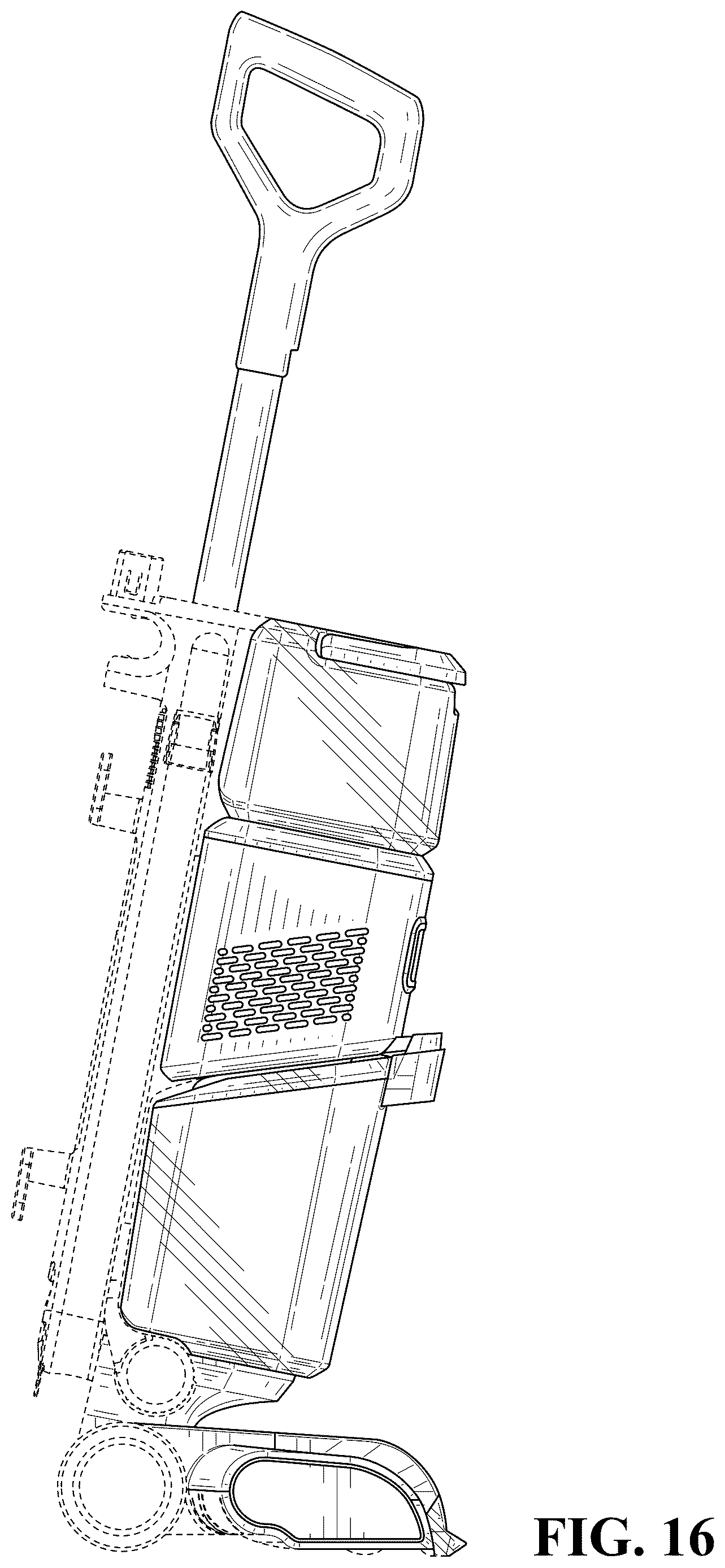

is a right side view thereof;

is a left side view thereof;

is a perspective front, top right view thereof;

is a perspective front, top left view thereof;

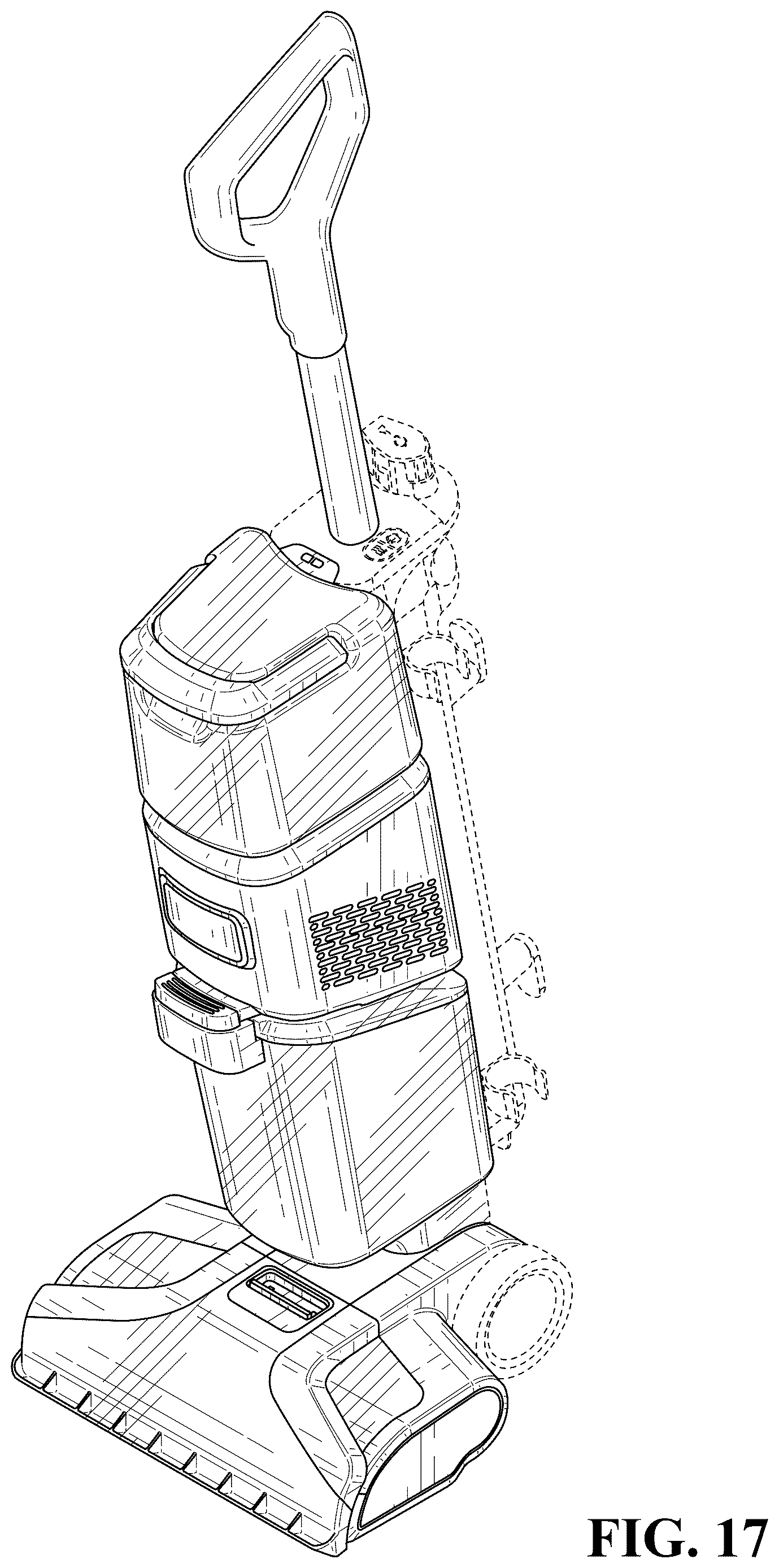

is a perspective rear, top right view thereof; and,

is a perspective rear, top left view thereof.

The broken lines shown in the drawings are for the purpose of illustrating portions of the surface cleaning device and form no part of the claimed design.

Figures (18)

Patent USD1124547 Figure 1 – Surface cleaning device — Fig. 1

Patent USD1124547 Figure 2 – Surface cleaning device — Fig. 2

Patent USD1124547 Figure 3 – Surface cleaning device — Fig. 3

Patent USD1124547 Figure 4 – Surface cleaning device — Fig. 4

Patent USD1124547 Figure 5 – Surface cleaning device — Fig. 5

Patent USD1124547 Figure 6 – Surface cleaning device — Fig. 6

Patent USD1124547 Figure 7 – Surface cleaning device — Fig. 7

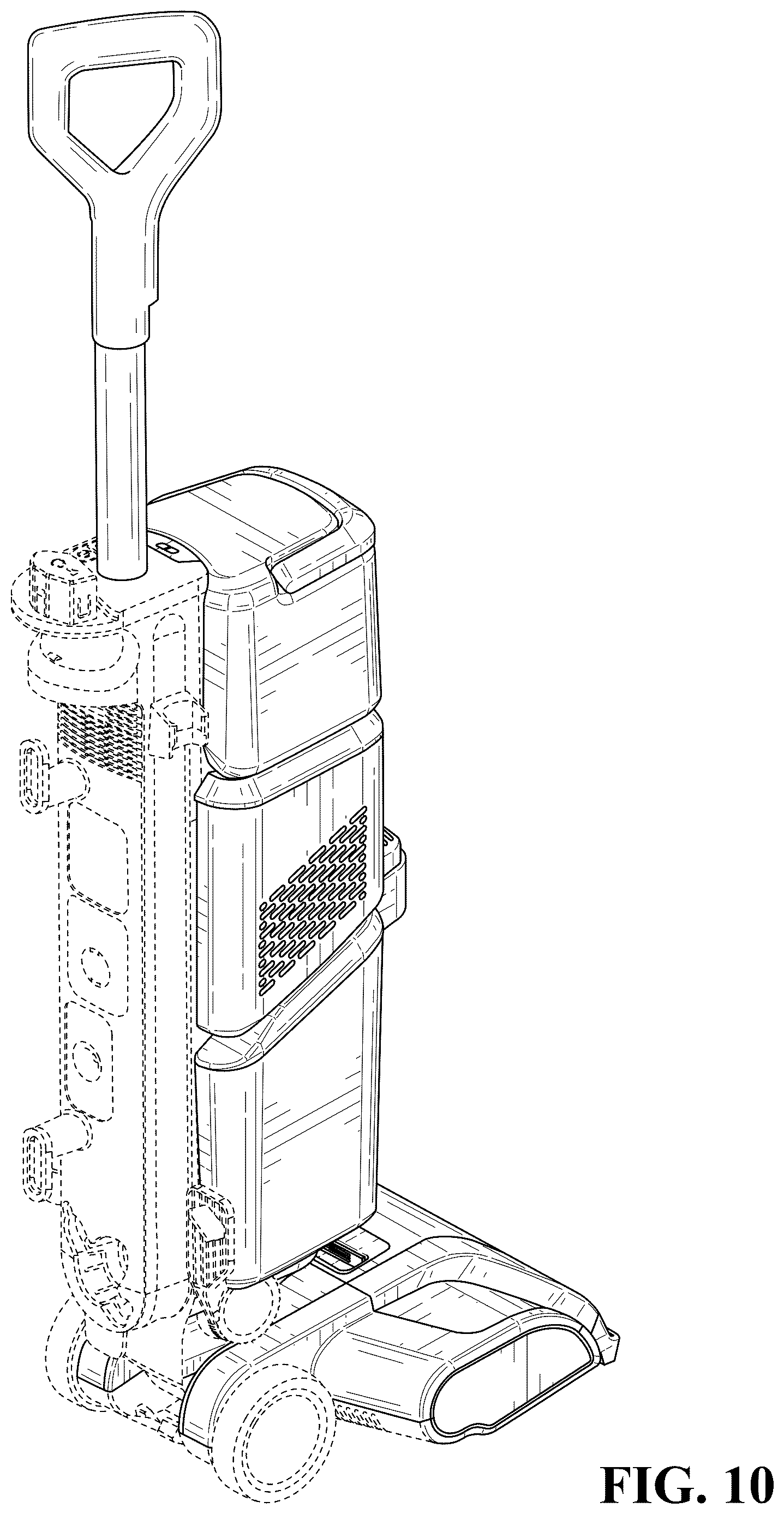

Patent USD1124547 Figure 8 – Surface cleaning device — Fig. 8
