Flexible Insert for Ophthalmic Solution Squeeze Bottle

USD1124339No. D 1,124,339designGranted 4/28/2026
Patent USD1124339 — Flexible insert for ophthalmic solution squeeze bottle — Figure 1
Fig. 1 · Flexible Insert for Ophthalmic Solution Squeeze Bottle

Claims (1)

Claim 1 (Independent)

The ornamental design for a flexible insert for ophthalmic solution squeeze bottle, as shown and described.

Full Description

Show full text →

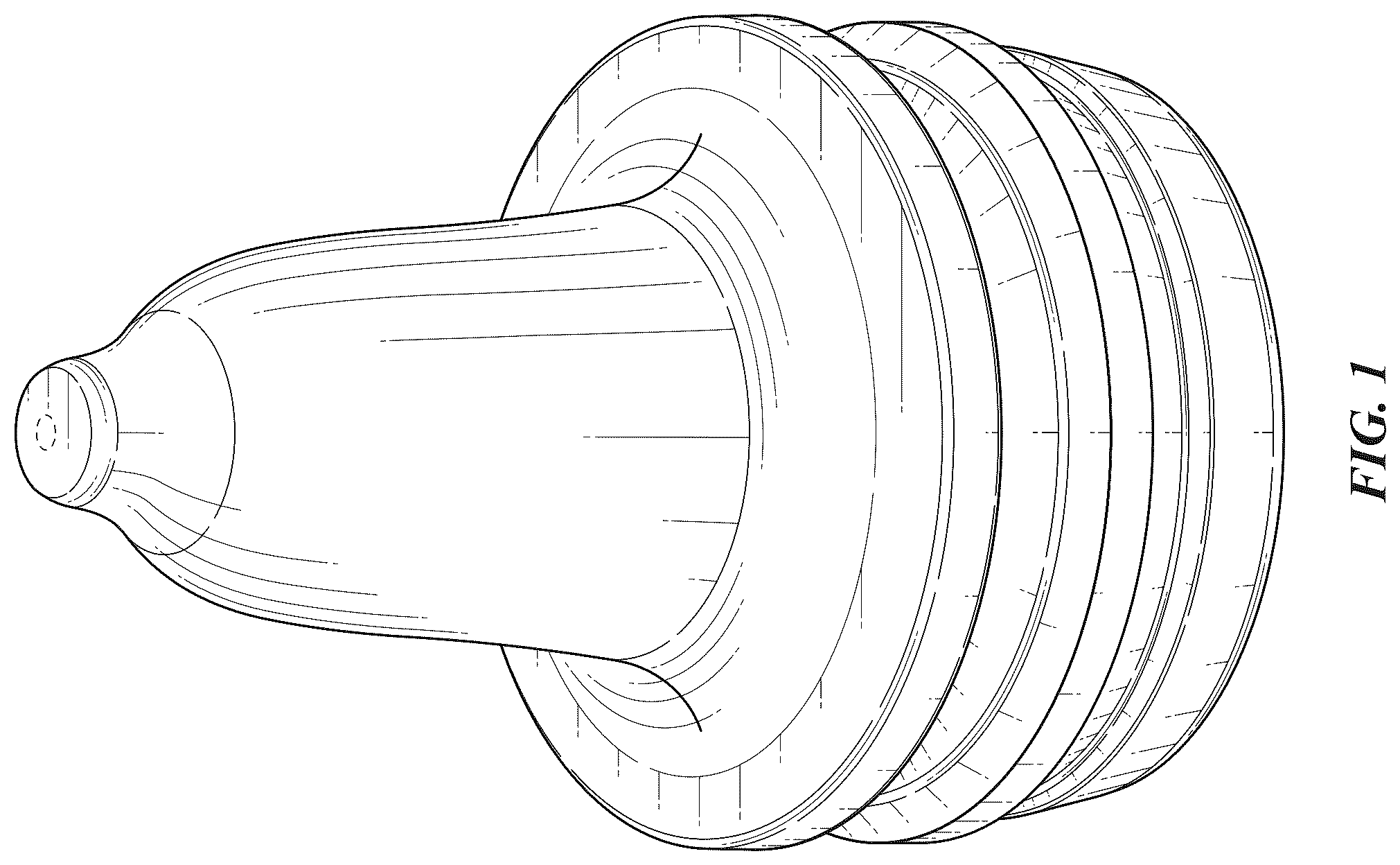

is a top, front perspective view of the flexible insert for ophthalmic solution squeeze bottle;

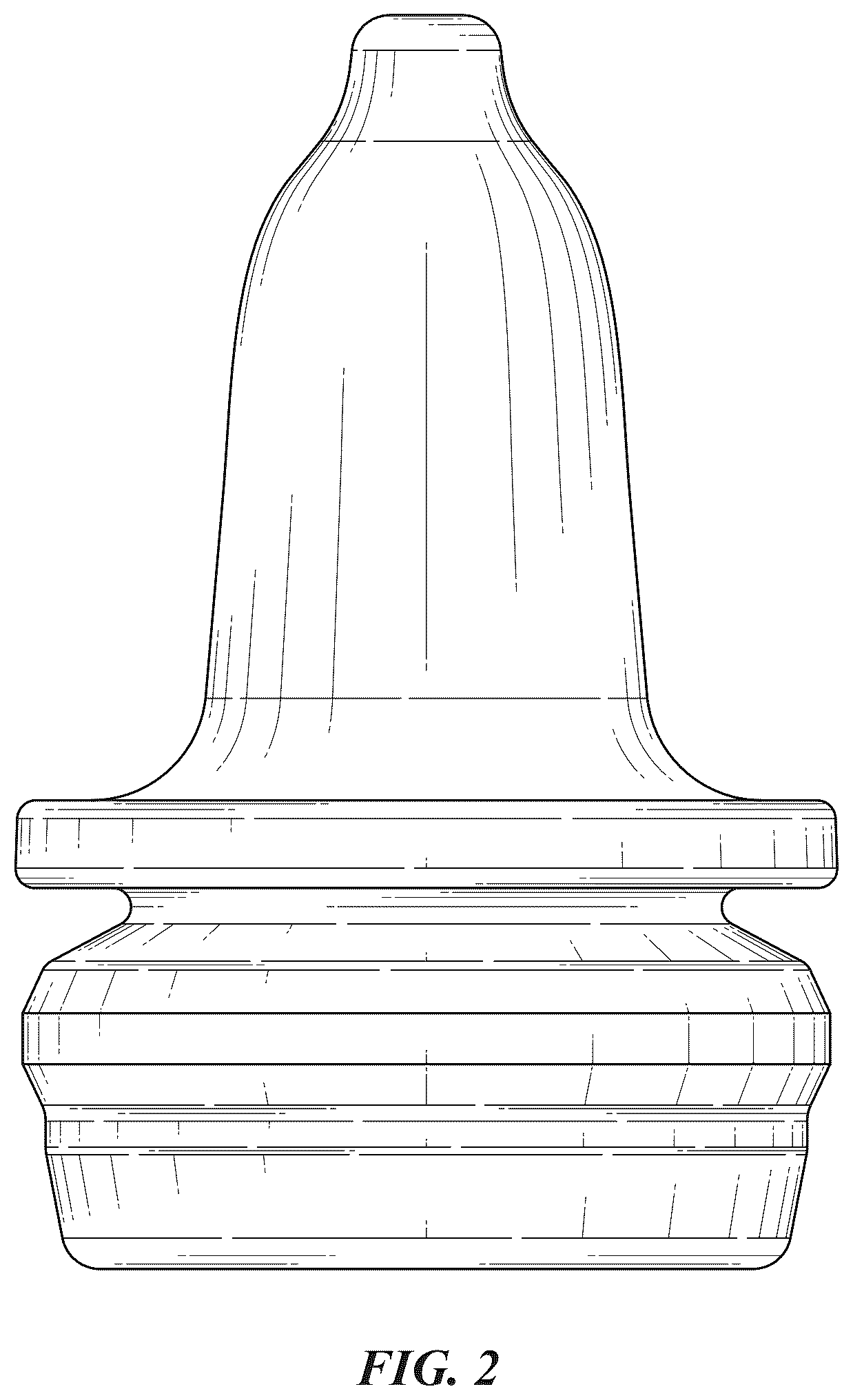

is a side view thereof;

is a top view thereof; and,

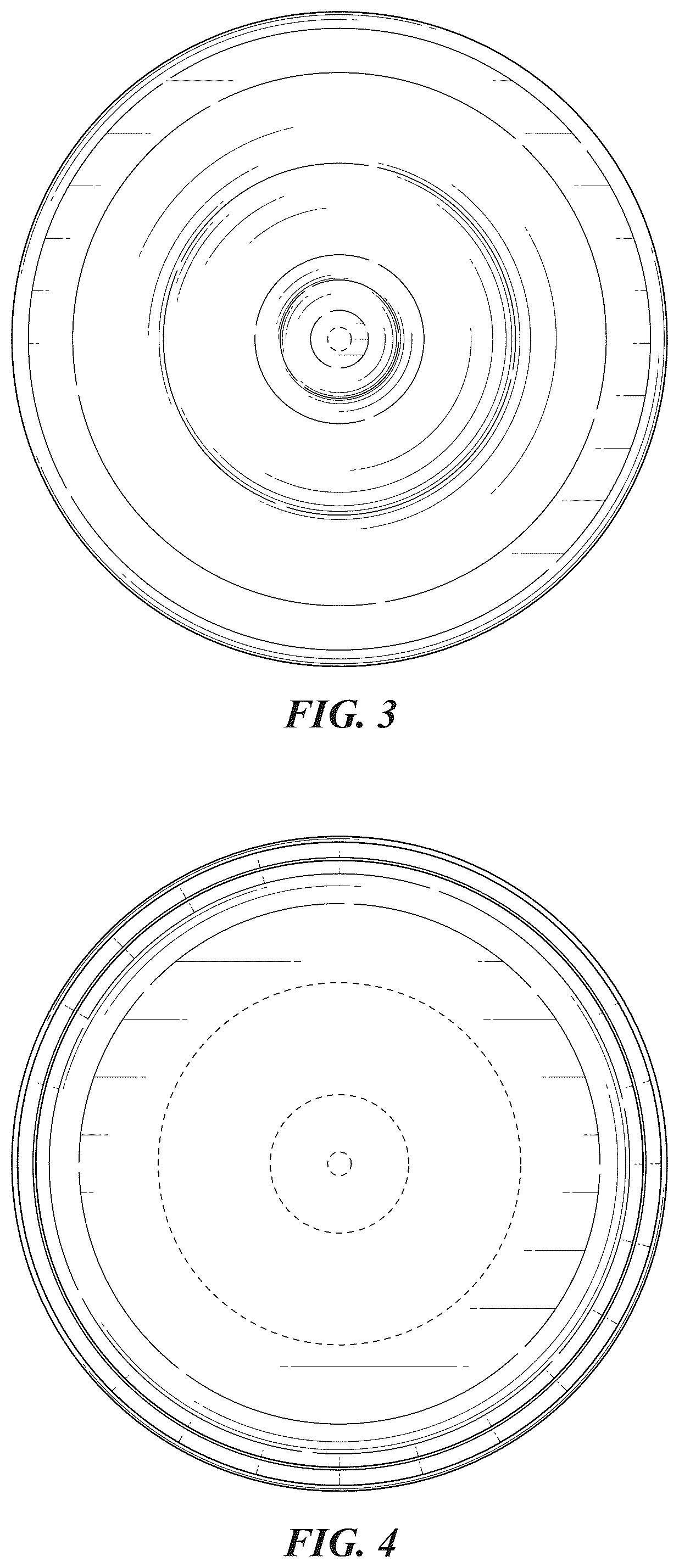

is a bottom view thereof.

The side, front and back views are identical.

The dash-dash broken lines depict portions of the flexible insert for ophthalmic solution squeeze bottle that form no part of the claimed design.

Figures (3)

Fig. 1
Fig. 2
Fig. 3
