Medicine Injector

The file of this patent contains at least one drawing/photograph executed in color. Copies of this patent with color drawing(s)/photograph(s) will be provided by the Office upon request and payment of the necessary fee.

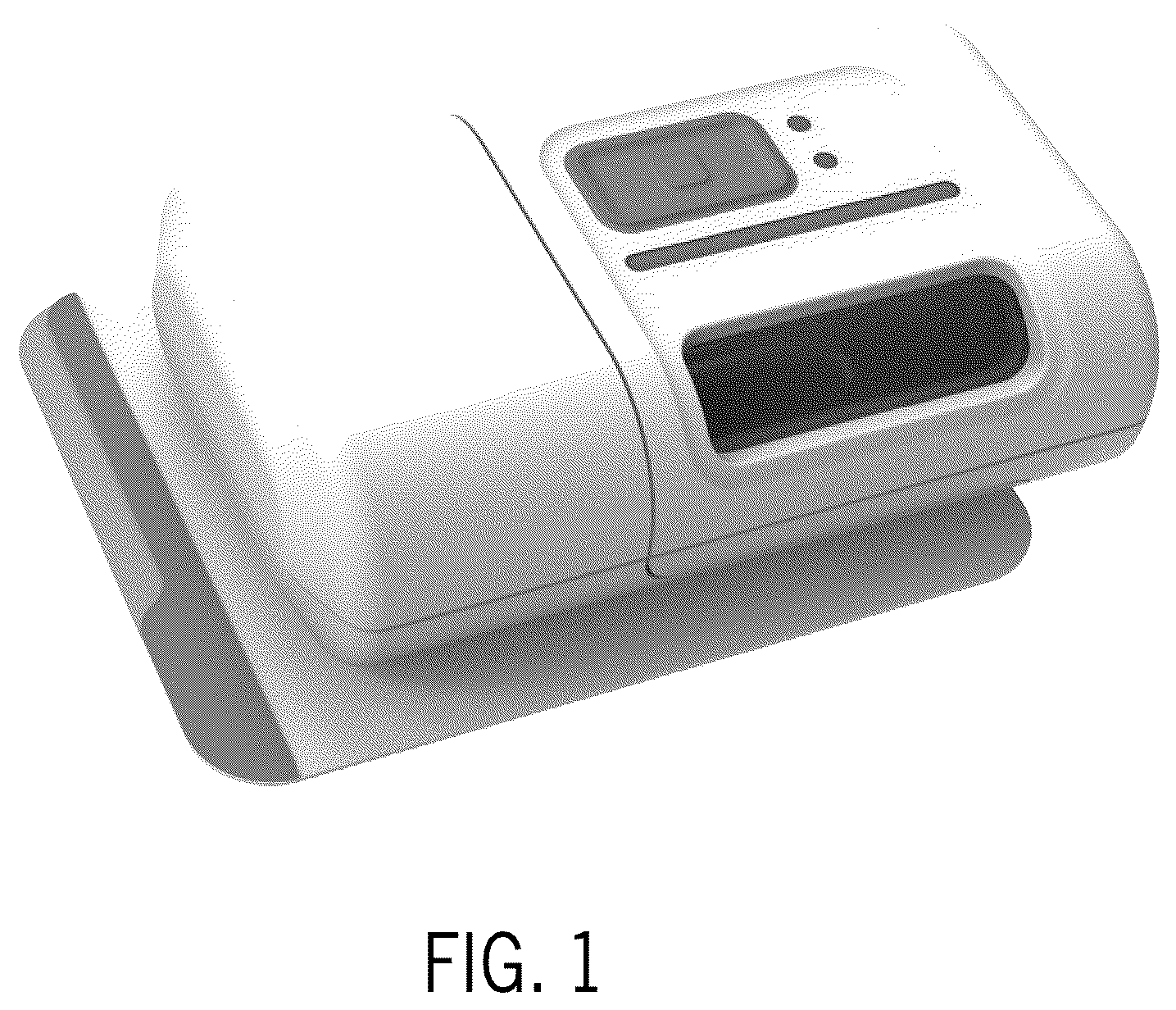

FIG. 1 is a perspective view of a medicine injector showing our new design;

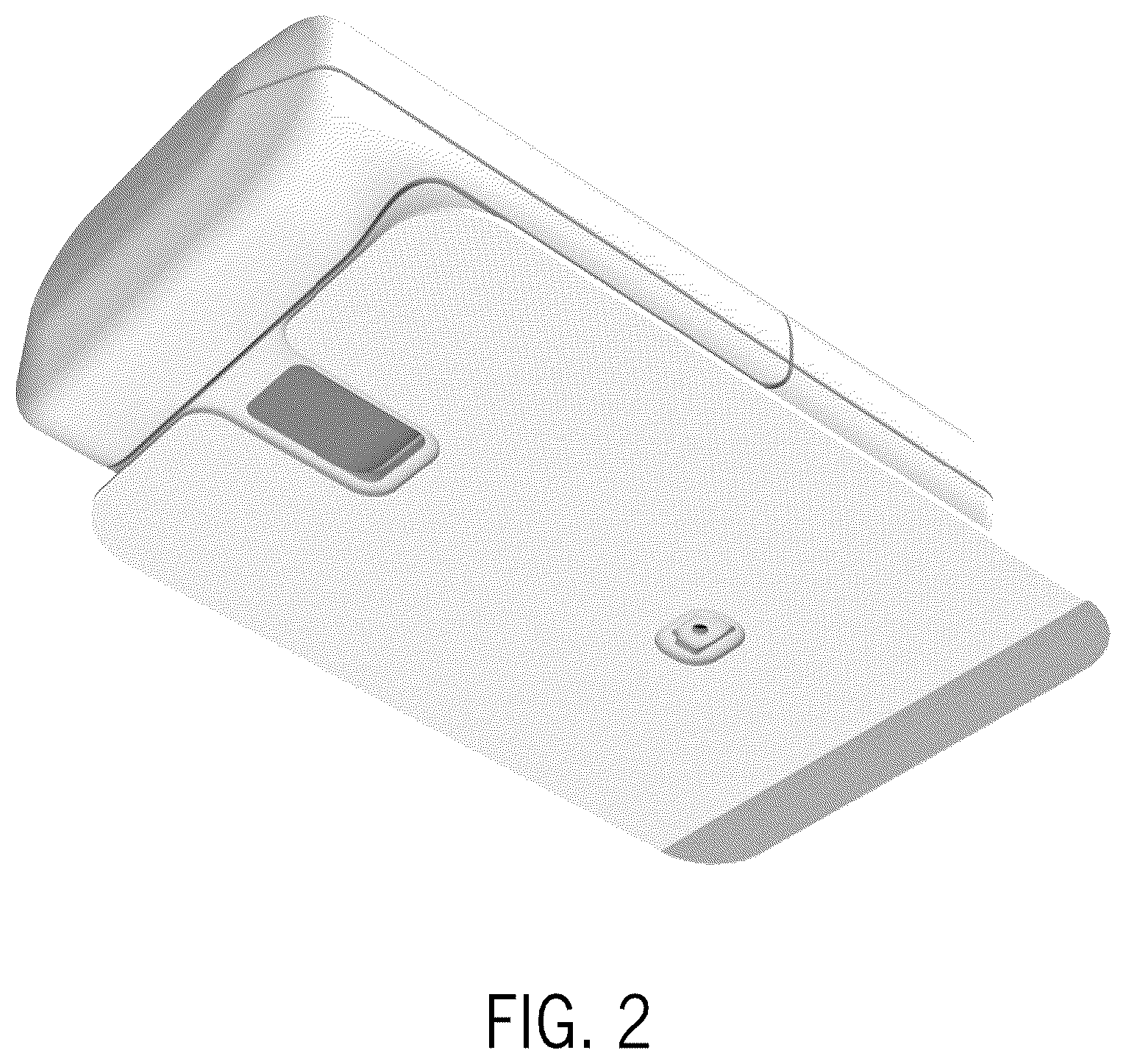

FIG. 2 is a perspective view of the medicine injector;

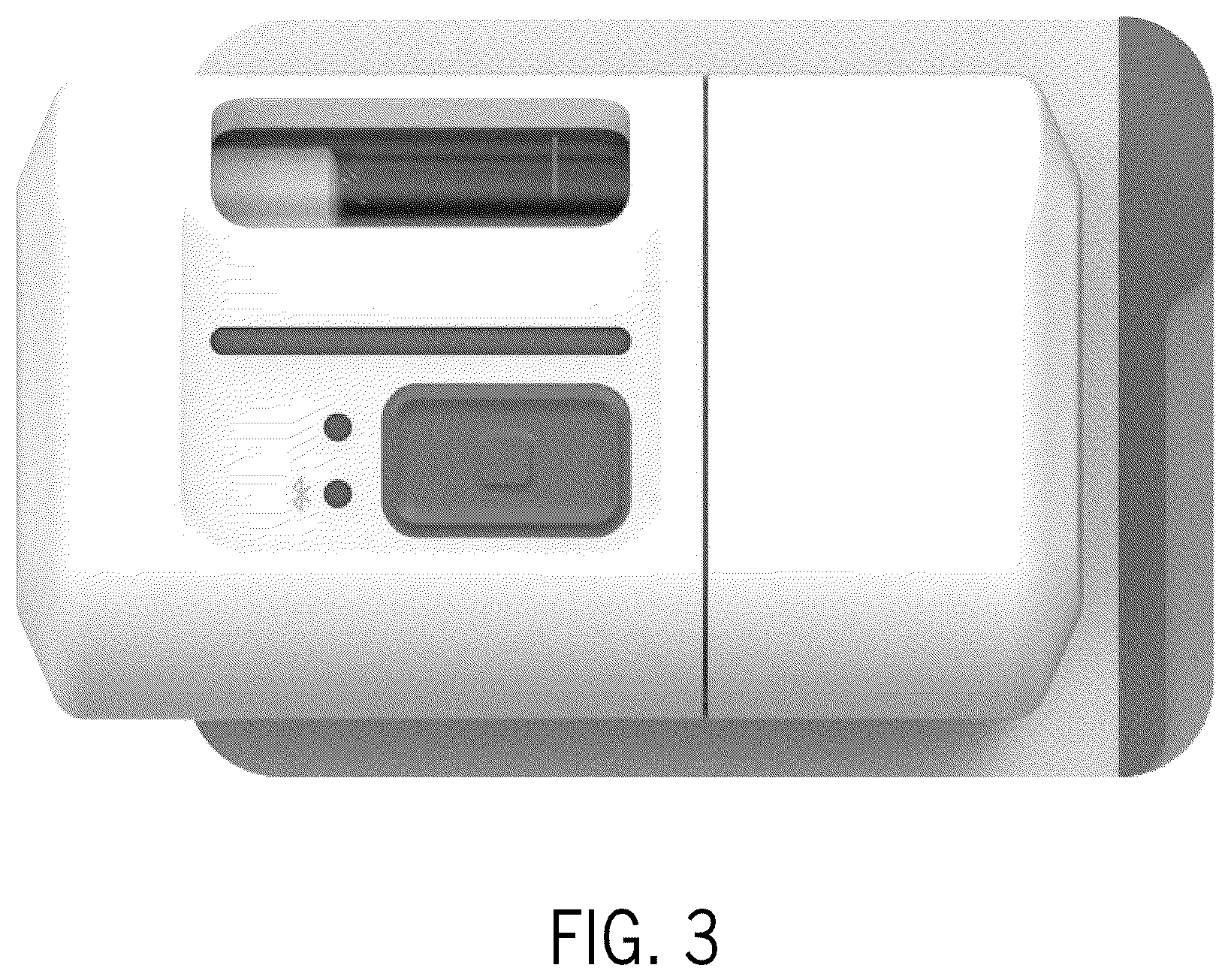

FIG. 3 is a top view of the medicine injector;

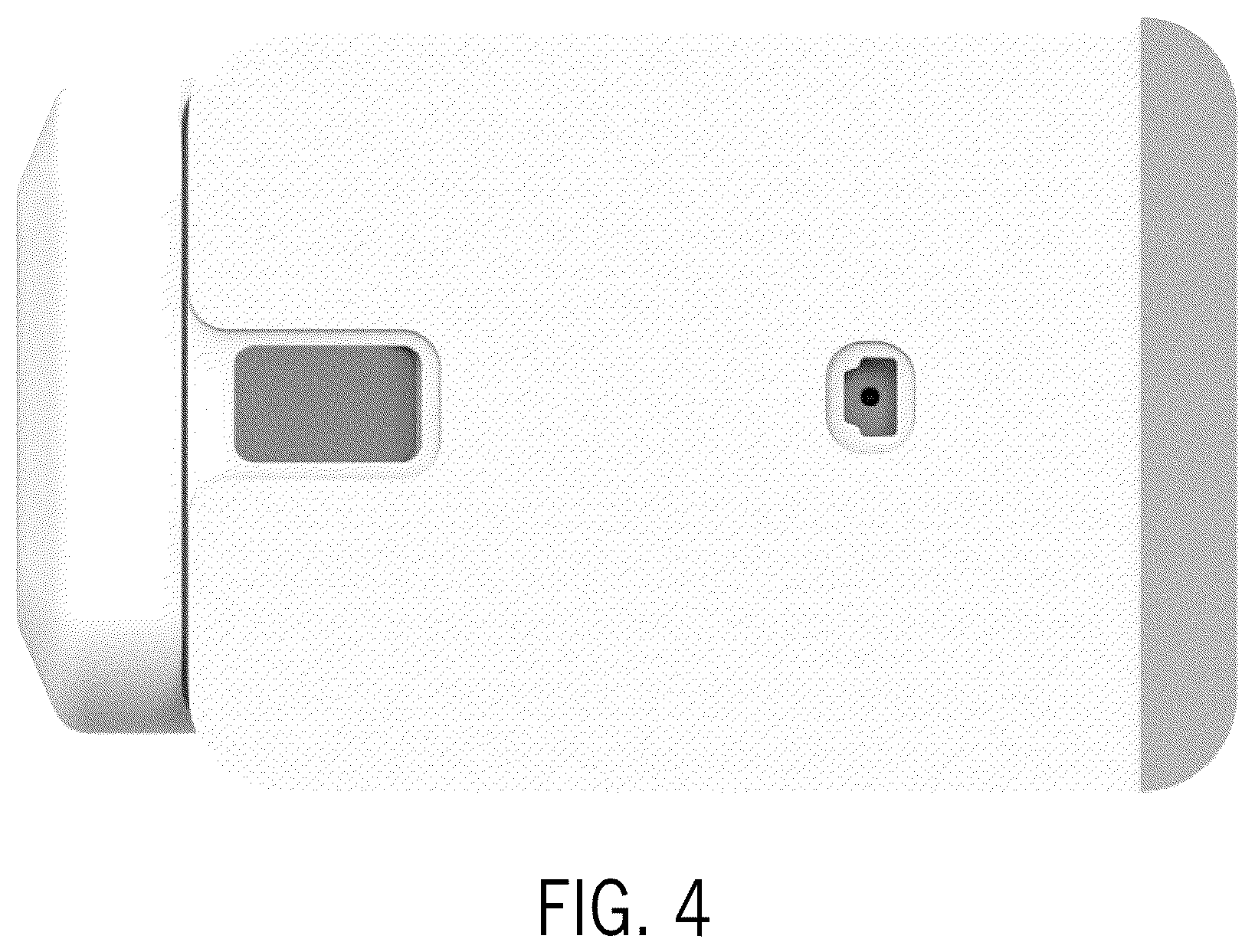

FIG. 4 is a bottom view of the medicine injector;

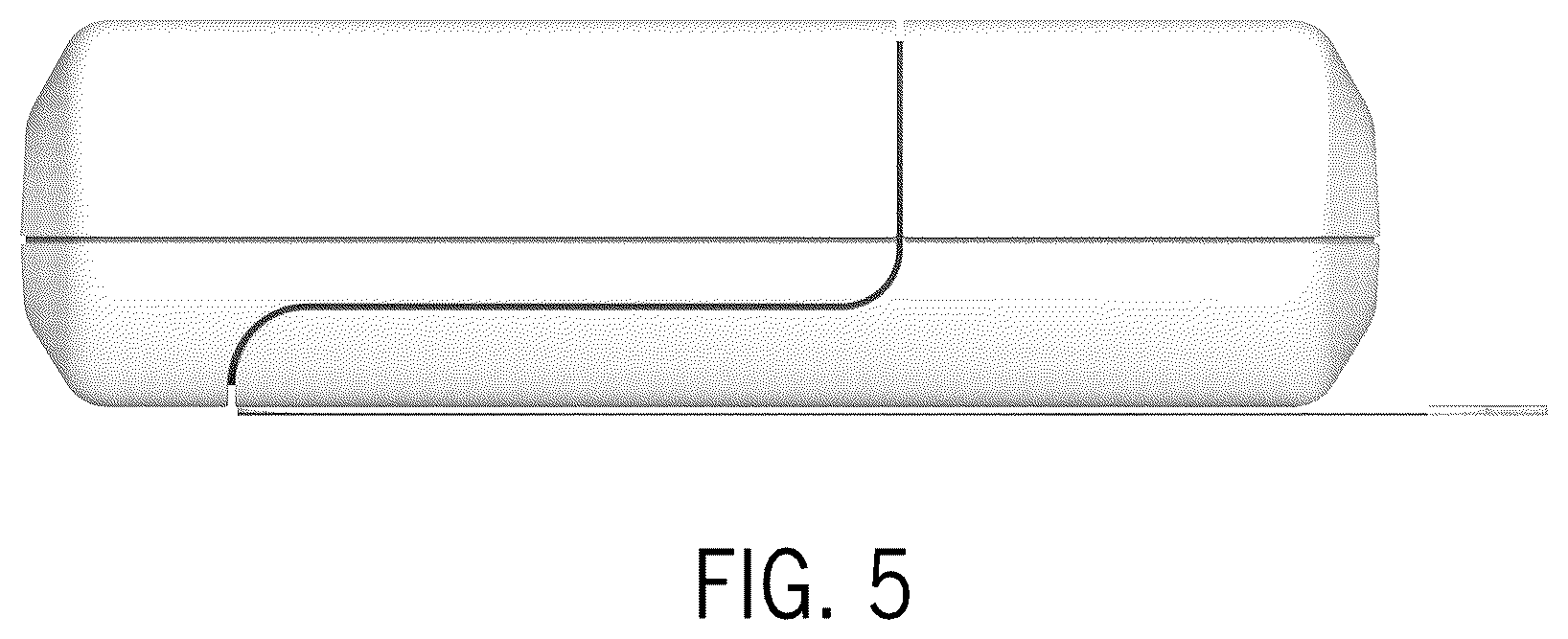

FIG. 5 is a left side view of the medicine injector;

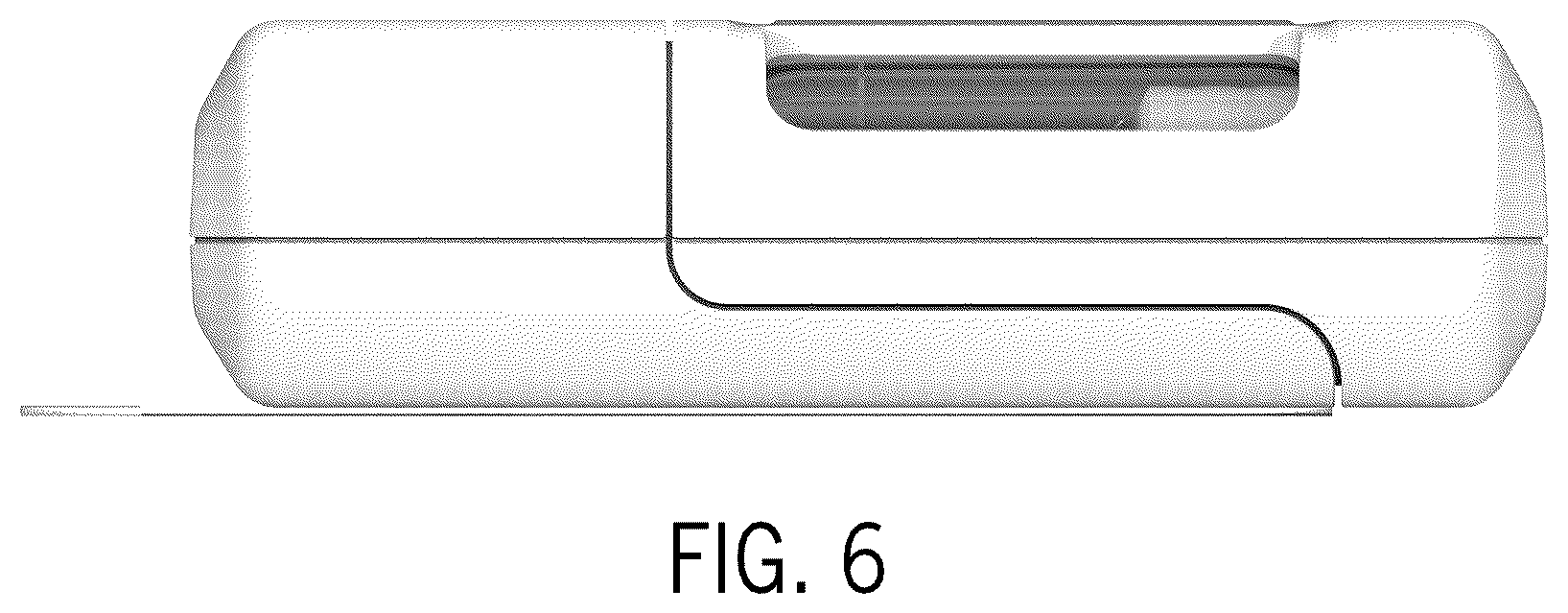

FIG. 6 is a right side view of the medicine injector; and,

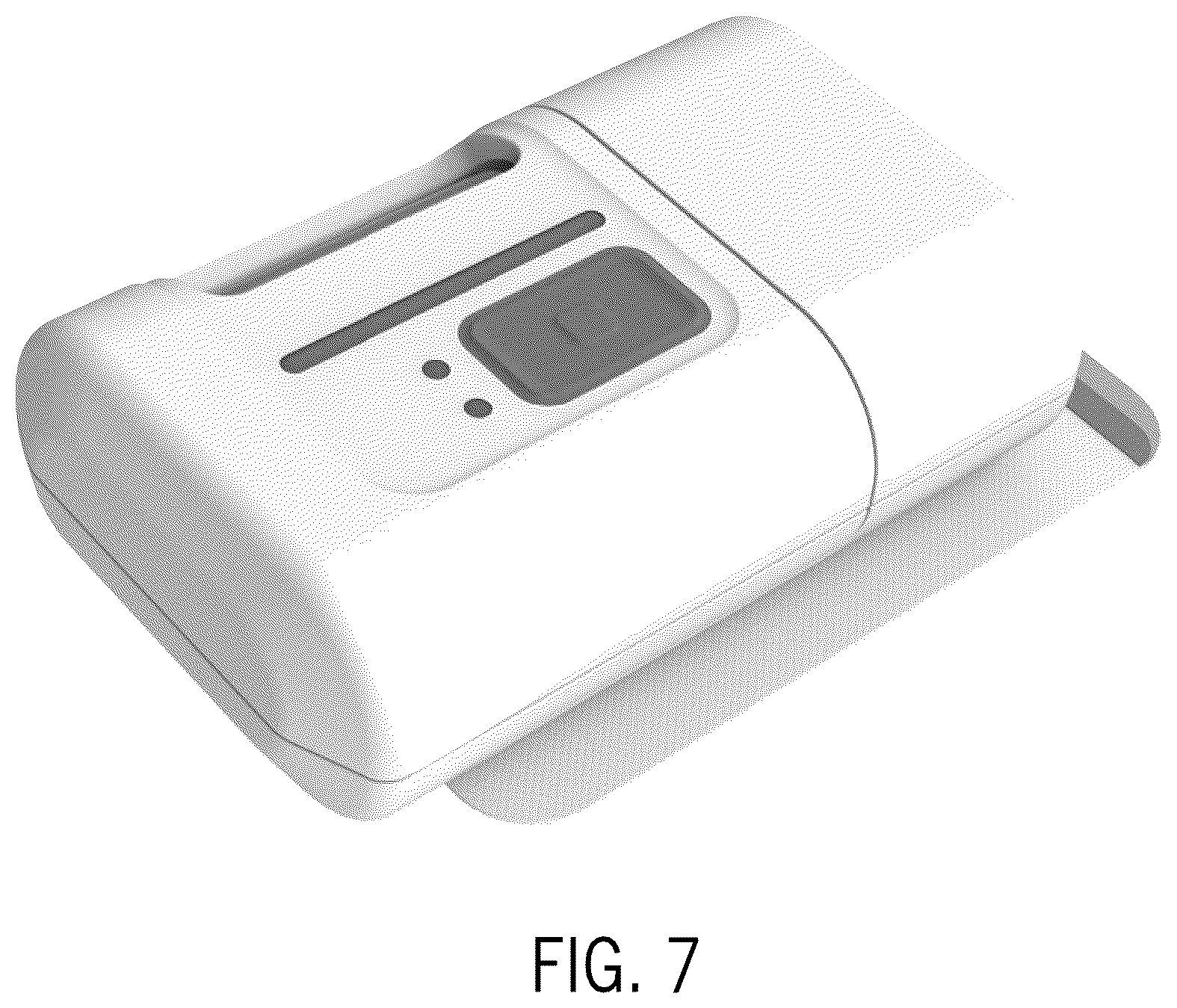

FIG. 7 is a perspective view of the medicine injector.
