Water Purifier

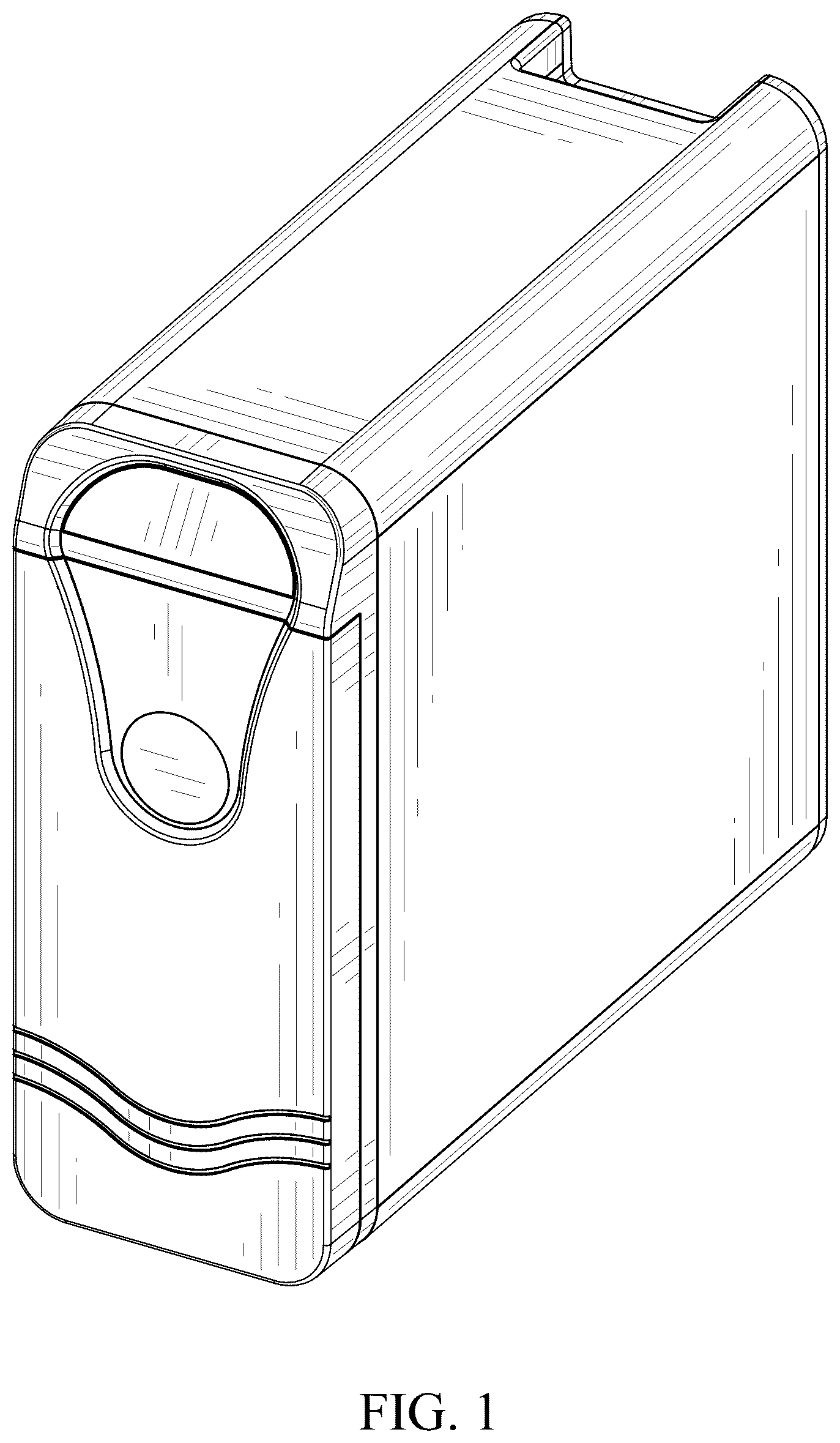

FIG. 1 is a front perspective view of an embodiment of a water purifier showing our new design;

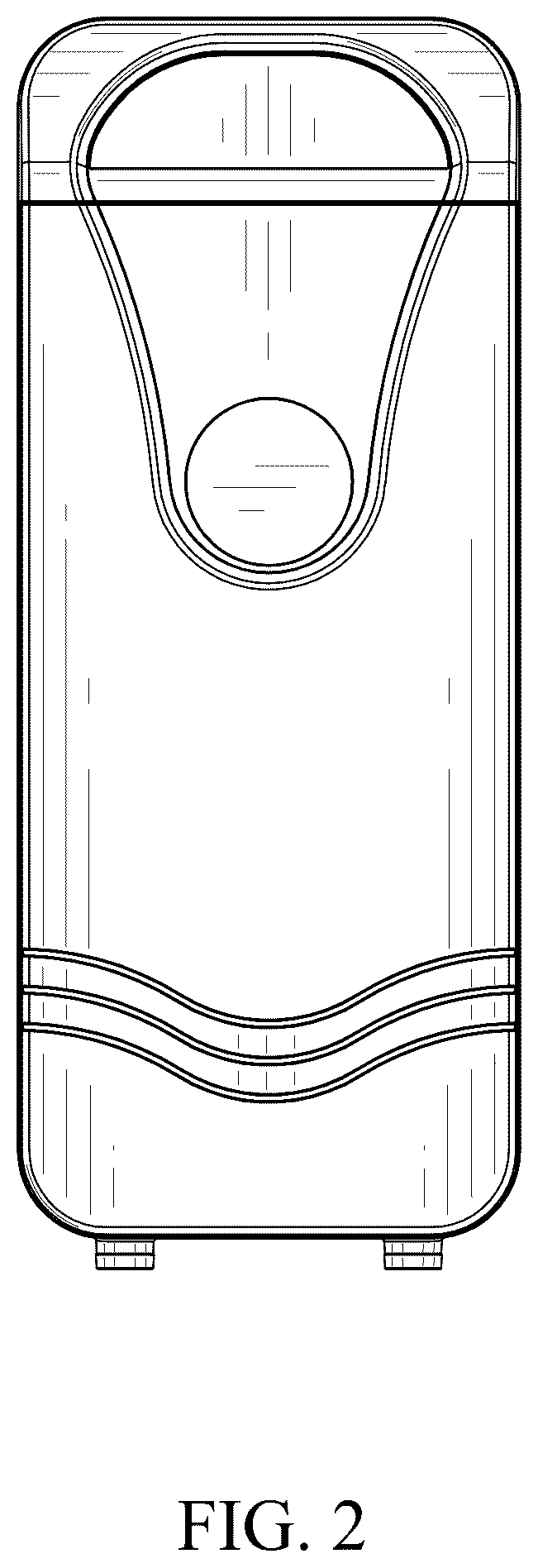

FIG. 2 is a front elevation view of the water purifier of FIG. 1 ;

FIG. 3 is a rear elevation view of the water purifier of FIG. 1 ;

FIG. 4 is a first side elevation view of the water purifier of FIG. 1 ;

FIG. 5 is a second side elevation view of the water purifier of FIG. 1 , opposite the first side;

FIG. 6 is a top view of the water purifier of FIG. 1 ;

FIG. 7 is a bottom view of the water purifier of FIG. 1 ;

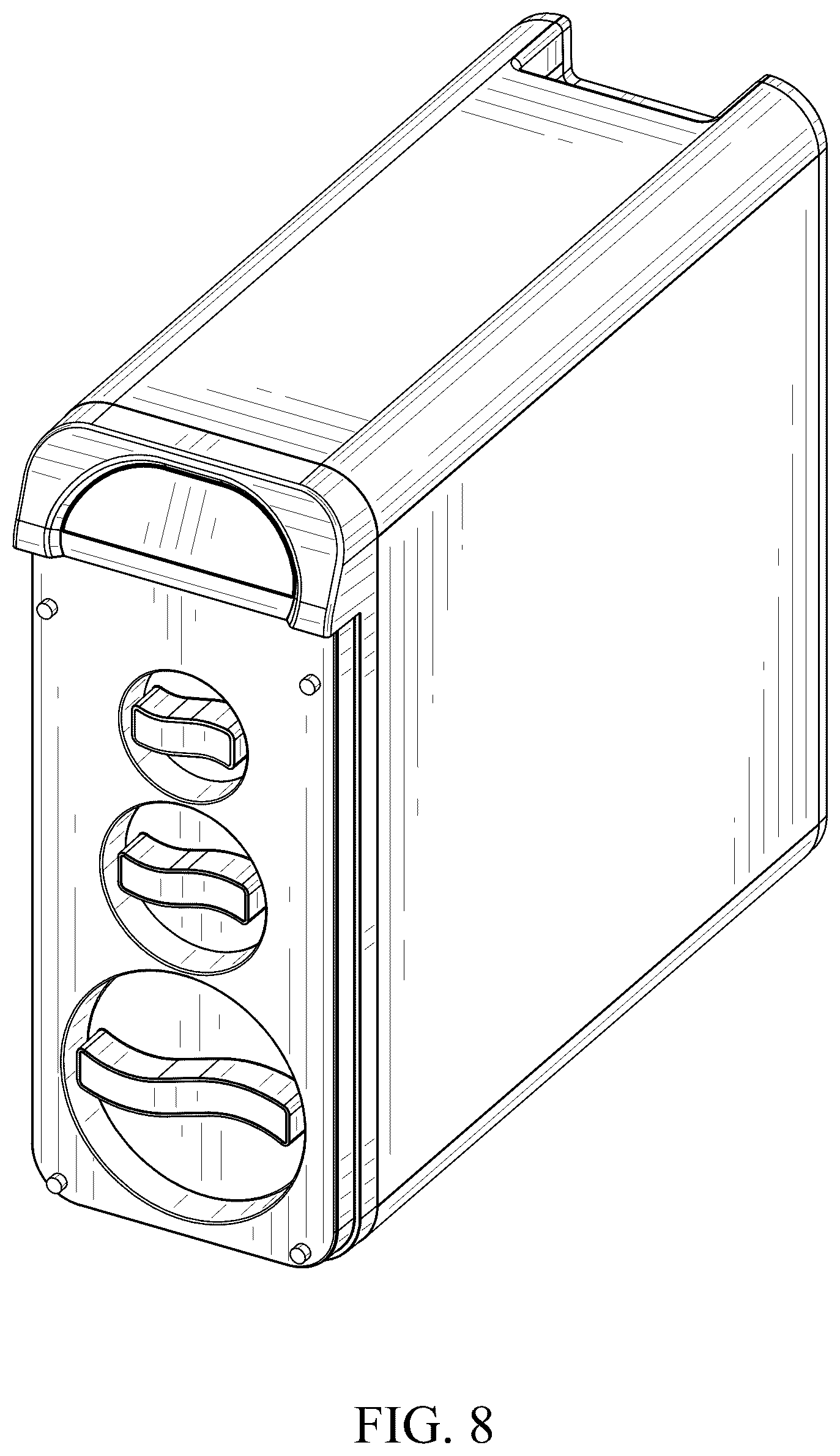

FIG. 8 is a front perspective view of the water purifier of FIG. 1 with a cover removed for clarity of disclosure;

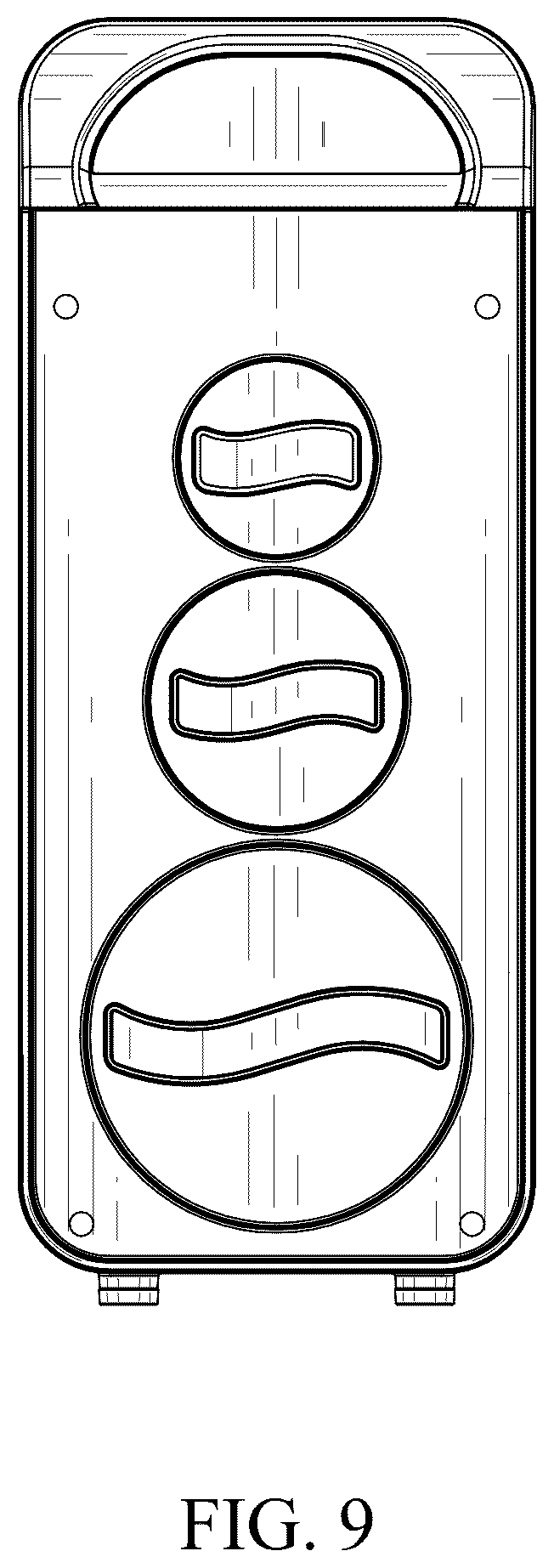

FIG. 9 is a front elevation view of the water purifier of FIG. 1 with the cover removed;

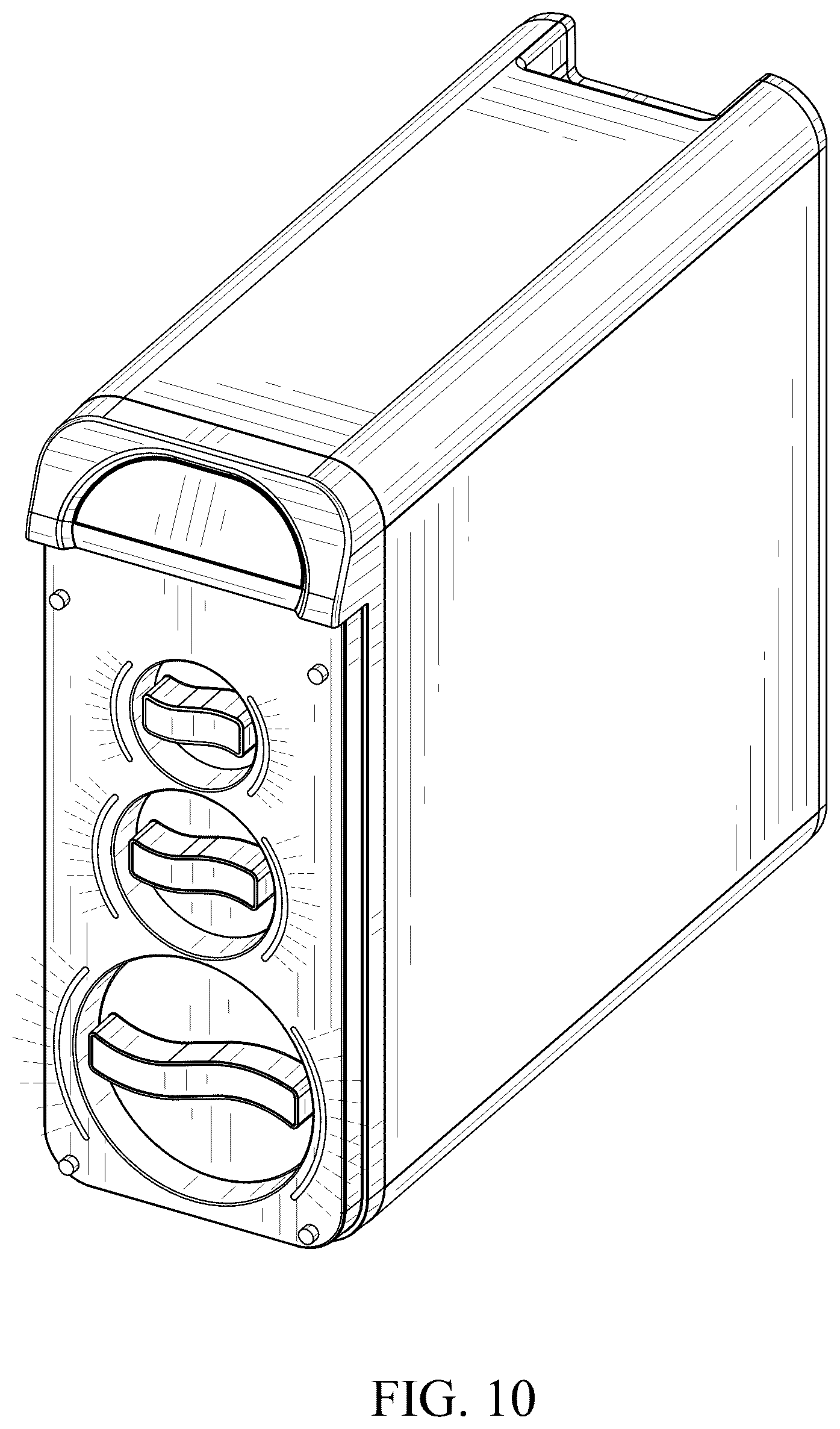

FIG. 10 is a front perspective view of an alternative embodiment of the water purifier of FIG. 1 with the cover removed and showing an illuminated region in an illuminated state, the only difference from FIG. 1 being the illuminated region; and,

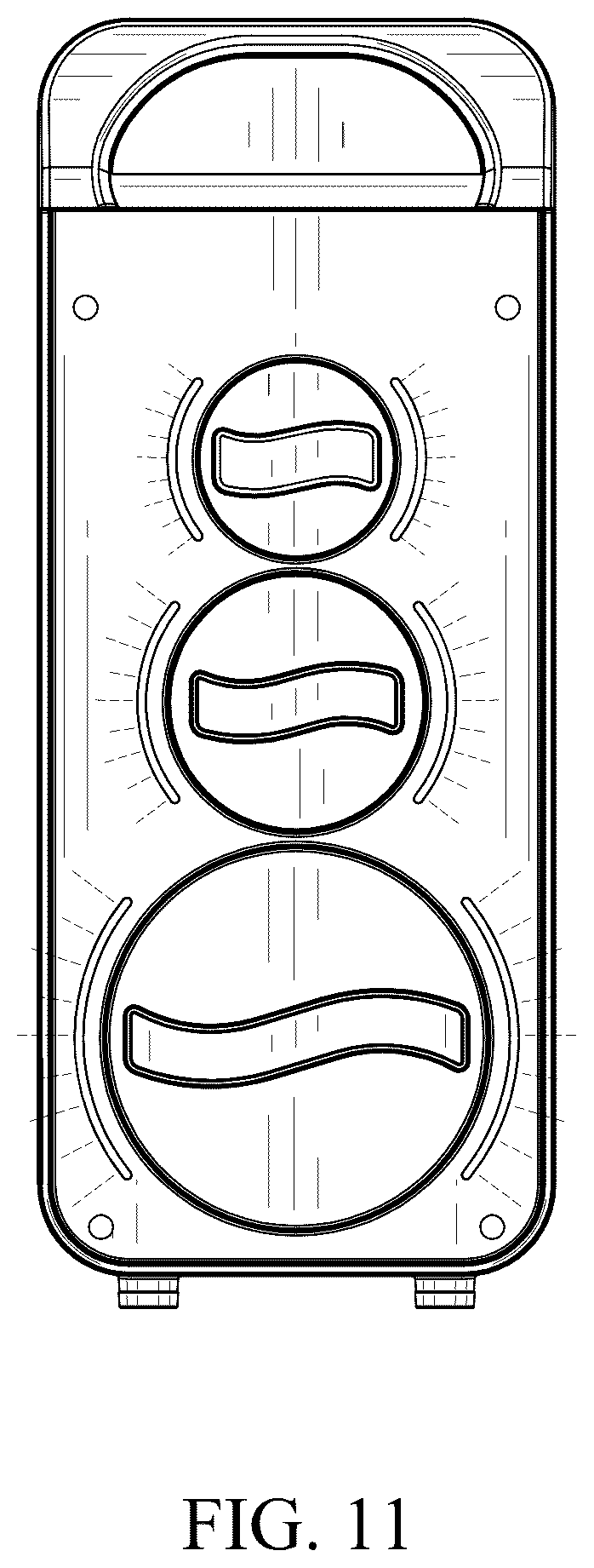

FIG. 11 is a front elevation view of the water purifier of FIG. 10 with the cover removed and showing the illuminated region in the illuminated state.

The broken radiating lines emanating from the curved regions in FIGS. 10 - 11 represent illumination and illustrate an illuminated region in an operation of use. The broken radiating lines form no part of the claimed design.

The broken lines shown in the drawings illustrate portions of the water purifier that form no part of the claimed design.
