Handle for Exercise Machines

USD1124197No. D 1,124,197designGranted 4/28/2026
Patent USD1124197 — Handle for exercise machines — Figure 1
Fig. 1 · Handle for Exercise Machines

Claims (1)

Claim 1 (Independent)

The ornamental design for a handle for exercise machines, as shown and described.

Full Description

Show full text →

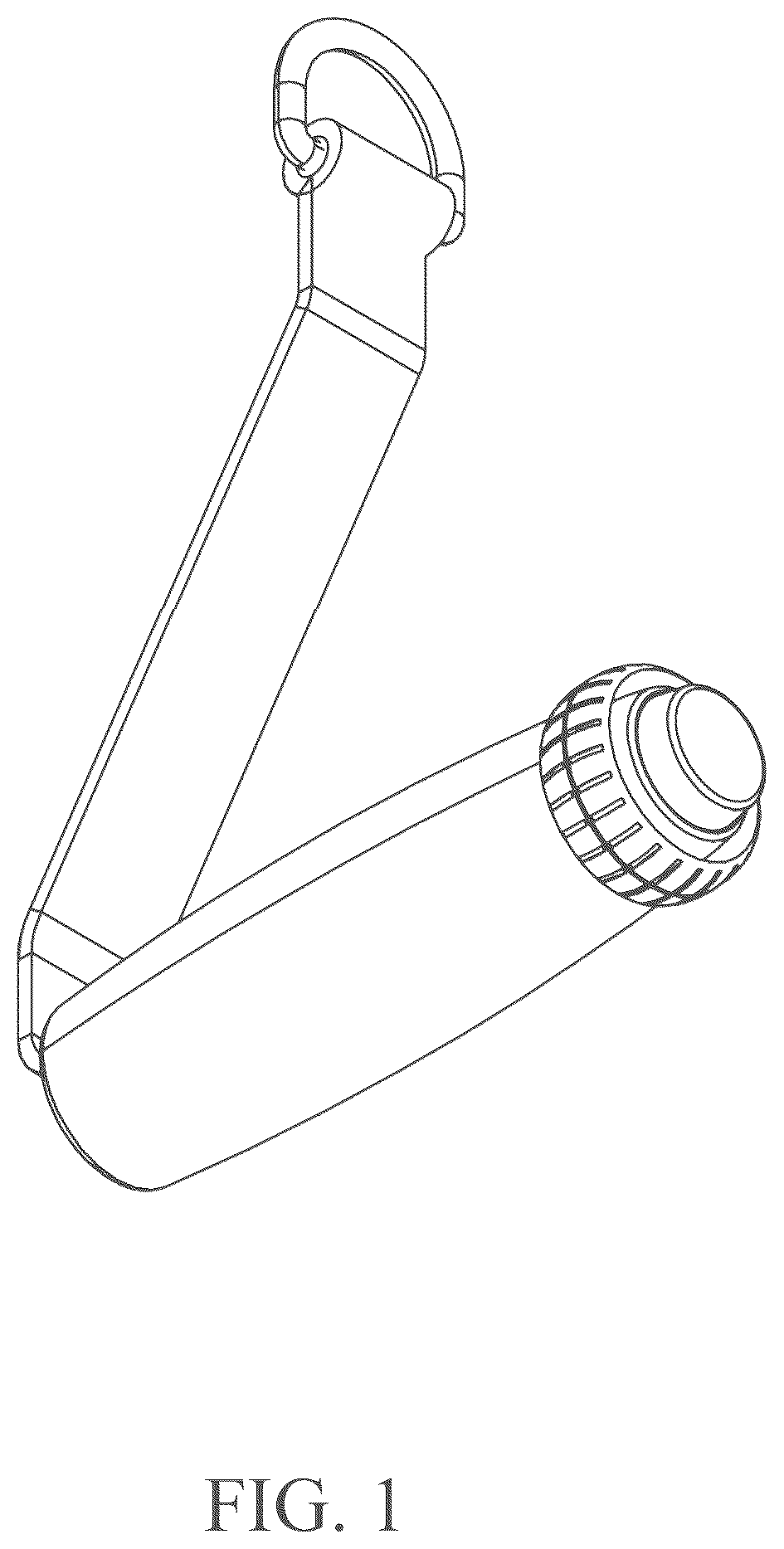

is a perspective view of a handle for exercise machines showing my new design;

is a front elevation view thereof;

is a rear elevation view thereof;

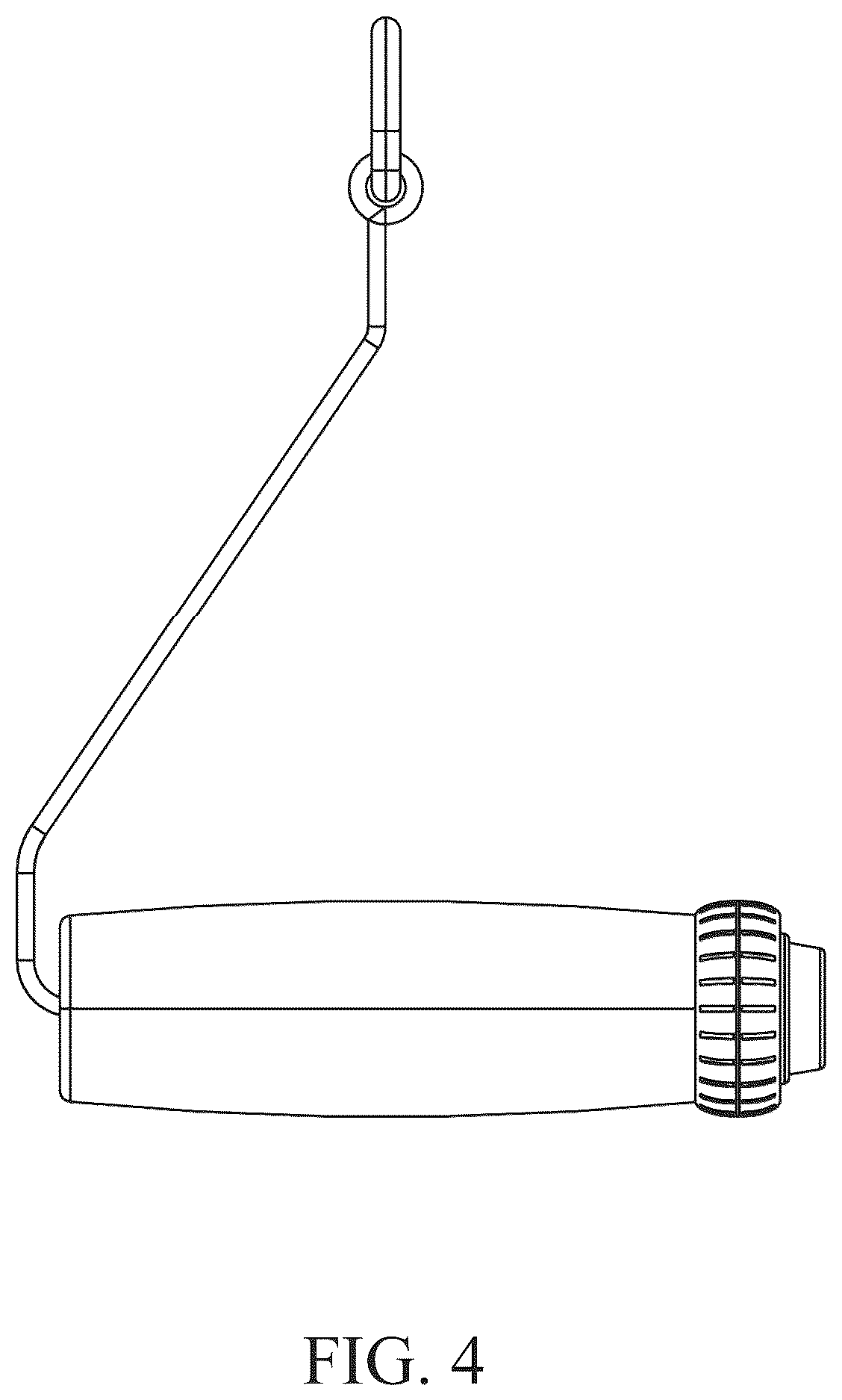

is a left side elevation view thereof;

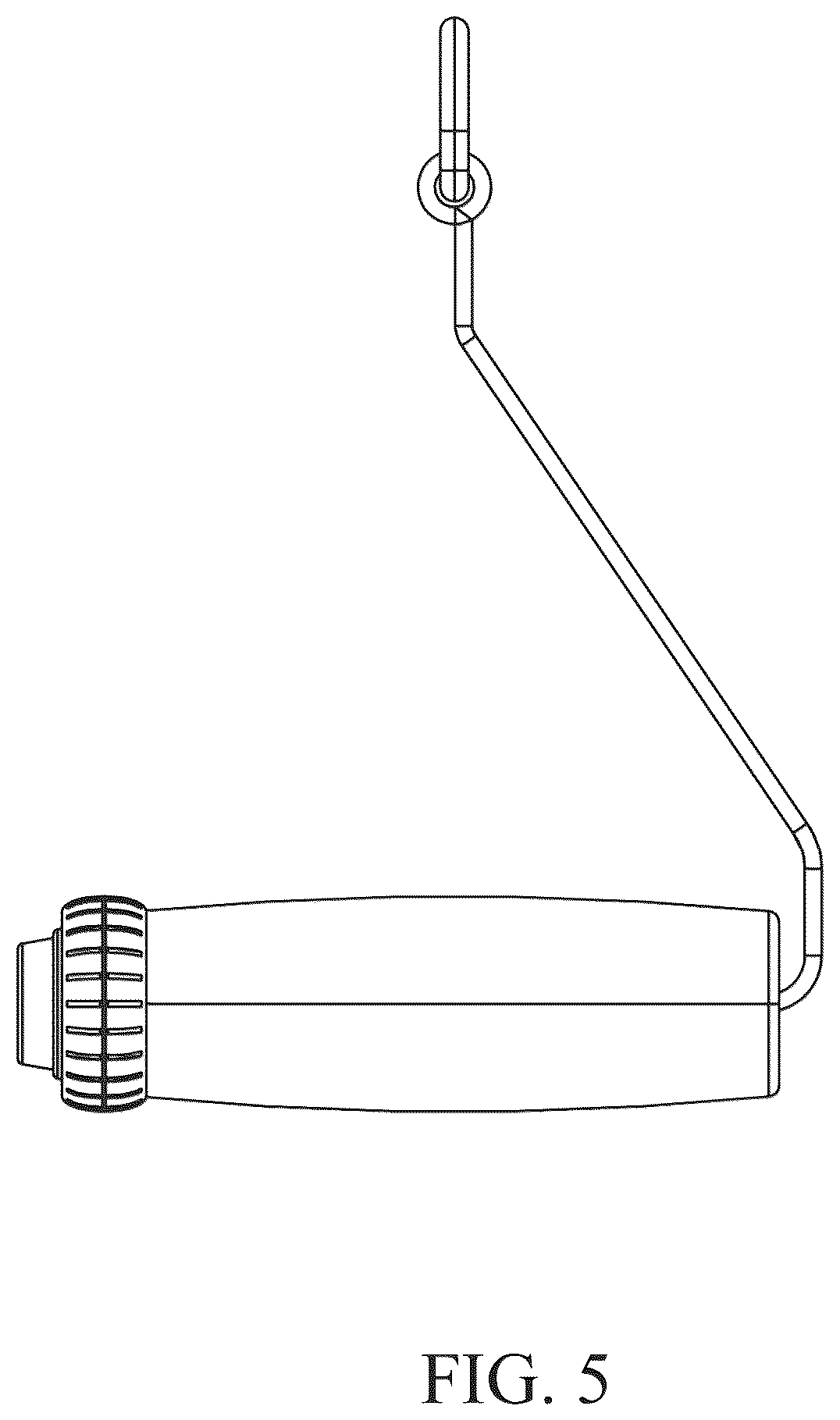

is a right side elevation view thereof;

is a top plan view thereof; and,

is a bottom plan view thereof.

The broken lines depict portions of the handle for exercise machines that form no part of the claimed design.

Figures (7)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
