Floating Toy

USD1124158No. D 1,124,158designGranted 4/28/2026
Patent USD1124158 — Floating toy — Figure 1
Fig. 1 · Floating Toy

Claims (1)

Claim 1 (Independent)

The ornamental design for a floating toy, as shown and described.

Full Description

Show full text →

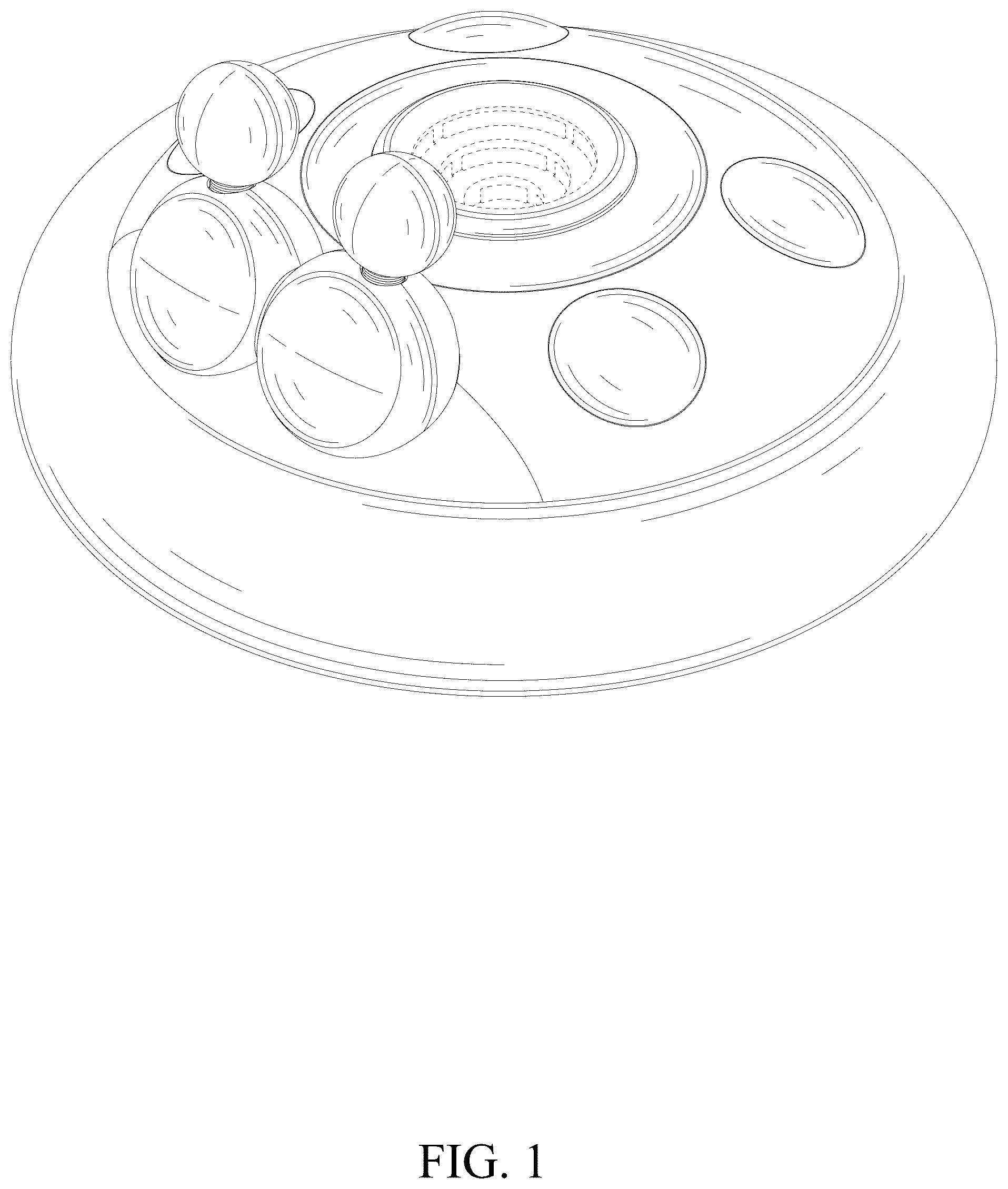

is a perspective view of a floating toy, showing my new design;

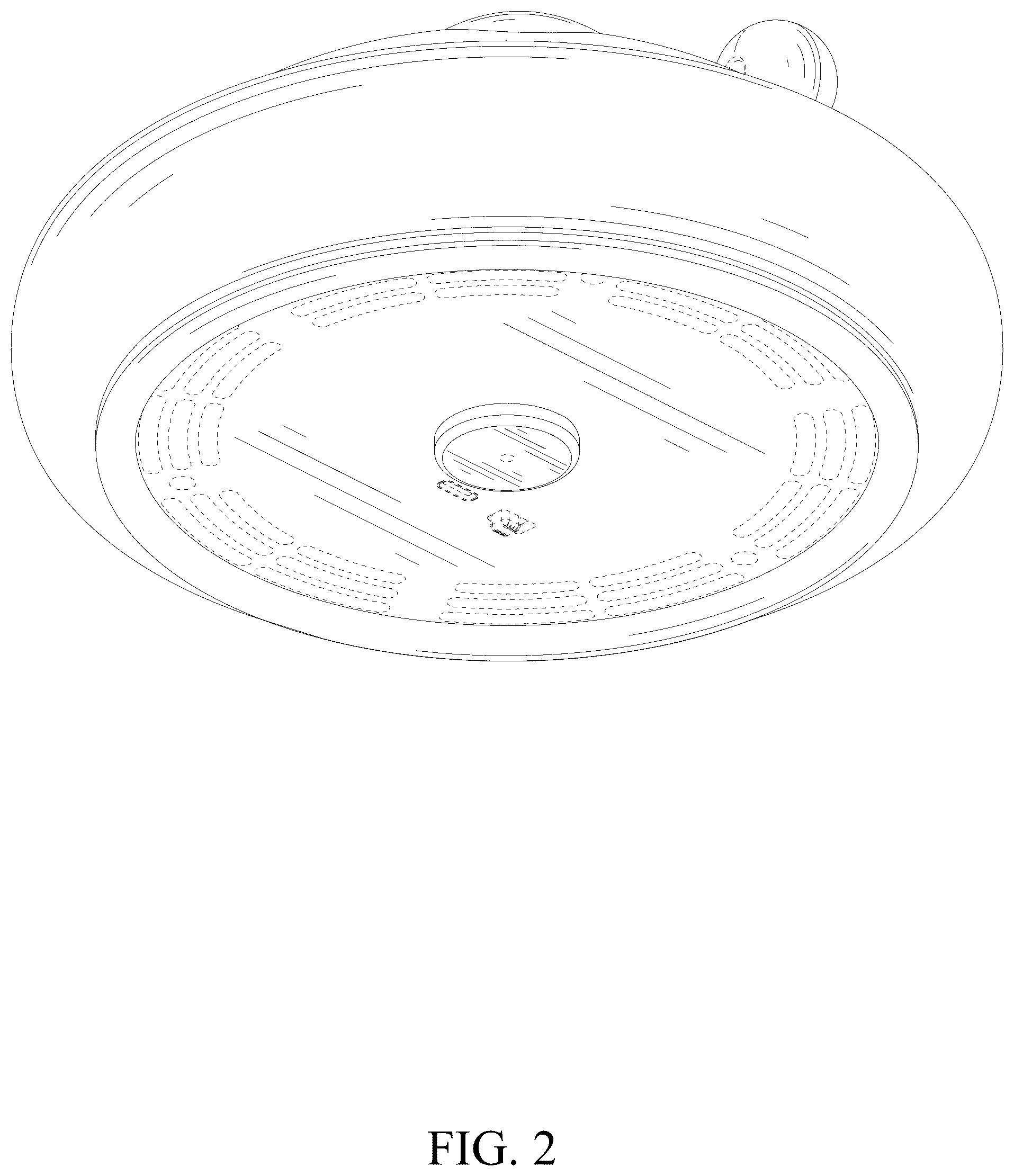

is another perspective view thereof;

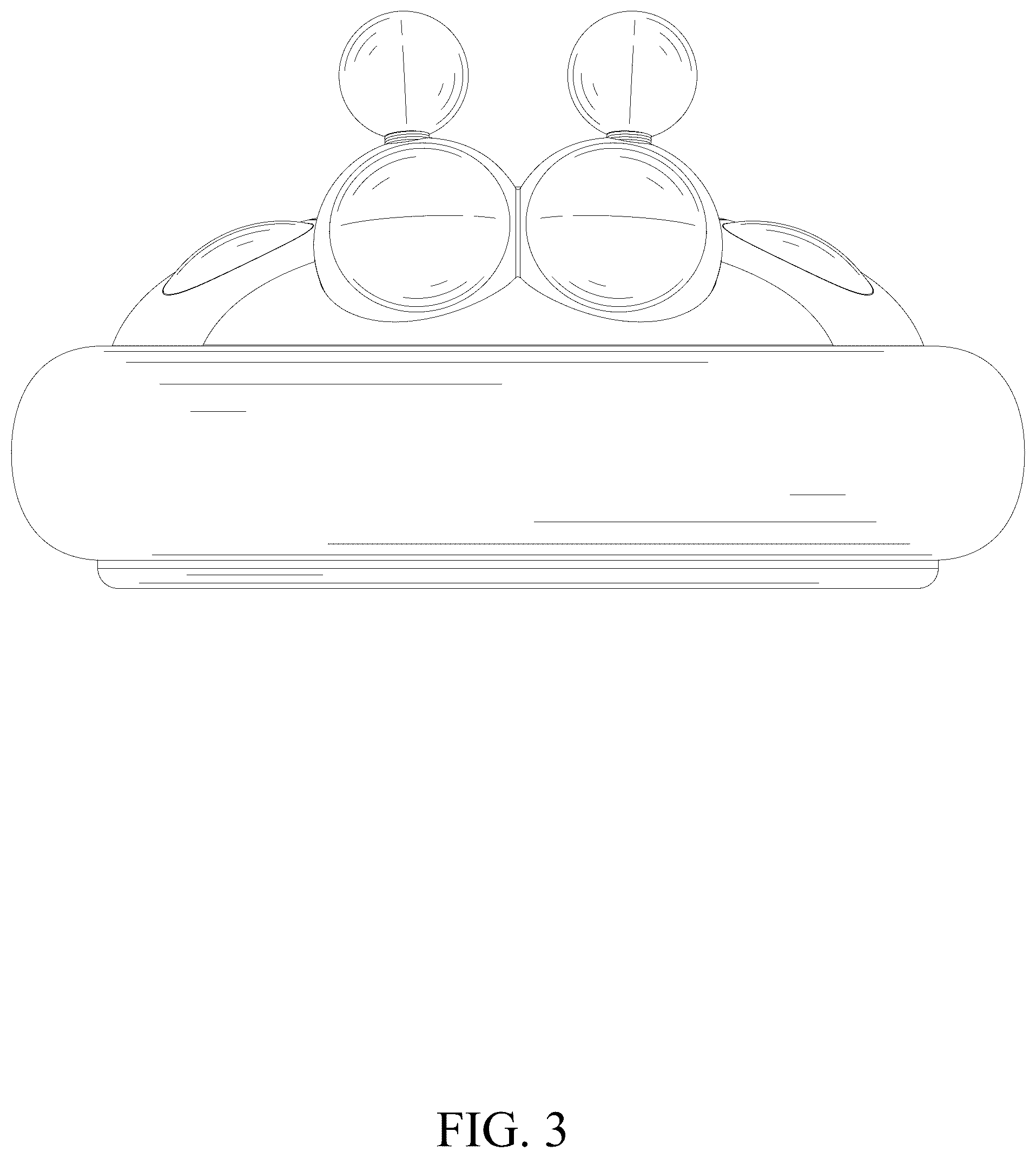

is a front view thereof;

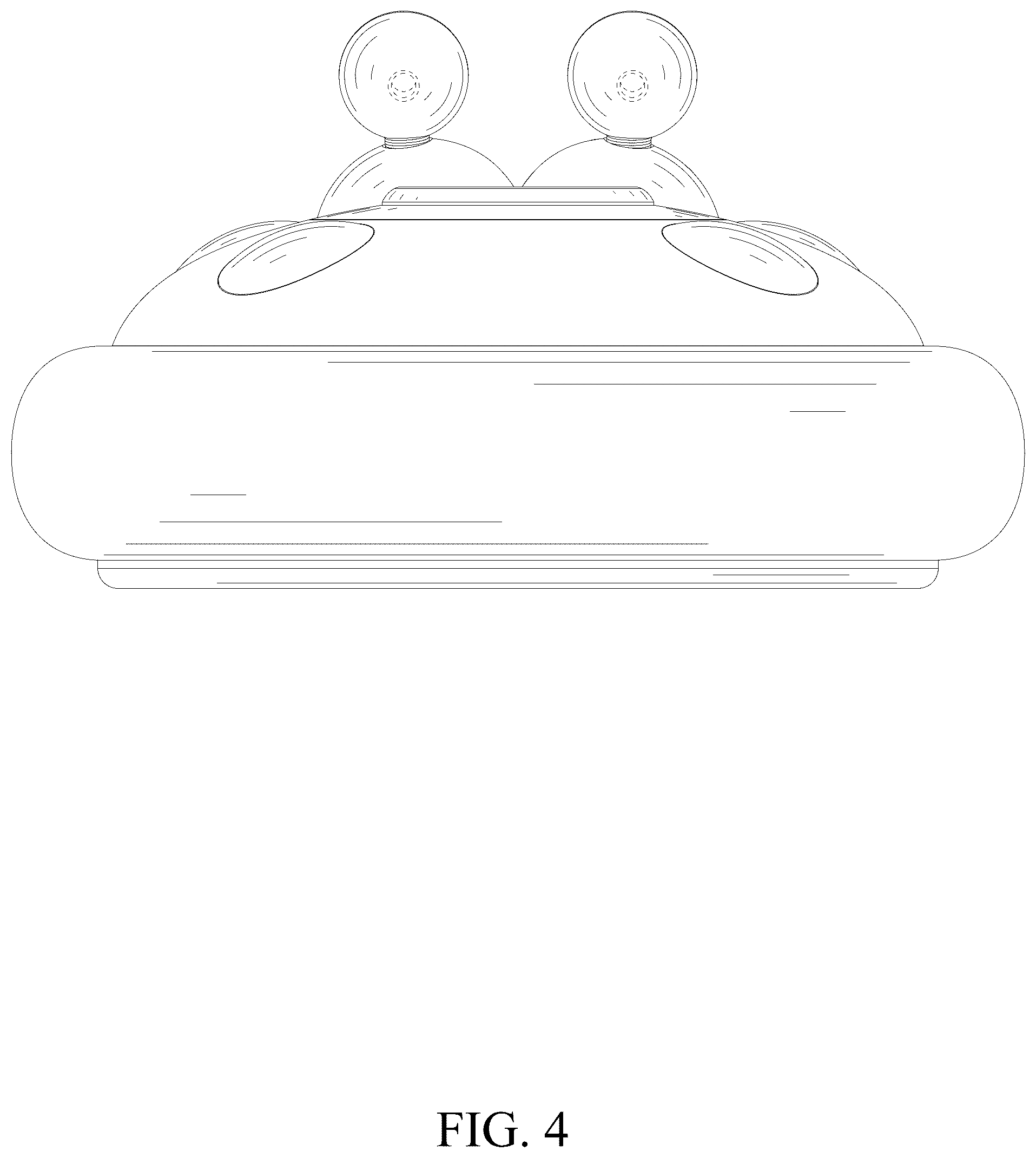

is a rear view thereof;

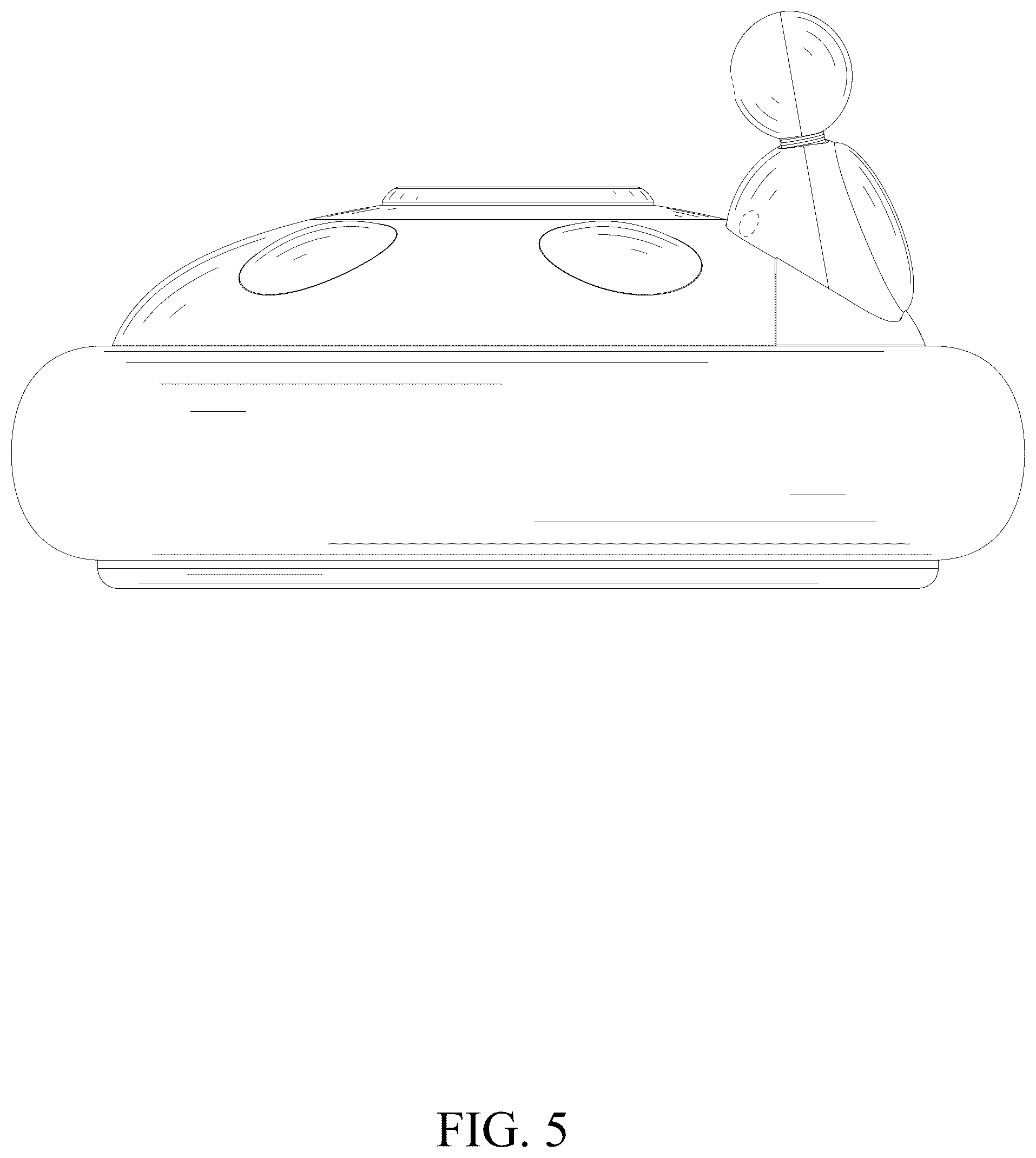

is a left side view thereof;

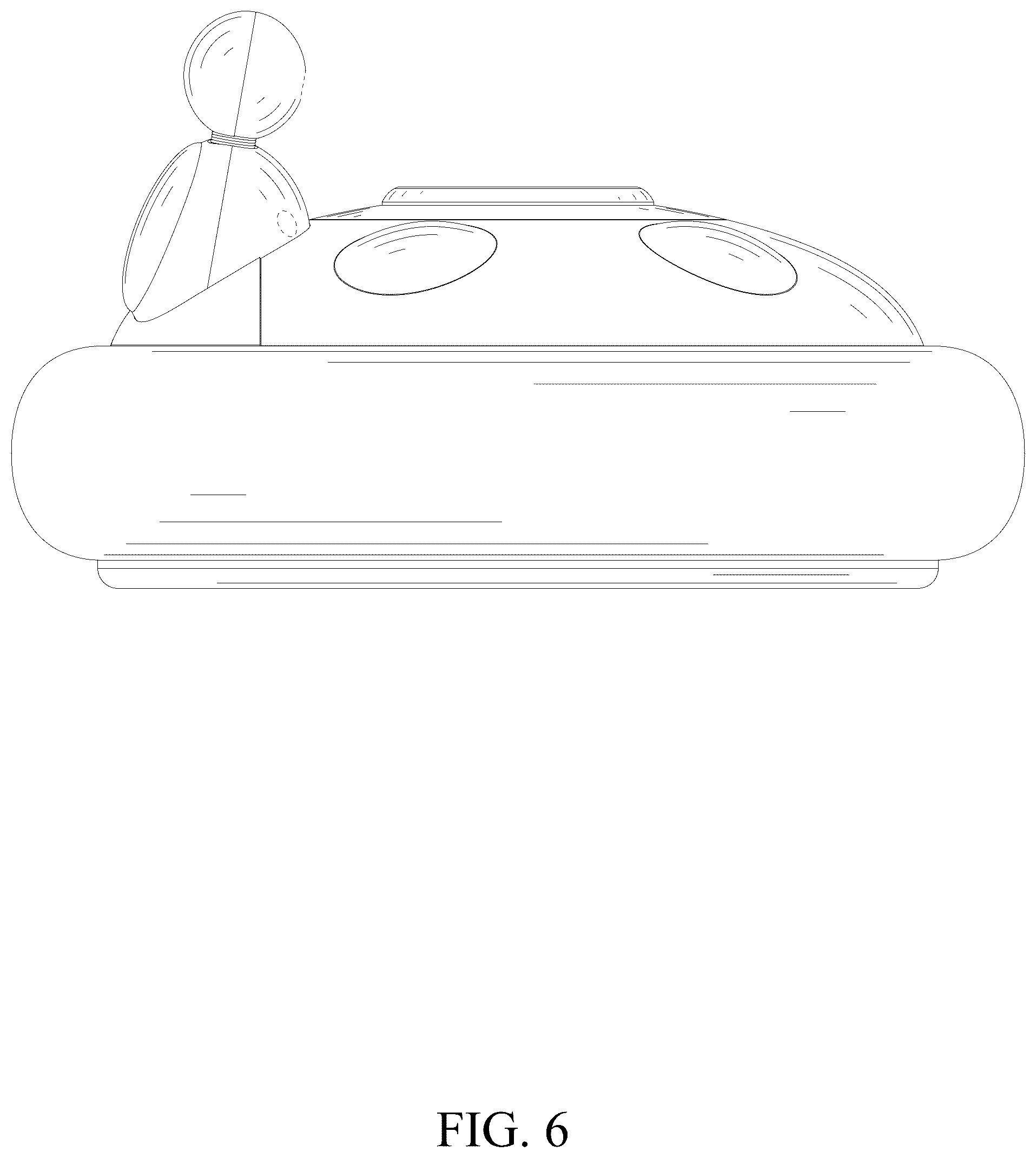

is a right side view thereof;

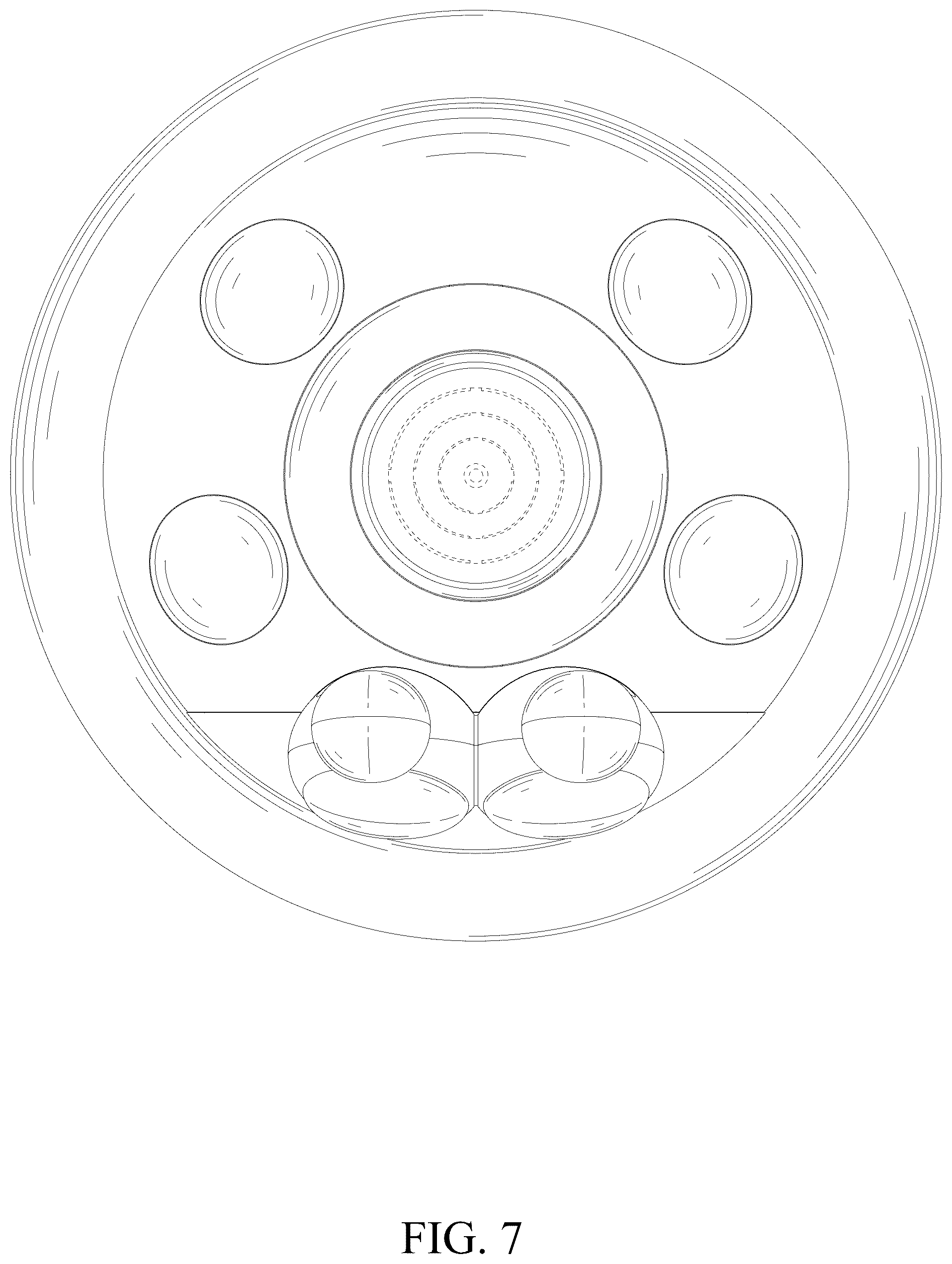

is a top plan view thereof; and,

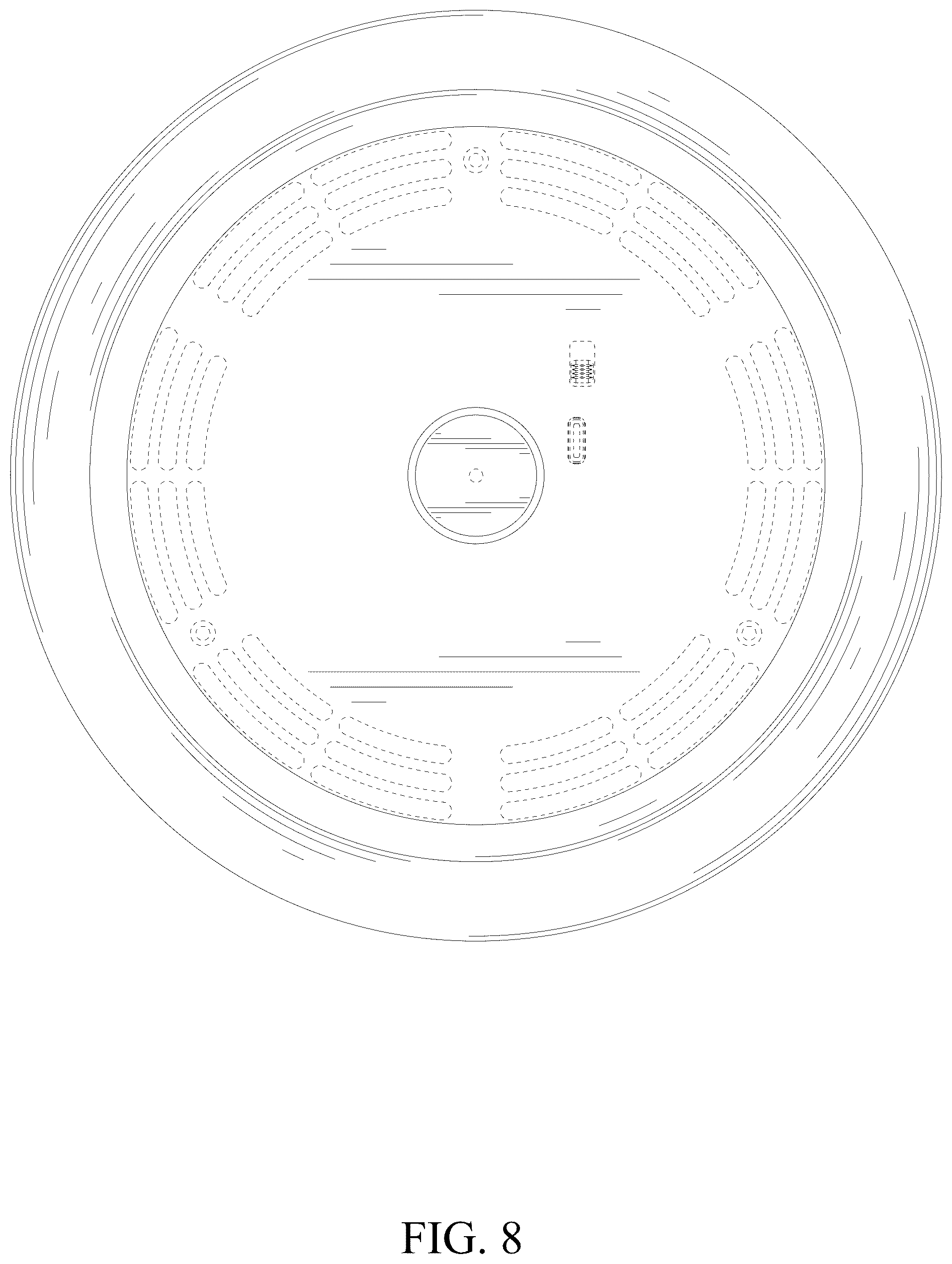

is a bottom plan view thereof.

The broken lines shown in the drawings illustrate portions of the floating toy that form no part of the claimed design.
