Nozzle for a Laser Processing System

USD1124062No. D 1,124,062designGranted 4/28/2026

Patent USD1124062 — Nozzle for a laser processing system — Figure 1 — Fig. 1 · Nozzle for a Laser Processing System

Claims (1)

Claim 1 (Independent)

The ornamental design for a nozzle for a laser processing system as shown and described.

Full Description

Show full text →

is an upper perspective view of a nozzle for a laser processing system showing the new design;

is a lower perspective view thereof;

is a front view thereof;

is a back view thereof;

is a right view thereof;

is a left view thereof;

is a top view thereof; and,

is a bottom view thereof.

The broken lines depict portions of the nozzle for a laser processing system and form no part of the claimed design.

Figures (8)

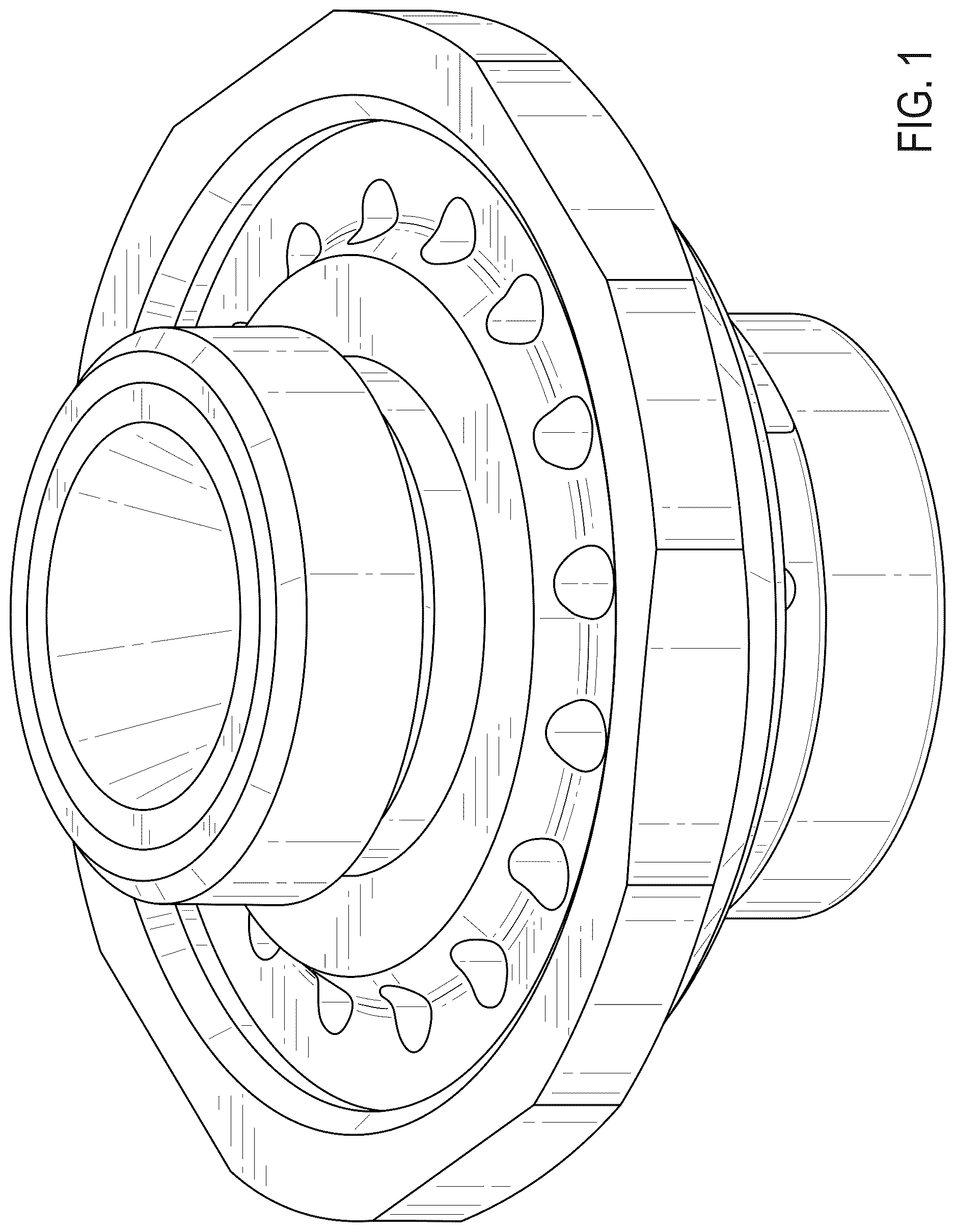

Patent USD1124062 Figure 1 – Nozzle for a laser processing system — Fig. 1

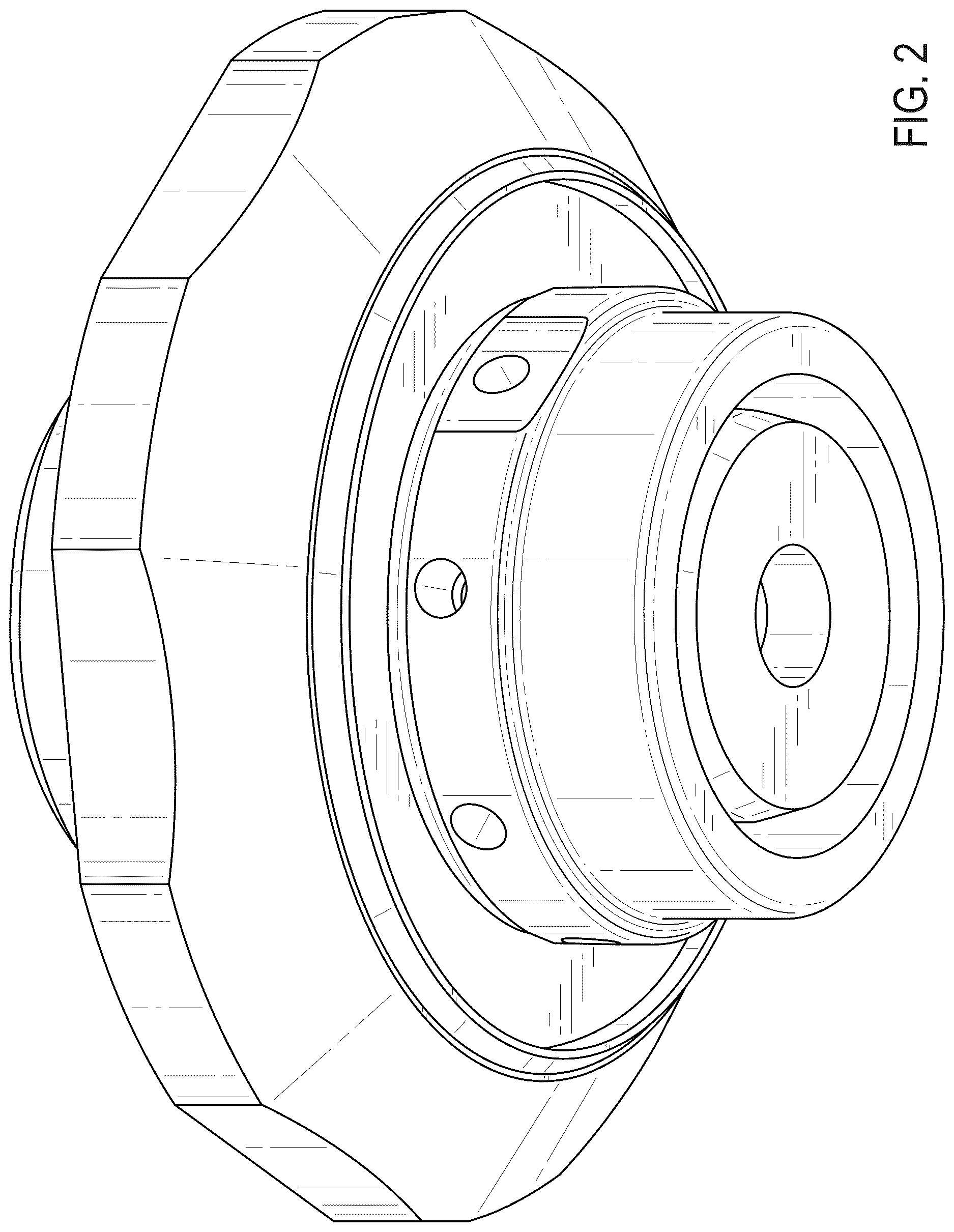

Patent USD1124062 Figure 2 – Nozzle for a laser processing system — Fig. 2

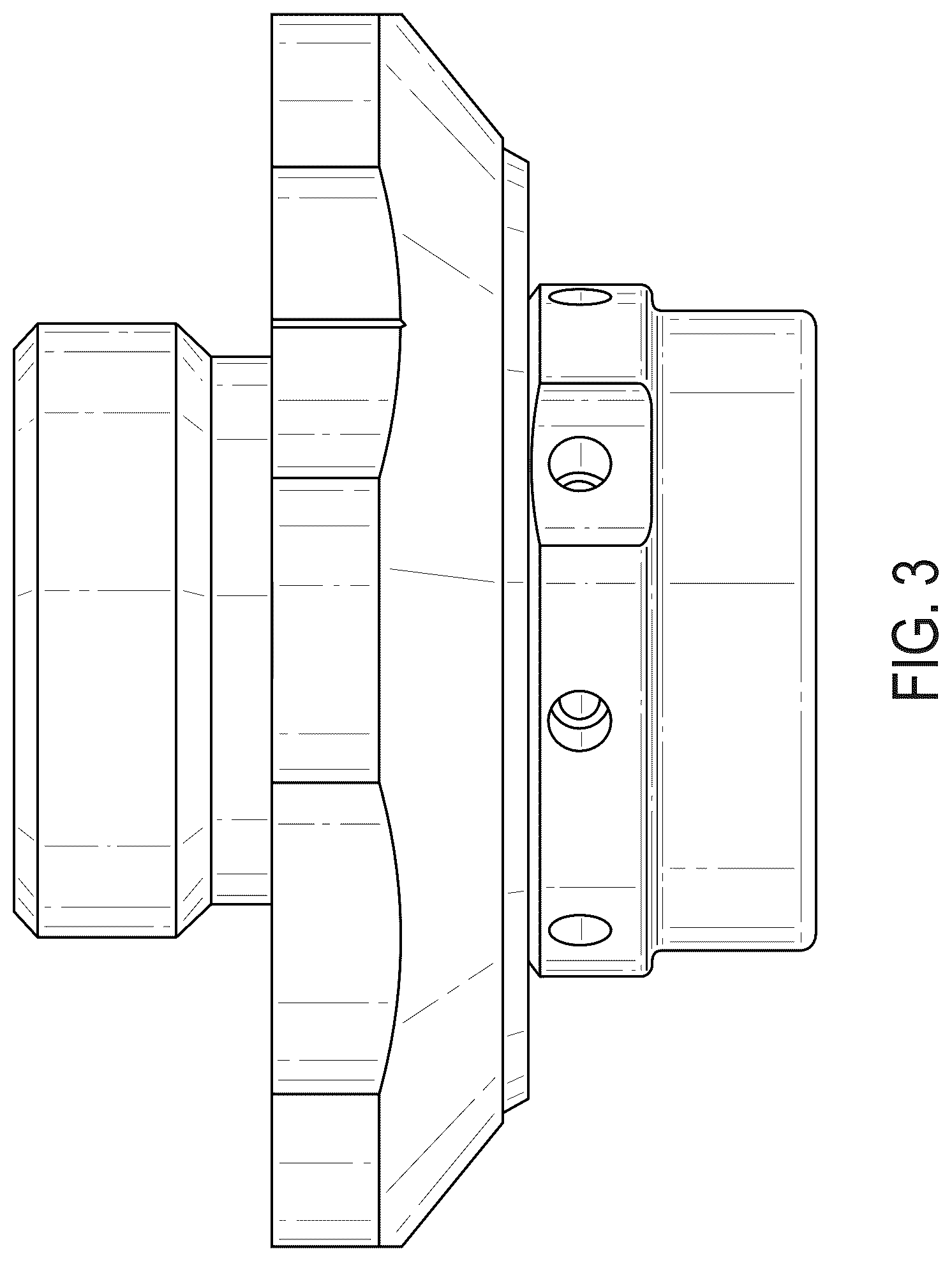

Patent USD1124062 Figure 3 – Nozzle for a laser processing system — Fig. 3

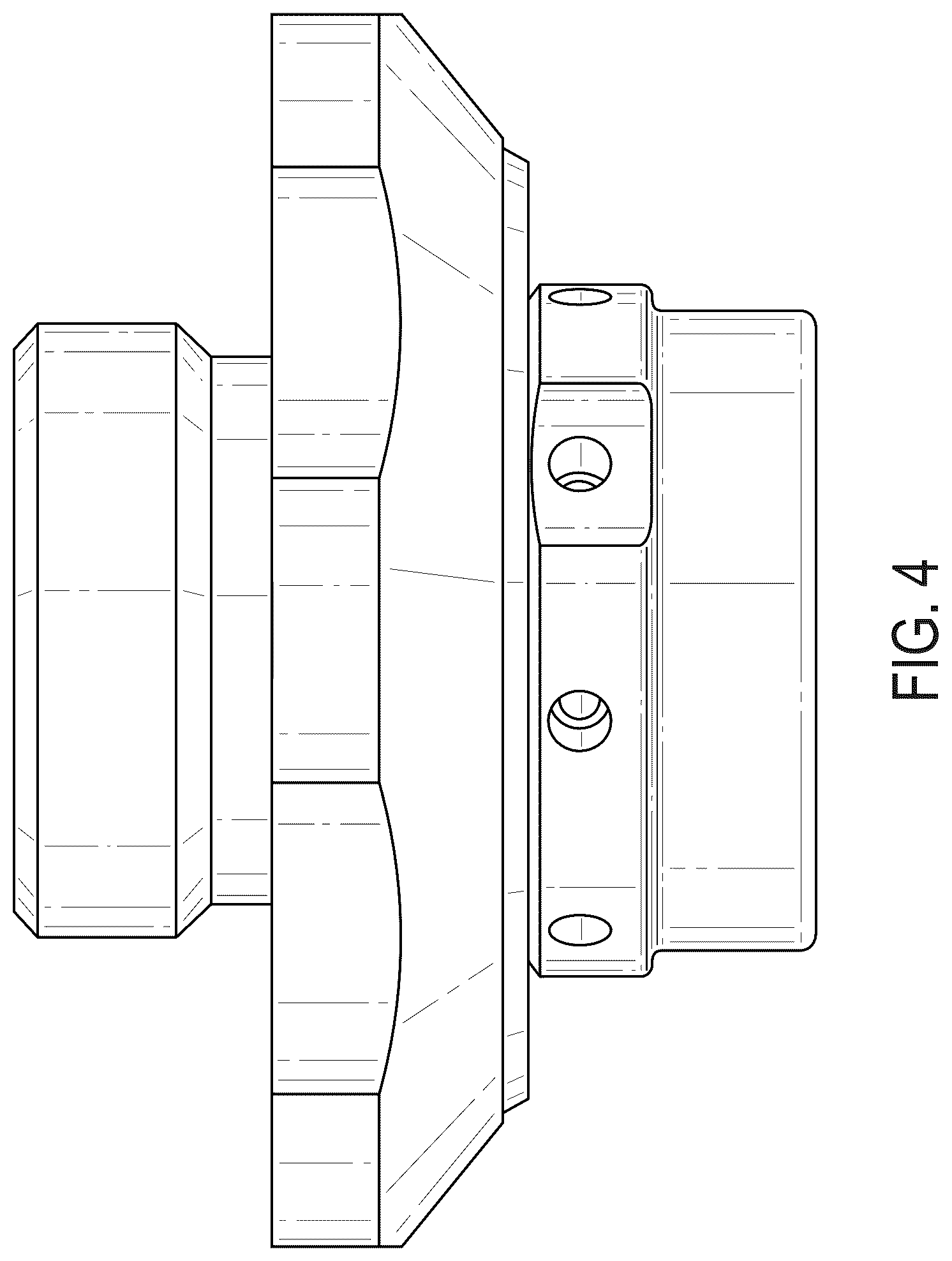

Patent USD1124062 Figure 4 – Nozzle for a laser processing system — Fig. 4

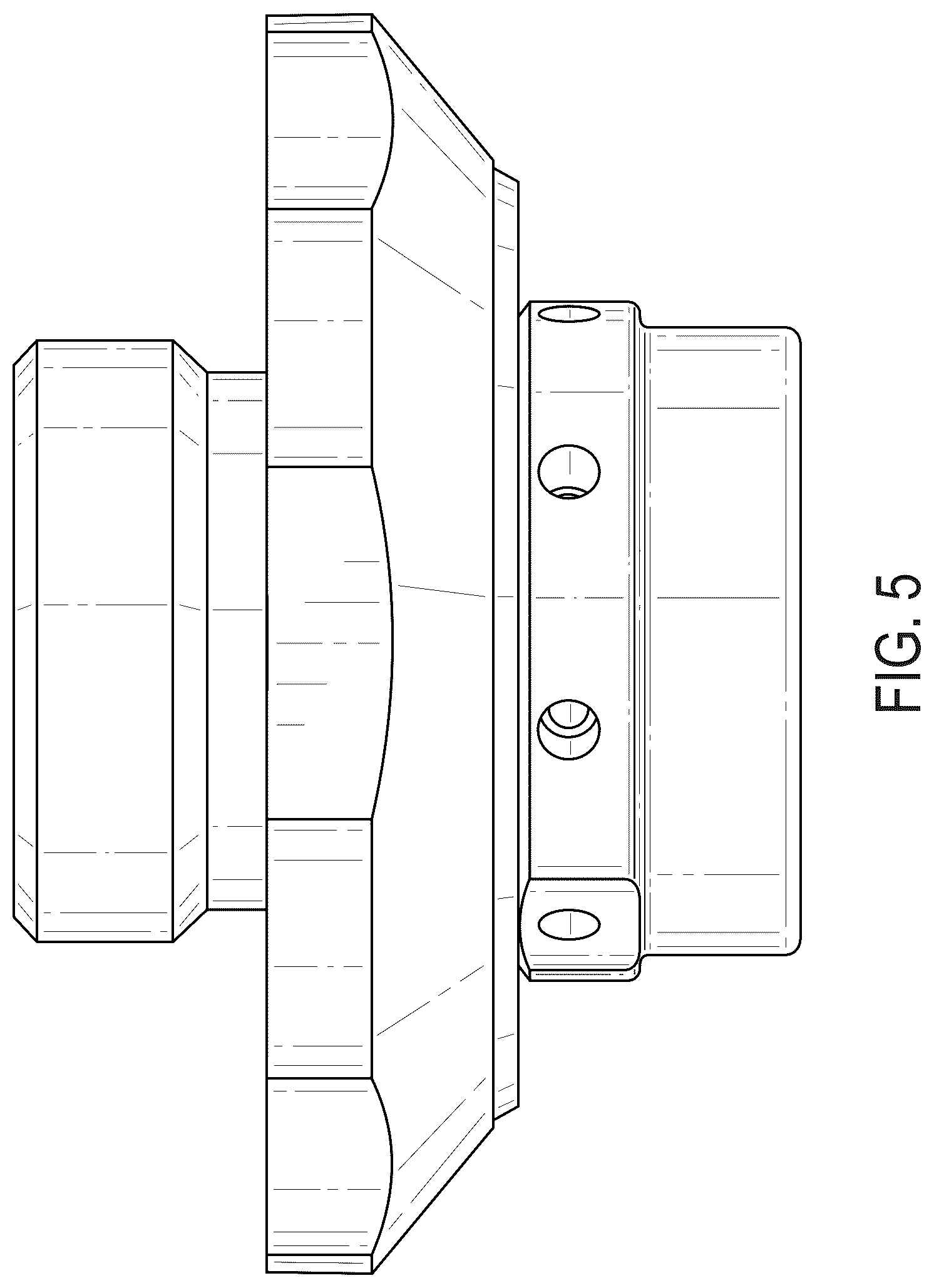

Patent USD1124062 Figure 5 – Nozzle for a laser processing system — Fig. 5

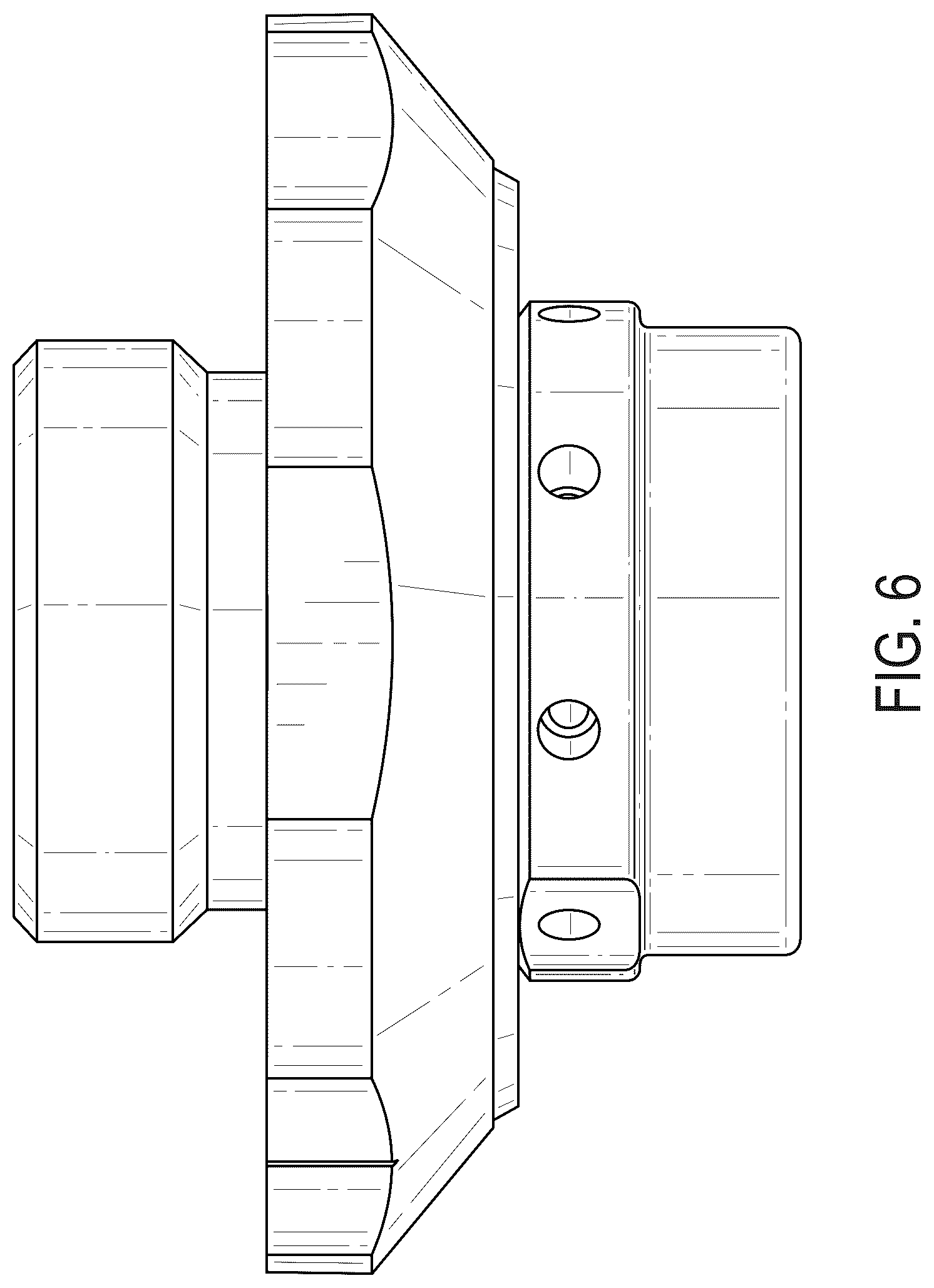

Patent USD1124062 Figure 6 – Nozzle for a laser processing system — Fig. 6

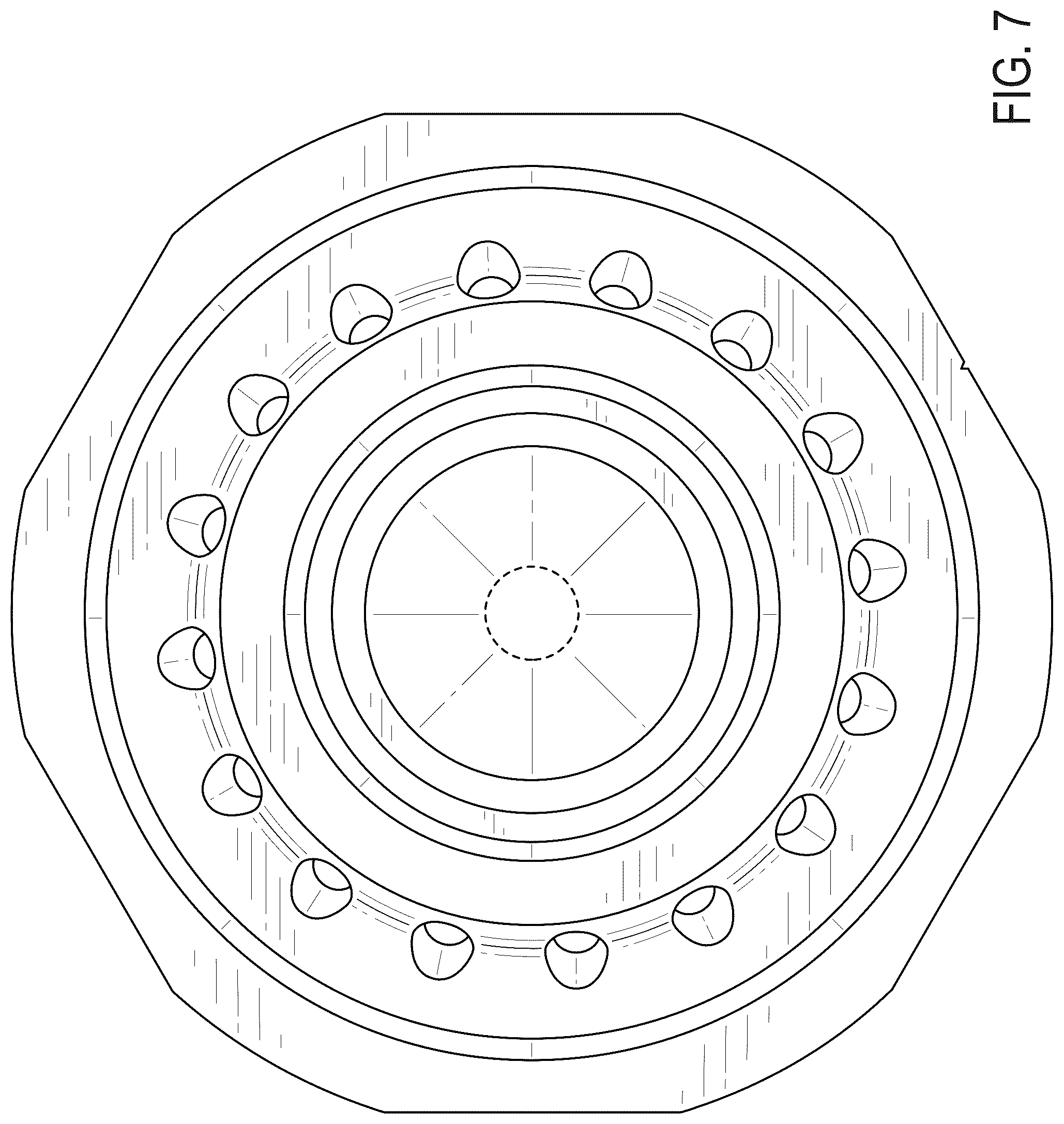

Patent USD1124062 Figure 7 – Nozzle for a laser processing system — Fig. 7

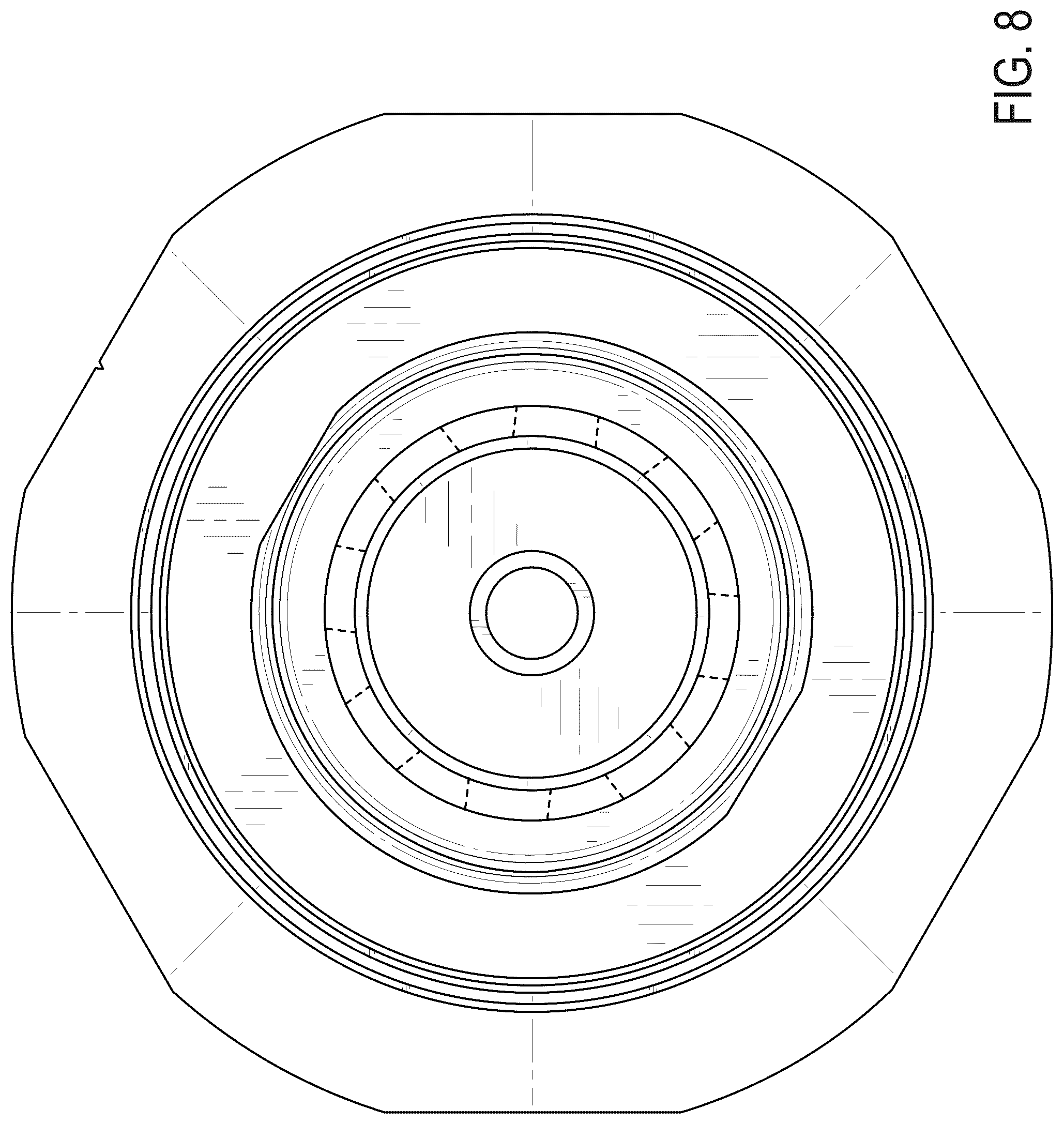

Patent USD1124062 Figure 8 – Nozzle for a laser processing system — Fig. 8
