Claims (1)
Claim 1 (Independent)
The ornamental design for a tyre portion, as shown and described.
Full Description
Show full text →

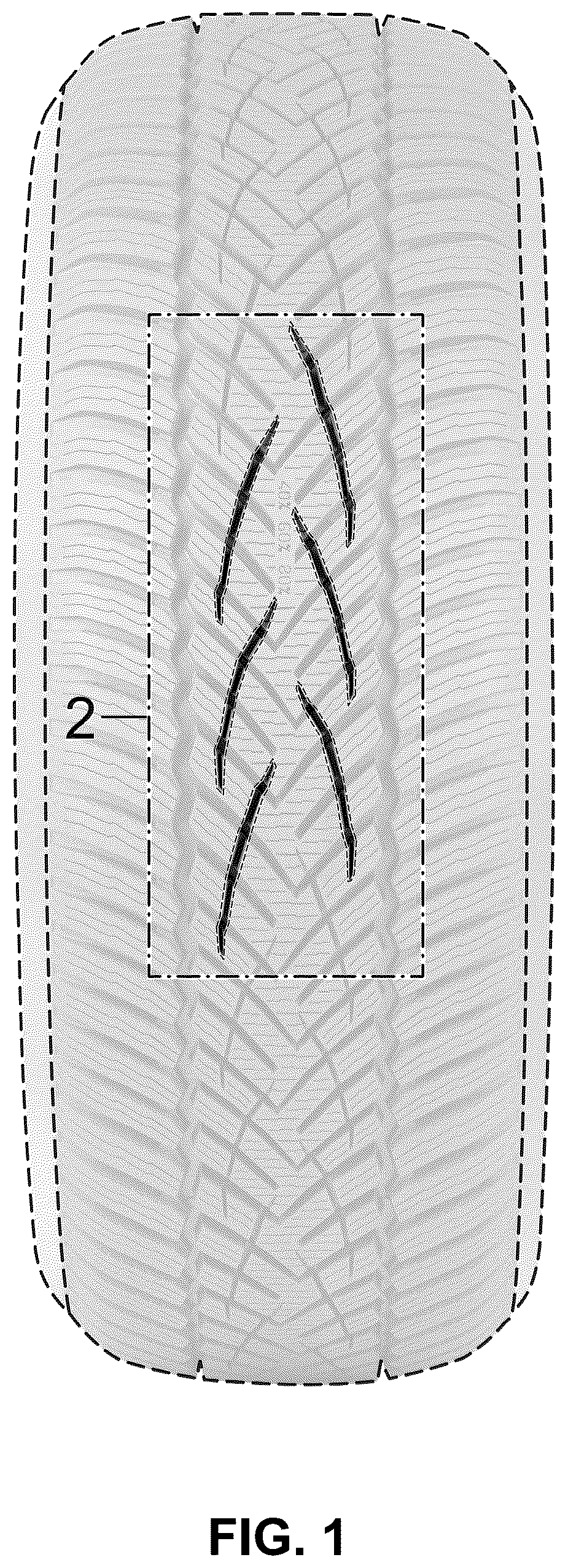

is a front view of a tyre portion according to our new design; and,

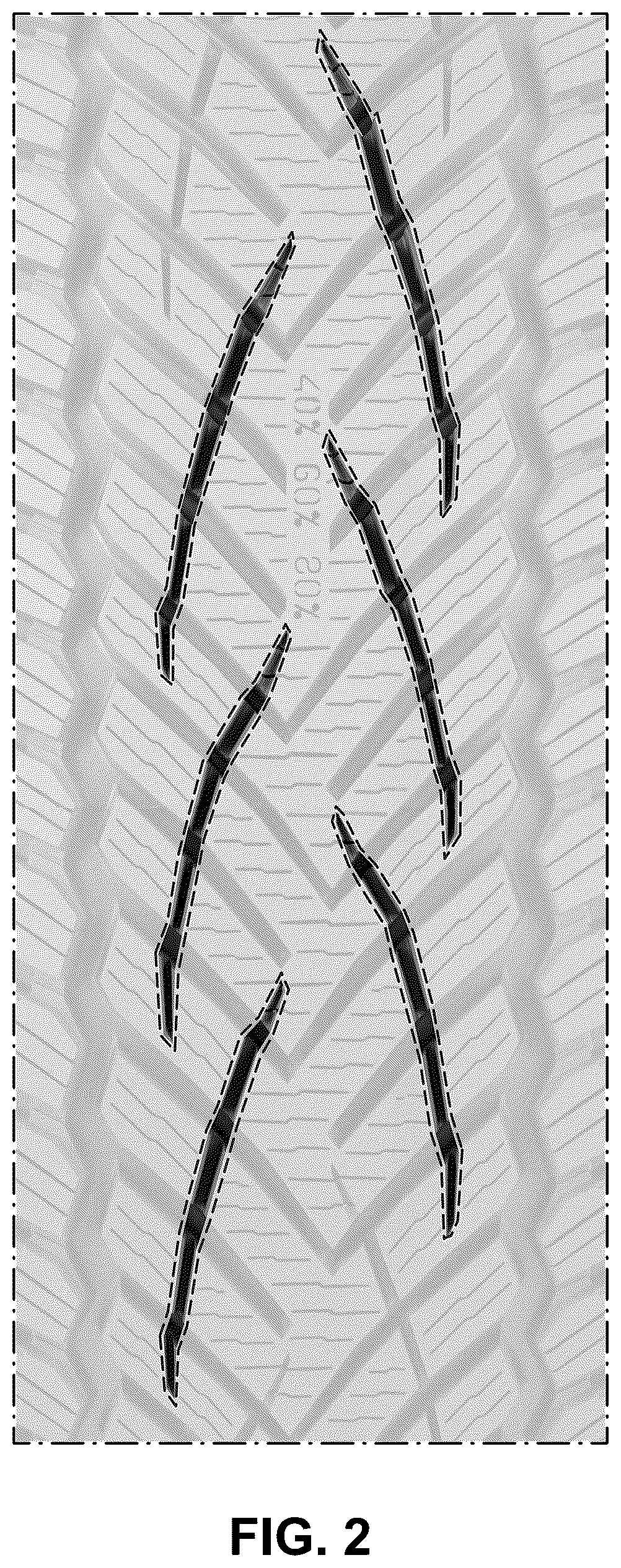

is an enlargement of the section shown in .
The part of the drawings shown with a reduced tonal value, along with the broken-line perimeter, illustrates a portion the tyre portion that forms no part of the claimed design.
