Bottle Cap

USD1123623No. D 1,123,623designGranted 4/28/2026

Patent USD1123623 — Bottle cap — Figure 1 — Fig. 1 · Bottle Cap

Claims (1)

Claim 1 (Independent)

The ornamental design for a bottle cap as shown and described.

Full Description

Show full text →

is a front view of a bottle cap, showing the new design;

is a right side view thereof;

is a left side view thereof;

is a back view thereof;

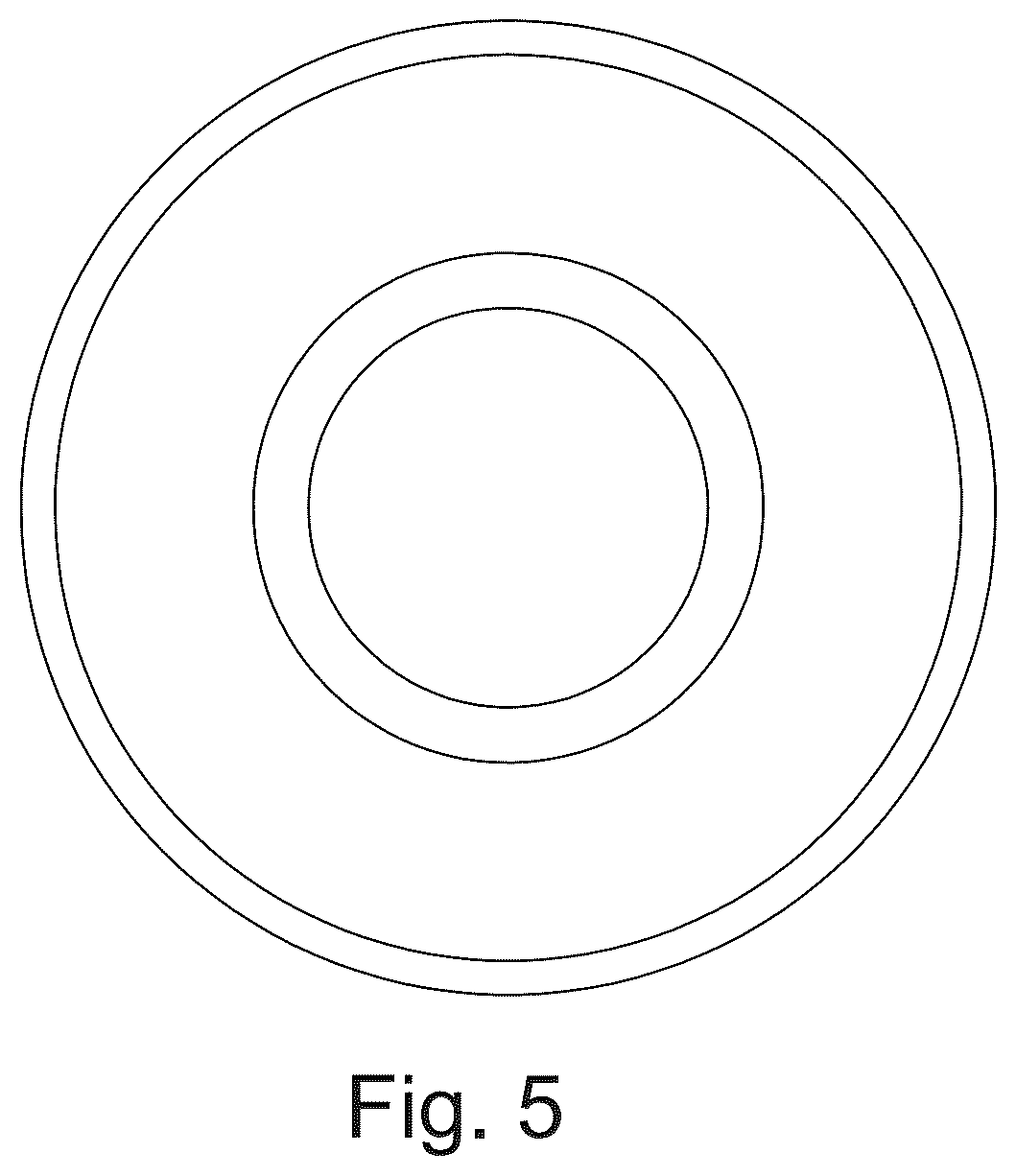

is a bottom view thereof;

is a top view thereof; and,

is a front perspective view thereof.

Figures (7)

Patent USD1123623 Figure 1 – Bottle cap — Fig. 1

Patent USD1123623 Figure 2 – Bottle cap — Fig. 2

Patent USD1123623 Figure 3 – Bottle cap — Fig. 3

Patent USD1123623 Figure 4 – Bottle cap — Fig. 4

Patent USD1123623 Figure 5 – Bottle cap — Fig. 5

Patent USD1123623 Figure 6 – Bottle cap — Fig. 6

Patent USD1123623 Figure 7 – Bottle cap — Fig. 7
