Expandable Lid

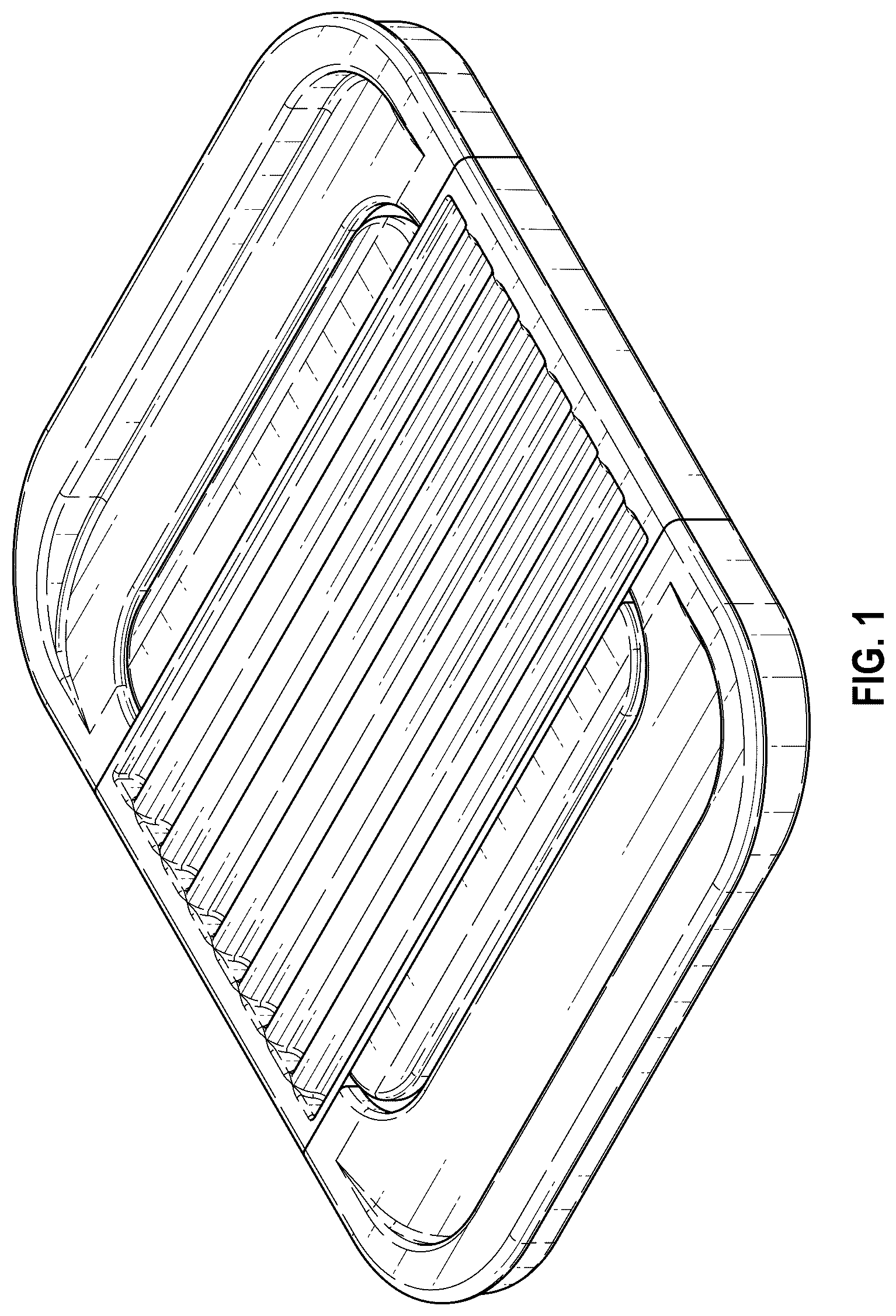

FIG. 1 is a perspective view taken from the top of one embodiment of an expandable lid showing our new design;

FIG. 2 is a front elevation view thereof;

FIG. 3 is a rear elevation view thereof;

FIG. 4 is a left side elevation view thereof;

FIG. 5 is a right side elevation view thereof;

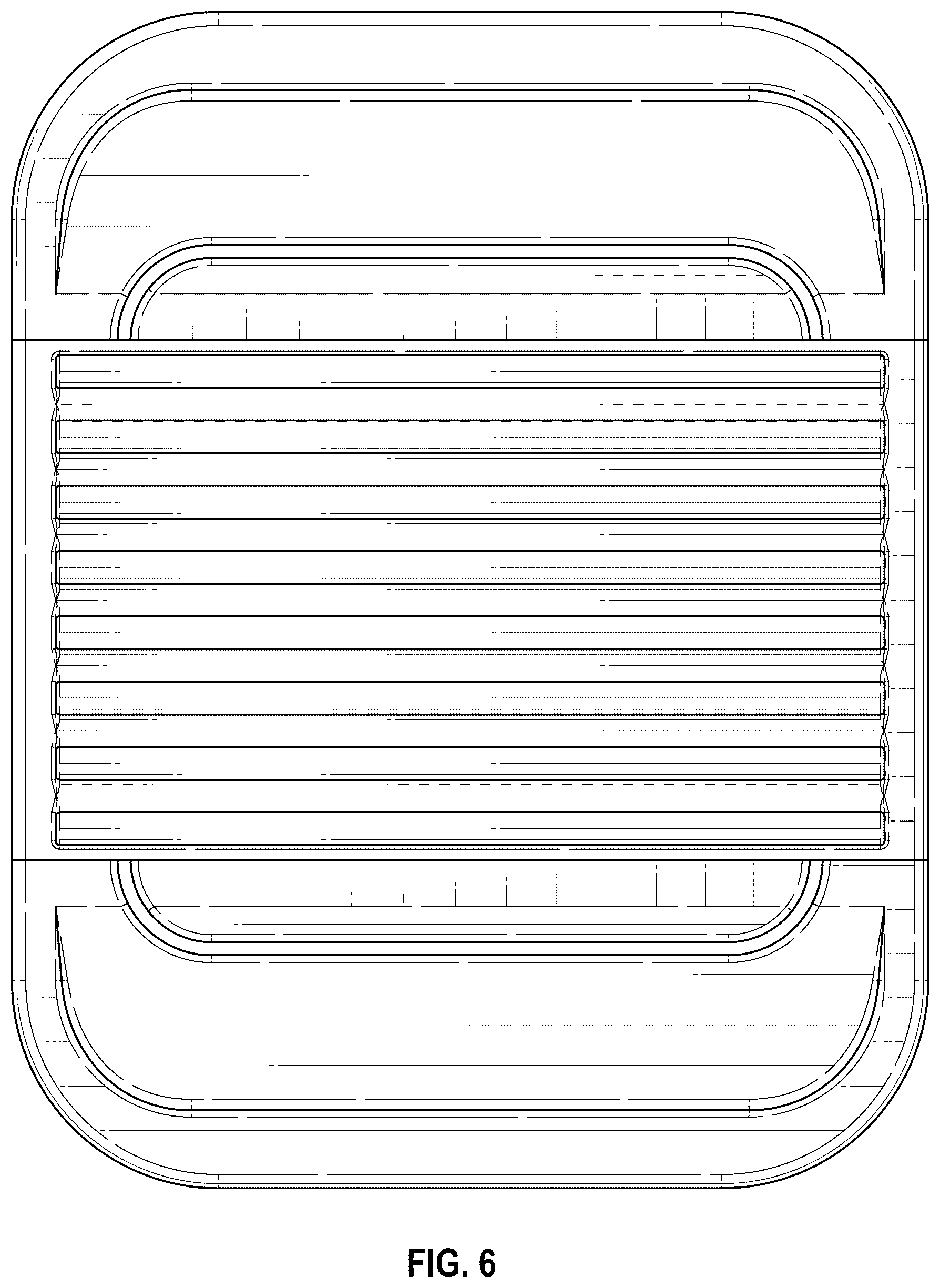

FIG. 6 is a top plan view thereof;

FIG. 7 is a bottom plan view thereof;

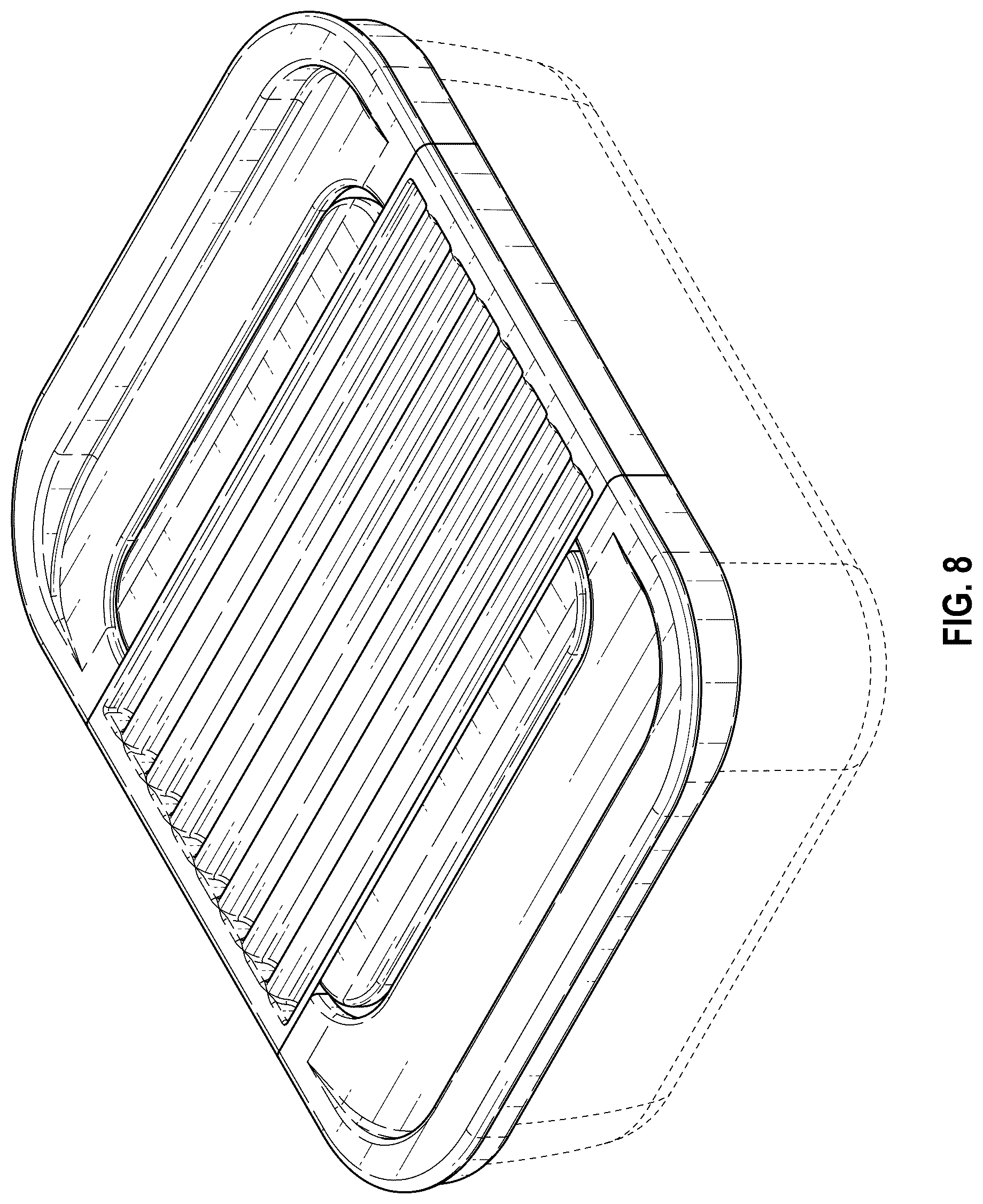

FIG. 8 is a perspective view taken from the top of the embodiment of FIG. 1 in a use condition;

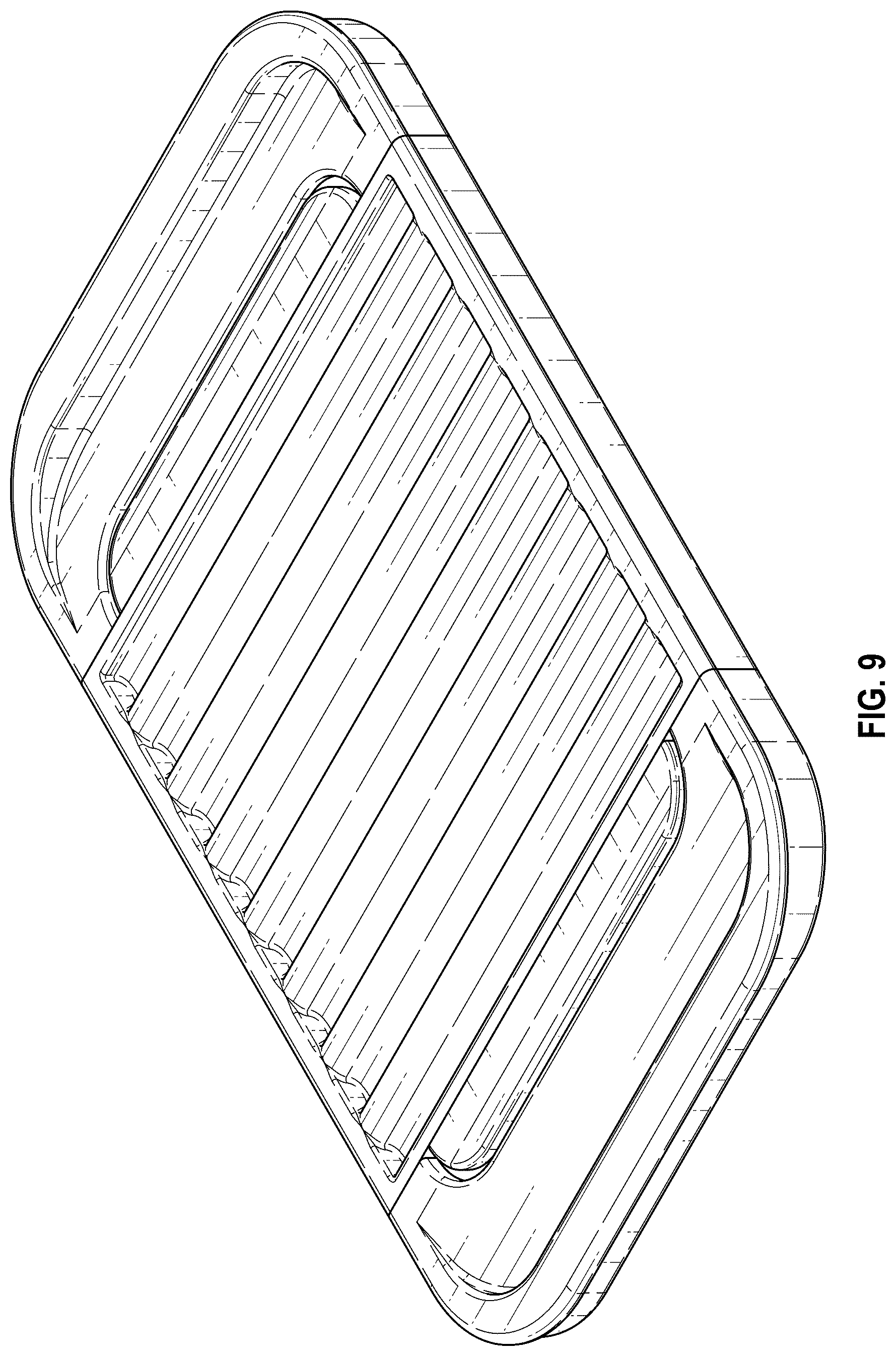

FIG. 9 is a perspective view taken from the top of an alternate embodiment of an expandable lid showing our new design;

FIG. 10 is a front elevation view thereof;

FIG. 11 is a rear elevation view thereof;

FIG. 12 is a left side elevation view thereof;

FIG. 13 is a right side elevation view thereof;

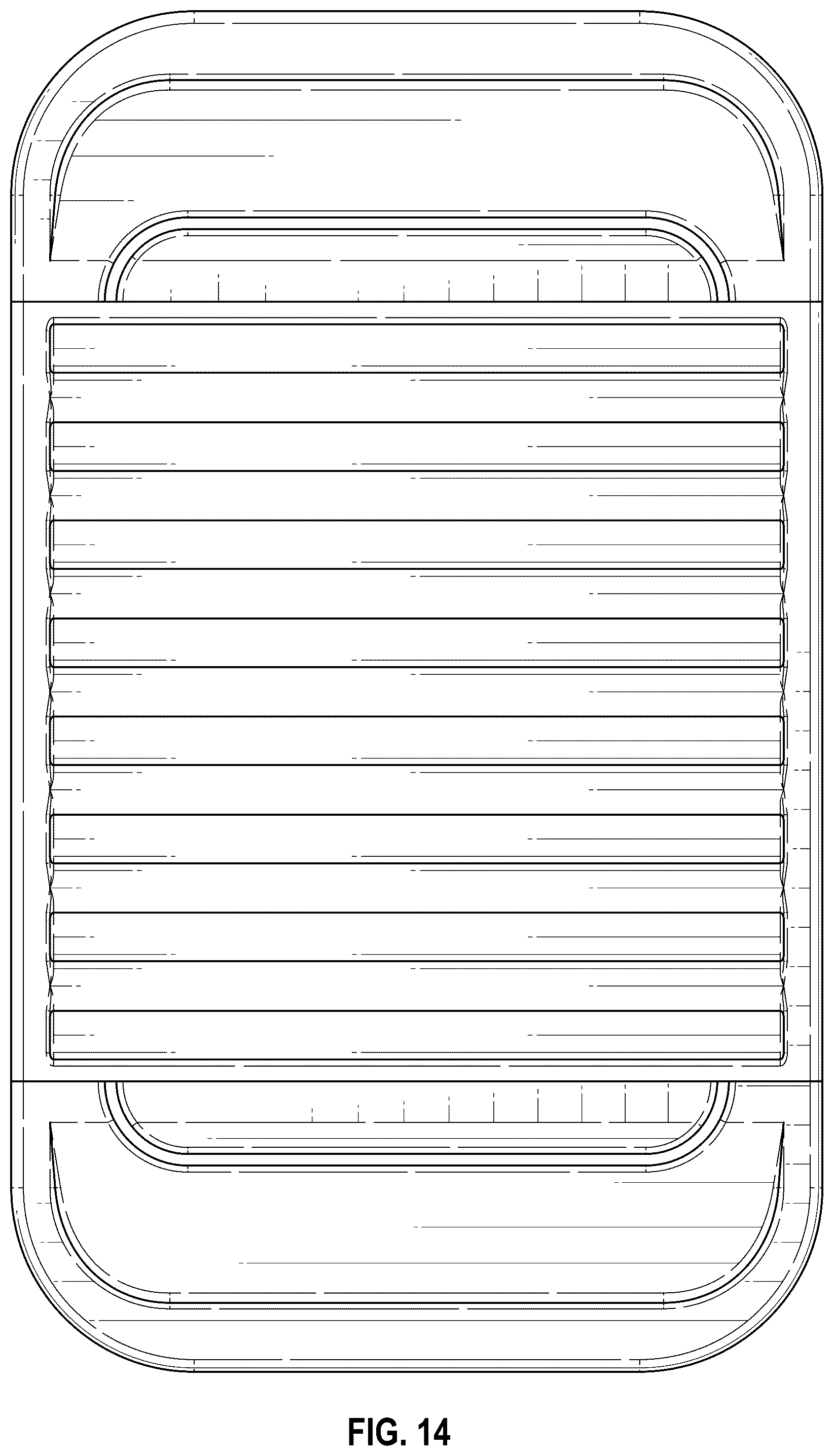

FIG. 14 is a top plan view thereof;

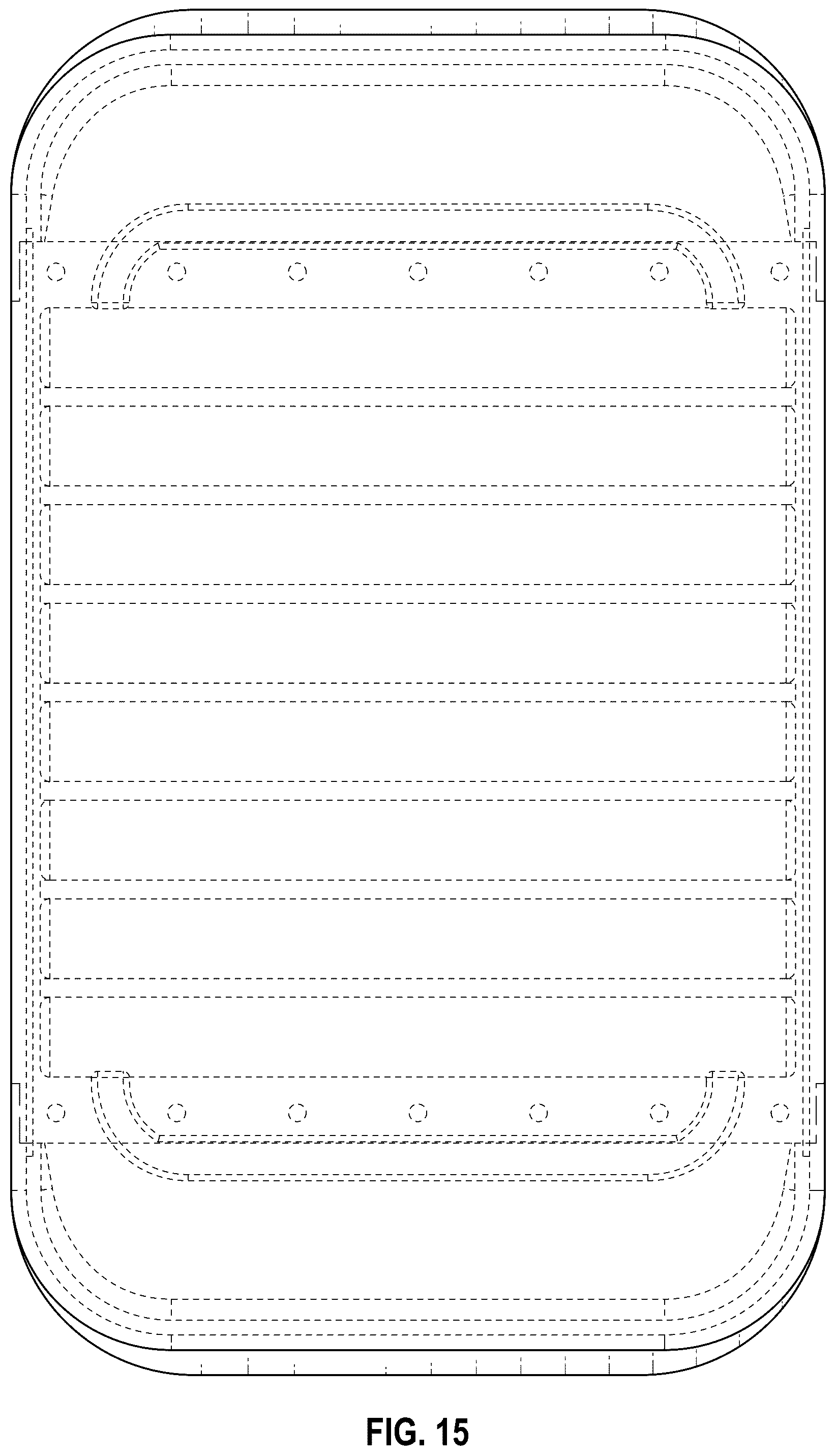

FIG. 15 is a bottom plan view thereof;

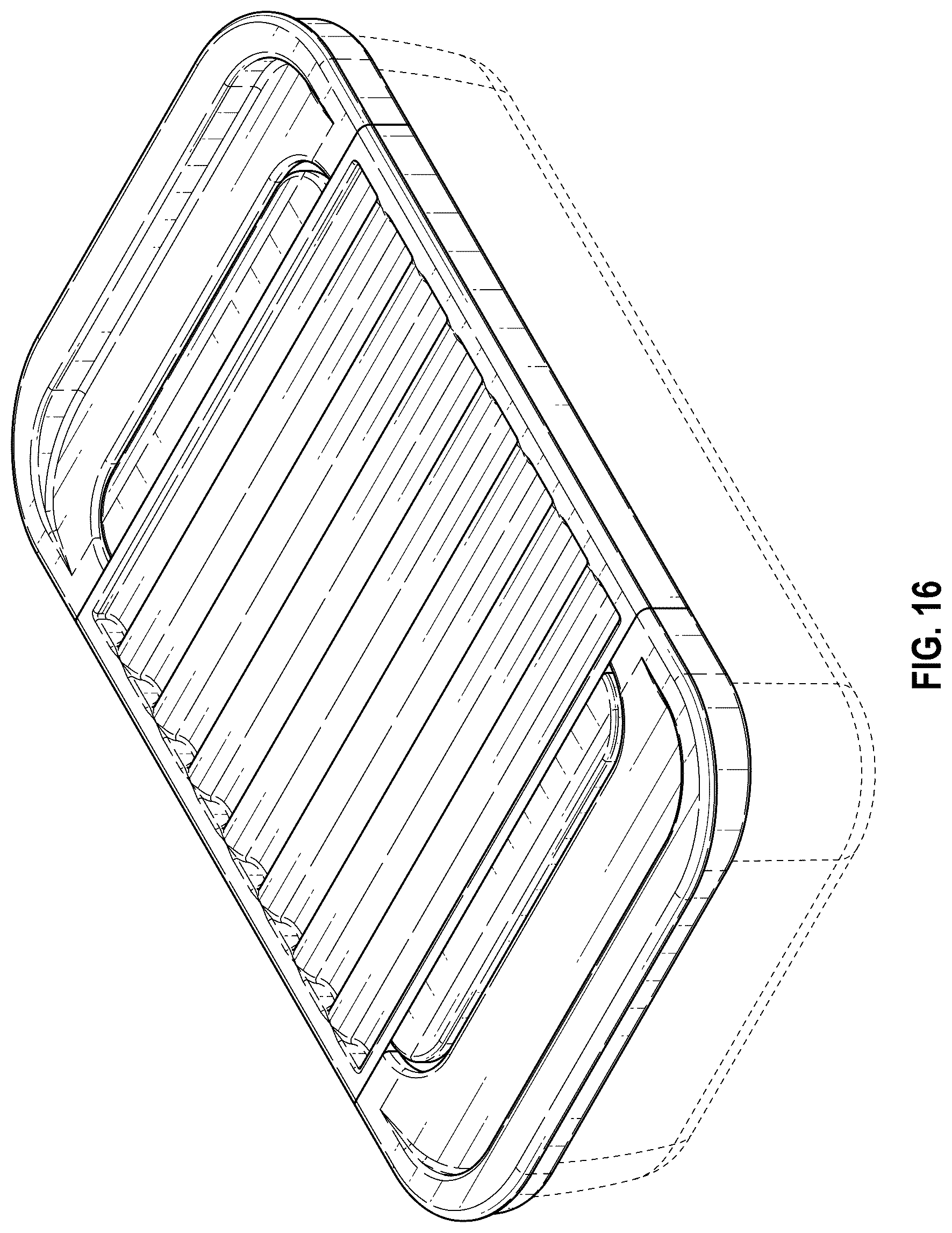

FIG. 16 is a perspective view taken from the top of the embodiment of FIG. 9 in a use condition;

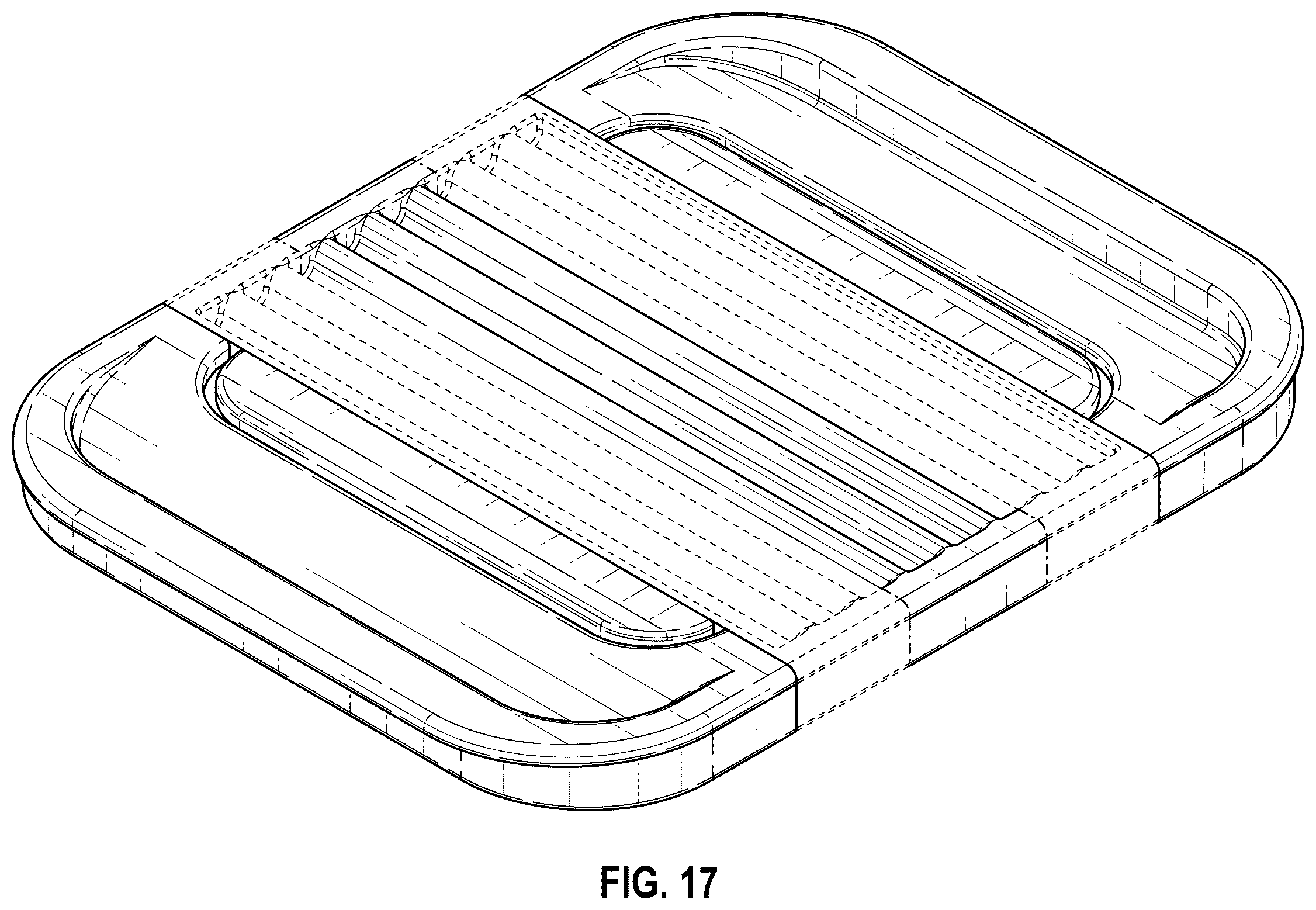

FIG. 17 is a perspective view taken from the top of an alternate embodiment of an expandable lid showing our new design;

FIG. 18 is a front elevation view thereof;

FIG. 19 is a rear elevation view thereof;

FIG. 20 is a left side elevation view thereof;

FIG. 21 is a right side elevation view thereof;

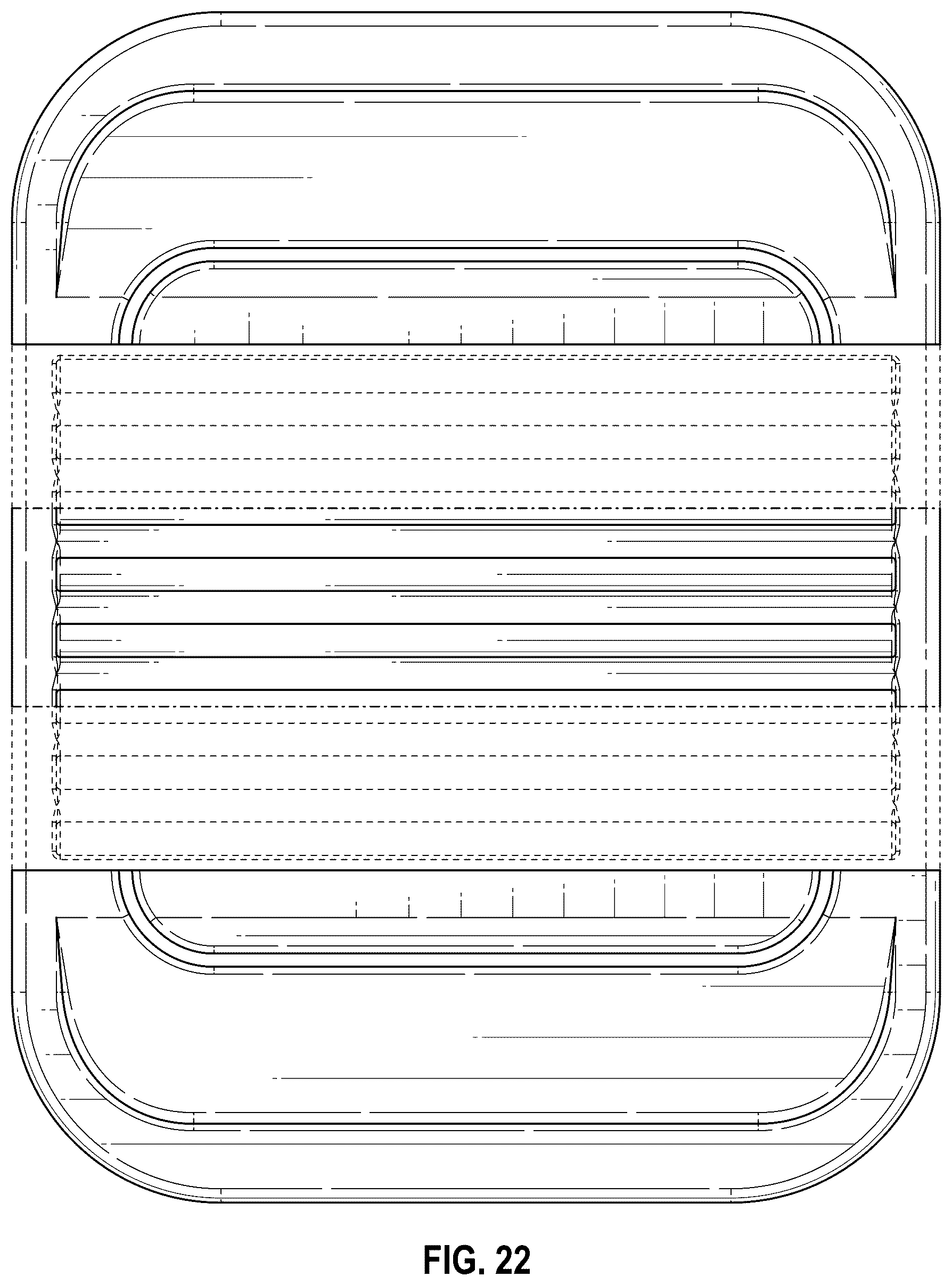

FIG. 22 is a top plan view thereof;

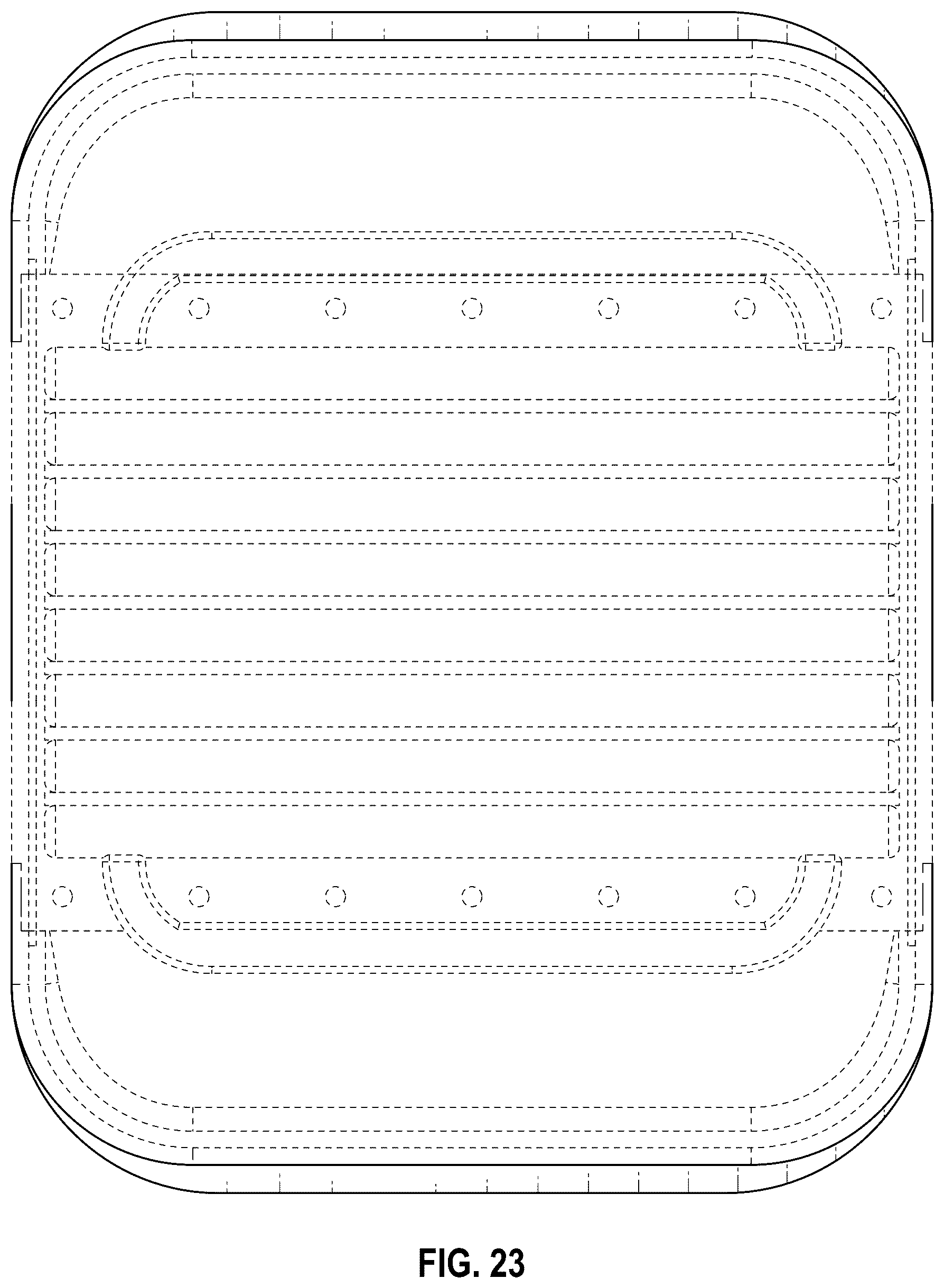

FIG. 23 is a bottom plan view thereof; and,

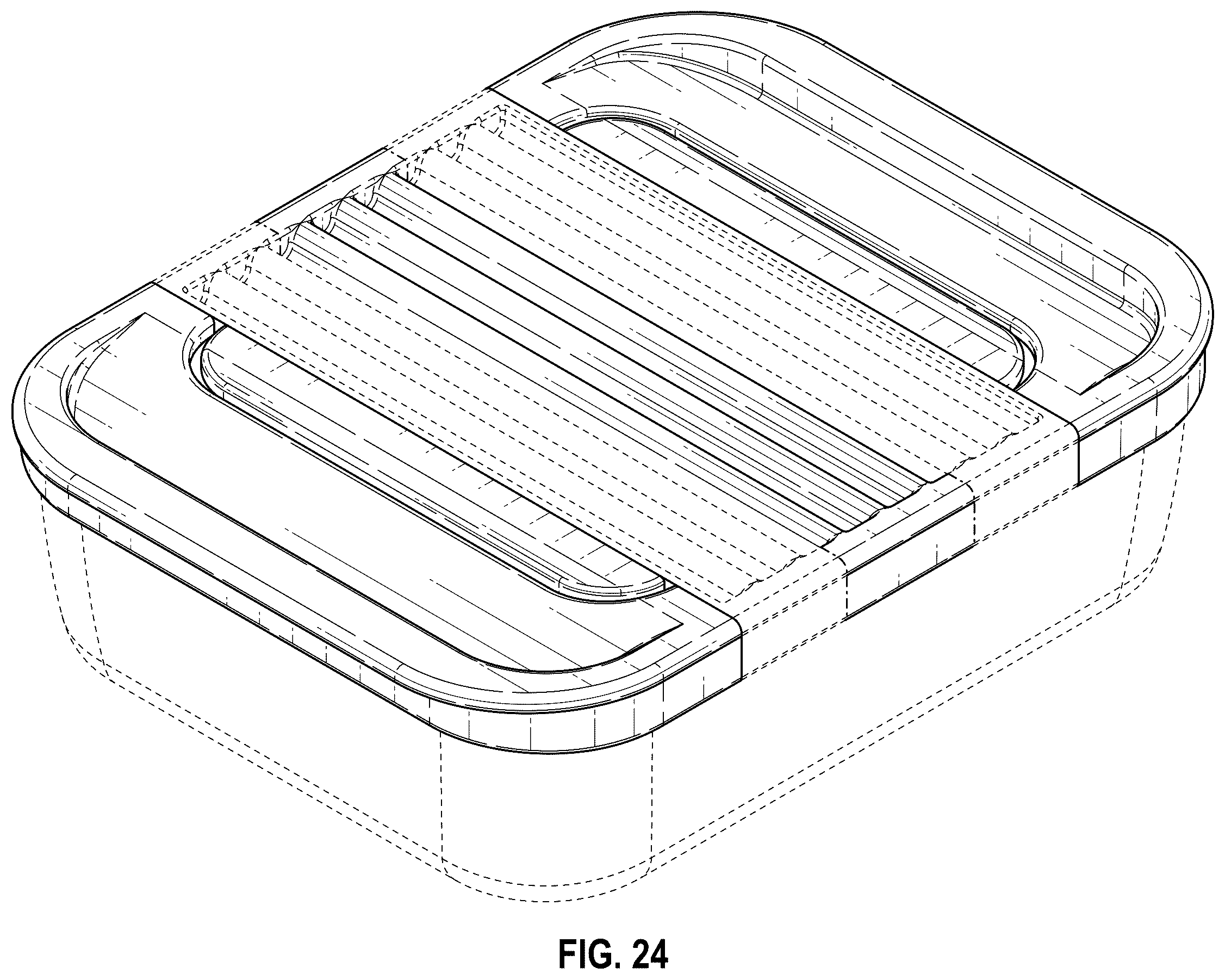

FIG. 24 is a perspective view taken from the top of the embodiment of FIG. 17 in a use condition.

The broken lines showing a container bottom in FIGS. 8 , 16 and 24 illustrate environment, and form no part of the claimed design. The broken lines shown in the expandable lid depict portions of the expandable lid, and form no part of the claimed design. The dot-dash-dot broken lines denote boundaries of the claim, and form no part of the claimed design.
