Patents/USD1123519

Plate Sleeve

USD1123519No. D 1,123,519designGranted 4/28/2026
Patent USD1123519 — Plate sleeve — Figure 1
Fig. 1 · Plate Sleeve

Claims (1)

Claim 1 (Independent)

The ornamental design for a plate sleeve as shown and described.

Full Description

Show full text →

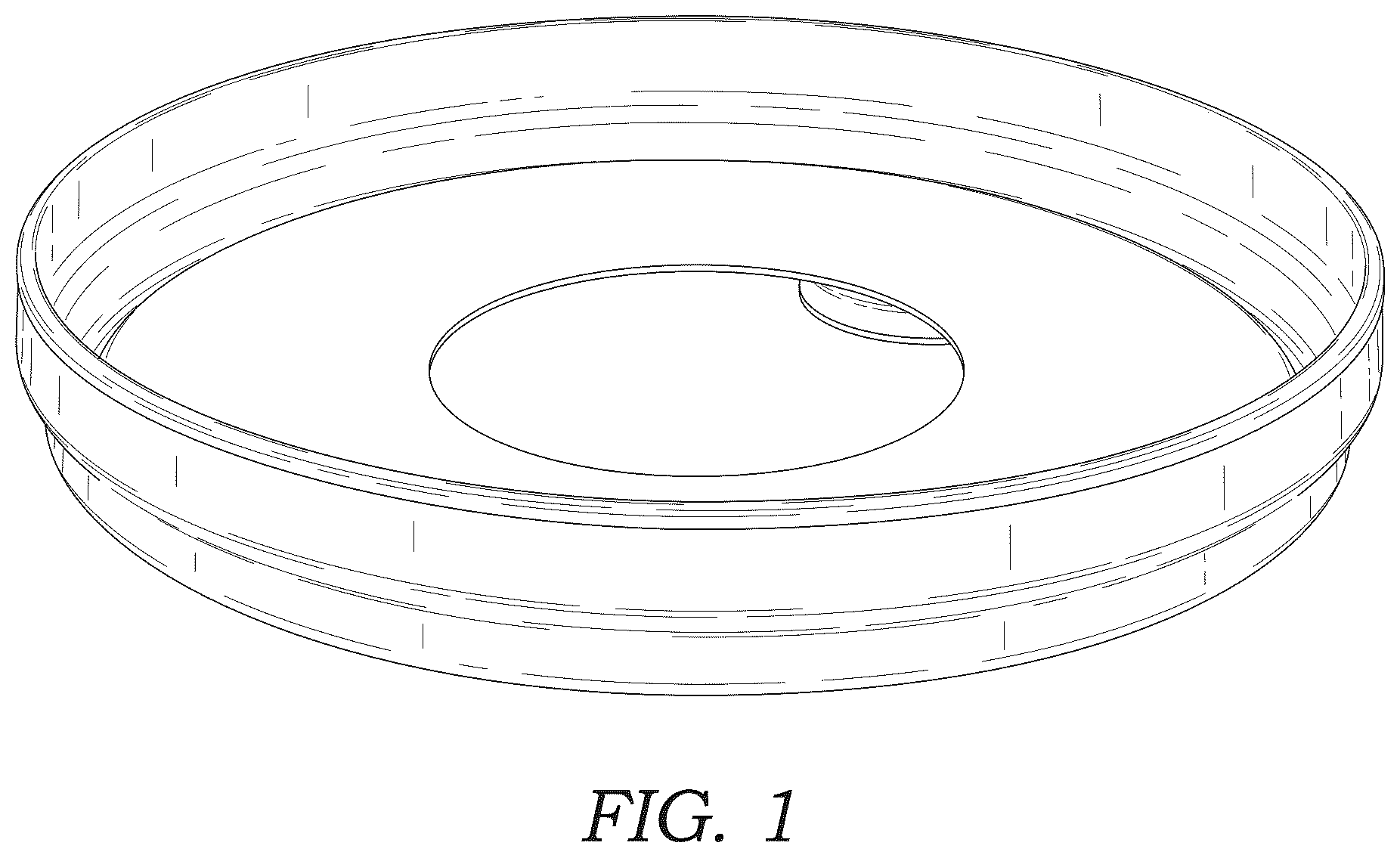

is a perspective view of a plate sleeve, showing the new design;

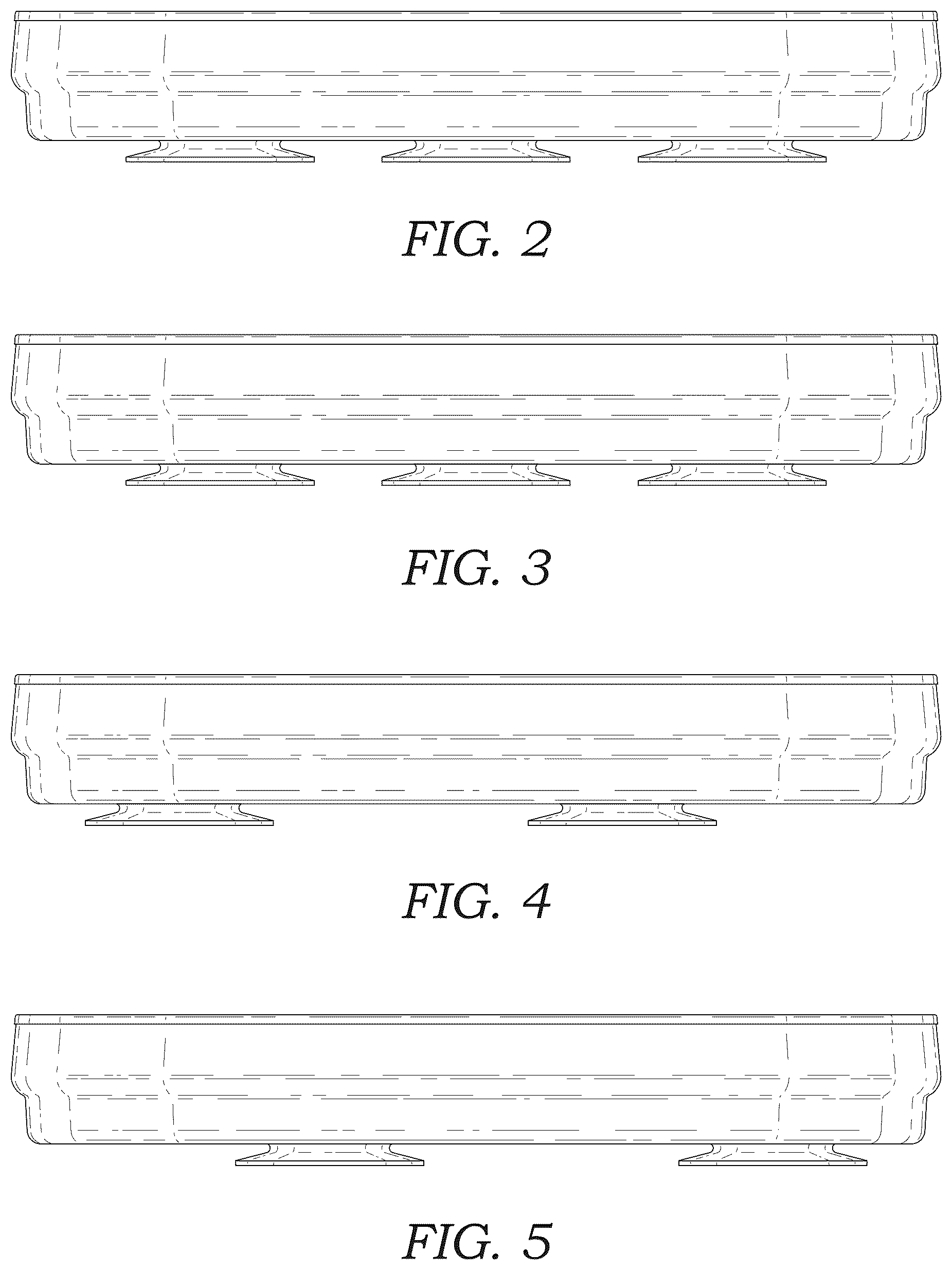

is a front elevation view thereof;

is a rear elevation view thereof;

is a left side elevation view thereof;

is a right side elevation view thereof;

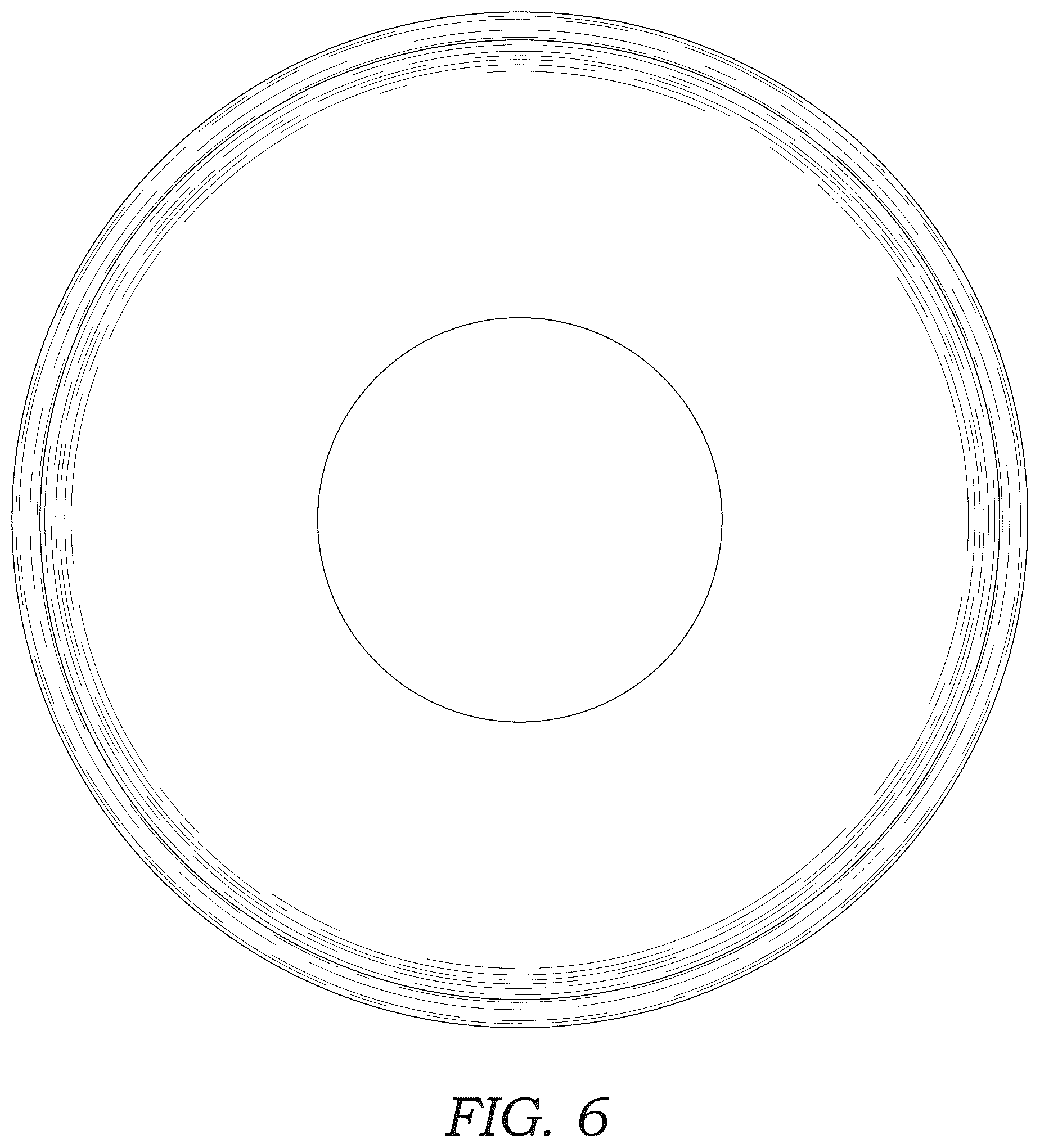

is a top plan view thereof; and,

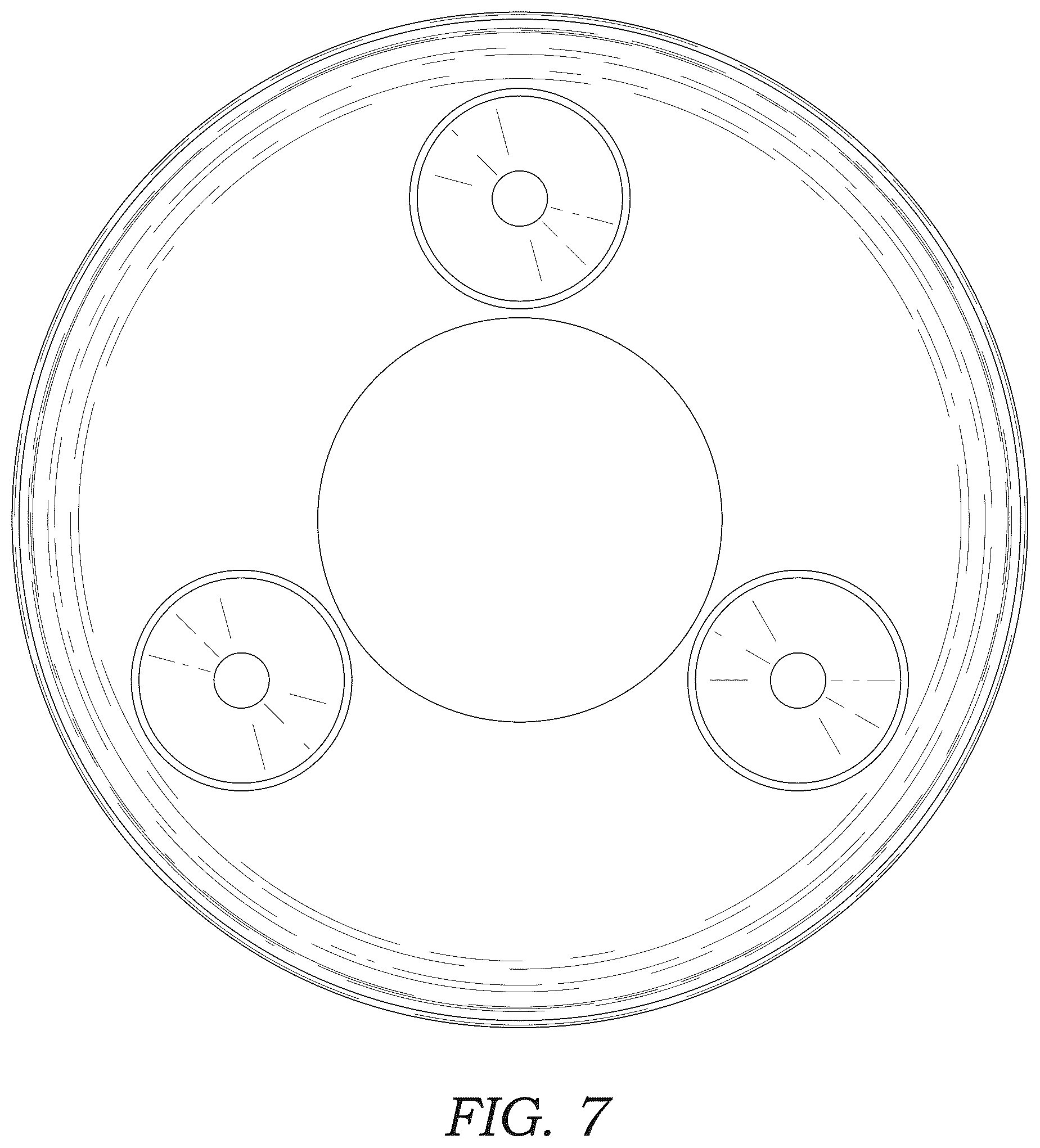

is a bottom plan view thereof.

Figures (4)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
