Shelving Unit

USD1123466No. D 1,123,466designGranted 4/28/2026

Claims (1)

Claim 1 (Independent)

The ornamental design for a shelving unit, as shown and described.

Full Description

Show full text →

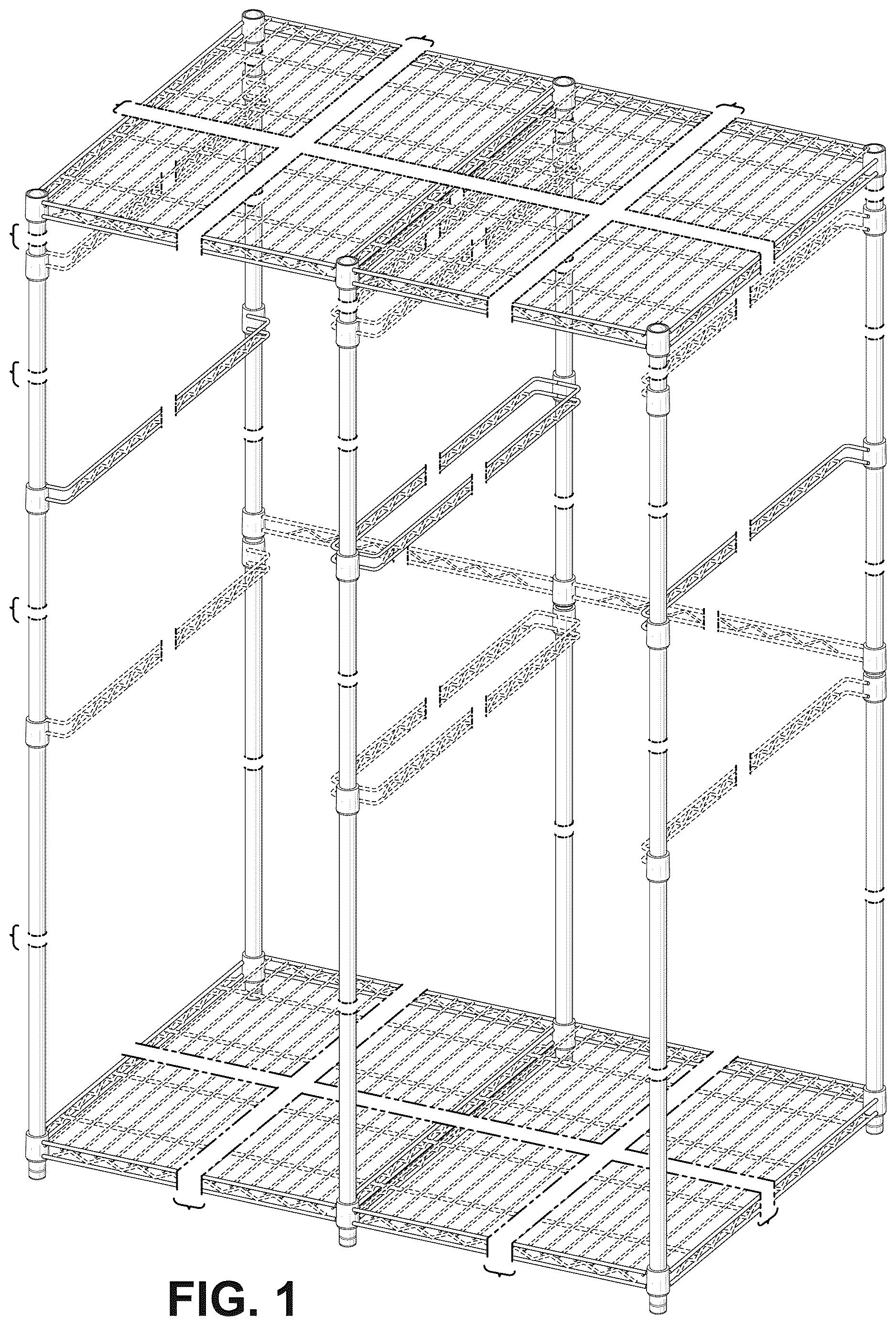

is an elevated perspective view of a shelving unit showing the new design;

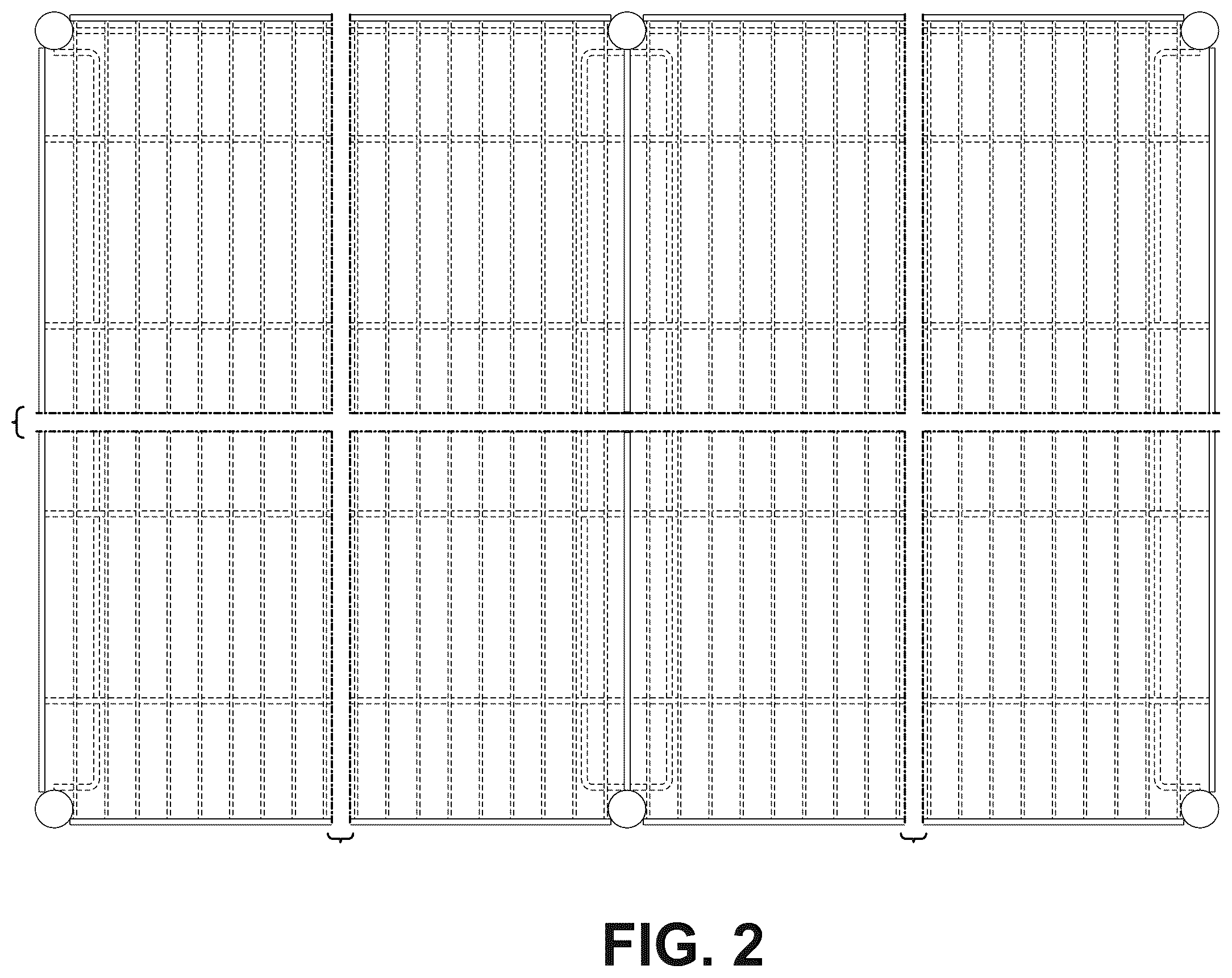

is a top view with storage bins supported by the shelving unit of ;

is a bottom view of the shelving unit of ;

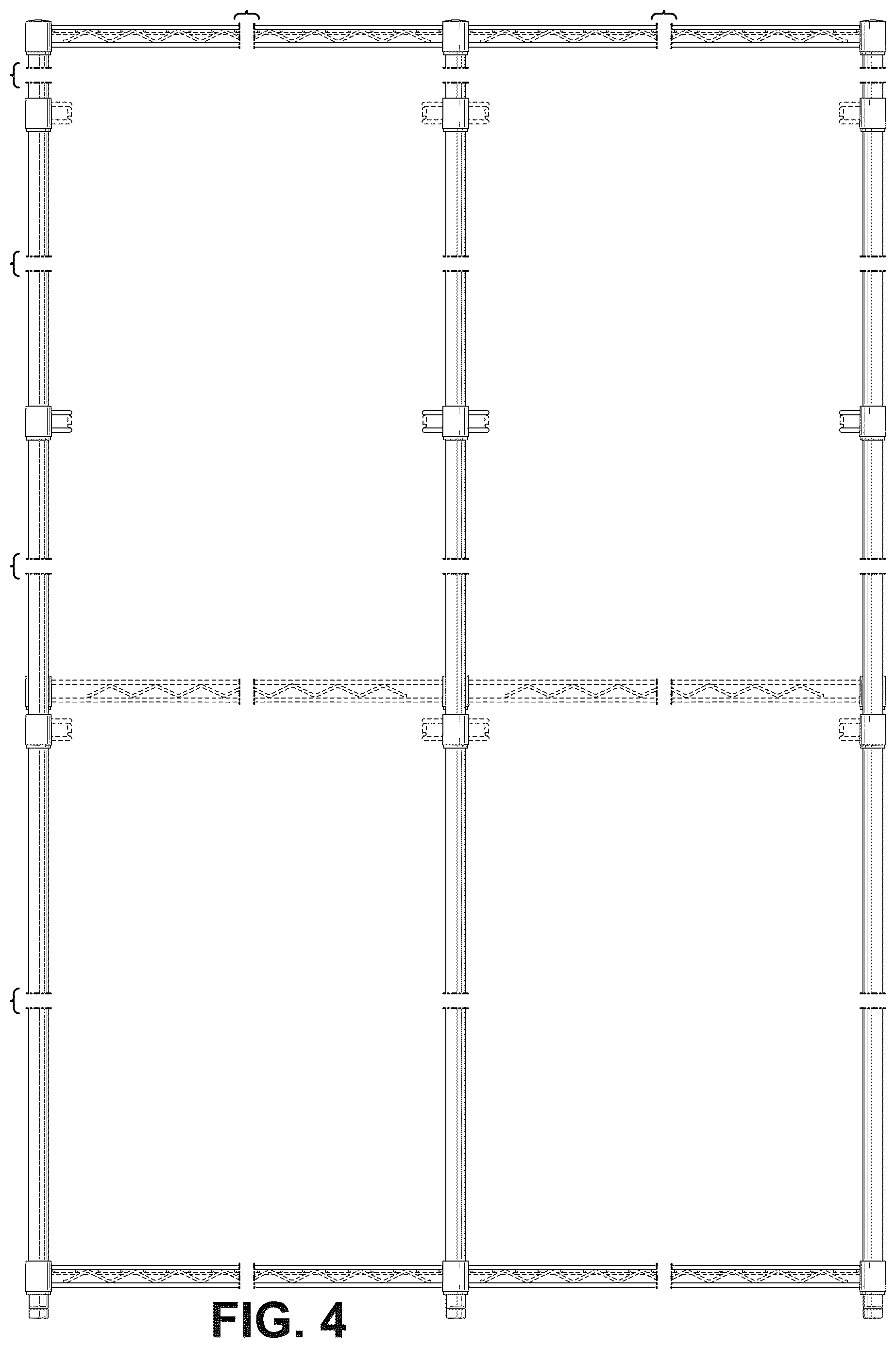

is a front view of the shelving unit of ;

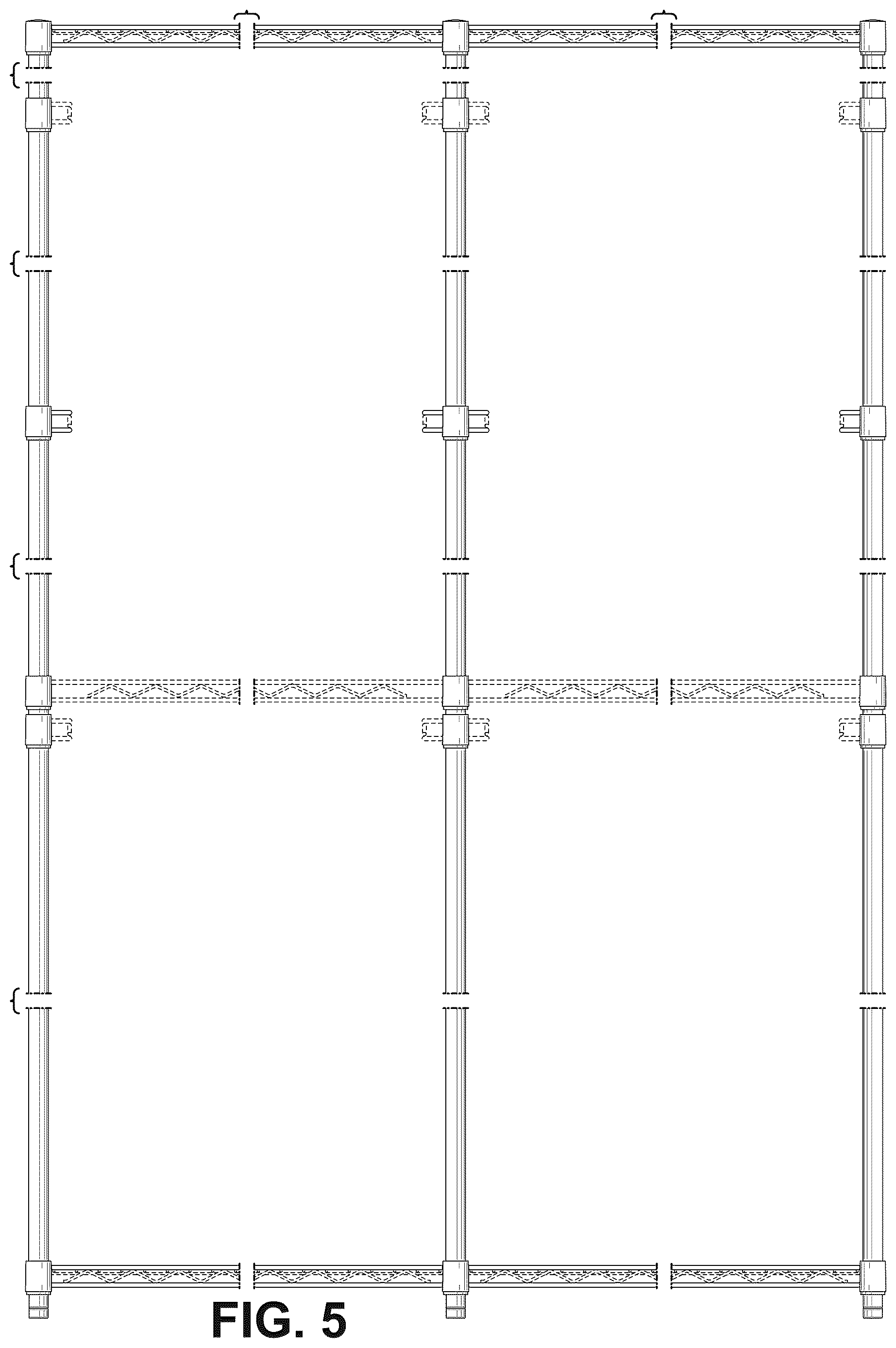

is a rear view of the shelving unit of ;

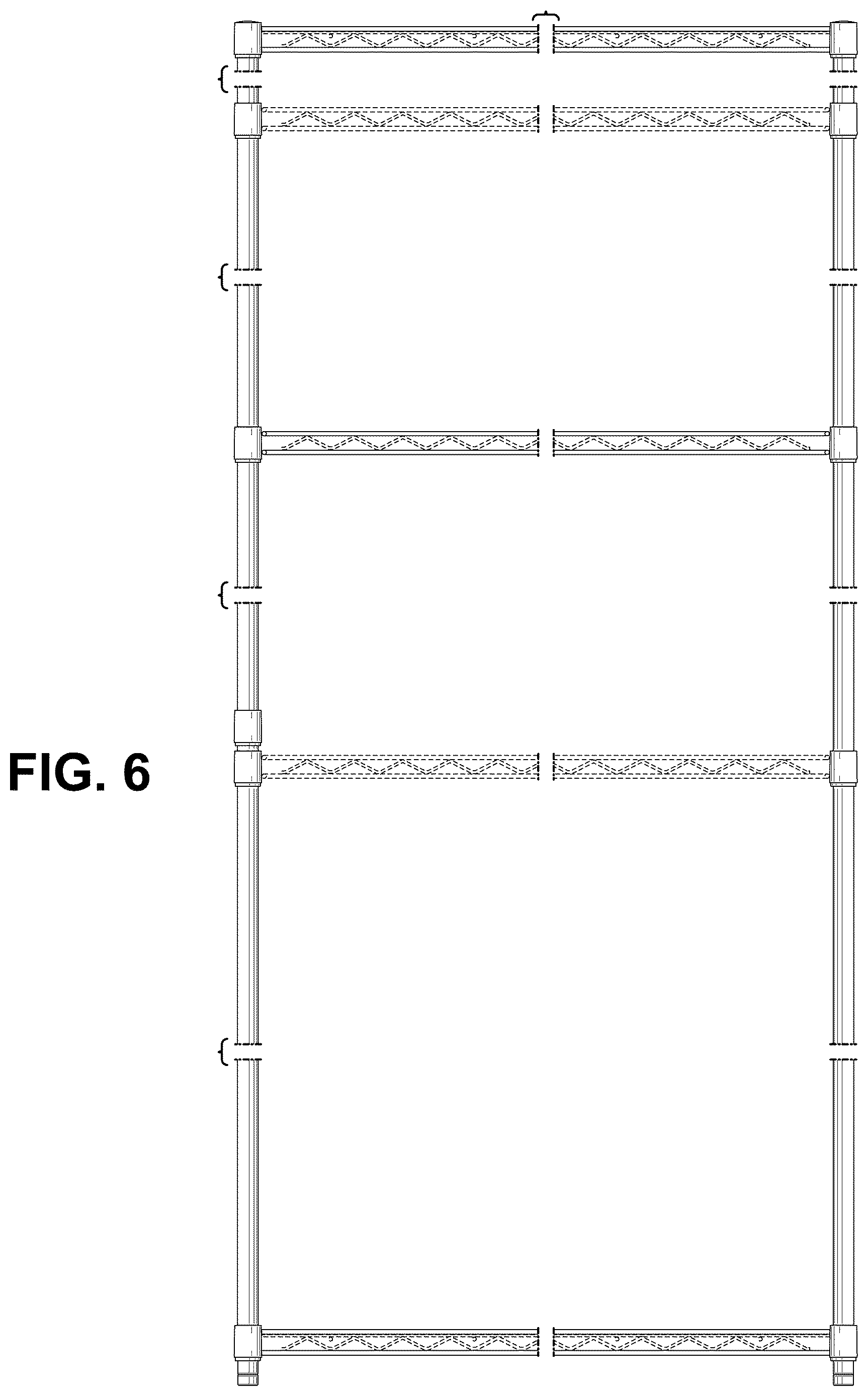

is a left-side view of the shelving unit of ;

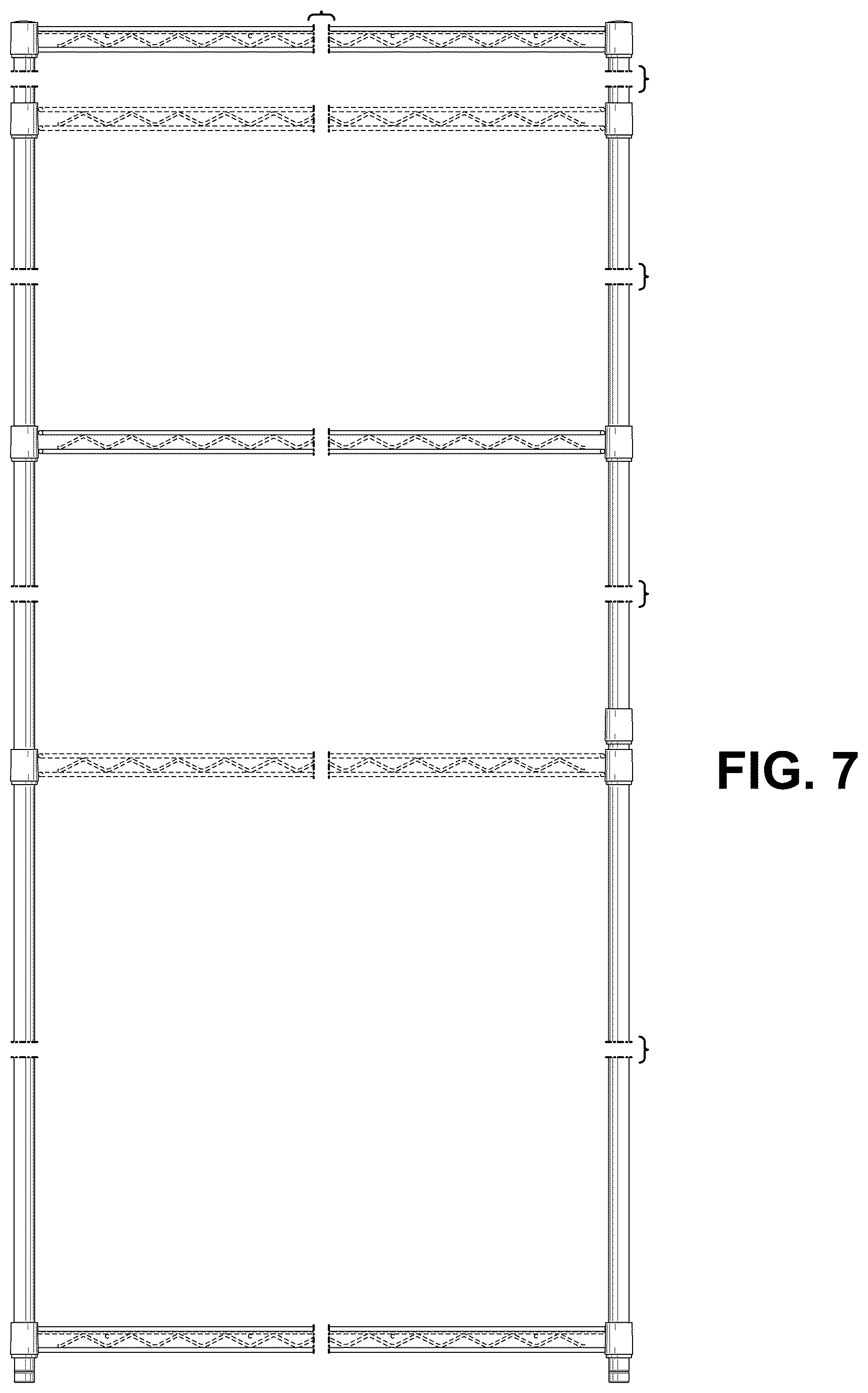

is a right-side view of the shelving unit of ;

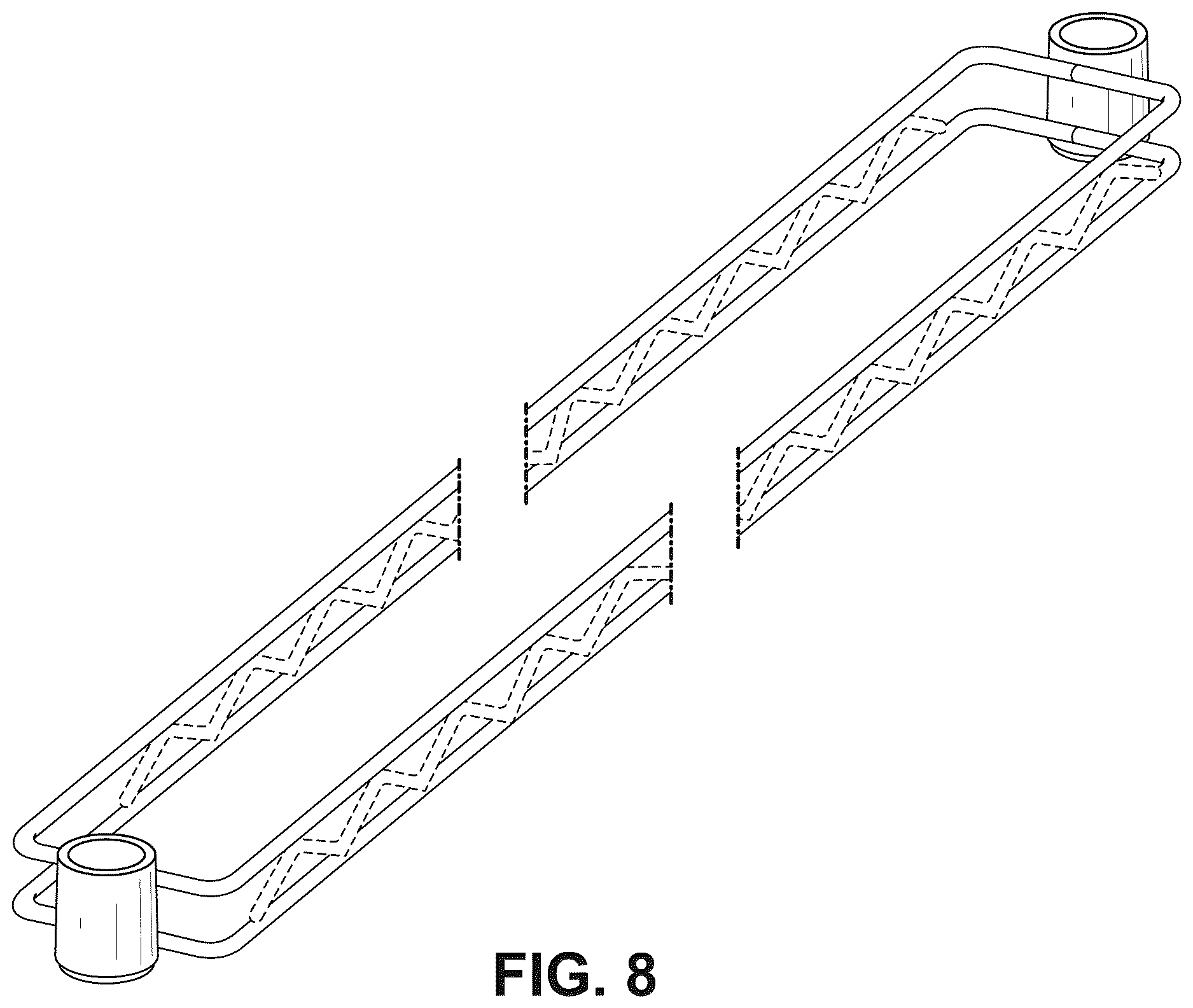

is a perspective view of a coupling module of the shelving unit of ;

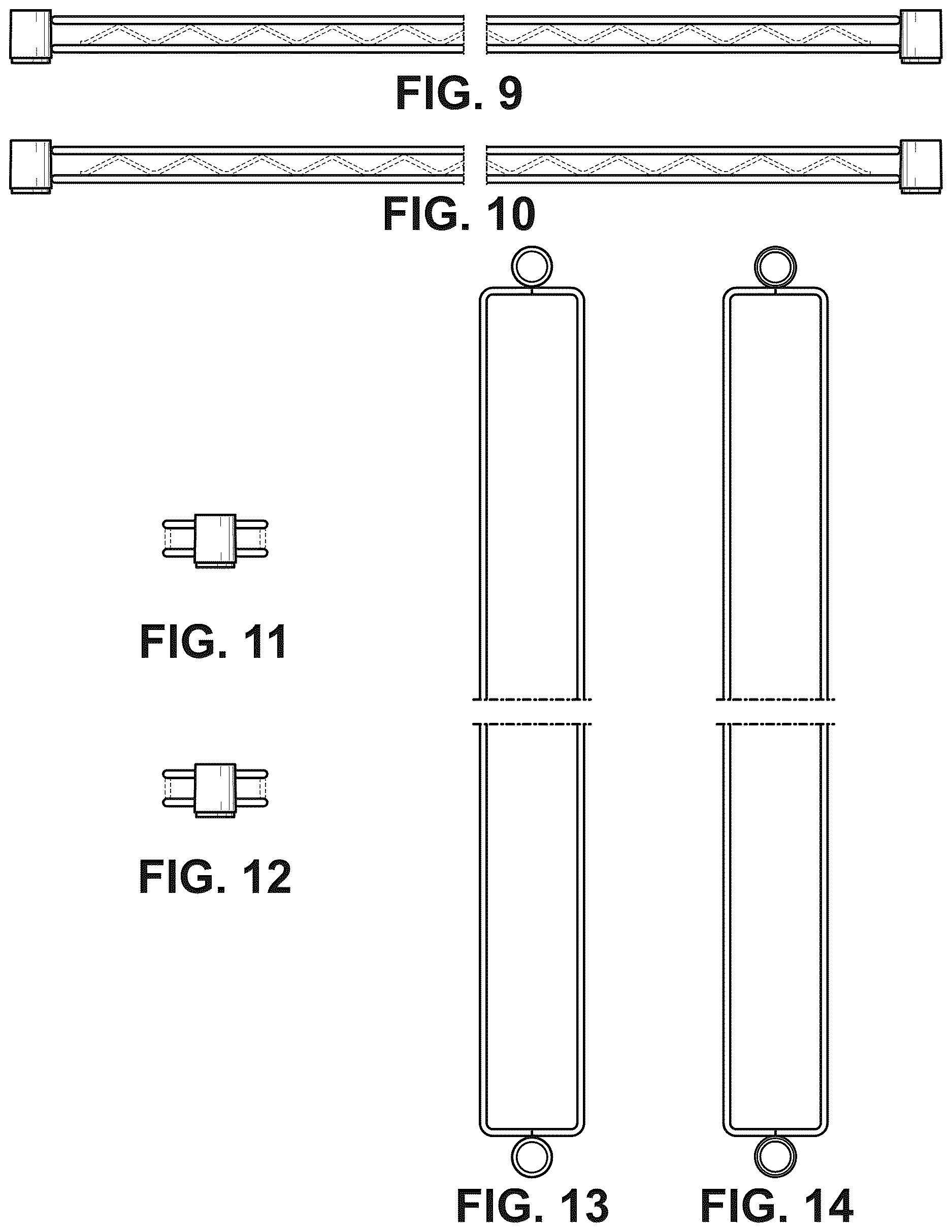

is a left-side view of the coupling module of the shelving unit of ;

is a right-side view of the coupling module of the shelving unit of ;

is a front view of the coupling module of the shelving unit of ;

is a rear-side view of the coupling module of the shelving unit of ;

is a top view of the coupling module of the shelving unit of ; and,

is a bottom view of the coupling module of the shelving unit of .

The claimed ornamental design is shown embodied on an assembly that may be used, for example, as a vertical shelving unit. In an illustrative example, the claimed ornamental design may operate as a stowage area for bins. The broken lines shown in the drawings illustrate unclaimed features and form no part of the claimed design. Dash-dot-dash, dash-dot-dot-dash lines, and brackets in the drawings indicate an indeterminate length, and themselves form no part of the claimed design. This disclosure encompasses embodiments in which any one or combination of the indeterminate length markings are removed, and the length is as shown. Where no boundary line is shown between solid lines, this disclosure encompasses at least a corresponding embodiment in which a boundary line connects the ends of solid lines to demarcate a boundary between a claimed portion and an unclaimed portion.
