Brush

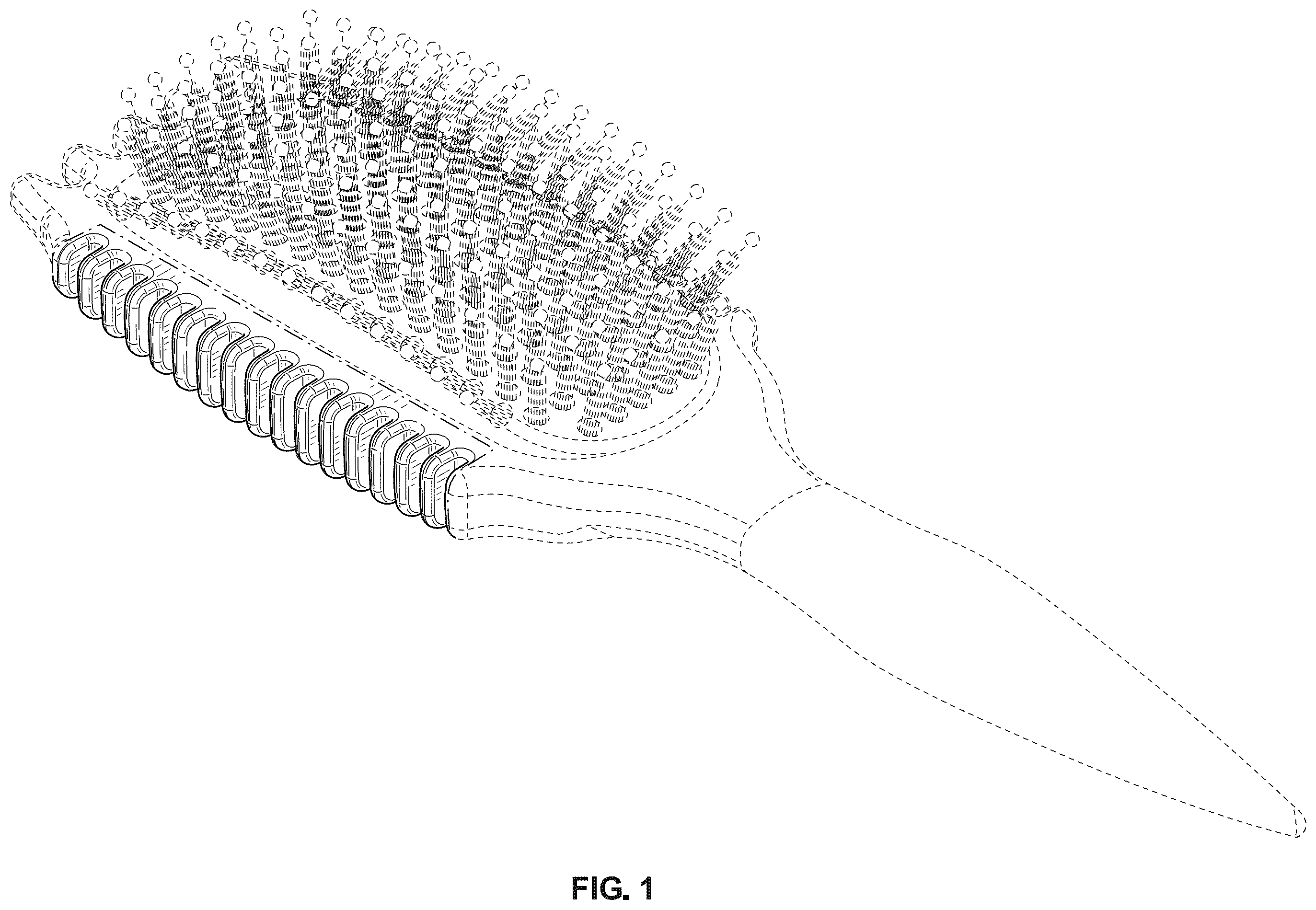

is a top perspective view of a brush showing my new design according to a first embodiment;

is a top plan view thereof;

is a bottom plan view thereof;

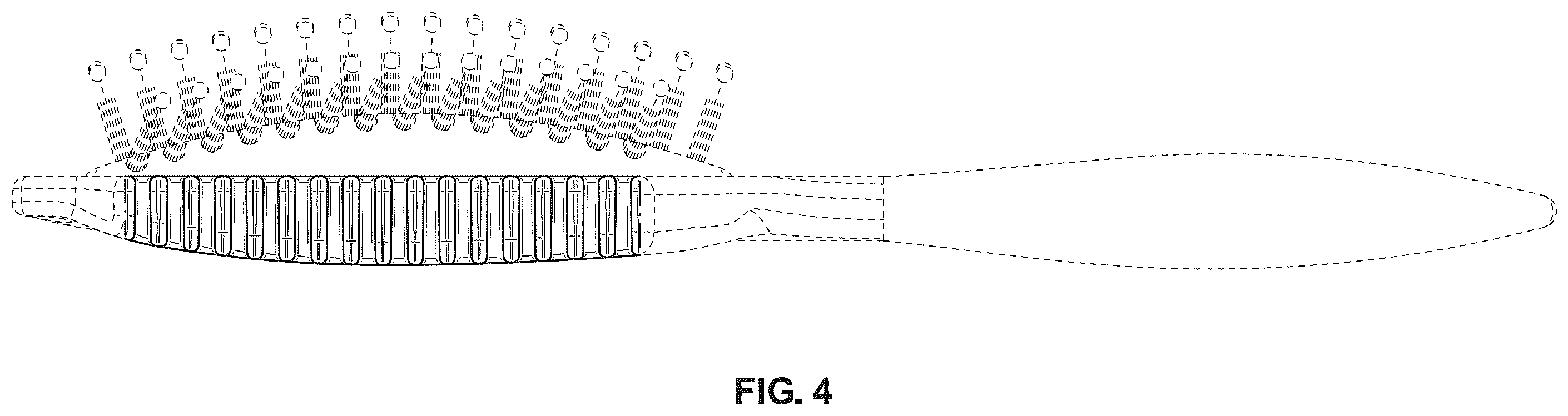

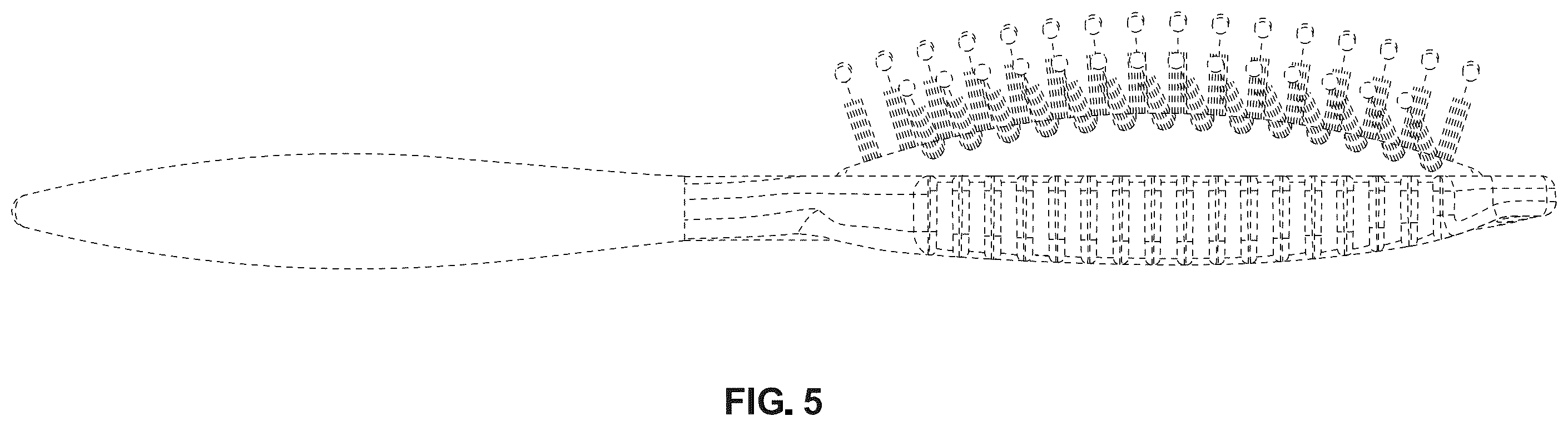

is a left side elevation view thereof;

is a right side elevation view thereof;

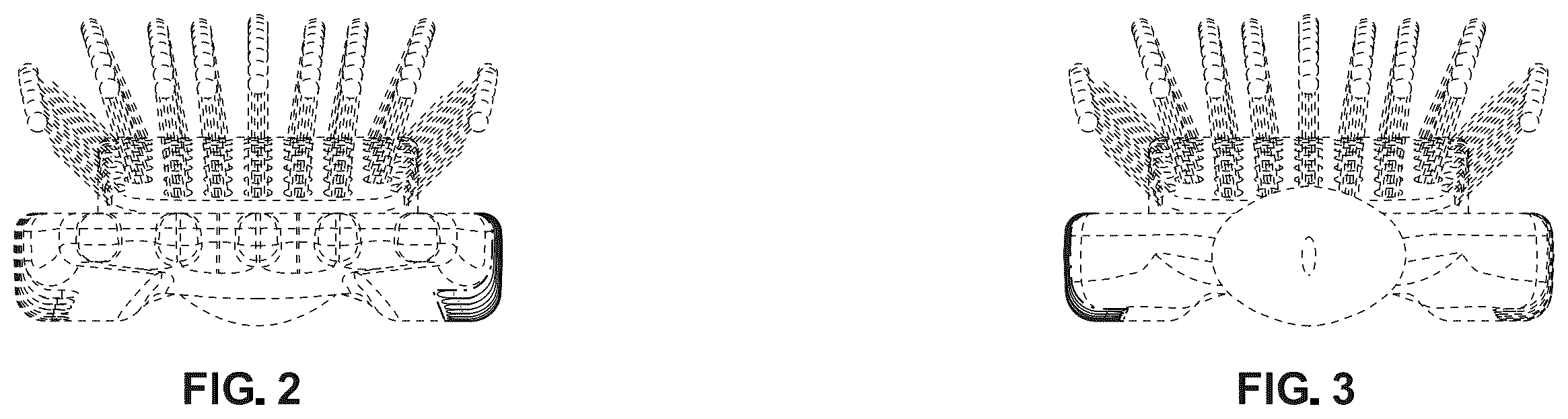

is a front elevation view thereof;

is a rear elevation view thereof;

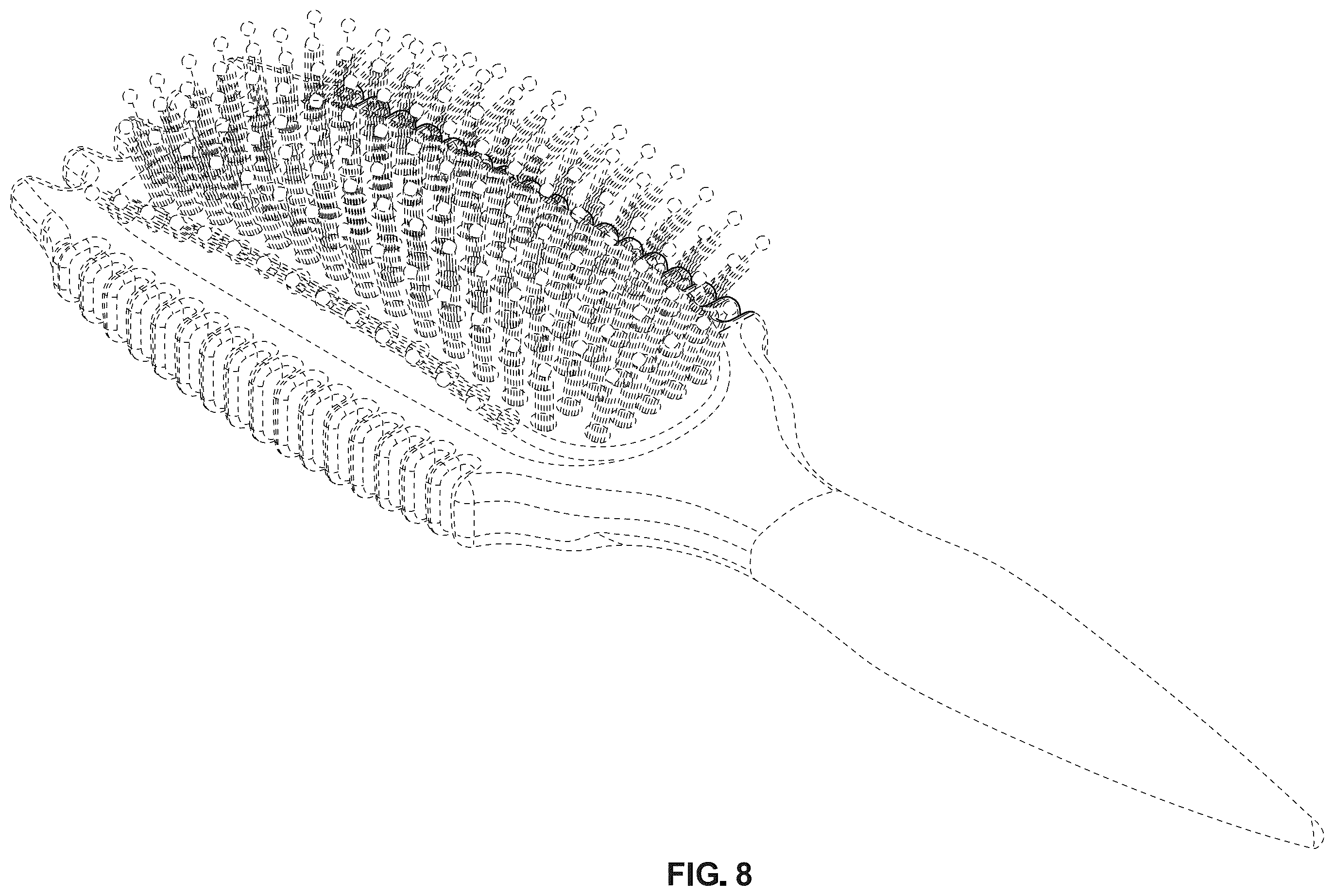

is a top perspective view of the brush showing my new design according to a second embodiment.

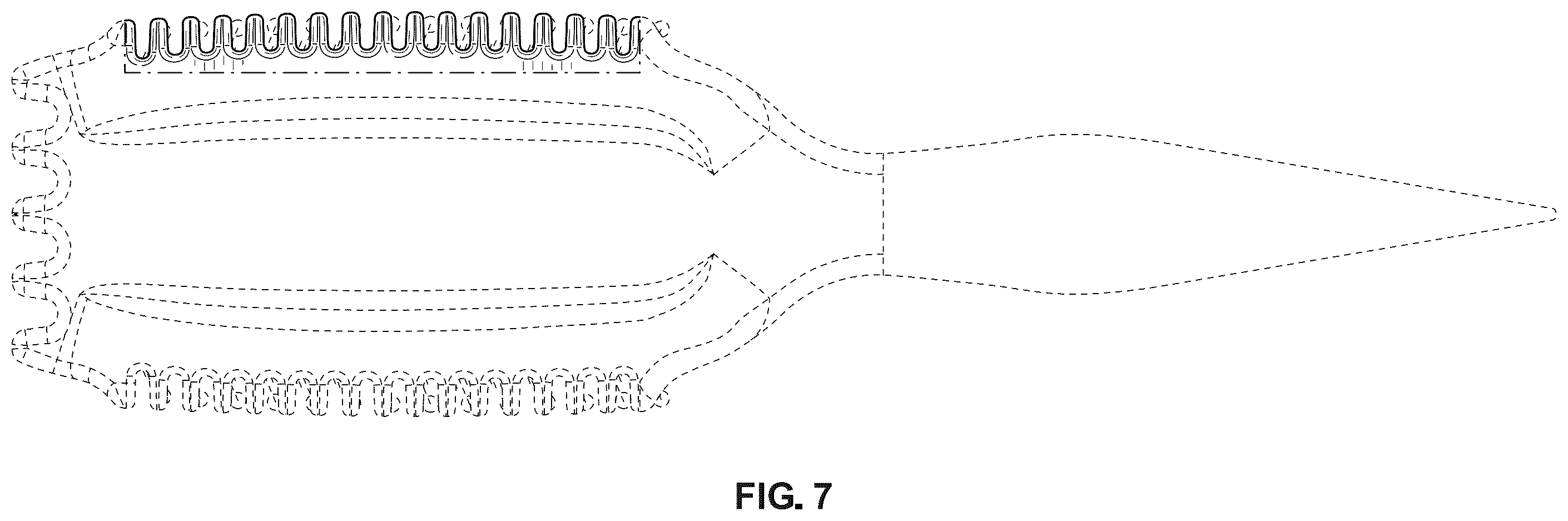

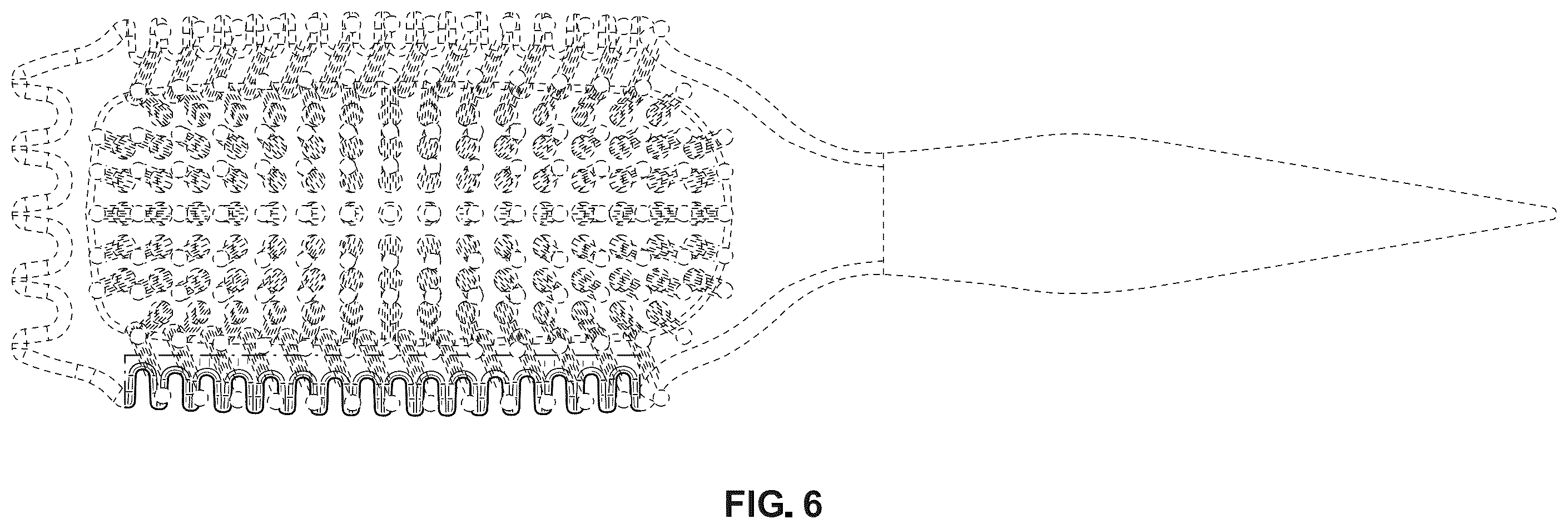

is a top plan view thereof;

is a bottom plan view thereof;

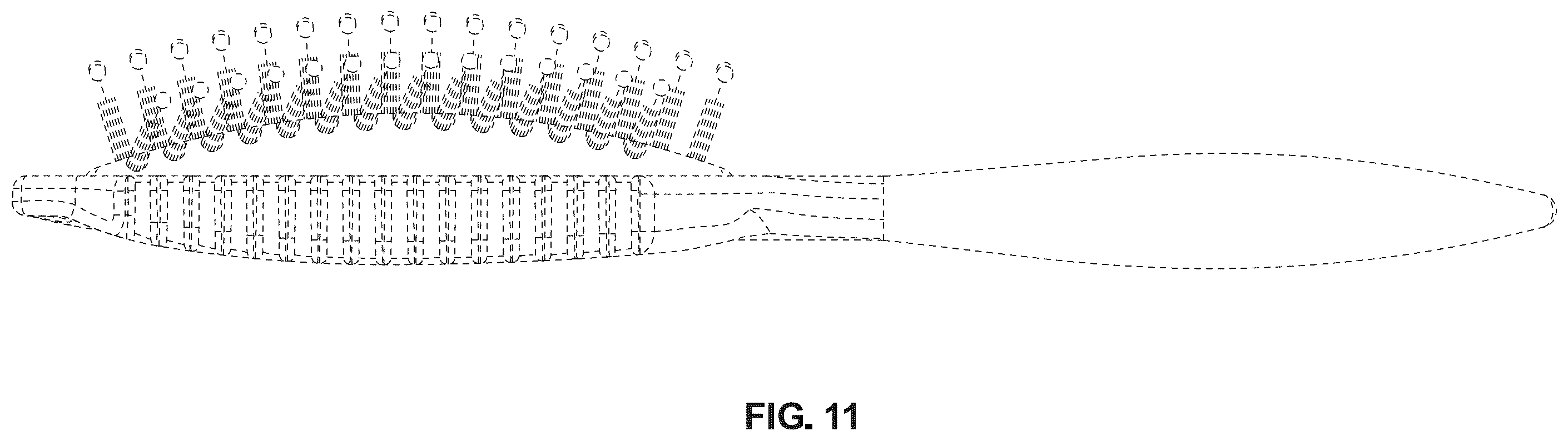

is a left side elevation view thereof;

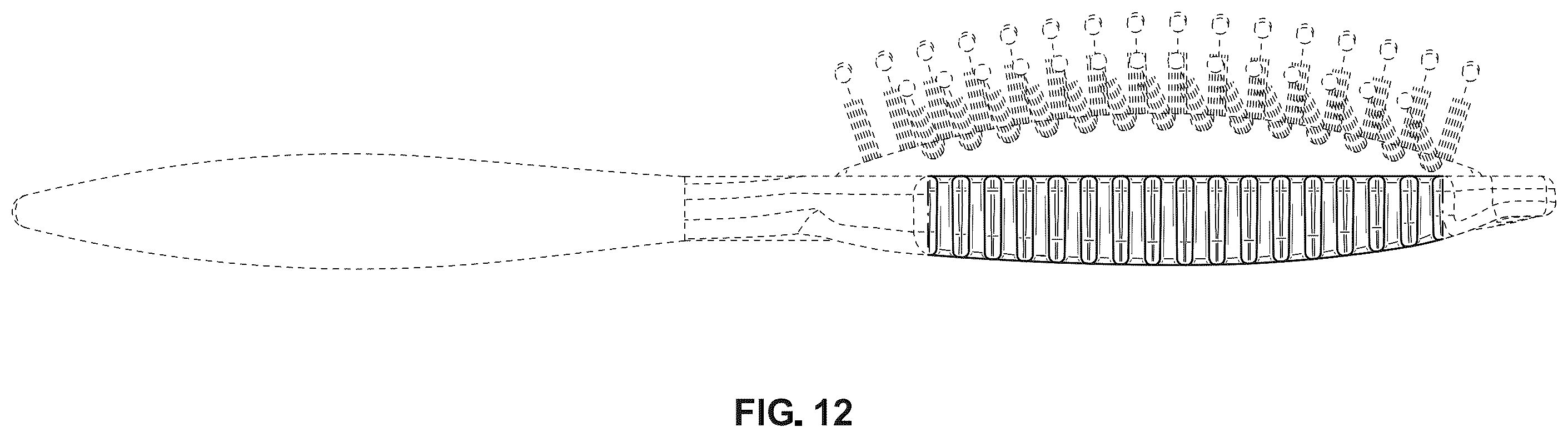

is a right side elevation view thereof

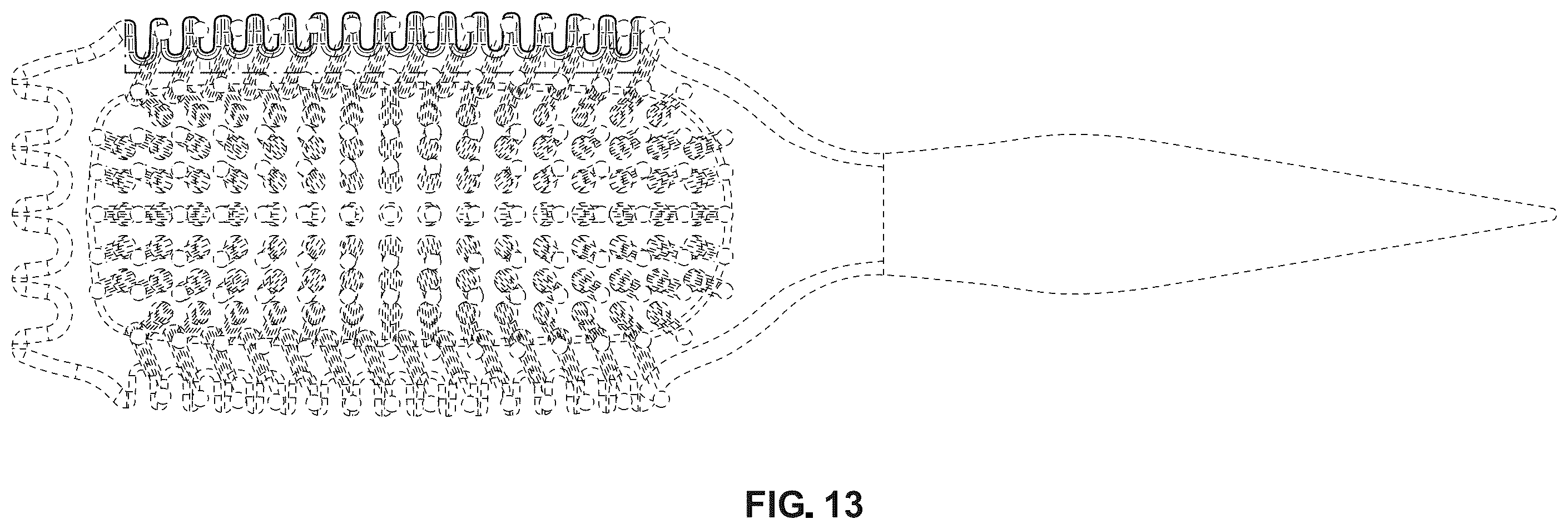

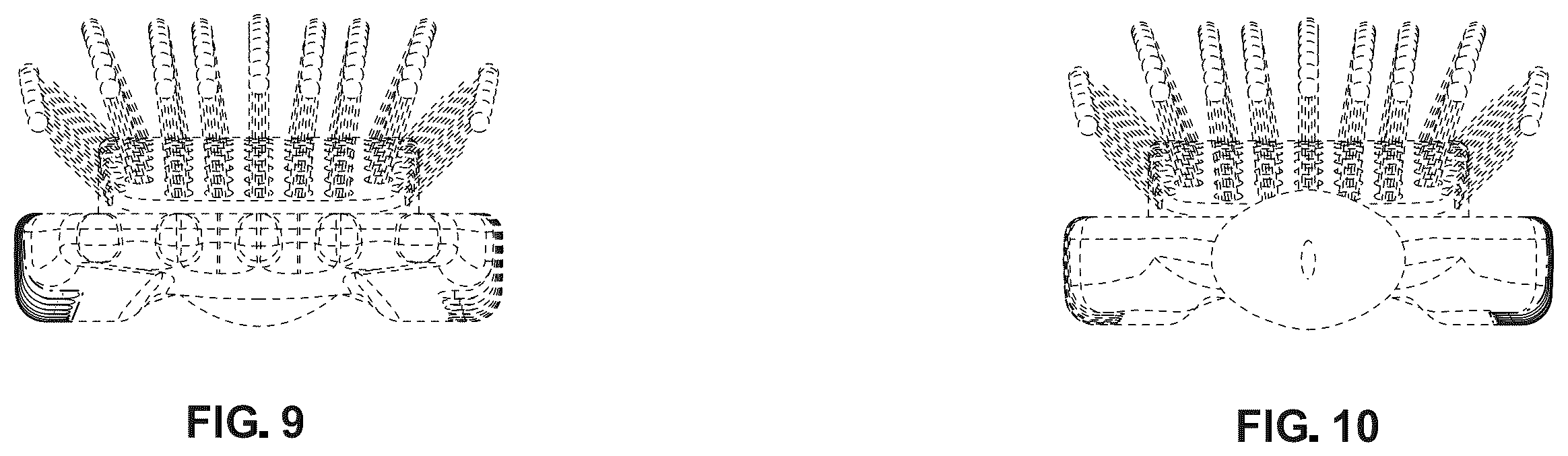

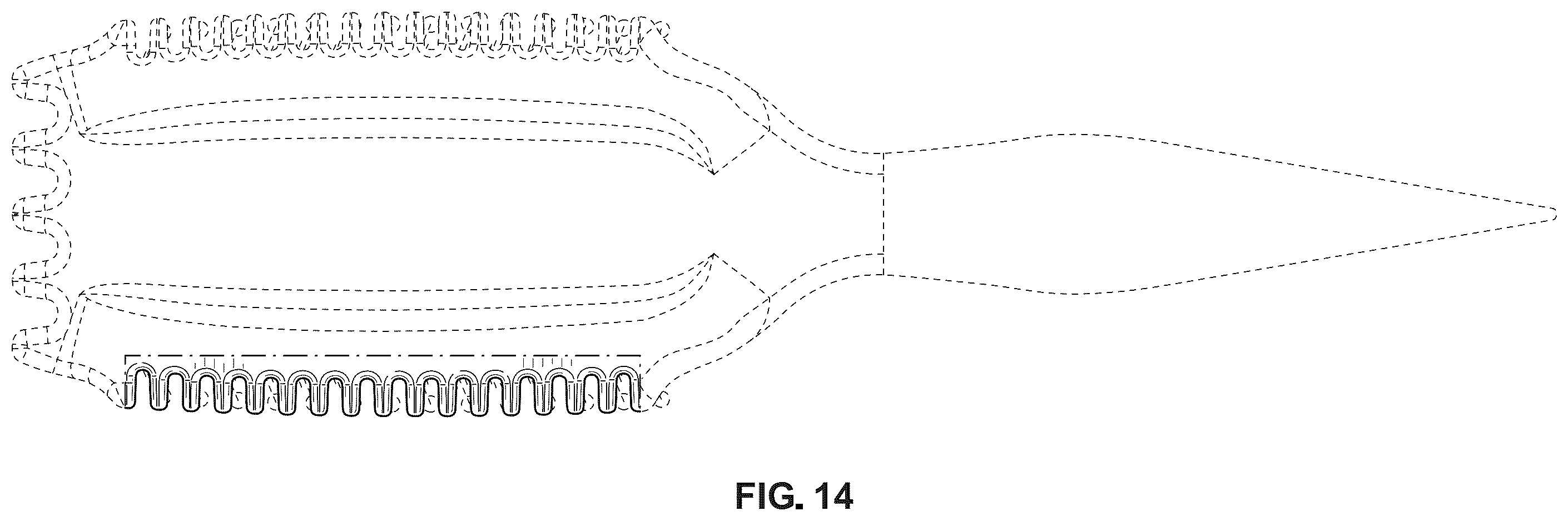

is a front elevation view; and,

is a rear elevation view.

The dashed broken lines in the figures illustrate portions of the brush that form no part of the claimed design. The dot-dash broken lines in the figures define the boundaries of the claimed design and form no part thereof.
