Toothbrush Head

USD1123406No. D 1,123,406designGranted 4/28/2026
Patent USD1123406 — Toothbrush head — Figure 1
Fig. 1 · Toothbrush Head

Claims (1)

Claim 1 (Independent)

The ornamental design for a toothbrush head, as shown and described.

Full Description

Show full text →

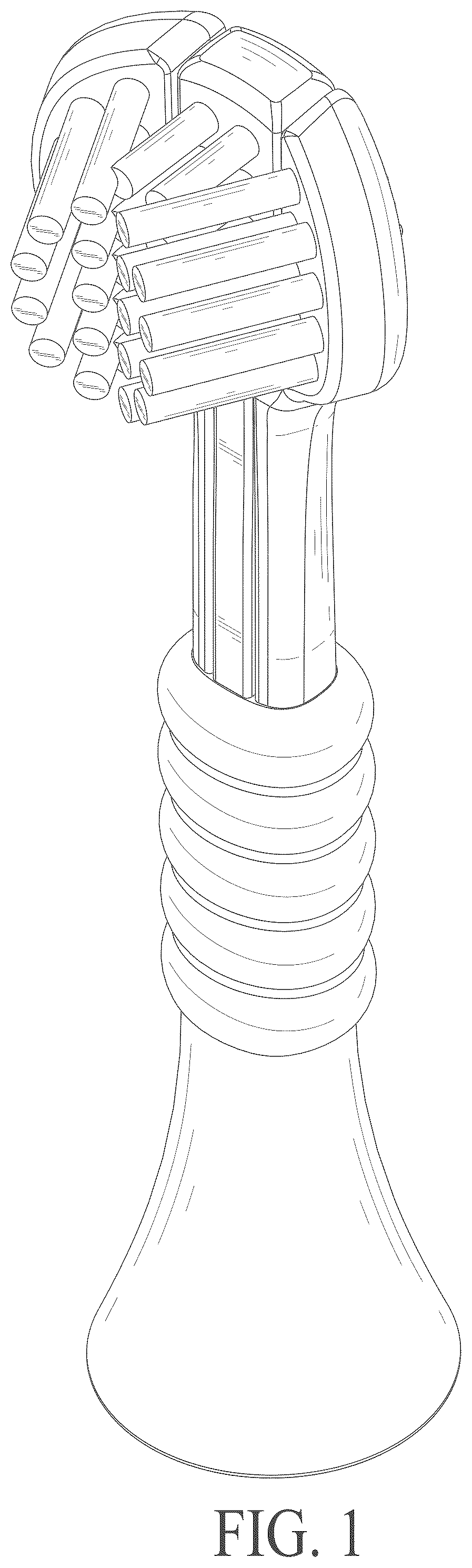

is a front perspective view of a toothbrush head, showing my new design;

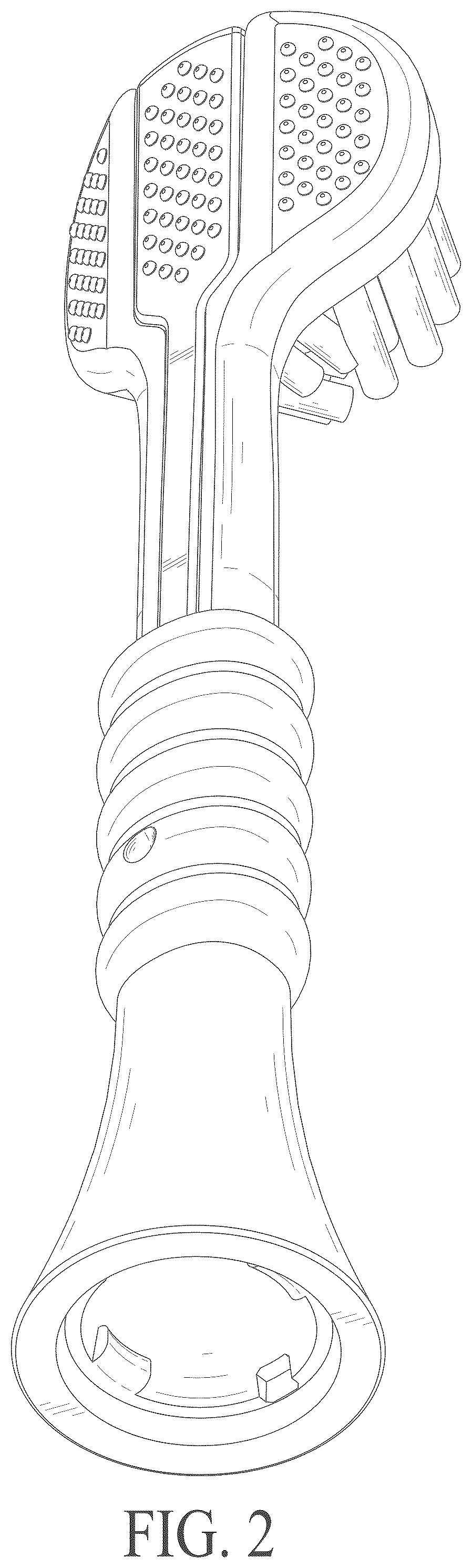

is a rear perspective view thereof;

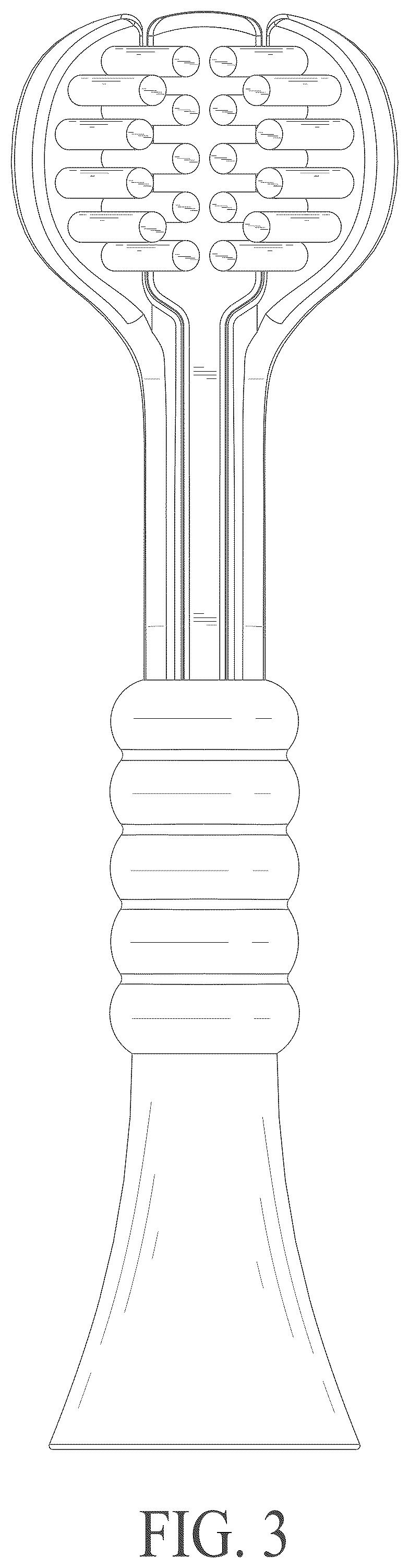

is a front view thereof;

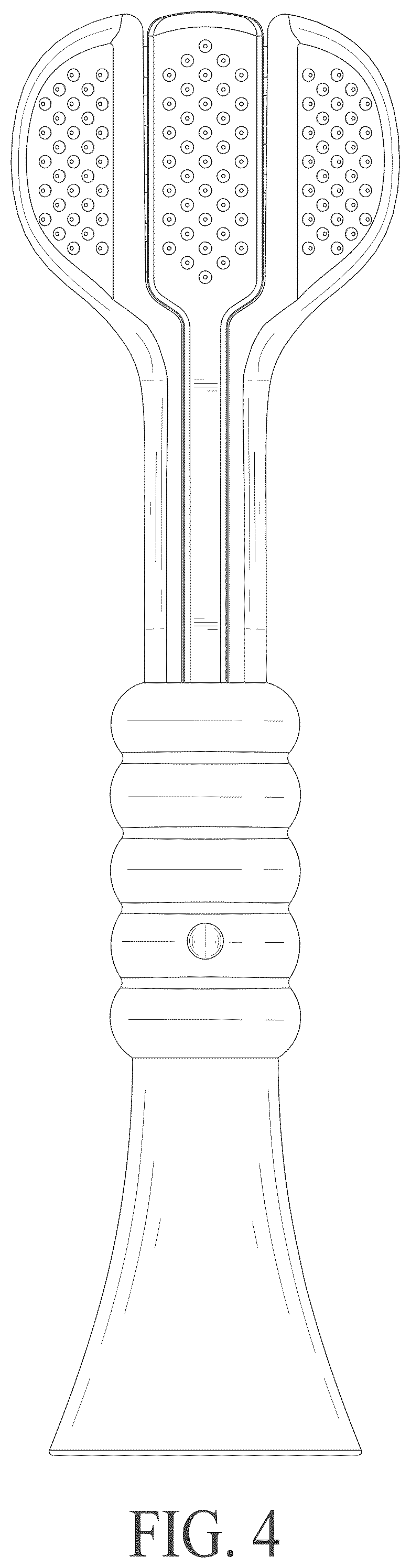

is a rear view thereof;

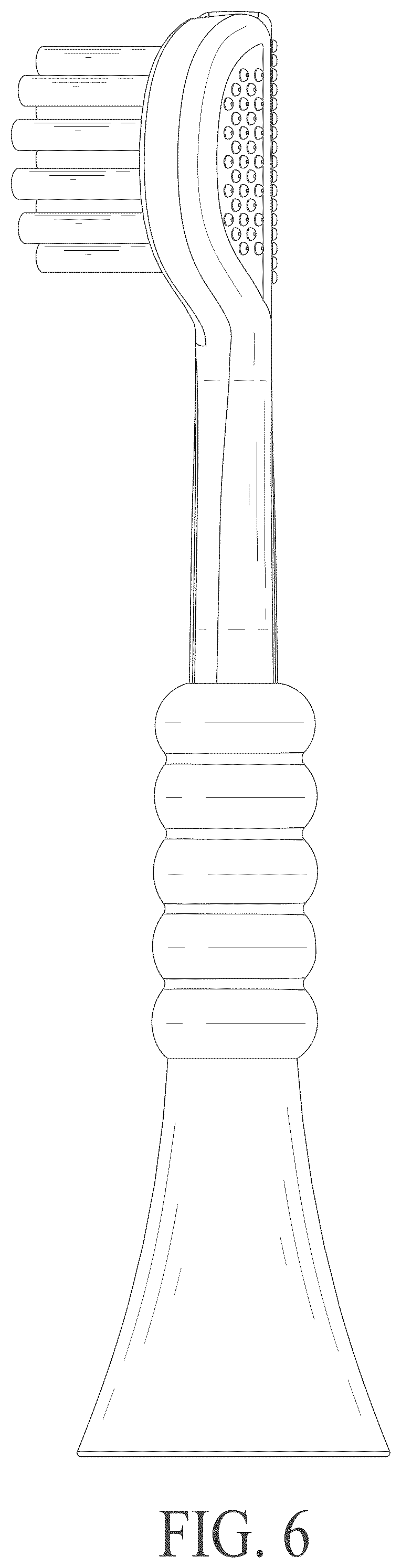

is a left side view thereof;

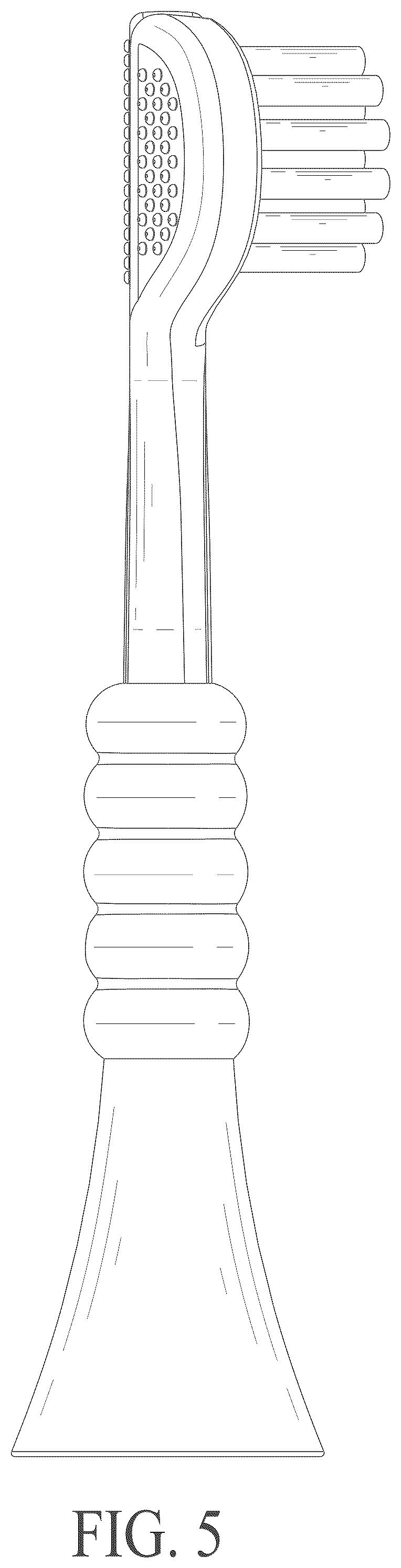

is a right side view thereof;

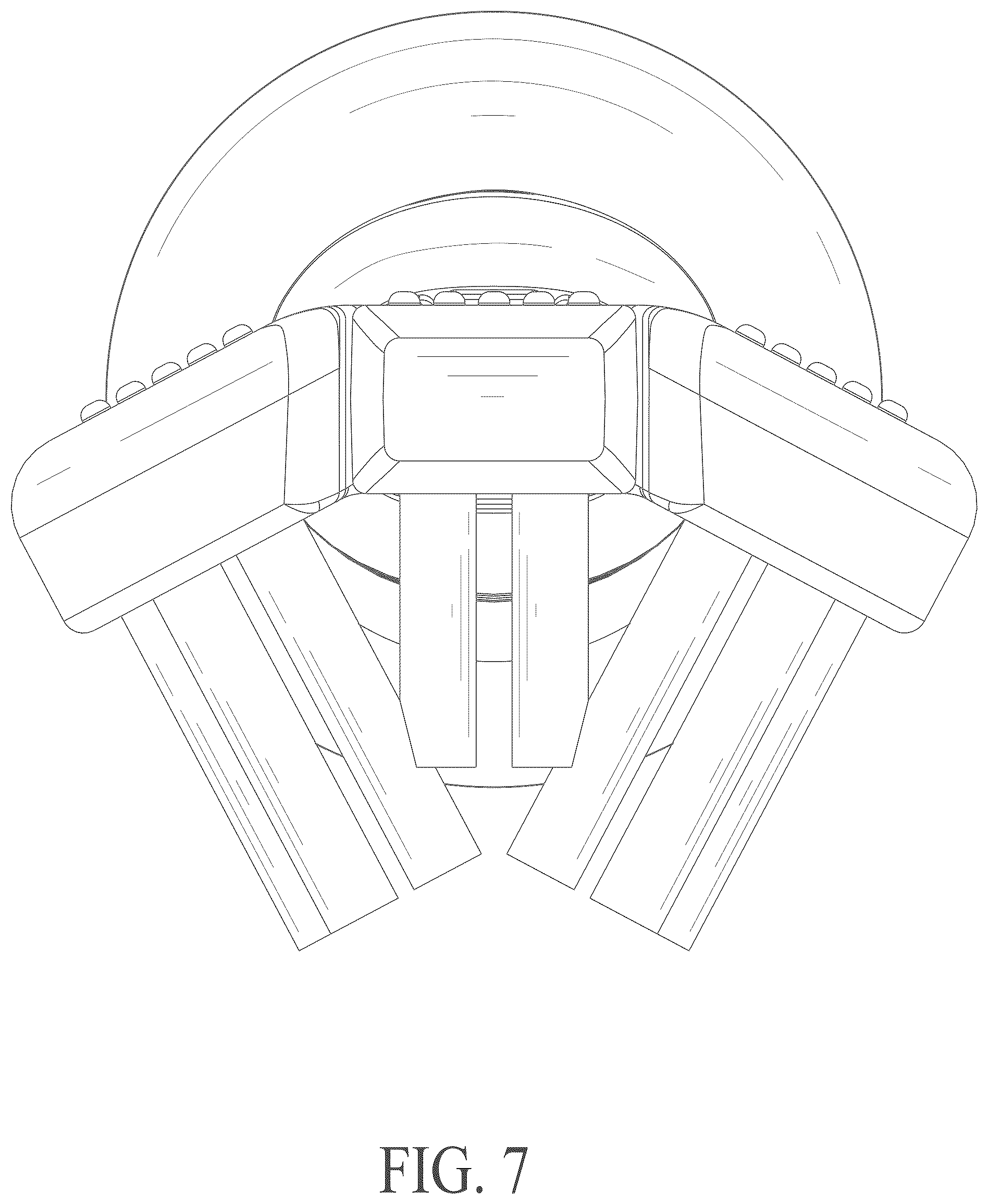

is an enlarged top plan view; and,

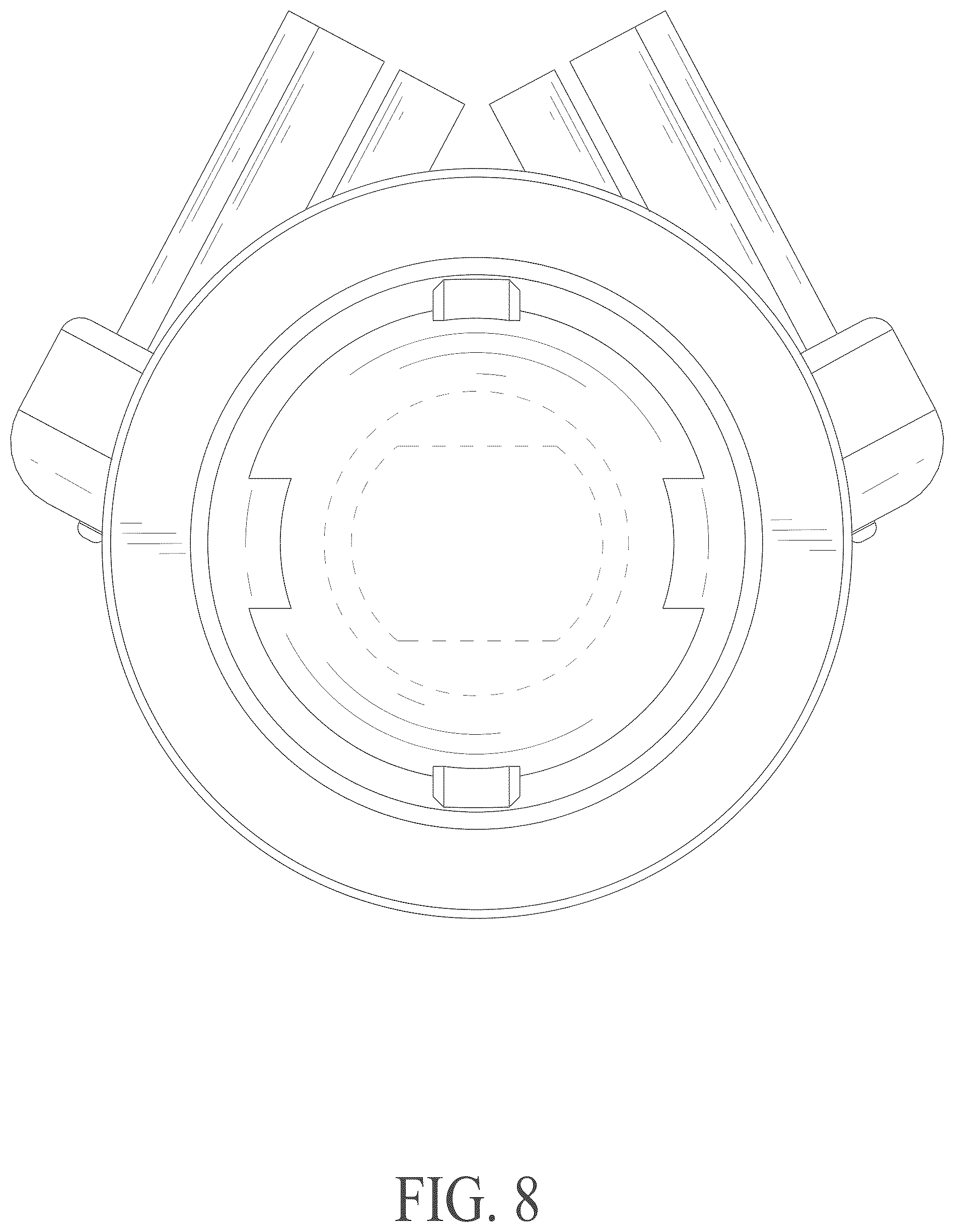

is an enlarged bottom plan view.

The broken lines in the drawings illustrate the portions of the toothbrush head, which form no part of the claimed design.
