Storage Box

USD1123391No. D 1,123,391designGranted 4/28/2026

Patent USD1123391 — Storage box — Figure 1 — Fig. 1 · Storage Box

Claims (1)

Claim 1 (Independent)

The ornamental design for a storage box as shown and described.

Full Description

Show full text →

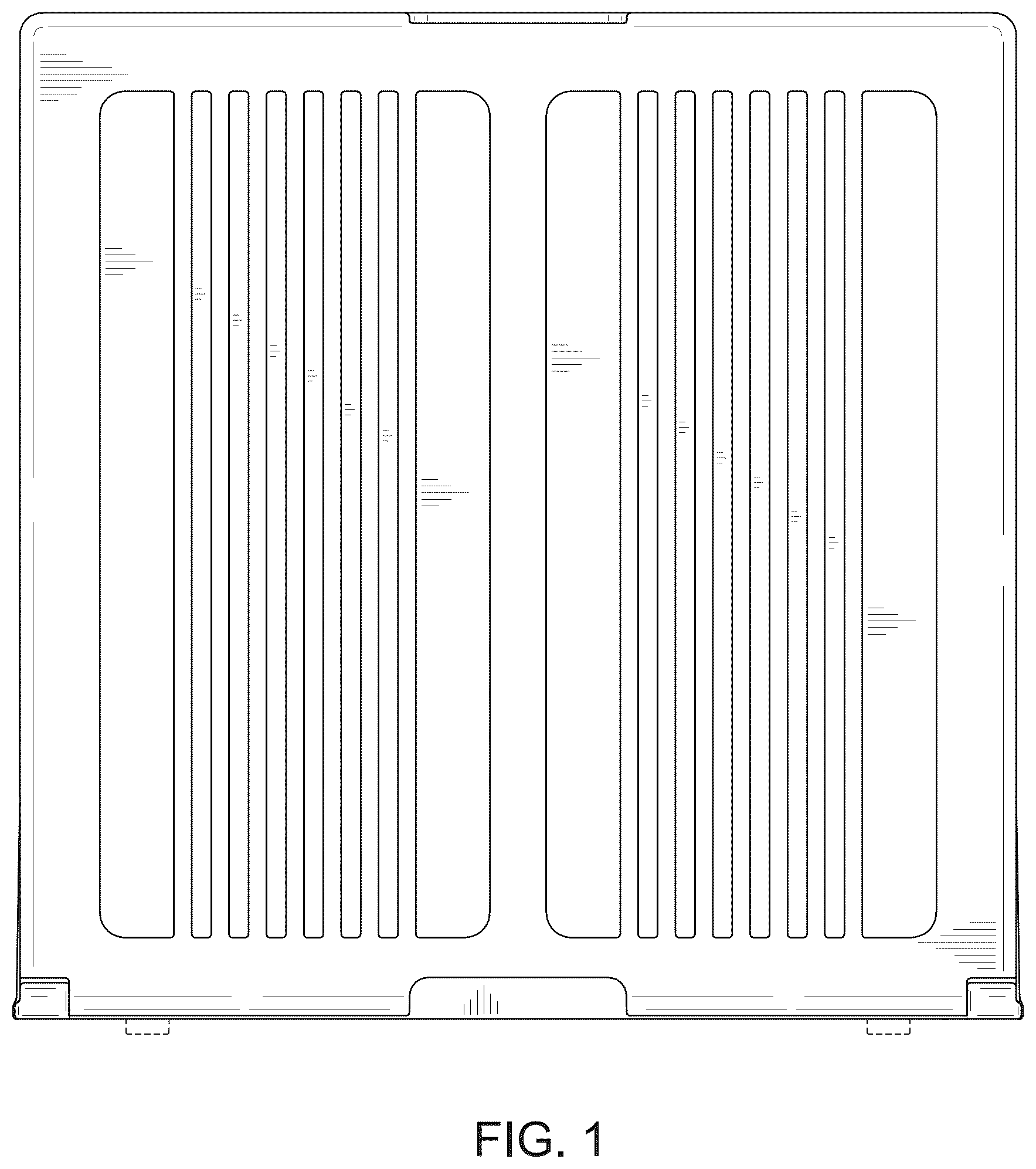

is a front elevational view of a storage box showing my new design;

is a rear elevational view thereof;

is a left side view thereof;

is a right side view thereof;

is a top plan view thereof;

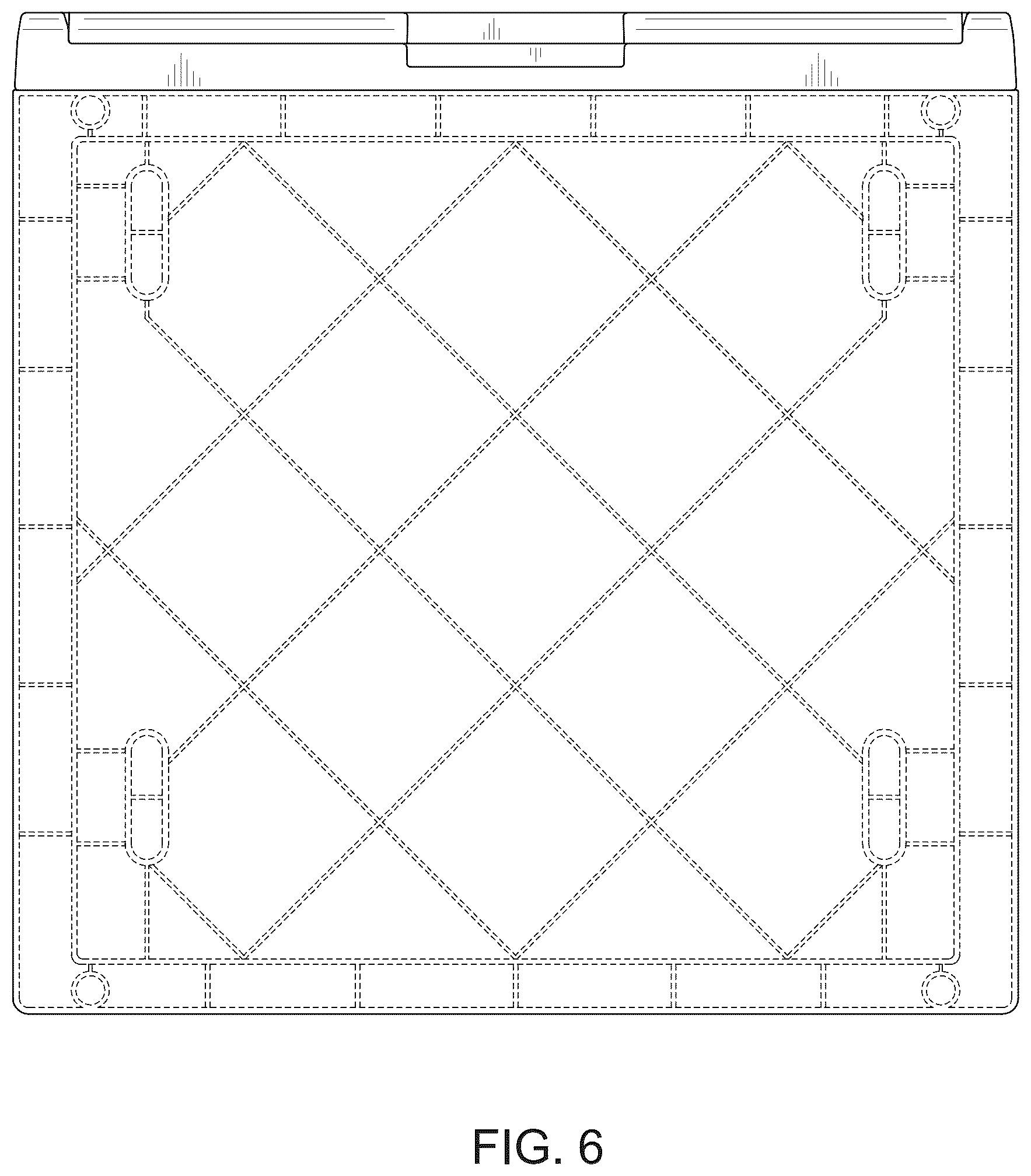

is a bottom plan view thereof;

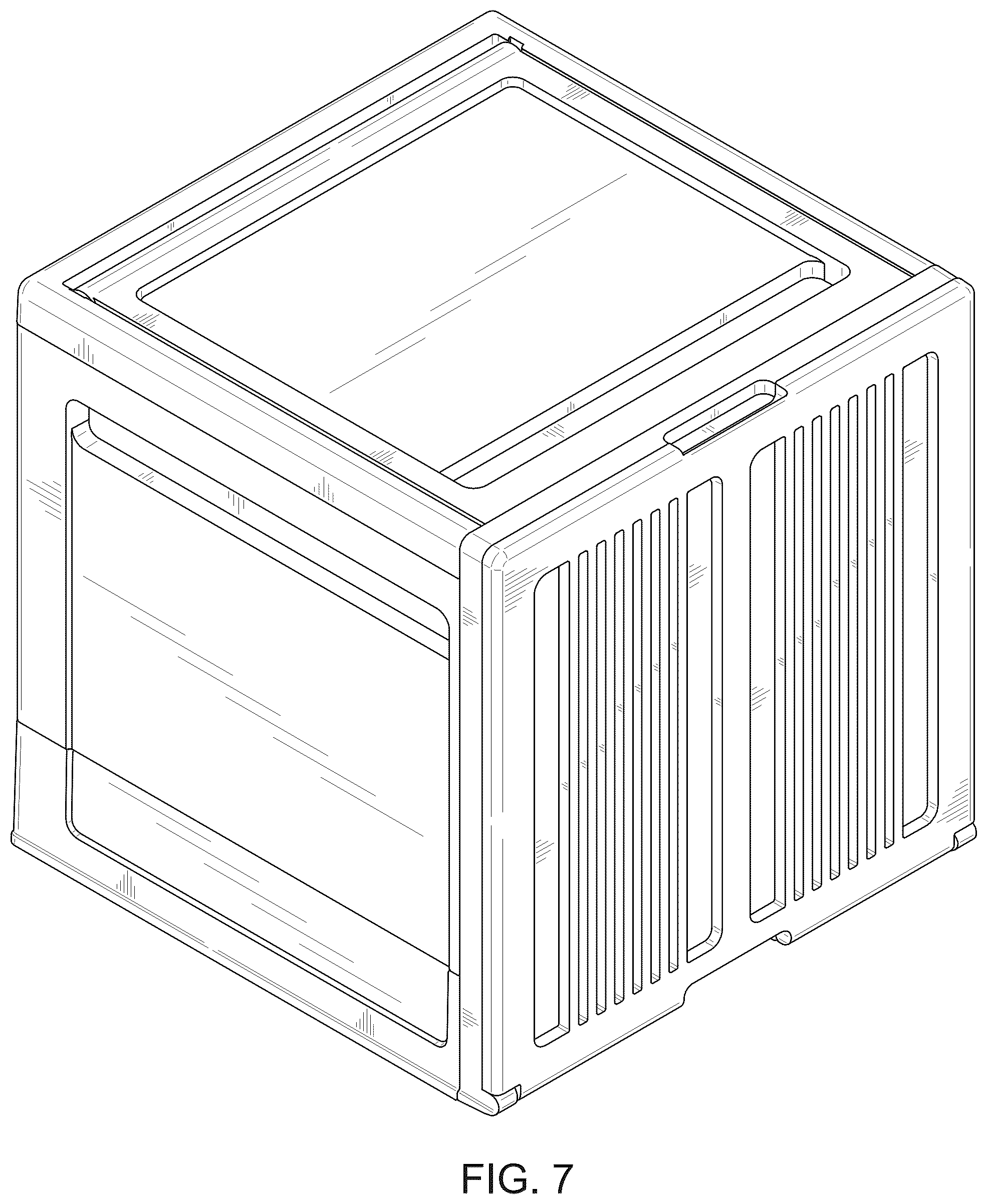

is a top, front and left side perspective view thereof;

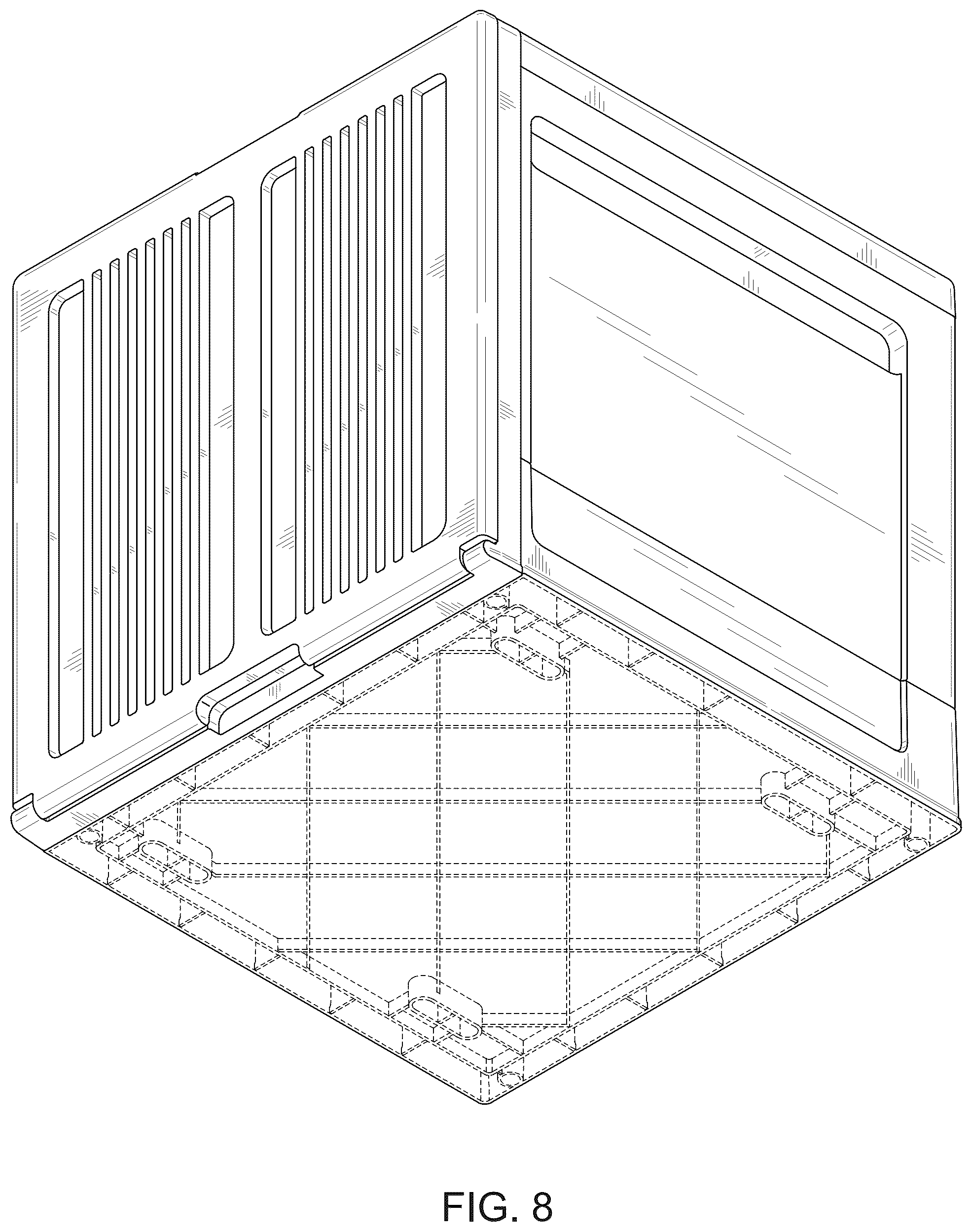

is a bottom, front and right side perspective view thereof;

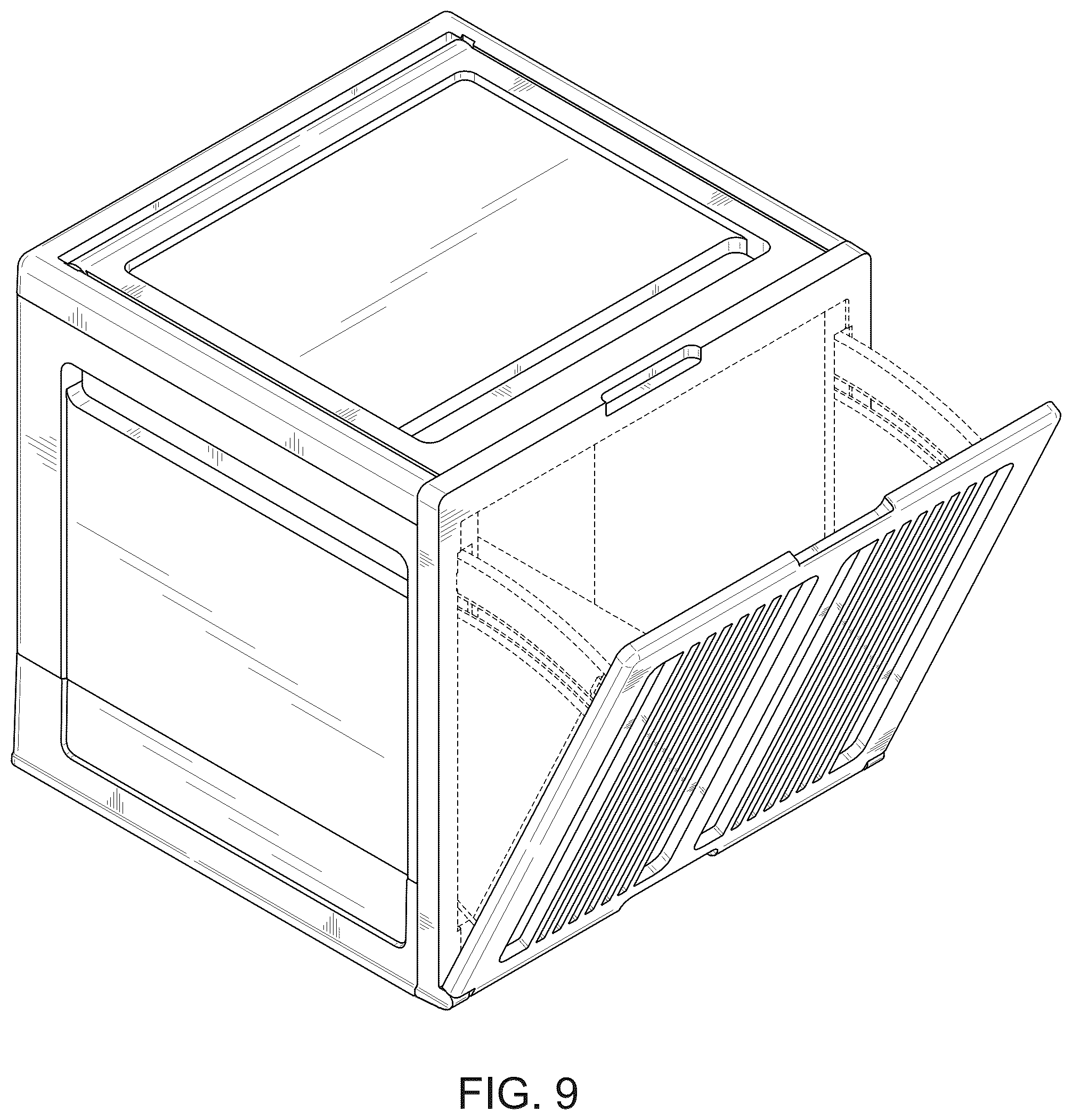

is a top, front and left side perspective view showing the storage box in an open state;

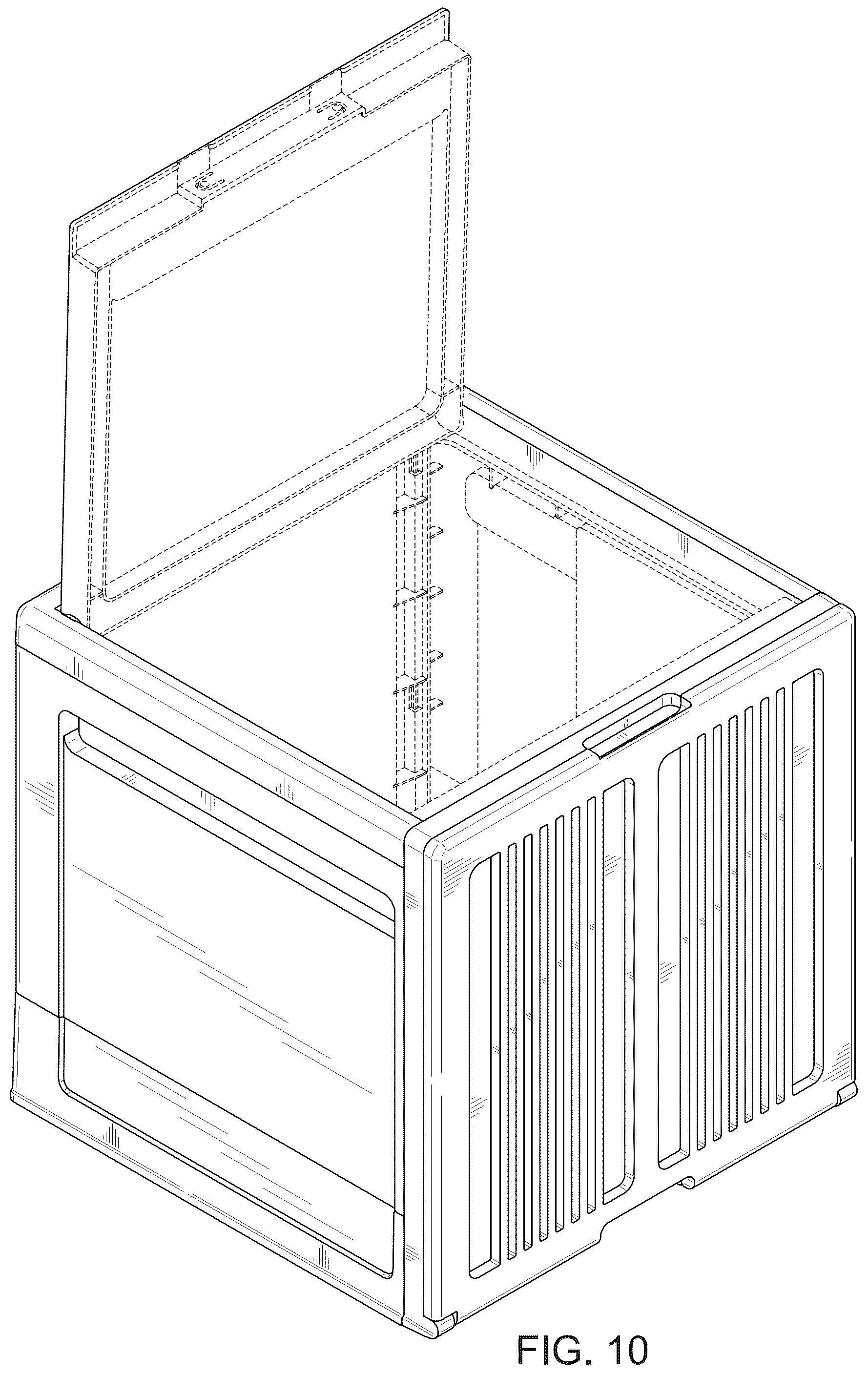

is a top, front and left side perspective view showing the storage box in another open state; and,

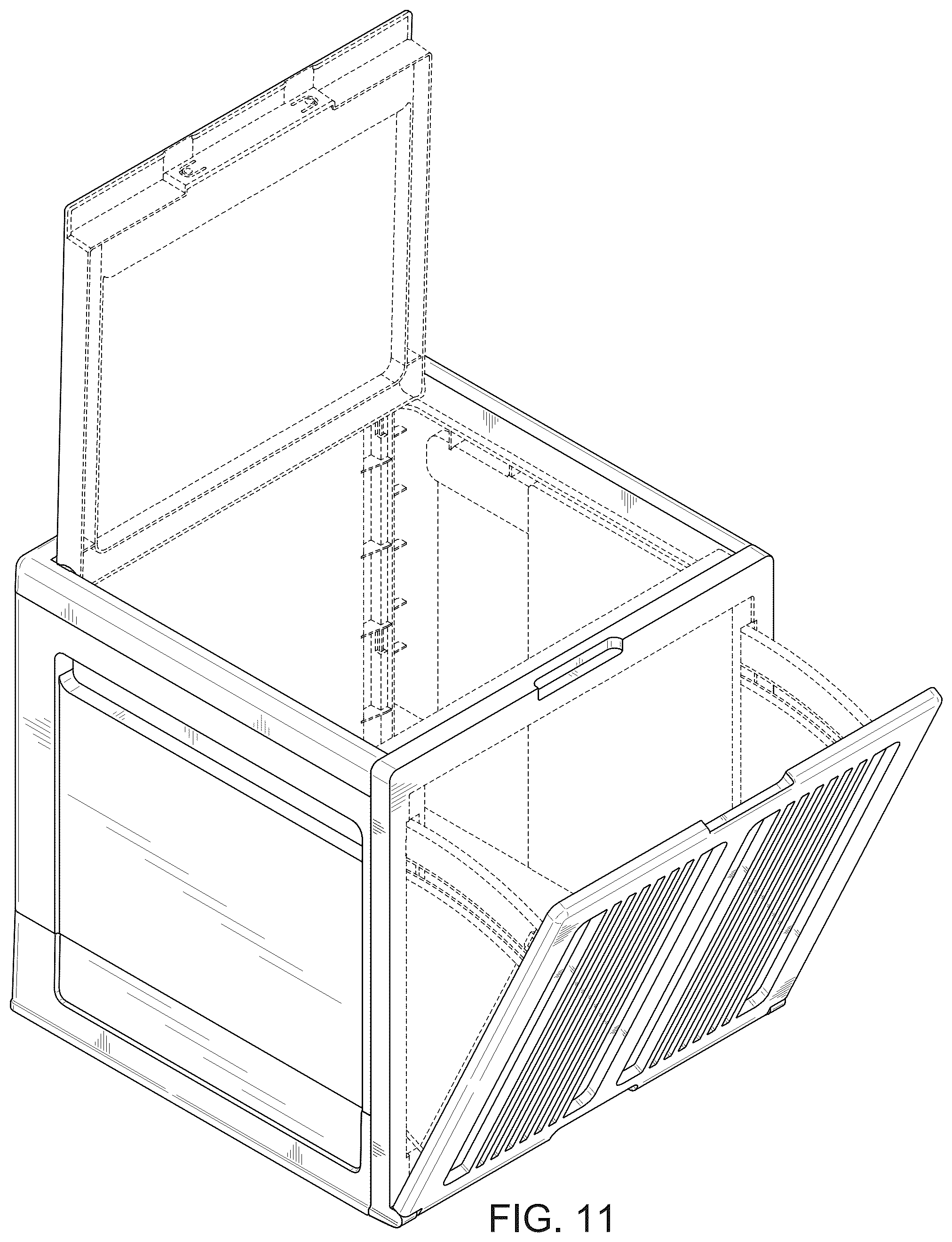

is a top, front and left side perspective view showing the storage box in yet another open state.

The broken lines in the drawings illustrate portions of the storage box which form no part of the claimed design.

Figures (11)

Patent USD1123391 Figure 1 – Storage box — Fig. 1

Patent USD1123391 Figure 2 – Storage box — Fig. 2

Patent USD1123391 Figure 3 – Storage box — Fig. 3

Patent USD1123391 Figure 4 – Storage box — Fig. 4

Patent USD1123391 Figure 5 – Storage box — Fig. 5

Patent USD1123391 Figure 6 – Storage box — Fig. 6

Patent USD1123391 Figure 7 – Storage box — Fig. 7

Patent USD1123391 Figure 8 – Storage box — Fig. 8

Patent USD1123391 Figure 9 – Storage box — Fig. 9

Patent USD1123391 Figure 10 – Storage box — Fig. 10

Patent USD1123391 Figure 11 – Storage box — Fig. 11
