USD1123358No. D 1,123,358designGranted 4/28/2026
Patent USD1123358 — Backpack — Figure 1
Fig. 1 · Backpack

Claims (1)

Claim 1 (Independent)

The ornamental design for a backpack, as shown and described.

Full Description

Show full text →

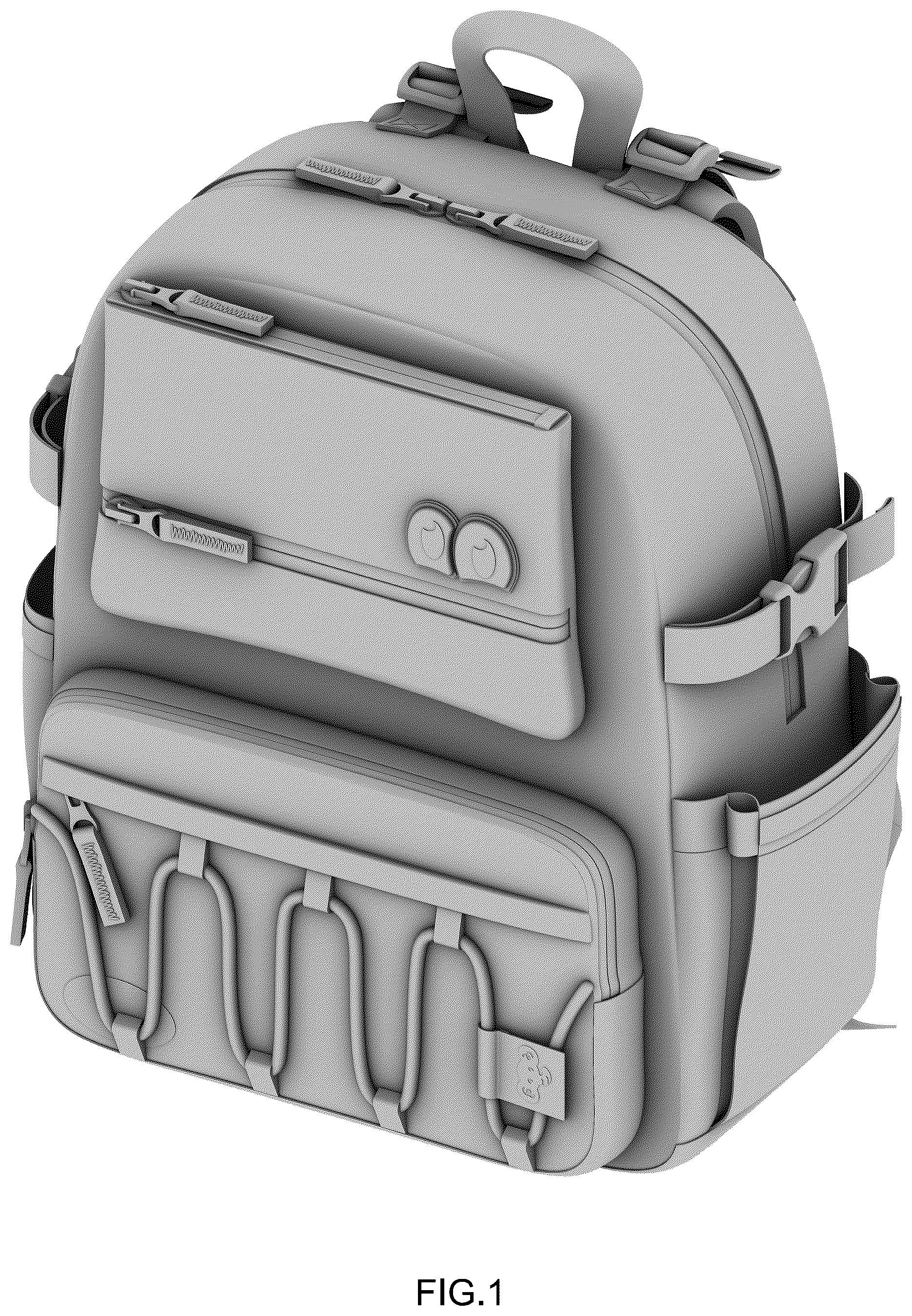

is a front, right and top perspective view of a backpack, showing my new design;

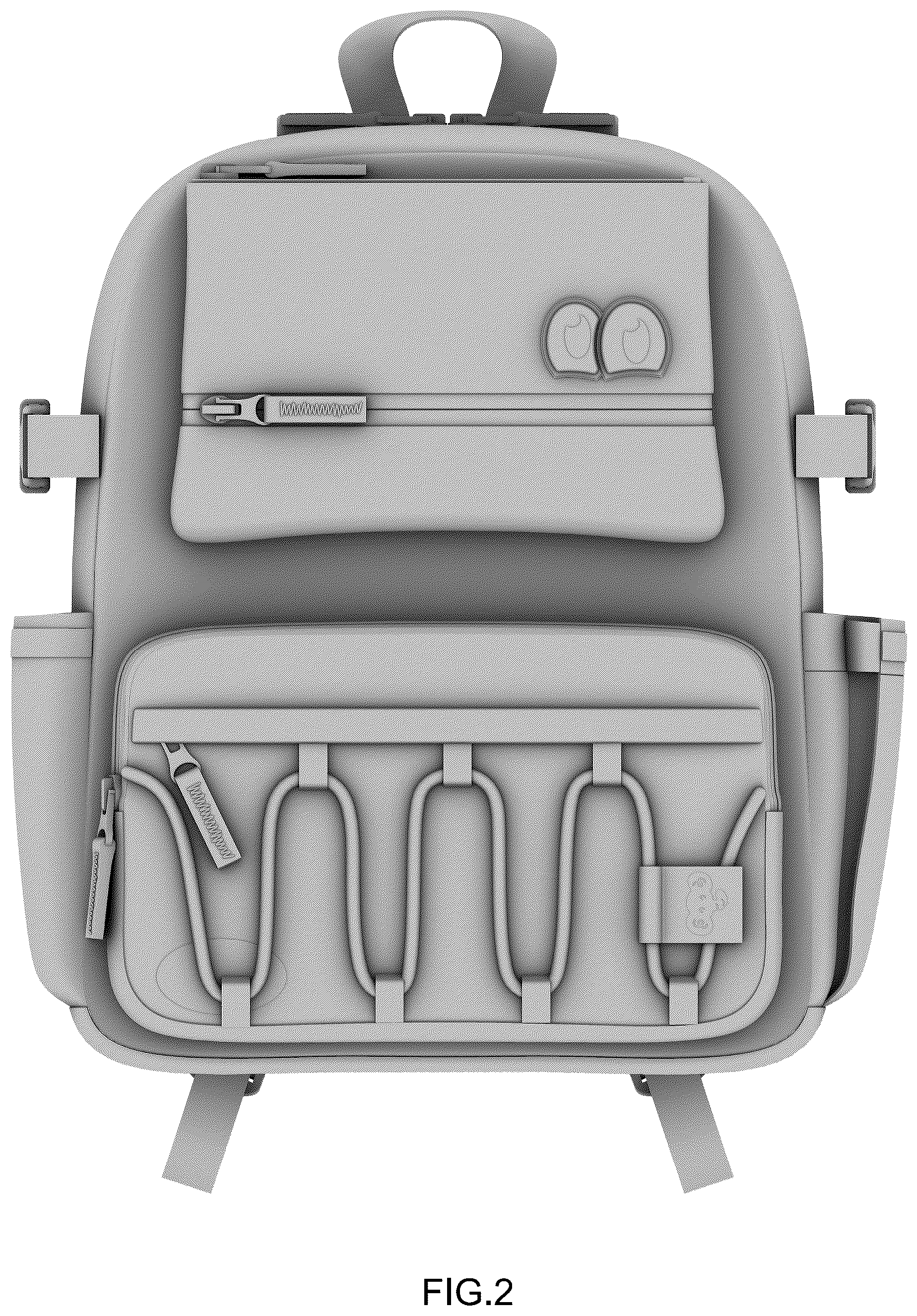

is a front view thereof;

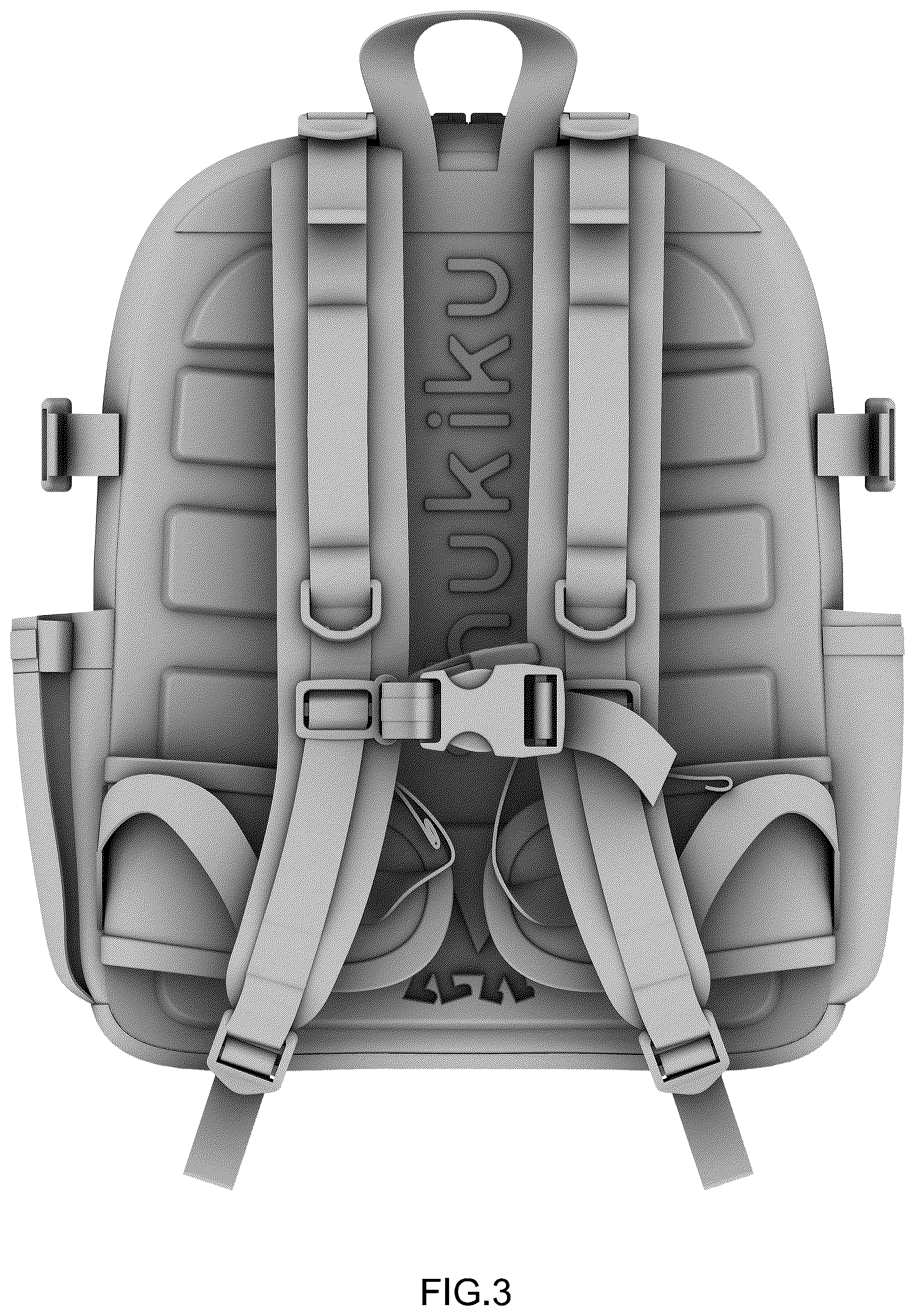

is a rear view thereof;

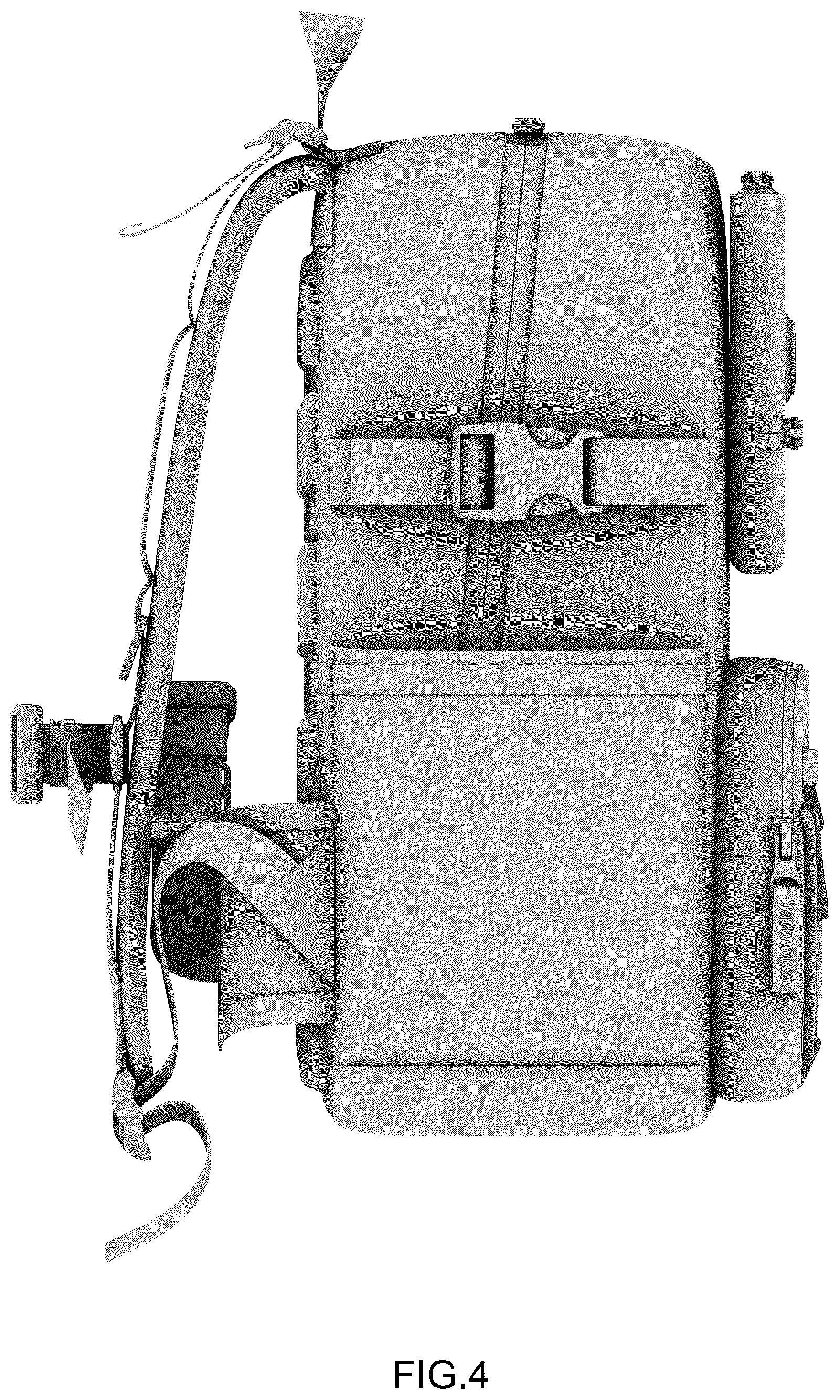

is a left side view thereof;

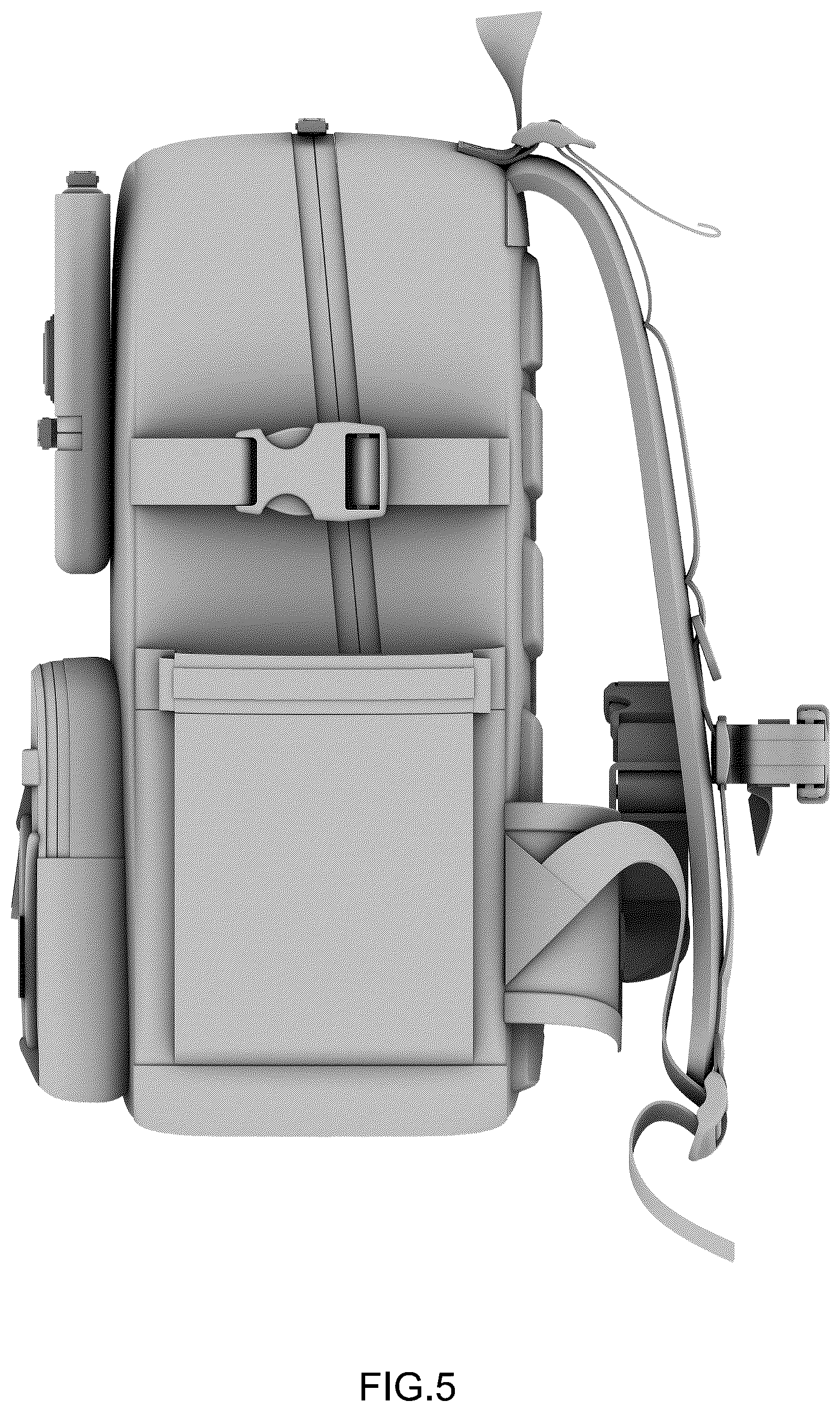

is a right side view thereof;

is a top plan view thereof;

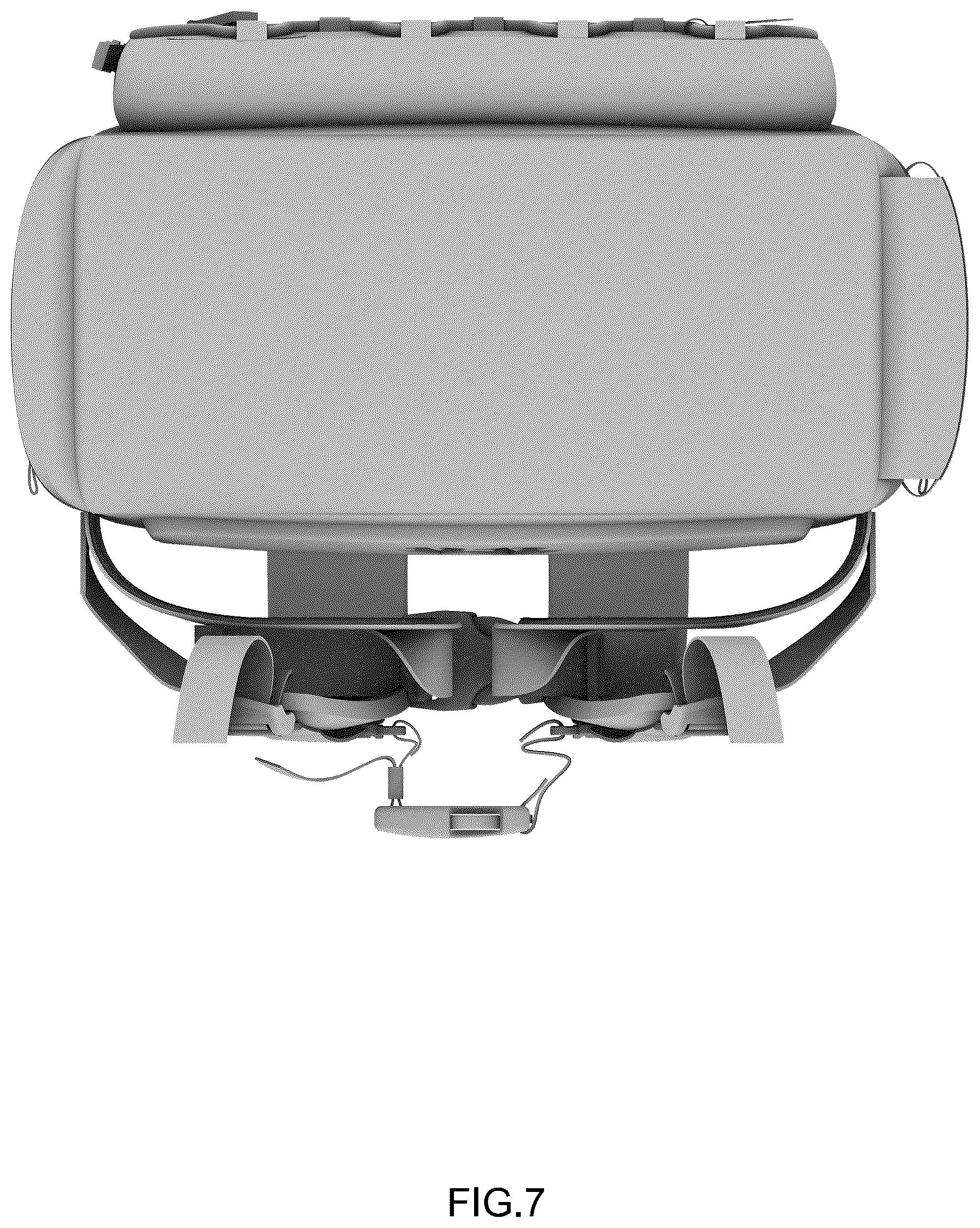

is a bottom plan view thereof; and,

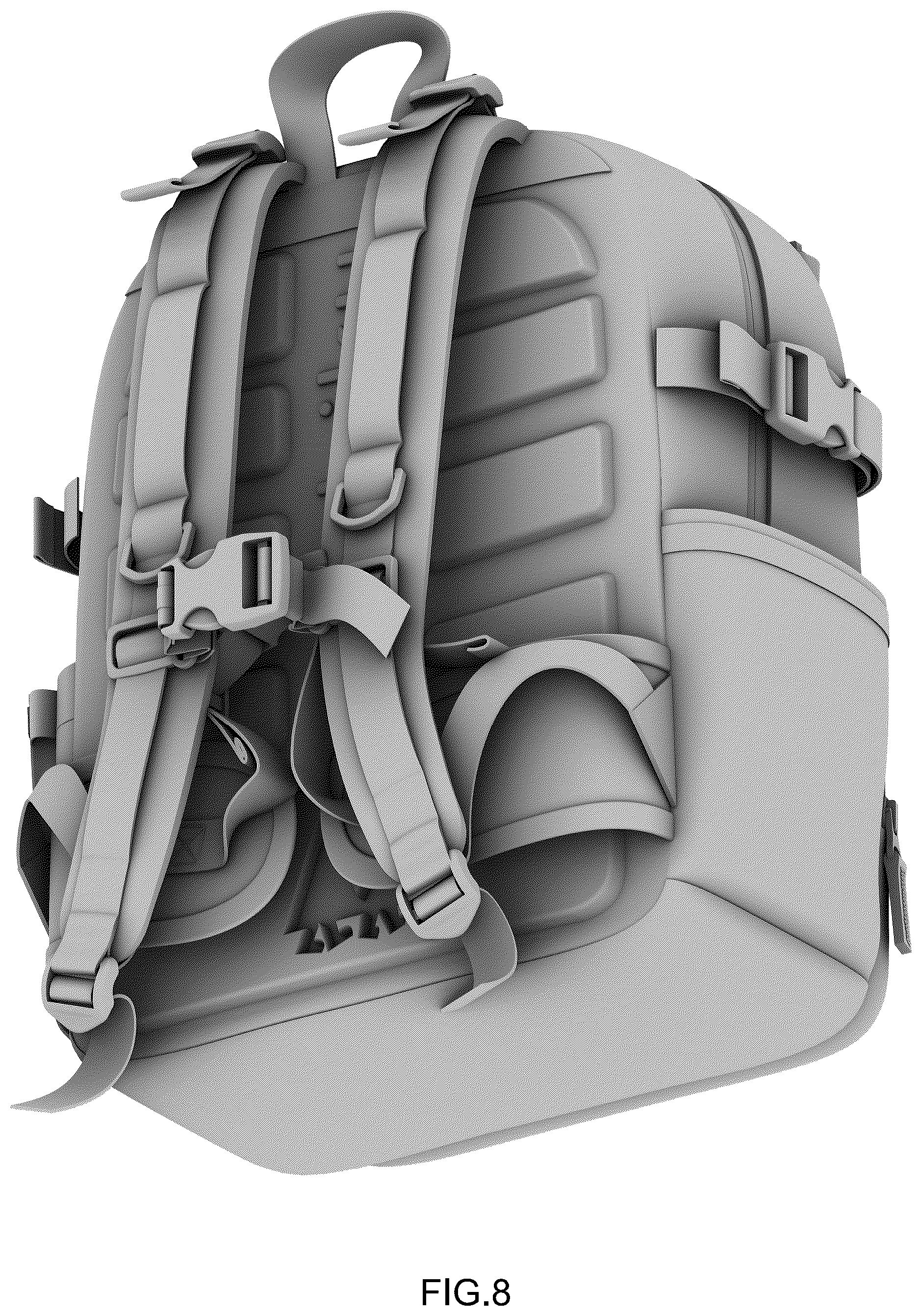

is a rear, left and bottom perspective view thereof.

The [shukiku] forming part of the claimed design is a registered trademark of [Shenzhen Elephant Splash Technology Co., Ltd.].

Figures (8)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
