USD1123322No. D 1,123,322designGranted 4/28/2026

Patent USD1123322 — Footwear — Figure 1 — Fig. 1 · Footwear

Claims (1)

Claim 1 (Independent)

The ornamental design for a footwear as shown and described.

Full Description

Show full text →

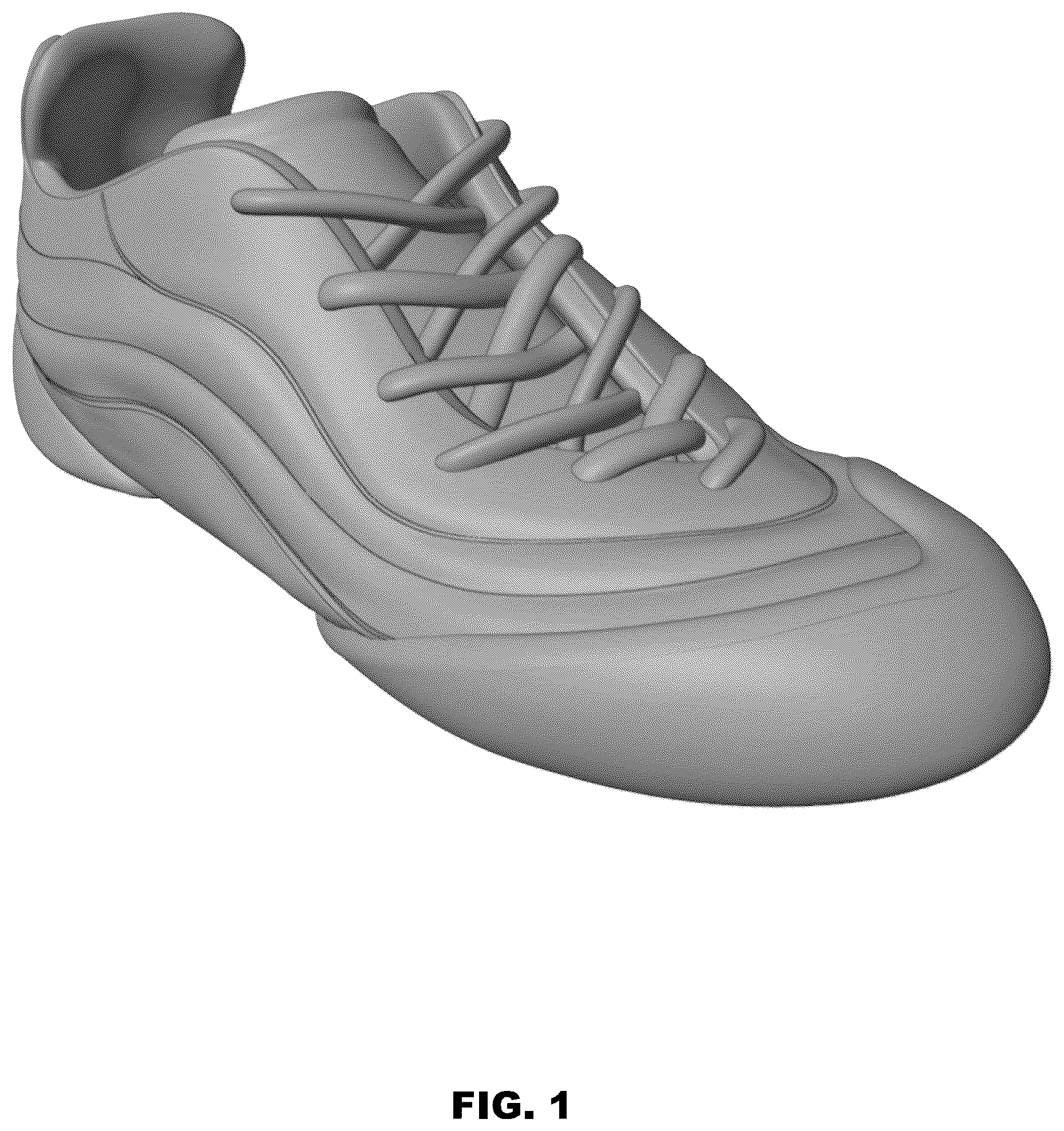

is a perspective view of a footwear showing my new design;

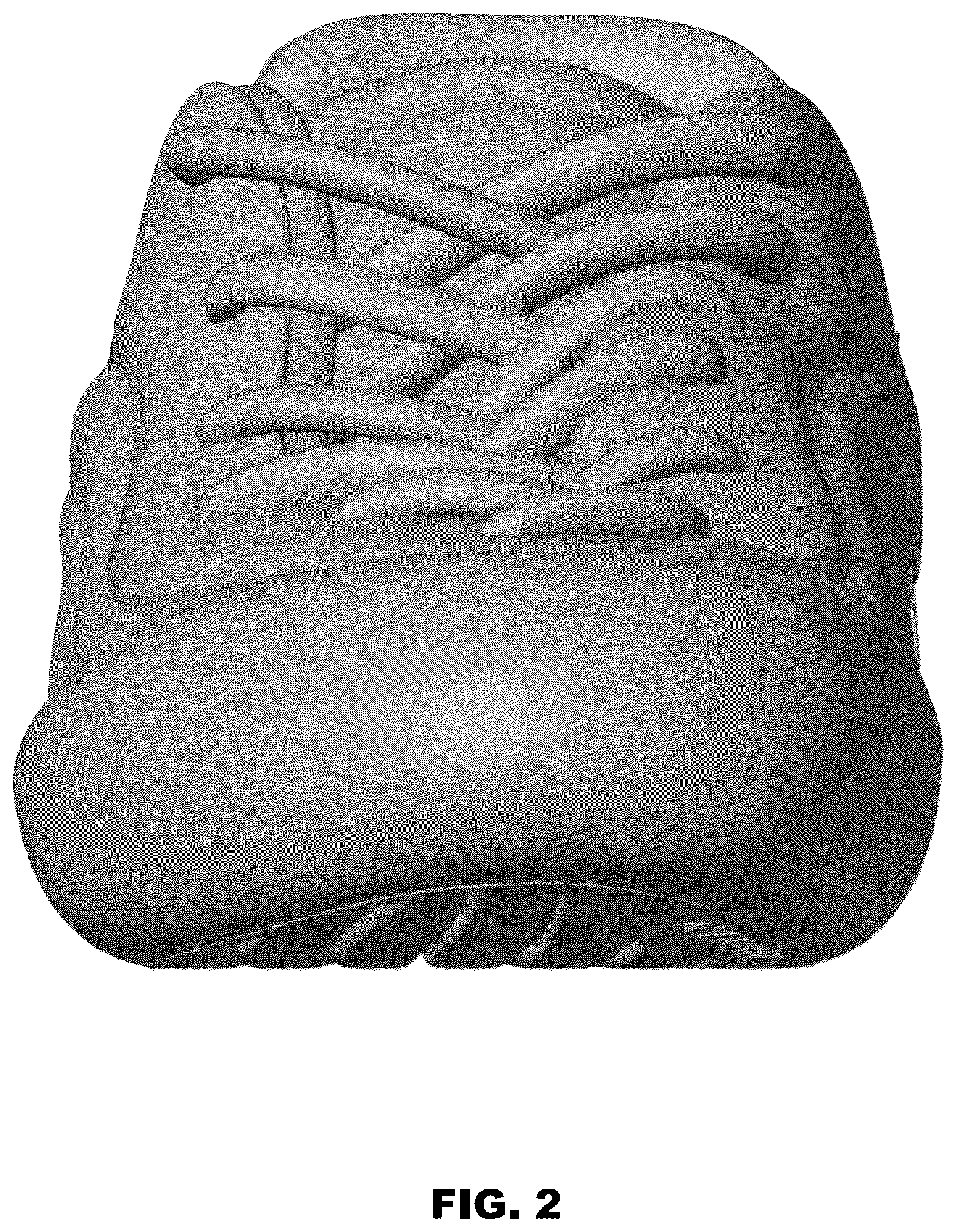

is a front view thereof;

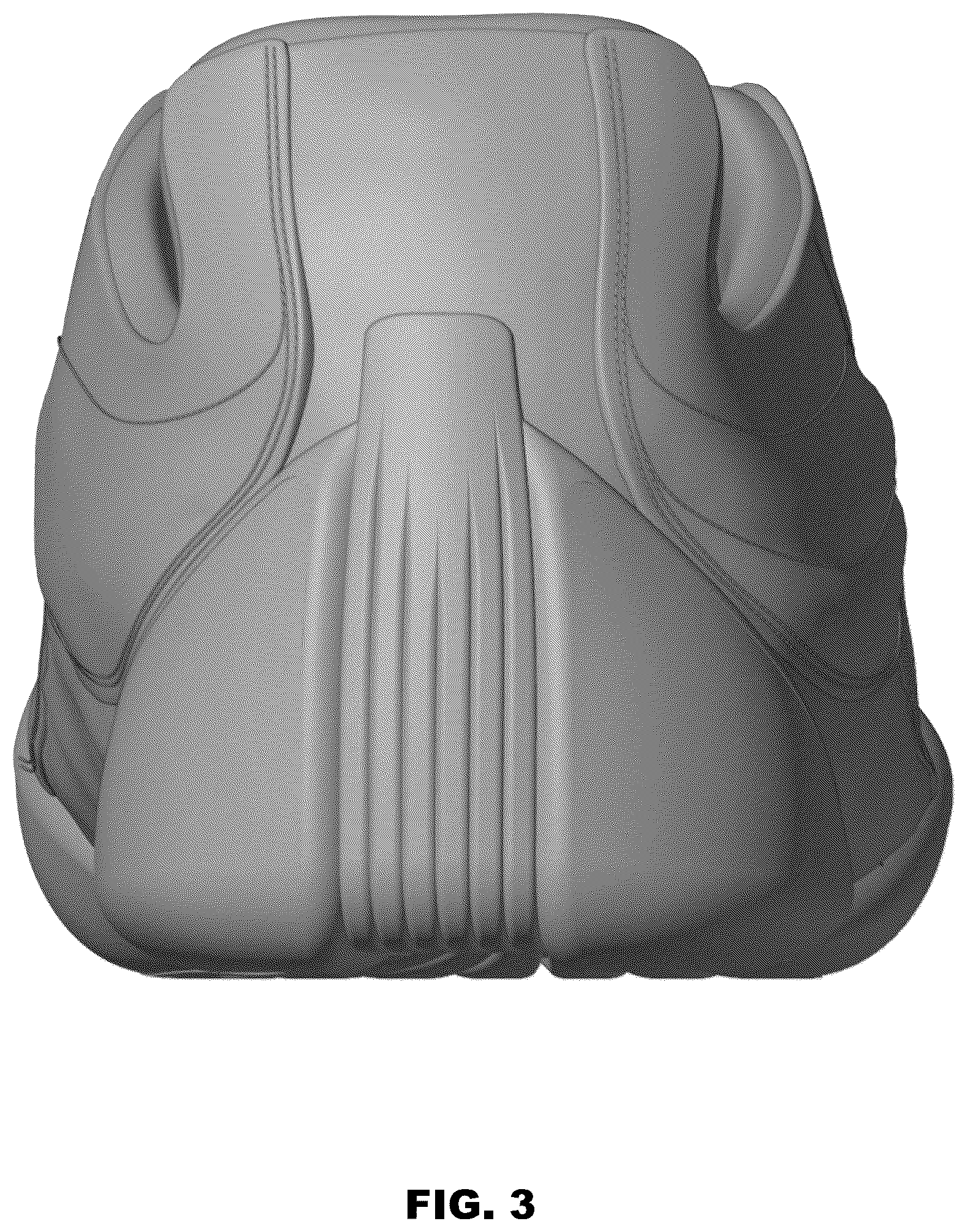

is a back view thereof;

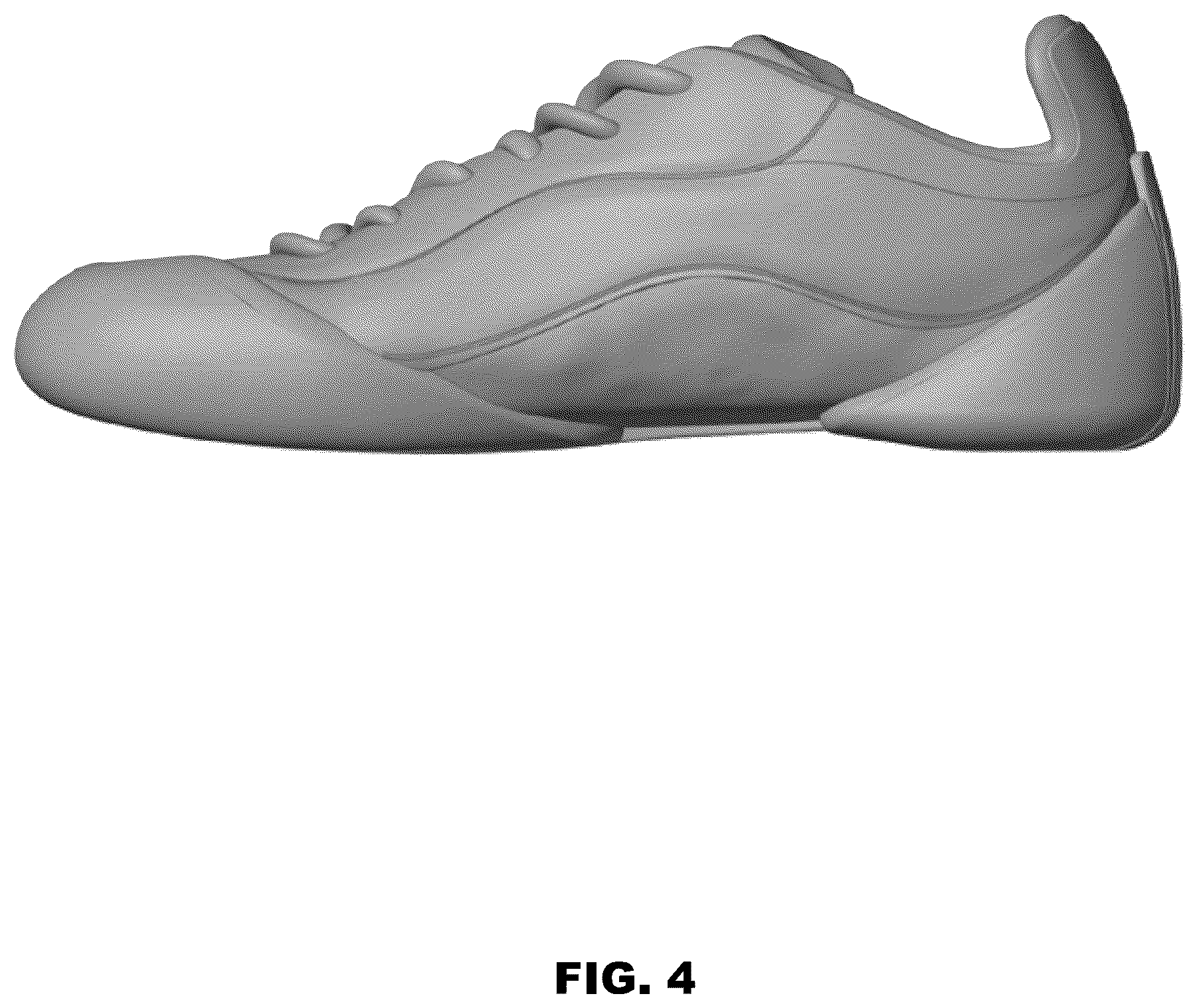

is a left side view thereof;

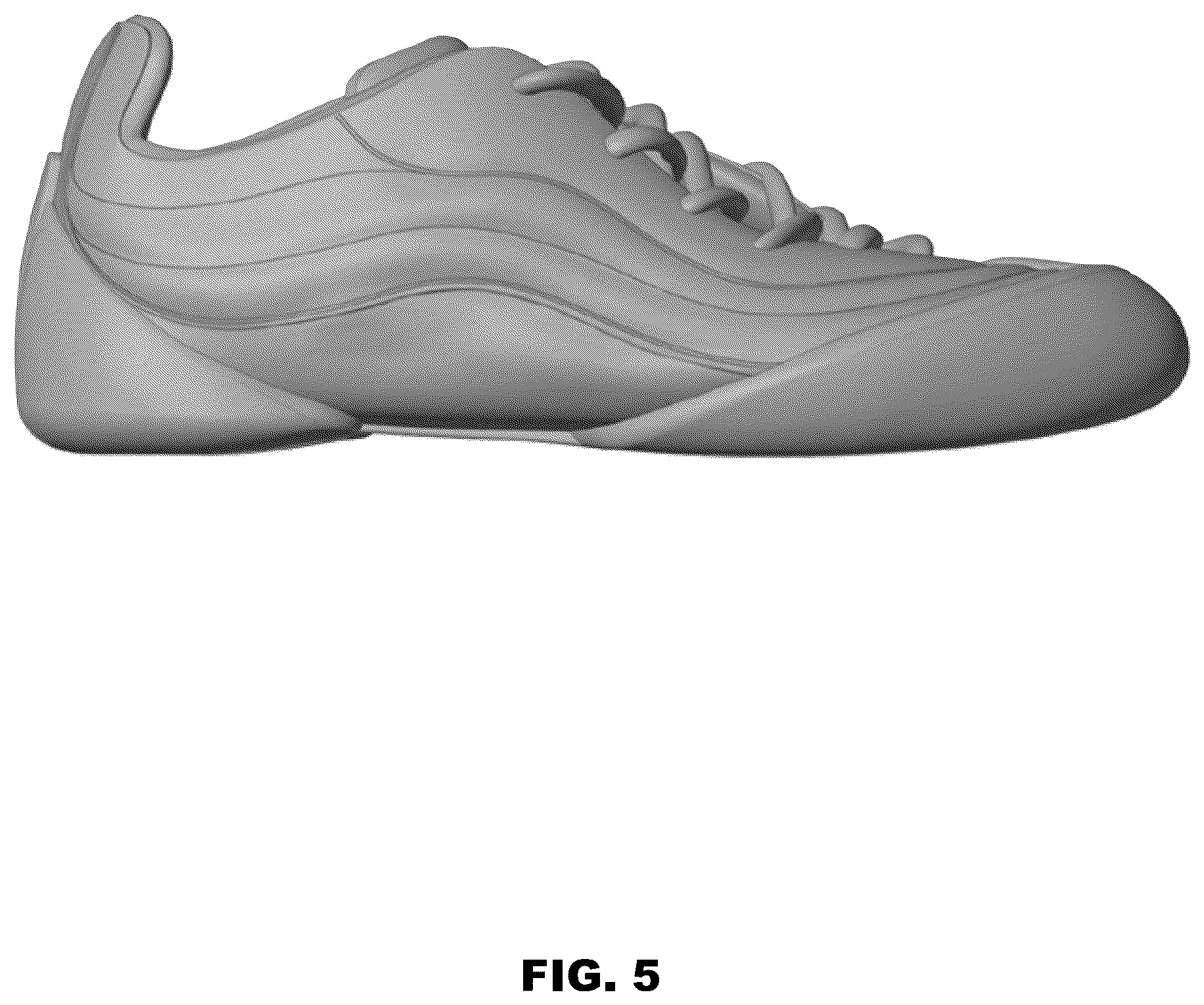

is a right side view thereof;

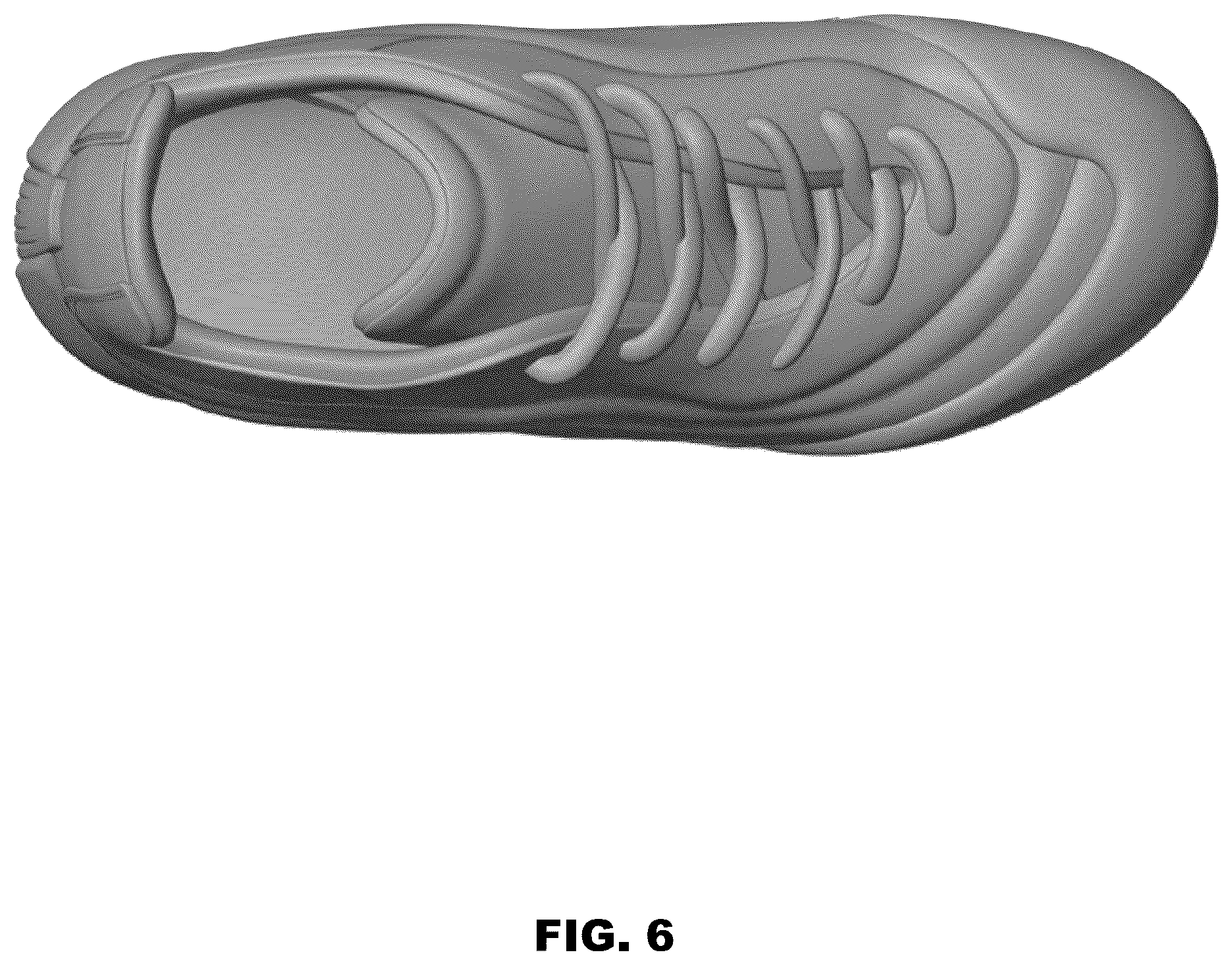

is a top view thereof; and,

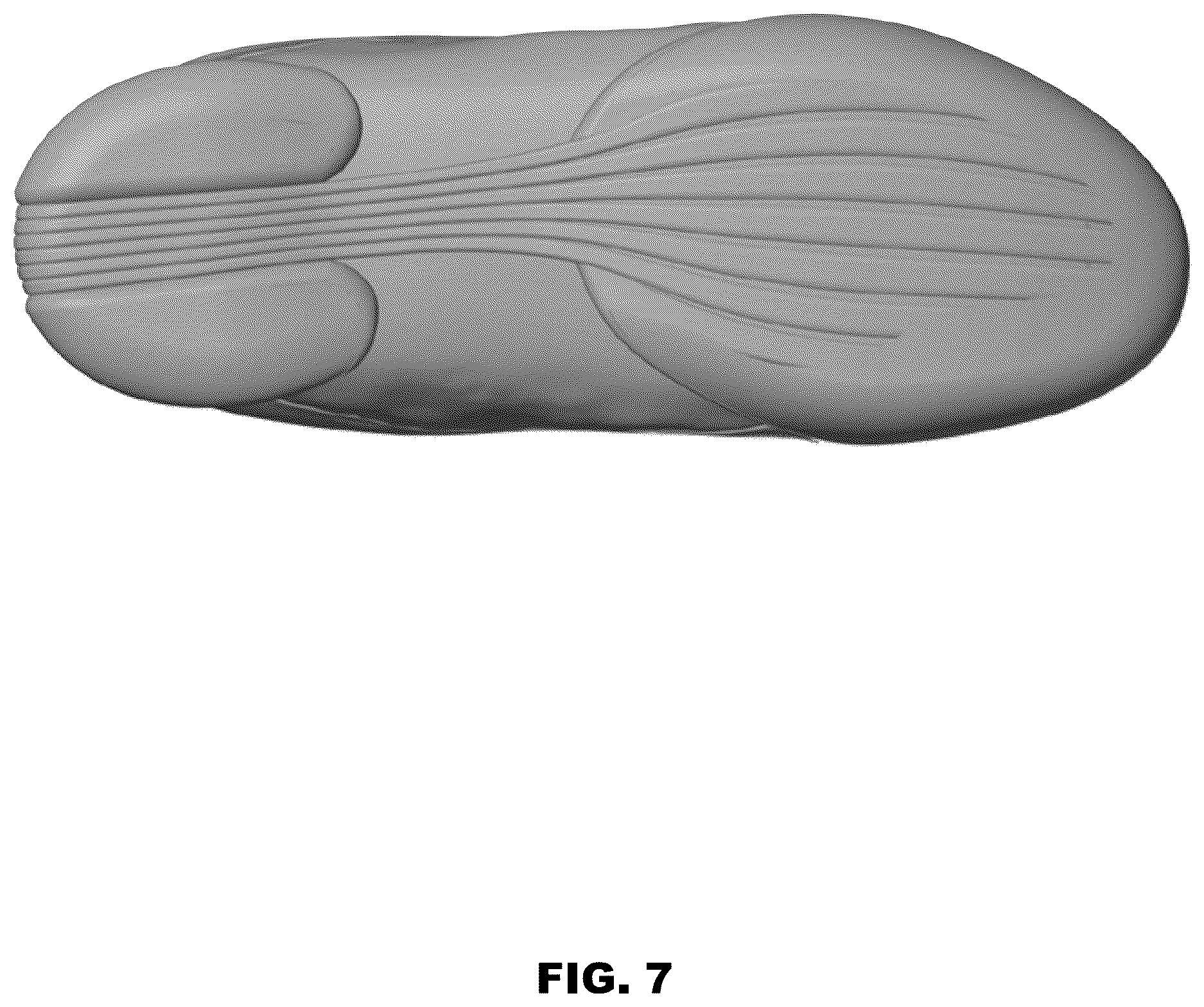

is a bottom view thereof.

Figures (7)

Patent USD1123322 Figure 1 – Footwear — Fig. 1

Patent USD1123322 Figure 2 – Footwear — Fig. 2

Patent USD1123322 Figure 3 – Footwear — Fig. 3

Patent USD1123322 Figure 4 – Footwear — Fig. 4

Patent USD1123322 Figure 5 – Footwear — Fig. 5

Patent USD1123322 Figure 6 – Footwear — Fig. 6

Patent USD1123322 Figure 7 – Footwear — Fig. 7
