Sneaker Cleat

USD1123320No. D 1,123,320designGranted 4/28/2026
Patent USD1123320 — Sneaker cleat — Figure 1
Fig. 1 · Sneaker Cleat

Claims (1)

Claim 1 (Independent)

The ornamental design for a sneaker cleat as shown and described.

Full Description

Show full text →

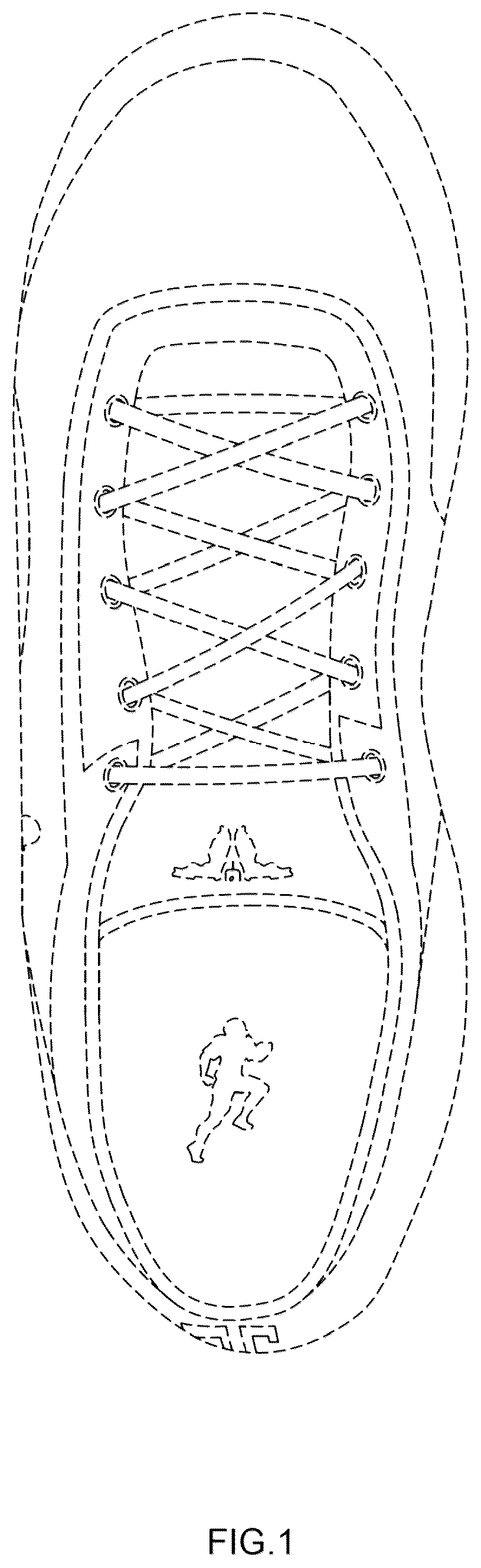

is a top view of a sneaker cleat in accordance with the present invention;

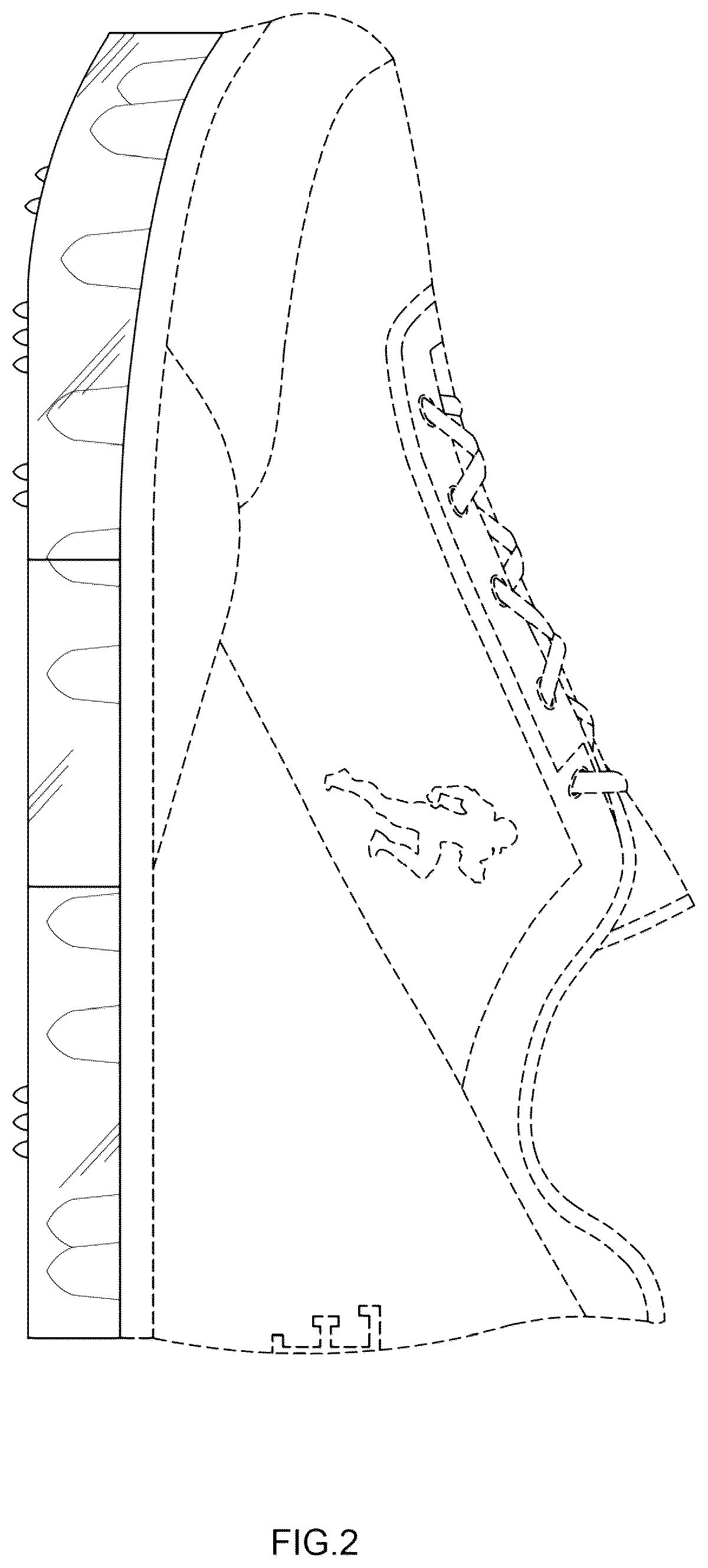

is a left-side view of the sneaker cleat in ;

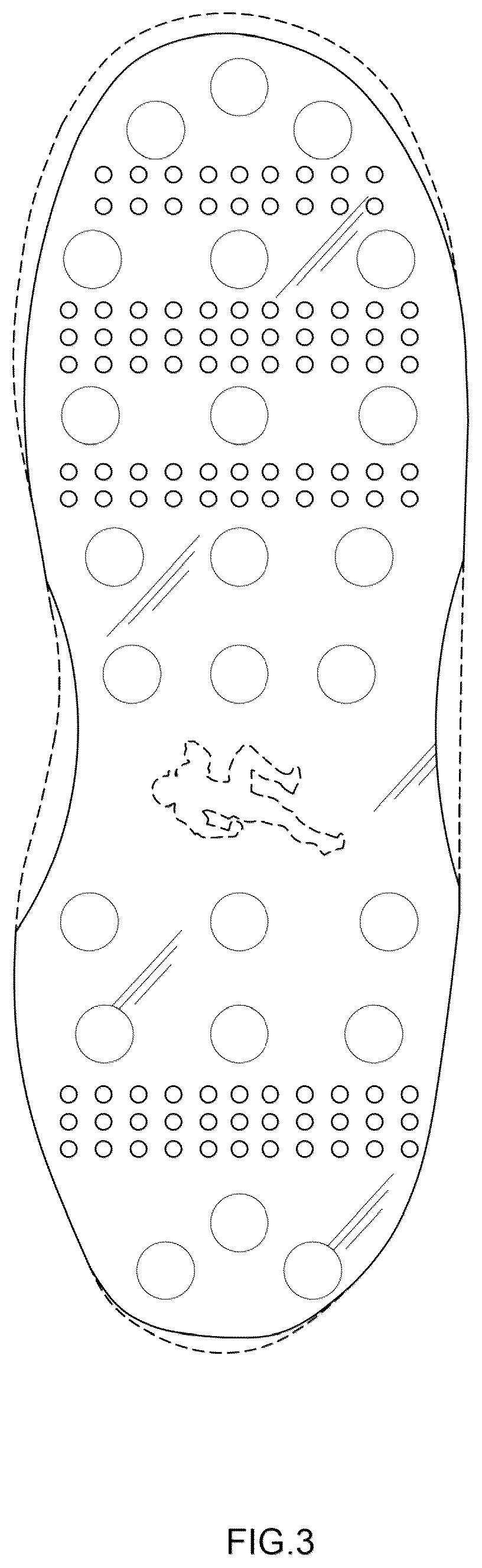

is a bottom view of the sneaker cleat in ;

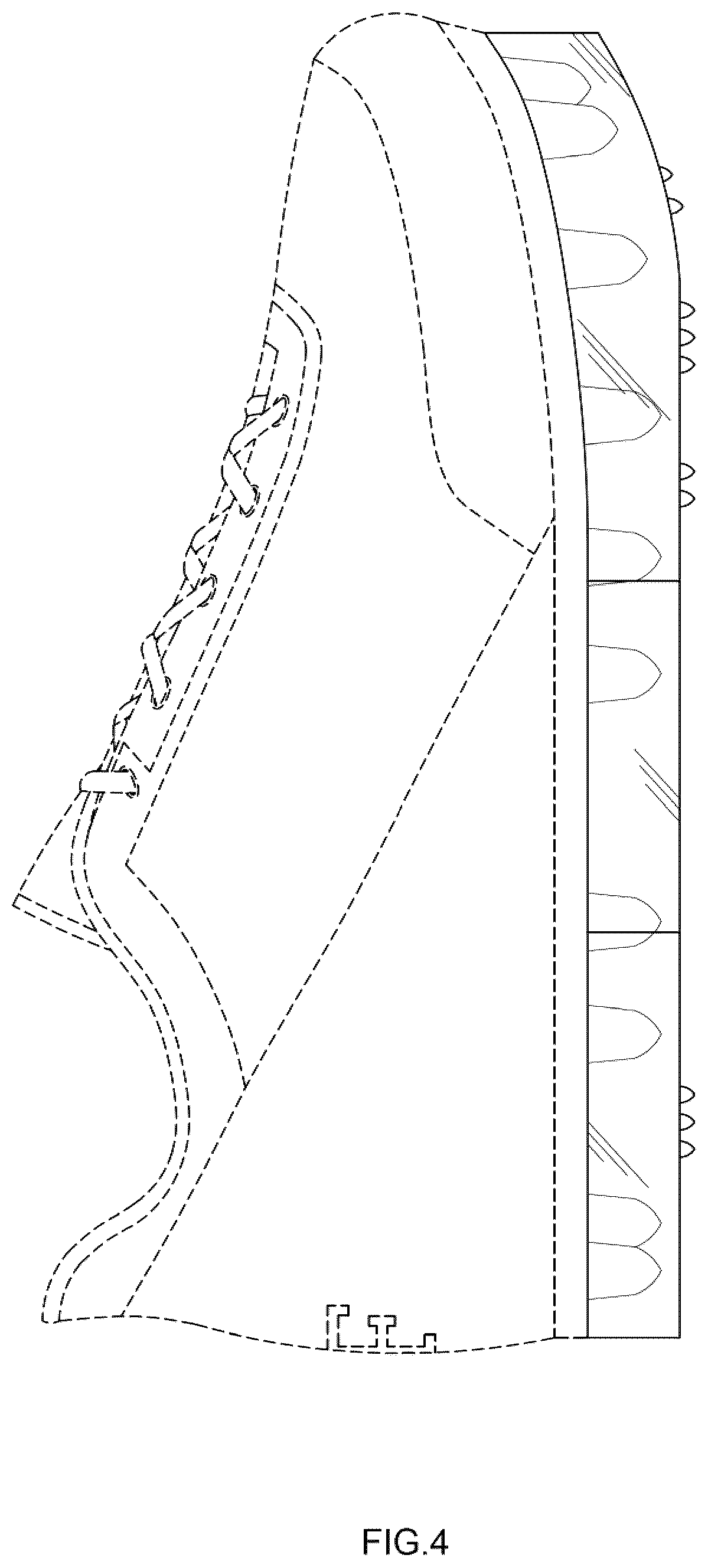

is a right-side view of the sneaker cleat in ;

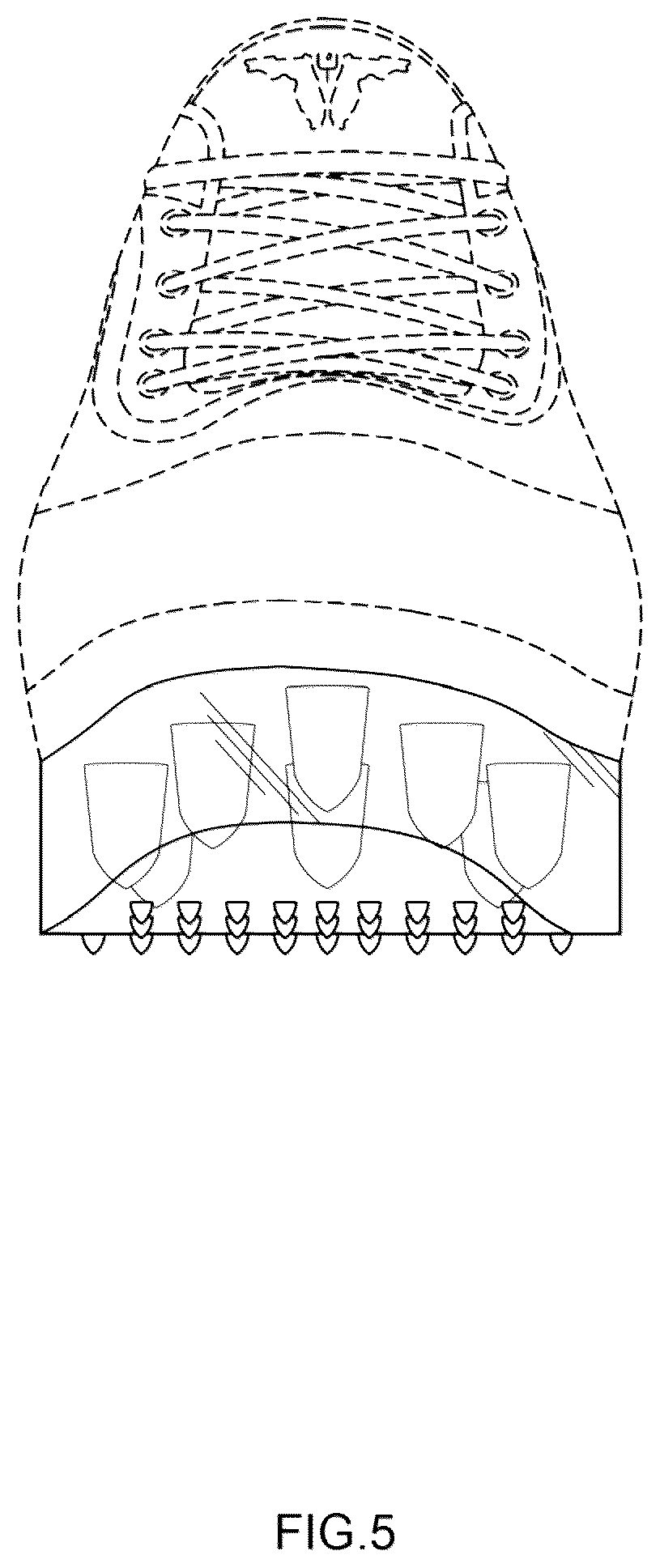

is a front view of the sneaker cleat in ;

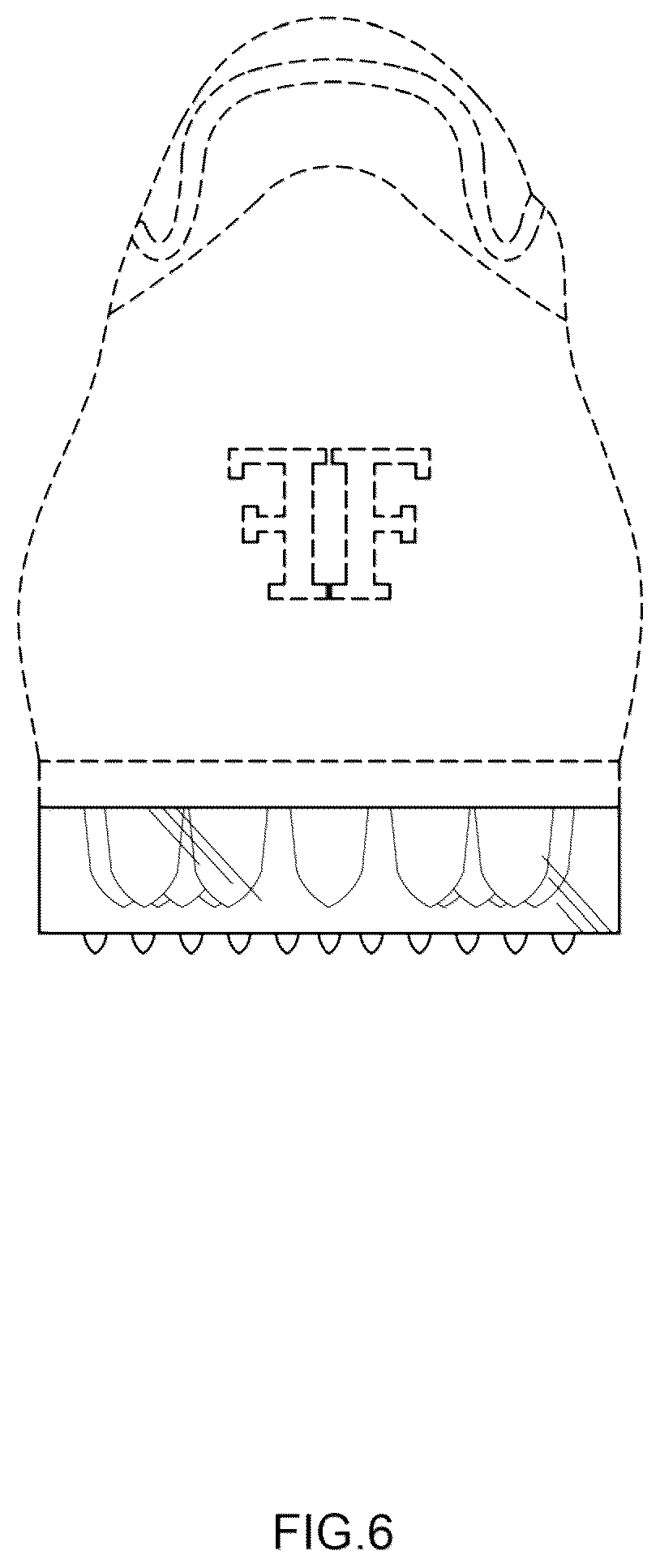

is a rear view of the sneaker cleat in ; and,

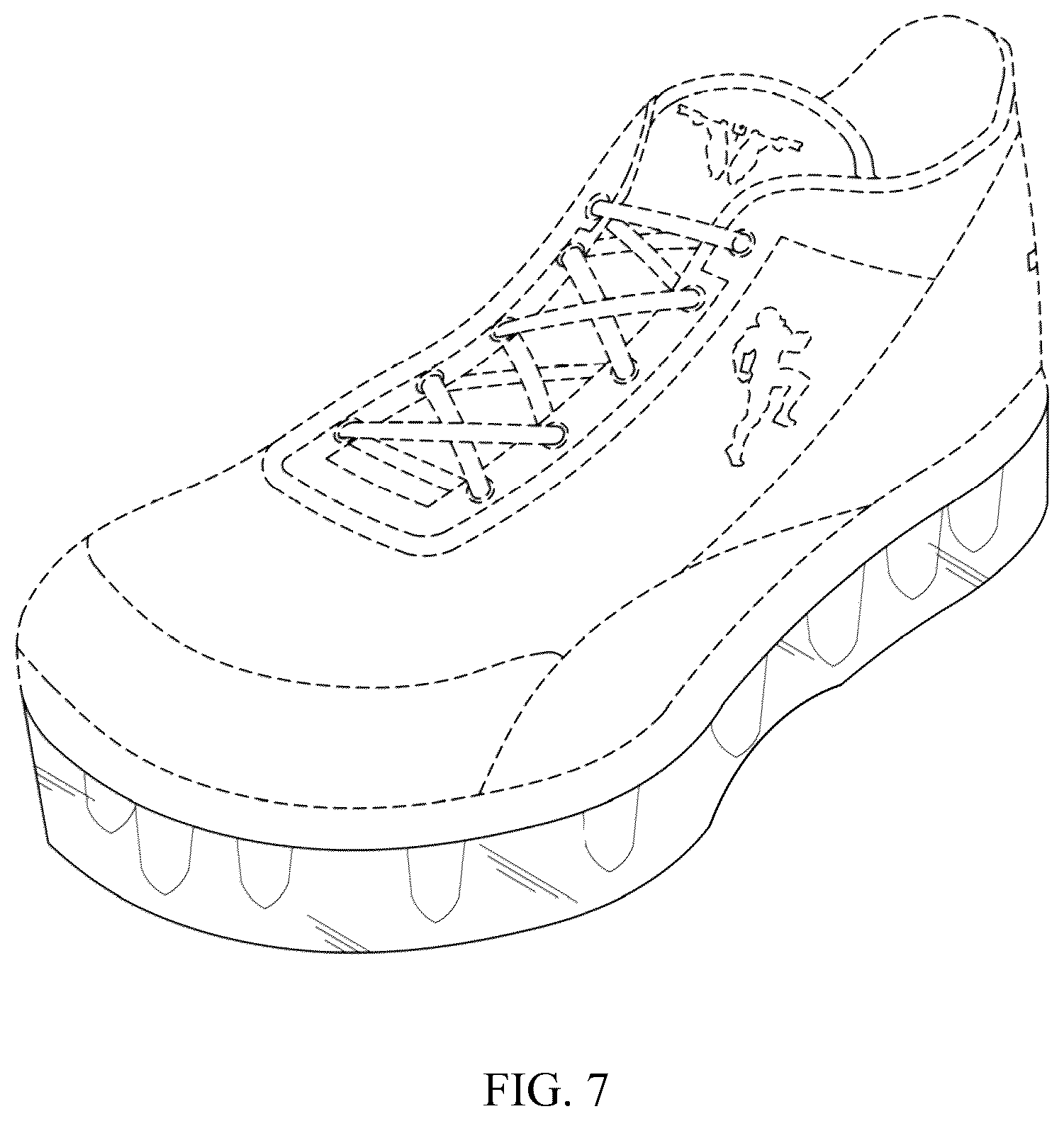

is a front perspective front view of the sneaker cleat in .

The broken lines shown in the drawings depict portions of the sneaker cleat that form no part of the claimed design.
