Waterproof Shower Cape

USD1123311No. D 1,123,311designGranted 4/28/2026

Patent USD1123311 — Waterproof shower cape — Figure 1 — Fig. 1 · Waterproof Shower Cape

Claims (1)

Claim 1 (Independent)

The ornamental design for a waterproof shower cape, as shown and described.

Full Description

Show full text →

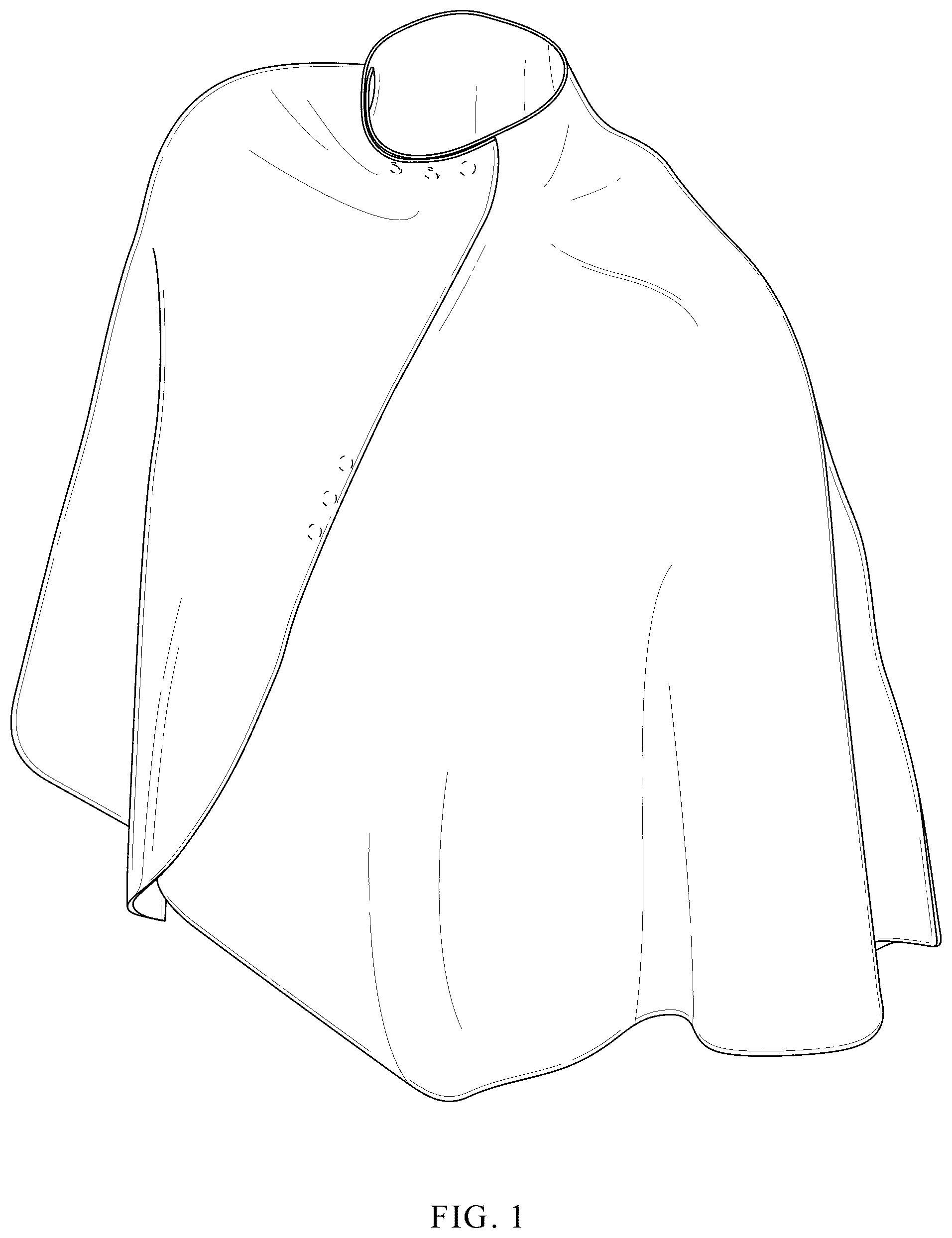

is a top-front-left perspective view of a waterproof shower cape showing my new design, wherein the waterproof shower cape is shown in a worn configuration;

is a top-rear-right perspective view thereof;

is a bottom-front-left perspective view thereof;

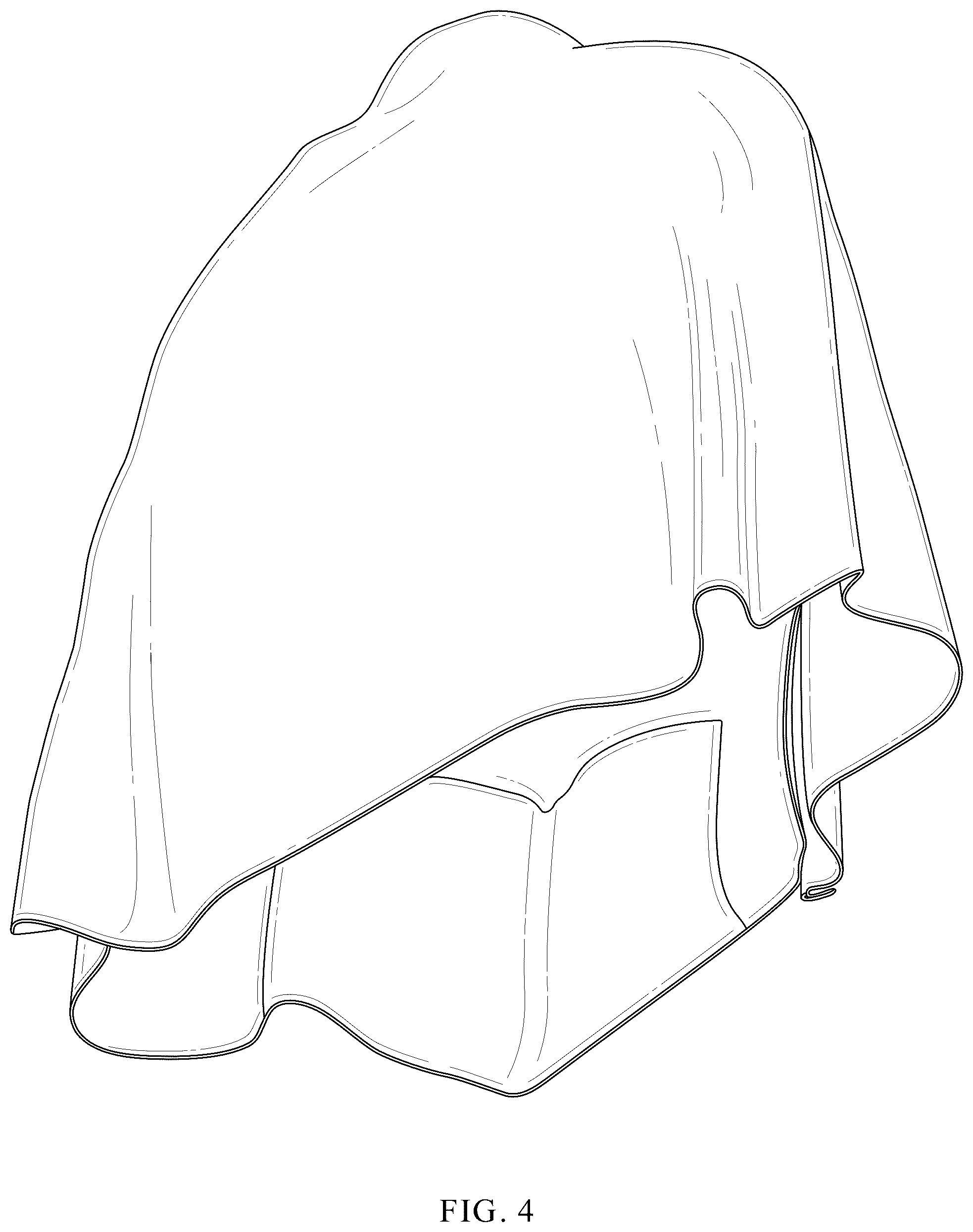

is a bottom-rear-right perspective view thereof;

is a front elevational view thereof;

is a rear elevational view thereof;

is a top plan view thereof;

is a bottom plan view thereof;

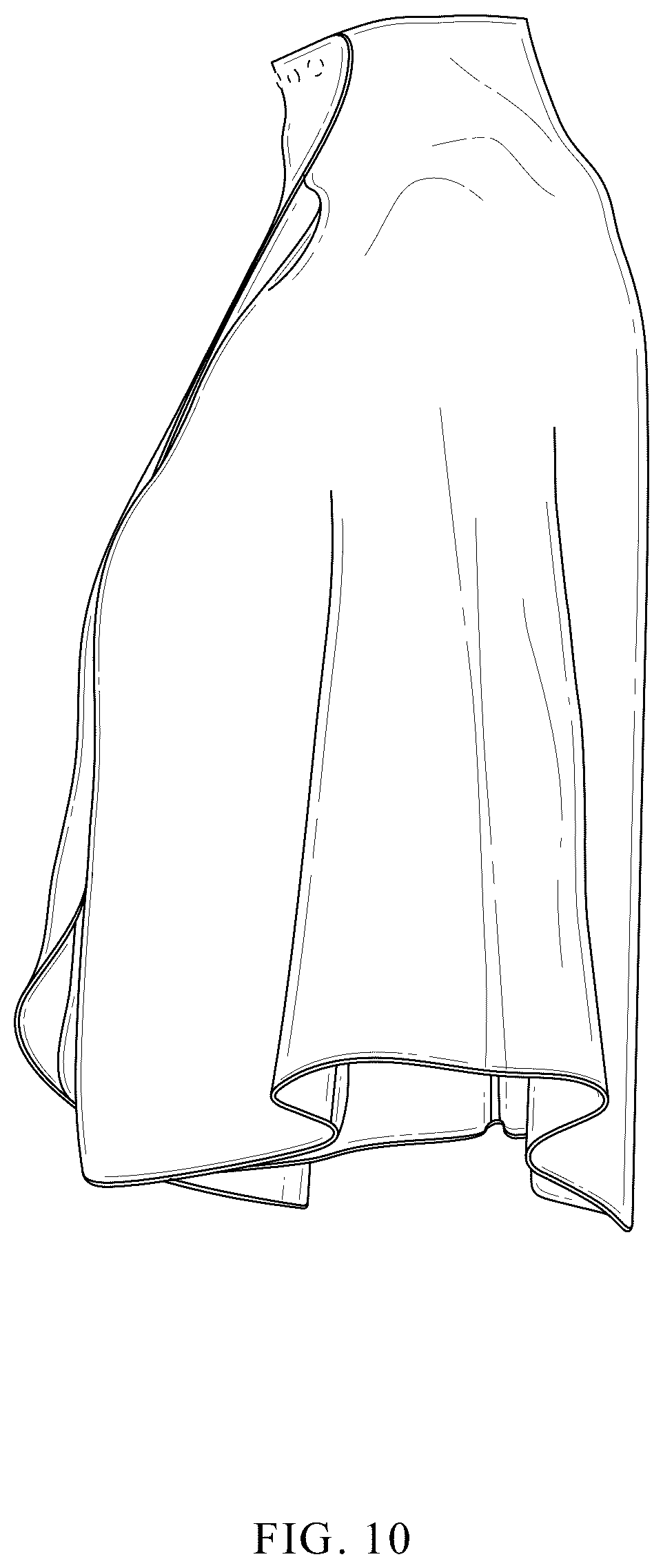

is a right elevational view thereof;

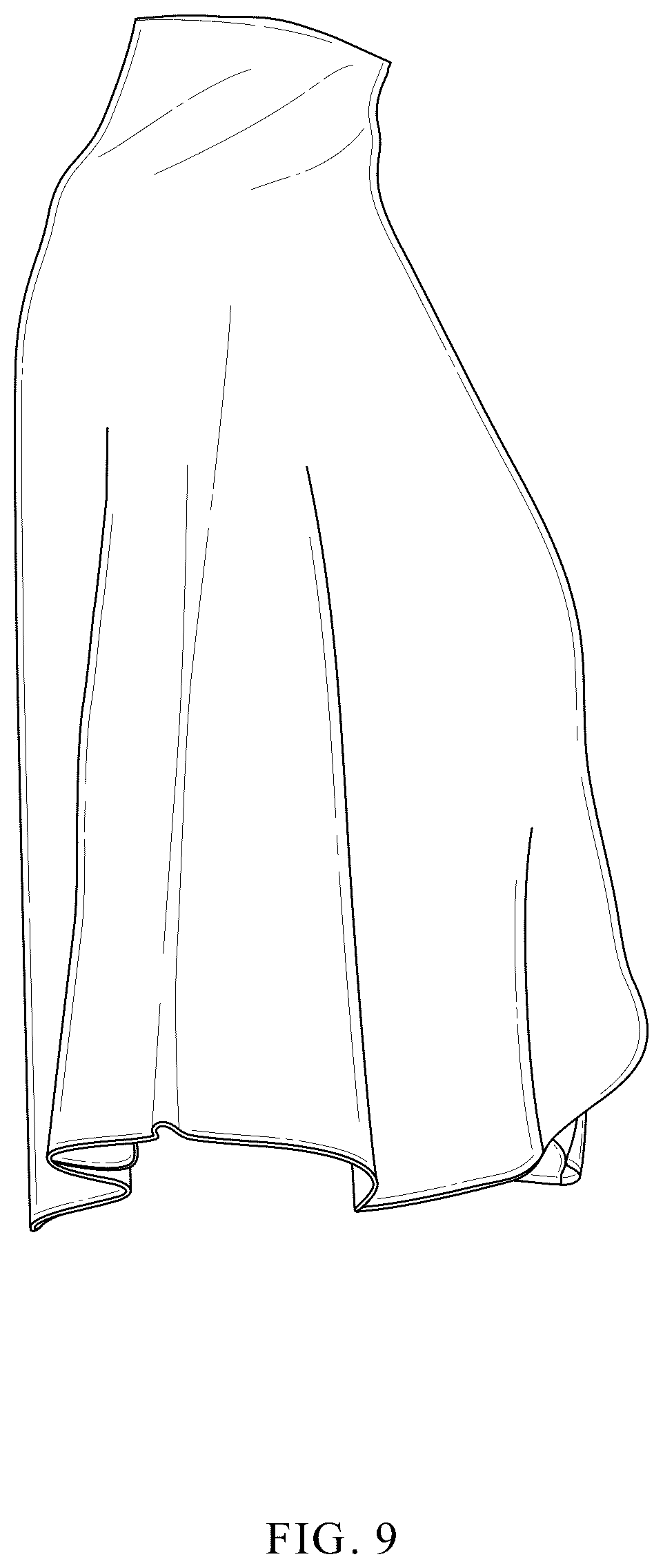

is a left elevational view thereof;

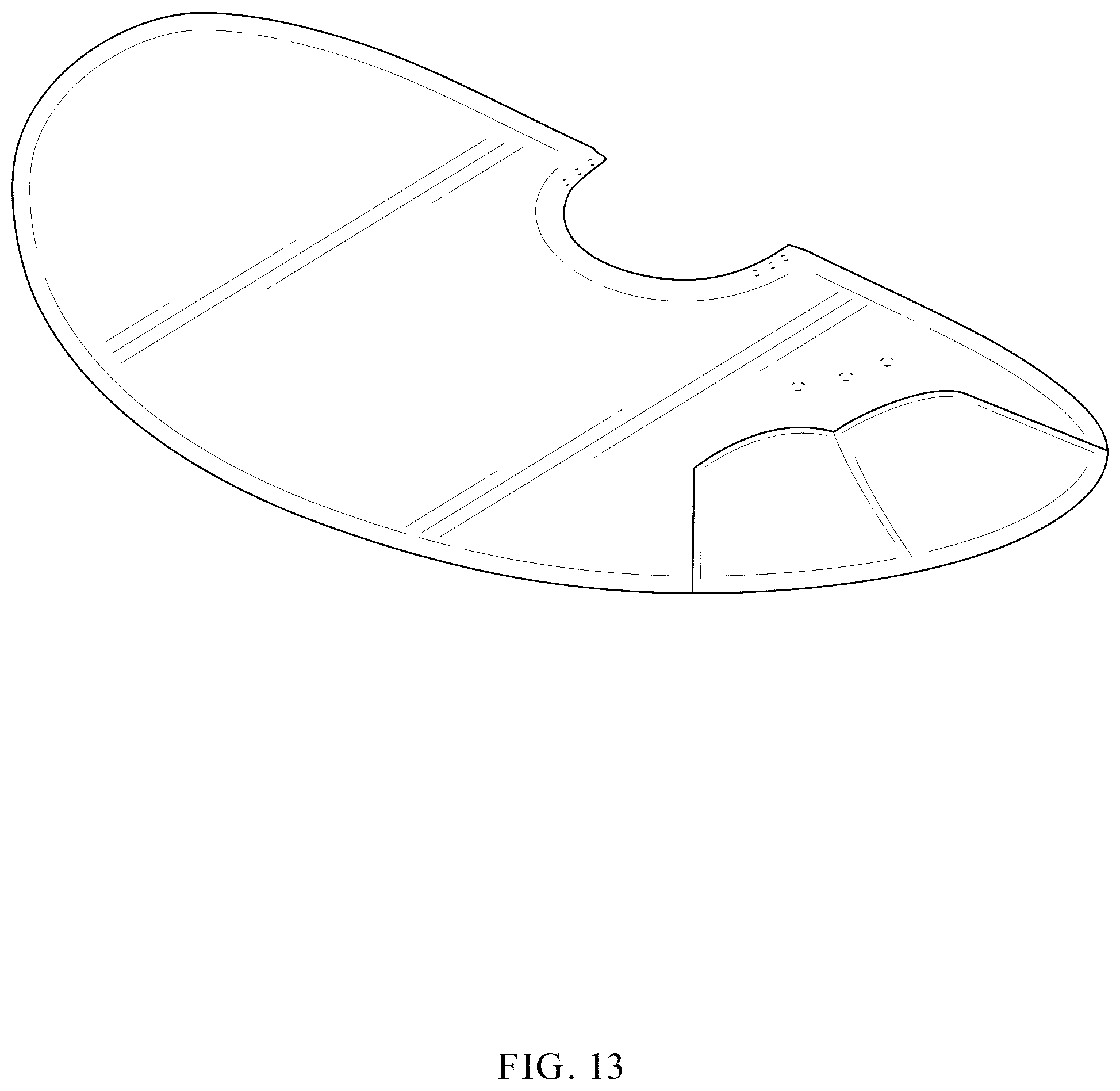

is a reduced top-front-right perspective view thereof, wherein the waterproof shower cape is shown in a flat configuration;

is a reduced top-rear-left perspective view thereof;

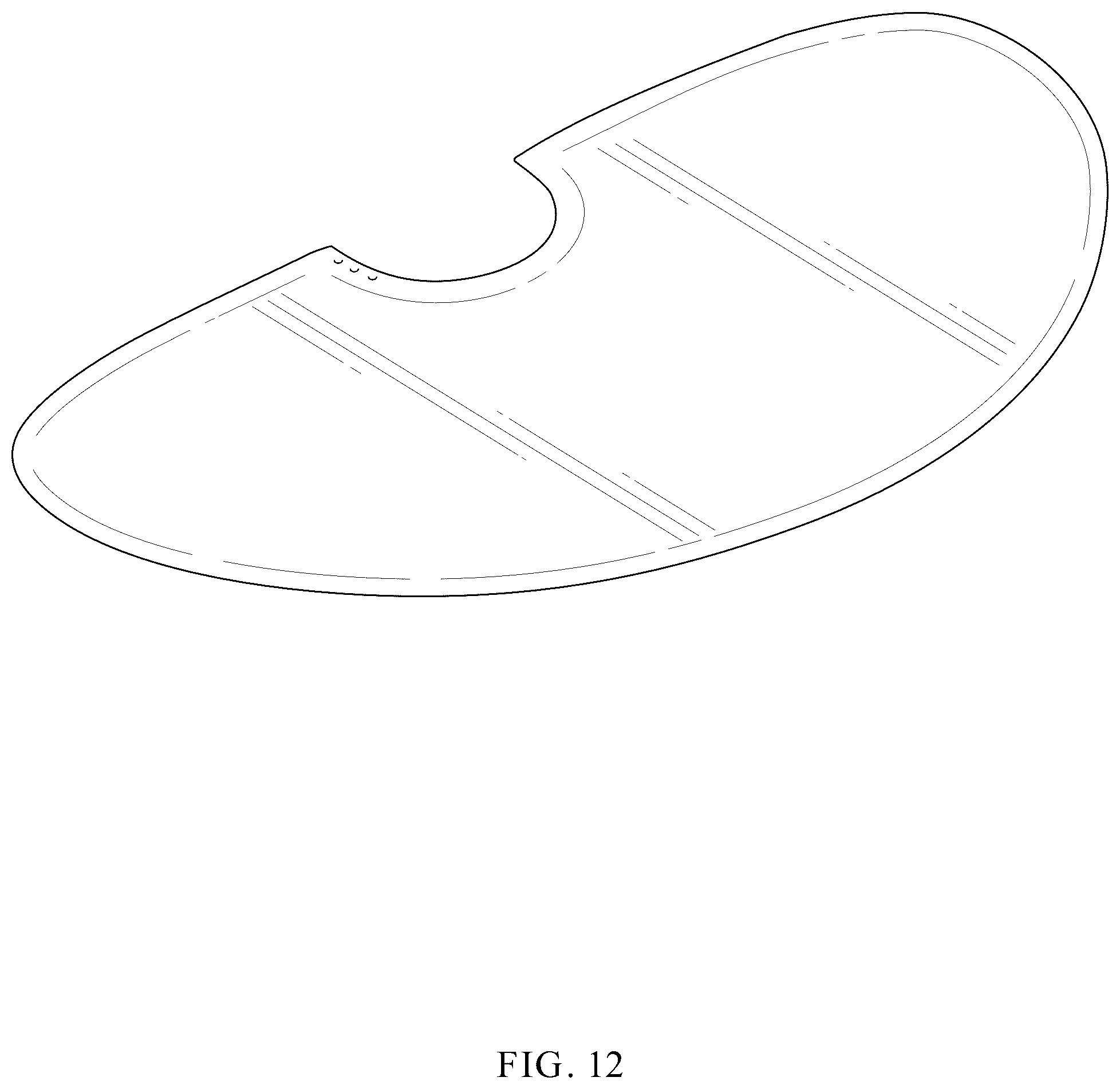

is a reduced bottom-front-right perspective view thereof; and,

is a reduced bottom-rear-left perspective view thereof.

The broken lines showing portions of the waterproof shower cape are included for the purpose of illustrating environmental structure and form no part of the claimed design.

Figures (14)

Patent USD1123311 Figure 1 – Waterproof shower cape — Fig. 1

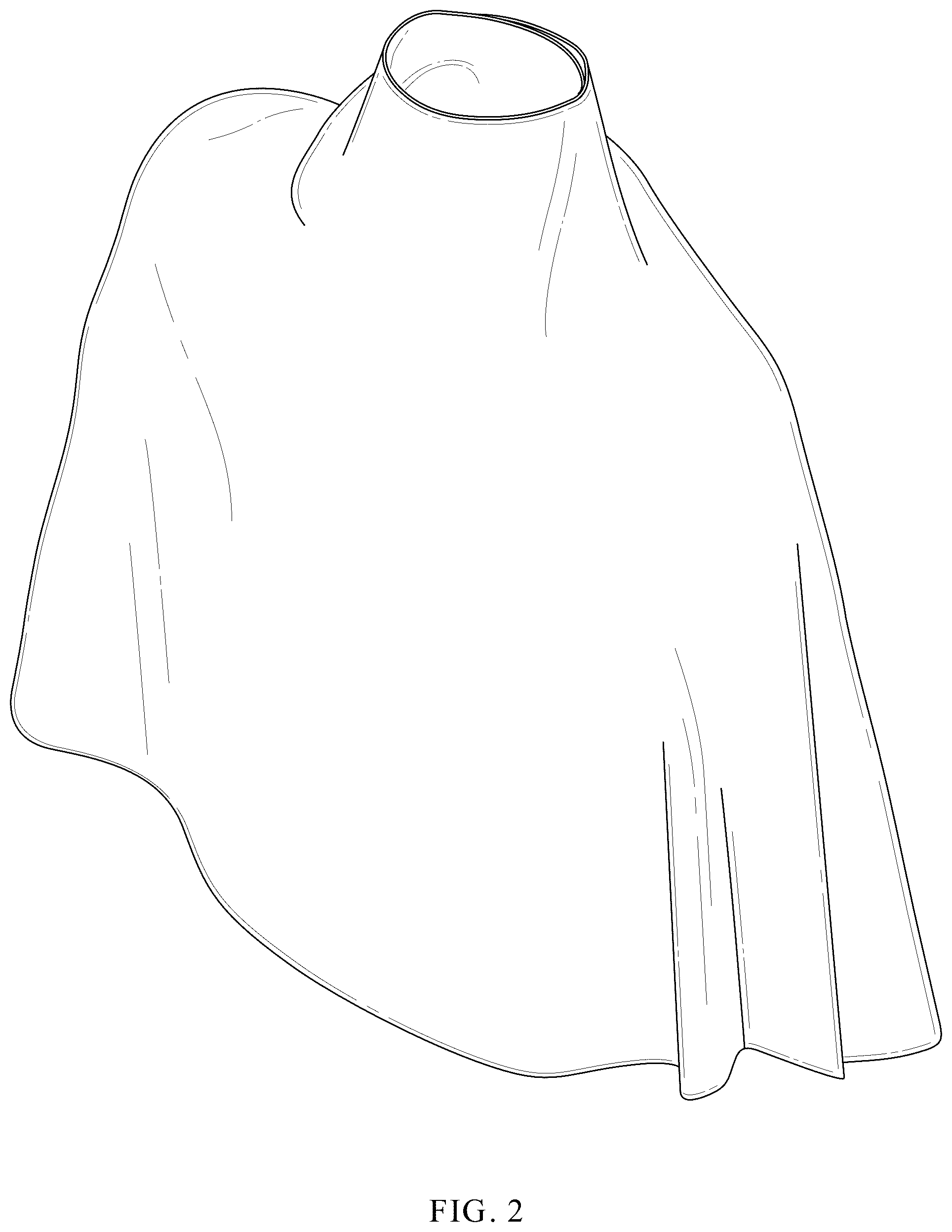

Patent USD1123311 Figure 2 – Waterproof shower cape — Fig. 2

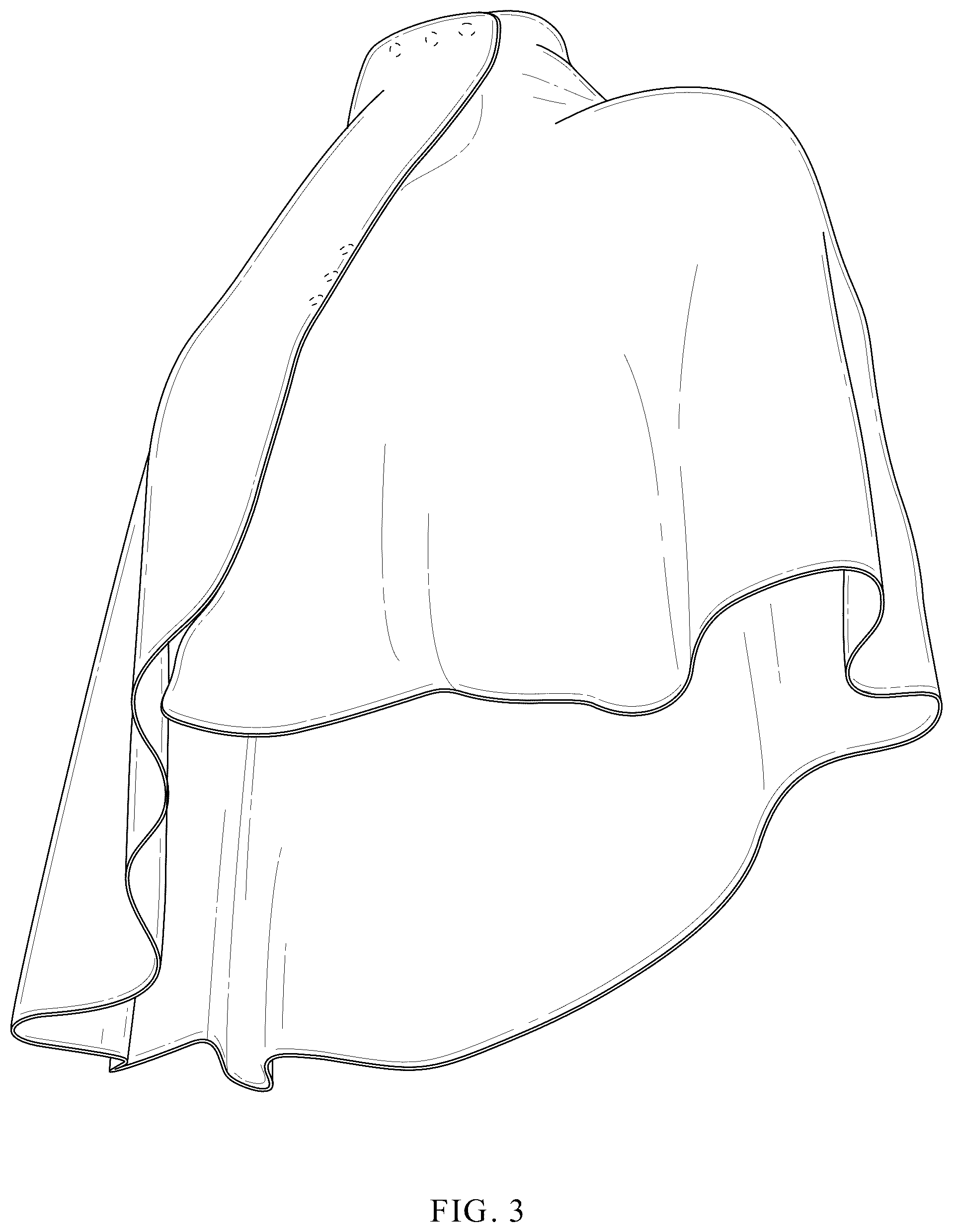

Patent USD1123311 Figure 3 – Waterproof shower cape — Fig. 3

Patent USD1123311 Figure 4 – Waterproof shower cape — Fig. 4

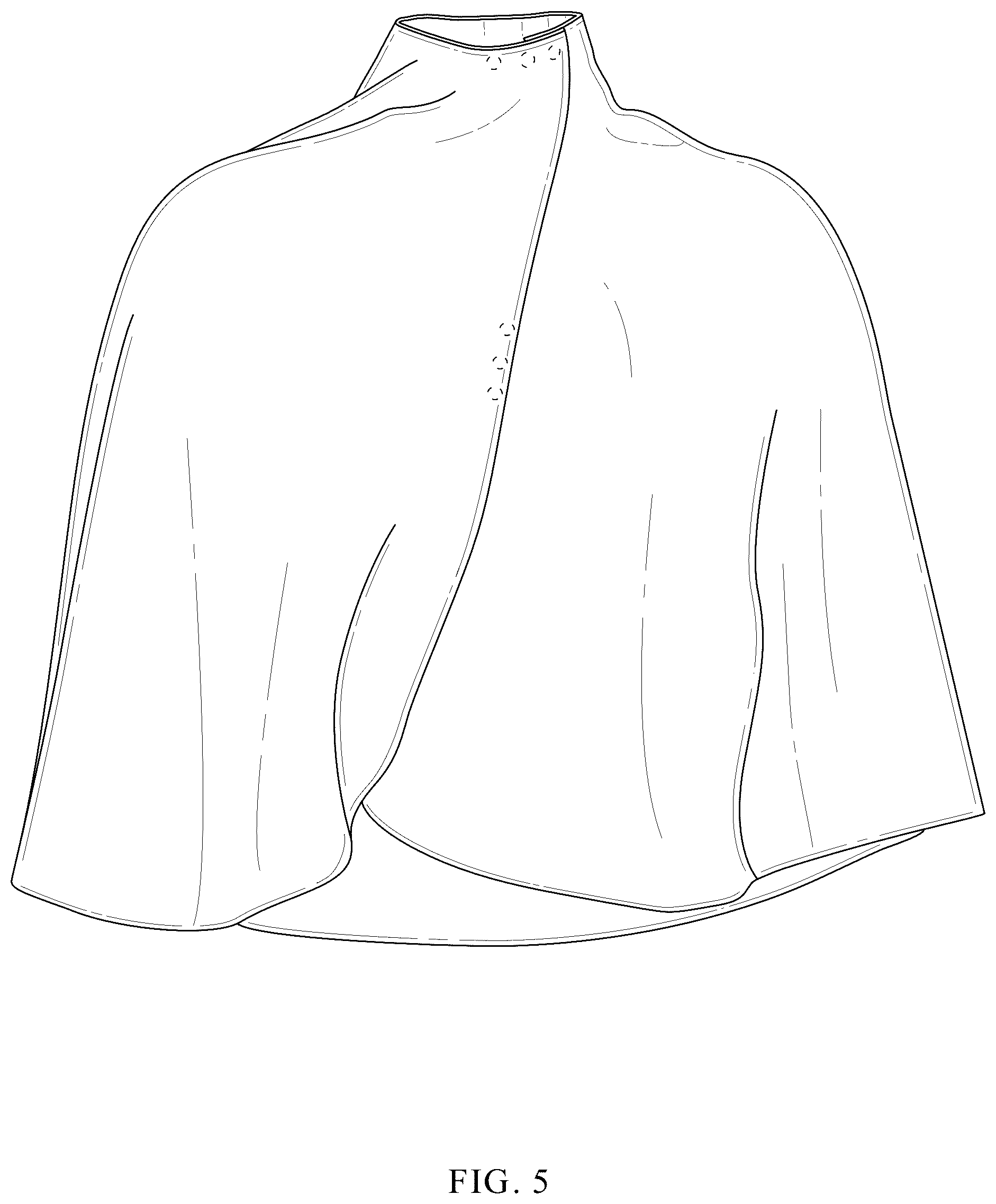

Patent USD1123311 Figure 5 – Waterproof shower cape — Fig. 5

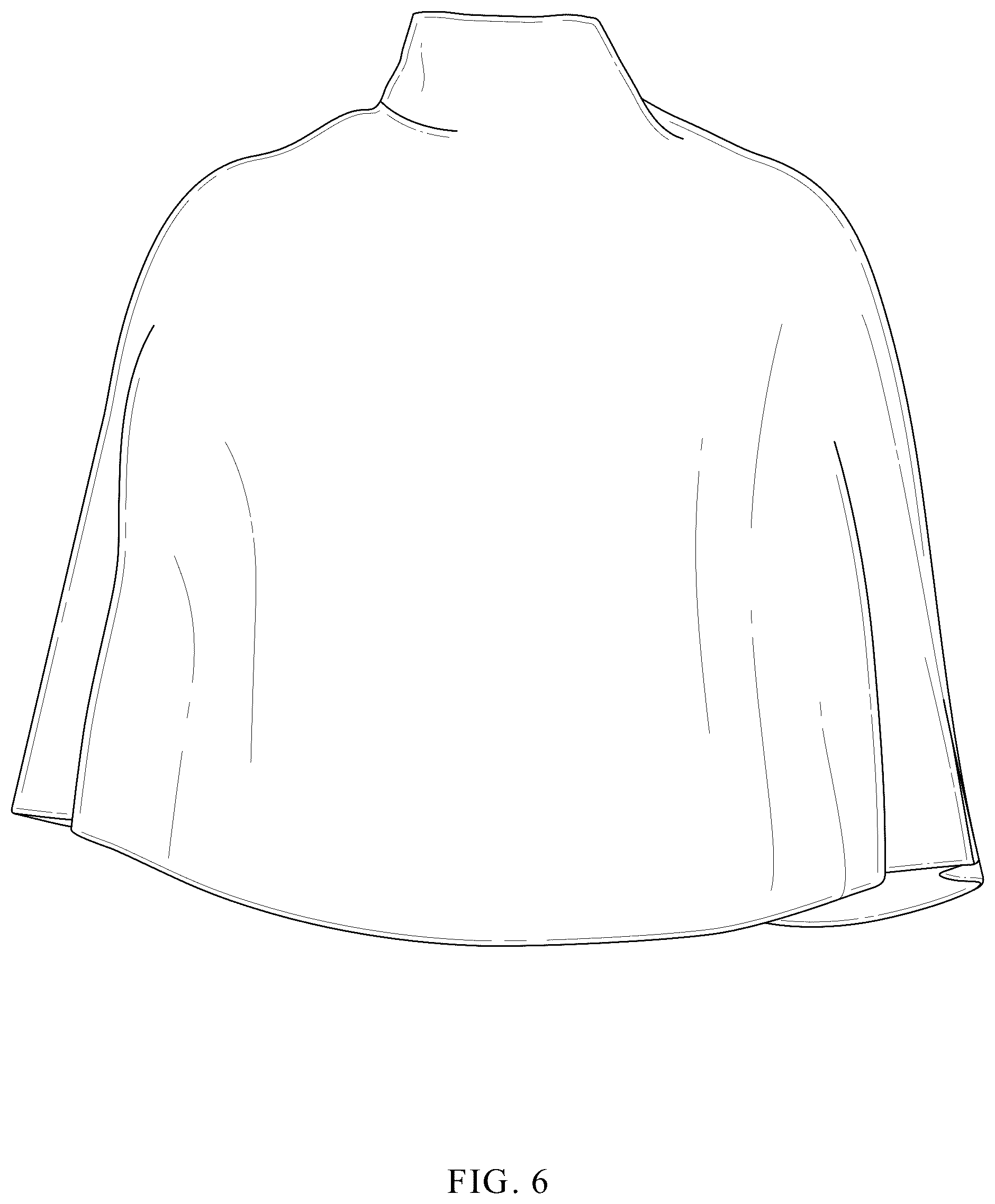

Patent USD1123311 Figure 6 – Waterproof shower cape — Fig. 6

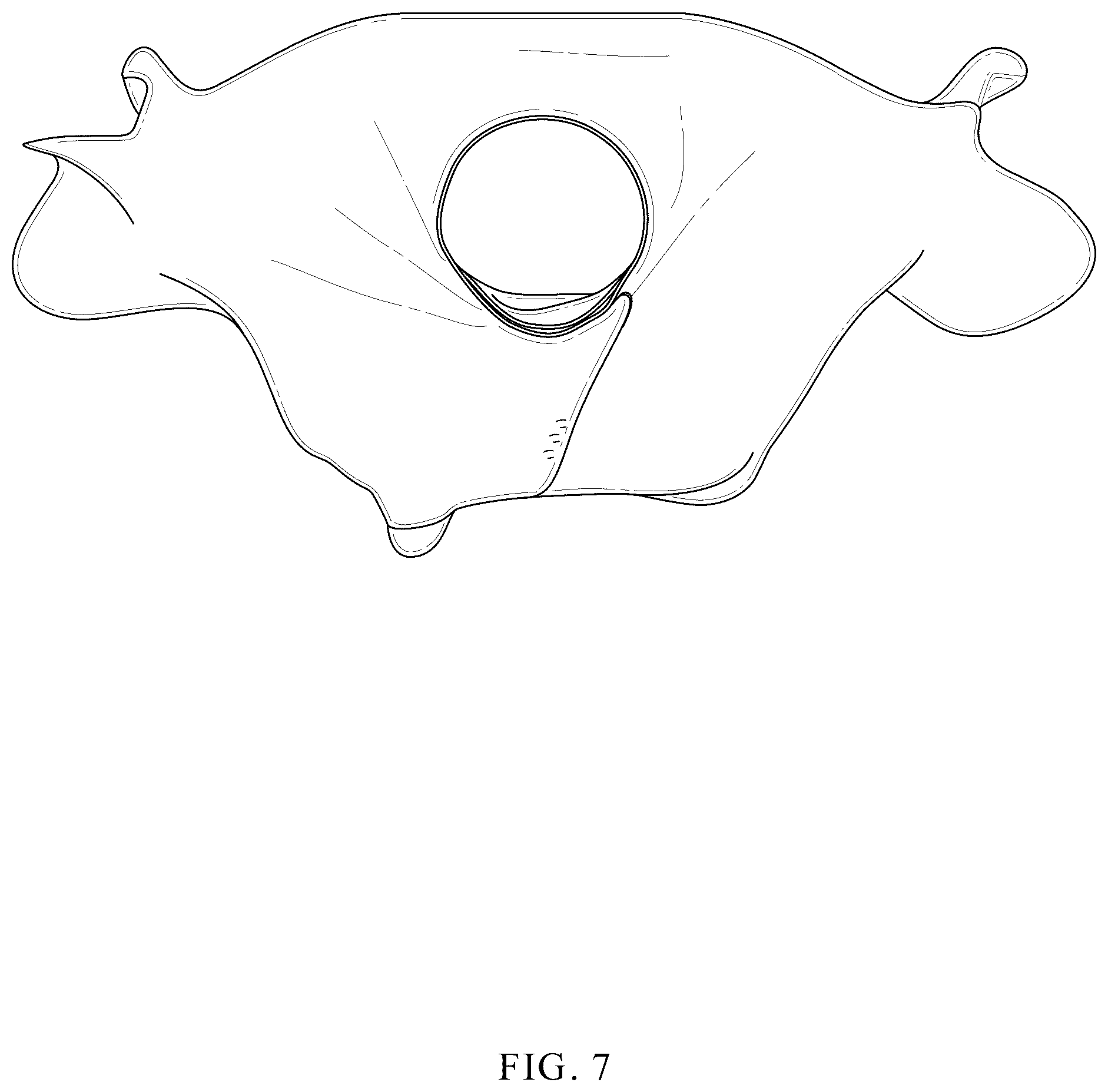

Patent USD1123311 Figure 7 – Waterproof shower cape — Fig. 7

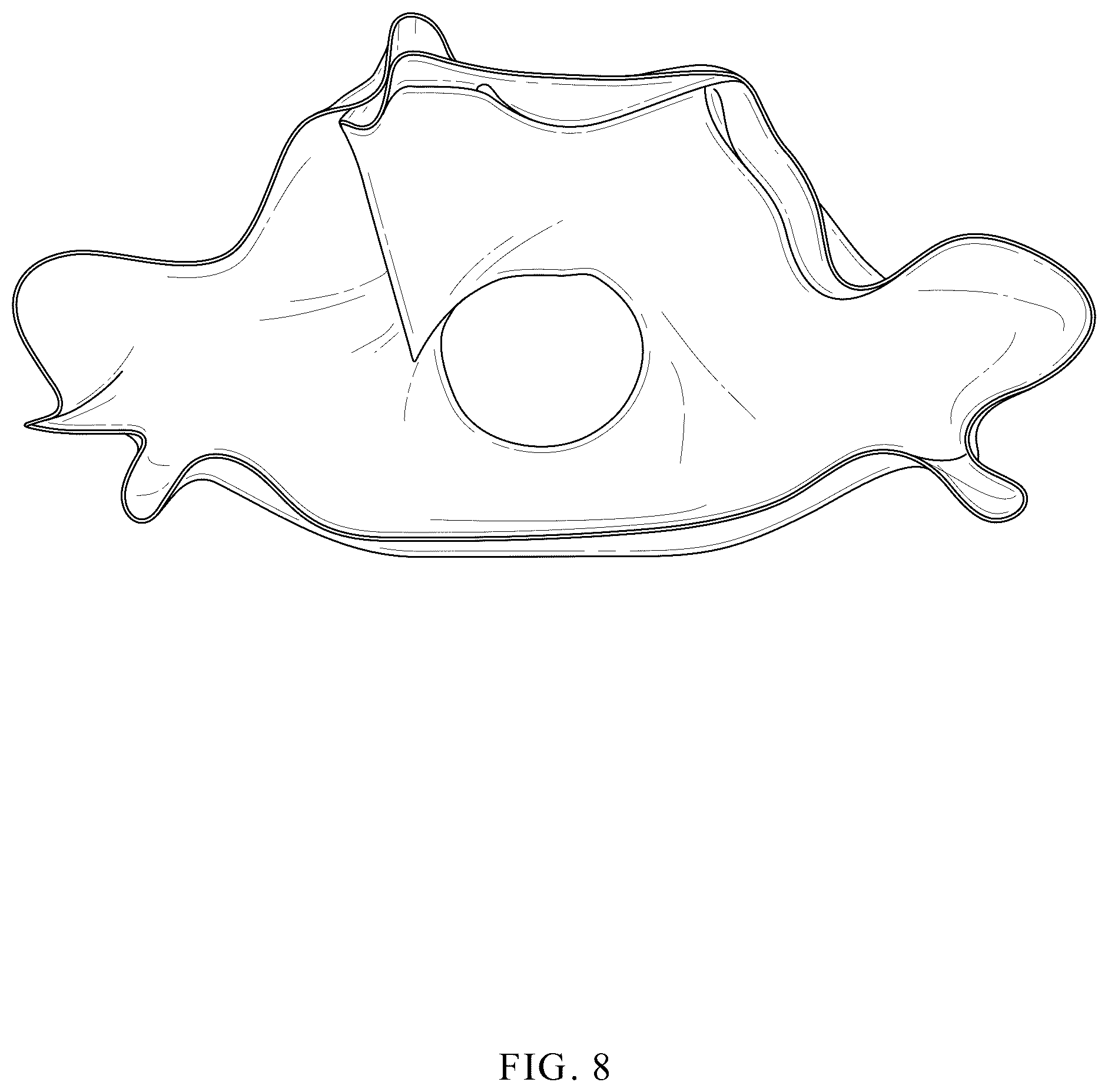

Patent USD1123311 Figure 8 – Waterproof shower cape — Fig. 8

Patent USD1123311 Figure 9 – Waterproof shower cape — Fig. 9

Patent USD1123311 Figure 10 – Waterproof shower cape — Fig. 10

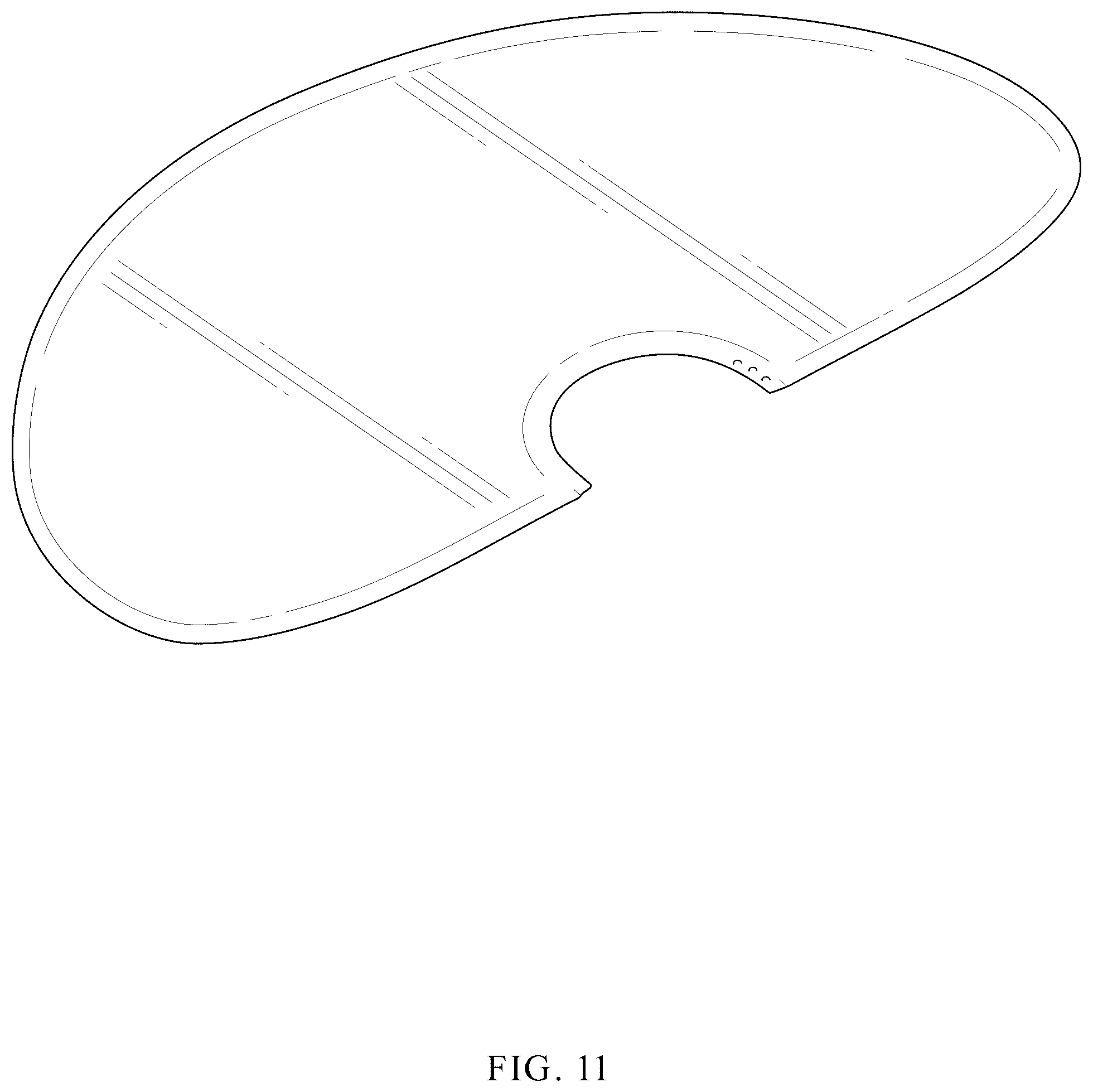

Patent USD1123311 Figure 11 – Waterproof shower cape — Fig. 11

Patent USD1123311 Figure 12 – Waterproof shower cape — Fig. 12

Patent USD1123311 Figure 13 – Waterproof shower cape — Fig. 13

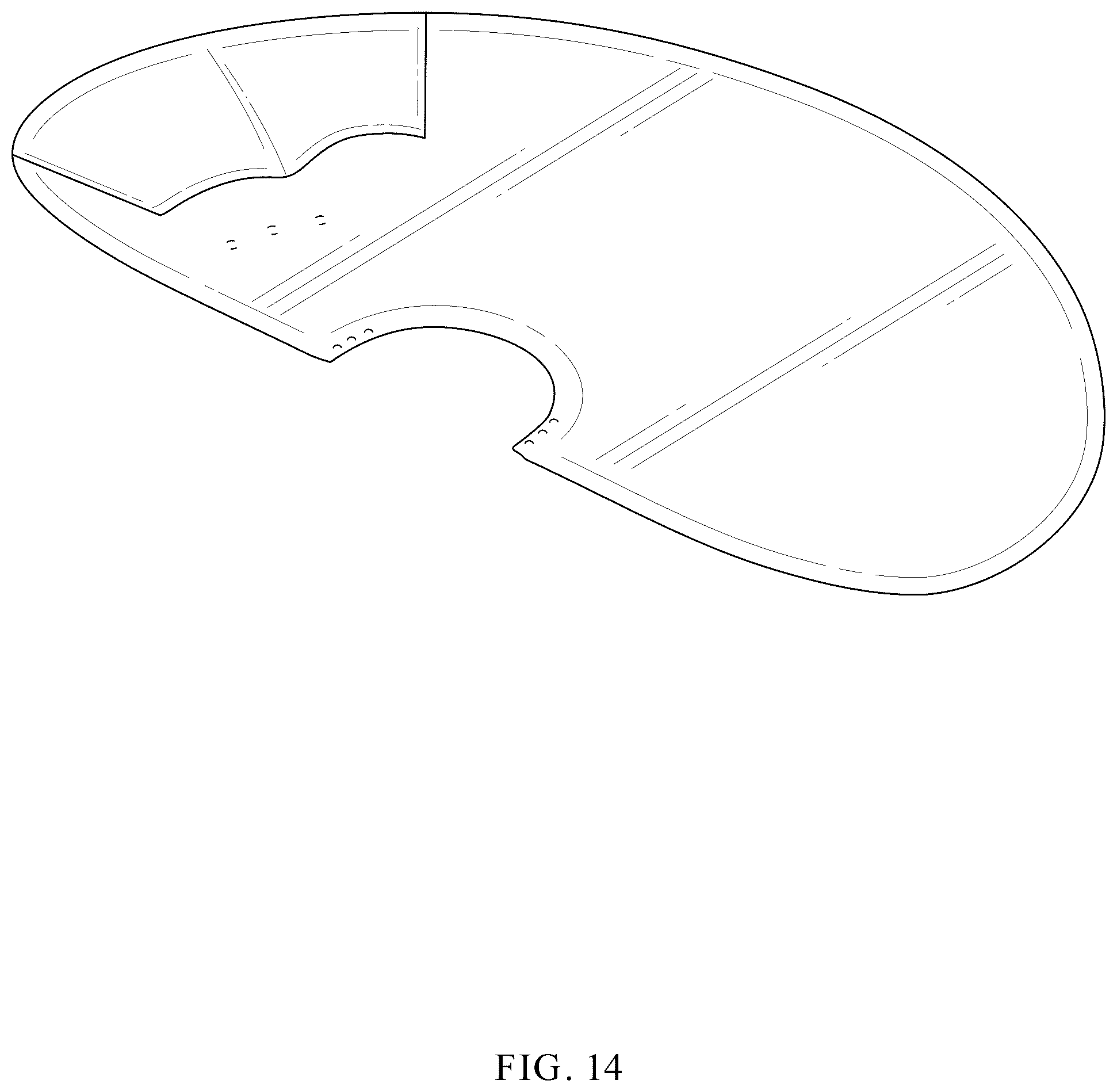

Patent USD1123311 Figure 14 – Waterproof shower cape — Fig. 14
