Urinal Screen

USD1101110No. D 1,101,110designGranted 11/4/2025
Patent USD1101110 — Urinal screen — Figure 1
Fig. 1 · Urinal Screen

Claims (1)

Claim 1 (Independent)

The ornamental design for a urinal screen as shown and described.

Full Description

Show full text →

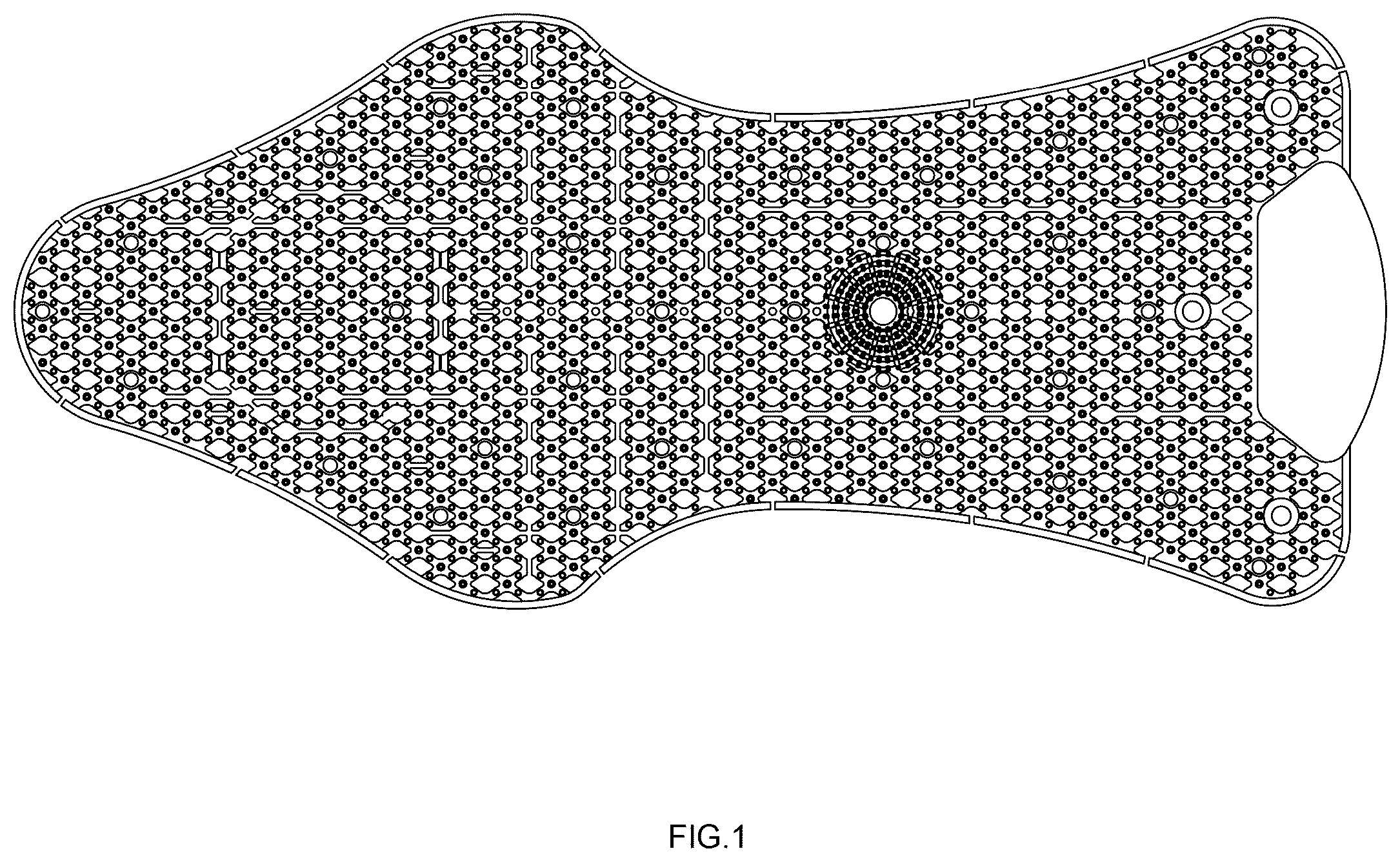

is a top plan view of a urinal screen;

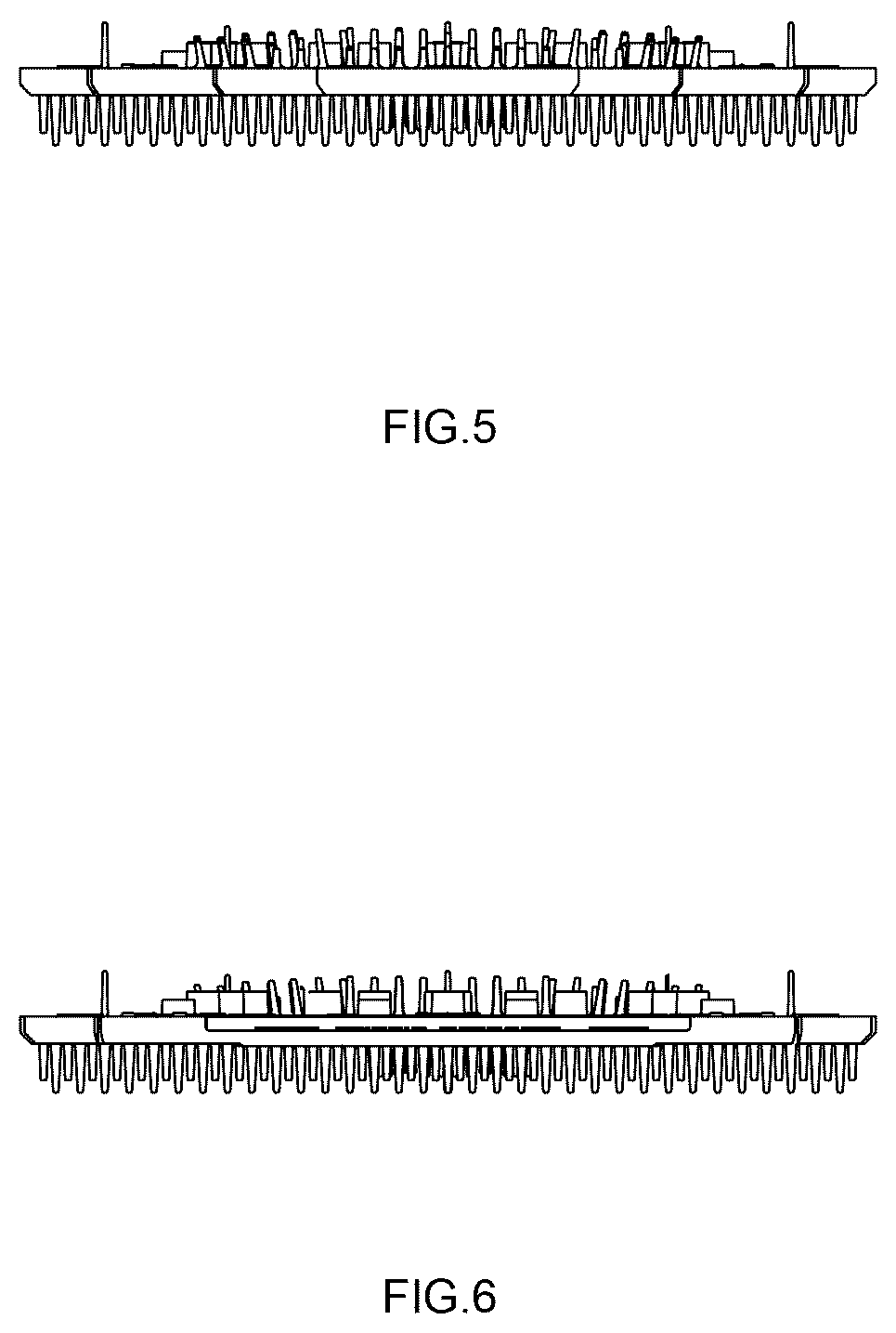

is a left side elevational view thereof;

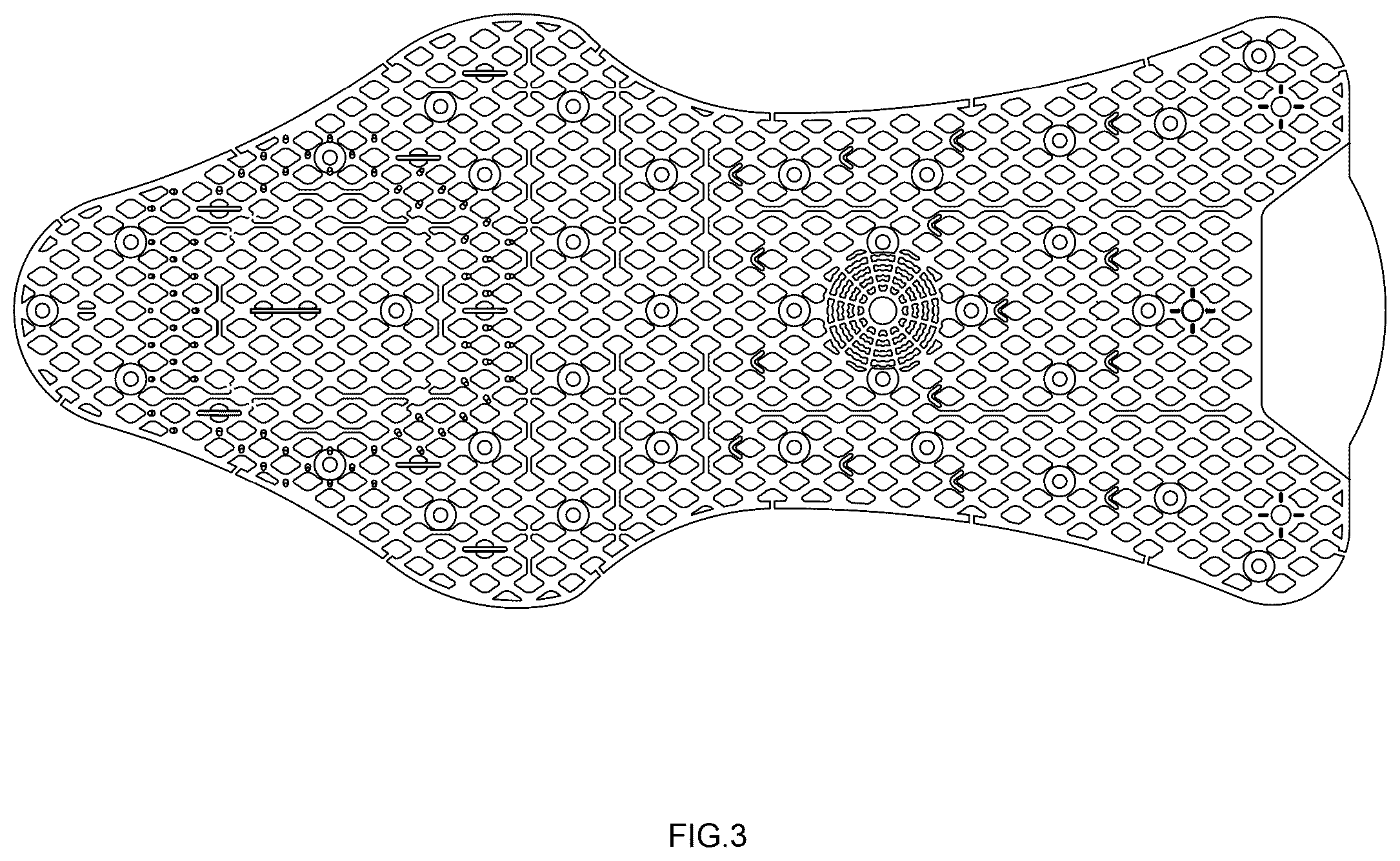

is a bottom plan view thereof;

is right side elevational view thereof;

is a front elevational view thereof;

is a rear elevational view thereof;

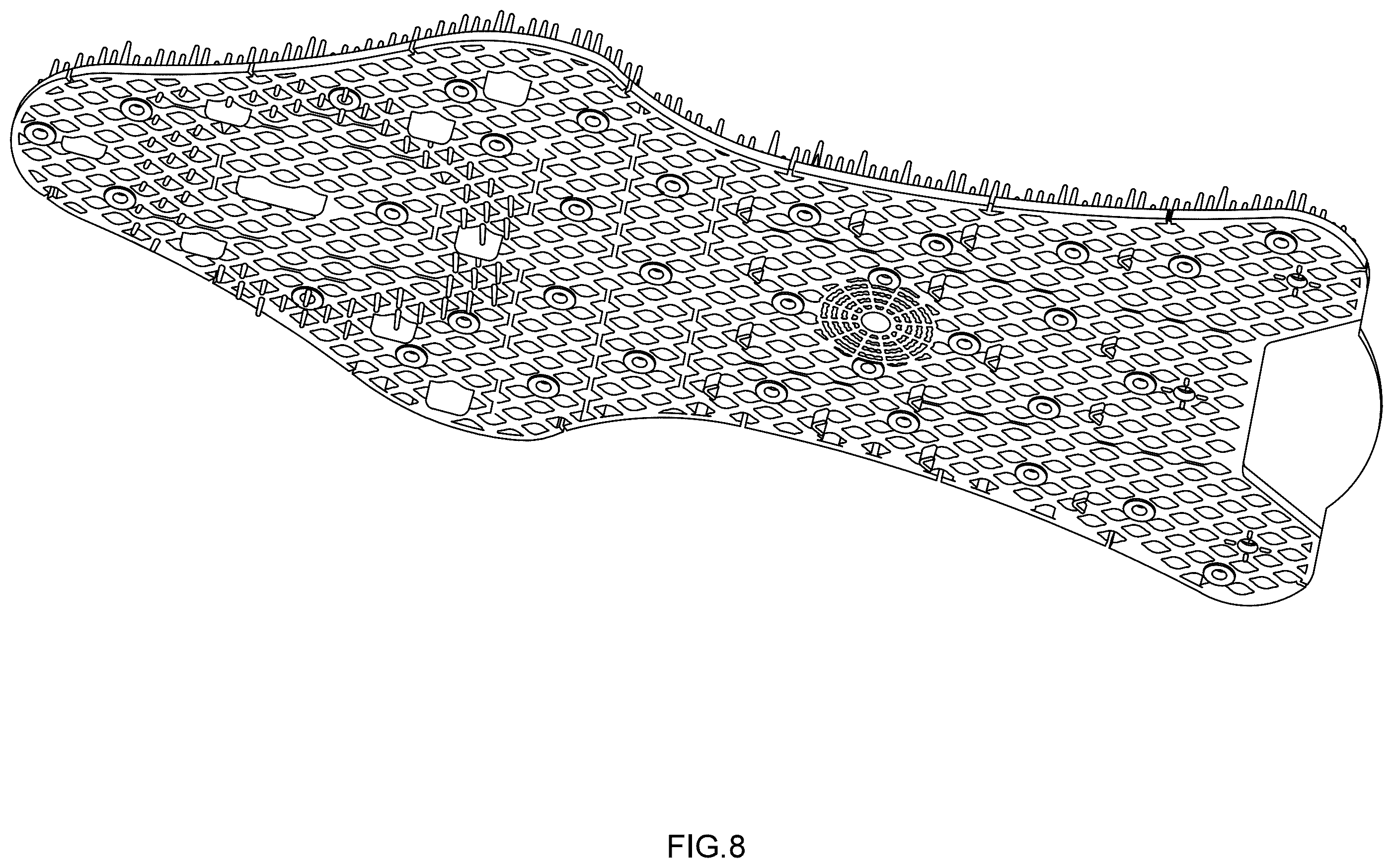

is a perspective view from the top right side thereof; and,

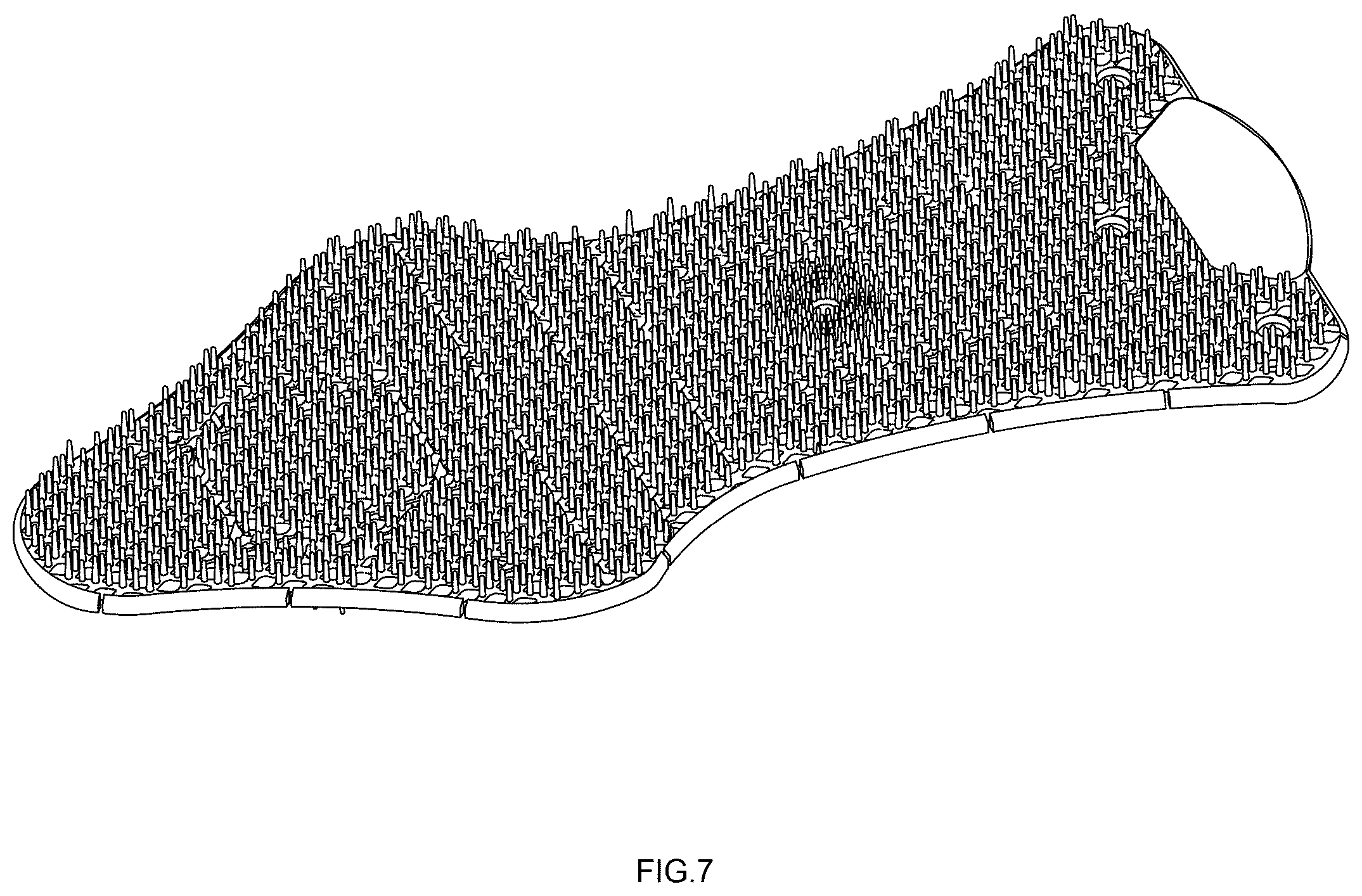

is a perspective view from the lower right side thereof.
