Ratchet Buckle

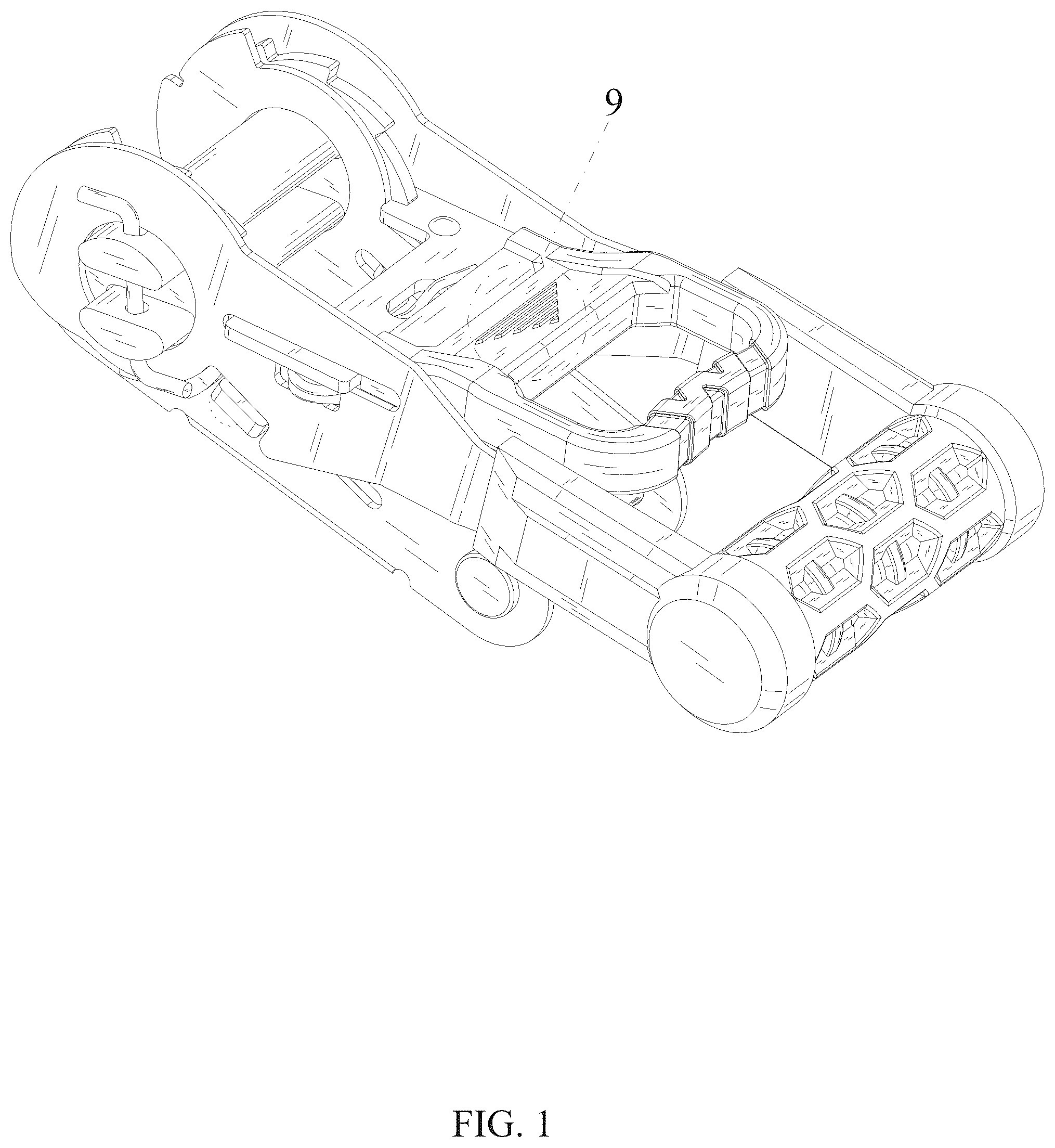

FIG. 1 is a perspective view of a ratchet buckle showing my new design;

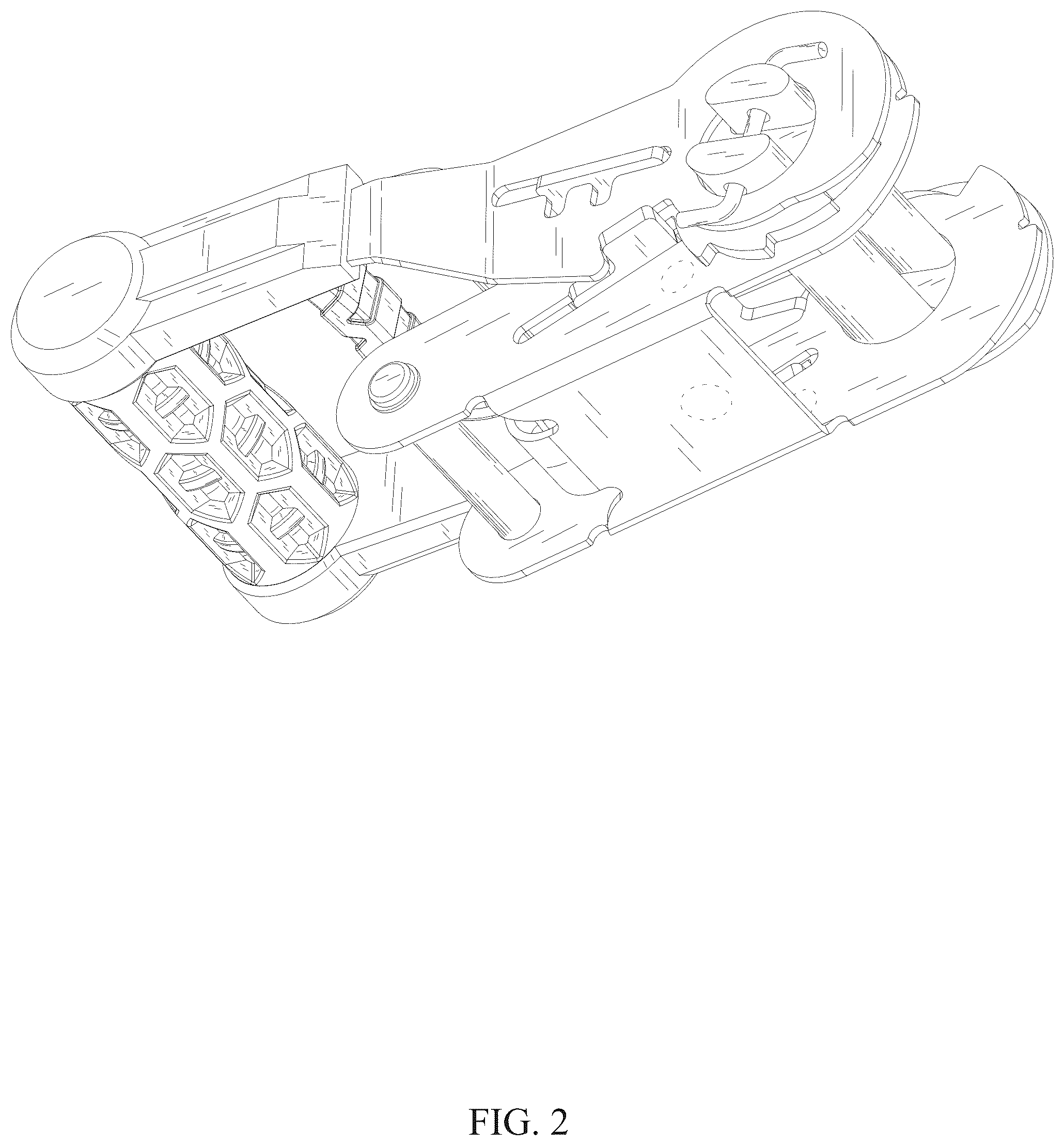

FIG. 2 is another perspective view thereof;

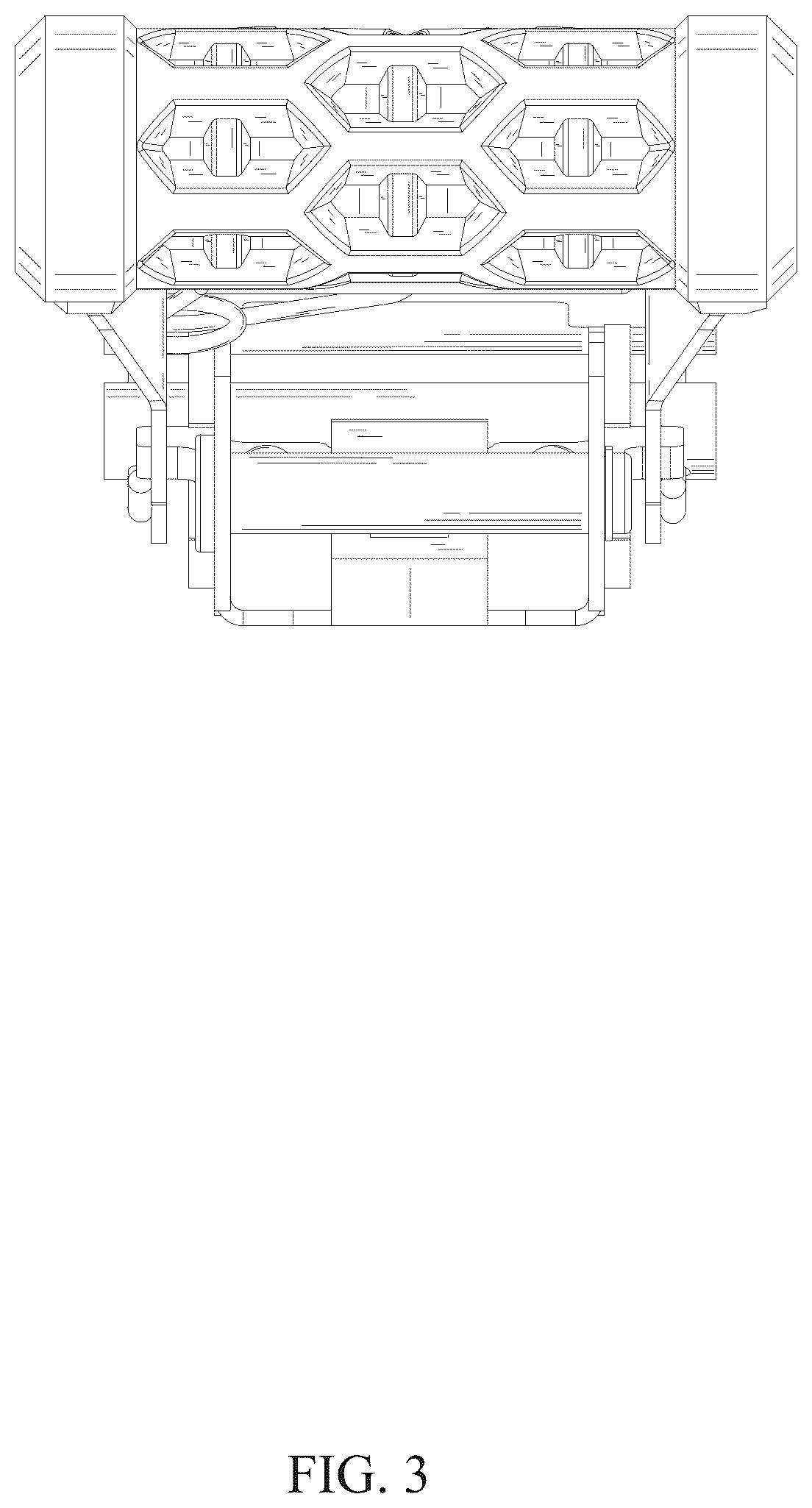

FIG. 3 is a front elevation view thereof;

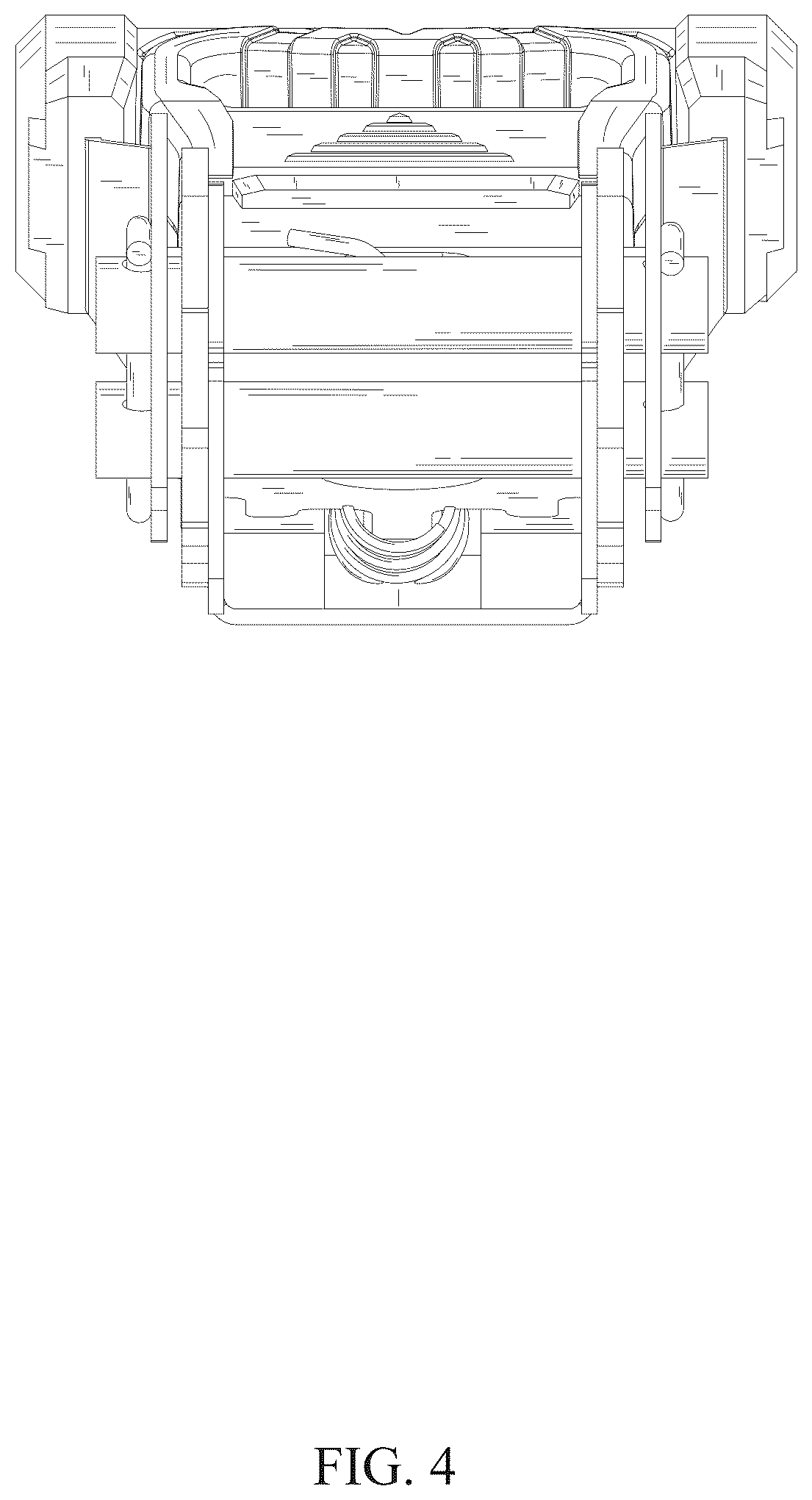

FIG. 4 is a back elevation view thereof;

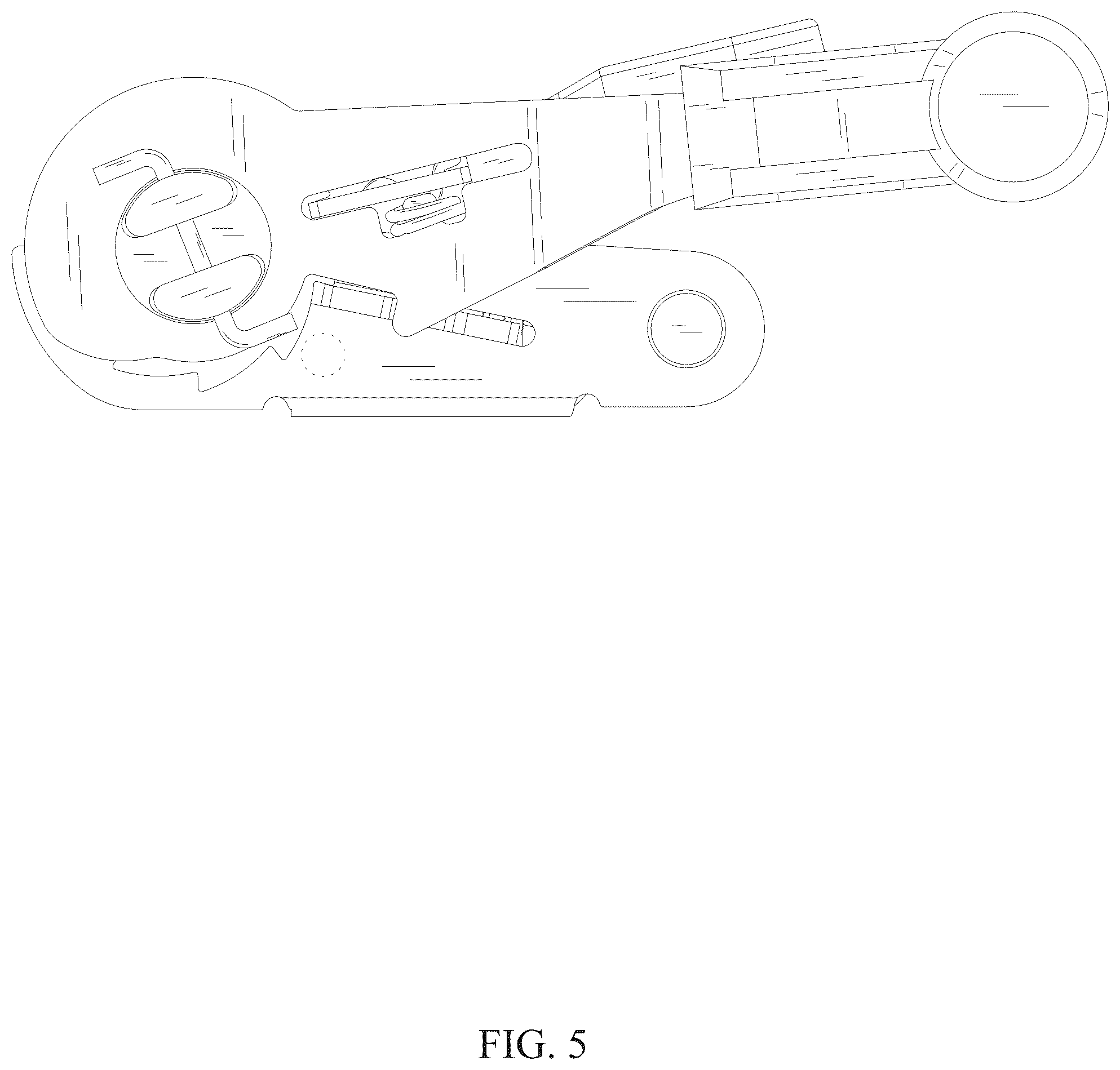

FIG. 5 is a left side elevation view thereof;

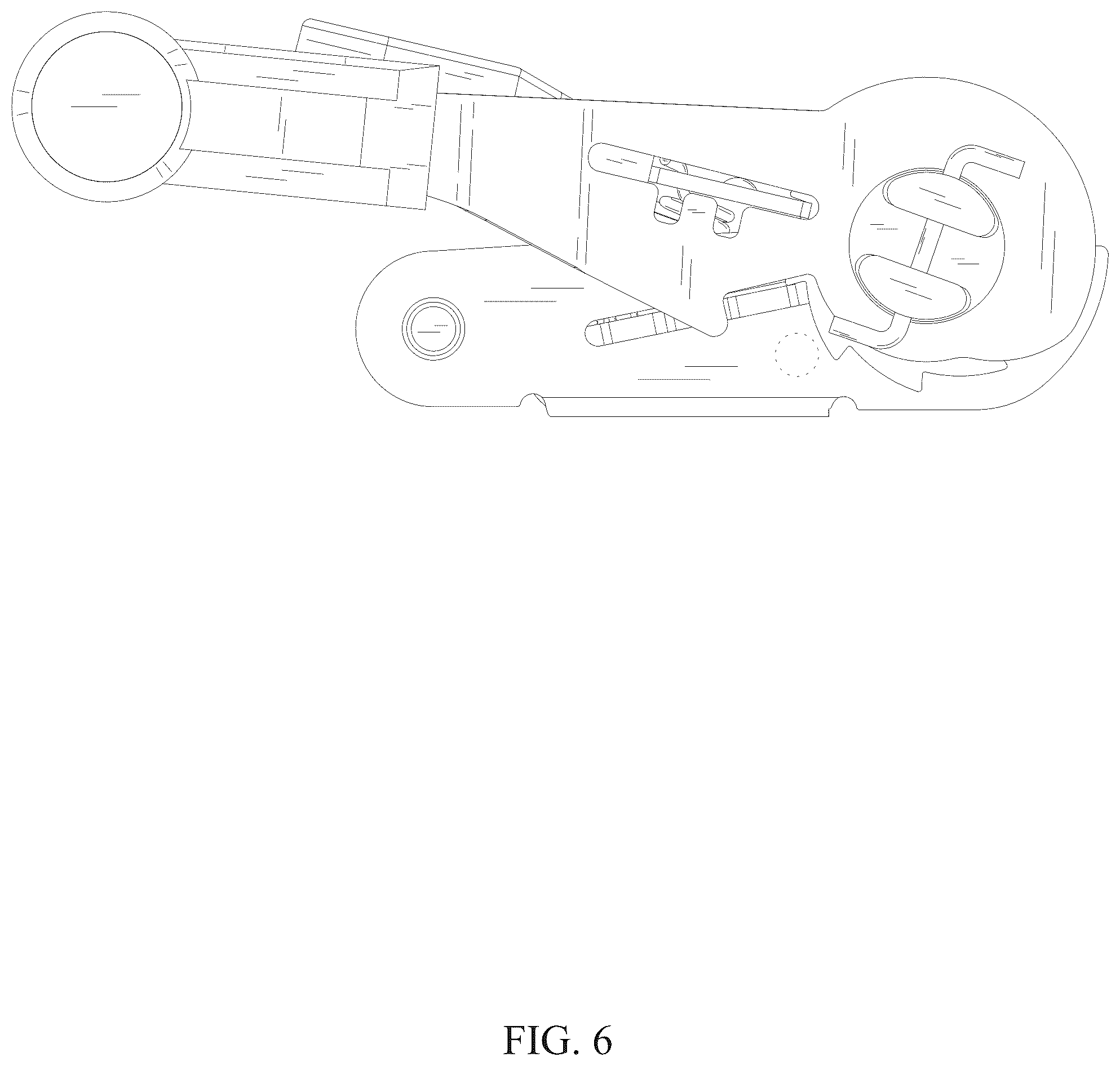

FIG. 6 is a right side elevation view thereof;

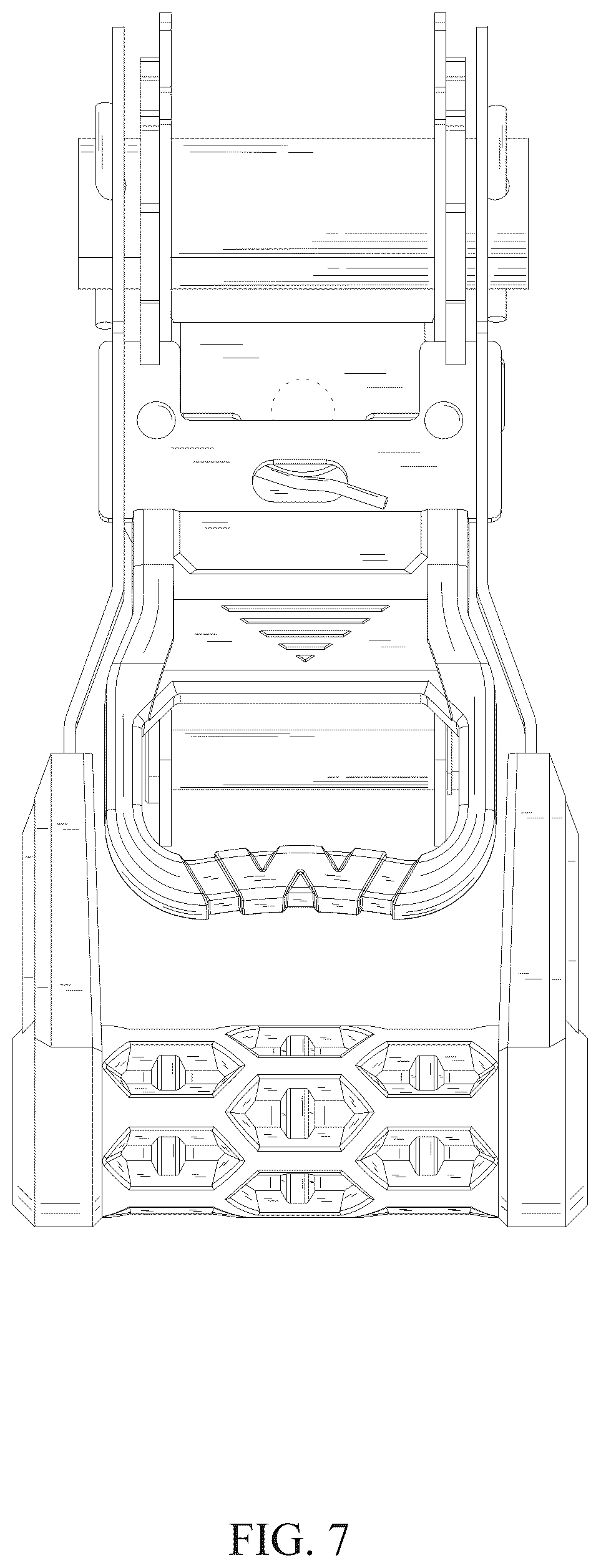

FIG. 7 is a top plan view thereof;

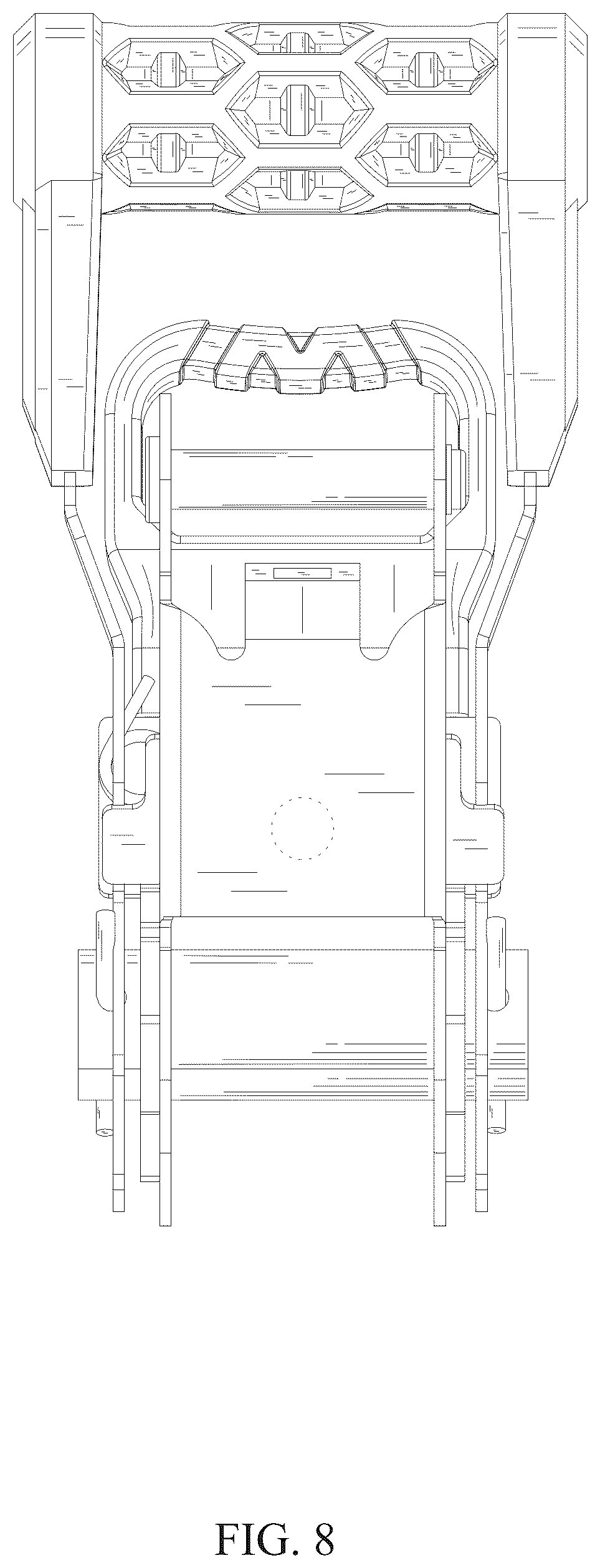

FIG. 8 is a bottom plan view thereof; and,

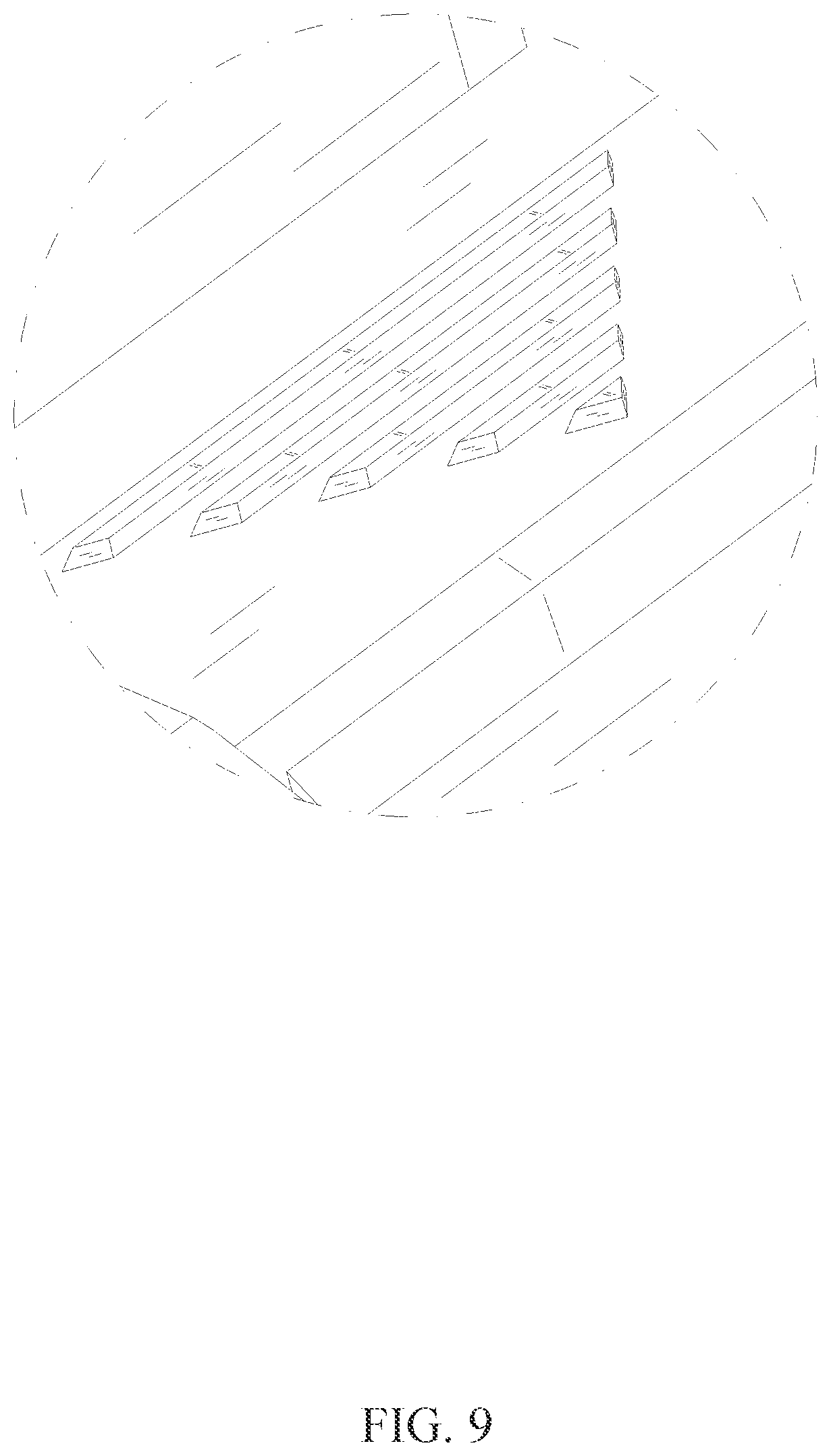

FIG. 9 is an enlarged view of the encircled portion in FIG. 1 .

The equal-length broken lines depict portions of the ratchet buckle that form no part of the claimed design.

The dash-dot lines in FIG. 1 and FIG. 9 illustrate the boundaries of the enlarged view indicators and form no part of the claimed design.
