Animal Grooming Tool

USD1079147No. D 1,079,147designGranted 6/10/2025
Patent USD1079147 — Animal grooming tool — Figure 1
Fig. 1 · Animal Grooming Tool

Claims (1)

Claim 1 (Independent)

The ornamental design for an animal grooming tool as shown and described.

Full Description

Show full text →

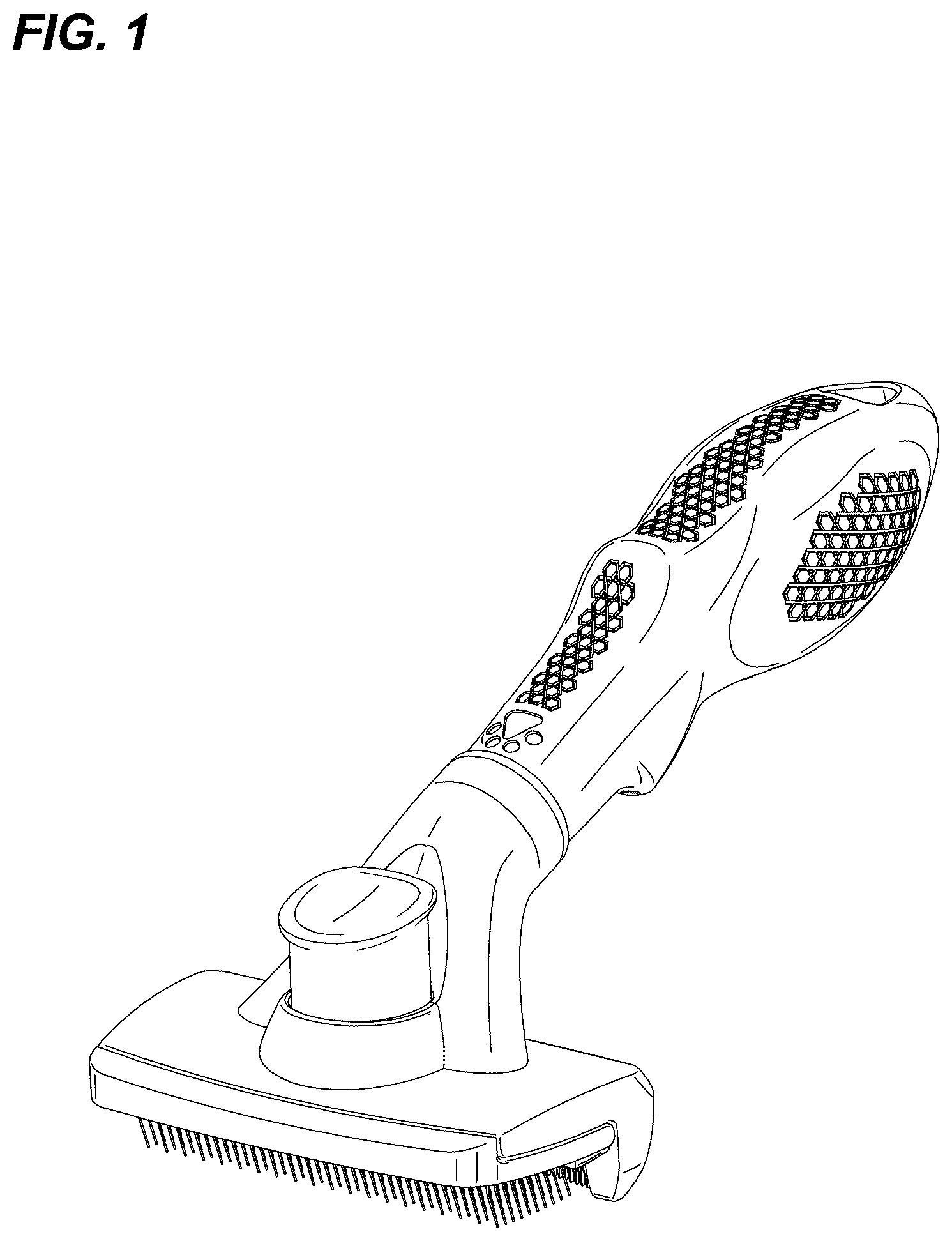

is a front perspective view of an animal grooming tool, according to the new design;

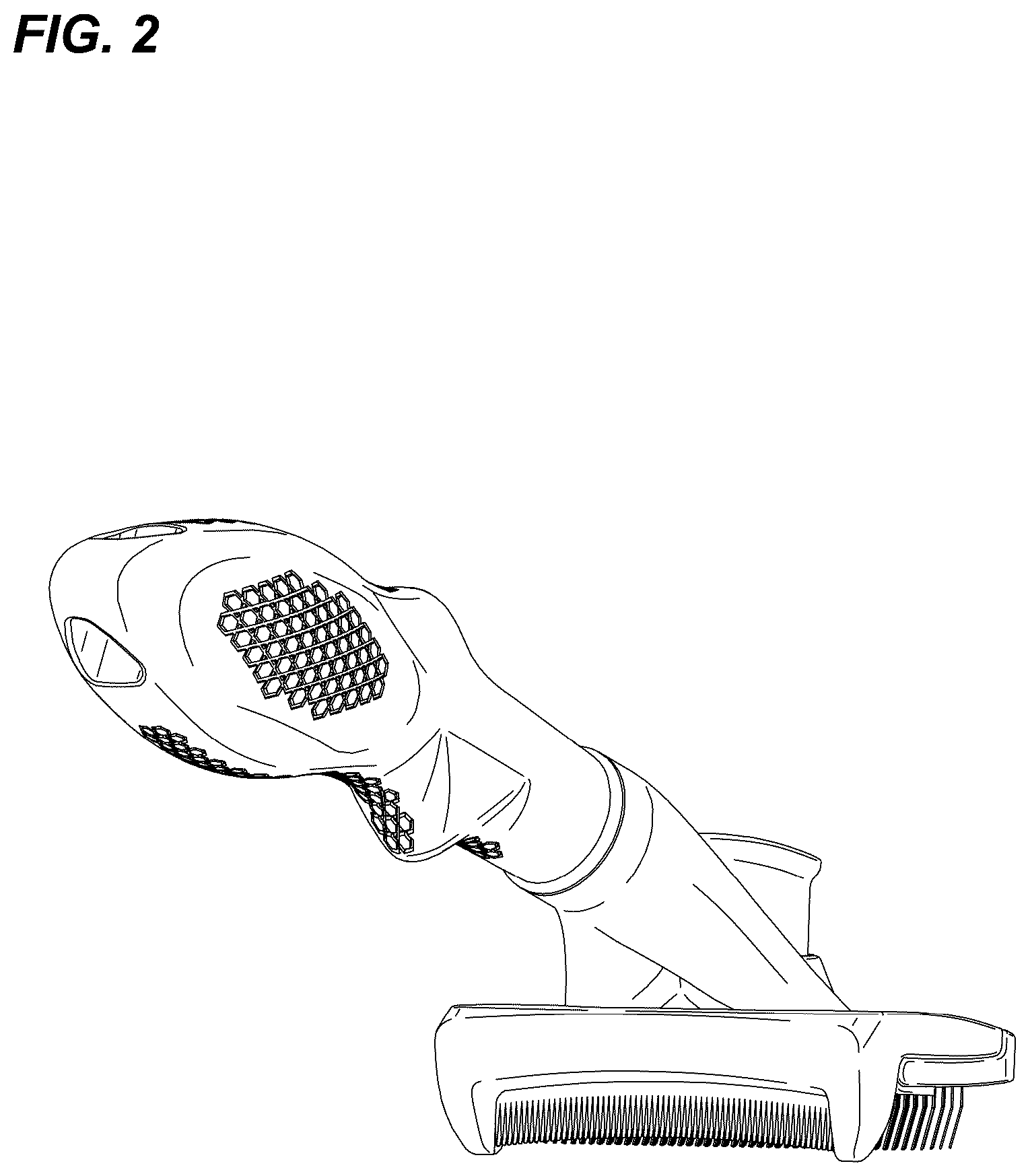

is a rear perspective thereof;

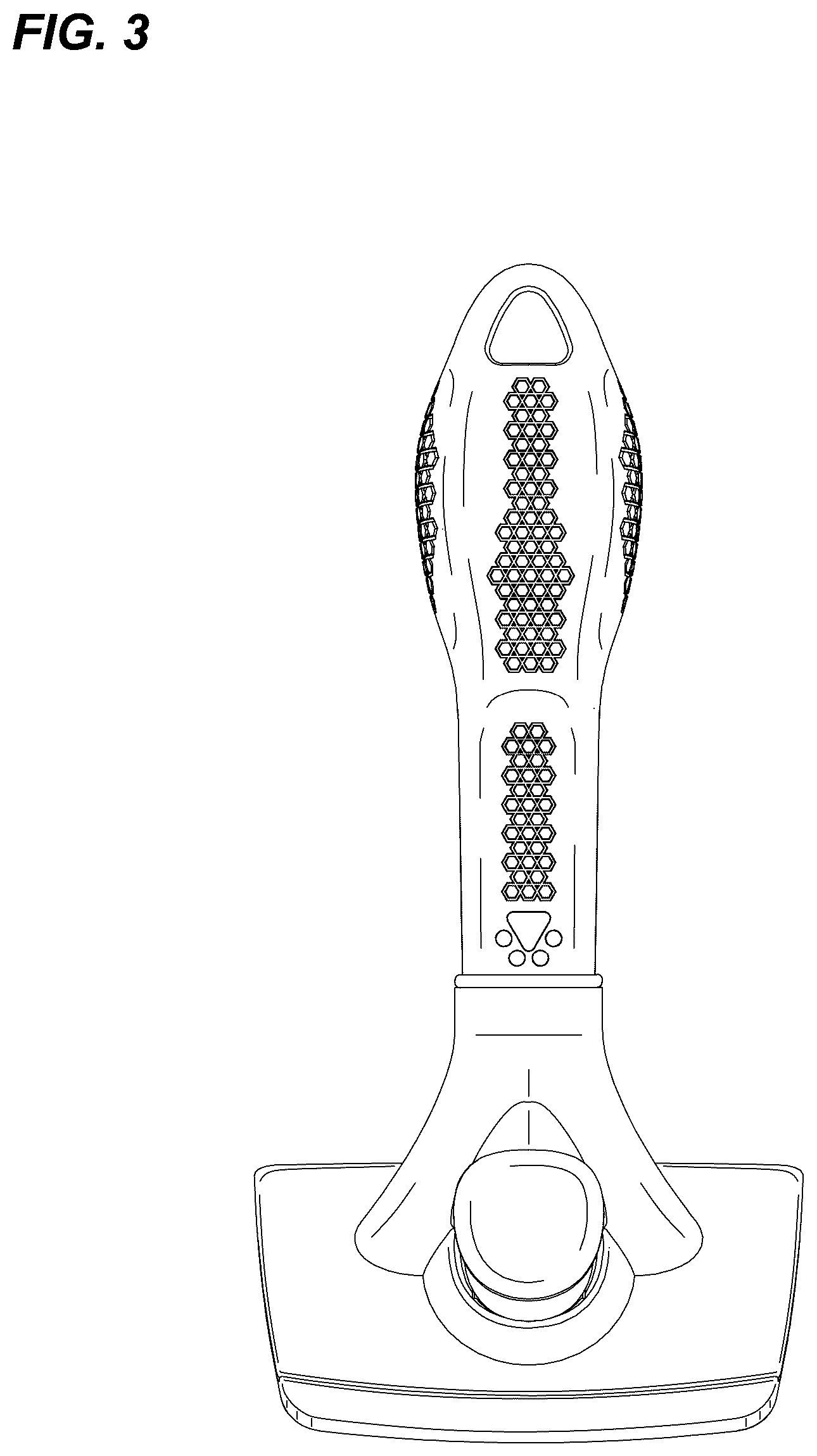

is a top plan view thereof;

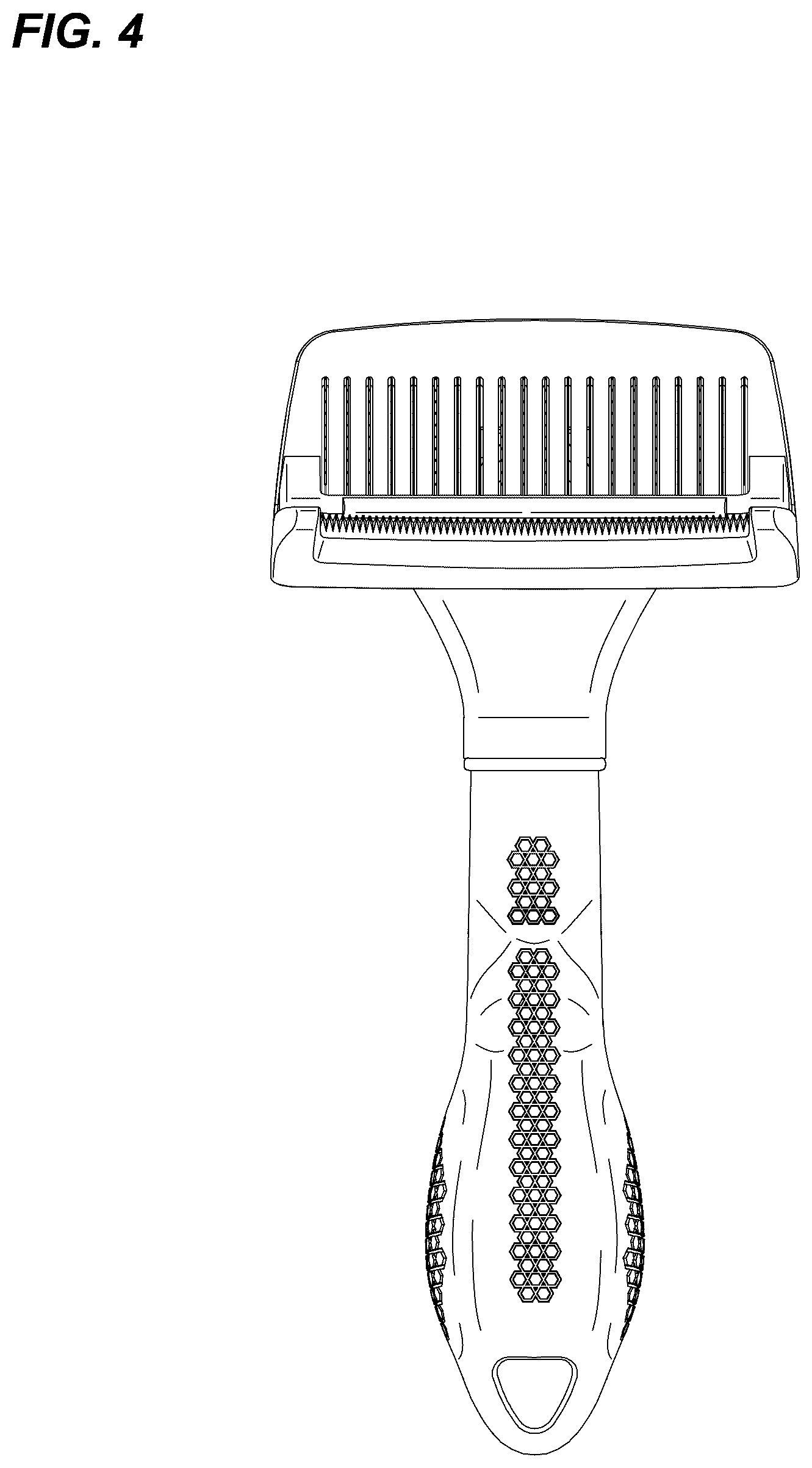

is a bottom plan view thereof;

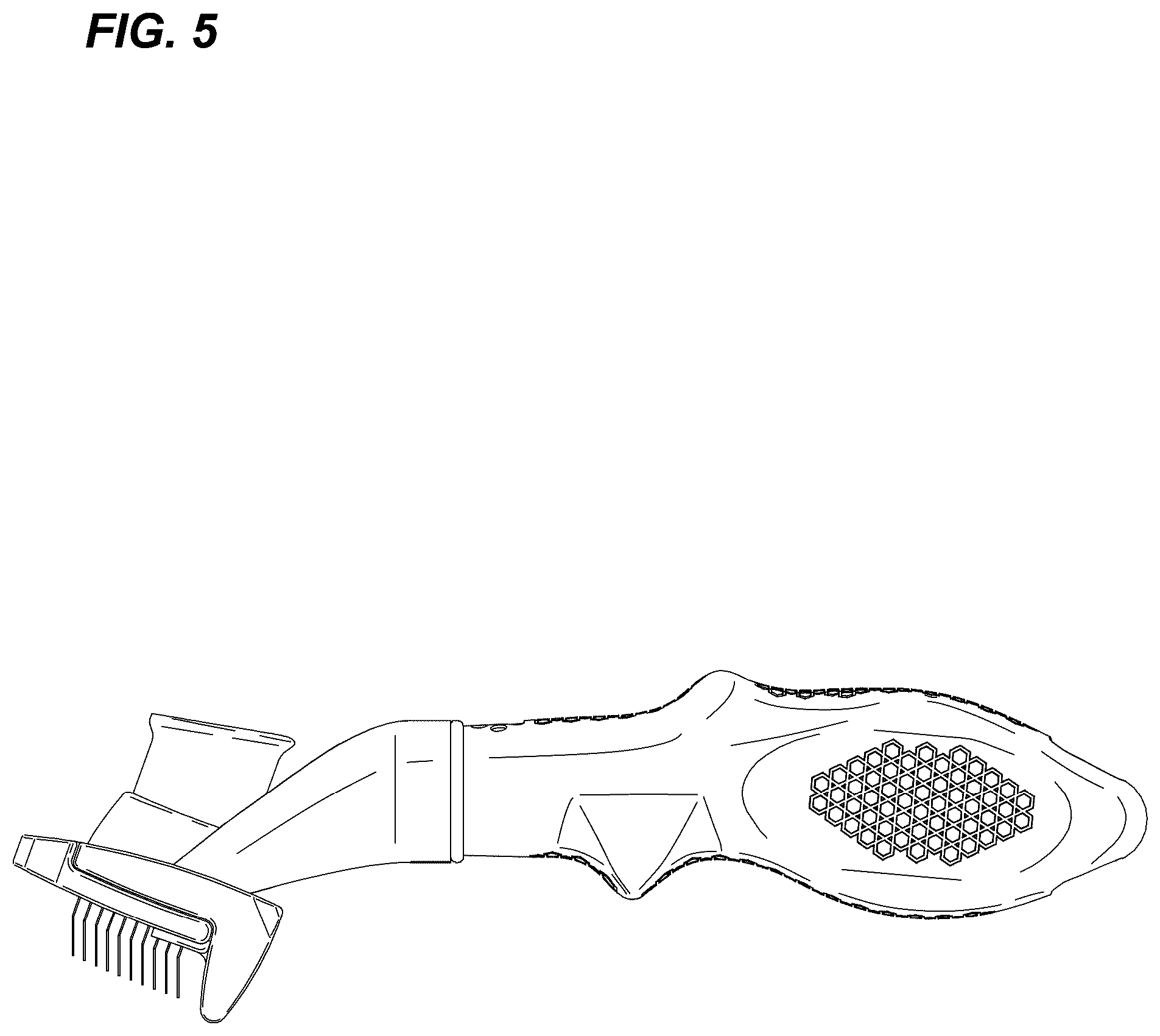

. is a right side view thereof;

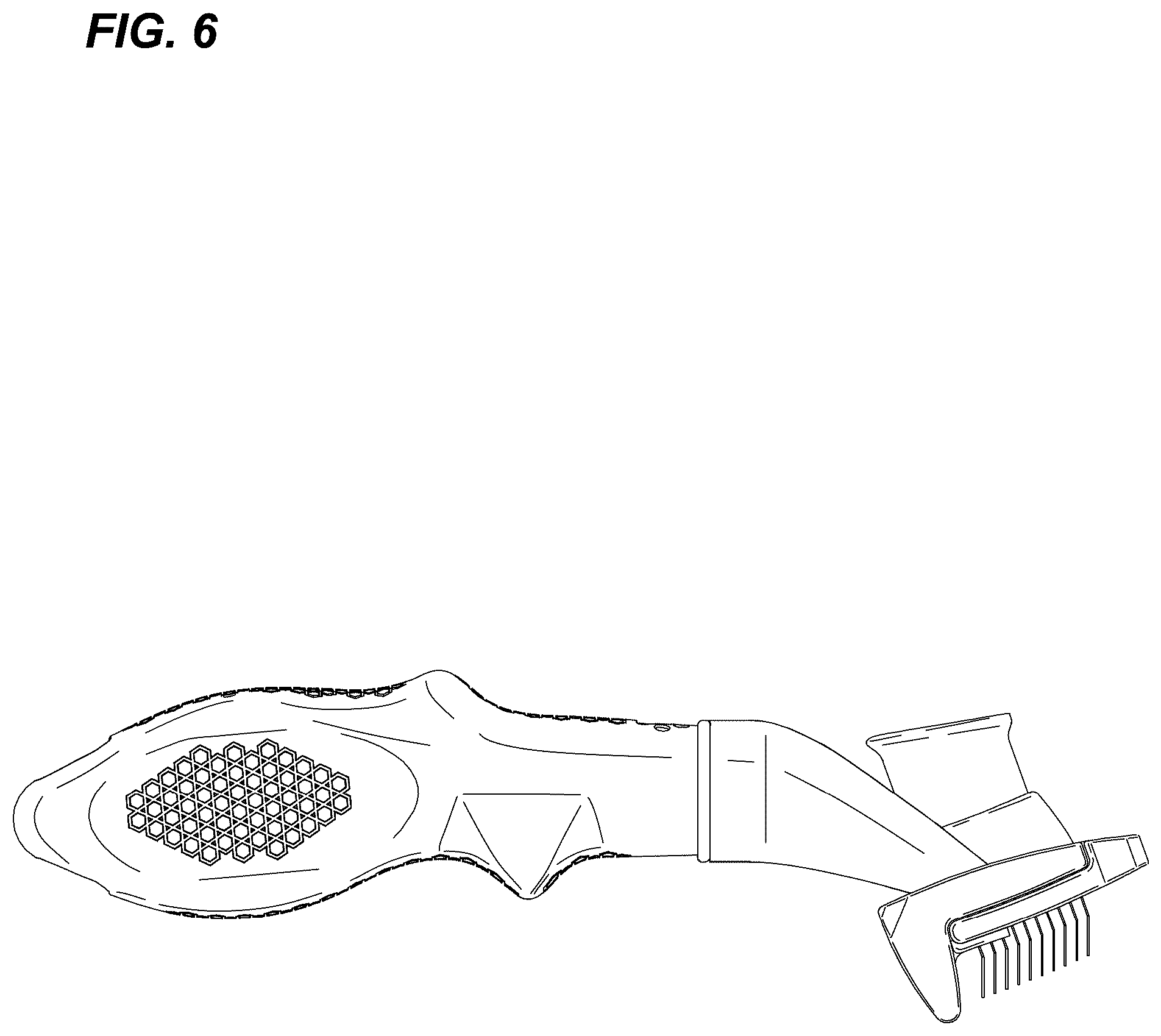

is a left side view thereof;

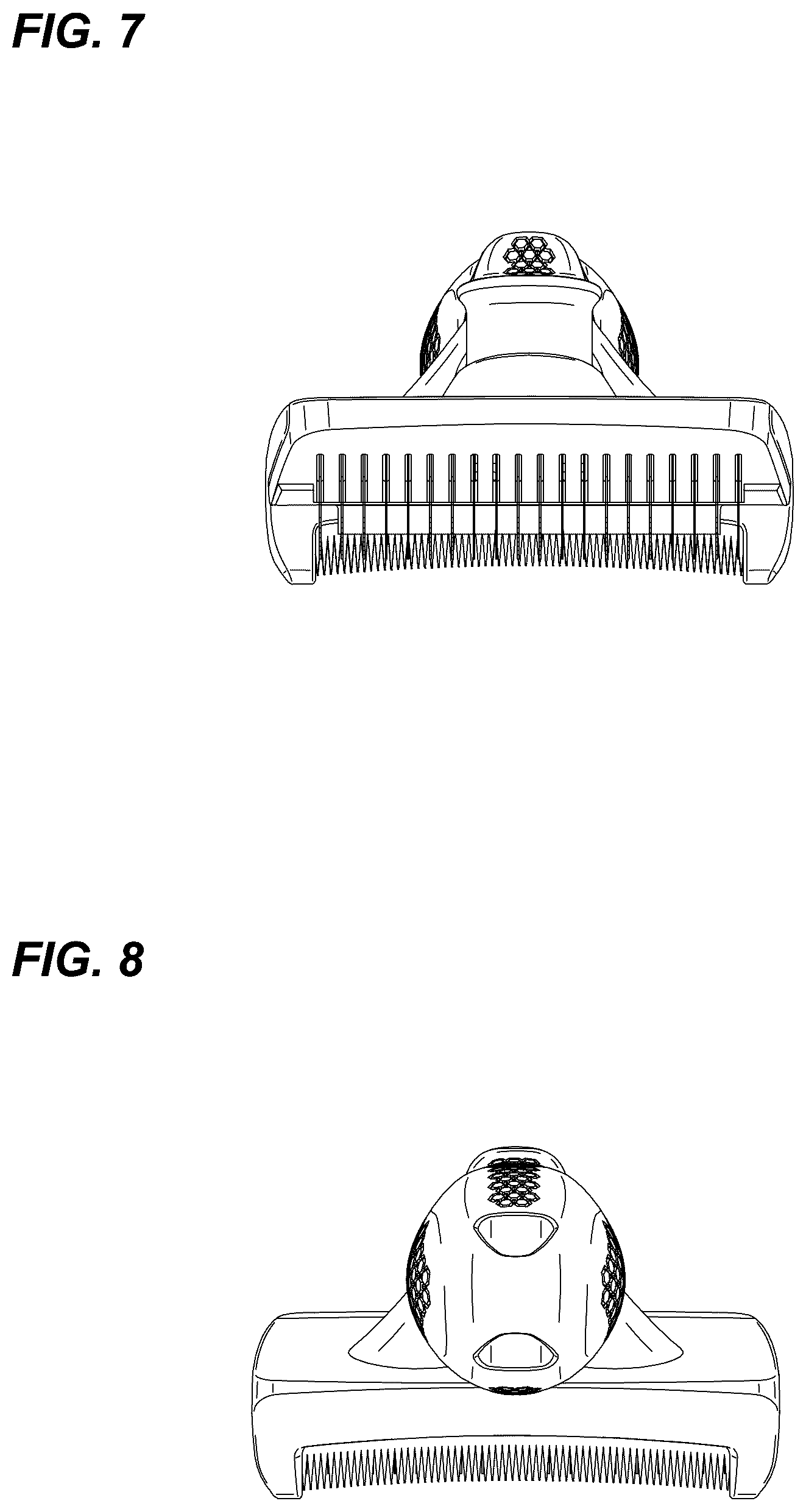

is a front view thereof; and,

is a back view thereof.

Figures (7)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
