Reusable Candle Vessel

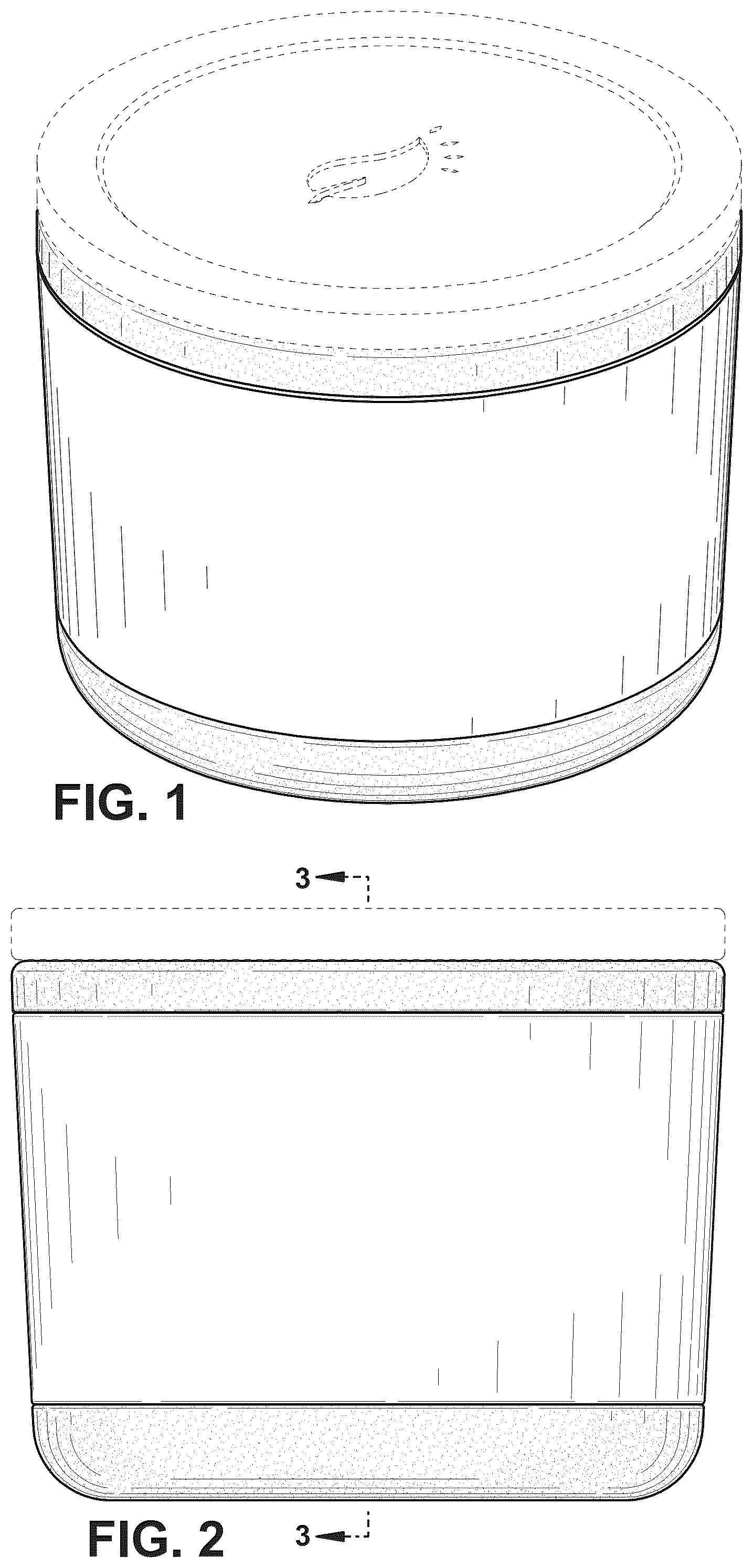

FIG. 1 is a top, front perspective view of a reusable candle vessel showing our new design;

FIG. 2 is a front elevation view thereof;

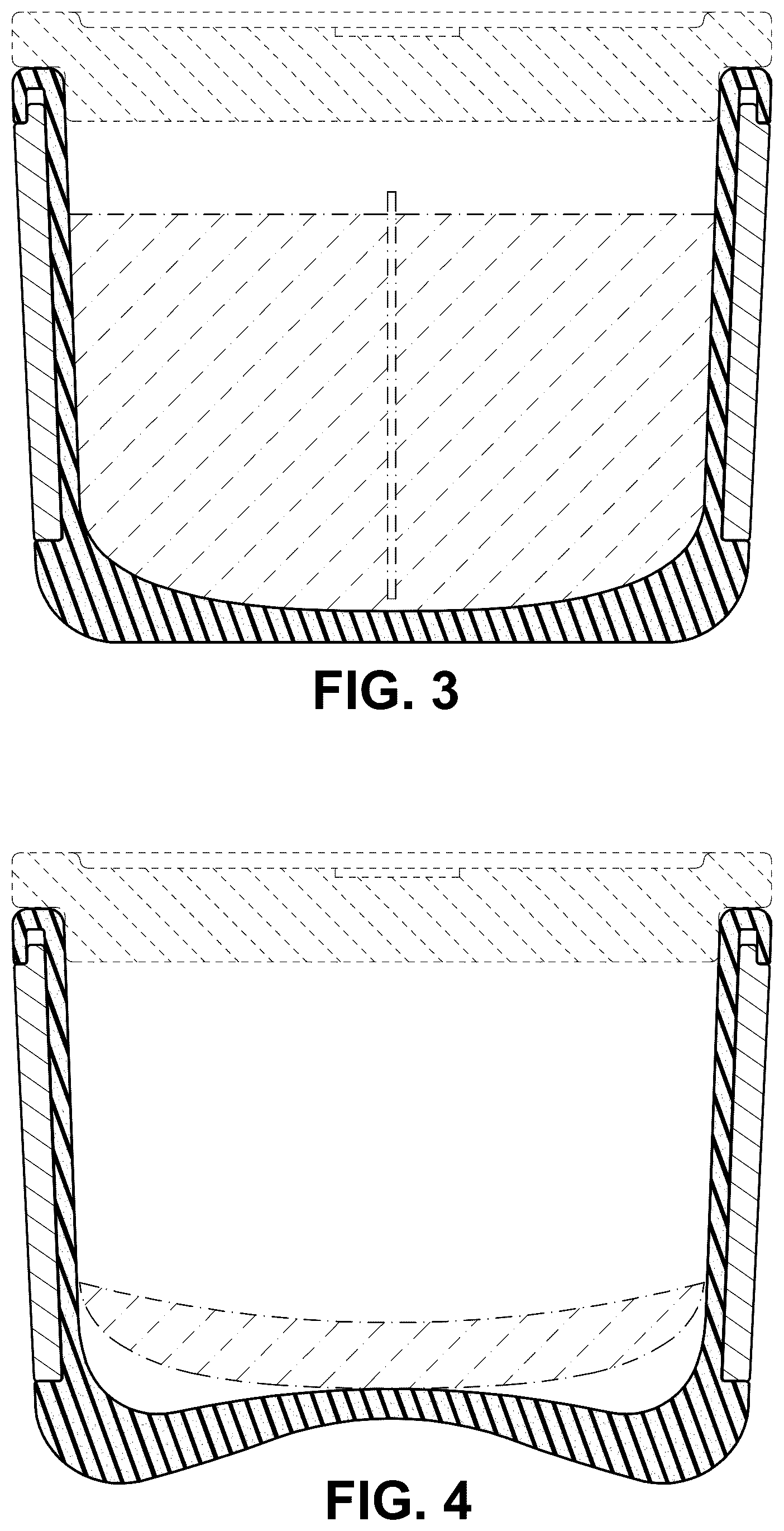

FIG. 3 is a is cross-sectional side view thereof which is taken about line 3 - 3 in FIG. 2 ; and,

FIG. 4 is a cross-sectional view thereof corresponding to FIG. 3 , and which shows an alternative flexed state of a bottom of the reusable candle vessel.

The stippling shown in FIGS. 1 - 4 is for the purpose of illustrating claimed portions of the reusable candle vessel that are made from a flexible material, and the claimed outer cylindrical portion of the reusable candle vessel that is not stippled illustrates a portion of the candle vessel that is made from a material that is more rigid than the flexible material.

The uniform broken line showing in FIGS. 1 - 4 is for the purpose of illustrating a cap of the reusable candle vessel and forms no part of the claimed design.

The dot-dash broken line showing in the cross-sectional views of FIGS. 3 and 4 is for the purpose of illustrating environment, namely a full candle wax insert in FIG. 3 and a remnant of the candle wax being displaced by the flexure of the bottom of the candle vessel in FIG. 4 , and this illustrated environment forms no part of the claimed design.
