Remote Control

USD1078660No. D 1,078,660designGranted 6/10/2025
Patent USD1078660 — Remote control — Figure 1
Fig. 1 · Remote Control

Claims (1)

Claim 1 (Independent)

The ornamental design for a remote control as shown and described.

Full Description

Show full text →

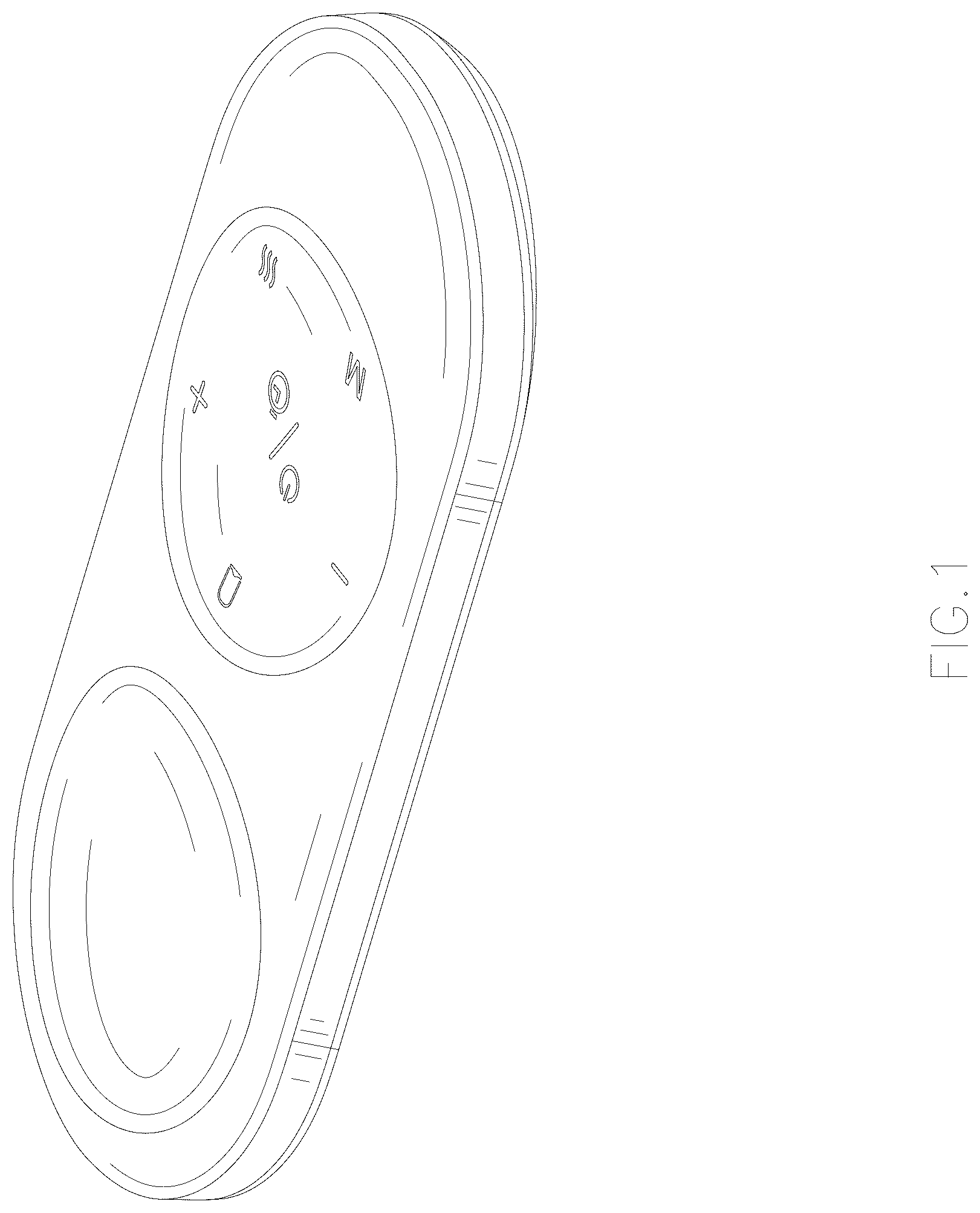

is a front, right and top perspective view of a remote control, showing my design.

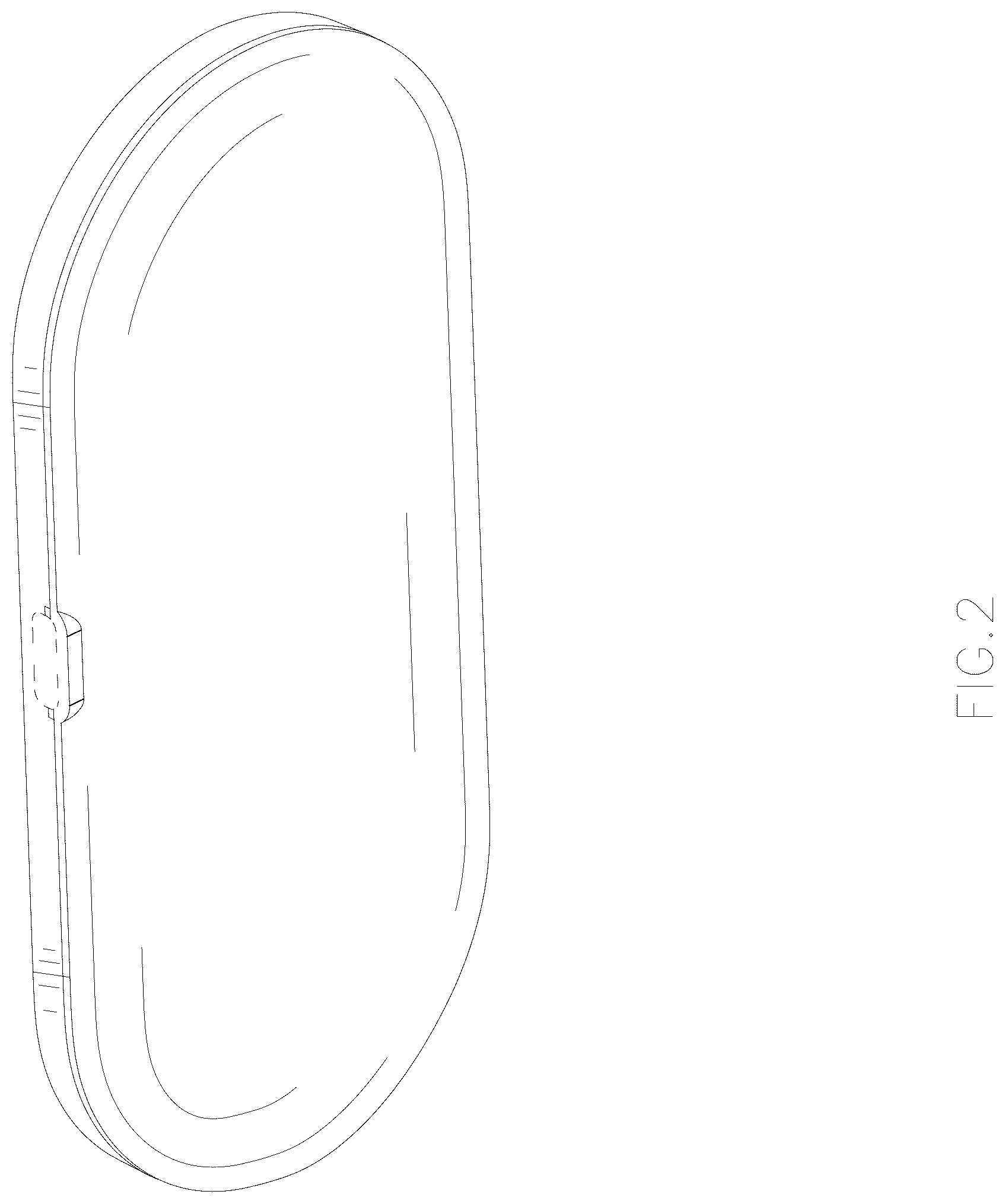

is a rear, left and bottom perspective view thereof.

is a front elevation view thereof.

is a rear elevation view thereof.

is a left side elevation view thereof.

is a right side elevation view thereof.

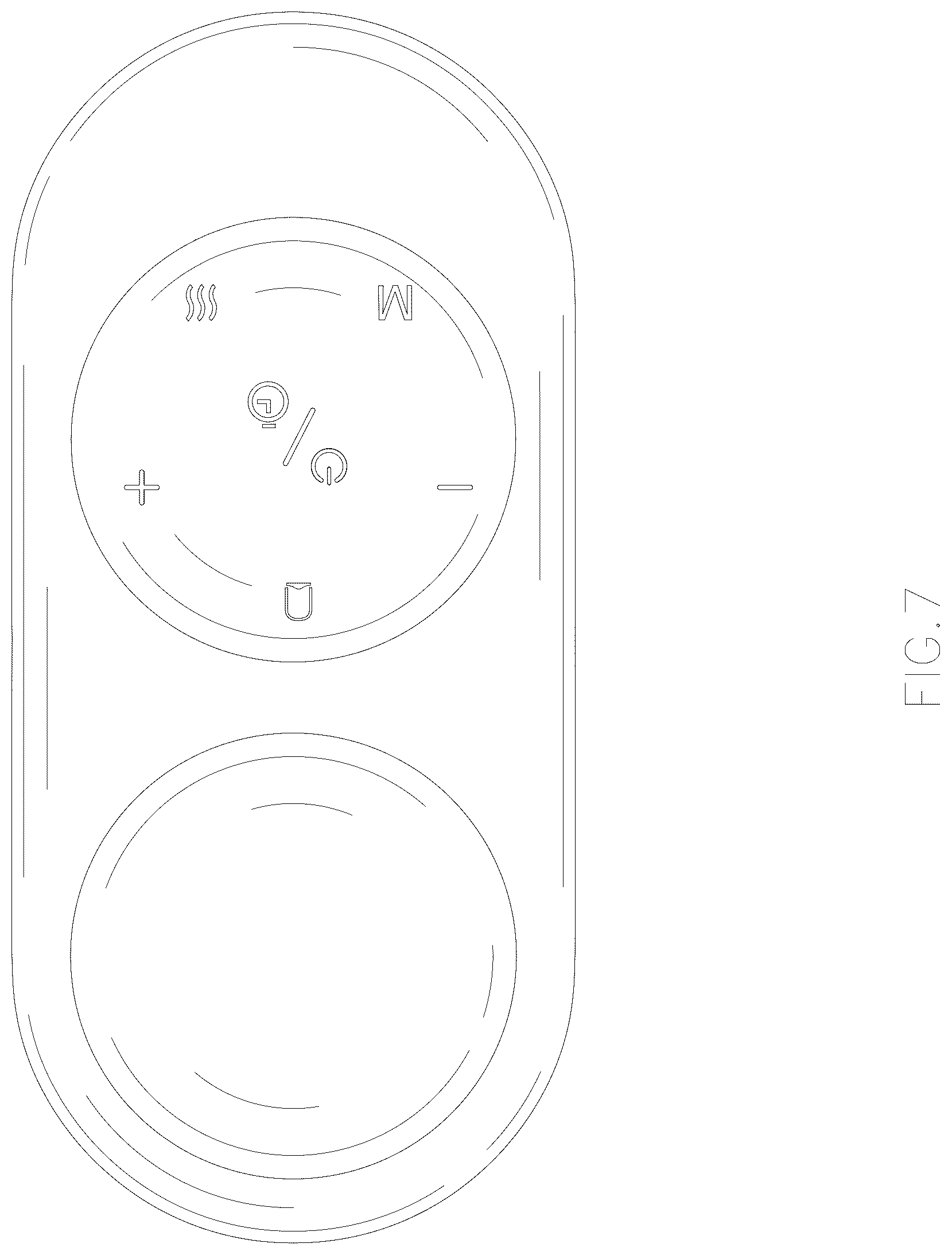

is a top plan view thereof; and,

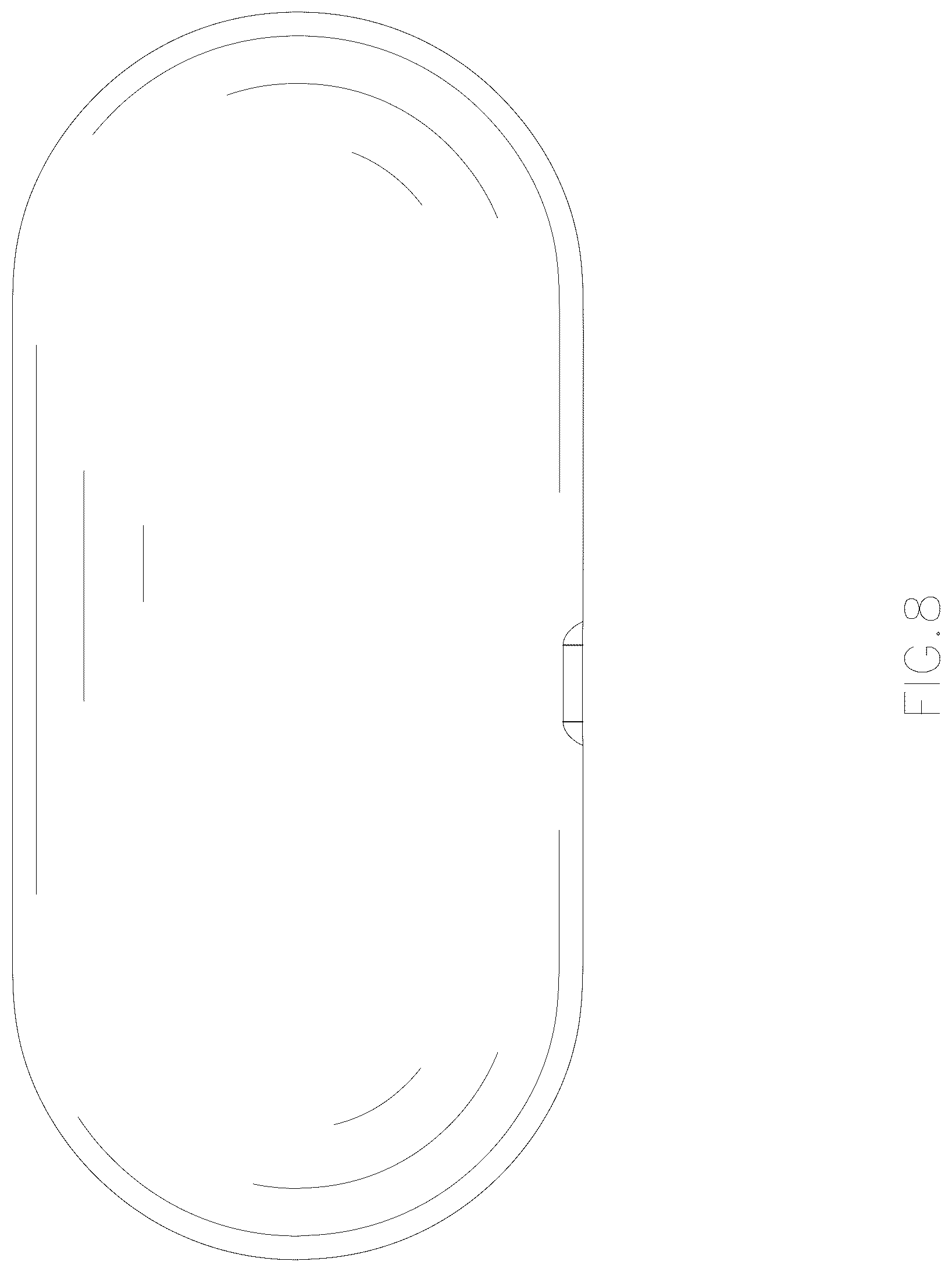

is a bottom plan view thereof.

The broken lines depict portions of the remote control that form no part of the claimed design.
