Cable Tie

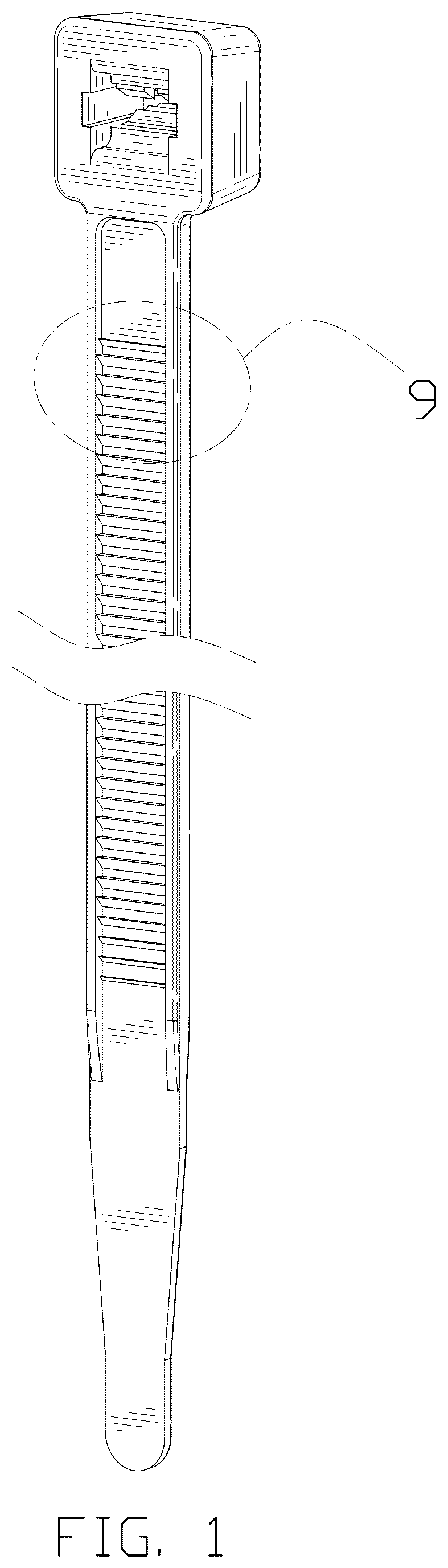

FIG. 1 is a front, right and top perspective view of a cable tie, showing my design.

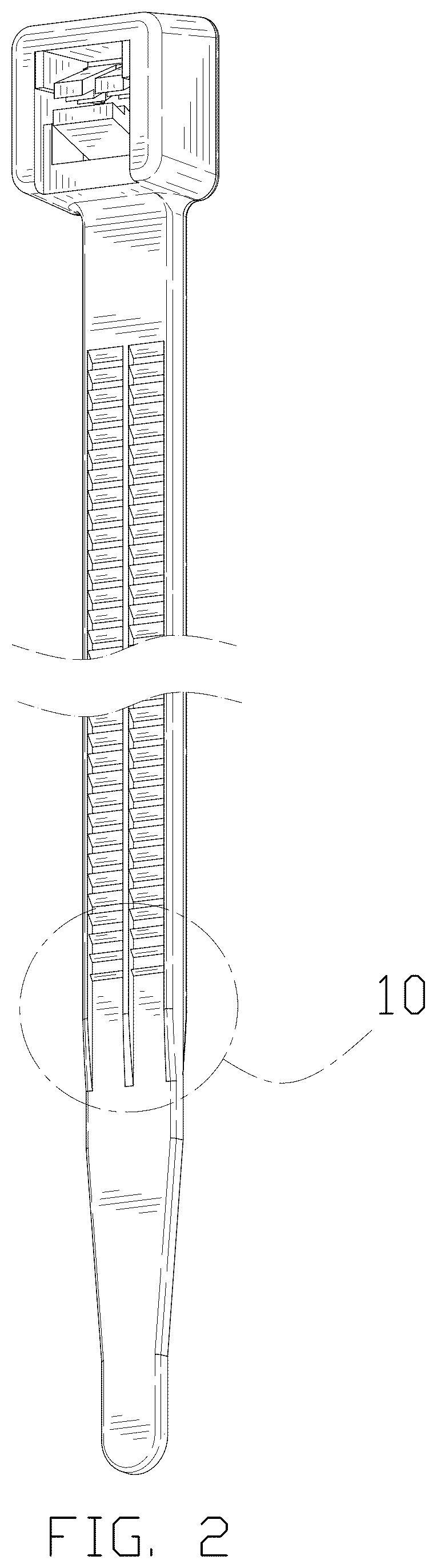

FIG. 2 is a rear, left and bottom perspective view thereof.

FIG. 3 is a front elevation view thereof.

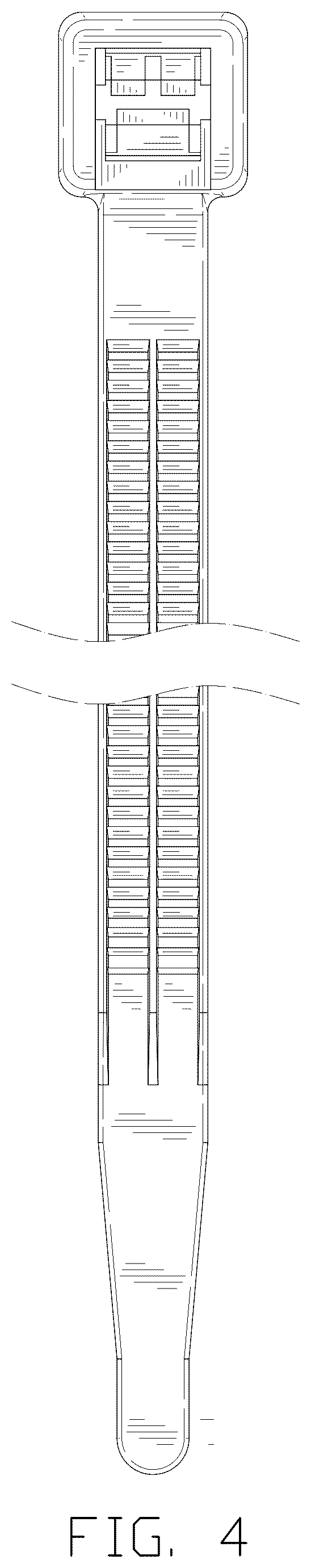

FIG. 4 is a rear elevation view thereof.

FIG. 5 is a left side elevation view thereof.

FIG. 6 is a right side elevation view thereof.

FIG. 7 is an enlarged top plan view thereof.

FIG. 8 is an enlarged bottom plan view thereof.

FIG. 9 is an enlarged view of detail 9 in FIG. 1 ; and,

FIG. 10 is an enlarged view of detail 10 in FIG. 2 .

The dot-dash broken lines in FIGS. 1 , 2 , 9 , and 10 depict the boundaries of the enlarged areas and form no part of the claimed design. In the drawings, there is a symbolic break along the length of the cable tie. The break lines drawn in broken line and any portion of the cable tie between the break lines form no part of the claimed design.
