Cup Storage Organizer

USD1078411No. D 1,078,411designGranted 6/10/2025
Patent USD1078411 — Cup storage organizer — Figure 1
Fig. 1 · Cup Storage Organizer

Claims (1)

Claim 1 (Independent)

The ornamental design for a cup storage organizer, as shown and described.

Full Description

Show full text →

is a top, front, left side perspective view of a cup storage organizer, showing my new design;

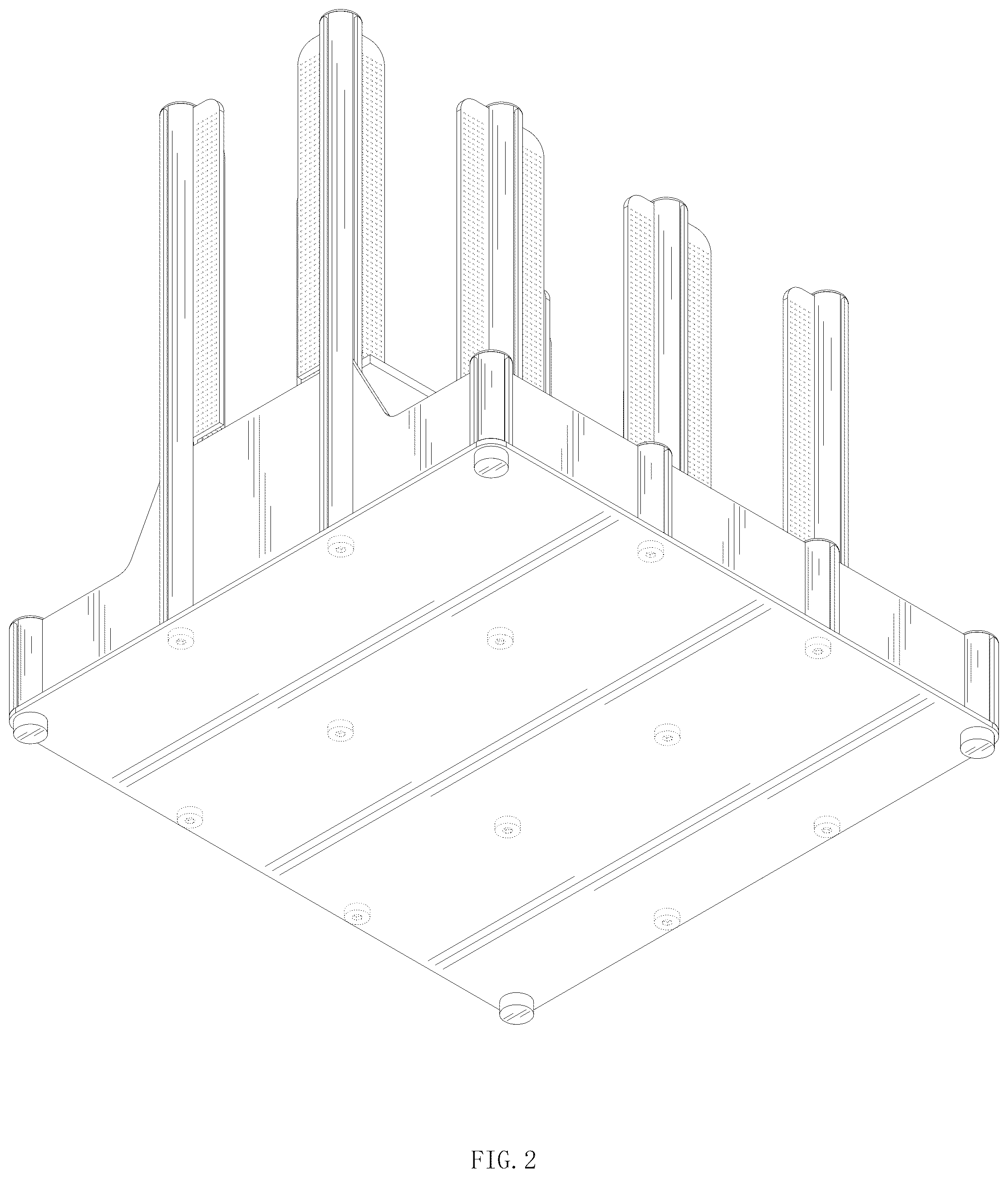

is a bottom, rear, right side perspective view thereof;

is a front elevational view thereof;

is a rear elevational view thereof;

is a left side elevational view thereof;

is a right side elevational view thereof;

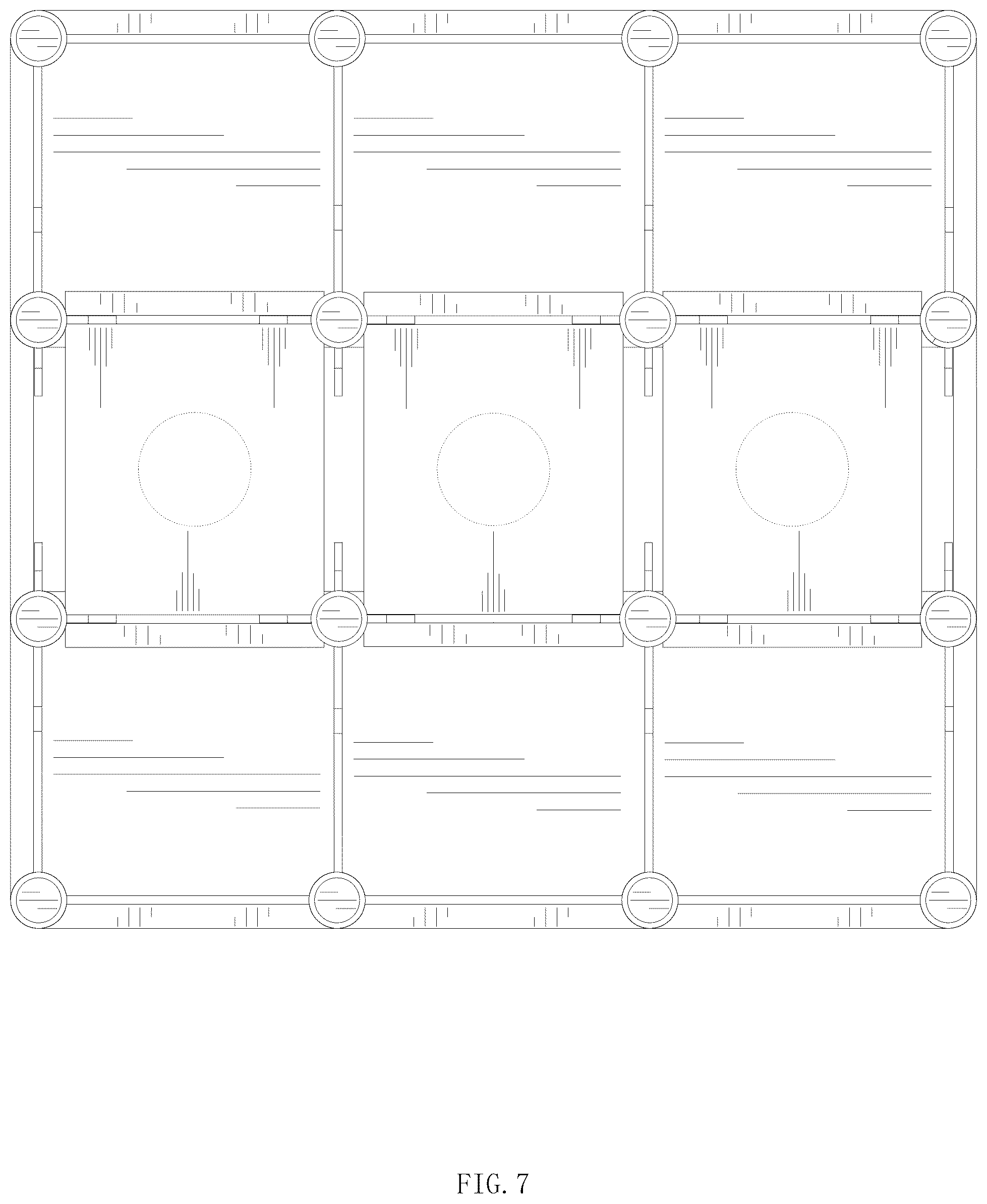

is a top plan view thereof; and,

is a bottom plan view thereof.

The evenly broken lines illustrate portions of the cup storage organizer and form no part of the claimed design.
