Patents/USD1078385

Bottle

USD1078385No. D 1,078,385designGranted 6/10/2025

Claims (1)

Claim 1 (Independent)

The ornamental design for a bottle, as shown and described.

Full Description

Show full text →

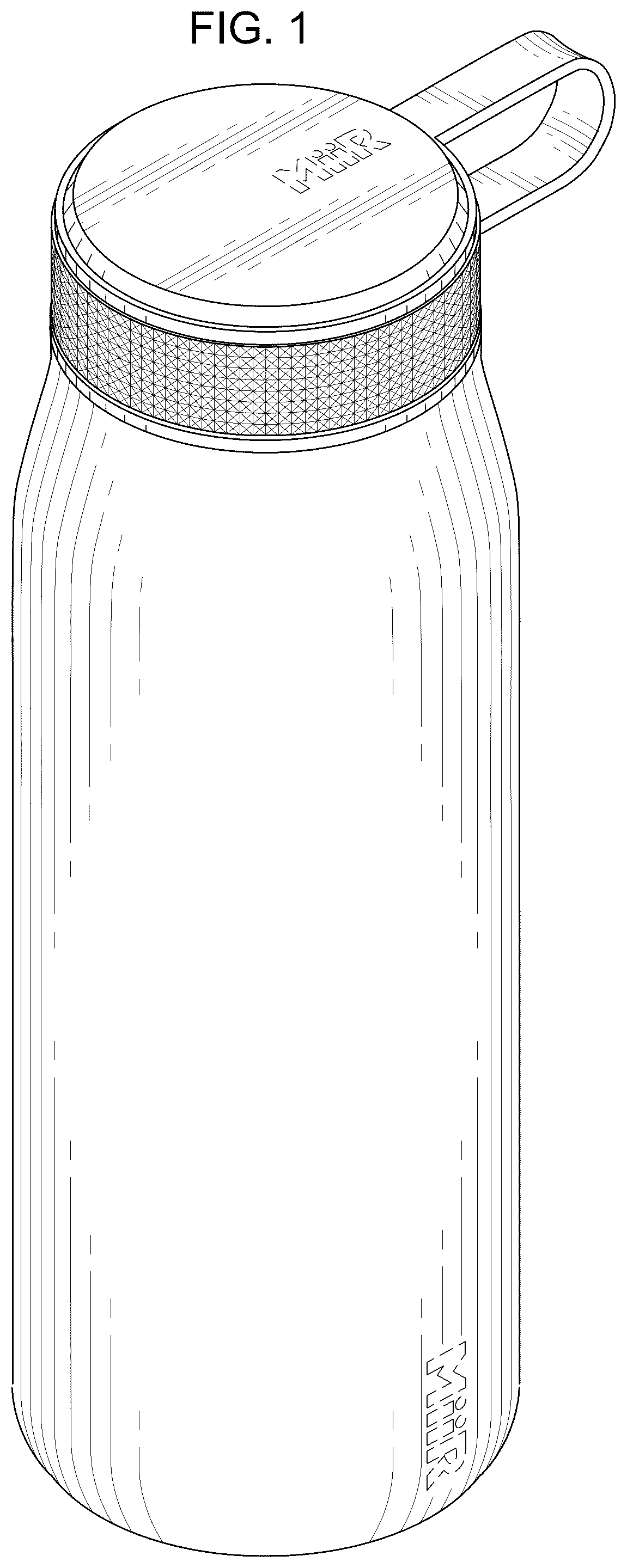

is a perspective view of a first embodiment of a bottle, showing my new design;

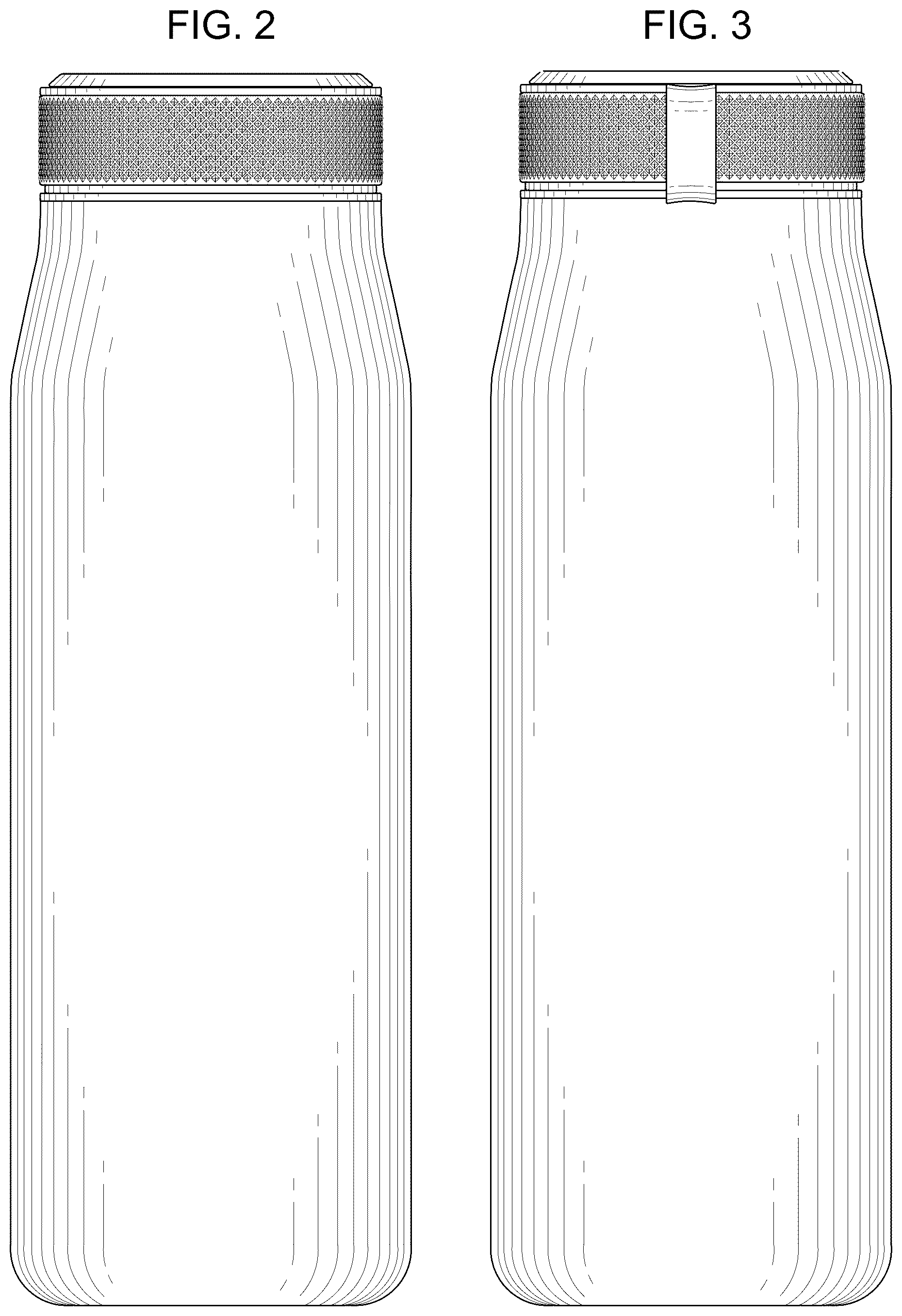

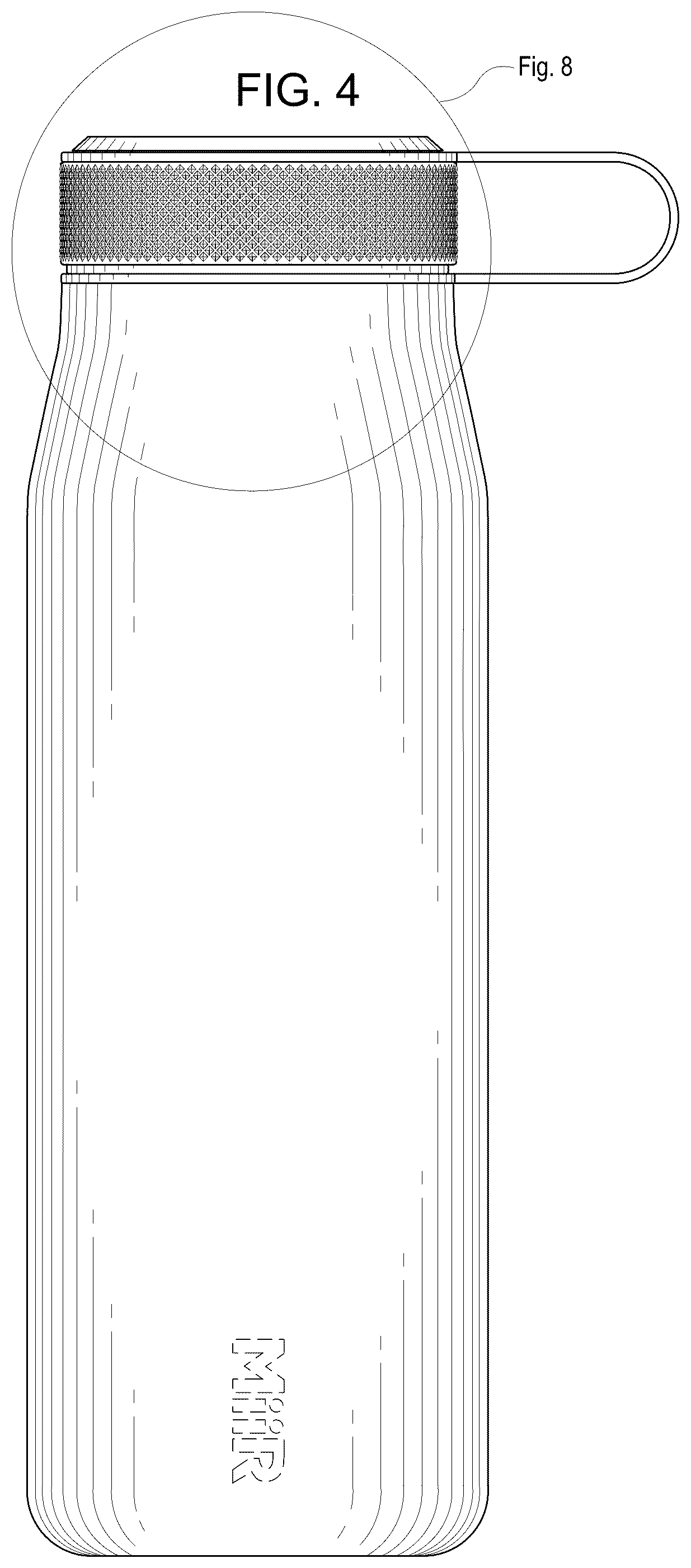

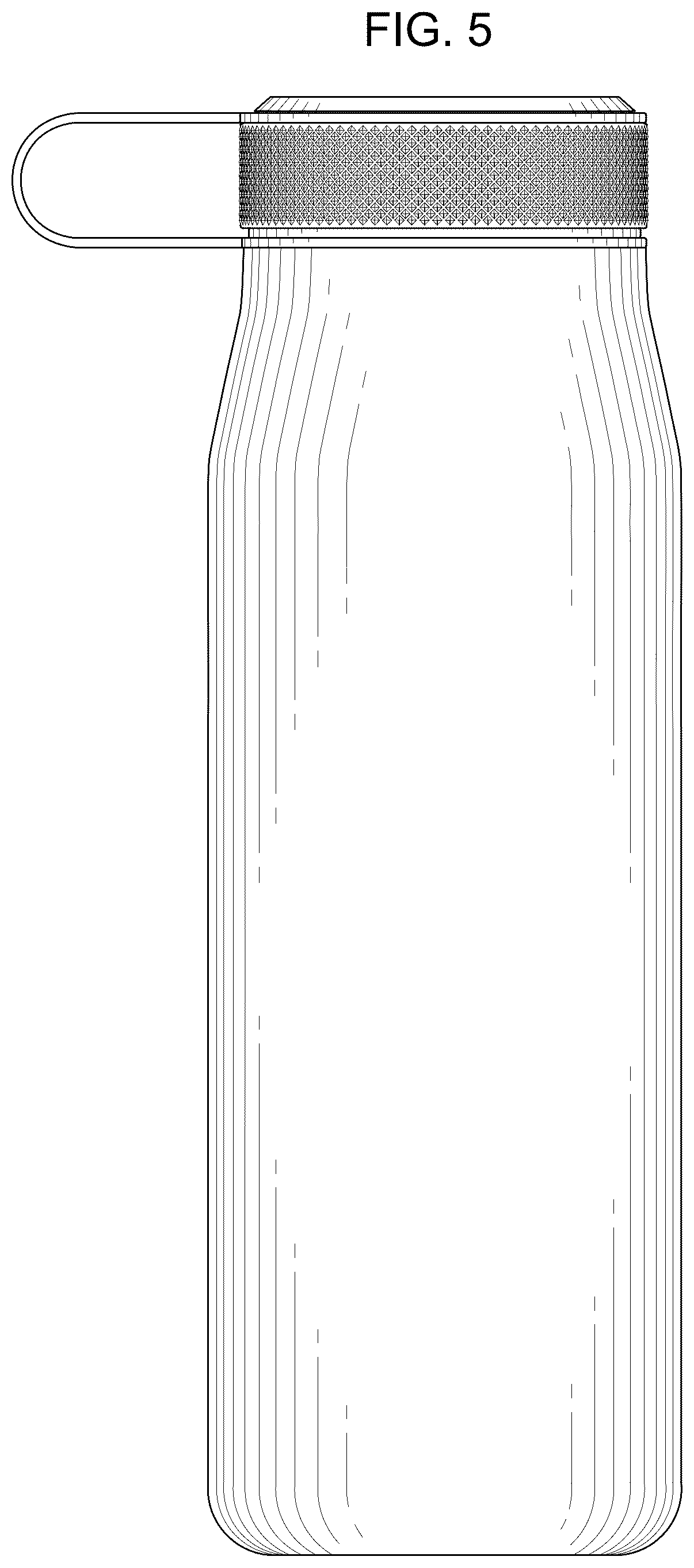

is a front, elevation view thereof;

is a rear, elevation view thereof;

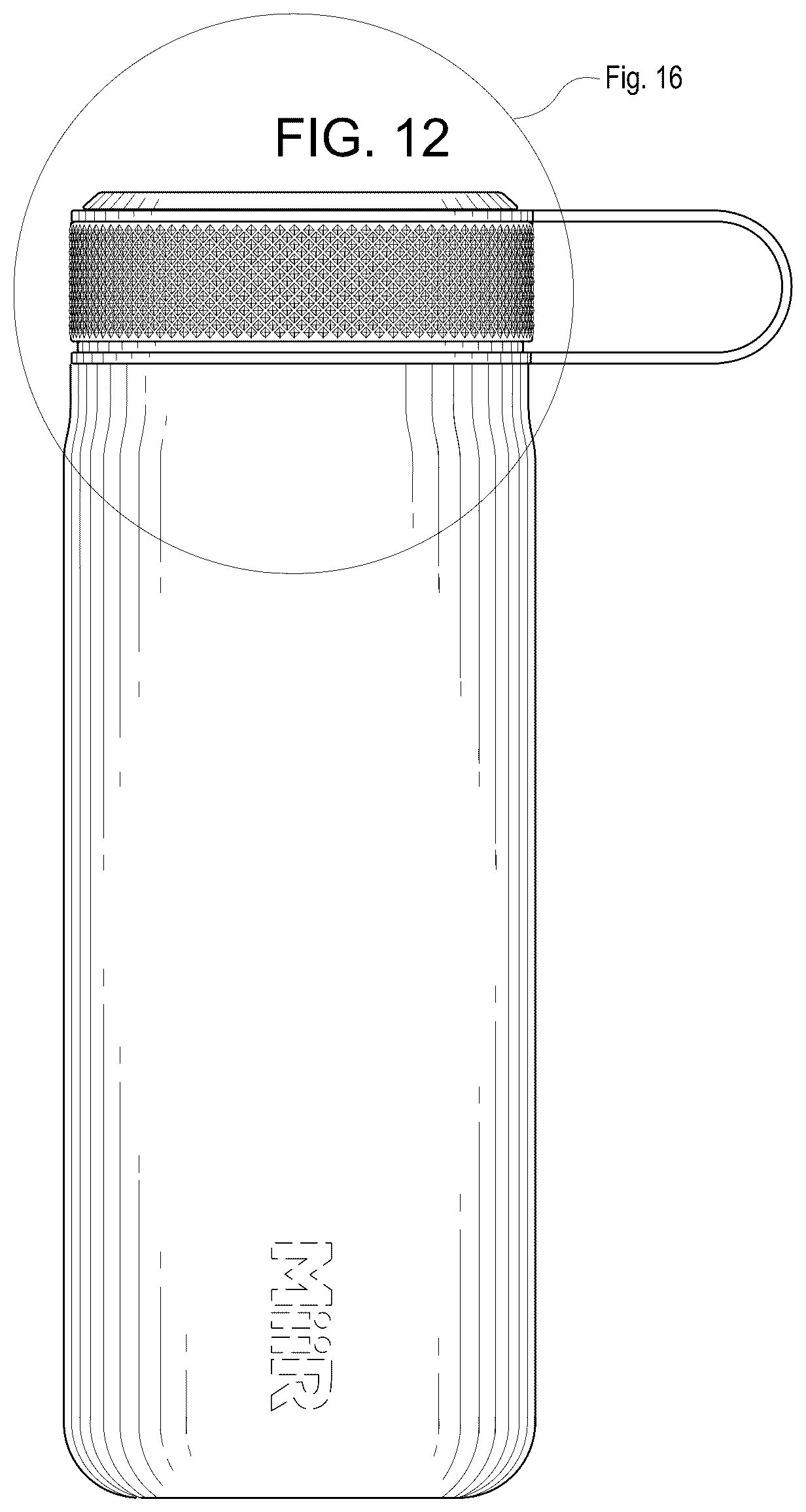

is a right, elevation view thereof;

is a left, elevation view thereof;

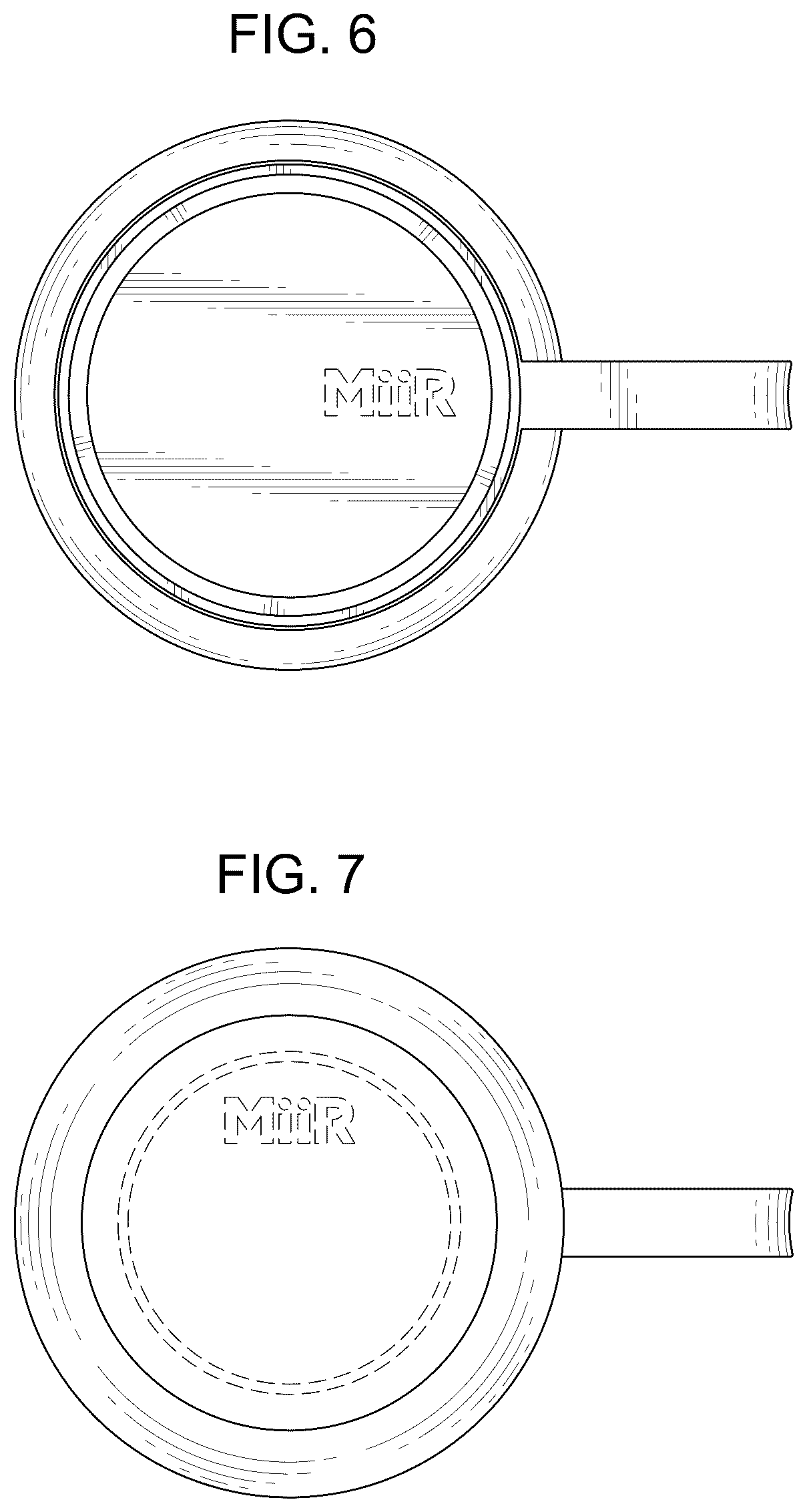

is a top, plan view thereof;

is a bottom, plan view thereof;

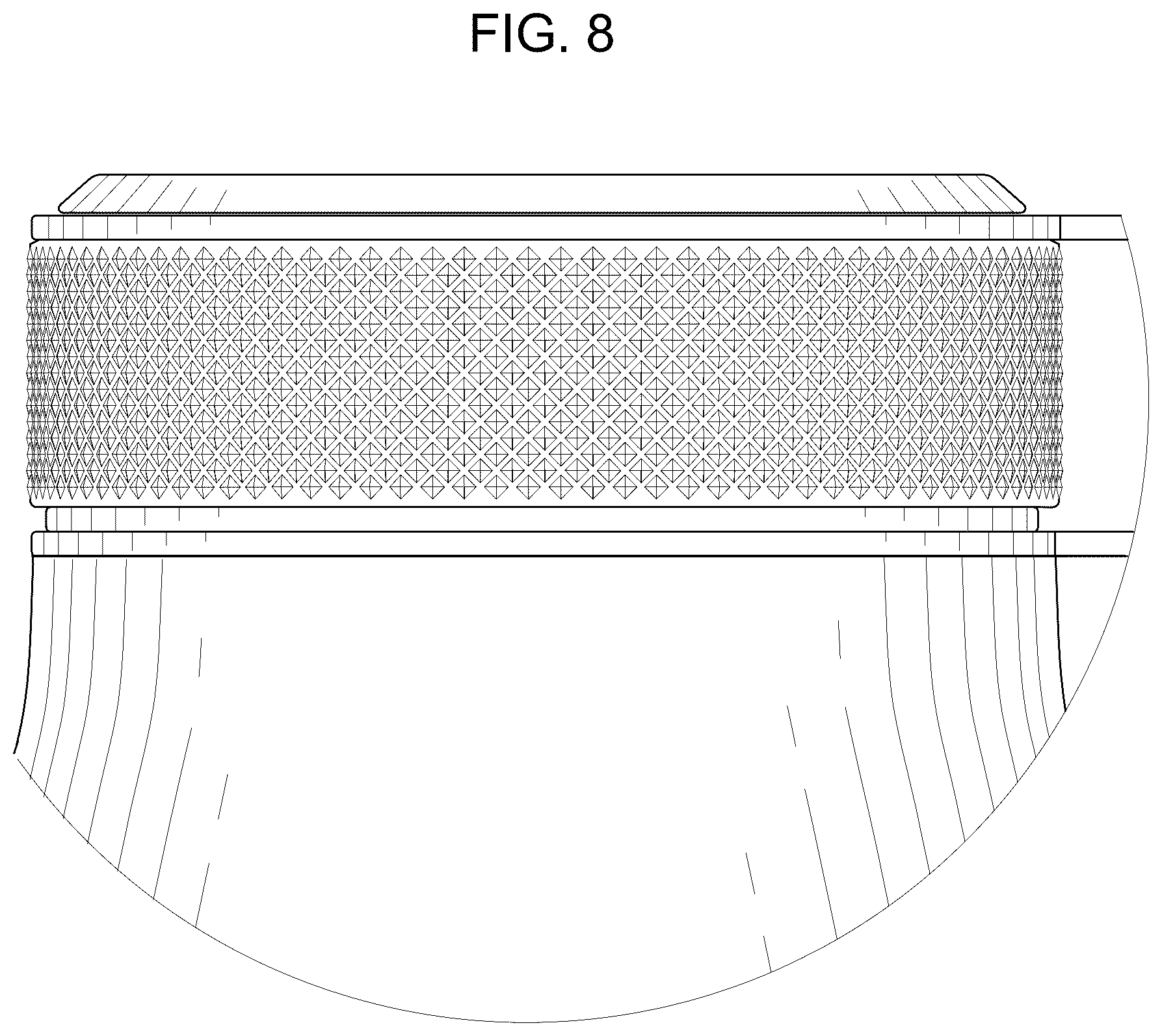

is a closeup, partial, side view thereof, showing knurling of the cap of the bottle;

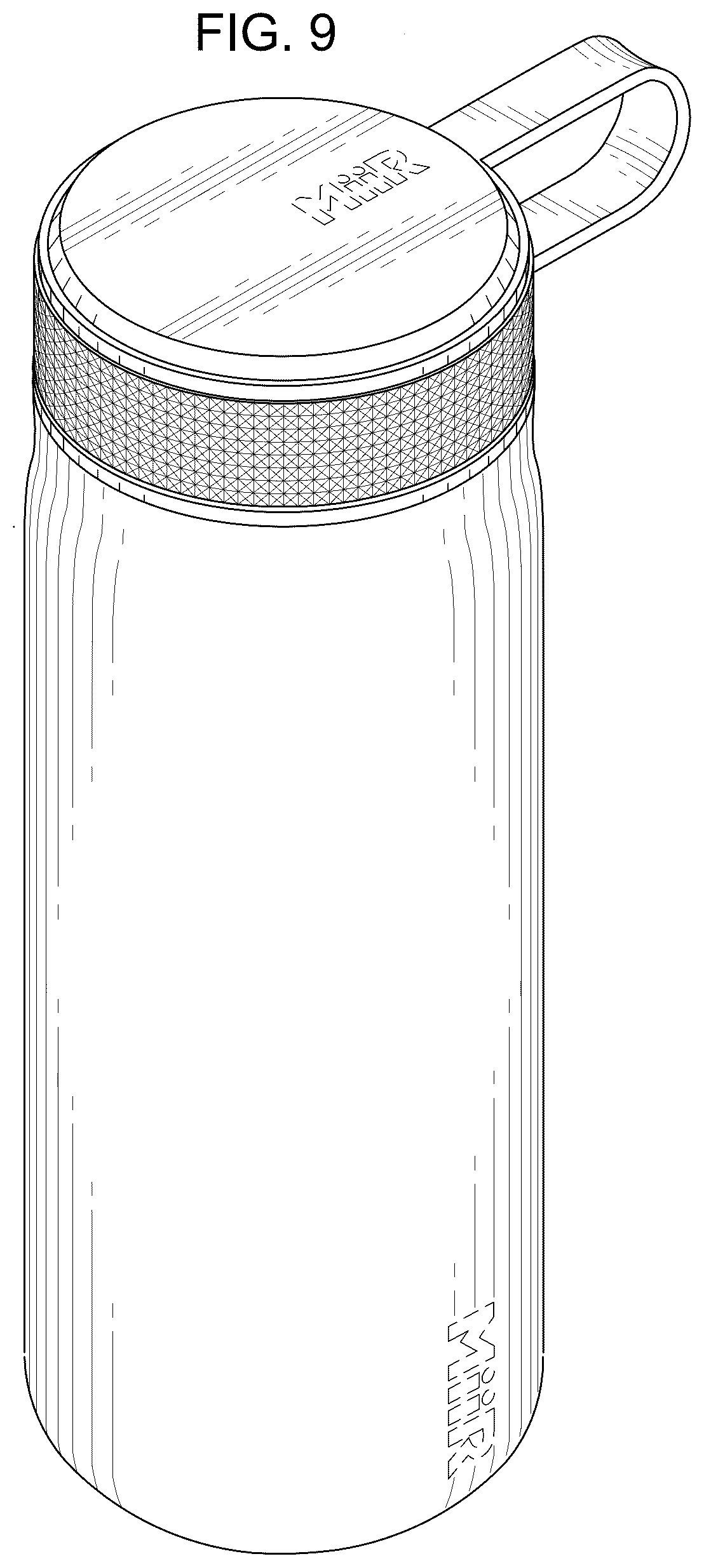

is a perspective view of a second embodiment of a bottle, showing my new design;

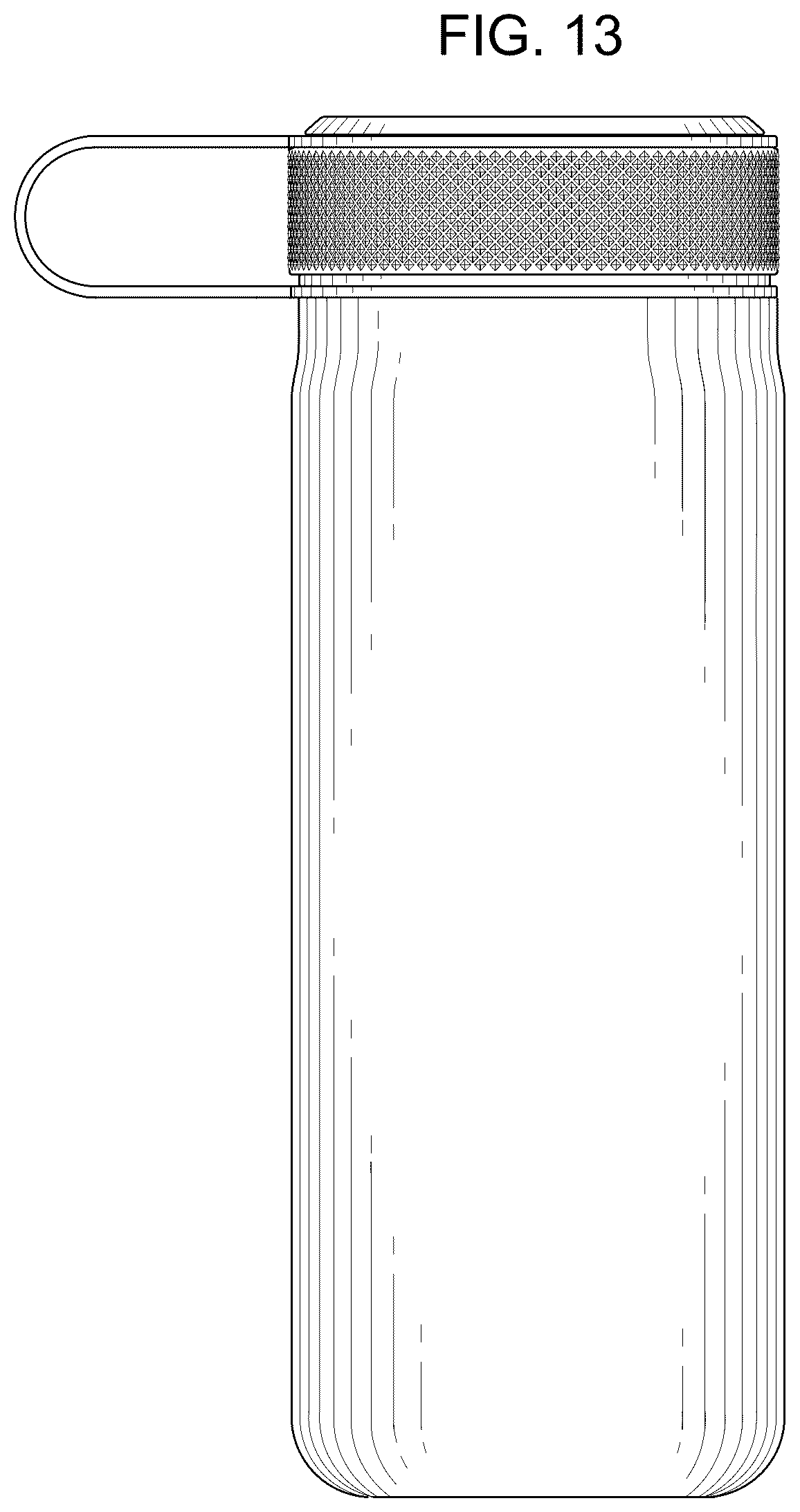

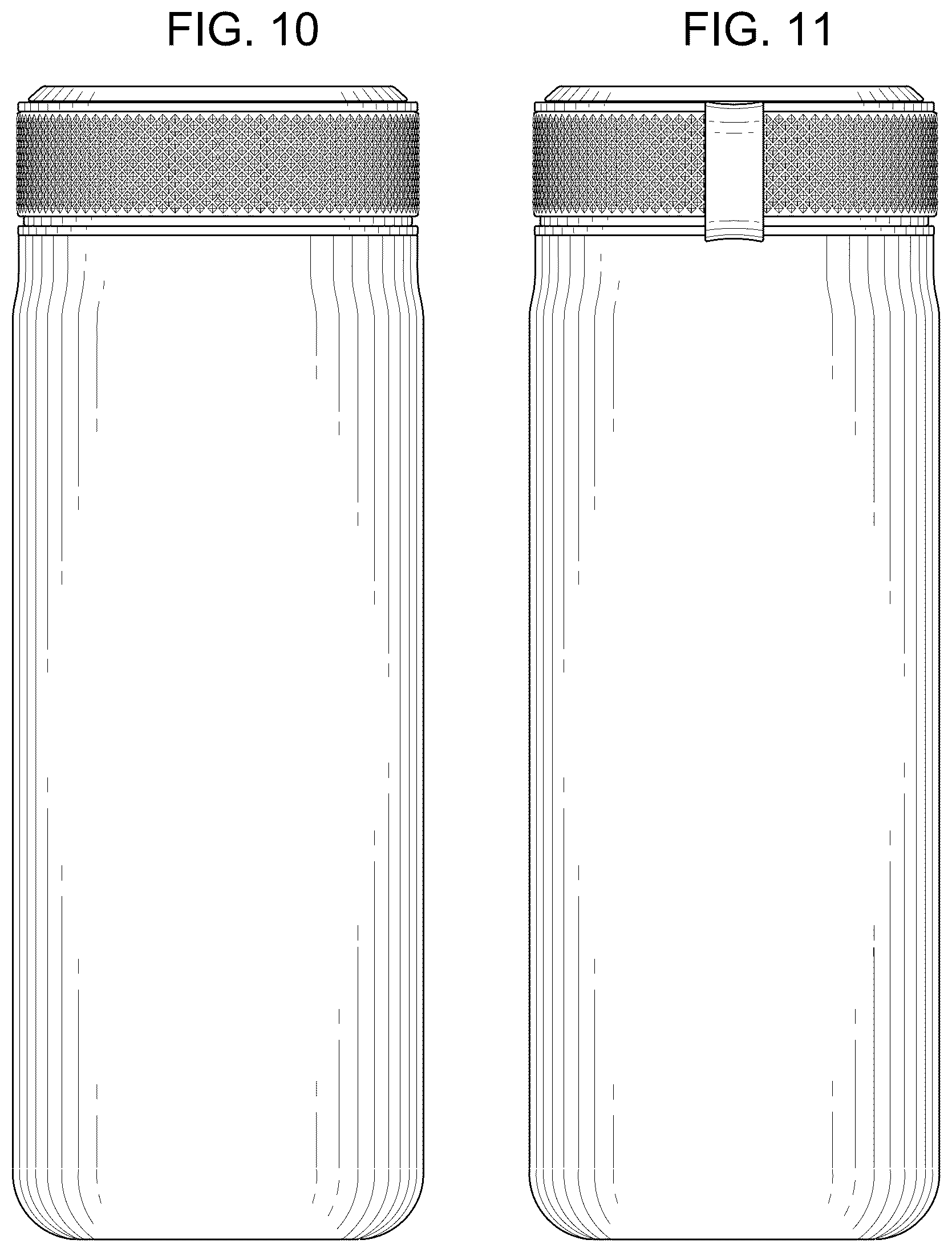

is a front, elevation view thereof;

is a rear, elevation view thereof;

is a right, elevation view thereof;

is a left, elevation view thereof;

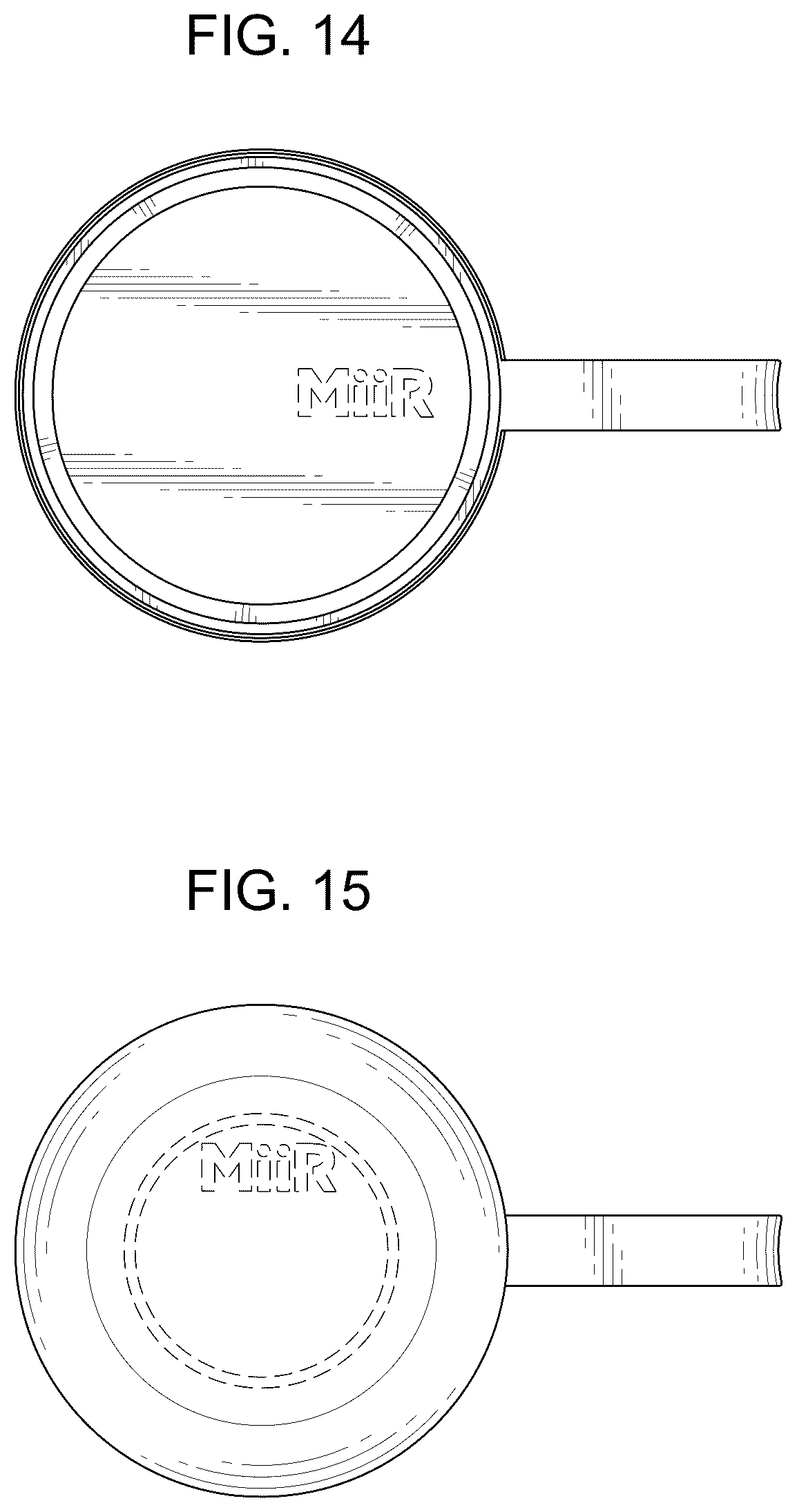

is a top, plan view thereof;

is a bottom, plan view thereof; and,

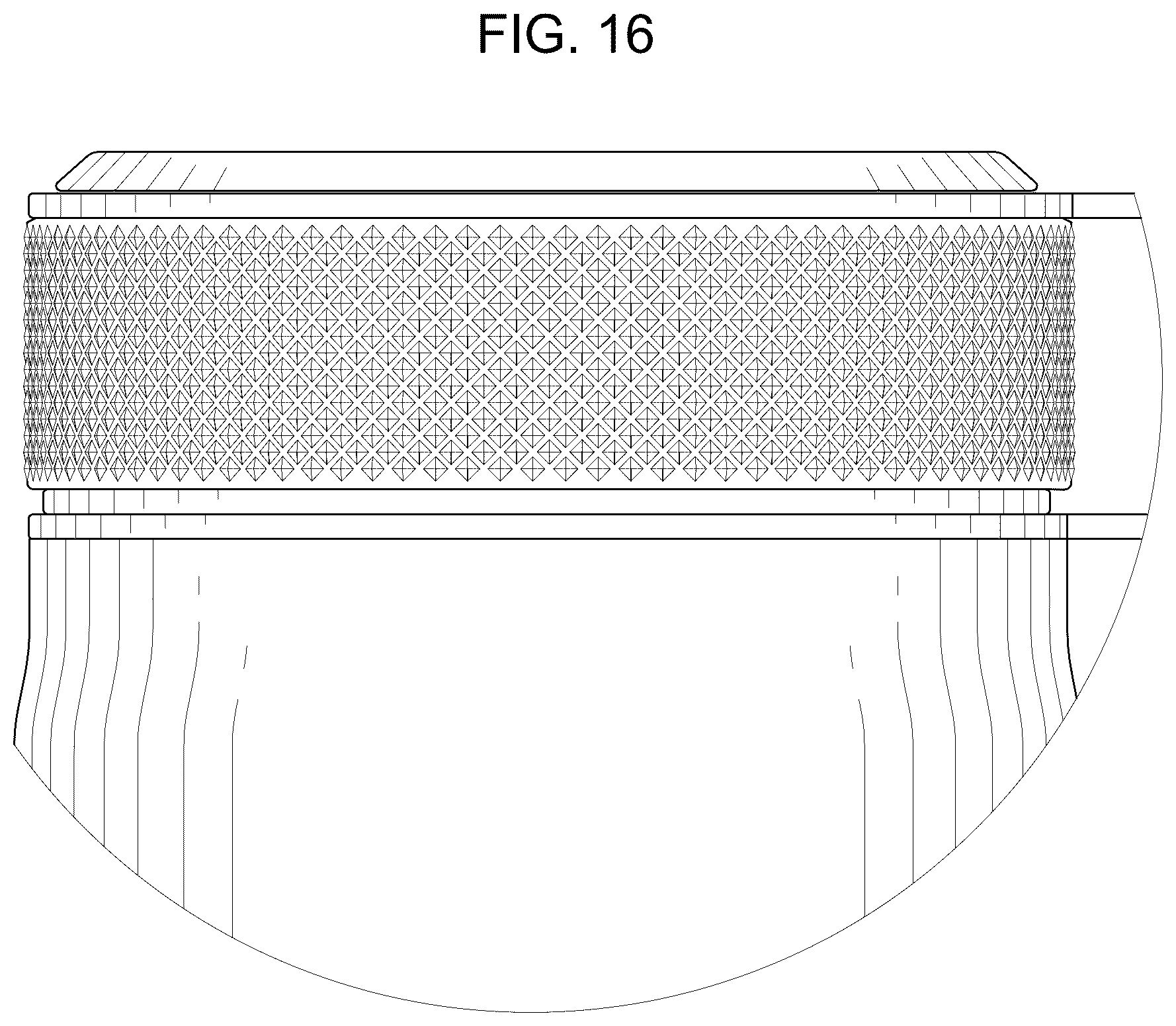

is a closeup, partial, side view thereof, showing knurling of the cap of the bottle.

The broken lines in , 4 , 6 , 7 , 9 , 12 , 14 , and 15 are for the sole purpose of showing portions of the bottle, and do not form a part of the claimed design.

Figures (12)

Patent USD1078385 Figure 1 – Bottle — Fig. 1

Patent USD1078385 Figure 2 – Bottle — Fig. 2

Patent USD1078385 Figure 3 – Bottle — Fig. 3

Patent USD1078385 Figure 4 – Bottle — Fig. 4

Patent USD1078385 Figure 5 – Bottle — Fig. 5

Patent USD1078385 Figure 6 – Bottle — Fig. 6

Patent USD1078385 Figure 7 – Bottle — Fig. 7

Patent USD1078385 Figure 8 – Bottle — Fig. 8

Patent USD1078385 Figure 9 – Bottle — Fig. 9

Patent USD1078385 Figure 10 – Bottle — Fig. 10

Patent USD1078385 Figure 11 – Bottle — Fig. 11

Patent USD1078385 Figure 12 – Bottle — Fig. 12
