Storage Rack

USD1078346No. D 1,078,346designGranted 6/10/2025
Patent USD1078346 — Storage rack — Figure 1
Fig. 1 · Storage Rack

Claims (1)

Claim 1 (Independent)

The ornamental design for a storage rack, as shown and described.

Full Description

Show full text →

is a perspective view of a storage rack, showing my new design;

is a front view thereof;

is a rear view thereof;

is a right side view thereof;

is a left side view thereof;

is a top view thereof; and,

is a bottom view thereof.

All the broken lines in the drawings depict portions of the storage rack that form no part of the claimed design.

Figures (4)

Fig. 4
Fig. 5

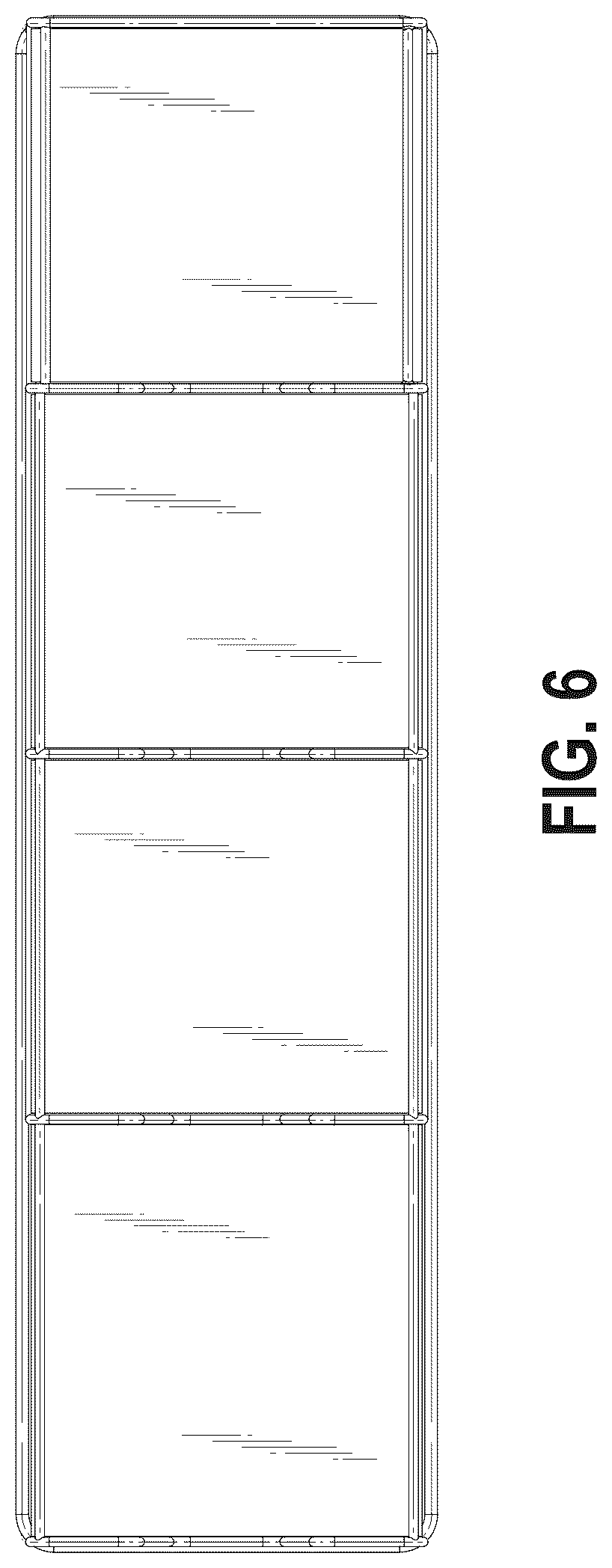

Fig. 6
Fig. 7
